Energy-chain control cableVDE 0285-525-2-51300/500 VClass 6 Drag-Chain

PVC Unscreened Drag Chain Control CableUnscreened Class 6 PVC control cable for linear energy chains

Cost-effective continuous-flex control cable built with IEC 60228 Class 6 superfine bare copper strands, low-stiction TI2 PVC core insulation, non-woven sliding fleece and oil-resistant TM5 PVC outer sheath for indoor cable carriers.

Oil-resistant
Flame-retardant
Anti-torsion braid
Approved
Order designation
PVC-FD-810 12G0.75
Outer Ø ≈
9.9 mm
Copper weight
86 kg/km
Total weight ≈
158 kg/km
Min. bend R (chain)
74 mm
Check against my drumAll sizes (19)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300/500 V
U0/U · UL/CSA 600 V AWM
Bend radius
7.5 × OD
moving in chain · 4 × OD fixed
Travel speed
3.0 m/s
gliding · up to 5.0 m/s free
Temperature
−5…+70 °C
flexing · −40…+80 °C fixed
Conductor class
IEC 60228 Cl. 6
superfine bare copper strands
Cycle life
5–8M cycles
in guided linear C-tracks

Typical values for this cable type, based on DIN VDE 0285-525-2-51 / UL AWM 2570 — confirmed in the datasheet and quotation for your order.

Application fit

Is PVC Unscreened Drag Chain Control Cable right for your machine?

Select this unscreened PVC drag-chain cable for indoor automation, packaging and handling axes without severe EMI or sub-zero flexing.

Energy chain / drag chain

Suitable

Short-pitch concentric/bundled Class 6 cores and fleece wrap support 5–8 million cycles at 7.5 × OD.

Fixed installation

Suitable

Flame-retardant IEC 60332-1-2 and oil-resistant TM5 PVC jacket allow direct installation on machine trays.

Festoon & line chain

Suitable

Suitable for indoor C-rail loop festoons on light cranes and automated warehouse shuttles.

VFD inverter to AC motor screened feeder

Not suitable

Unscreened numbered control cores lack EMC shielding required for PWM frequency-converter motor leads.

Use PVC Shielded Drag Chain Cable

Motorised monospiral reel

Not suitable

Lacks load-bearing aramid braid and rubber sheath needed for high-tension outdoor crane drums.

Use NSHTÖU Reeling Cable
Typical machinesIndoor Packaging & PalletisingAutomated Storage (AS/RS)Woodworking & Stone RoutersAssembly & Pick-and-Place LinesMachine-Tool Auxiliary Controls

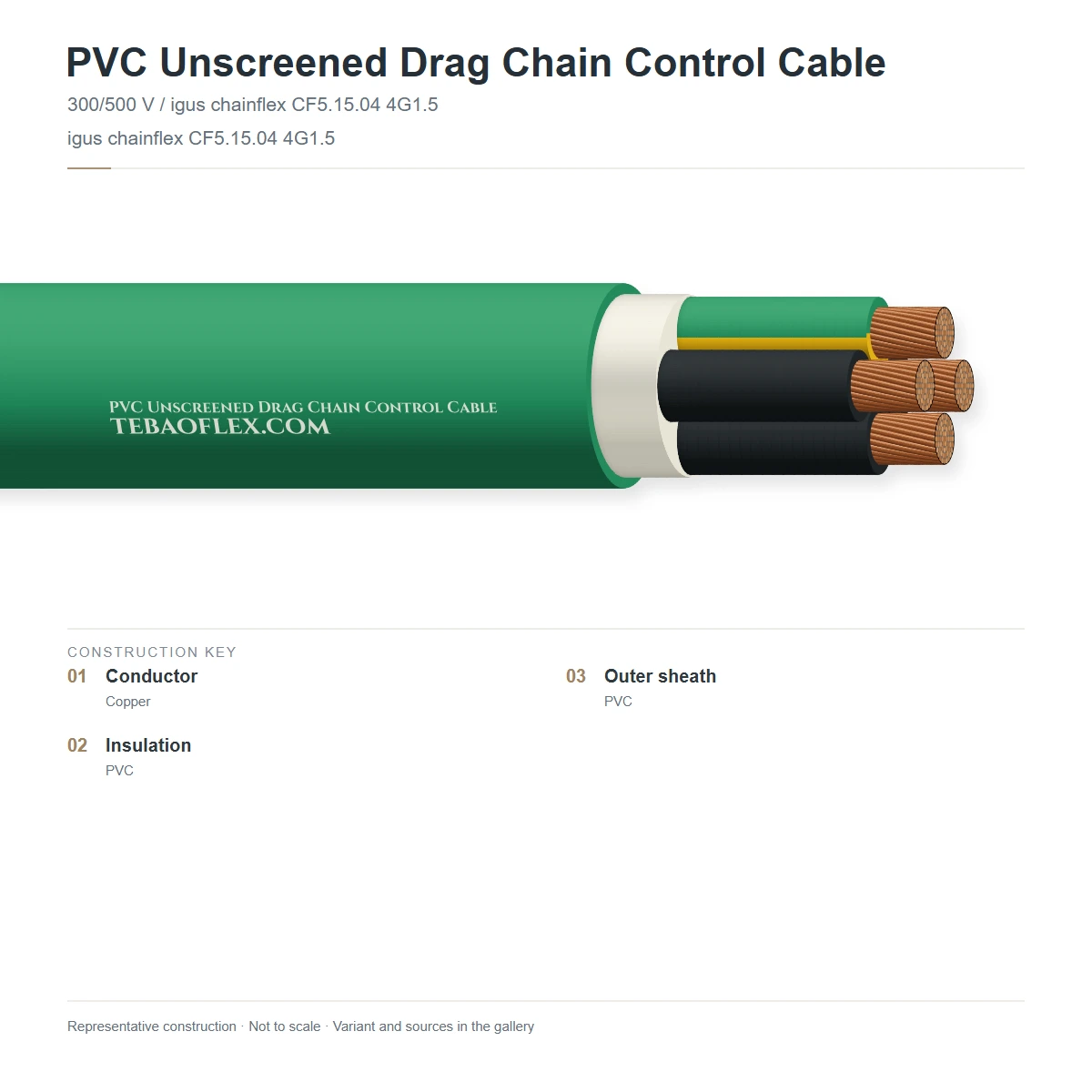

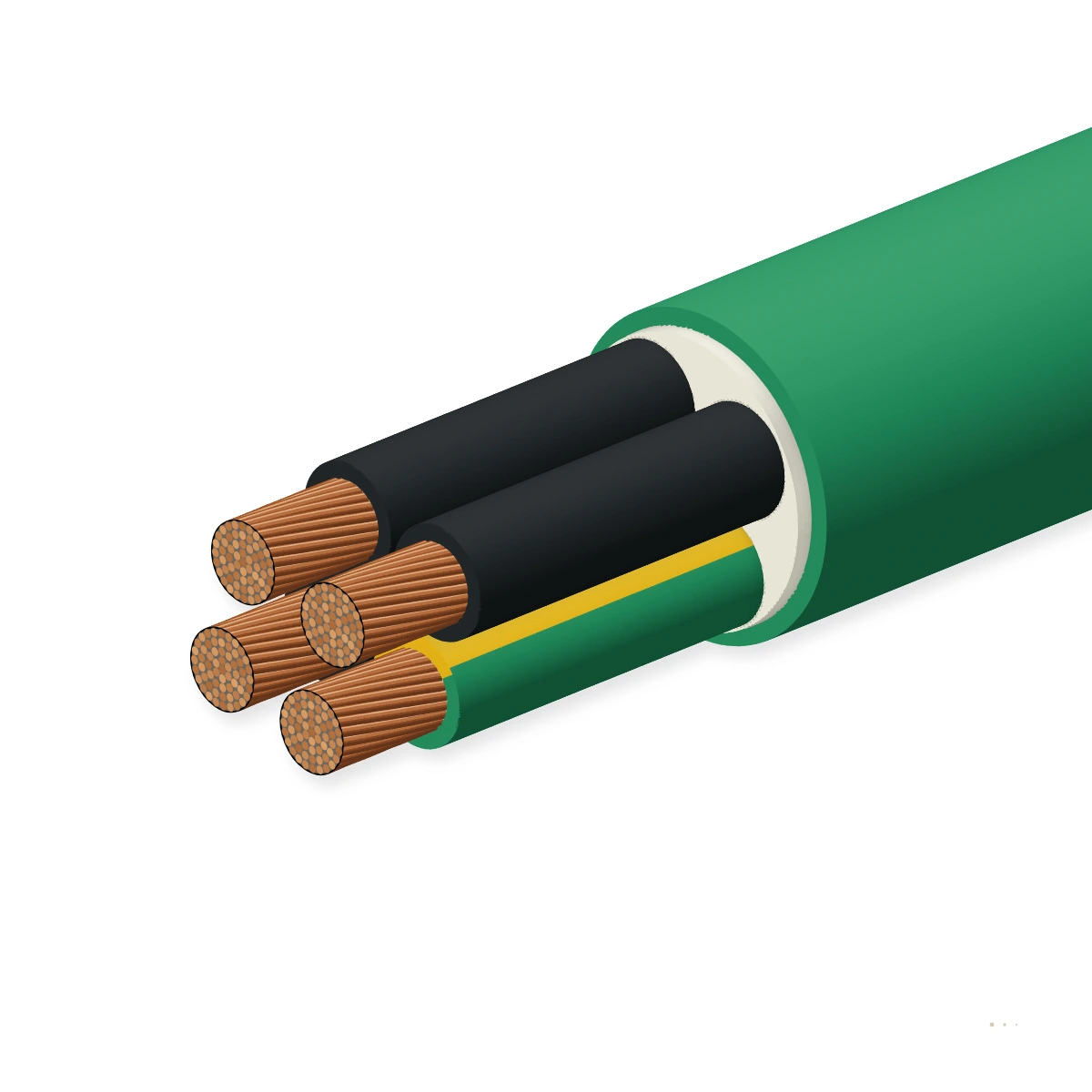

Construction

Layer by layer

Shown: 12G0.75 unscreened drag-chain control cable with black numbered PVC cores, green-yellow PE core, non-woven sliding wrap and silver-grey RAL 7001 PVC sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Superfine copper conductorBare copper, extra-fine wire strands (0.10–0.15 mm filaments)IEC 60228 Class 6
2Core insulationModified low-friction PVC compound (TI2)DIN EN 50363-3 · black numbered + GNYE
3Short-pitch core layConcentric layer stranding with low torsion pitch around central synthetic fillerMinimises radial core migration in tight bends
4Sliding separation wrapNon-woven synthetic fleece tape over laid-up core bundleDecouples core bundle from outer sheath shear
5Outer drag-chain sheathOil-resistant high-flex PVC compound (TM5), silver-grey RAL 7001DIN EN 50363-4-1 · flame retardant IEC 60332-1-2

G-version (with PE)

Includes green-yellow protective conductor (3G to 25G) plus white-numbered black cores per EN 50334

X-version (without PE)

All black cores with sequential white numbers (2X to 25X) for 24 V DC PLC digital I/O wiring

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0285-525-2-51 / UL AWM 2570. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V (UL/CSA 600 V)
AC test voltage
4000 V AC (50 Hz, 5 min)
Specific insulation resistance
> 20 GΩ·cm at 20 °C
Mutual capacitance (core/core)
Approx. 120 pF/m at 800 Hz
Inductance
Approx. 0.65 mH/km

Thermal

Temperature, flexing
−5 °C to +70 °C (UL +80 °C)
Temperature, fixed installation
−40 °C to +80 °C
Max. conductor temperature
+70 °C (+80 °C UL AWM)
Short-circuit temperature
+160 °C (max. 5 s)

Mechanical

Min. bending radius, moving
7.5 × OD in energy chain
Min. bending radius, fixed
4 × OD
Max. travel speed
3 m/s gliding · 5 m/s unsupported
Max. acceleration
10 m/s²
Max. tensile load (dynamic)
15 N/mm² of total copper cross-section

Resistance

Oil resistance
DIN EN 50363-4-1 TM5 (mineral oils)
Flame retardance
IEC 60332-1-2 · UL VW-1 · CSA FT1
Halogen-free / Smoke density
Contains halogens (PVC); use PUR for LSZH
Silicone & paint-wetting (LABS)
Free of silicone and LABS per VW PV 3.10.7

Reference standards

Cable type (construction standard)
Based on DIN EN 50525-2-51 / VDE 0285
Conductor
IEC 60228 / DIN EN 60228 Class 6
Product approvals
UL AWM Style 2570 / 20886 · CSA AWM I/II A/B
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Silver-grey (RAL 7001) or Black (RAL 9005)
Core identification
Black cores with white numbers + GNYE (EN 50334)
Marking
TEBAOFLEX PVC DRAG CHAIN CONTROL <size> 300/500V CE
Customs tariff (HS)
8544.49

Sizes

19 standard configurations (0.5 mm² to 2.5 mm²)

Typical dimensions and weights for unscreened Class 6 PVC drag-chain control cables. Custom core counts up to 61G available.

Dimensions & weights
Order designationCores × mm²Cross-sectionOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
chain mm		Enquiry
0.5 mm² control cores
PVC-FD-810 3G0.53G0.50.5 mm²5.3144040
PVC-FD-810 4G0.54G0.50.5 mm²5.7194843
PVC-FD-810 7G0.57G0.50.5 mm²6.9347452
PVC-FD-810 12G0.512G0.50.5 mm²8.95812167
PVC-FD-810 18G0.518G0.50.5 mm²10.68617480
PVC-FD-810 25G0.525G0.50.5 mm²12.812024496
0.75 mm² control cores
PVC-FD-810 3G0.753G0.750.75 mm²5.8225144
PVC-FD-810 4G0.754G0.750.75 mm²6.3296247
PVC-FD-810 7G0.757G0.750.75 mm²7.6509657
PVC-FD-810 12G0.7512G0.750.75 mm²9.98615874
PVC-FD-810 18G0.7518G0.750.75 mm²11.813022888
PVC-FD-810 25G0.7525G0.750.75 mm²14.3180322107
1.0 mm² control cores
PVC-FD-810 4G1.04G1.01.0 mm²6.8387651
PVC-FD-810 7G1.07G1.01.0 mm²8.26711861
PVC-FD-810 12G1.012G1.01.0 mm²10.711519580
1.5 mm² control & power cores
PVC-FD-810 4G1.54G1.51.5 mm²7.75810258
PVC-FD-810 7G1.57G1.51.5 mm²9.510116571
PVC-FD-810 12G1.512G1.51.5 mm²12.417327293
2.5 mm² power cores
PVC-FD-810 4G2.54G2.52.5 mm²9.39615670
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Minimum dynamic bending radius in energy chains is 7.5 × OD for travel lengths up to 10 m.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 100 mm is below 148 mmUse a larger drum core or a smaller cable size
120 m/min ≤ 180 m/minWithin the rated travel speed
Minimum bending radius
74 mm
Min. drum core diameter
≈ 148 mm
Cable weight on drum
2.4 kg
Copper content
1.3 kg
Indicative only: based on the datasheet outer diameter and 7.5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC high-voltage dielectric test4000 V AC for 5 minutes without breakdownEvery manufactured length
Conductor DC resistance checkComplies with IEC 60228 Class 6 maximum at 20 °CEvery drum length
Sample tests
Reversed bending carrier endurance≥ 5 million double strokes at 7.5 × OD without core breakQualification & periodic audit
Vertical flame propagationSelf-extinguishing within 60 s per IEC 60332-1-2 & UL VW-1Type test

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CE (2014/35/EU Low Voltage Directive)UL AWM Style 2570 / 20886 (80 °C 600 V)RoHS 2 (2011/65/EU) & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX PVC-FD-810 <cores> 300/500V IEC 60228 CL6 CE
Delivery form
Non-returnable fumigated wooden drums or coils
Standard lengths
100 m · 500 m · 1000 m (cut lengths on request)
MOQ
100 m (stock sizes) · 300 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFPVC Unscreened Drag Chain Control Cable – technical datasheet19 sizes · construction, technical data, approvalsXLSXPVC Unscreened Drag Chain Control Cable spec data (Excel)All 19 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
