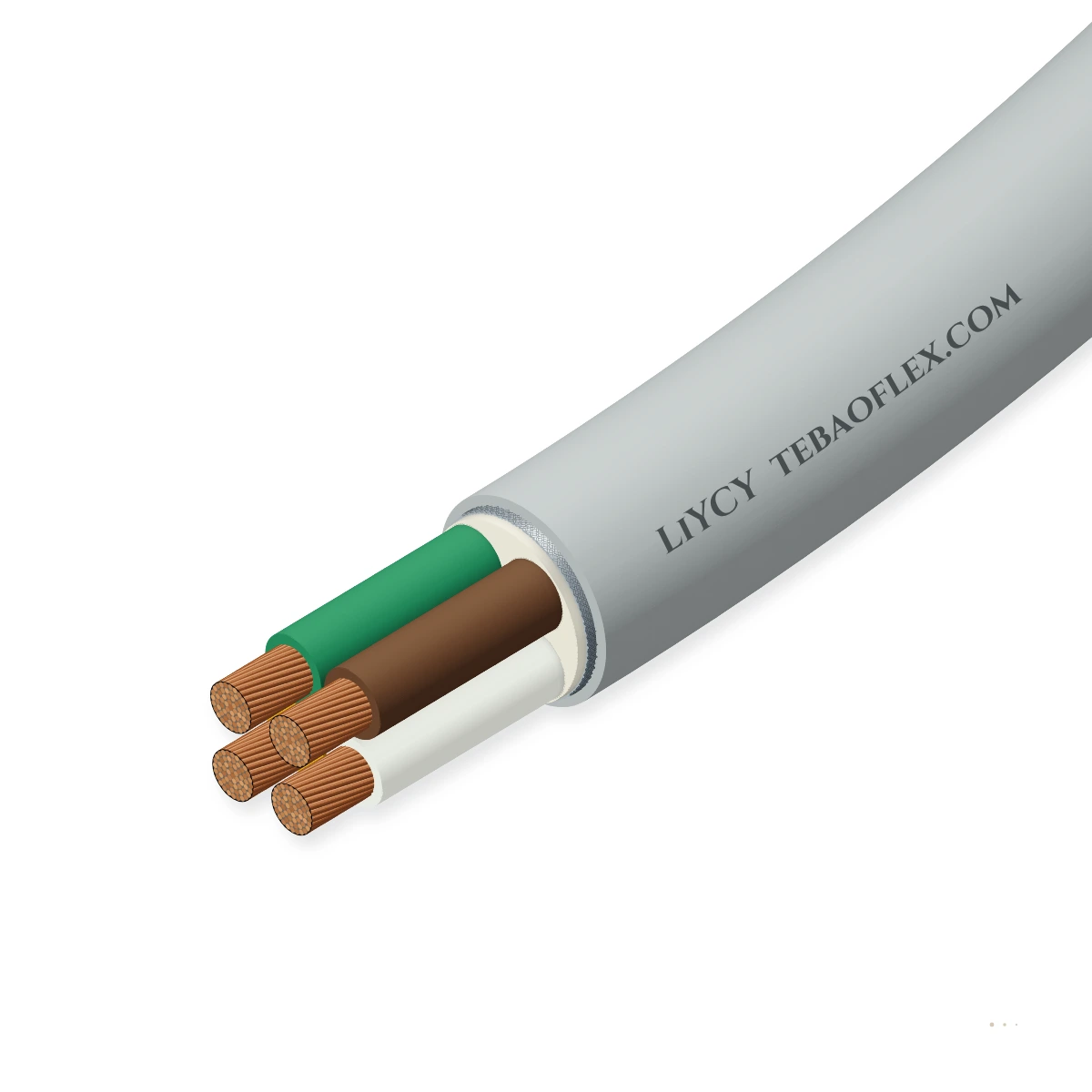

LiYCY Screened Signal CableDIN VDE 0812 tinned-copper braid screened DIN 47100 PVC electronic signal cable

EMC-screened flexible electronic signal and low-frequency data cable to DIN VDE 0812 with fine-stranded bare copper conductors (0.14–1.5 mm²), DIN 47100 colour-coded YI2 PVC cores, PET tape, ≥80 % tinned-copper wire braid screen and grey YM2 PVC outer sheath.

Flame-retardant
Oil-resistant
Approved
Order designation
LiYCY 7×0.25
Outer Ø min
5.2 mm
Outer Ø max
5.7 mm
Weight ≈
56 kg/km
Min. bend R
34 mm
Check against my drumAll sizes (22)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Peak voltage
350 / 500 V
0.14 mm²: 350 V · ≥0.25 mm²: 500 V
EMC screen
≥ 80 % CuSn
Tinned-copper wire braid over PET tape
Temp. flexing
−5…+70 °C
−30…+80 °C fixed installation
Bending radius
6–15 × OD
6 × OD fixed · 15 × OD flexing
Core colours
DIN 47100
Distinct colour & ring code (no GN/YE)
Size range
0.14–1.5 mm²
2 to 50 cores · fine-stranded Cu

Typical values for this cable type, based on DIN VDE 0812 / DIN 47100 — confirmed in the datasheet and quotation for your order.

Application fit

Is LiYCY right for your machine?

LiYCY is the industry-standard EMC-shielded multicore signal cable for analog 4–20 mA / 0–10 V transducers, encoders, load cells, RS-232 serial links and PLC I/O routed alongside power and motor circuits.

Fixed installation

Suitable

EMC-protected sensor, encoder, scale and PLC analog/digital I/O wiring in cabinets and machine frames.

VFD inverter to AC motor screened feeder

Suitable

High-coverage tinned-copper braid screen suppresses capacitive and inductive interference near VFD drives.

Trailing & towing

With conditions

Suitable for occasional free-hanging movement without tensile load.

Use JZ-602-C-PUR

Energy chain / drag chain

Not suitable

For differential pair signals with crosstalk immunity, select twisted-pair LiYCY (TP).

Use LiYCY (TP)
Typical machinesPLC analog & digital I/O marshallingLoad cells, scales & process transmittersRotary encoders & position sensorsCNC machine tool & robotics signal linksLaboratory, medical & test instrumentation

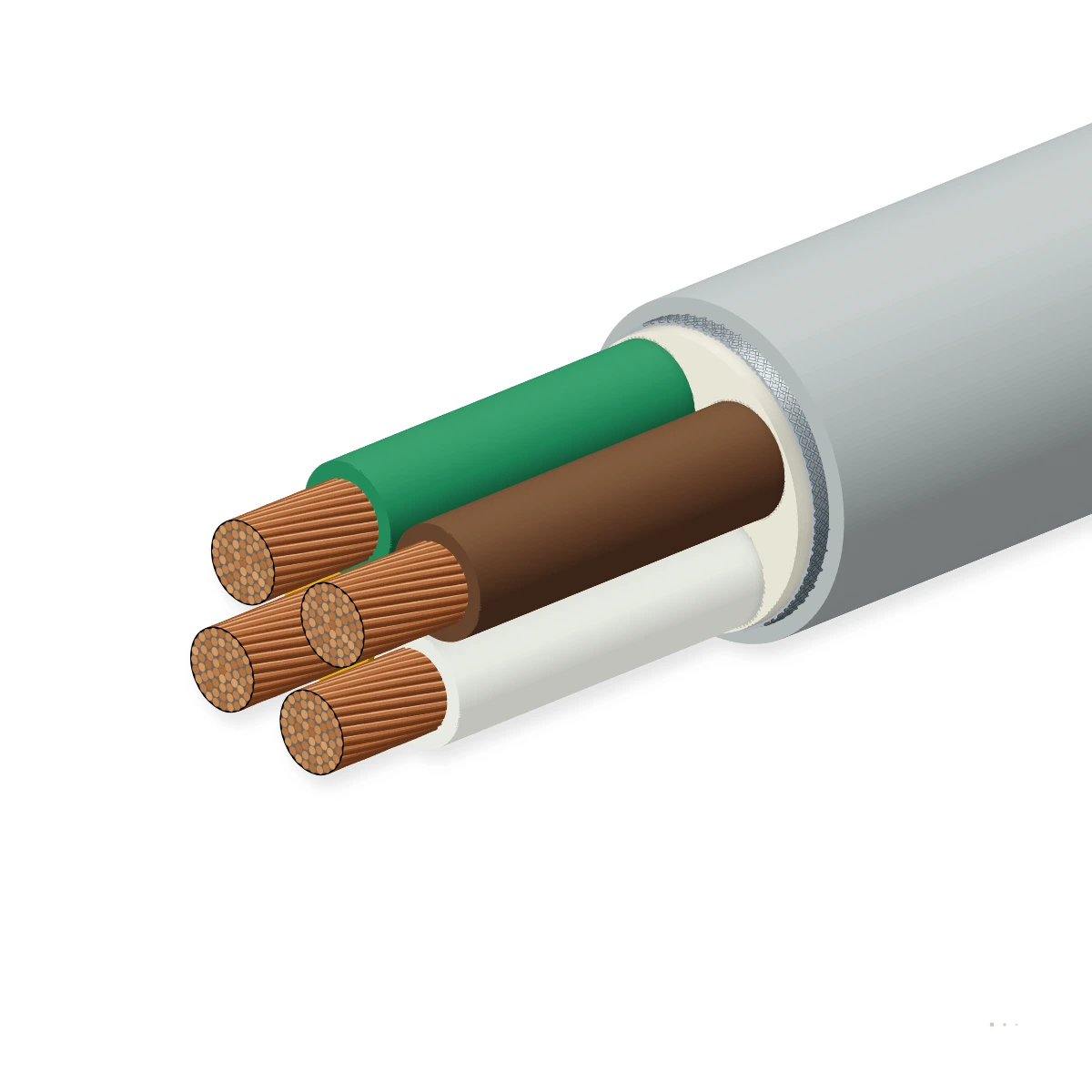

Construction

Layer by layer

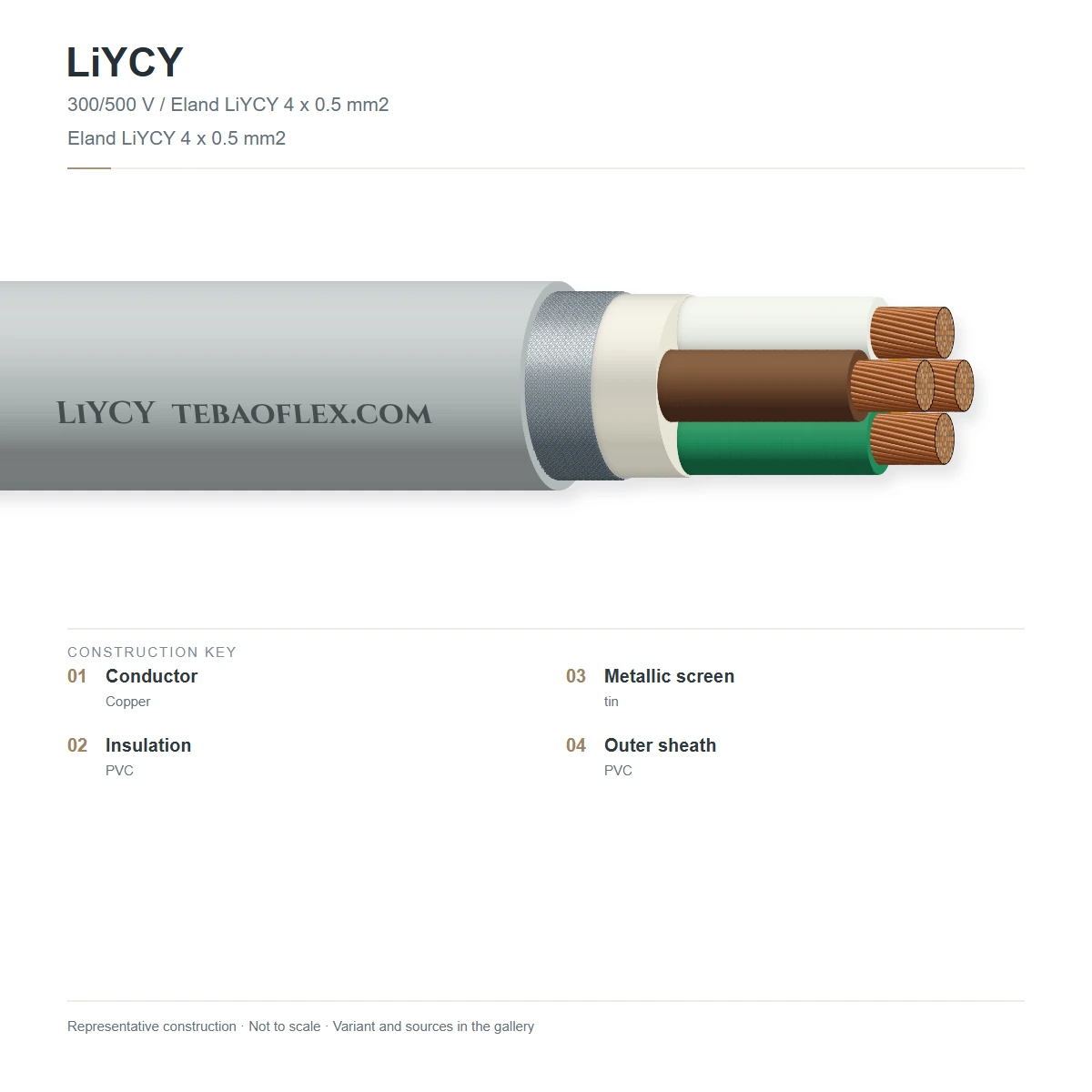

Shown: LiYCY 7×0.25 — fine-stranded bare copper conductors, thin-wall YI2 PVC core insulation (DIN 47100 colours), polyester wrapping tape, tinned-copper wire braid screen (≥ 80 % optical coverage) and pebble-grey RAL 7032 YM2 PVC outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Fine-stranded copper conductorAnnealed bare copper strands to DIN VDE 0812 / IEC 60228 Class 5 (0.14 mm²: 18×0.10 mm)DIN VDE 0812 / IEC 60228
2Thin-wall PVC core insulationSemi-rigid PVC compound Type YI2 (DIN VDE 0207-4) colour-coded to DIN 47100DIN VDE 0207-4 YI2 · DIN 47100
3Polyester wrapping tapeOverlapped PET foil separator over the stranded core bundleDIN VDE 0812
4Tinned-copper braid screen (C)Close-woven tinned annealed copper wire braid with ≥ 80 % optical coverage for low transfer impedanceDIN VDE 0812 · EN 55011 EMC
5PVC outer sheathFlame-retardant polyvinyl chloride compound Type YM2, pebble-grey RAL 7032DIN VDE 0207-5 YM2 · IEC 60332-1-2

LiYCY 0.14–0.34 mm² (350/500 V peak)

Compact EMC-screened sensor, encoder and D-Sub data cables from 2 to 50 cores

LiYCY 0.5–1.5 mm² (500 V peak)

Screened analog/digital instrumentation and control signal cables from 2 to 25 cores

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0812 / DIN 47100. Values for your order are confirmed in the datasheet and quotation.

Electrical

Peak operating voltage
350 V (0.14 mm²) · 500 V (≥ 0.25 mm²) — not for heavy power mains
AC test voltage (50 Hz)
1200 V (0.14 mm²) · 1500 V (≥ 0.25 mm²) core/core & core/screen
Mutual capacitance (800 Hz)
Approx. 120 nF/km (core/core) · approx. 160 nF/km (core/screen)
Transfer impedance (30 MHz)
≤ 250 mΩ/m via ≥ 80 % tinned-copper braid
Insulation resistance
≥ 200 MΩ·km at +20 °C

Thermal

Temperature, flexing
−5 °C to +70 °C
Temperature, fixed
−30 °C to +80 °C
Max. conductor temperature
+70 °C in motion · +80 °C fixed
Short-circuit temperature
+150 °C max.

Mechanical

Min. bending radius, fixed
6 × overall diameter
Min. bending radius, flexing
15 × overall diameter
Screen coverage
≥ 80 % optical coverage tinned-copper wire braid
Conductor stranding
0.14 mm²: 18×0.10 mm · 0.25 mm²: 14×0.15 mm · ≥0.5 mm²: IEC 60228 Cl. 5

Resistance

Flame retardance
IEC 60332-1-2 / EN 60332-1-2 self-extinguishing · CPR Eca
EMC compliance
Supports EN 55011 / CISPR 11 & EN 61000-6-2 industrial immunity
Halogen-free alternative
Specify LiHCH for screened low-smoke zero-halogen (LSZH) installations

Reference standards

Construction basis
DIN VDE 0812
Core colour code
DIN 47100 (without green-yellow earth core)
Compounds
DIN VDE 0207-4 Type YI2 (core) & DIN VDE 0207-5 Type YM2 (sheath)
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Pebble-grey (RAL 7032)
Core identification
DIN 47100 colour & bi-colour ring code
Sheath marking
TEBAOFLEX LiYCY [Size] DIN VDE 0812 / DIN 47100 EMC SCREENED CE
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

22 standard LiYCY configurations

Typical DIN VDE 0812 / DIN 47100 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
0.14 mm² Screened Signal Configurations (350 V peak)
LiYCY 2×0.142×0.14263.63.9122123
LiYCY 4×0.144×0.14264.04.3162926
LiYCY 8×0.148×0.14265.25.6264934
LiYCY 12×0.1412×0.14265.86.3346638
0.25 mm² Screened Signal Configurations (500 V peak)
LiYCY 2×0.252×0.25244.14.5162827
LiYCY 4×0.254×0.25244.65.0223930
LiYCY 7×0.257×0.25245.25.7325634
LiYCY 12×0.2512×0.25246.67.2519243
LiYCY 25×0.2525×0.25249.410.29817861
0.34 mm² Screened Signal Configurations (500 V peak)
LiYCY 2×0.342×0.34224.54.9193429
LiYCY 4×0.344×0.34225.15.5284733
LiYCY 8×0.348×0.34226.47.0478242
LiYCY 12×0.3412×0.34227.48.06611648
0.50 mm² Screened Signal Configurations (500 V peak)
LiYCY 2×0.52×0.5204.95.3244032
LiYCY 4×0.54×0.5205.56.0365836
LiYCY 7×0.57×0.5206.67.2569143
LiYCY 12×0.512×0.5208.69.38915256
0.75–1.5 mm² Screened Signal & Control Configurations
LiYCY 2×0.752×0.75185.35.8304935
LiYCY 4×0.754×0.75186.16.6477640
LiYCY 7×0.757×0.75187.48.07712148
LiYCY 4×1.04×1.0176.57.1599243
LiYCY 4×1.54×1.5167.48.08212448
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per DIN VDE 0812 / DIN 47100. Minimum fixed bending radius shown is 6 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 68 mmBending radius OK (6 × OD 5.7 mm)
Minimum bending radius
34 mm
Min. drum core diameter
≈ 68 mm
Cable weight on drum
2.8 kg
Copper content
1.6 kg
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test1.5 kV AC (50 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / DIN VDE 0812 / DIN 47100 (bare copper)Every manufactured length
Sample tests
Vertical flame propagationIEC 60332-1-2 / EN 60332-1-2Per production batch
Insulation & sheath material physical propertiesDIN VDE 0812 / DIN 47100Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0812 / DIN 47100CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX LiYCY [Size] DIN VDE 0812 / DIN 47100 CE
Delivery form
Export wooden drums or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options
Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFLiYCY Screened Signal Cable – technical datasheet22 sizes · construction, technical data, approvalsXLSXLiYCY spec data (Excel)All 22 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
