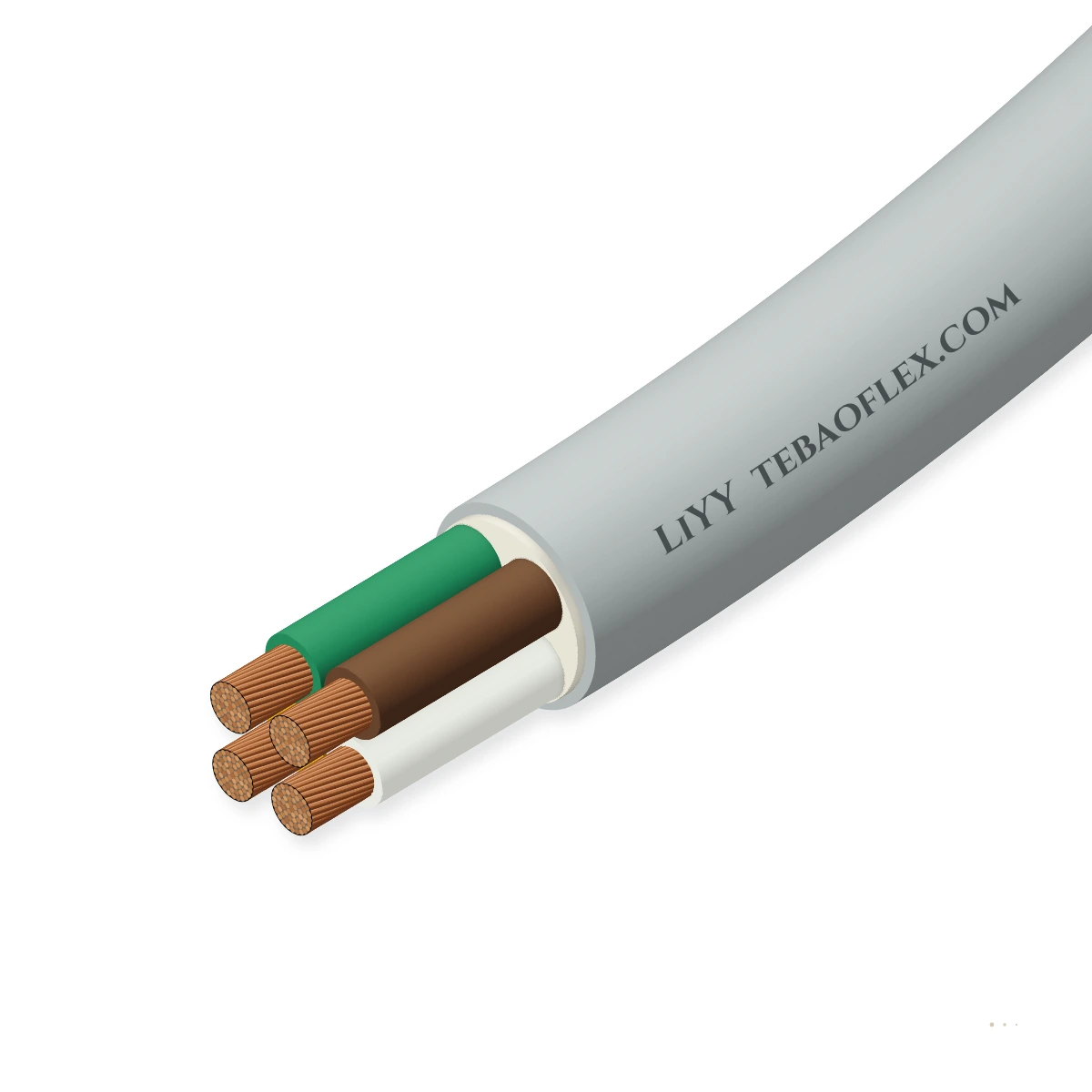

LiYY Multicore Signal CableDIN VDE 0812 unscreened DIN 47100 colour-coded PVC electronic data & signal cable

Compact flexible electronic signal and low-frequency data cable built to DIN VDE 0812 with fine-stranded bare copper conductors (0.14–1.5 mm²), thin-wall YI2 PVC core insulation colour-coded to DIN 47100 and a pebble-grey YM2 PVC outer sheath.

Flame-retardant

Oil-resistant

Approved

Cores × cross-section

Order designation: LiYY 7×0.25
Outer Ø min: 4.7 mm
Outer Ø max: 5.1 mm
Weight ≈: 44 kg/km
Min. bend R: 20 mm

Check against my drum All sizes (22)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Peak voltage: 350 / 500 V
Test voltage: 1.2 / 1.5 kV
Temp. flexing: −5…+70 °C
Bending radius: 4–10 × OD
Core colours: DIN 47100
Size range: 0.14–1.5 mm²

Typical values for this cable type, based on DIN VDE 0812 / DIN 47100 — confirmed in the datasheet and quotation for your order.

Application fit

Is LiYY right for your machine?

LiYY is engineered for compact electronic control units, PLC digital/analog I/O, weighing scales, office machines and low-level instrumentation where small outer diameter and DIN 47100 colour identification are required without an EMC screen.

Fixed installation

Suitable

Internal rack wiring, PLC I/O marshalling, sensor leads, control consoles and measurement devices.

Trailing & towing

With conditions

Suitable for light, tension-free movement between instruments; not for heavy industrial floor drag.

Use JZ-500-PUR

VFD inverter to AC motor screened feeder

Not suitable

Unscreened signal cable; for noisy industrial environments, select tinned-copper screened LiYCY.

Use LiYCY Screened

Energy chain / drag chain

Not suitable

Not designed for continuous high-cycle drag chains.

Use JZ-500-PUR

Typical machinesElectronic control & measurement gearPLC I/O & sensor wiring harnessesWeighing, dosing & laboratory devicesAudio, intercom & access controlVending, medical & office machines

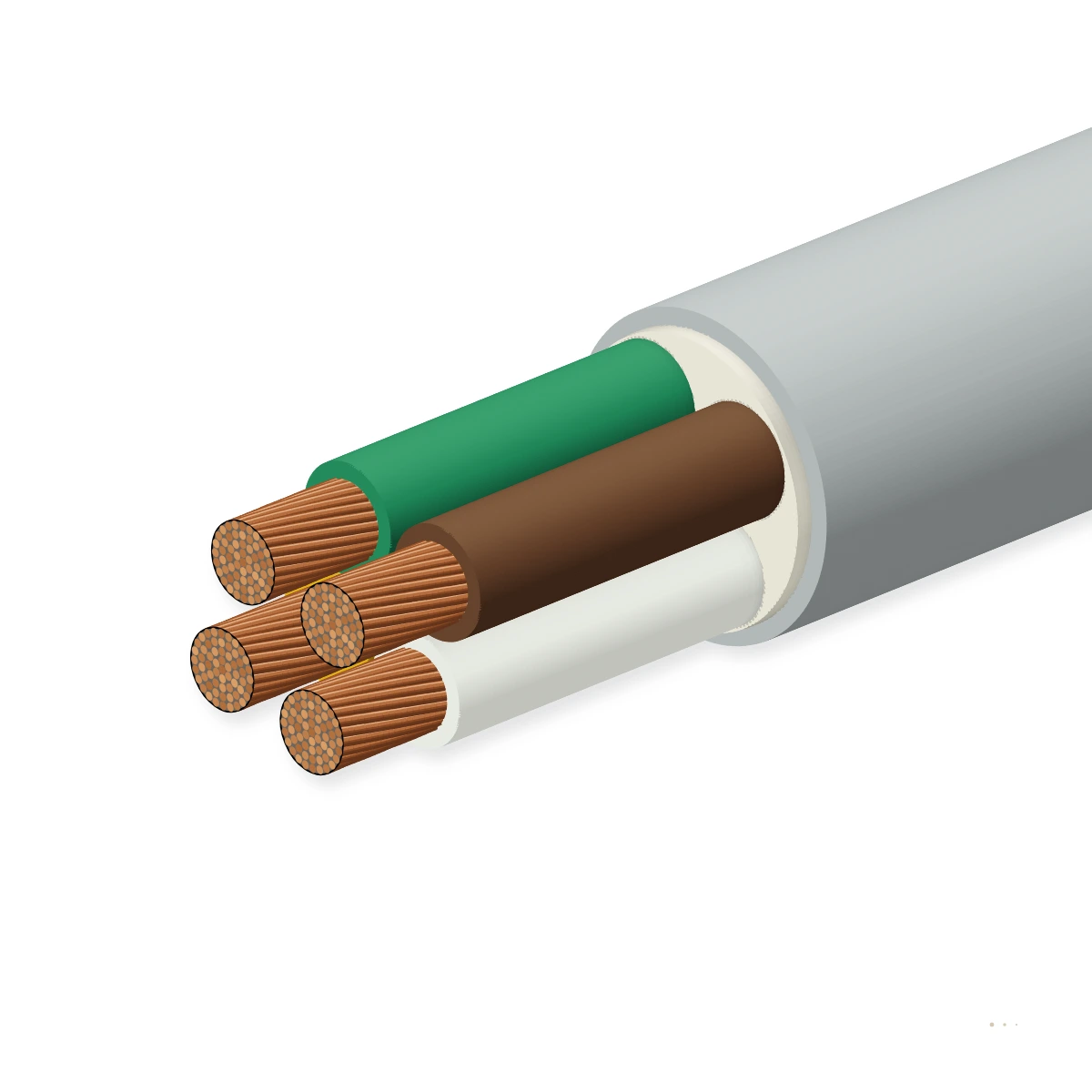

Construction

Layer by layer

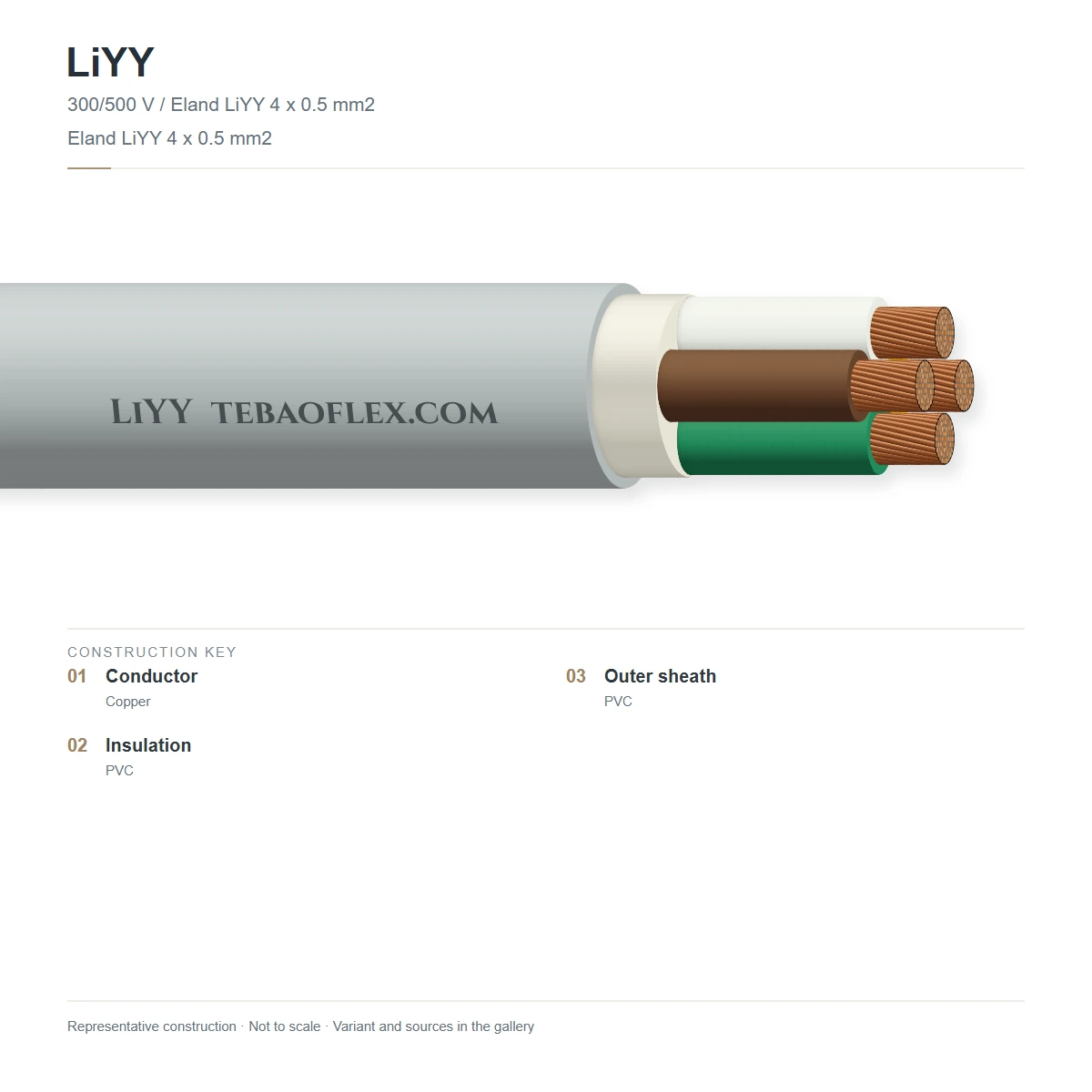

Shown: LiYY 8×0.25 — fine-stranded bare copper conductors, thin-wall YI2 PVC core insulation colour-coded to DIN 47100 (white, brown, green, yellow, grey, pink, blue, red) and pebble-grey RAL 7032 YM2 PVC outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Fine-stranded copper conductor	Annealed bare copper strands to DIN VDE 0812 / IEC 60228 Class 5 (0.14 mm²: 18×0.10 mm)DIN VDE 0812 / IEC 60228
2	Thin-wall PVC core insulation	Semi-rigid polyvinyl chloride compound Type YI2 (DIN VDE 0207-4) for small core diameterDIN VDE 0207-4 YI2 · DIN 47100
3	Short-lay core stranding	Cores stranded in concentric layers with polyester wrapping tape on higher core countsDIN VDE 0812
4	PVC outer sheath	Flame-retardant polyvinyl chloride compound Type YM2, pebble-grey RAL 7032DIN VDE 0207-5 YM2 · IEC 60332-1-2

LiYY 0.14–0.34 mm² (350/500 V peak)

Ultra-compact signal and sensor cables from 2 to 50 cores with DIN 47100 colour coding

LiYY 0.5–1.5 mm² (500 V peak)

Higher-current electronic control and actuator signal cables from 2 to 25 cores

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0812 / DIN 47100. Values for your order are confirmed in the datasheet and quotation.

Electrical

Peak operating voltage: 350 V (0.14 mm²) · 500 V (≥ 0.25 mm²) — not for heavy power mains
AC test voltage (50 Hz): 1200 V (0.14 mm²) · 1500 V (≥ 0.25 mm²)
Mutual capacitance (800 Hz): Approx. 120 nF/km (core/core)
Inductance: Approx. 0.65 mH/km
Insulation resistance: ≥ 200 MΩ·km at +20 °C

Thermal

Temperature, flexing: −5 °C to +70 °C
Temperature, fixed: −30 °C to +80 °C
Max. conductor temperature: +70 °C in motion · +80 °C fixed
Short-circuit temperature: +150 °C max.

Mechanical

Min. bending radius, fixed: 4 × overall diameter
Min. bending radius, flexing: 10 × overall diameter
Conductor stranding: 0.14 mm²: 18×0.10 mm · 0.25 mm²: 14×0.15 mm · ≥0.5 mm²: IEC 60228 Cl. 5
Compact profile: Semi-rigid YI2 core wall reduces overall cable diameter by ~25 % vs YY

Resistance

Flame retardance: IEC 60332-1-2 / EN 60332-1-2 self-extinguishing · CPR Eca
Oil & chemical note: Resistant to light oil splash in dry or damp indoor electronics enclosures
Halogen-free alternative: Specify LiHH for low-smoke zero-halogen (LSZH) public buildings

Reference standards

Construction basis: DIN VDE 0812
Core colour code: DIN 47100 (1: white, 2: brown, 3: green, 4: yellow, 5: grey, 6: pink…)
Compounds: DIN VDE 0207-4 Type YI2 (core) & DIN VDE 0207-5 Type YM2 (sheath)
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Pebble-grey (RAL 7032) or silver-grey (RAL 7001)
Core identification: DIN 47100 colour & bi-colour ring code without green-yellow earth
Sheath marking: TEBAOFLEX LiYY [Size] DIN VDE 0812 / DIN 47100 CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

22 standard LiYY configurations

Typical DIN VDE 0812 / DIN 47100 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
0.14 mm² (26 AWG) Signal Configurations (350 V peak)
LiYY 2×0.14	2×0.14	26	2.9	3.2	2	13	13
LiYY 4×0.14	4×0.14	26	3.5	3.8	5	21	15
LiYY 8×0.14	8×0.14	26	4.7	5.1	10	38	20
LiYY 12×0.14	12×0.14	26	5.2	5.6	16	52	22
0.25 mm² (24 AWG) Signal Configurations (500 V peak)
LiYY 2×0.25	2×0.25	24	3.5	3.8	4	18	15
LiYY 4×0.25	4×0.25	24	4.0	4.3	9	28	17
LiYY 7×0.25	7×0.25	24	4.7	5.1	16	44	20
LiYY 12×0.25	12×0.25	24	6.2	6.7	28	74	27
LiYY 25×0.25	25×0.25	24	8.7	9.5	60	146	38
0.34 mm² (22 AWG) Signal Configurations (500 V peak)
LiYY 2×0.34	2×0.34	22	3.9	4.2	6	22	17
LiYY 4×0.34	4×0.34	22	4.4	4.8	13	35	19
LiYY 8×0.34	8×0.34	22	5.9	6.4	26	66	26
LiYY 12×0.34	12×0.34	22	6.8	7.4	39	95	30
0.50 mm² (20 AWG) Signal Configurations (500 V peak)
LiYY 2×0.5	2×0.5	20	4.3	4.7	9	29	19
LiYY 4×0.5	4×0.5	20	5.0	5.4	19	46	22
LiYY 7×0.5	7×0.5	20	6.0	6.5	33	75	26
LiYY 12×0.5	12×0.5	20	8.0	8.7	57	128	35
0.75–1.5 mm² Signal & Low-Power Control Configurations
LiYY 4×0.75	4×0.75	18	5.5	6.0	28	63	24
LiYY 7×0.75	7×0.75	18	6.7	7.3	50	102	29
LiYY 12×0.75	12×0.75	18	8.8	9.6	86	168	38
LiYY 4×1.0	4×1.0	17	5.9	6.4	38	77	26
LiYY 4×1.5	4×1.5	16	6.6	7.2	57	104	29

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per DIN VDE 0812 / DIN 47100. Minimum fixed bending radius shown is 4 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	Single pair/core 30 °C, A	Multi-core bundle 30 °C, A
0.14	26	138	2.0	1.5
0.25	24	79	4.0	3.0
0.34	22	57	5.0	4.0
0.5	20	39	9.0	6.0
0.75	18	26	12.0	10.0
1	17	19.5	15.0	13.0
1.5	16	13.3	23.0	18.0

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / DIN VDE 0891-1. Apply grouping derating factors for multi-core control and signal bundles.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 40 mmBending radius OK (4 × OD 5.1 mm)

Minimum bending radius: 20 mm
Min. drum core diameter: ≈ 40 mm
Cable weight on drum: 2.2 kg
Copper content: 0.8 kg

Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	1.5 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 / DIN VDE 0812 / DIN 47100 (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath material physical properties	DIN VDE 0812 / DIN 47100	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0812 / DIN 47100CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX LiYY [Size] DIN VDE 0812 / DIN 47100 CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFLiYY Multicore Signal Cable – technical datasheet22 sizes · construction, technical data, approvals XLSXLiYY spec data (Excel)All 22 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
