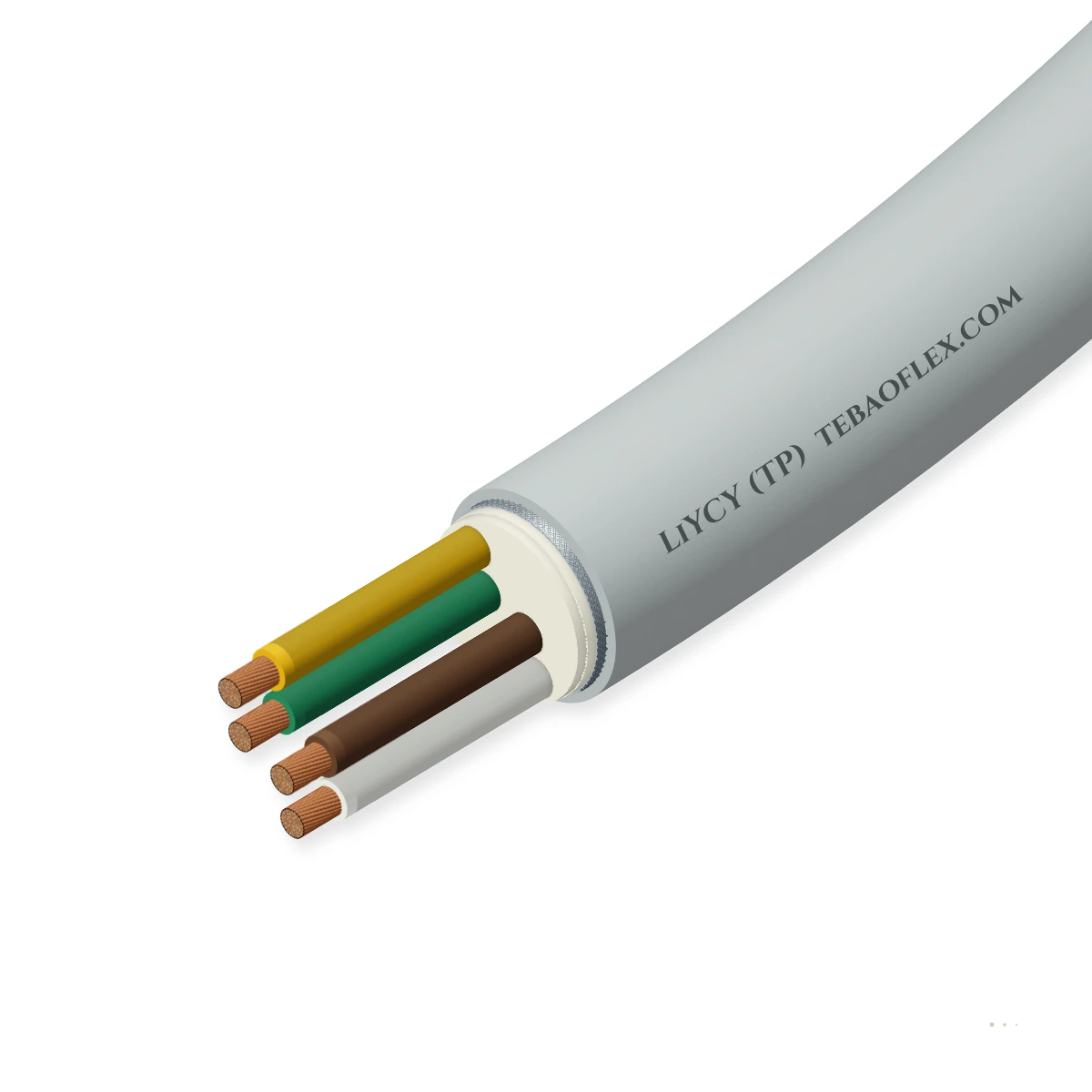

LiYCY (TP) Screened Twisted-Pair CableDIN VDE 0812 tinned-copper braid screened twisted-pair PVC electronic signal cable

Twisted-pair EMC-screened electronic data and signal cable to DIN VDE 0812 (`n × 2 × mm²`). Balanced pair lay lengths decouple adjacent differential channels while the ≥80 % tinned-copper wire braid blocks external interference.

Flame-retardant

Oil-resistant

Approved

Cores × cross-section

Order designation: LiYCY (TP) 4×2×0.25
Outer Ø min: 6.2 mm
Outer Ø max: 6.7 mm
Weight ≈: 64 kg/km
Min. bend R: 40 mm

Check against my drum All sizes (21)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Peak voltage: 350 / 500 V
Core geometry: Twisted pairs
EMC screen: ≥ 80 % CuSn
Temp. flexing: −5…+70 °C
Bending radius: 6–15 × OD
Size range: 0.14–1.0 mm²

Typical values for this cable type, based on DIN VDE 0812 / DIN 47100 — confirmed in the datasheet and quotation for your order.

Application fit

Is LiYCY (TP) right for your machine?

LiYCY (TP) combines balanced twisted-pair geometry for internal near-end crosstalk (NEXT) cancellation with an overall tinned-copper braid screen for differential encoders, strain-gauge bridges, 4–20 mA loops and industrial serial telemetry.

Fixed installation

Suitable

Differential encoder channels (A/Ā, B/B̄, Z/Z̄), strain-gauge load cells and multi-pair analog instrumentation.

VFD inverter to AC motor screened feeder

Suitable

Twisted pairs reject common-mode magnetic coupling while the ≥80 % tinned-Cu braid shunts high-frequency VFD noise.

Trailing & towing

With conditions

Suitable for light, tension-free movement between instruments and racks.

Use Li2YCY (TP) PE

Energy chain / drag chain

Not suitable

For high-baudrate RS-485/RS-422 bus runs requiring ≤55 nF/km capacitance, select PE-insulated Li2YCY (TP).

Use Li2YCY (TP)

Typical machinesIncremental & SSI encoder feedbackStrain-gauge load cells & weighing bridgesMulti-channel 4–20 mA / 0–10 V analog I/ORS-422 / RS-232 industrial serial linksTest benches & automated inspection cells

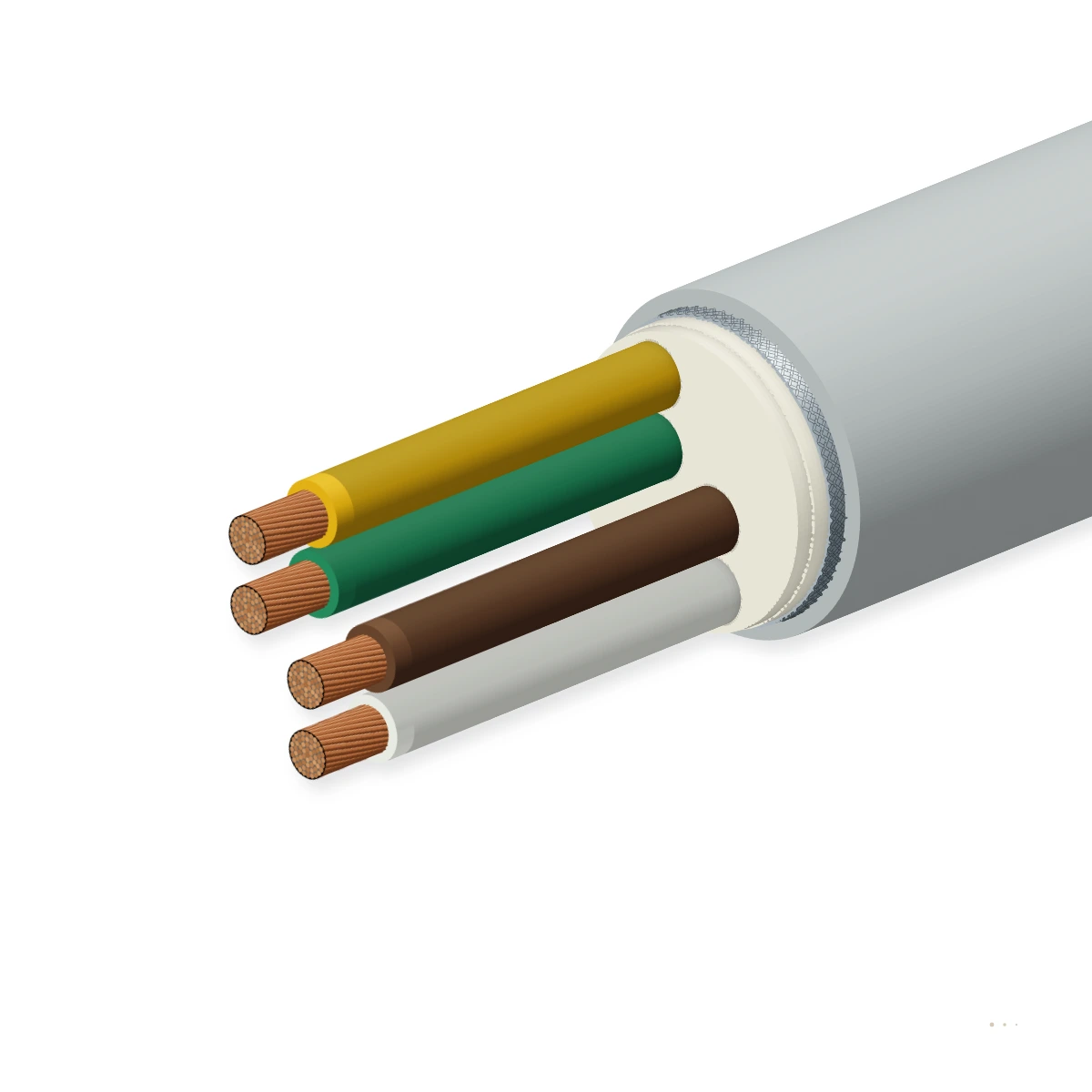

Construction

Layer by layer

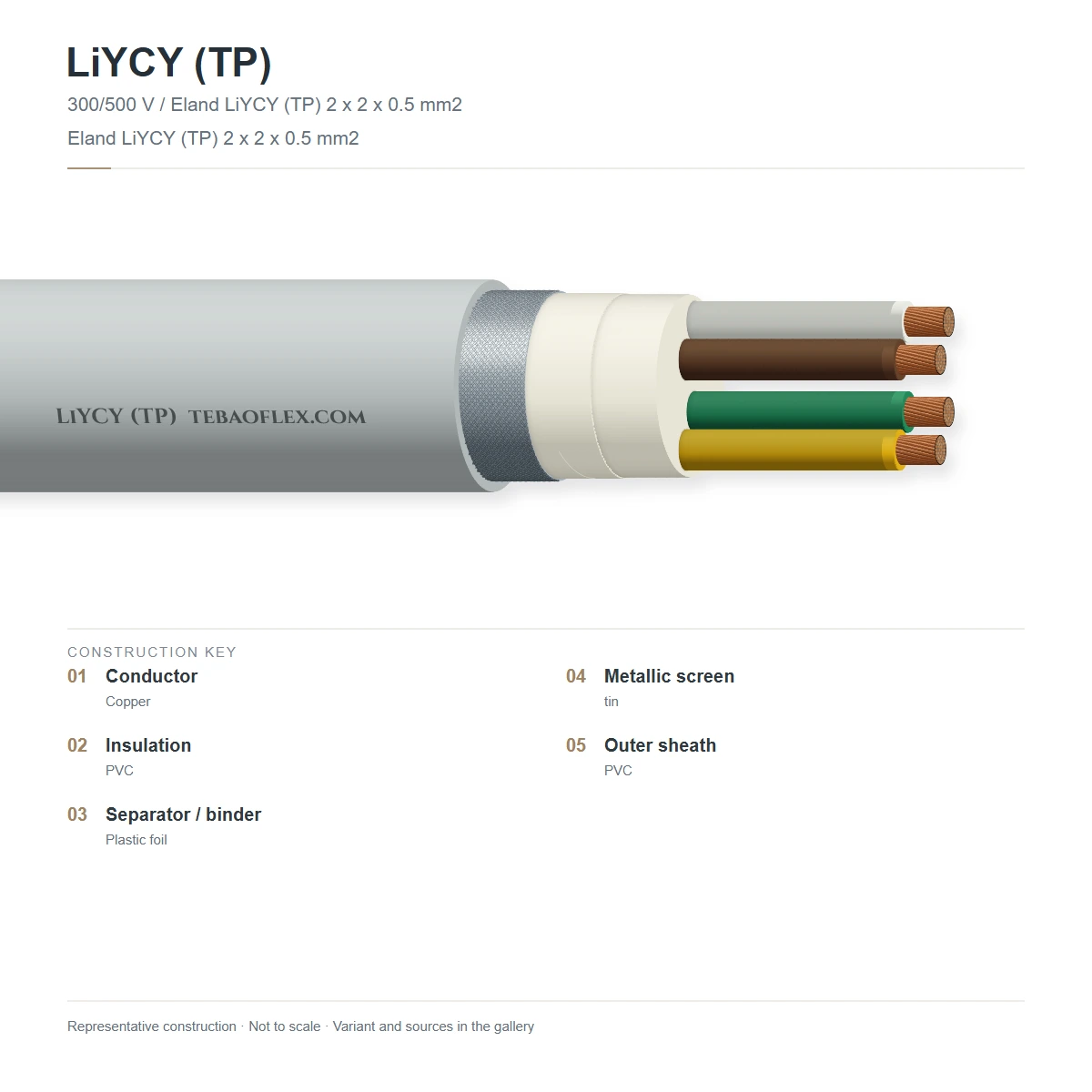

Shown: LiYCY (TP) 4×2×0.25 — fine-stranded bare copper conductors, thin-wall YI2 PVC cores twisted into 4 balanced pairs (DIN 47100 pair colours), PET separator tape, ≥80 % tinned-copper braid screen and pebble-grey RAL 7032 YM2 PVC outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Fine-stranded copper conductor	Annealed bare copper strands to DIN VDE 0812 / IEC 60228 Class 5DIN VDE 0812 / IEC 60228
2	Thin-wall PVC core insulation	Semi-rigid PVC compound Type YI2 (DIN VDE 0207-4), pair colour-coded to DIN 47100DIN VDE 0207-4 YI2 · DIN 47100
3	Twisted-pair stranding (TP)	Insulated cores twisted into balanced pairs with short lay length and stranded in concentric layersDIN VDE 0812
4	PET tape + tinned-copper braid (C)	Overlapped polyester tape plus ≥ 80 % optical coverage tinned-copper wire braid screenDIN VDE 0812 · EN 55011 EMC
5	PVC outer sheath	Flame-retardant polyvinyl chloride compound Type YM2, pebble-grey RAL 7032DIN VDE 0207-5 YM2 · IEC 60332-1-2

LiYCY (TP) 0.14–0.25 mm² (2×2 to 25×2)

High-density twisted-pair encoder, load-cell and serial interface cables

LiYCY (TP) 0.34–1.0 mm² (2×2 to 16×2)

Low-drop twisted-pair analog 4–20 mA, valve feedback and process telemetry cables

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0812 / DIN 47100. Values for your order are confirmed in the datasheet and quotation.

Electrical

Peak operating voltage: 350 V (0.14 mm²) · 500 V (≥ 0.25 mm²)
AC test voltage (50 Hz): 1200 V (0.14 mm²) · 1500 V (≥ 0.25 mm²) core/core & core/screen
Mutual capacitance (800 Hz): Approx. 120 nF/km (core/core) · approx. 160 nF/km (core/screen)
Near-end crosstalk (NEXT): ≥ 50 dB attenuation at 100 kHz via balanced pair lay
Inductance: Approx. 0.65 mH/km
Insulation resistance: ≥ 200 MΩ·km at +20 °C

Thermal

Temperature, flexing: −5 °C to +70 °C
Temperature, fixed: −30 °C to +80 °C
Max. conductor temperature: +70 °C in motion · +80 °C fixed
Short-circuit temperature: +150 °C max.

Mechanical

Min. bending radius, fixed: 6 × overall diameter
Min. bending radius, flexing: 15 × overall diameter
Pair construction: 2 cores twisted into a pair (TP); pairs stranded in concentric layers
Screen coverage: ≥ 80 % optical coverage tinned-copper wire braid

Resistance

Flame retardance: IEC 60332-1-2 / EN 60332-1-2 self-extinguishing · CPR Eca
EMC & crosstalk: Balanced pair lay rejects differential magnetic pickup + braid blocks RF interference

Reference standards

Construction basis: DIN VDE 0812
Pair colour code: DIN 47100 pair sequence (Pair 1: white/brown, Pair 2: green/yellow, Pair 3: grey/pink…)
Compounds: DIN VDE 0207-4 Type YI2 (core) & DIN VDE 0207-5 Type YM2 (sheath)
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Pebble-grey (RAL 7032)
Pair identification: DIN 47100 colour & bi-colour ring code paired in sequence
Sheath marking: TEBAOFLEX LiYCY (TP) [n×2×mm²] DIN VDE 0812 / DIN 47100 CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

21 standard LiYCY (TP) configurations

Typical DIN VDE 0812 / DIN 47100 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
n × 2 × 0.14 mm² Twisted-Pair Screened (350 V peak)
LiYCY (TP) 2×2×0.14	2×2×0.14	26	4.4	4.8	18	30	29
LiYCY (TP) 3×2×0.14	3×2×0.14	26	4.8	5.2	23	38	31
LiYCY (TP) 4×2×0.14	4×2×0.14	26	5.3	5.8	27	48	35
LiYCY (TP) 8×2×0.14	8×2×0.14	26	6.7	7.3	49	81	44
n × 2 × 0.25 mm² Twisted-Pair Screened (500 V peak)
LiYCY (TP) 2×2×0.25	2×2×0.25	24	5.2	5.6	25	42	34
LiYCY (TP) 3×2×0.25	3×2×0.25	24	5.5	6.0	32	51	36
LiYCY (TP) 4×2×0.25	4×2×0.25	24	6.2	6.7	38	64	40
LiYCY (TP) 8×2×0.25	8×2×0.25	24	8.1	8.8	70	115	53
LiYCY (TP) 12×2×0.25	12×2×0.25	24	9.5	10.3	100	162	62
n × 2 × 0.34 mm² Twisted-Pair Screened (500 V peak)
LiYCY (TP) 2×2×0.34	2×2×0.34	22	5.7	6.2	31	52	37
LiYCY (TP) 4×2×0.34	4×2×0.34	22	6.9	7.5	50	82	45
LiYCY (TP) 8×2×0.34	8×2×0.34	22	8.9	9.7	90	146	58
n × 2 × 0.50 mm² Twisted-Pair Screened (500 V peak)
LiYCY (TP) 2×2×0.5	2×2×0.5	20	6.3	6.9	41	65	41
LiYCY (TP) 3×2×0.5	3×2×0.5	20	6.8	7.4	53	82	44
LiYCY (TP) 4×2×0.5	4×2×0.5	20	7.6	8.3	66	102	50
LiYCY (TP) 8×2×0.5	8×2×0.5	20	10.3	11.2	121	189	67
n × 2 × 0.75–1.0 mm² Twisted-Pair Screened
LiYCY (TP) 2×2×0.75	2×2×0.75	18	7.1	7.7	54	84	46
LiYCY (TP) 4×2×0.75	4×2×0.75	18	8.5	9.2	89	134	55
LiYCY (TP) 8×2×0.75	8×2×0.75	18	11.2	12.2	168	248	73
LiYCY (TP) 2×2×1.0	2×2×1.0	17	7.5	8.2	68	102	49
LiYCY (TP) 4×2×1.0	4×2×1.0	17	9.1	9.9	116	168	59

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per DIN VDE 0812 / DIN 47100. Minimum fixed bending radius shown is 6 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	Single pair/core 30 °C, A	Multi-core bundle 30 °C, A
0.14	26	138	2.0	1.5
0.25	24	79	4.0	3.0
0.34	22	57	5.0	4.0
0.5	20	39	9.0	6.0
0.75	18	26	12.0	10.0
1	17	19.5	15.0	13.0

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / DIN VDE 0891-1. Apply grouping derating factors for multi-core control and signal bundles.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 80 mmBending radius OK (6 × OD 6.7 mm)

Minimum bending radius: 40 mm
Min. drum core diameter: ≈ 80 mm
Cable weight on drum: 3.2 kg
Copper content: 1.9 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	1.5 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 / DIN VDE 0812 / DIN 47100 (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath material physical properties	DIN VDE 0812 / DIN 47100	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0812 / DIN 47100CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX LiYCY (TP) [n×2×mm²] DIN VDE 0812 / DIN 47100 CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFLiYCY (TP) Screened Twisted-Pair Cable – technical datasheet21 sizes · construction, technical data, approvals XLSXLiYCY (TP) spec data (Excel)All 21 sizes with dimensions and data, for your BOM or quotation
