Engineered for warm automotive harness zones up to +125 °C continuous.

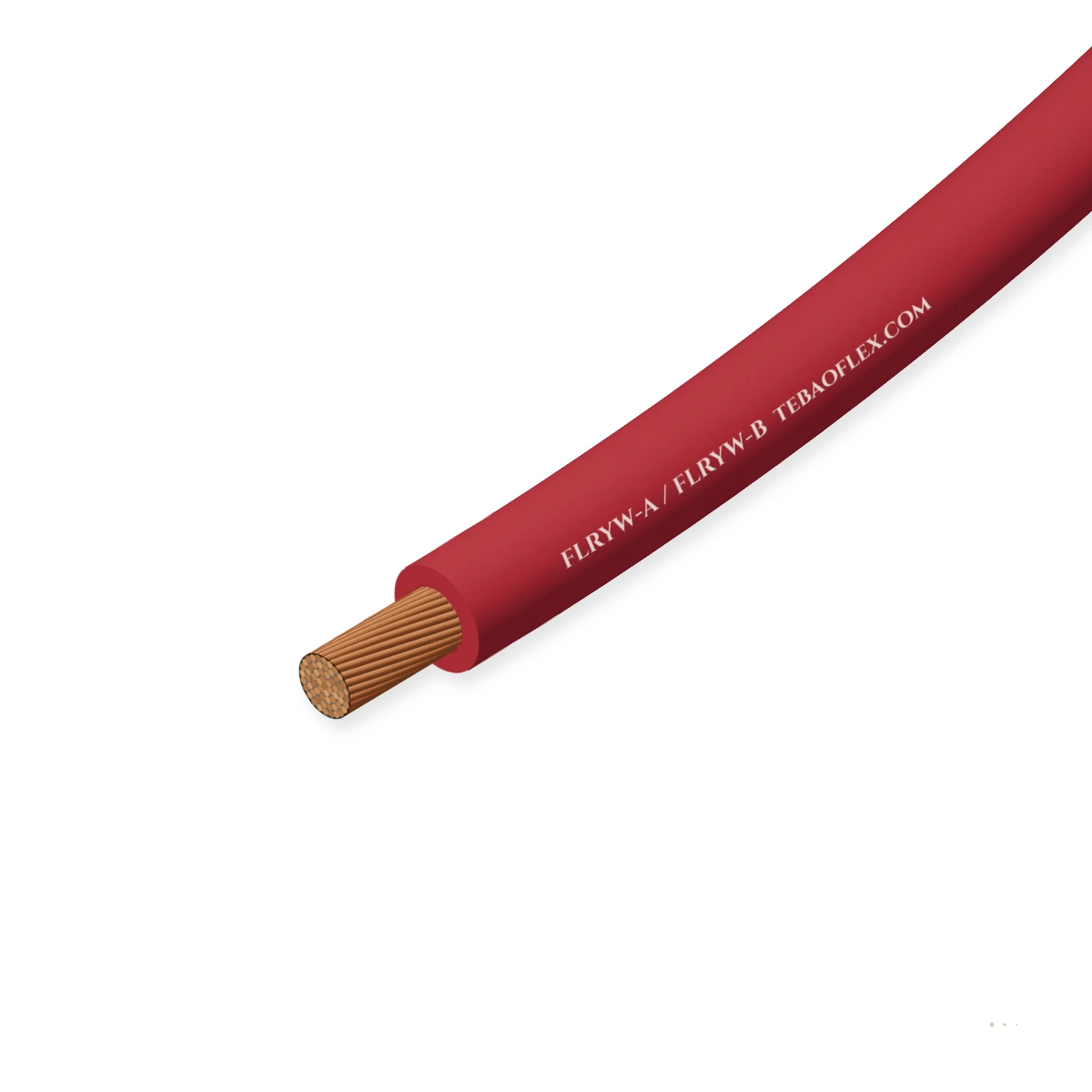

Product
FLRYW-A and FLRYW-B are ISO 6722-1 Class C (-40 °C to +125 °C) heat-resistant reduced-wall automotive primary wires ('YW' = Wärmebeständiges PVC, polymeric trimellitate/polyester plasticized PVC). They upgrade the thermal ceiling of standard FLRY from +105 °C
Typical values for this cable type, based on ISO 6722-1 Class C / DIN 72551 / LV 112 — confirmed in the datasheet and quotation for your order.
Application fit
Specified for warm engine-bay peripheries, headlamp housings, radiator fan shrouds, transmission tunnels and commercial vehicle harnesses requiring +125 °C Class C rating with standard PVC tooling.
Engineered for warm automotive harness zones up to +125 °C continuous.
Identical OD and stripping behaviour to FLRY-A/B—uses existing crimp dies and wire seals.
Handles +125 °C continuous and +150 °C (240 h); for +250 °C short-circuit use cross-linked FLR2X.
FLR2X cross-linked XLPESingle-core automotive harness wire is designed for fixed vehicle looms.
S07HXHX flexible LSZHConstruction

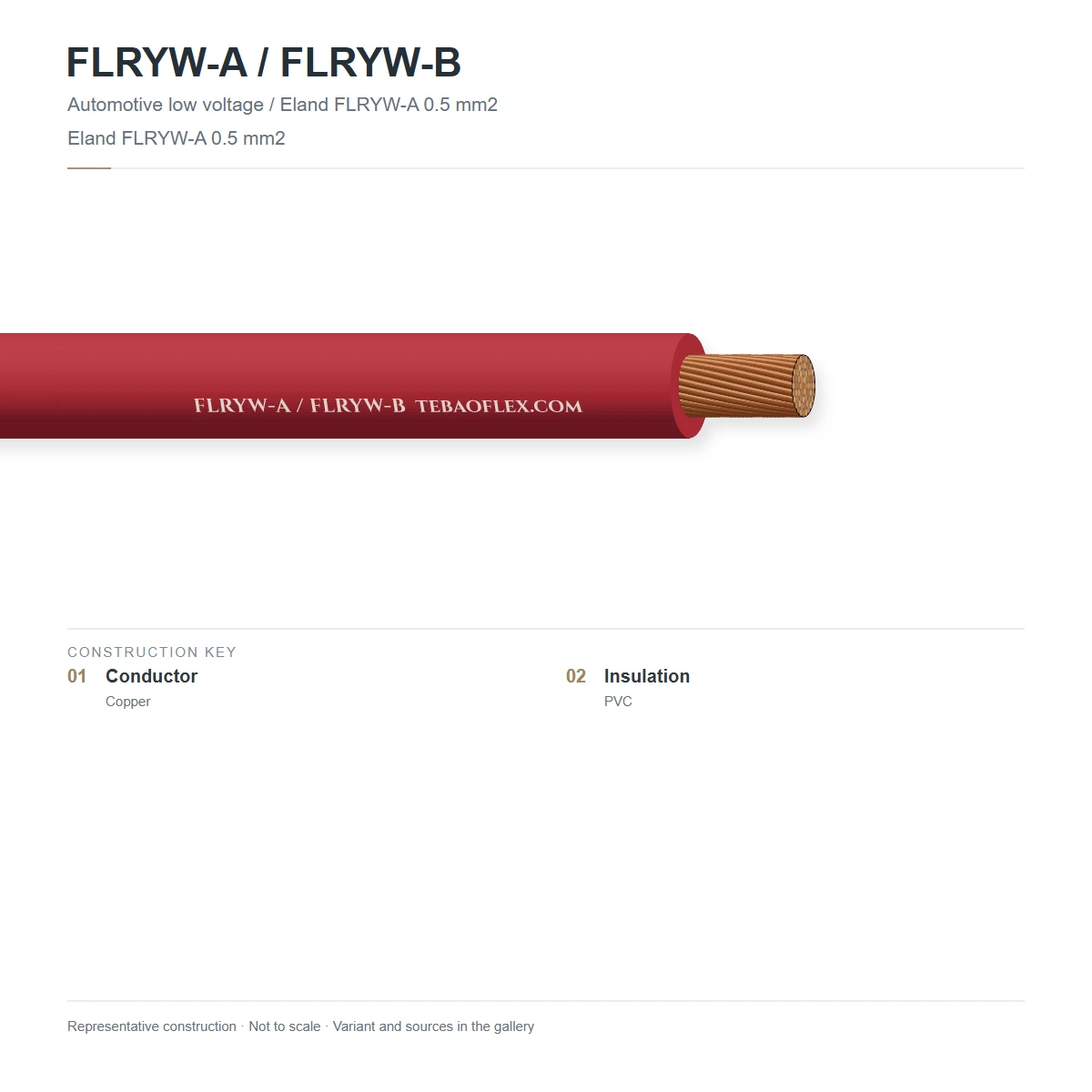

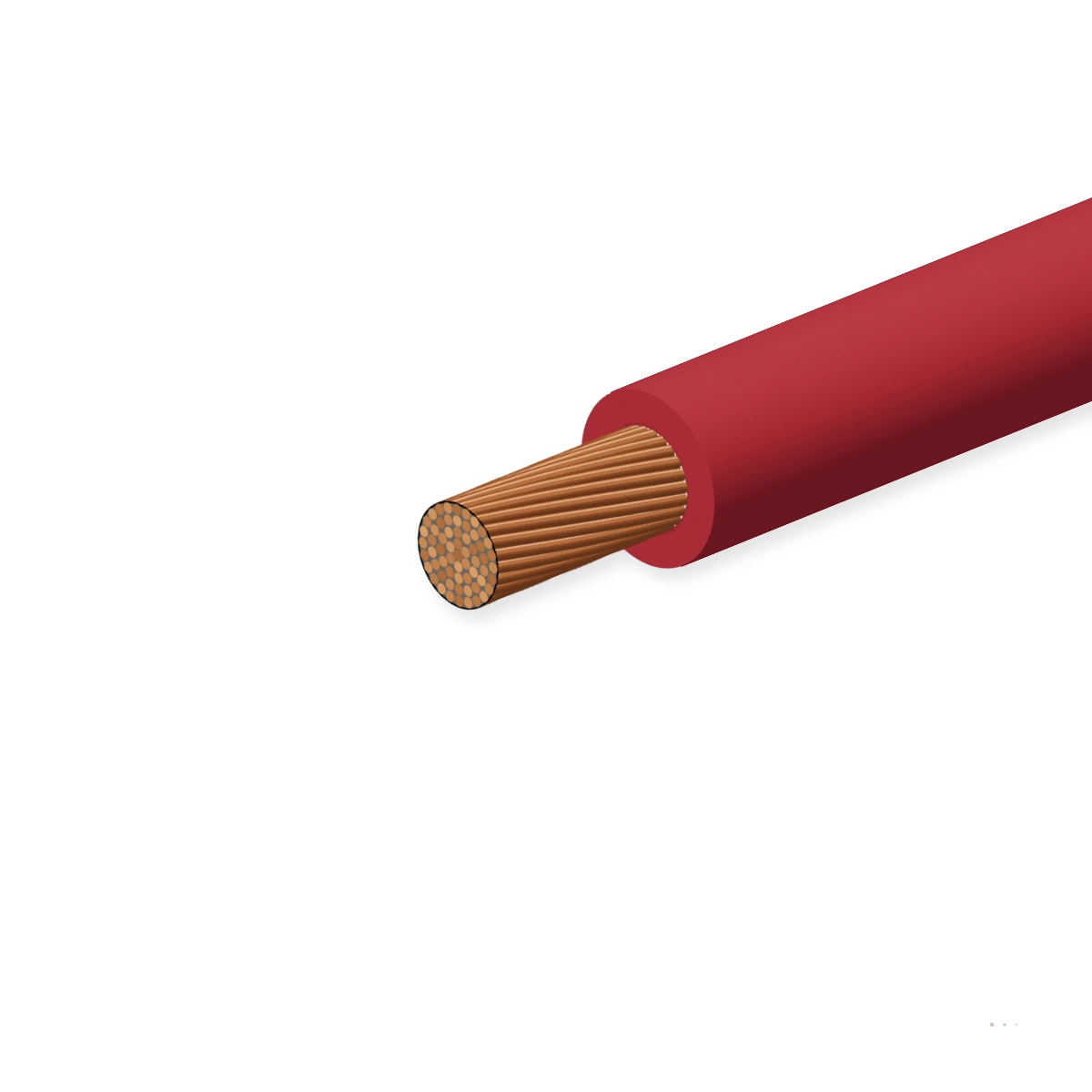

Soft annealed bare copper (Type A concentric 7/19-wire or Type B bunched) + reduced-wall heat-resistant polymeric-plasticized PVC compound (YW, -40 to +125 °C) + colour/tracer finish.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Cu-ETP1 bare copper (Type A or B) | Soft annealed electrolytic copper in Type A symmetrical concentric (7/19 strands) or Type B bunched strandingISO 6722-1 |
| 2 | Class C heat-resistant PVC (YW) | Lead-free heat-stabilised PVC formulated with non-volatile polymeric/trimellitate plasticisers for -40 °C to +125 °C serviceISO 6722-1 |
| 3 | Smooth colour-coded outer surface | Low-fogging, low-friction extruded surface with base colour and tracer stripesISO 6722-1 |
Symmetrical concentric stranding (0.35 to 2.5 mm²) for automated cut-strip-crimp and single-wire connector seals.
Asymmetrical bunched stranding (0.35 to 16 mm²) for flexible harness routing.
Technical data
Sizes
Nominal dimensions, wall thickness, copper mass and electrical parameters for FLRYW-A / FLRYW-B per ISO 6722-1 Class C / DIN 72551 / LV 112.
| Designation | Type & Size mm² | Strands × Ø / Wall mm | Max. OD mm | Copper kg/km | Total mass ≈ kg/km | Min. bend R mm | Enquiry |
|---|---|---|---|---|---|---|---|
| FLRYW-A / FLRYW-B size range | |||||||
| FLRYW-A 0.35 mm² | 0.35 mm² Type A | 7×0.26 · 0.20 mm | 1.30 | 3.3 | 4.6 | 5.2 | |
| FLRYW-B 0.35 mm² | 0.35 mm² Type B | 12×0.21 · 0.20 mm | 1.40 | 3.3 | 4.8 | 5.6 | |
| FLRYW-A 0.50 mm² | 0.50 mm² Type A | 19×0.19 · 0.22 mm | 1.60 | 4.8 | 6.7 | 6.4 | |
| FLRYW-B 0.50 mm² | 0.50 mm² Type B | 16×0.21 · 0.22 mm | 1.60 | 4.8 | 6.7 | 6.4 | |
| FLRYW-A 0.75 mm² | 0.75 mm² Type A | 19×0.23 · 0.24 mm | 1.90 | 7.2 | 9.6 | 7.6 | |
| FLRYW-B 0.75 mm² | 0.75 mm² Type B | 24×0.21 · 0.24 mm | 1.90 | 7.2 | 9.6 | 7.6 | |
| FLRYW-A 1.00 mm² | 1.00 mm² Type A | 19×0.26 · 0.24 mm | 2.10 | 9.6 | 12.4 | 8.4 | |
| FLRYW-B 1.00 mm² | 1.00 mm² Type B | 32×0.21 · 0.24 mm | 2.10 | 9.6 | 12.4 | 8.4 | |
| FLRYW-A 1.50 mm² | 1.50 mm² Type A | 19×0.32 · 0.24 mm | 2.40 | 14.4 | 17.7 | 9.6 | |
| FLRYW-B 1.50 mm² | 1.50 mm² Type B | 30×0.26 · 0.24 mm | 2.40 | 14.4 | 17.7 | 9.6 | |
| FLRYW-A 2.50 mm² | 2.50 mm² Type A | 19×0.41 · 0.28 mm | 3.00 | 24.0 | 28.8 | 12.0 | |
| FLRYW-B 2.50 mm² | 2.50 mm² Type B | 50×0.26 · 0.28 mm | 3.00 | 24.0 | 28.8 | 12.0 | |
| FLRYW-B 4.00 mm² | 4.00 mm² Type B | 56×0.31 · 0.32 mm | 3.70 | 38.4 | 45.0 | 14.8 | |
| FLRYW-B 6.00 mm² | 6.00 mm² Type B | 84×0.31 · 0.32 mm | 4.30 | 57.6 | 65.8 | 17.2 | |
| Type & Size mm² | Max. DC R @ 20 °C mΩ/m | Single wire in air A | In harness bundle A |
|---|---|---|---|
| 0.35 mm² Type A | 54.40 | 10 | 8 |
| 0.35 mm² Type B | 54.40 | 10 | 8 |
| 0.50 mm² Type A | 37.10 | 13 | 10 |
| 0.50 mm² Type B | 37.10 | 13 | 10 |
| 0.75 mm² Type A | 24.70 | 18 | 14 |
| 0.75 mm² Type B | 24.70 | 18 | 14 |
| 1.00 mm² Type A | 18.50 | 22 | 17 |
| 1.00 mm² Type B | 18.50 | 22 | 17 |
| 1.50 mm² Type A | 12.70 | 28 | 22 |
| 1.50 mm² Type B | 12.70 | 28 | 22 |
| 2.50 mm² Type A | 7.60 | 38 | 30 |
| 2.50 mm² Type B | 7.60 | 38 | 30 |
| 4.00 mm² Type B | 4.71 | 50 | 39 |
| 6.00 mm² Type B | 3.14 | 64 | 50 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| 3.0–5.0 kV AC spark test & DC conductor resistance | Zero breakdown; DC resistance per ISO 6722-1 | 100 % of spools |
| Sample tests | ||
| 240-hour +150 °C short-term ageing & -40 °C cold wind | No cracking on mandrel bend after +150 °C exposure | Every lot |
| 3000-hour +125 °C Class C thermal endurance & fluid test | Full compliance with ISO 6722-1 Class C | Type qualification |
