DIN 72551 / ISO 6722 / LV 112 Reduced-Wall (FLR) Automotive Wires60 V DC ISO 6722-1 Class CExtra-Thin-Wall 'd' (0.16 mm min.)-40 to +125 °C Heat-Resistant PVC

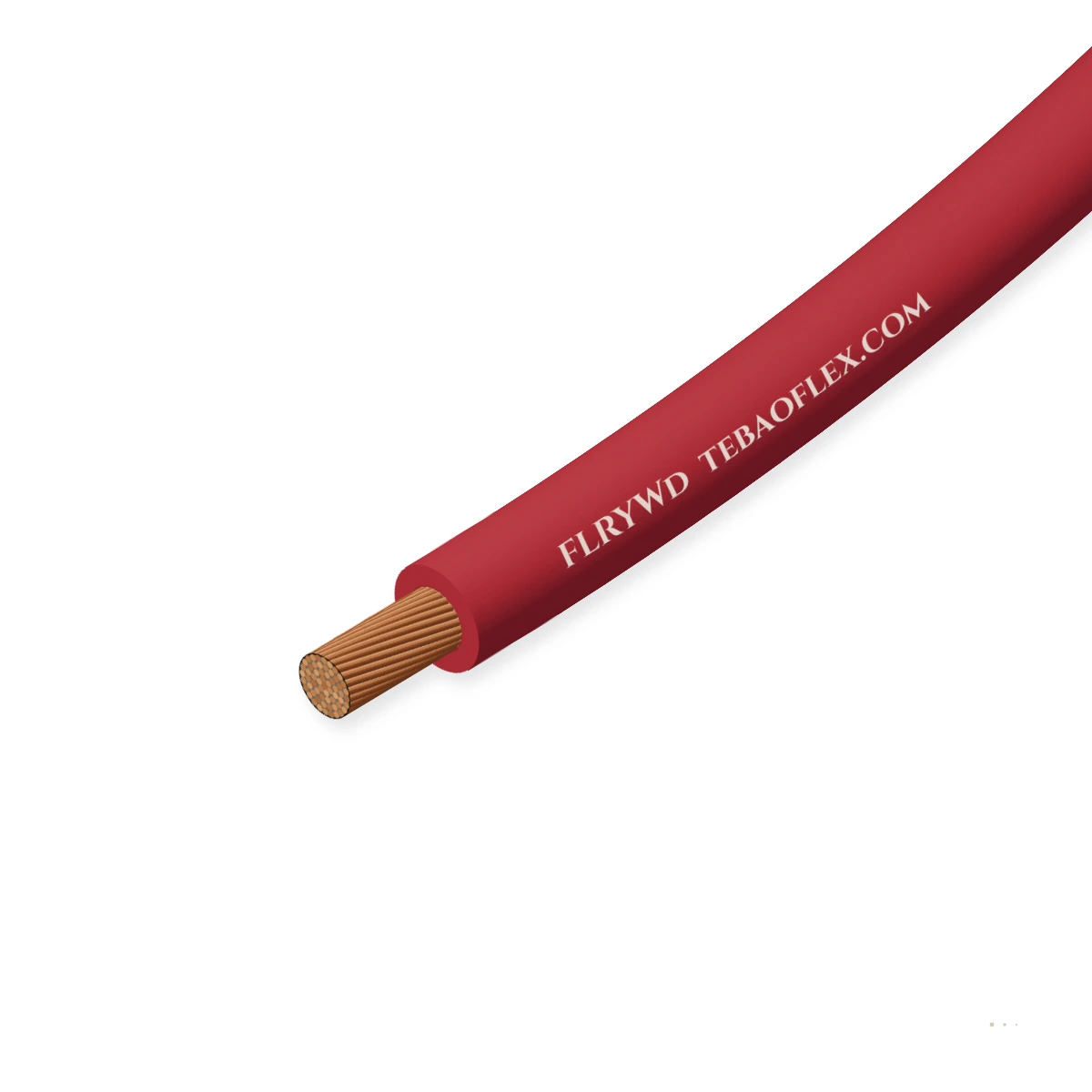

FLRYWd Automotive Wire60 V DC ISO 6722-1 Class C (-40 to +125 °C) extra-thin-wall ('d' = 0.16 mm min.) heat-resi

FLRYWd combines ISO 6722-1 Class C (-40 °C to +125 °C) heat-resistant PVC ('YW') with an extra-thin ('d' = dünnwandig, 0.20 mm nominal / 0.16 mm minimum) insulation wall. Engineered for high-density engine-control and cockpit micro-connectors, it trims outer d

Class C +125 °C Extra-Thin
High-Modulus YW Compound
ISO 6722-1 / LV 112
Order designation
FLRYWd 0.35 mm²
Max. OD
1.20 mm
Copper mass
3.3 kg/km
Total mass ≈
4.3 kg/km
Min. bend R
4.8 mm
All sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
60 V DC / 25 V A
ECU & sensor micro-harnesses
Thermal class
Class C (+125 °C
-40 °C to +125 °C (3000 h)
Wall profile
Extra-thin 'd' w
0.20 mm nom. / 0.16 mm min. wall
Conductor
Concentric / com
Smooth 7- or 19-wire Cu-ETP1
Size range
0.13 to 1.00 mm²
High-density ECU & sensor gauges
Min. bend radius
4 × wire OD
Compact ECU trunk harnesses

Typical values for this cable type, based on ISO 6722-1 Class C / LV 112 Ultra-Thin-Wall — confirmed in the datasheet and quotation for your order.

Application fit

Is FLRYWd right for your machine?

Specified for high-pin-count powertrain ECUs, transmission control modules, LED matrix headlamps and ADAS sensor looms where +125 °C Class C thermal endurance and ultra-thin outer diameter are required simultaneously.

Fixed installation

Suitable

Shrinks +125 °C engine-ECU harness bundle cross-section by up to 25 % compared with FLRYW.

Switchgear & control cabinet wiring

Suitable

Sub-1.25 mm OD (on 0.13–0.35 mm²) fits 0.50 mm and 0.64 mm micro-terminal cavities.

Trailing & towing

Not suitable

Extra-thin signal wires must be bundled inside taped orsleeved automotive harnesses.

FLRYDY screened cable

Furnace, kiln & high-temp zone

Not suitable

Rated to +125 °C; for +150 °C to +200 °C thin-wall sensor leads specify FLR7Y or FLR6Y.

FLR7Y +150 °C ETFE wire
Typical machinesPowertrain & engine ECU loomsTransmission & mechatronic harnessesMatrix LED headlamp modulesEV battery management (BMS) sense leadsCockpit & ADAS domain controllers

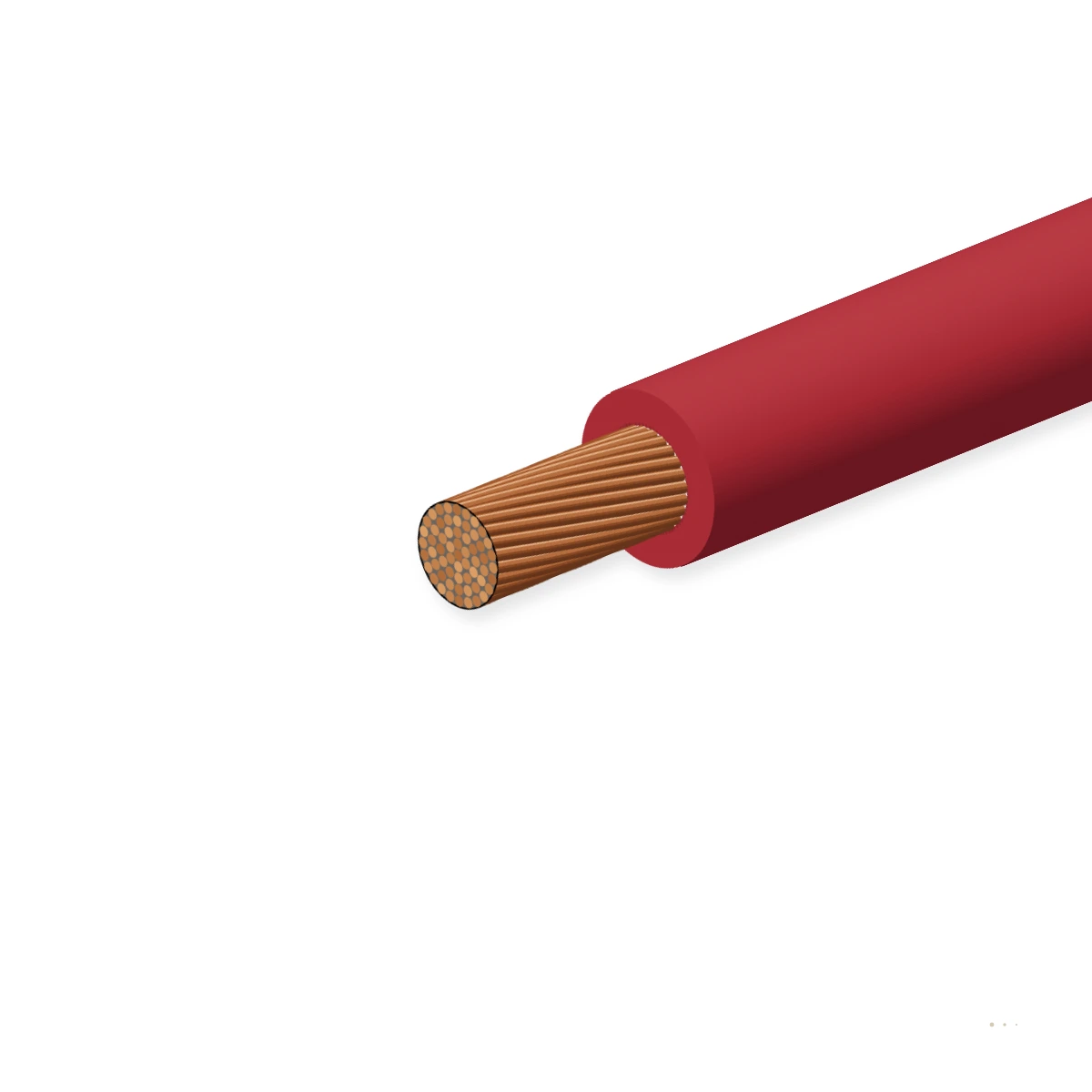

Construction

Layer by layer

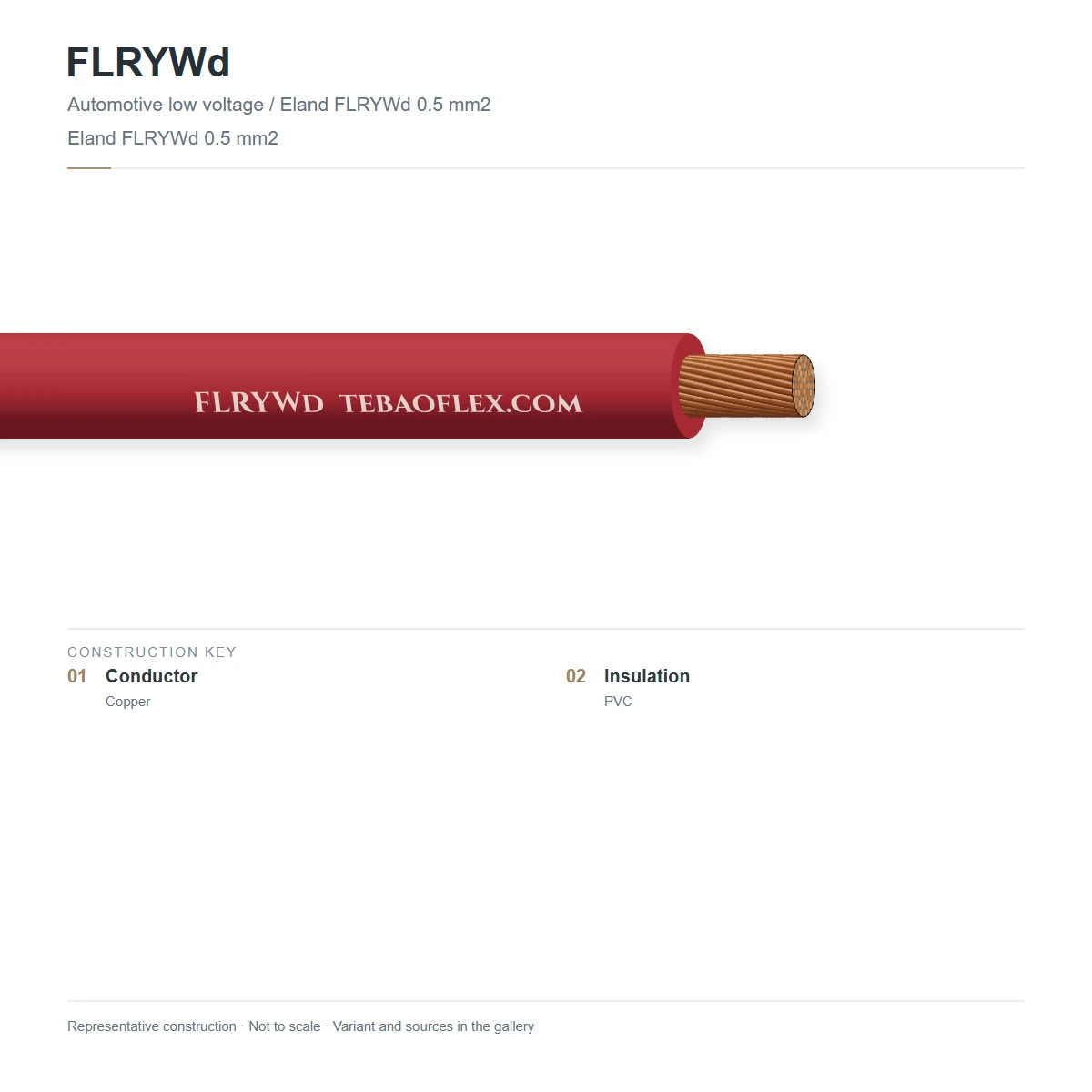

Symmetrical concentric or compressed bare copper (Cu-ETP1, or CuSn0.3 alloy at 0.13 mm²) + 0.20 mm extra-thin high-modulus Class C (+125 °C) PVC insulation.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Concentric / compressed Cu-ETP1 (or CuSn)7- or 19-strand concentric or die-compressed copper (CuSn alloy option at 0.13 mm²) ensuring smooth circular profile under thin wallISO 6722-1
2Extra-thin Class C YW PVC ('d' wall)High-modulus polymeric-plasticized +125 °C PVC extruded to 0.20 mm nominal / 0.16 mm minimum wall thicknessISO 6722-1
3Micro-seal outer finishConcentric low-friction surface with base colour and tracer stripes for micro-cavity elastomer sealsLV 112

FLRYWd-A (0.13–1.00 mm² Cu-ETP1)

Concentric copper conductor with extra-thin Class C (+125 °C) PVC wall for 0.64 mm / MQS / NanoMQS terminals.

FLRYWd-CuSn (0.13 mm² High-Strength Alloy)

CuSn0.3 copper-tin alloy conductor at 0.13 mm² (≥55 N breaking load) with extra-thin +125 °C YW insulation.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ISO 6722-1 Class C / LV 112 Ultra-Thin-Wall. Values for your order are confirmed in the datasheet and quotation.

Electrical

Nominal voltage
60 V DC / 25 V AC
Wet dielectric test
1.0 kV AC rms (<0.5 mm²) · 3.0 kV (≥0.5 mm²)
In-line spark test
3.0 kV (<0.5 mm²) · 5.0 kV (≥0.5 mm²)

Thermal

Thermal class
ISO 6722-1 Class C: -40 °C to +125 °C (3000 h)
Short-term ageing & overload
240 h at +150 °C · 6 h at +175 °C
Cold winding
-40 °C for 4 hours without cracking

Mechanical

Wall thickness ('d' extra-thin)
0.20 mm nominal (0.16 mm minimum) for 0.13–0.50 mm²
Needle & blade scrape resistance
High-Shore-hardness YW compound meets ISO 6722-1 ultra-thin-wall abrasion

Resistance

Flame propagation
Self-extinguishes within 70 s per ISO 6722-1
Fluid compatibility
Resistant to engine oil, fuel, ATF, coolant & brake fluid

Reference standards

Reference standards
ISO 6722-1 Class C Ultra-Thin-Wall & VDA LV 112
Japanese counterpart
CIVUS-B / CHFUS (+105/+125 °C)

Identification

Code breakdown
FL = automotive · R = reduced · YW = +125 °C PVC · d = dünnwandig (extra-thin wall)
Colour code
DIN 72551 base colours + fine tracer stripes

Sizes

10 standard sizes (FLRYWd)

Nominal dimensions, wall thickness, copper mass and electrical parameters for FLRYWd per ISO 6722-1 Class C / LV 112 Ultra-Thin-Wall.

Dimensions & masses
DesignationSize & ConductorStrands / Wall mmMax. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
FLRYWd size range
FLRYWd 0.13 mm² (Cu)0.13 mm² Cu7×0.16 · 0.20 mm0.951.22.03.8
FLRYWd 0.13 mm² (CuSn)0.13 mm² CuSn7×0.16 · 0.20 mm0.951.22.03.8
FLRYWd 0.22 mm²0.22 mm² Type A7×0.21 · 0.20 mm1.052.13.04.2
FLRYWd 0.35 mm²0.35 mm² Type A7×0.26 · 0.20 mm1.203.34.34.8
FLRYWd 0.50 mm²0.50 mm² Type A19×0.19 · 0.20 mm1.404.86.25.6
FLRYWd 0.75 mm²0.75 mm² Type A19×0.23 · 0.20 mm1.657.28.96.6
FLRYWd 1.00 mm²1.00 mm² Type A19×0.26 · 0.22 mm1.909.611.77.6
FLRYWd 1.50 mm²1.50 mm² Type A19×0.32 · 0.22 mm2.2514.417.09.0
FLRYWd 2×0.13 Twisted2×0.13 mm² Pair7×0.16 · 0.20 mm1.902.54.17.6
FLRYWd 2×0.35 Twisted2×0.35 mm² Pair7×0.26 · 0.20 mm2.406.68.79.6
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and maximum overall diameters conform to ISO 6722-1 Class C / LV 112 Ultra-Thin-Wall.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.0–5.0 kV spark test & 2-axis laser OD/eccentricity checkWall ≥0.16 mm around 360°; zero breakdown100 % of spools
Sample tests
Needle scrape abrasion, 240 h +150 °C ageing & -40 °C windPasses ISO 6722-1 ultra-thin-wall mechanical & thermal testsEvery lot
3000-hour +125 °C Class C endurance & 1–3 kV wet dielectricCertified to ISO 6722-1 Class C & LV 112Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

ISO 6722-1 Class C Ultra-Thin-WallVDA LV 112DIN 72551RoHS 3 & ELV Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX FLRYWd [size]mm2 EXTRA-THIN 125C ISO 6722-1 CLASS C [lot/spool]
Delivery form
Non-returnable plastic spools, barrel packs or wooden drums
Standard spool lengths
500 m · 1000 m · 2000 m spools (or barrel packs)
MOQ
500 m (stock colours) · 2000 m (striped/custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFFLRYWd Automotive Wire – technical datasheet10 sizes · construction, technical data, approvalsXLSXFLRYWd spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the lowercase 'd' suffix mean in FLRYWd?
In German automotive wire nomenclature, lowercase 'd' stands for dünnwandig (extra-thin wall, corresponding to ISO 6722-1 Ultra-Thin-Wall with 0.20 mm nominal / 0.16 mm minimum wall thickness), reducing wire outer diameter below regular reduced-wall ('R') FLRYW.
How much smaller is FLRYWd compared with standard FLRYW?
At 0.35 mm², FLRYWd has a maximum OD of 1.20 mm versus 1.30–1.40 mm on FLRYW. At 0.50 mm², FLRYWd drops to 1.40 mm max OD versus 1.60 mm on FLRYW, and at 0.75 mm² it drops to 1.65 mm versus 1.90 mm.
How does FLRYWd compare with Japanese CIVUS wire?
Both use a 0.20 mm nominal / 0.16 mm minimum ultra-thin PVC wall for high-density ECU connectors. Standard CIVUS is rated to +85 °C (with +105 °C CIVUS-B option), whereas FLRYWd is rated to ISO 6722-1 Class C (+125 °C continuous).
Does FLRYWd require concentric (Type A) or compressed conductors?
Yes. Because the minimum wall is only 0.16 mm, asymmetrical bunched stranding could create high spots that thin the wall locally; FLRYWd therefore uses symmetrical 7/19-wire concentric or die-compressed conductors.
