Primary European OEM engine-compartment and powertrain harness wire.
Product
FLR2X-A and FLR2X-B are ISO 6722-1 Class C (-40 °C to +125 °C) reduced-wall automotive primary wires insulated with electron-beam or silane cross-linked polyethylene ('2X' = XLPE / VPE). Thermoset cross-linking prevents melting under +250 °C short-circuit over
Typical values for this cable type, based on ISO 6722-1 Class C / DIN 72551 / LV 112 — confirmed in the datasheet and quotation for your order.
Application fit
Specified for engine-compartment harnesses, cylinder-head sensor looms, starter/alternator leads, transmission wiring and EV power electronics where +125 °C thermal endurance, halogen-free safety and thermoset pinch resistance are mandatory.
Primary European OEM engine-compartment and powertrain harness wire.
FLR reduced-wall dimensions fit standard MQS, MCP and sealed automotive terminals.
Thermoset XLPE insulation will not melt or flow during short-circuit current spikes.
Rated to +125 °C continuous; above +125 °C select FLR7Y (+150 °C) or FLR6Y/FLR5Y (+180/+200 °C).
FLR7Y +150 °C ETFE wireConstruction
Soft annealed bare copper (Cu-ETP1, Type A concentric or Type B bunched) + reduced-wall radiation/silane cross-linked halogen-free polyethylene (2X / XLPE, -40 to +125 °C).
| # | Layer | Material & reference |
|---|---|---|
| 1 | Cu-ETP1 bare copper (Type A or B) | Soft annealed electrolytic copper in Type A symmetrical concentric (7/19 strands) or Type B flexible bunched strandingISO 6722-1 |
| 2 | Cross-linked polyethylene (2X / XLPE) | Halogen-free flame-retardant polyolefin compound thermoset cross-linked for Class C (-40 °C to +125 °C) serviceISO 6722-1 |
| 3 | Cross-linked colour/stripe surface | Tough abrasion- and pinch-resistant thermoset outer surface with permanent colour/stripe codingISO 6722-1 |

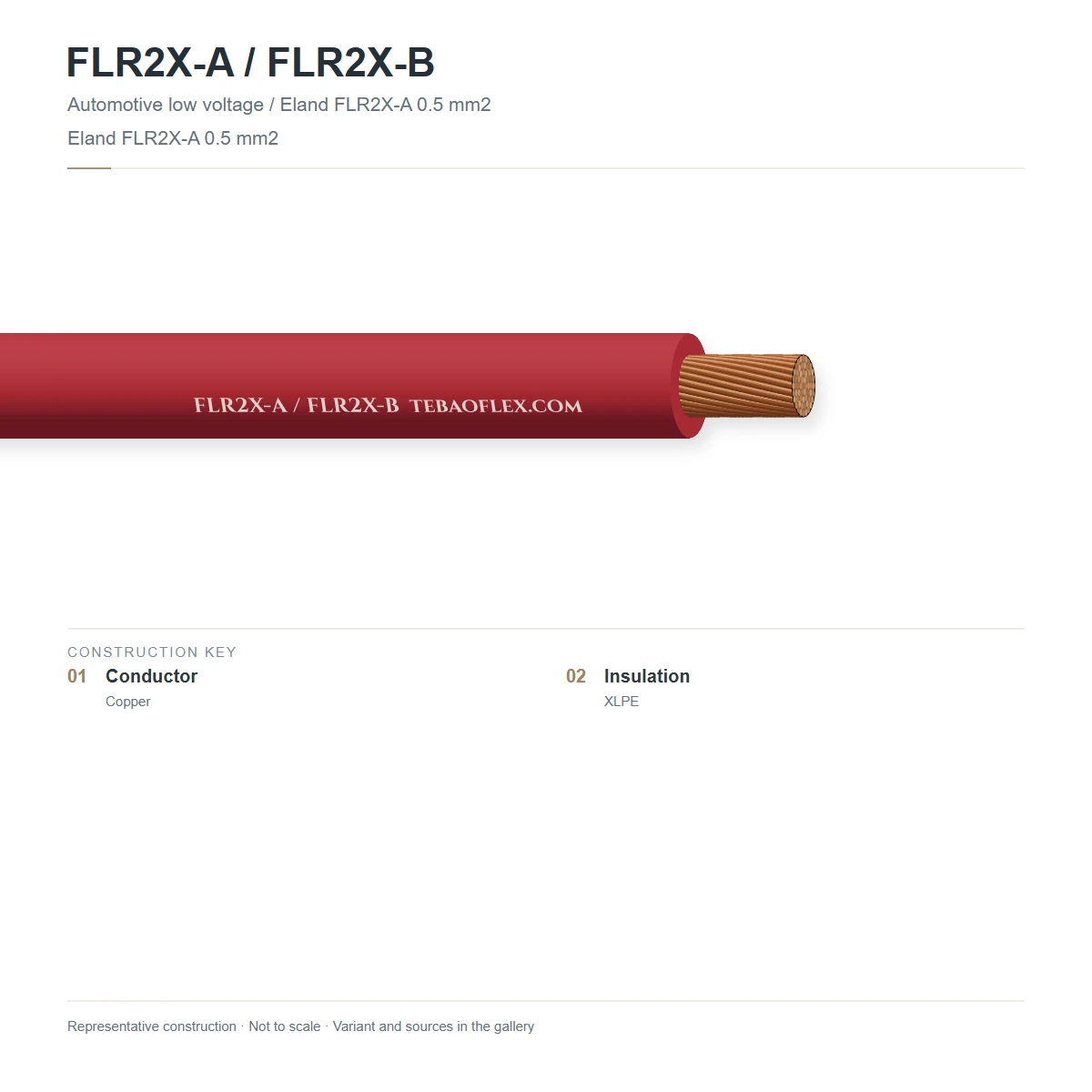

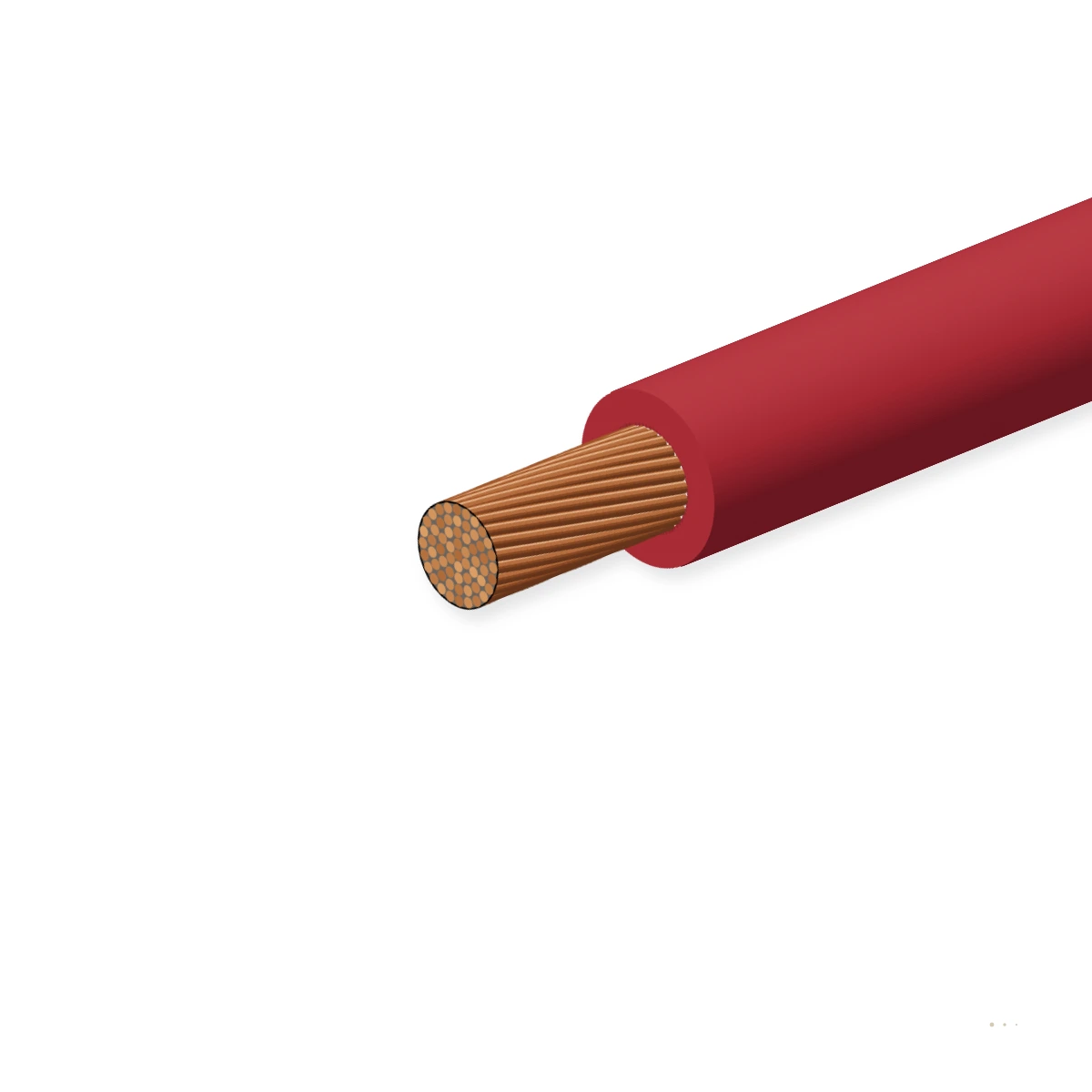

7- or 19-strand concentric copper conductor (0.22–2.5 mm²) with thermoset XLPE reduced wall for sealed engine-bay connectors.
Flexible bunched copper conductor (0.35–25 mm²) with thermoset XLPE reduced wall for engine and chassis distribution.
Technical data
Sizes
Nominal dimensions, wall thickness, copper mass and electrical parameters for FLR2X-A / FLR2X-B per ISO 6722-1 Class C / DIN 72551 / LV 112.
| Designation | Type & Size mm² | Strands × Ø / Wall mm | Max. OD mm | Copper kg/km | Total mass ≈ kg/km | Min. bend R mm | Enquiry |
|---|---|---|---|---|---|---|---|
| FLR2X-A / FLR2X-B size range | |||||||
| FLR2X-A 0.22 mm² | 0.22 mm² Type A | 7×0.21 · 0.20 mm | 1.20 | 2.1 | 3.0 | 4.8 | |
| FLR2X-A 0.35 mm² | 0.35 mm² Type A | 7×0.26 · 0.20 mm | 1.30 | 3.3 | 4.3 | 5.2 | |
| FLR2X-B 0.35 mm² | 0.35 mm² Type B | 12×0.21 · 0.20 mm | 1.40 | 3.3 | 4.4 | 5.6 | |
| FLR2X-A 0.50 mm² | 0.50 mm² Type A | 19×0.19 · 0.22 mm | 1.60 | 4.8 | 6.2 | 6.4 | |
| FLR2X-B 0.50 mm² | 0.50 mm² Type B | 16×0.21 · 0.22 mm | 1.60 | 4.8 | 6.2 | 6.4 | |
| FLR2X-A 0.75 mm² | 0.75 mm² Type A | 19×0.23 · 0.24 mm | 1.90 | 7.2 | 9.0 | 7.6 | |
| FLR2X-B 0.75 mm² | 0.75 mm² Type B | 24×0.21 · 0.24 mm | 1.90 | 7.2 | 9.0 | 7.6 | |
| FLR2X-A 1.00 mm² | 1.00 mm² Type A | 19×0.26 · 0.24 mm | 2.10 | 9.6 | 11.7 | 8.4 | |
| FLR2X-B 1.00 mm² | 1.00 mm² Type B | 32×0.21 · 0.24 mm | 2.10 | 9.6 | 11.7 | 8.4 | |
| FLR2X-A 1.50 mm² | 1.50 mm² Type A | 19×0.32 · 0.24 mm | 2.40 | 14.4 | 16.9 | 9.6 | |
| FLR2X-B 1.50 mm² | 1.50 mm² Type B | 30×0.26 · 0.24 mm | 2.40 | 14.4 | 16.9 | 9.6 | |
| FLR2X-B 2.50 mm² | 2.50 mm² Type B | 50×0.26 · 0.28 mm | 3.00 | 24.0 | 27.6 | 12.0 | |
| FLR2X-B 4.00 mm² | 4.00 mm² Type B | 56×0.31 · 0.32 mm | 3.70 | 38.4 | 43.2 | 14.8 | |
| FLR2X-B 6.00 mm² | 6.00 mm² Type B | 84×0.31 · 0.32 mm | 4.30 | 57.6 | 63.5 | 17.2 | |
| FLR2X-B 10.0 mm² | 10.0 mm² Type B | 80×0.41 · 0.48 mm | 6.00 | 96.0 | 105.5 | 24.0 | |
| FLR2X-B 16.0 mm² | 16.0 mm² Type B | 126×0.41 · 0.52 mm | 7.20 | 153.6 | 167.0 | 28.8 | |
| Type & Size mm² | Max. DC R @ 20 °C mΩ/m | Single wire in air A | In harness bundle A |
|---|---|---|---|
| 0.22 mm² Type A | 84.80 | 7 | 5 |
| 0.35 mm² Type A | 54.40 | 10 | 8 |
| 0.35 mm² Type B | 54.40 | 10 | 8 |
| 0.50 mm² Type A | 37.10 | 13 | 10 |
| 0.50 mm² Type B | 37.10 | 13 | 10 |
| 0.75 mm² Type A | 24.70 | 18 | 14 |
| 0.75 mm² Type B | 24.70 | 18 | 14 |
| 1.00 mm² Type A | 18.50 | 22 | 17 |
| 1.00 mm² Type B | 18.50 | 22 | 17 |
| 1.50 mm² Type A | 12.70 | 28 | 22 |
| 1.50 mm² Type B | 12.70 | 28 | 22 |
| 2.50 mm² Type B | 7.60 | 38 | 30 |
| 4.00 mm² Type B | 4.71 | 50 | 39 |
| 6.00 mm² Type B | 3.14 | 64 | 50 |
| 10.0 mm² Type B | 1.82 | 88 | 69 |
| 16.0 mm² Type B | 1.16 | 118 | 92 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| 3.0–5.0 kV AC spark test & DC conductor resistance | 100 % pinhole-free; resistance per ISO 6722-1 Table 2 | 100 % of spools |
| Sample tests | ||
| Hot-set cross-linking degree, needle scrape & -40 °C wind | Verifies thermoset gel content and scrape cycles | Every lot |
| 3000-hour +125 °C thermal endurance & +175 °C overload | Certified to ISO 6722-1 Class C / LV 112 | Type qualification |
