100 % aluminised polyester tape plus ≥ 85 % tinned copper braid suppresses SiC/IGBT inverter switching noise from 150 kHz to 108 MHz.
Product
Extra-flexible electron-beam cross-linked fluoropolymer elastomer (XLFE) shielded high-voltage EV traction cable (EXRAD S200XL Shielded) rated 1,000 V AC / 1,500 V DC from −70 °C to +200 °C with 100 % foil plus ≥ 85 % tinned copper braid EMC screening.
Typical values for this cable type, based on ISO 19642-5 / ISO 19642-9 / LV 216-2 / SAE J1654 — confirmed in the datasheet and quotation for your order.
Application fit
Engineered for tight routing between high-voltage traction battery packs, SiC inverters, e-axles, onboard chargers (OBC), and DC fast-charge inlets.
100 % aluminised polyester tape plus ≥ 85 % tinned copper braid suppresses SiC/IGBT inverter switching noise from 150 kHz to 108 MHz.
E-beam cross-linked XLFE combines silicone-like cold flexibility (−70 °C) with superior cut-through, pinch and fluid resistance at +200 °C.
Resists ATF transmission fluid, battery glycol coolant, brake fluid and salt spray along vehicle underbodies.
Designed for automotive and heavy-duty vehicle chassis routing, not industrial factory drag chains.
Use M23 Servo AssemblyConstruction

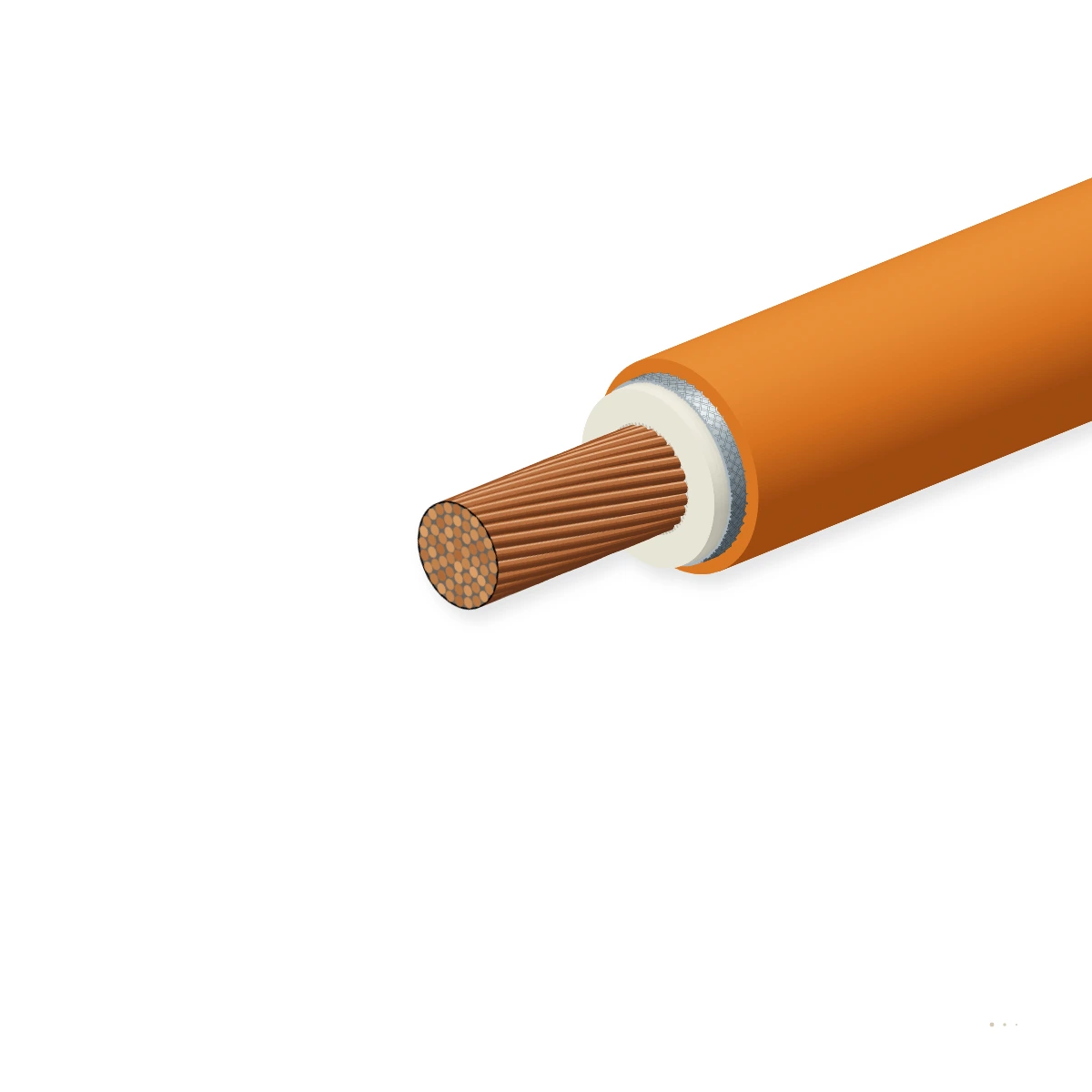

Single-core (and 2-core LV 216) screened XLFE construction: extra-fine rope-lay tinned copper conductor + e-beam cross-linked XLFE primary insulation + 100 % Al/PET foil + ≥ 85 % tinned copper braid + Safety Orange (RAL 2003/2008) XLFE outer jacket.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Extra-flexible rope-lay tinned copper conductor | Fine-stranded annealed tinned copper to ISO 19642-2 / ASTM B33 (19× to 2,109× stranding, 14 AWG to 4/0 AWG / 2.5 mm² to 120 mm²)Provides low contact resistance and vibration fatigue immunity on e-axle mounts |
| 2 | E-beam cross-linked XLFE dielectric | Irradiation cross-linked fluoropolymer elastomer (XLFE) primary insulation rated −70 °C to +200 °CWill not melt, flow or shrink back during high-current overload or short-circuit events |
| 3 | 100 % aluminised polyester EMC foil | Helically applied aluminium/PET foil screen with overlapProvides 100 % high-frequency RF shielding coverage up to 1 GHz |
| 4 | ≥ 85 % tinned copper braided shield | High-coverage tinned copper wire braid over the foil screenDelivers low surface transfer impedance (≤ 15 mΩ/m) and 360° HV connector shield termination |
| 5 | Safety Orange e-beam XLFE outer sheath | Extruded high-visibility HV Orange (RAL 2003 / RAL 2008) cross-linked fluoropolymer elastomer outer jacketResists stone chip abrasion, battery electrolyte, road salt and +200 °C engine-bay heat |
2.5 mm² (14 AWG) to 120 mm² (4/0 AWG) single-core screened XLFE for 800–1,000 V battery, inverter and e-axle phases
2 × 2.5 mm² to 2 × 6.0 mm² twisted screened XLFE pair for electric HVAC compressor, PTC heater and DC/DC converter feeds
Technical data
Sizes
Dimensions, stranding, conductor resistance, outer diameter, weight and free-air ampacity at +85 °C ambient (+200 °C conductor).
| Order designation | AWG (Metric mm²) | Stranding N × mm | Max R @20°C mΩ/m | Core OD mm | Overall OD mm | Weight kg/km | Ampacity A (+85°C) | Enquiry |
|---|---|---|---|---|---|---|---|---|
| HV Auxiliary & Charger Sizes — 14 AWG to 4 AWG (2.5–25 mm²) | ||||||||
| S200XL-SH-14AWG-2.5 | 14 AWG (2.5 mm²) | 41 × 0.254 | 8.71 | 3.10 | 5.20 | 52 | 54 | |
| S200XL-SH-12AWG-4.0 | 12 AWG (4.0 mm²) | 65 × 0.254 | 5.48 | 3.65 | 5.85 | 72 | 72 | |
| S200XL-SH-10AWG-6.0 | 10 AWG (6.0 mm²) | 105 × 0.254 | 3.40 | 4.45 | 6.75 | 104 | 98 | |
| S200XL-SH-8AWG-10 | 8 AWG (10 mm²) | 133 × 0.287 | 2.10 | 5.60 | 8.10 | 156 | 138 | |
| S200XL-SH-6AWG-16 | 6 AWG (16 mm²) | 133 × 0.361 | 1.32 | 6.85 | 9.50 | 228 | 185 | |
| S200XL-SH-4AWG-25 | 4 AWG (25 mm²) | 133 × 0.455 | 0.83 | 8.40 | 11.30 | 342 | 245 | |
| HV Traction Battery & Inverter Sizes — 2 AWG to 4/0 AWG (35–120 mm²) | ||||||||
| S200XL-SH-2AWG-35 | 2 AWG (35 mm²) | 665 × 0.254 | 0.52 | 10.10 | 13.20 | 495 | 325 | |
| S200XL-SH-1AWG-42 | 1 AWG (42 mm²) | 817 × 0.254 | 0.43 | 11.15 | 14.40 | 598 | 370 | |
| S200XL-SH-1/0AWG-50 | 1/0 AWG (50 mm²) | 1045 × 0.254 | 0.34 | 12.30 | 15.80 | 745 | 430 | |
| S200XL-SH-2/0AWG-70 | 2/0 AWG (70 mm²) | 1330 × 0.254 | 0.27 | 13.80 | 17.50 | 935 | 505 | |
| S200XL-SH-3/0AWG-95 | 3/0 AWG (95 mm²) | 1672 × 0.254 | 0.21 | 15.40 | 19.30 | 1,165 | 585 | |
| S200XL-SH-4/0AWG-120 | 4/0 AWG (120 mm²) | 2109 × 0.254 | 0.17 | 17.20 | 21.40 | 1,455 | 680 | |
