Fixed installation
Ideal for harnesses spanning cold exterior chassis frames into warm +125 °C engine perimeters.
Product

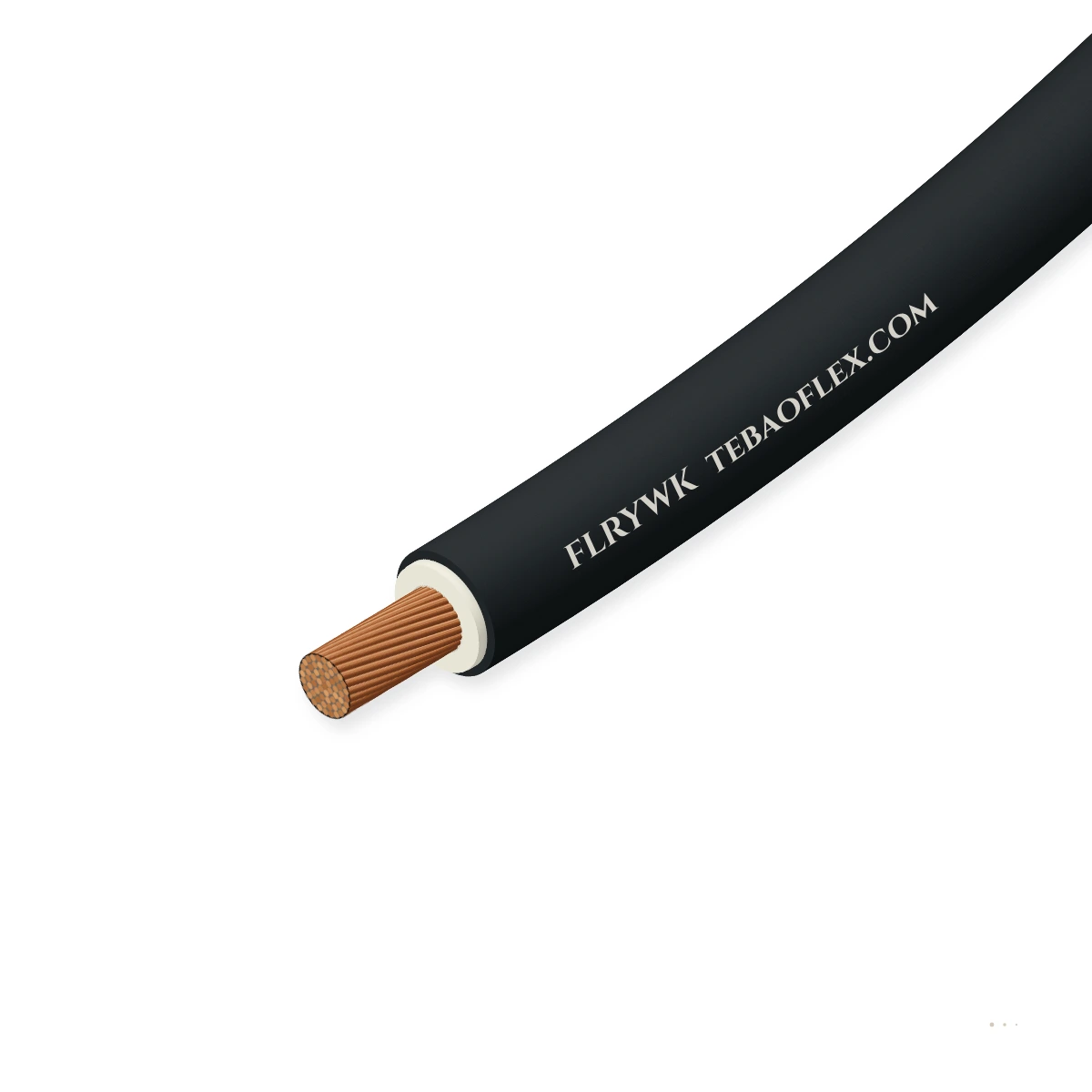

FLRYWK ('YWK' = Wärmebeständiges und kälteflexibles PVC) combines ISO 6722-1 Class C (+125 °C) heat endurance with extended -50 °C arctic cold flexibility in a single reduced-wall PVC primary wire. It bridges a 175 °C operating window (-50 °C to +125 °C) for c
Typical values for this cable type, based on ISO 6722-1 Class C / DIN 72551 / LV 112 — confirmed in the datasheet and quotation for your order.
Application fit
Specified for heavy commercial vehicles, Nordic defence/utility fleets, cold-climate engine compartments, cab-tilt hinges and exterior chassis sensors requiring both -50 °C flex life and +125 °C thermal ageing.
Ideal for harnesses spanning cold exterior chassis frames into warm +125 °C engine perimeters.
Standard FLR reduced-wall dimensions fit all European crimp terminals and single-wire seals.
Withstands cab-tilt and door-bellows flexing down to -50 °C without insulation cracking.
For temperatures above +125 °C (up to +150/+200 °C) combined with -65 °C cold rating, select FLR7Y or FLR5Y.
FLR7Y -65 to +150 °C wireConstruction

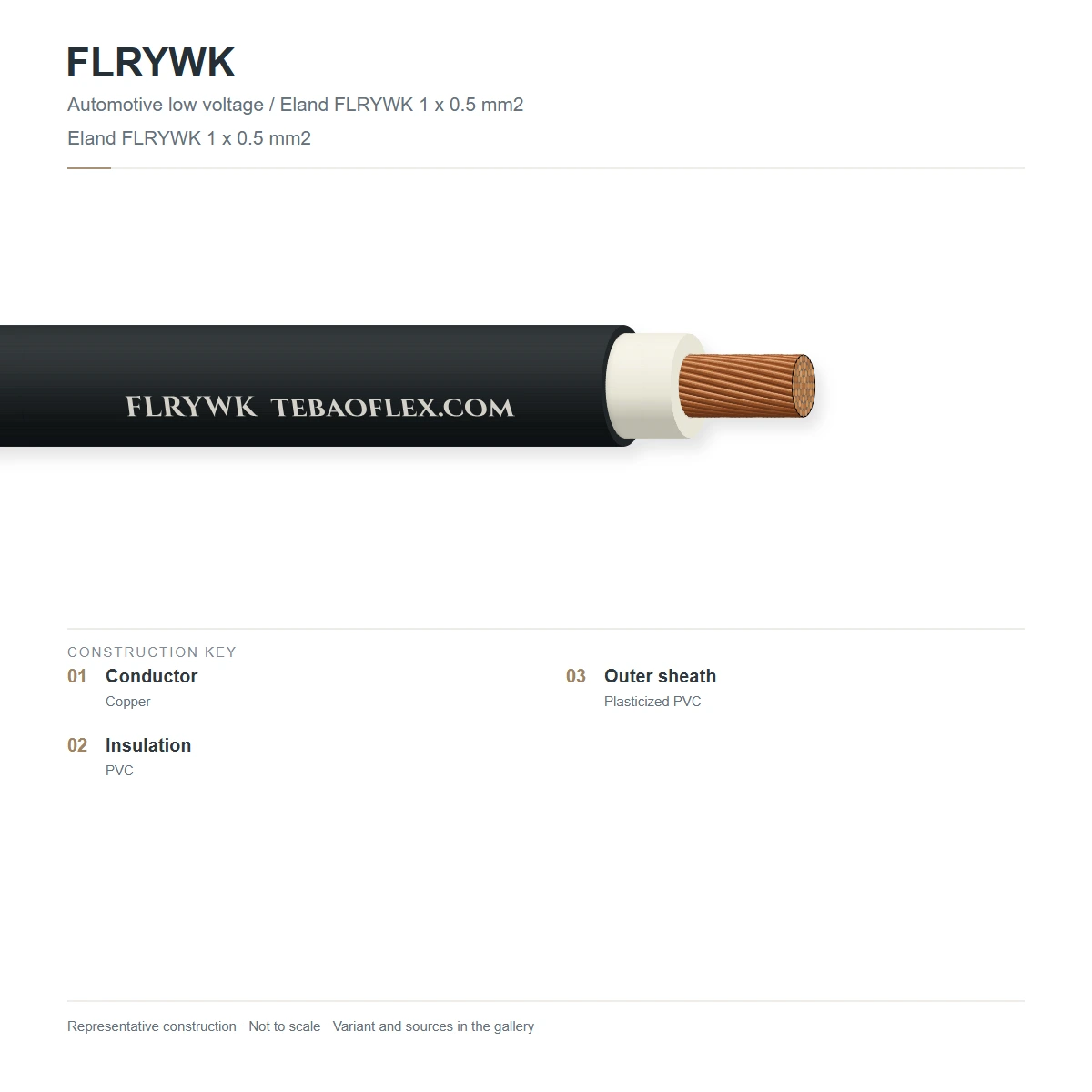

Soft annealed bare copper (Cu-ETP1, Type A concentric or Type B bunched) + reduced-wall heat-resistant and cold-flexible PVC compound (YWK, -50 to +125 °C).
| # | Layer | Material & reference |
|---|---|---|
| 1 | Cu-ETP1 bare copper (Type A or B) | Soft annealed electrolytic copper in Type A symmetrical concentric or Type B flexible bunched constructionISO 6722-1 |
| 2 | Wide-range YWK PVC insulation | Lead-free PVC compounded with high-molecular-weight low-temperature trimellitate/polyester plasticisers for -50 °C to +125 °C serviceISO 6722-1 |
| 3 | Smooth colour/stripe outer surface | Abrasion-resistant sub-zero flexible surface with DIN 72551 colour and stripe codingDIN 72551 |

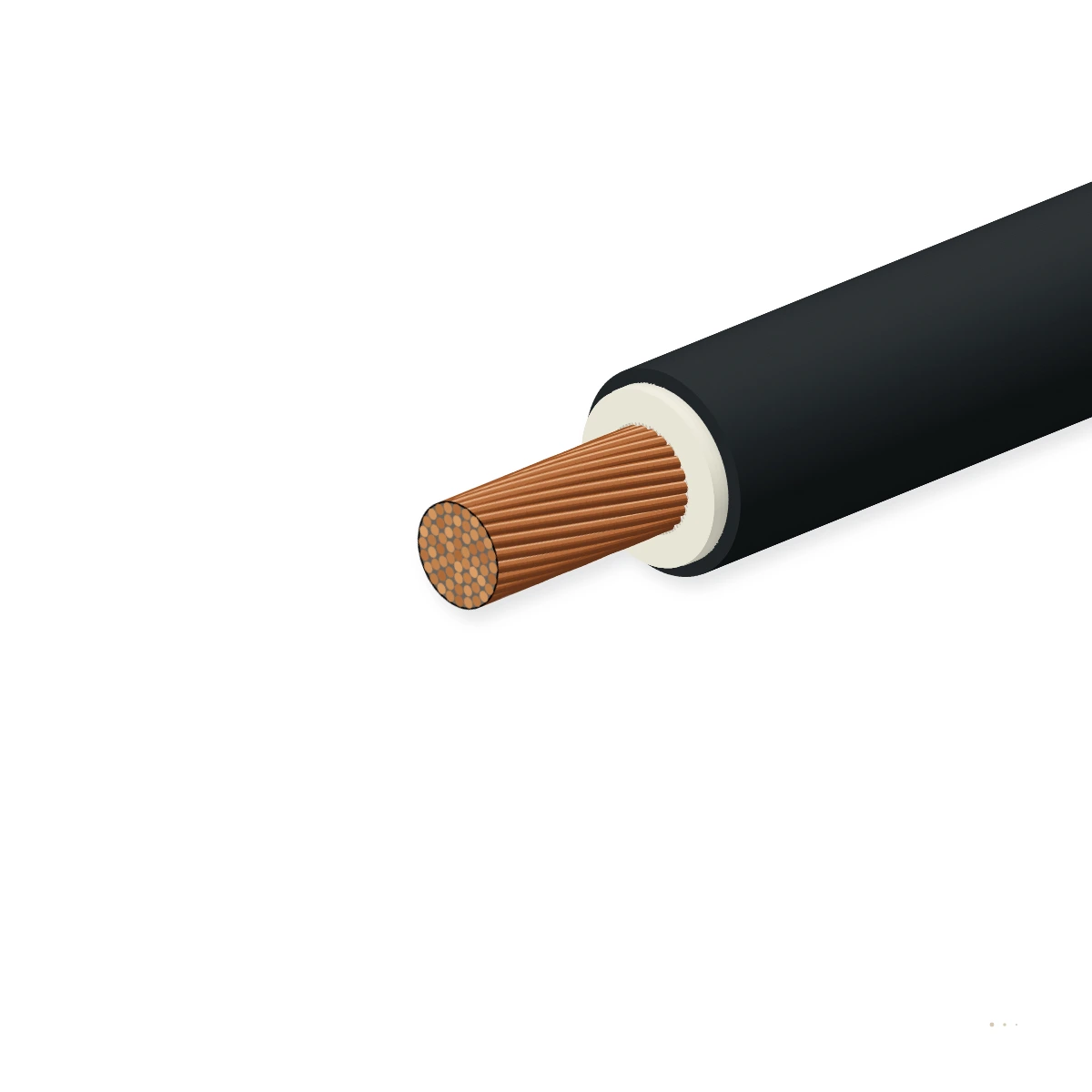

Symmetrical concentric copper conductor (0.35–2.5 mm²) with -50 to +125 °C YWK reduced-wall insulation.
Asymmetrical bunched copper conductor (0.35–16 mm²) with -50 to +125 °C YWK reduced-wall insulation.
Technical data
Sizes
Nominal dimensions, wall thickness, copper mass and electrical parameters for FLRYWK per ISO 6722-1 Class C / DIN 72551 / LV 112.
| Designation | Type & Size mm² | Strands × Ø / Wall mm | Max. OD mm | Copper kg/km | Total mass ≈ kg/km | Min. bend R mm | Enquiry |
|---|---|---|---|---|---|---|---|
| FLRYWK size range | |||||||
| FLRYWK 0.35 mm² | 0.35 mm² | 12×0.21 · 0.20 mm | 1.35 | 3.3 | 4.6 | 5.4 | |
| FLRYWK 0.50 mm² | 0.50 mm² | 16×0.21 · 0.22 mm | 1.60 | 4.8 | 6.7 | 6.4 | |
| FLRYWK 0.75 mm² | 0.75 mm² | 24×0.21 · 0.24 mm | 1.90 | 7.2 | 9.6 | 7.6 | |
| FLRYWK 1.00 mm² | 1.00 mm² | 32×0.21 · 0.24 mm | 2.10 | 9.6 | 12.4 | 8.4 | |
| FLRYWK 1.50 mm² | 1.50 mm² | 30×0.26 · 0.24 mm | 2.40 | 14.4 | 17.7 | 9.6 | |
| FLRYWK 2.50 mm² | 2.50 mm² | 50×0.26 · 0.28 mm | 3.00 | 24.0 | 28.8 | 12.0 | |
| FLRYWK 4.00 mm² | 4.00 mm² | 56×0.31 · 0.32 mm | 3.70 | 38.4 | 45.0 | 14.8 | |
| FLRYWK 6.00 mm² | 6.00 mm² | 84×0.31 · 0.32 mm | 4.30 | 57.6 | 65.8 | 17.2 | |
| FLRYWK 10.0 mm² | 10.0 mm² | 80×0.41 · 0.48 mm | 6.00 | 96.0 | 109.5 | 24.0 | |
| FLRYWK 16.0 mm² | 16.0 mm² | 126×0.41 · 0.52 mm | 7.20 | 153.6 | 173.0 | 28.8 | |
| Type & Size mm² | Max. DC R @ 20 °C mΩ/m | Single wire in air A | In harness bundle A |
|---|---|---|---|
| 0.35 mm² | 54.40 | 10 | 8 |
| 0.50 mm² | 37.10 | 13 | 10 |
| 0.75 mm² | 24.70 | 18 | 14 |
| 1.00 mm² | 18.50 | 22 | 17 |
| 1.50 mm² | 12.70 | 28 | 22 |
| 2.50 mm² | 7.60 | 38 | 30 |
| 4.00 mm² | 4.71 | 50 | 39 |
| 6.00 mm² | 3.14 | 64 | 50 |
| 10.0 mm² | 1.82 | 88 | 69 |
| 16.0 mm² | 1.16 | 118 | 92 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| 3.0–5.0 kV AC spark test & DC conductor resistance | Zero faults; DC resistance per ISO 6722-1 | 100 % of spools |
| Sample tests | ||
| -50 °C cold mandrel winding & +150 °C 240-hour heat ageing | Passes both -50 °C cold wind and Class C heat shock | Every lot |
| 3000-hour +125 °C Class C endurance & automotive fluid test | Full compliance with ISO 6722-1 Class C (-50 °C) | Type qualification |
