Fixed installation
Directly clamps along truck chassis rails, sub-frames and trailer drawbars without extra conduit.
Product

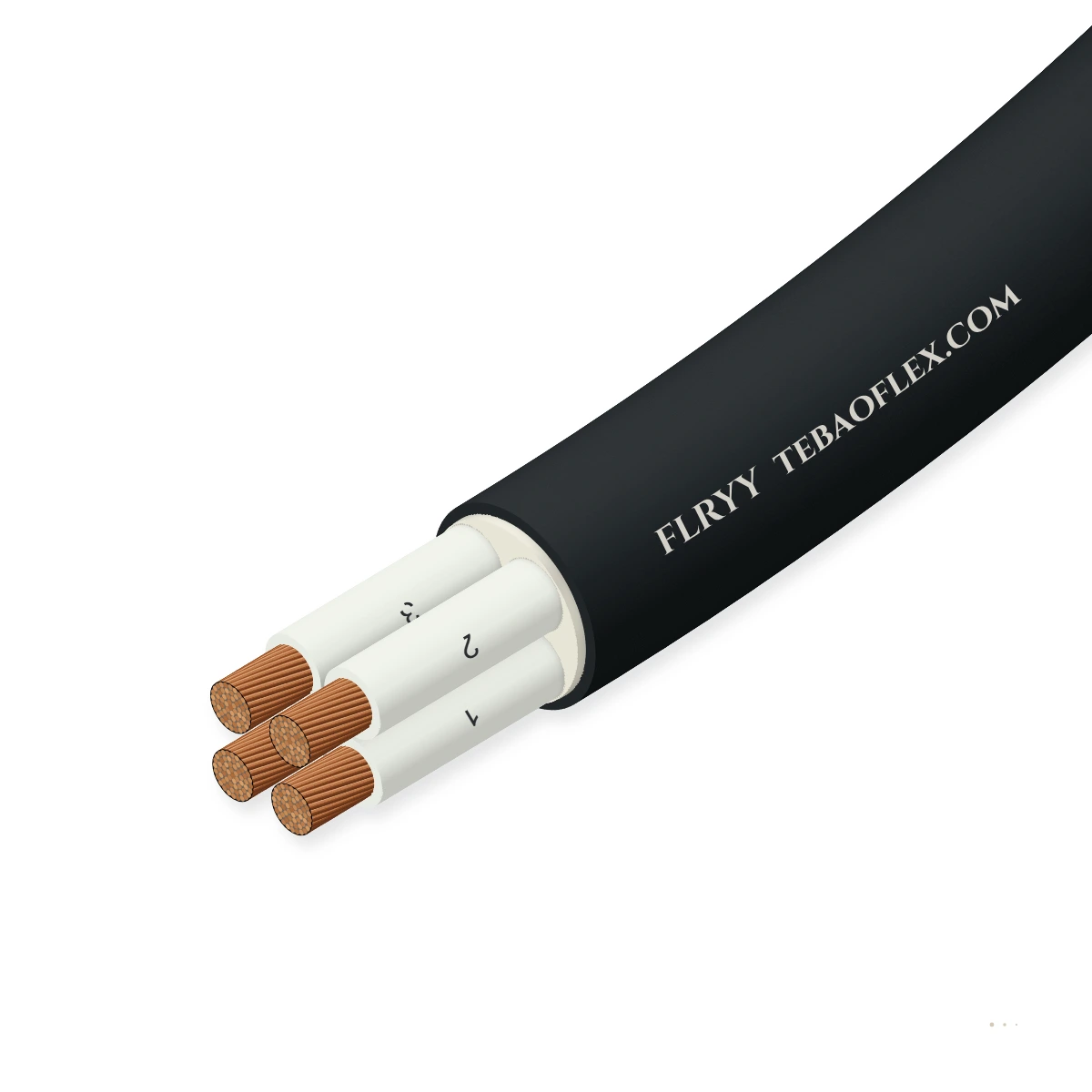

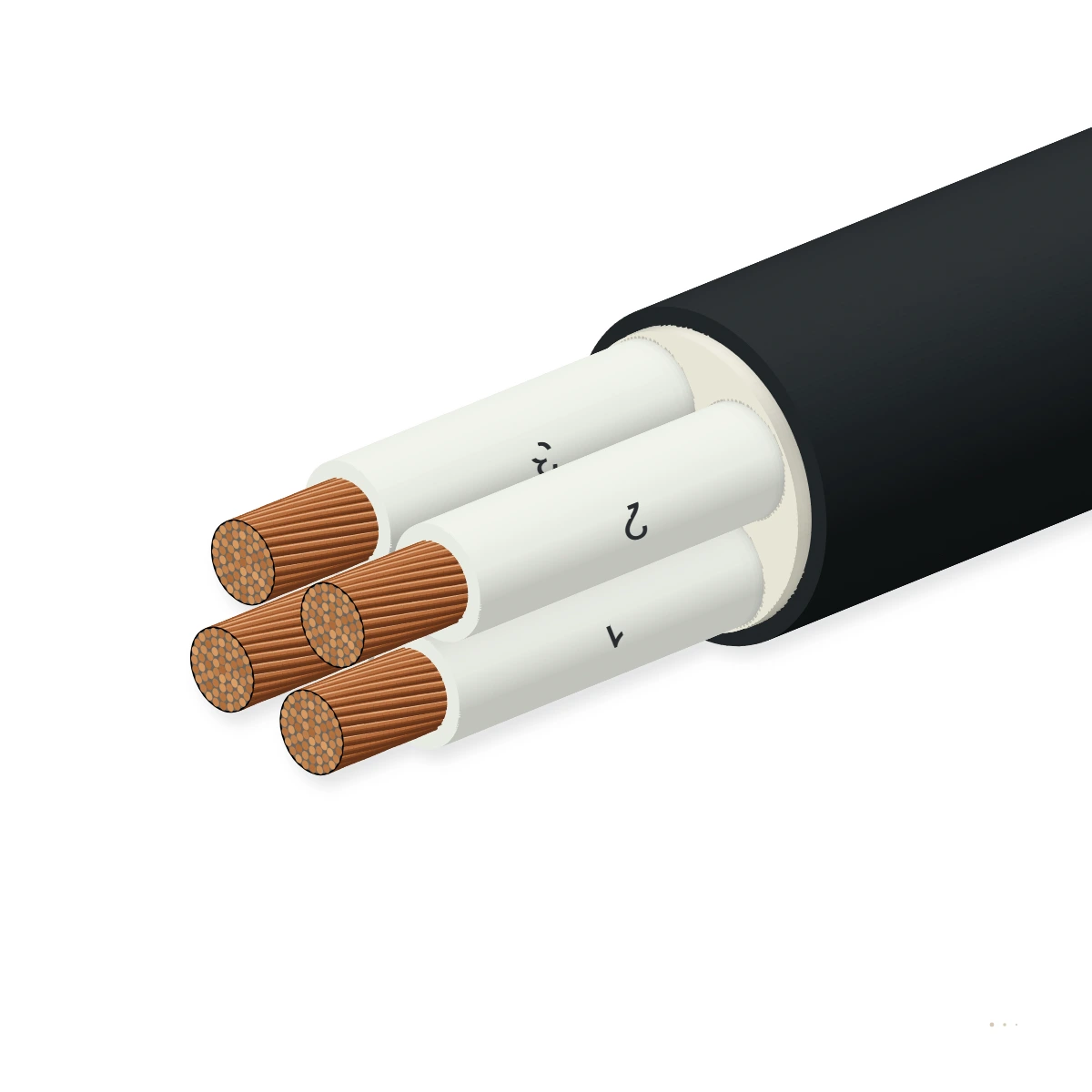

FLRYY is a round multicore commercial vehicle, chassis and auxiliary equipment cable per ISO 6722-1, ISO 4141-3 and DIN 72551. It combines colour-coded FLRY reduced-wall Class B (-40 °C to +105 °C) PVC insulated cores with an oil-, diesel-, UV- and stone-impac
Typical values for this cable type, based on ISO 6722-1 / ISO 4141-3 / DIN 72551 — confirmed in the datasheet and quotation for your order.
Application fit
Designed for commercial truck and bus chassis routing, tail-lift controls, rear lamp clusters, auxiliary hydraulic valves, fifth-wheel sensors and agricultural implement harnesses exposed to road spray and gravel.
Directly clamps along truck chassis rails, sub-frames and trailer drawbars without extra conduit.
Black UV-stabilised outer PVC sheath withstands chassis articulation, road salt, mud and high-pressure washing.
Compact FLRY inner cores keep overall cable diameter small for PG/metric cable glands and bayonet connectors.
For coiled or flexing tractor-to-trailer jumpers, specify PUR-sheathed ISO 4141 trailer cable.

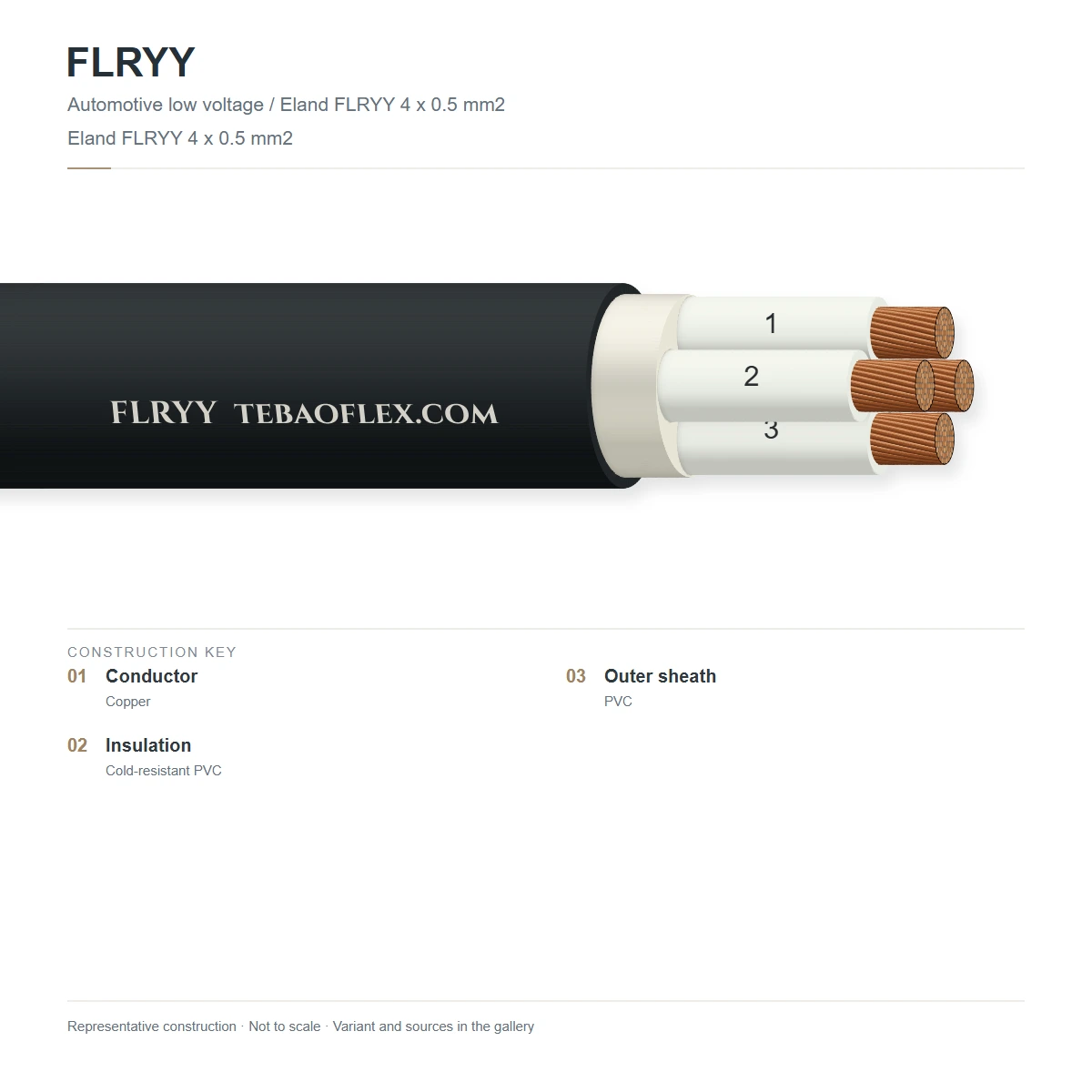

Multicore Trailer CableConstruction
Fine-stranded bare copper (FLRY-B) + reduced-wall Class B PVC core insulation (DIN/ISO colour code) + twisted core assembly + rugged black automotive PVC outer sheath.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Fine-stranded bare copper (FLRY-B) | Soft annealed electrolytic copper strands per ISO 6722-1 Type BISO 6722-1 |
| 2 | FLRY reduced-wall PVC core insulation | Colour-coded Class B (-40 °C to +105 °C) lead-free PVC insulationISO 6722-1 |
| 3 | Black automotive PVC outer jacket (Y) | UV-, oil-, diesel- and stone-chip-resistant PVC sheath printed with core count and cross-sectionISO 4141-3 |
Compact round or flat twin/multi-core cables (0.50 to 1.50 mm²) for clearance lamps, work lights, wheel-speed extensions and solenoid valves.
Multi-conductor cables (including mixed 1.50 + 2.50 mm² earths) for rear lighting bars, tail-lift control boxes and body-builder distribution.
Technical data
Sizes
Nominal dimensions, wall thickness, copper mass and electrical parameters for FLRYY per ISO 6722-1 / ISO 4141-3 / DIN 72551.
| Designation | Cores × Size mm² | Core Strands | Max. OD mm | Copper kg/km | Total mass ≈ kg/km | Min. bend R mm | Enquiry |
|---|---|---|---|---|---|---|---|
| FLRYY size range | |||||||
| FLRYY 2×0.50 | 2 × 0.50 mm² | 16×0.21 mm | 4.40 | 9.6 | 26.0 | 26.4 | |
| FLRYY 2×0.75 | 2 × 0.75 mm² | 24×0.21 mm | 5.00 | 14.4 | 34.0 | 30.0 | |
| FLRYY 2×1.00 | 2 × 1.00 mm² | 32×0.21 mm | 5.40 | 19.2 | 42.0 | 32.4 | |
| FLRYY 2×1.50 | 2 × 1.50 mm² | 30×0.26 mm | 6.00 | 28.8 | 56.0 | 36.0 | |
| FLRYY 3×0.75 | 3 × 0.75 mm² | 24×0.21 mm | 5.30 | 21.6 | 42.0 | 31.8 | |
| FLRYY 3×1.00 | 3 × 1.00 mm² | 32×0.21 mm | 5.70 | 28.8 | 52.0 | 34.2 | |
| FLRYY 3×1.50 | 3 × 1.50 mm² | 30×0.26 mm | 6.40 | 43.2 | 71.0 | 38.4 | |
| FLRYY 4×0.75 | 4 × 0.75 mm² | 24×0.21 mm | 5.80 | 28.8 | 53.0 | 34.8 | |
| FLRYY 4×1.00 | 4 × 1.00 mm² | 32×0.21 mm | 6.30 | 38.4 | 66.0 | 37.8 | |
| FLRYY 4×1.50 | 4 × 1.50 mm² | 30×0.26 mm | 7.10 | 57.6 | 90.0 | 42.6 | |
| FLRYY 5×0.75 | 5 × 0.75 mm² | 24×0.21 mm | 6.40 | 36.0 | 65.0 | 38.4 | |
| FLRYY 5×1.00 | 5 × 1.00 mm² | 32×0.21 mm | 7.00 | 48.0 | 81.0 | 42.0 | |
| FLRYY 5×1.50 | 5 × 1.50 mm² | 30×0.26 mm | 7.80 | 72.0 | 110.0 | 46.8 | |
| FLRYY 7×0.75 | 7 × 0.75 mm² | 24×0.21 mm | 7.10 | 50.4 | 86.0 | 42.6 | |
| FLRYY 7×1.00 | 7 × 1.00 mm² | 32×0.21 mm | 7.60 | 67.2 | 106.0 | 45.6 | |
| FLRYY 7×1.50 | 7 × 1.50 mm² | 30×0.26 mm | 8.80 | 100.8 | 148.0 | 52.8 | |
| Cores × Size mm² | Max. DC R @ 20 °C mΩ/m | Single wire in air A | In harness bundle A |
|---|---|---|---|
| 2 × 0.50 mm² | 37.10 | 10 | 8 |
| 2 × 0.75 mm² | 24.70 | 13 | 10 |
| 2 × 1.00 mm² | 18.50 | 16 | 12 |
| 2 × 1.50 mm² | 12.70 | 21 | 16 |
| 3 × 0.75 mm² | 24.70 | 12 | 9 |
| 3 × 1.00 mm² | 18.50 | 15 | 12 |
| 3 × 1.50 mm² | 12.70 | 19 | 15 |
| 4 × 0.75 mm² | 24.70 | 11 | 9 |
| 4 × 1.00 mm² | 18.50 | 14 | 11 |
| 4 × 1.50 mm² | 12.70 | 18 | 14 |
| 5 × 0.75 mm² | 24.70 | 10 | 8 |
| 5 × 1.00 mm² | 18.50 | 13 | 10 |
| 5 × 1.50 mm² | 12.70 | 16 | 12 |
| 7 × 0.75 mm² | 24.70 | 9 | 7 |
| 7 × 1.00 mm² | 18.50 | 11 | 9 |
| 7 × 1.50 mm² | 12.70 | 14 | 11 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| 3.0 kV AC dielectric test & conductor resistance | Zero breakdown core-to-core; DC resistance per ISO 6722-1 | 100 % of drums |
| Sample tests | ||
| Sheath wall thickness, tensile & -40 °C cold wind | Complies with ISO 4141-3 / ISO 6722-1 sheath tests | Every batch |
| Diesel/oil immersion, UV weathering & 45° flame test | Certified to ISO 6722-1 & ISO 4141-3 | Type qualification |
Marking & supply
Sheath marking
