Compact spring-reel & extension cables0.6/1 kVSpring-Reel PVCTransparent Outer Jacket

C800 0.6/1 kV Extra-Flexible Round PVC Cable for Spring ReelsCompact double-sheathed PVC control & power cable with transparent outer jacket

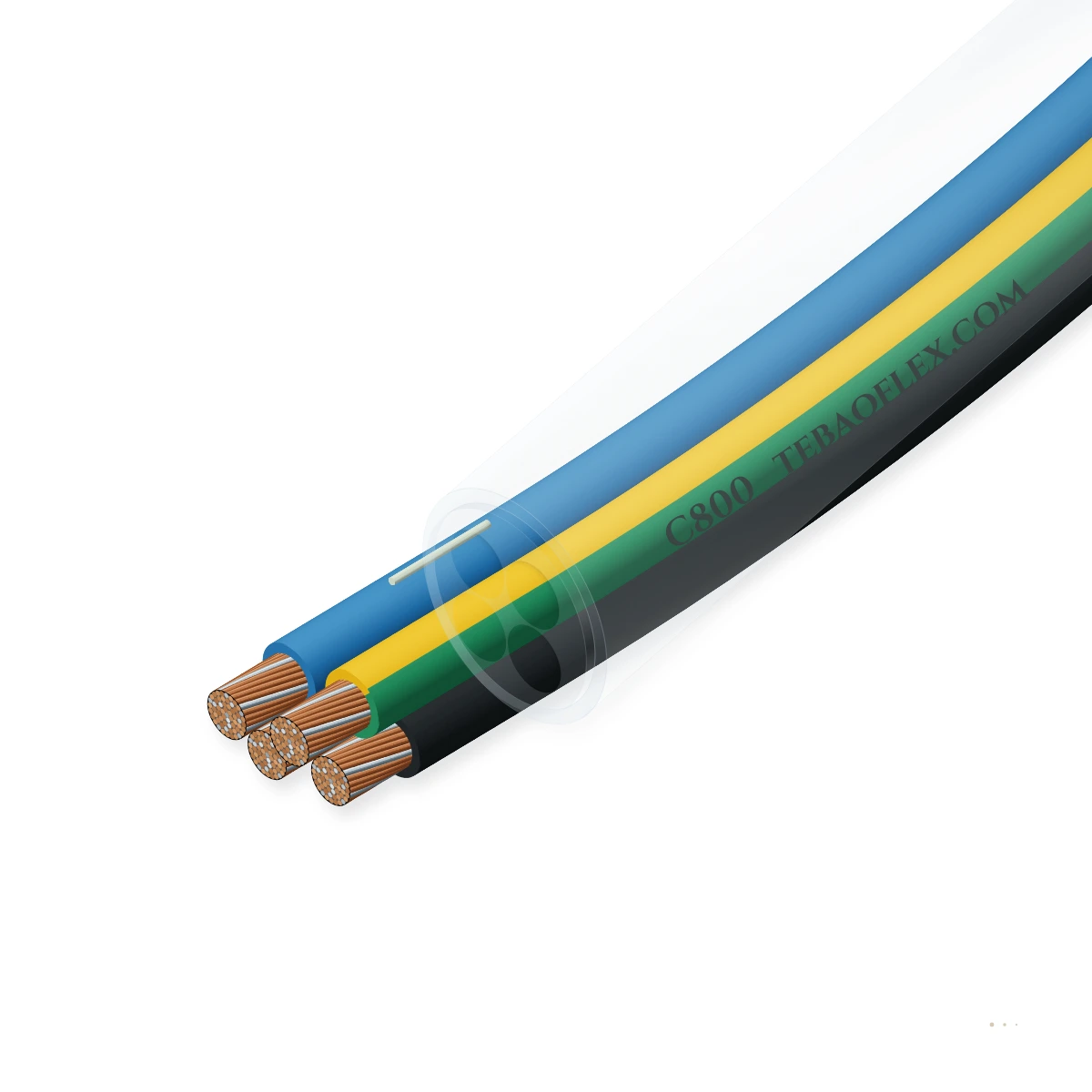

Extra-flexible 0.6/1 kV round PVC reeling cable (C800) for compact spring and extension reels up to 60 m/min, featuring Class 5 copper conductors, short-lay PVC cores, PVC inner sheath and a transparent PVC outer jacket with integrated tear-up cord.

Flame-retardant

Oil-resistant

Ozone, UV & moisture

Cores × cross-section

Order designation: C800 4G2
Outer Ø max.: 8.0 mm
Weight ≈: 120 kg/km
Spool R (6×D): 48 mm
Max. pull: 160 N

Check against my drum All sizes (13)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 0.6/1 kV
Travel speed: 60 m/min
Bending radius: 6 × D spool
Flexing temp.: -10 to +60 °C
Max. conductor: +80 °C
Outer jacket: Transparent PVC

Typical values for this cable type, based on IEC 60502-1 / NF C 32-090 — confirmed in the datasheet and quotation for your order.

Application fit

Is C800 right for your machine?

C800 is engineered for compact spring-driven and extension cable reels where installation space is restricted, combining ultra-small outer diameters (5.7 to 12.9 mm) with a dual PVC sheath and integrated ripcord.

Motorised monospiral reel

Suitable

Primary duty: compact spring-driven and extension reels on hoists, transfer carts and workshop machinery up to 60 m/min.

Festoon & line chain

With conditions

Can be used on light indoor C-rail loops at ≥ 8 × D dynamic bending radius.

Use KYFLY for dedicated PVC festoons

Cylindrical / multi-layer drum

Not suitable

Not suitable for heavy motorized level-wind reels or deflecting pulleys without engineering review.

Use GPM-RF for heavy-duty PUR reels

Immersion & wet locations

Not suitable

Special PVC sheath is moisture-resistant for indoor/covered outdoor service but not rated for water immersion.

Use (N)12YRD11Y-J/O for AD8 50 m water

Typical machinesSpring-driven workshop & hoist reelsAutomated guided vehicles & cartsPackaging & assembly-line machineryOverhead workstation tool balancersWarehouse mobile control stationsCompact extension & service reels

Construction

Layer by layer

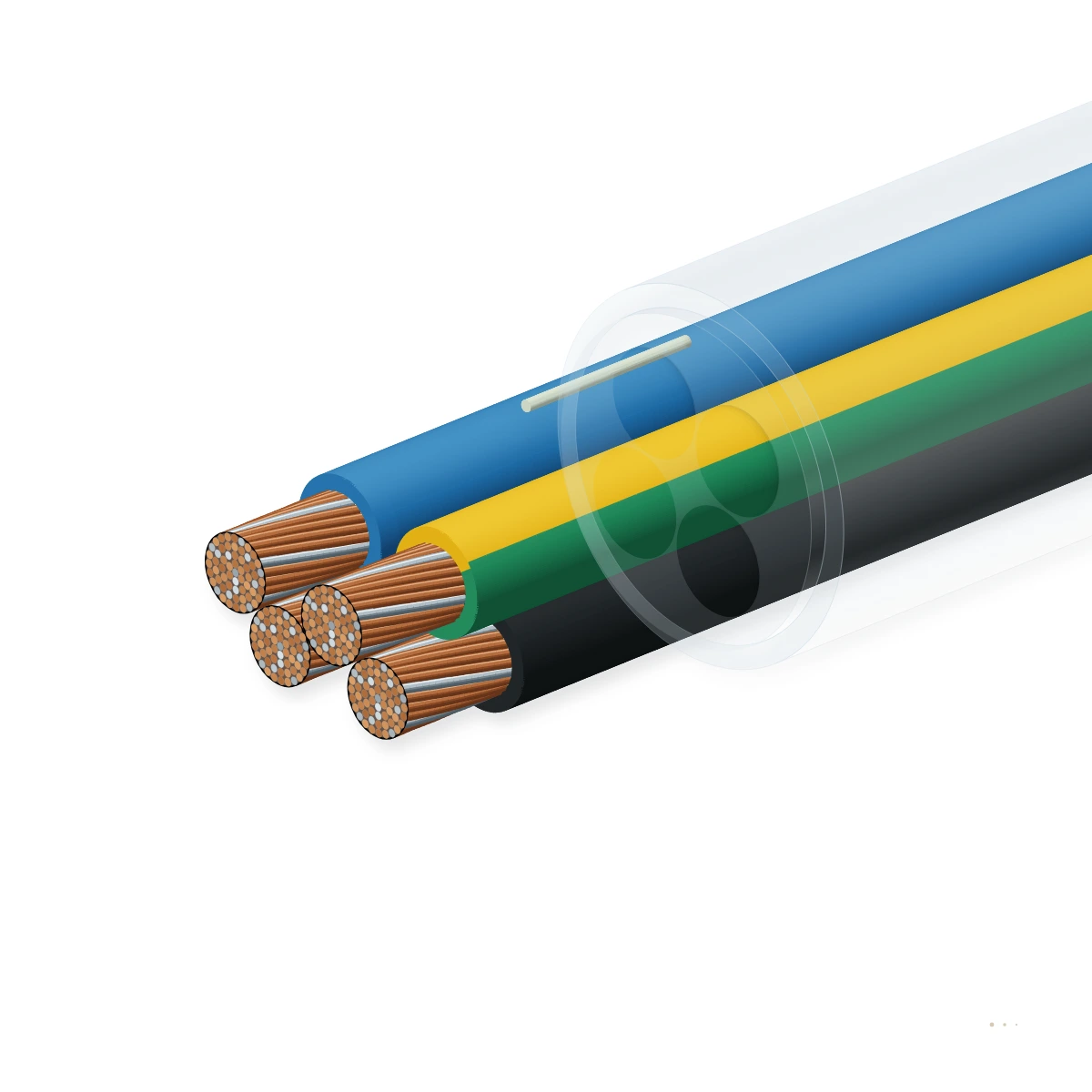

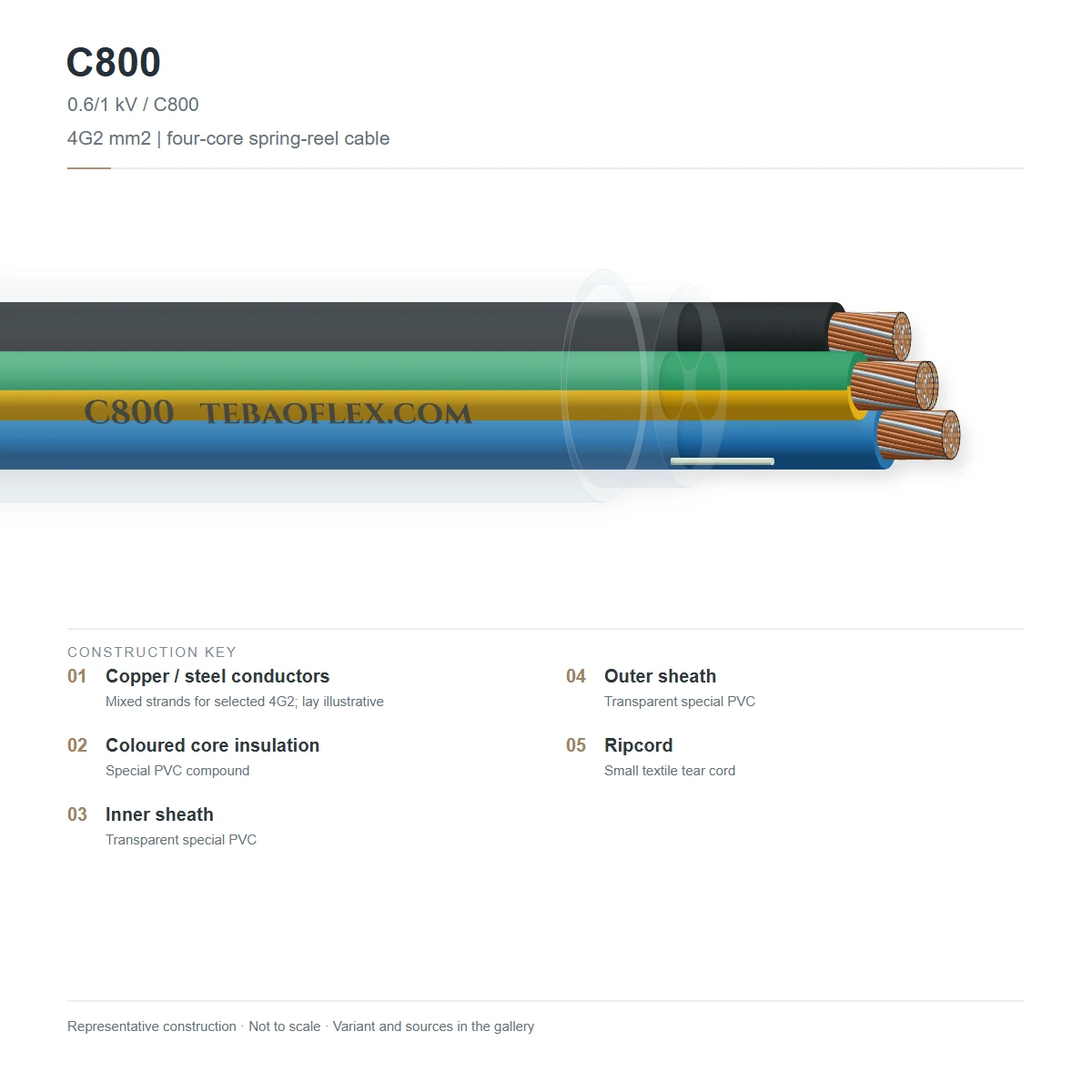

Shown: C800 4G2 — four 2.0 mm² Class 5 bare copper cores with mass-coloured special PVC insulation stranded in short lay inside a PVC inner sheath and a transparent special PVC outer jacket with integrated tear-up cord.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductor	Extra-flexible bare copper strands, Class 5DIN VDE 0295 / IEC 60228 Class 5
2	Core insulation	Special flexible PVC compound, mass-coloured cores stranded with short length of layNF C 32-090 / IEC 60502-1
3	Inner sheath	Special flexible PVC inner bedding compoundStabilises round geometry on small-diameter spring drums
4	Tear-up ripcord	Integrated high-strength synthetic tear-up cord under outer jacketEnables fast, nick-free stripping of the outer PVC sheath
5	Outer sheath	Transparent special PVC compound, oil-, moisture- and UV-resistantIEC 60332-1 flame-retardant · Allows visual inspection of inner sheath and core lay

C800 2×1 – 15G1

Control & signal series: 2 to 15 cores of 1.0 mm² (5.7 to 12.9 mm max. OD)

C800 3G2 – 6G2 & 4G3

Compact power & control series: 3 to 6 cores of 2.0 mm² and 4 cores of 3.0 mm²

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 60502-1 / NF C 32-090. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 0.6/1 kV (IEC 60502-1)
Voltage test: 3.5 kV AC per IEC 60502-1

Thermal

Ambient temperature — flexing & fixed: -10 to +60 °C
Max. conductor operating temperature: +80 °C (short-circuit +110 °C)

Mechanical

Max. horizontal travel speed: Up to 60 m/min on compact spring and extension reels
Min. bending radius: 3 × D static · 6 × D on spool · 8 × D dynamic guiding
Permissible tensile load: 20 N/mm² (40 N on 2×1 mm² up to 240 N on 12G1–15G1, 6G2 and 4G3)

Reference standards

Reference standards: DIN VDE 0295 / IEC 60228 Class 5 · IEC 60502-1 · NF C 32-090 · IEC 60332-1
Environmental resistance: Oil, moisture, humidity & UV resistant · Flame-retardant IEC 60332-1 (not halogen-free)

Sizes

Dimensions, weights & tensile load ratings

13 compact C800 control, signal and power configurations (1.0 mm², 2.0 mm² and 3.0 mm²)

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø max. mm	Copper kg/km	Weight ≈ kg/km	Spool R (6×D) mm	Dynamic R (8×D) mm	Max. pull N
All sizes
Control 1.0 mm² (2×1–15G1)
C800 2×1	2 × 1	18	5.7	19.2	46	35	46	40
C800 3G1	3 G 1	18	6.0	28.8	59	36	48	60
C800 4G1	4 G 1	18	6.8	38.4	75	41	55	80
C800 6G1	6 G 1	18	8.0	57.6	110	48	64	120
C800 8G1	8 G 1	18	9.7	76.8	157	59	78	160
C800 10G1	10 G 1	18	10.6	96.0	181	64	85	200
C800 12G1	12 G 1	18	12.2	115.2	232	74	98	240
C800 15G1	15 G 1	18	12.9	144.0	260	78	104	240
Power 2.0 & 3.0 mm² (3G2–4G3)
C800 3G2	3 G 2	14	7.1	57.6	93	43	57	120
C800 4G2	4 G 2	14	8.0	76.8	120	48	64	160
C800 5G2	5 G 2	14	8.7	96.0	149	53	70	200
C800 6G2	6 G 2	14	9.8	115.2	181	59	79	240
C800 4G3	4 G 3	13	10.4	115.2	199	63	84	240

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Weights in the source table (0.046 to 0.260 kg/m) are expressed here in kg/km (46 to 260 kg/km) for consistency.

Conductor & electrical data
Cross-section mm²	AWG ≈	Max. R20 Ω/km	Base rating in air 30 °C, A	Configurations
1.0	18	19.5	15	2×1 to 15G1
2.0	14	9.95	24	3G2 to 6G2
3.0	13	6.6	30	4G3

Apply drum-layer and multi-core grouping derating factors when sizing spring reels.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 150 mm ≥ 96 mmBending radius OK (6 × OD 8.0 mm)

40 m/min ≤ 60 m/minWithin the rated travel speed

Minimum bending radius: 48 mm
Min. drum core diameter: ≈ 96 mm
Cable weight on drum: 3.0 kg
Copper content: 1.9 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	Acc. to IEC 60502-1 (3.5 kV)	Every length
Conductor resistance	DIN VDE 0295 / IEC 60228 Class 5	Every length
Sample tests
Flame propagation	IEC 60332-1	Per batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

0.6/1 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX C800 4G2 0.6/1 kV · EXTRA-FLEXIBLE PVC · CE · [year] · [metre mark]

Standard packing: Drums or pre-cut spring-reel lengths
HS code: 8544.49

Technical documents

Downloads

PDFC800 0.6/1 kV Extra-Flexible Round PVC Cable for Spring Reels – technical datasheet13 sizes · construction, technical data, approvals XLSXC800 spec data (Excel)All 13 sizes with dimensions and data, for your BOM or quotation
