Furnace, kiln & high-temp zone
Engineered for continuous +450 °C service on industrial heat-treating furnaces, glass lehrs, ceramic kilns, and plastic extruders.
Product

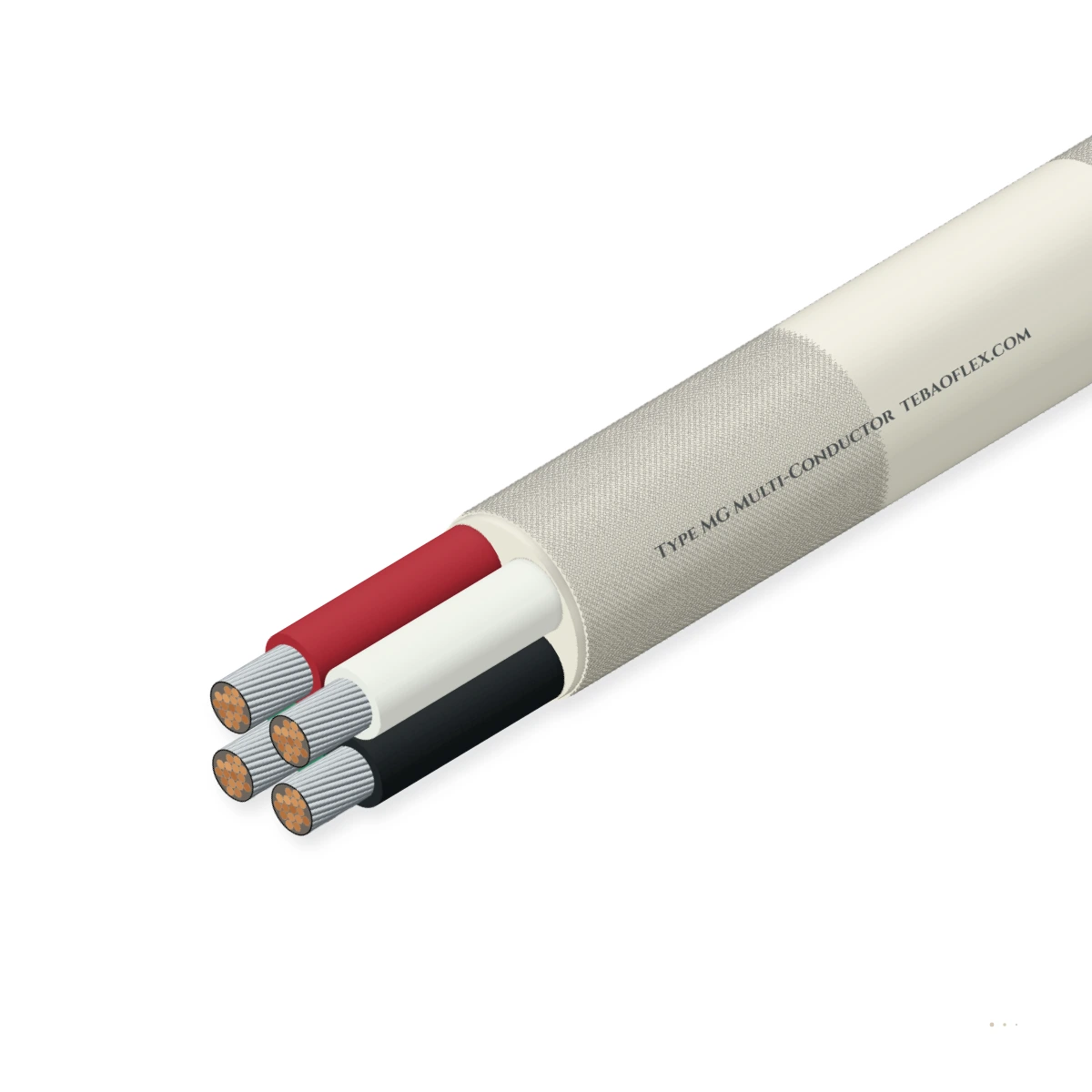

Type MG multi-conductor +450 °C high-temperature cable constructed with 27 % nickel-plated copper conductors (ASTM B355 Class 27), individual phlogopite mica-tape and glass-braid core insulation, and an overall treated E-glass jacket for 600 V AC.
Typical values for this cable type, based on UL 758 Style 5107 / 5335 & CSA C22.2 No. 210 Type MG — confirmed in the datasheet and quotation for your order.
Application fit
Select Type MG Multi-Conductor when multi-core power or control circuits run directly inside +250 °C to +450 °C thermal zones where fluoropolymers (PTFE/PFA) and silicone rubber decompose.
Engineered for continuous +450 °C service on industrial heat-treating furnaces, glass lehrs, ceramic kilns, and plastic extruders.
Cabled multi-core construction simplifies conduit and tray routing compared with pulling multiple loose single-core UL 5170 wires.
Colour-tracer coded glass-braided cores permit straightforward phase identification at high-temperature ceramic terminal blocks.
Fibreglass-braided mica insulation is designed for dry heat zones; for wet, oily, or washdown zones use FLAME ARREST LT.
Use FLAME ARREST LT for wet zonesConstruction

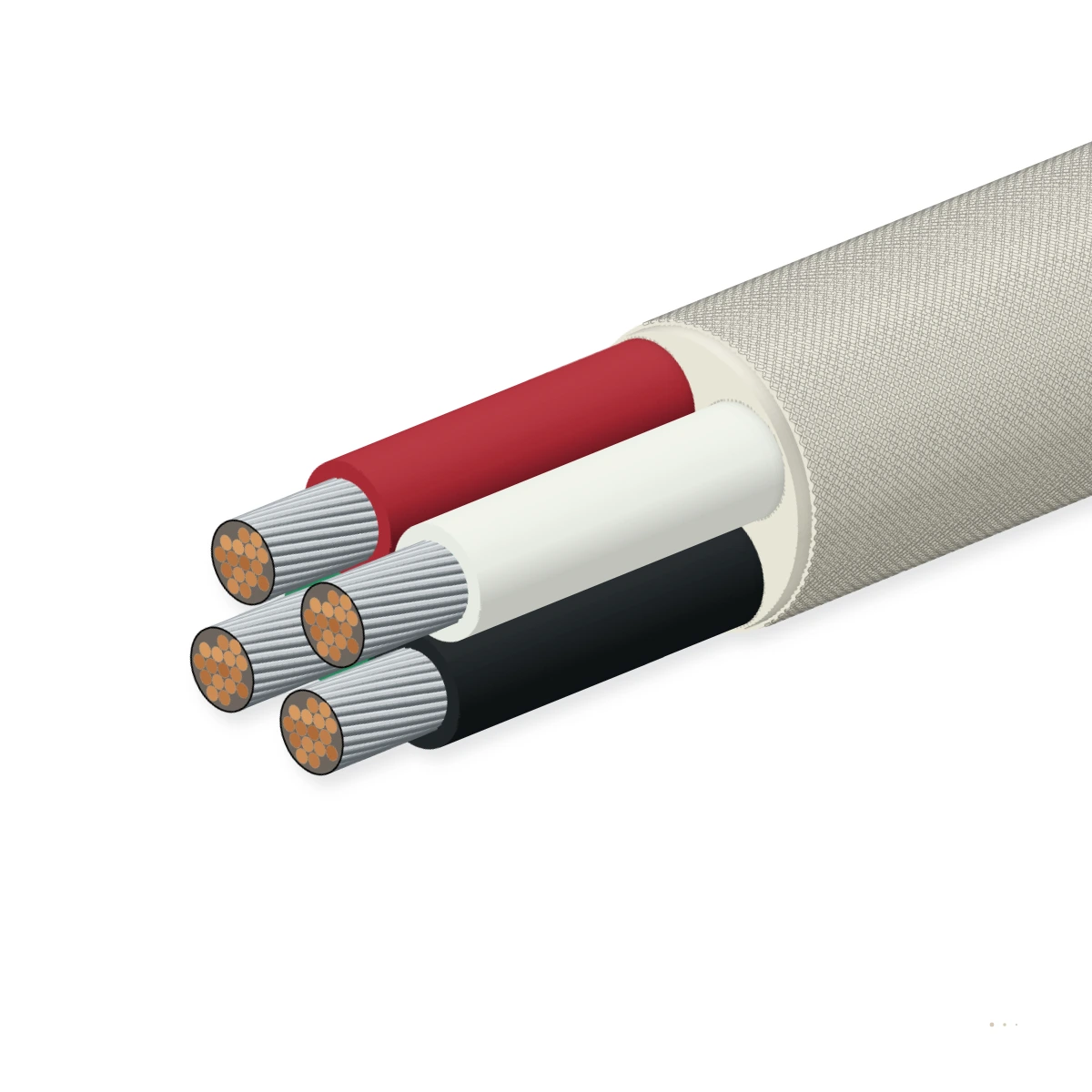

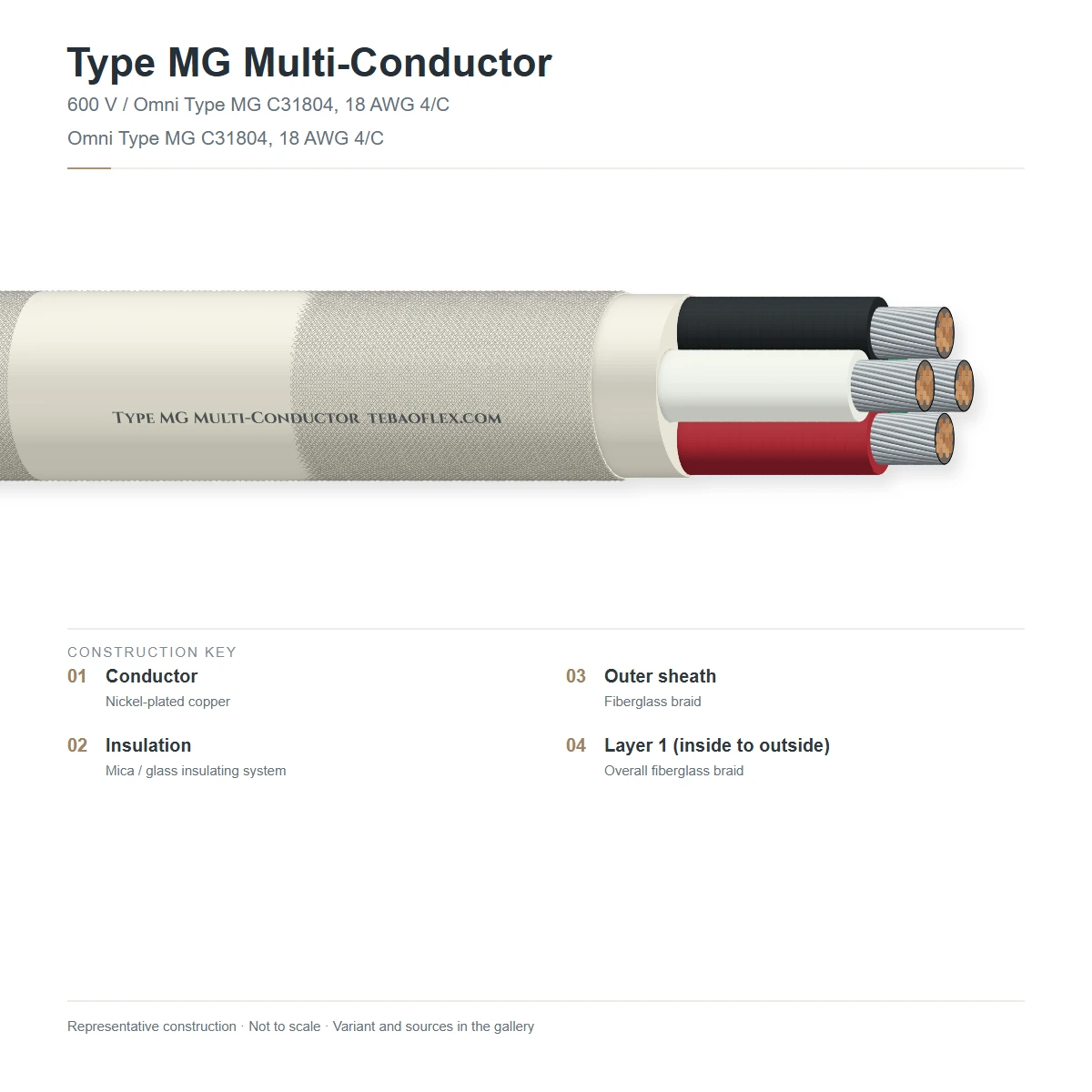

Type MG multi-core architecture: 27 % nickel-plated copper conductors, per-core phlogopite mica tapes + E-glass braid, glass-yarn fillers, and overall treated E-glass outer jacket.
| # | Layer | Material & reference |
|---|---|---|
| 1 | 27 % Nickel-plated copper conductor | Flexible stranded 27 % nickel-coated annealed copper (ASTM B355 Class 27 / IEC 60228 Class 5)Thick 27 % weight nickel cladding prevents copper oxidation continuously up to +450 °C |
| 2 | Per-core phlogopite mica tapes | Helically lapped phlogopite mica tapes bonded with high-temp silicone resinPrimary 600 V AC inorganic dielectric barrier stable to +800 °C |
| 3 | Per-core E-glass fibre braid | Braided E-glass yarn with colour-tracer threads over each mica-wrapped coreLocks the mica tape layers in place during bending and provides core identification |
| 4 | Inorganic glass-yarn core bedding | Cabled cores with inorganic E-glass filler yarnsMaintains roundness and mechanical stability across thermal cycles |
| 5 | Overall high-temperature E-glass jacket | Heavy braided continuous-filament E-glass outer sleeve with silicone/PTFE saturantProtects the multi-core bundle against abrasion and radiant furnace heat |
Standard +450 °C multi-conductor cable with overall treated E-glass outer braid
With optional AISI 304/316 stainless-steel outer armour braid for heavy foundry abrasion
Technical data
Sizes
Engineering dimensions, conductor stranding, mass and electrical ratings for Type MG Multi-Conductor per UL 758 Style 5107 / 5335 & CSA C22.2 No. 210 Type MG.
| Order designation | Cross-section / size | Conductor build | Wall ≈ mm | Outer Ø ≈ mm | Metal kg/km | Weight ≈ kg/km | Min. bend R fixed mm | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Standard Type MG Multi-Conductor configurations | ||||||||
| Type-MG 2×1 | 2×1 | Class 5 Sn-Cu (1 mm²) | 1.40 | 7.90 | 19.2 | 92.8 | 47 | |
| Type-MG 3G1 | 3G1 | Class 5 Sn-Cu (1 mm²) | 1.40 | 8.30 | 28.8 | 110.1 | 50 | |
| Type-MG 4G1 | 4G1 | Class 5 Sn-Cu (1 mm²) | 1.40 | 8.90 | 38.4 | 131.9 | 53 | |
| Type-MG 2×1.5 | 2×1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 8.50 | 28.8 | 114.1 | 51 | |
| Type-MG 3G1.5 | 3G1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 8.90 | 43.2 | 136.7 | 53 | |
| Type-MG 4G1.5 | 4G1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 9.70 | 57.6 | 168.6 | 58 | |
| Type-MG 5G1.5 | 5G1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 10.40 | 72.0 | 199.6 | 62 | |
| Type-MG 7G1.5 | 7G1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 11.30 | 100.8 | 251.5 | 68 | |
| Type-MG 12G1.5 | 12G1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 14.60 | 172.8 | 424.3 | 88 | |
| Type-MG 2×2.5 | 2×2.5 | Class 5 Sn-Cu (2.5 mm²) | 1.40 | 10.20 | 48.0 | 170.8 | 61 | |
| Type-MG 3G2.5 | 3G2.5 | Class 5 Sn-Cu (2.5 mm²) | 1.40 | 10.80 | 72.0 | 209.6 | 65 | |
| Type-MG 4G2.5 | 4G2.5 | Class 5 Sn-Cu (2.5 mm²) | 1.40 | 11.80 | 96.0 | 260.3 | 71 | |
| Type-MG 5G2.5 | 5G2.5 | Class 5 Sn-Cu (2.5 mm²) | 1.40 | 12.80 | 120.0 | 313.3 | 77 | |
| Type-MG 7G2.5 | 7G2.5 | Class 5 Sn-Cu (2.5 mm²) | 1.40 | 13.90 | 168.0 | 396.0 | 83 | |
| Type-MG 3G4 | 3G4 | Class 5 Sn-Cu (4 mm²) | 1.80 | 12.80 | 115.2 | 308.5 | 77 | |
| Type-MG 4G4 | 4G4 | Class 5 Sn-Cu (4 mm²) | 1.80 | 13.90 | 153.6 | 381.6 | 83 | |
| Type-MG 4G6 | 4G6 | Class 5 Sn-Cu (6 mm²) | 1.80 | 15.40 | 230.4 | 510.2 | 92 | |
| Type-MG 4G10 | 4G10 | Class 5 Sn-Cu (10 mm²) | 1.80 | 18.60 | 384.0 | 792.2 | 112 | |
| Type-MG 4G16 | 4G16 | Class 5 Sn-Cu (16 mm²) | 1.80 | 21.30 | 614.4 | 1,149.8 | 128 | |
| Configuration | Max. DC R @ 20 °C Ω/km | Primary rating (A or kV) | Derated / AC rating | Dielectric test V AC rms |
|---|---|---|---|---|
| 2×1 mm² | 20.00 | 15.0 | 12.0 | 2,000 |
| 3G1 mm² | 20.00 | 15.0 | 12.0 | 2,000 |
| 4G1 mm² | 20.00 | 15.0 | 12.0 | 2,000 |
| 2×1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 3G1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 4G1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 5G1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 7G1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 12G1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 2×2.5 mm² | 8.21 | 26.0 | 20.0 | 2,000 |
| 3G2.5 mm² | 8.21 | 26.0 | 20.0 | 2,000 |
| 4G2.5 mm² | 8.21 | 26.0 | 20.0 | 2,000 |
| 5G2.5 mm² | 8.21 | 26.0 | 20.0 | 2,000 |
| 7G2.5 mm² | 8.21 | 26.0 | 20.0 | 2,000 |
| 3G4 mm² | 5.09 | 34.0 | 27.0 | 2,000 |
| 4G4 mm² | 5.09 | 34.0 | 27.0 | 2,000 |
| 4G6 mm² | 3.39 | 44.0 | 34.0 | 2,000 |
| 4G10 mm² | 1.95 | 61.0 | 48.0 | 2,000 |
| 4G16 mm² | 1.24 | 82.0 | 64.0 | 2,000 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| Dielectric spark / high-voltage withstand test | 100 % in-line spark and AC/DC dielectric withstand per UL 758 Style 5107 / 5335 & CSA C22.2 No. 210 Type MG | Every manufactured length |
| Conductor DC resistance & continuity check | Within maximum 20 °C resistance limit specified for Type MG Multi-Conductor | Every spool or drum length |
| Sample tests | ||
| Thermal ageing & dimensional verification | Wall thickness, concentricity and post-ageing elongation per UL 758 Style 5107 / 5335 & CSA C22.2 No. 210 Type MG | Per production batch |
| Flame, outgassing or high-temperature endurance | Qualified to UL 758 Style 5107 / 5335 & CSA C22.2 No. 210 Type MG thermal and environmental performance criteria | Type qualification |
Marking & supply
Sheath marking
