Thermoset Cross-Linked Elastomer Portable CordsUL 62 / CSA C22.2600 V Class 3Extra-Hard Usage '3XSOW'

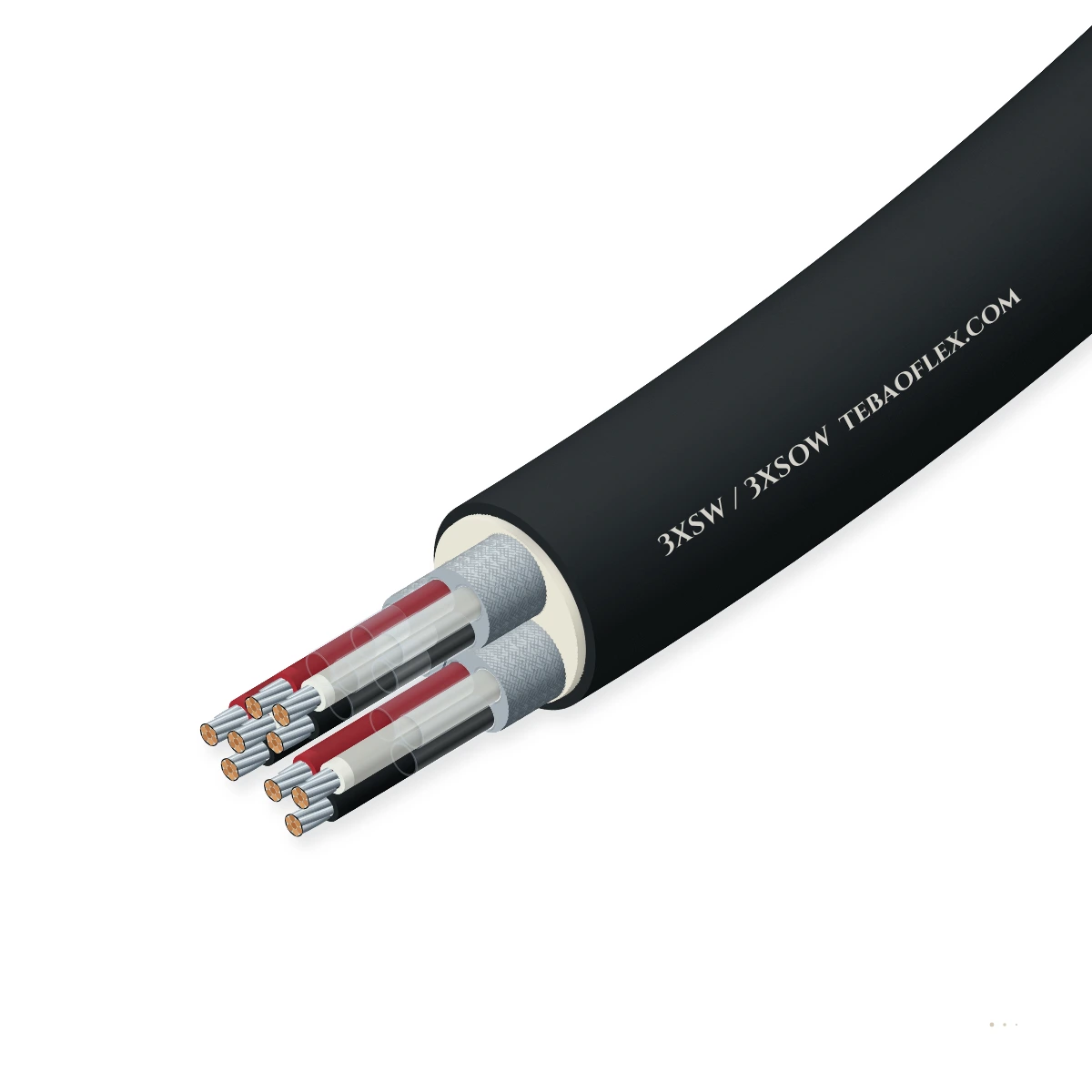

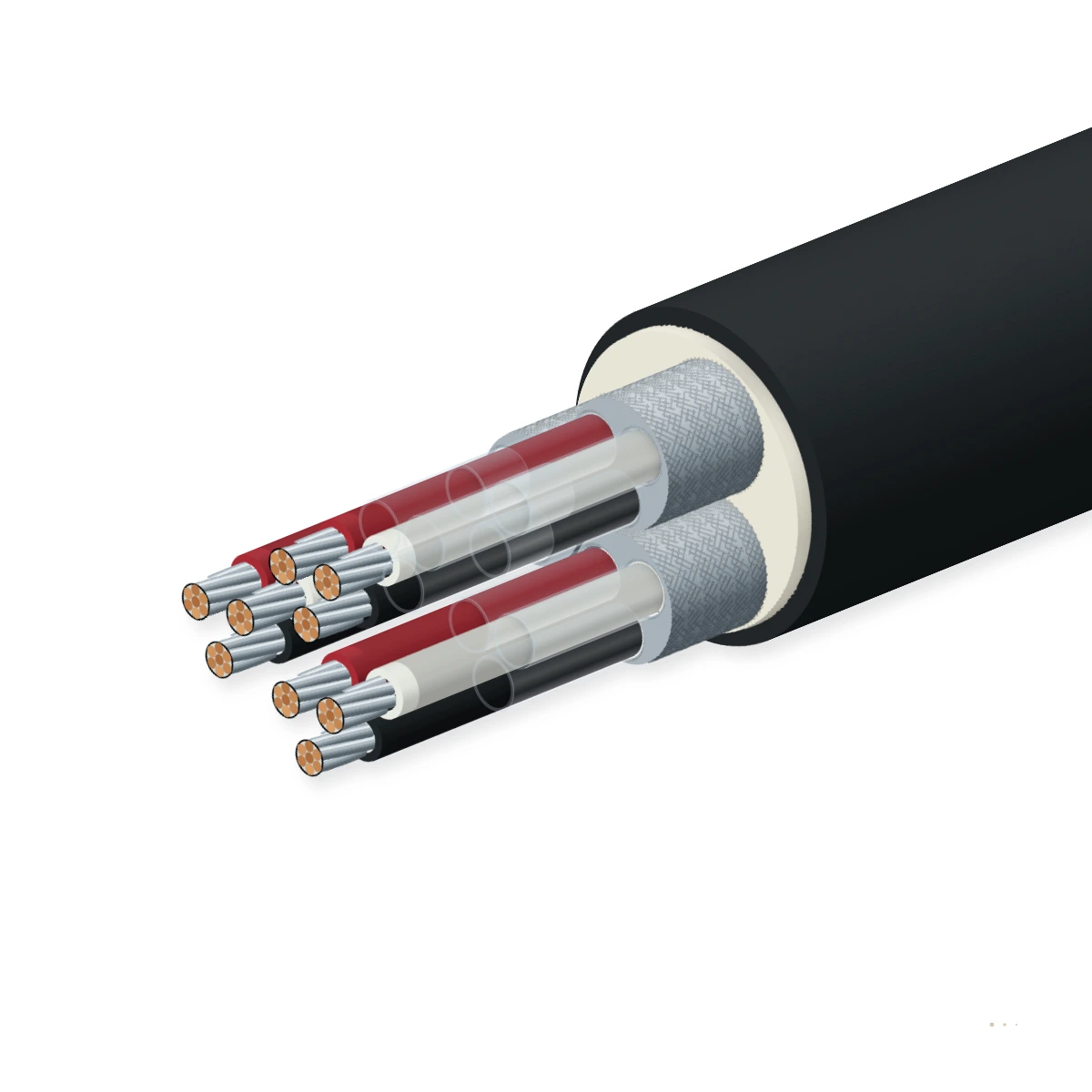

3XSW / 3XSOW Oil-Resistant Elastomer Portable CordUL 62 / CSA C22.2 No. 49 · Class 3 extra-hard usage · 600 V · +90 °C XL-EPR · Oil &

3XSW and 3XSOW are Class 3 extra-hard-usage 600 V flexible portable power cords engineered with heavy-wall +90 °C cross-linked elastomer ('XS') insulation and an extra-thick weather/water ('W') and oil-resistant ('O') thermoset outer jacket for shipyards

Oil-resistant
Ozone, UV & moisture
Water-resistant
Flame-retardant
Order designation
3XSW 4×16 (6 AWG)
Outer Ø ≈
28.5 mm
Copper weight
614 kg/km
Total weight ≈
1,280 kg/km
Min. bend R (fixed)
142 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
600 V AC
Class 3 extra-hard usage service
Sheath wall
Extra-heavy '3'
Reinforced radial wall thickness
Conductor max.
+90 °C
Wet or dry continuous · +250 °C SC
Ambient (flex)
-40 to +90 °C
All-weather outdoor mobile duty
Min. bend R
5 × D / 8 × D
Fixed routing / dynamic reeling
Size range
14 AWG to 2/0
2.5 mm² to 70 mm² heavy feeders

Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / ICEA S-75-381 — confirmed in the datasheet and quotation for your order.

Application fit

Is 3XSW / 3XSOW right for your machine?

Built for extra-hard usage where portable power feeders are dragged across rough concrete, steel deck plates, gravel, and oily industrial floors or wound on heavy cord reels.

Trailing & towing

Suitable

Extra-thick Class 3 jacket withstands vehicle roll-over, gravel dragging, and steel-deck abrasion.

Motorised monospiral reel

Suitable

High torsional and tear strength for motorized cable reels on dockside cranes and magnets.

Quayside shore-to-ship HVSC connection

Suitable

Suitable for dockside temporary power jumpers, dry-dock welders, and barge feeders.

Immersion & wet locations

Suitable

UL/CSA 'W' wet-location certified for flooded trenches, sumps, and outdoor washdown.

Drilling jumbo & rotary mast feed

Suitable

3XSOW resists drilling mud, diesel fuel, hydraulic oil, and sub-zero -40 °C temperatures.

Typical machinesShipyards & Dry-Dock PowerHeavy Civil & Tunnel ConstructionMobile Diesel Generator RentalSteelworks & Scrap Magnet ReelsSurface Mining & Quarry Shops

Construction

Layer by layer

Rope-lay flexible copper conductors, heavy-wall +90 °C XL-EPR insulation, cordura/jute reinforcing fillers, and extra-thick Class 3

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible rope-lay copper conductorSoft annealed bare or tinned copper wire (ASTM Class K / IEC 60228 Class 5)UL 62 / IEC 60228 Class 5
2Heavy-wall +90 °C XL-EPR insulationCross-linked ethylene-propylene thermoset elastomer with Class 3 radial wall thicknessUL 62 / ICEA S-75-381
3High-strength filler & fabric binderNon-wicking elastomeric/synthetic fillers and fabric serving tape resisting impactICEA S-75-381
4Extra-heavy Class 3 outer jacket (3XSWExtra-thick cross-linked CPE or polychloroprene (PCP) weather/water ('W') andUL 62 / CSA C22.2 No. 49

Type 3XSW

Extra-hard usage Class 3 weather- and water-resistant ('W') 600 V cross-linked elastomer portable cord.

Type 3XSOW

Extra-hard usage Class 3 oil-, weather-, and water-resistant ('OW') 600 V cross-linked elastomer portable

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / ICEA S-75-381. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 V AC (RMS) / 1000 V IEC
Dielectric withstand test
3.0 kV AC for 5 minutes
Wet insulation resistance
≥ 500 MΩ·km at +20 °C
Operating frequency
50 / 60 Hz & DC
Conductor stranding
ASTM Class K / IEC Class 5
Ampacity reference
NEC Table 400.5(A)(1) & (A)(2)

Thermal

Max. conductor operating temp.
+90 °C continuous (wet or dry)
Max. short-circuit temperature
+250 °C (max. 5 s)
Cold-bend rating
-40 °C without cracking
Mobile ambient range
-40 °C to +80 °C
Hot-surface contact
Thermoset non-melting jacket
Heat shock resistance
+150 °C / 1 h

Mechanical

Min. bend radius (fixed)
5 × overall diameter (D)
Min. bend radius (flexing)
8 × overall diameter (D)
Duty class
Class 3 extra-hard usage
Max. tensile pull on copper
15 N/mm² (up to 20 N/mm² reeled)
Jacket tensile strength
≥ 13.8 MPa unaged
Tear resistance
≥ 18 N/mm extra-heavy wall

Resistance

Oil & diesel resistance (3XSOW)
IRM 902 / ASTM No. 2 oil immersion
Weather & UV sunlight ('W')
720 h UV weatherometer approved
Water immersion ('W')
Continuous wet & sump operation
Flame retardance
UL/CSA FT2 & MSHA / IEC 60332-1-2
Ozone & chemical splash
Resistant to acids, alkalis & ozone
RoHS / REACH status
RoHS 3 compliant

Reference standards

Primary cord standard
UL 62 / CSA C22.2 No. 49
Heavy portable cord standard
ICEA S-75-381 (NEMA WC 58)
Conductor standard
ASTM B174 / IEC 60228 Class 5
Flame test standard
CSA FT2 / IEC 60332-1-2
European heavy equivalent
S1BN8-F / NSHTÖU 0.6/1 kV
Quality certification
EN 10204 3.1 mill certificate

Identification

Core identification
Colour-coded (2–5c) or numbered
Protective earth core
Green or green/yellow
Outer jacket colour
Black or high-visibility yellow
Surface legend
TEBAOFLEX 3XSOW 600V [n×AWG/mm²] 90C
Length marking
Sequential foot / metre marking
Batch traceability
Lot number & year code

Sizes

12 standard configurations (3XSW / 3XSOW)

Nominal dimensions, copper weights and electrical parameters for 3XSW / 3XSOW per UL 62 / CSA C22.2 No. 49 / ICEA S-75-381.

Dimensions & weights
Order designationType & Core ConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Type 3XSW — Extra-hard usage weather/water-resistant elastomer cord
3XSW 4×4.0 (12 AWG)4G4.0 (12 AWG)4.017.815443089
3XSW 4×6.0 (10 AWG)4G6.0 (10 AWG)6.020.2230575101
3XSW 4×10 (8 AWG)4G10 (8 AWG)1025.0384910125
3XSW 4×16 (6 AWG)4G16 (6 AWG)1628.56141,280142
Type 3XSOW — Extra-hard usage oil-, weather- & water-resistant cord
3XSOW 3×4.0 (12 AWG)3G4.0 (12 AWG)4.016.411535582
3XSOW 4×4.0 (12 AWG)4G4.0 (12 AWG)4.018.015444290
3XSOW 4×6.0 (10 AWG)4G6.0 (10 AWG)6.020.4230590102
3XSOW 4×10 (8 AWG)4G10 (8 AWG)1025.2384930126
3XSOW 4×16 (6 AWG)4G16 (6 AWG)1628.86141,310144
3XSOW 4×25 (4 AWG)4G25 (4 AWG)2533.49601,890167
3XSOW 4×35 (2 AWG)4G35 (2 AWG)3537.21,3442,480186
3XSOW 4×50 (1/0 AWG)4G50 (1/0 AWG)5042.61,9203,390213
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per UL 62 / CSA C22.2 No. 49 / ICEA S-75-381.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test3.0 kV rms for 5 minutes without breakdownEvery drum
Conductor DC resistanceComplies with UL 62 / IEC 60228 Class 5 at 20 °CEvery drum
Sample tests
Extra-hard-usage crush, impact & oil testPasses ICEA S-75-381 crush test and IRM 902 oil immersionPer batch
720 h UV weatherometer & -40 °C cold bendPasses UL 62 'W' sunlight/water test and -40 °C mandrel bendType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 62 / ICEA S-75-381FT2 / IEC 60332-1-2CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 3XSOW 600V [n×AWG/mm²] 90C EXTRA
Delivery form
Fumigated export wooden drums or coils
Standard drum lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDF3XSW / 3XSOW Oil-Resistant Elastomer Portable Cord – technical datasheet12 sizes · construction, technical data, approvalsXLSX3XSW / 3XSOW spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does 3XSW / 3XSOW differ from 2XSW / 2XSOW?
The leading '3' designates Class 3 extra-hard-usage construction with heavier radial insulation and outer jacket wall thickness, giving 3XSW and 3XSOW substantially higher crush, cut-through, and abrasion resistance on heavy construction sites, shipyards, and quarry floors. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
What is the difference between Type 3XSW and Type 3XSOW?
Both feature +90 °C cross-linked elastomer ('XS') insulation and a weather- and water-resistant ('W') extra-heavy jacket, while Type 3XSOW additionally uses an oil-resistant ('O') chlorinated/polychloroprene outer compound for diesel, hydraulic fluid, and cutting-oil exposure. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Can 3XSOW be used on motorized cable reels and temporary generator distribution?
Yes, 3XSOW is widely deployed for temporary 600 V power feeders from mobile diesel generators and on motorized cable reels feeding dockside magnets, gantry cranes, and mobile crushers. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
What size range is available in 3XSW and 3XSOW?
Standard production covers 14 AWG (2.5 mm²) through 1/0 and 2/0 AWG (50–70 mm²) in 3-, 4-, and 5-core power configurations. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
