0.6/1 kV unscreened TPE/PUR servo cable0.6/1 kV (UL 1000 V)100 % Halogen-Free TPE/PUR1.5 mm² to 70 mm²

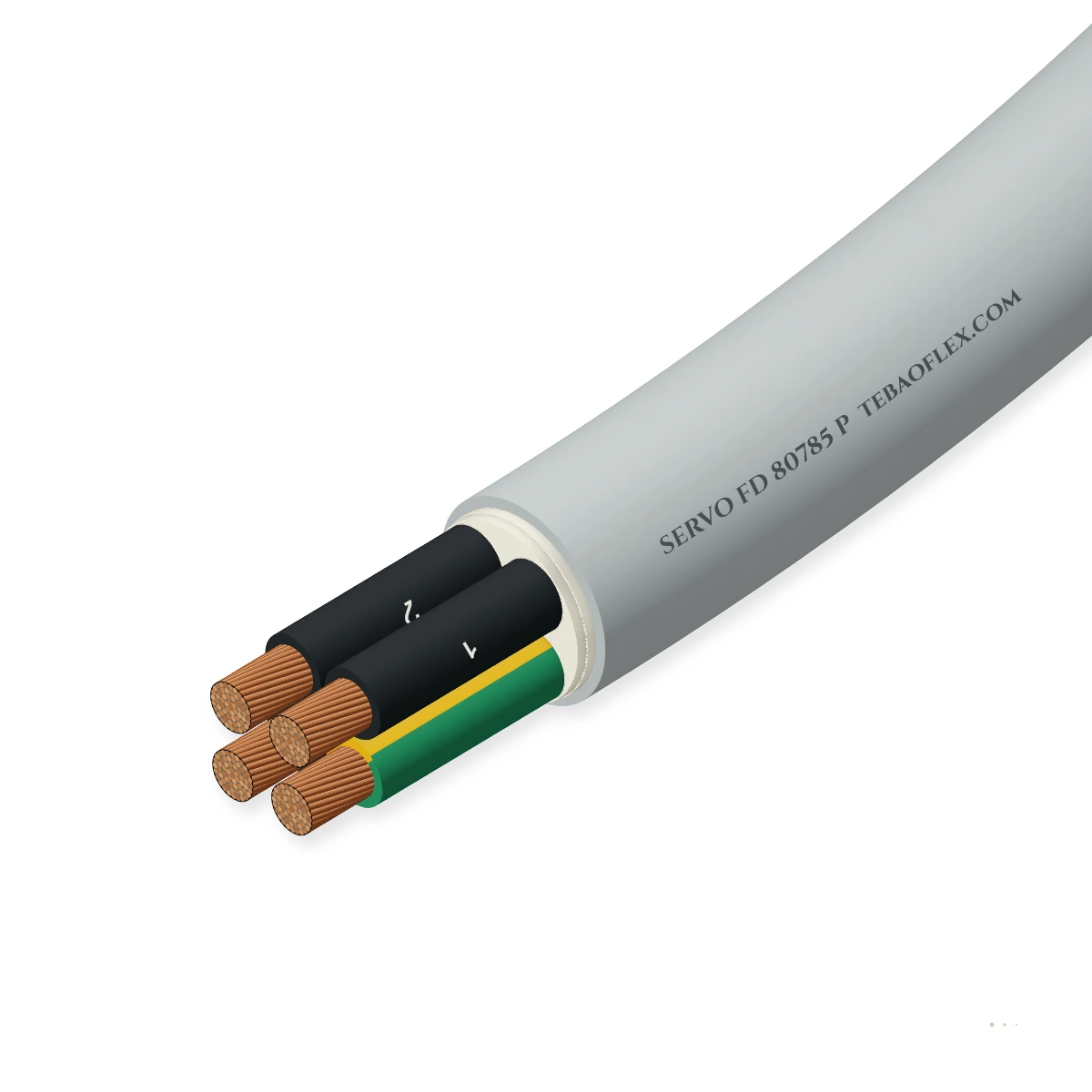

SERVO FD 80785 P 0.6/1 kV Unscreened TPE/PUR Servo Power Cable0.6/1 kV (UL 1000 V) unscreened halogen-free TPE/PUR drag-chain power cable

SERVO FD 80785 P is a 0.6/1 kV (UL/CSA 1000 V) unscreened drag-chain servo motor and spindle power cable (1.5–70 mm²) built with IEC 60228 Class 6 copper conductors, halogen-free TPE core insulation and coolant-proof TMPU jacket for −40 to +80 °C service.

Oil-resistant
Flame-retardant
Ozone, UV & moisture
Anti-torsion braid
Order designation
SERVO FD 80785 P 4G6.0
Outer Ø ≈
13.0 mm
Copper weight
230 kg/km
Total weight ≈
322 kg/km
Min. bend R (chain)
98 mm
Check against my drumAll sizes (14)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
U0/U · UL/CSA 1000 V AWM
Core / Sheath
TPE / PUR
100 % halogen-free IEC 60754
Size range
1.5–70 mm²
4G and 4G + 2 auxiliary cores
Bend radius
7.5 × OD
moving in chain · 4 × OD fixed
Temperature
−40…+80 °C
moving · −50…+80 °C fixed
Acceleration
Up to 50 m/s²
travel speed up to 5 m/s

Typical values for this cable type, based on DIN VDE 0250 / UL AWM Style 21223 — confirmed in the datasheet and quotation for your order.

Application fit

Is SERVO FD 80785 P right for your machine?

Designed for 400–690 V AC motors, linear drives, DC bus links and auxiliary power supply in high-speed cable carriers where an unscreened, lighter-weight 0.6/1 kV cable is specified.

Energy chain / drag chain

Suitable

Unscreened TPE/PUR construction reduces cable weight and bending force by 20 % inside long-travel gantry chains.

Fixed installation

Suitable

UL 1000 V AWM Style 21223 and 100 % halogen-free rating allow direct tray and machine-frame installation.

Festoon & line chain

Suitable

Suitable for indoor and outdoor C-rail and I-beam crane festoons down to −40 °C.

VFD inverter to AC motor screened feeder

With conditions

Suitable for sinusoidal AC motors or shielded conduits; for unenclosed PWM VFD leads use Shielded Servo Motor Power Cable.

Use Shielded Servo Motor Power Cable
Typical machinesLong-Travel Gantry & Portal AxesDeep-Freeze AS/RS Stacker CranesMachine-Tool Main Power & HydraulicsDC Bus & Braking-Resistor LeadsAutomated Timber & Steel Sawing Lines

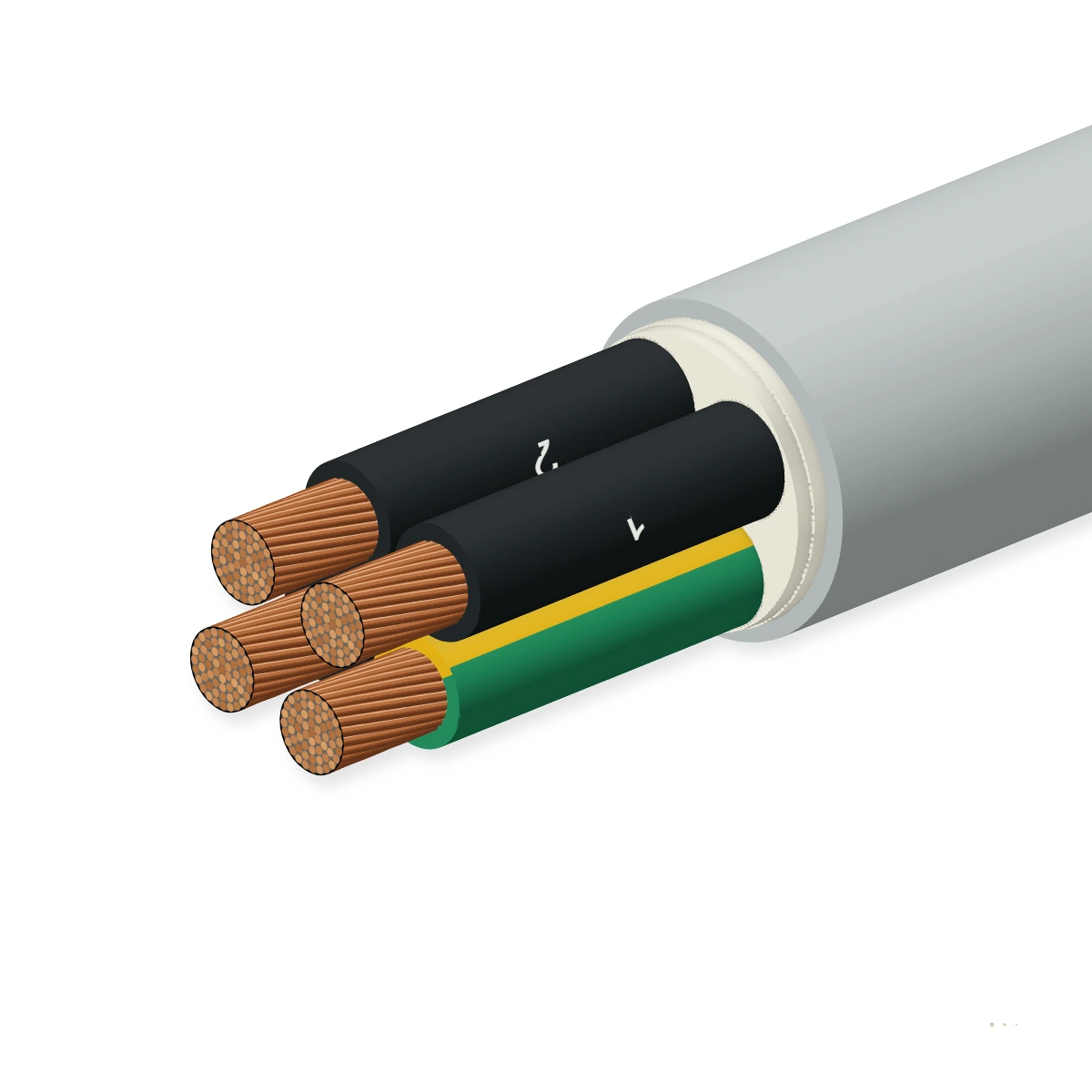

Construction

Layer by layer

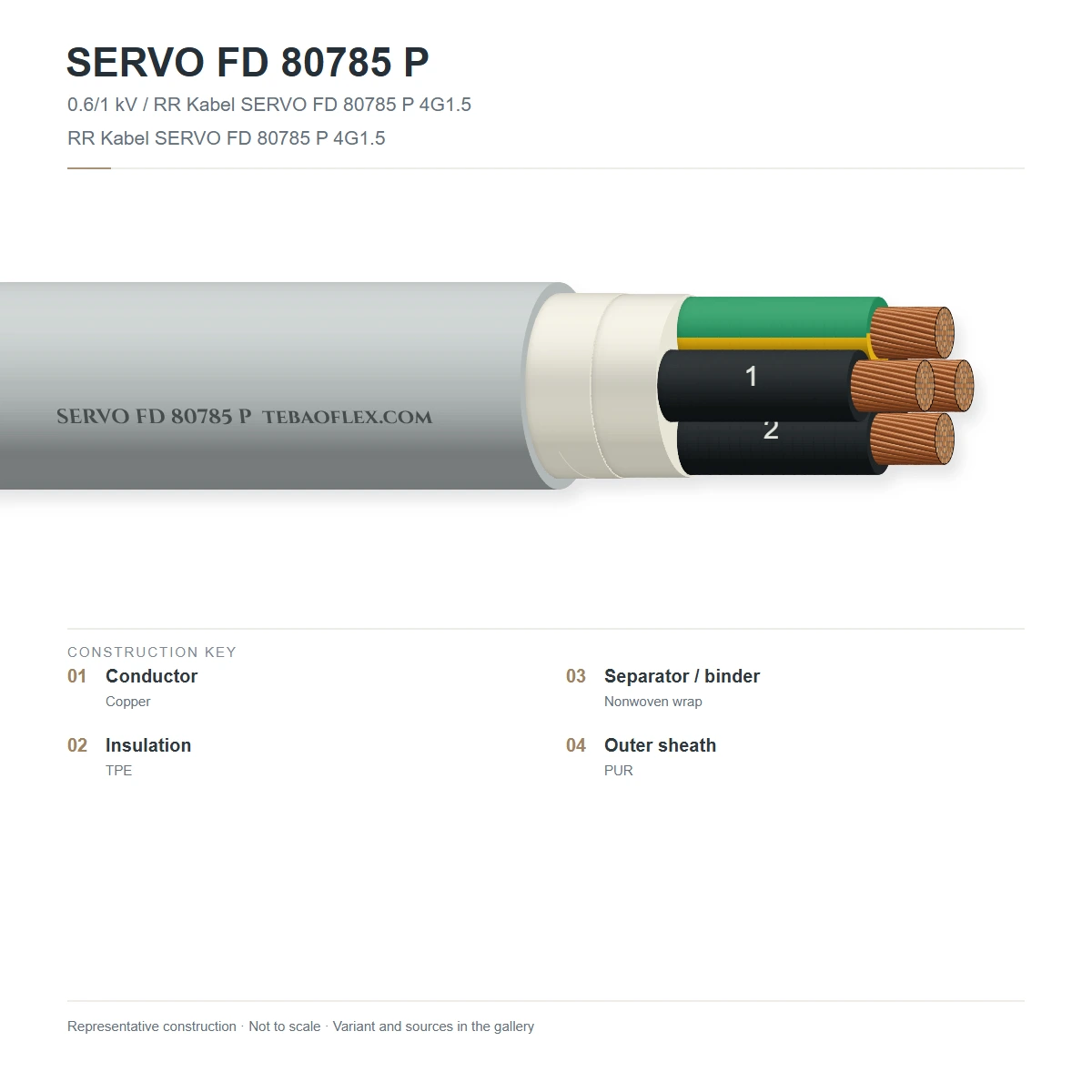

Shown: SERVO FD 80785 P 4G10 unscreened 0.6/1 kV TPE/PUR servo power cable with Class 6 copper conductors, heavy-wall TPE insulation and black/orange TMPU outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Superfine power conductorBare copper, extra-fine wire strands (IEC 60228 Class 6)Bundled rope-lay stranding on ≥ 6 mm² prevents strand buckling in tight bends
20.6/1 kV TPE core insulationHalogen-free thermoplastic elastomer (TPE) with 0.6/1 kV wall thickness4000 V AC dielectric strength, low capacitance and −40 °C cold elasticity
3Central star fillerLow-friction synthetic central filler elementMaintains round cross-section under high radial carrier squeezing
4Non-woven sliding fleeceAnti-friction synthetic fleece wrap over short-pitch 4-core bundleDecouples power cores from outer PUR jacket
5Halogen-free PUR outer sheathPolyether polyurethane (TMPU), Black RAL 9005 or DESINA Orange RAL 2003DIN EN 50363-10-2 · oil, coolant, hydrolysis, UV & abrasion resistant

SERVO FD 80785 P (4G)

Three black phase cores marked U/V/W (or 1/2/3) + one green-yellow protective earth core (1.5–70 mm²)

SERVO FD 80785 P (4G + 2×1.0/1.5)

Adds two unscreened 0.6/1 kV control cores (5/6) for 24 V DC holding brake or contactor coil

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250 / UL AWM Style 21223. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV (UL/CSA 1000 V)
Max. operating voltage
AC 720/1200 V · DC 900/1800 V
AC test voltage
4000 V AC (50 Hz, 5 min)
Mutual capacitance
≈ 65 pF/m at 800 Hz
Insulation resistance
≥ 500 MΩ·km at 20 °C

Thermal

Temperature, flexing
−40 °C to +80 °C
Temperature, fixed installation
−50 °C to +80 °C
Max. conductor temperature
+90 °C (VDE) · +80 °C (UL AWM)
Short-circuit temperature
+250 °C (max. 5 s)

Mechanical

Min. bending radius, moving
7.5 × OD (≤ 16 mm²) · 10 × OD (≥ 25 mm²)
Min. bending radius, fixed
4 × OD
Max. travel speed
5 m/s gliding · 10 m/s unsupported
Max. acceleration
Up to 50 m/s²

Resistance

Oil resistance
DIN EN 50363-10-2 · UL Oil Res I & II
Flame retardance
IEC 60332-1-2 · UL 1581 FT1 / VW-1
Halogen-free / Smoke density
100 % halogen-free per IEC 60754-1/2
Hydrolysis & UV
Hydrolysis, microbe (EN ISO 846) & UV resistant

Reference standards

Cable type (construction standard)
DIN VDE 0250 & DIN EN 50363-10-2
Conductor
IEC 60228 Class 6 superfine copper
Product approvals
UL AWM Style 21223 (80 °C 1000 V) · CSA
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Black (RAL 9005) or Orange (RAL 2003)
Core identification
Black phase cores U/V/W (1/2/3) + GNYE PE
Marking
TEBAOFLEX SERVO FD 80785 P <size> 0.6/1kV 1000V UL CE
Customs tariff (HS)
8544.49

Sizes

14 standard SERVO FD 80785 P (0.6/1 kV TPE/PUR) power sizes

Unscreened 0.6/1 kV (UL 1000 V) power configurations from 1.5 mm² to 70 mm².

Dimensions & weights
Order designationConfigurationPhase sizeOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
chain mm		Enquiry
4G (3+PE) 0.6/1 kV Unscreened TPE/PUR Power Cables (1.5–70 mm²)
SERVO FD 80785 P 4G1.54G1.51.5 mm²8.15810261
SERVO FD 80785 P 4G2.54G2.52.5 mm²9.69615272
SERVO FD 80785 P 4G4.04G4.04.0 mm²11.215422684
SERVO FD 80785 P 4G6.04G6.06.0 mm²13.023032298
SERVO FD 80785 P 4G104G1010 mm²16.0384518120
SERVO FD 80785 P 4G164G1616 mm²19.4614795146
SERVO FD 80785 P 4G254G2525 mm²23.69601,195177
SERVO FD 80785 P 4G354G3535 mm²26.81,3441,640201
SERVO FD 80785 P 4G504G5050 mm²31.81,9202,320238
SERVO FD 80785 P 4G704G7070 mm²36.62,6883,190274
4G + 2 Control Cores Unscreened TPE/PUR Servo Cables
SERVO FD 80785 P 4G1.5+2×1.04G1.5 + 2×1.01.5 mm²10.27714576
SERVO FD 80785 P 4G2.5+2×1.04G2.5 + 2×1.02.5 mm²11.611519687
SERVO FD 80785 P 4G4.0+2×1.04G4.0 + 2×1.04.0 mm²13.117327298
SERVO FD 80785 P 4G6.0+2×1.54G6.0 + 2×1.56.0 mm²15.0259378112
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • For EMC-screened 0.6/1 kV PWM inverter motor leads, select Shielded Servo Motor Power Cable or Servo Power Cable with Brake Pair.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 150 mm is below 196 mmUse a larger drum core or a smaller cable size
240 m/min ≤ 300 m/minWithin the rated travel speed
Minimum bending radius
98 mm
Min. drum core diameter
≈ 196 mm
Cable weight on drum
8.1 kg
Copper content
5.8 kg
Indicative only: based on the datasheet outer diameter and 7.5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
4000 V AC high-voltage dielectric test4.0 kV AC for 5 min without breakdownEvery manufactured drum length
Conductor DC resistance checkWithin IEC 60228 Class 6 maximum at 20 °CEvery drum length
Sample tests
High-load drag-chain endurance test≥ 8 million cycles at 7.5 × OD and 50 m/s² without strand breakageQualification & periodic audit
Halogen-free & −40 °C cold-flex testPass IEC 60754-1/2 and DIN EN 50363-10-2 TMPUType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CE & 100 % Halogen-Free (IEC 60754-1/2)UL AWM Style 21223 (80 °C 1000 V)RoHS 2 (2011/65/EU) & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SERVO FD 80785 P <size> 0.6/1kV TPE/PUR 1000V UL CE
Delivery form
Non-returnable fumigated wooden drums or coils
Standard lengths
100 m · 500 m · 1000 m (cut lengths on request)
MOQ
100 m (stock sizes) · 300 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFSERVO FD 80785 P 0.6/1 kV Unscreened TPE/PUR Servo Power Cable – technical datasheet14 sizes · construction, technical data, approvalsXLSXSERVO FD 80785 P spec data (Excel)All 14 sizes with dimensions and data, for your BOM or quotation
