Product

power connection cable seriesBS 638-4 / H01N2-D 0361TQClass 6 (0.20 mm) Ultra-Flex CuHOFR CSP/PCP Rubber Jacket

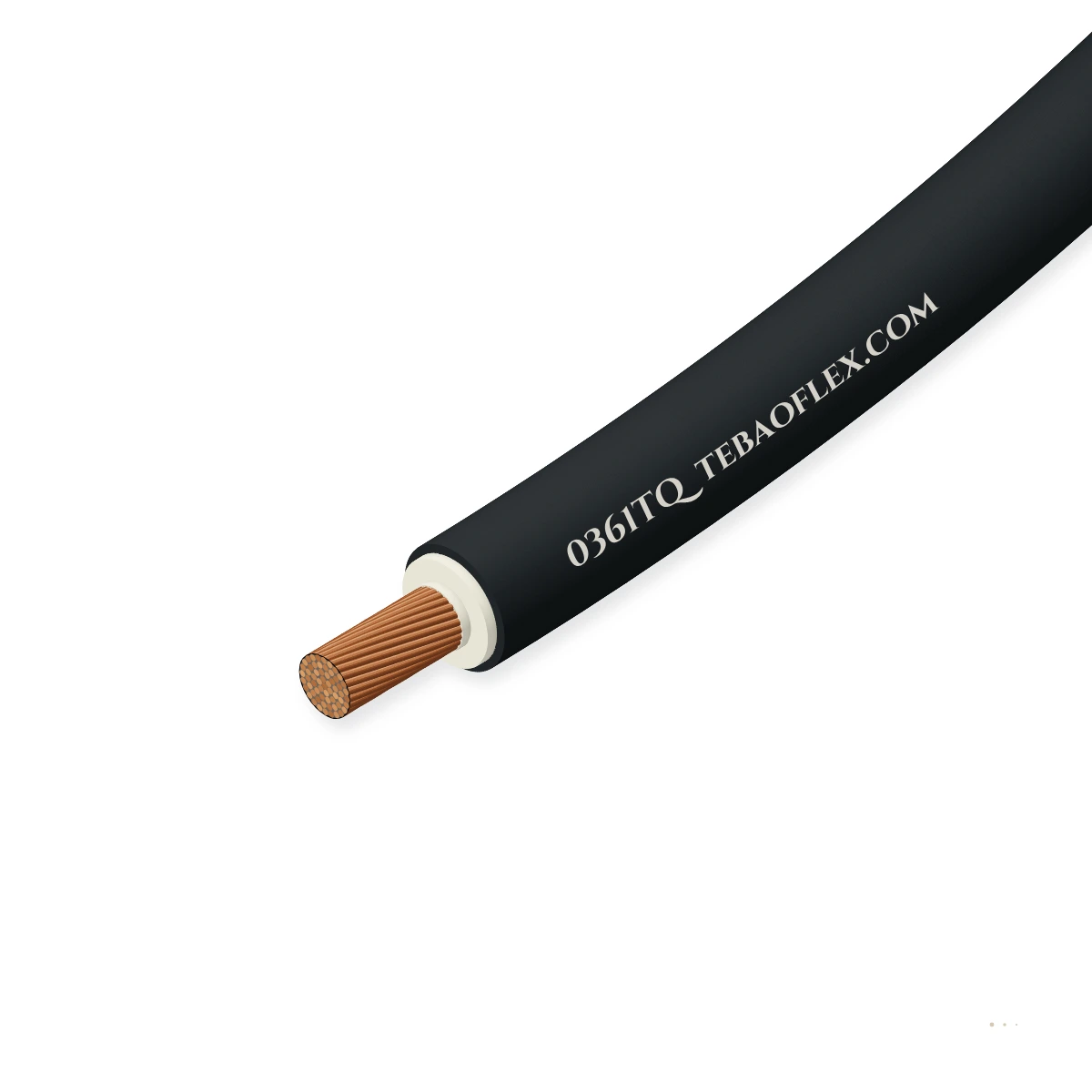

0361TQ HOFR Welding CableBS 638-4 / EN 50525-2-81 Class 6 ultra-fine copper HOFR elastomer welding cable

0361TQ HOFR Welding Cable (100/100 V AC / 150 V DC, 16 mm² to 185 mm²) manufactured to BS 638-4 and EN 50525-2-81 (harmonized H01N2-D / H01N2-E)—combining Class 6 ultra-fine 0.20 mm bare annealed copper rope-lay stranding,.

Class 6 (0.20 mm) Rope-Lay
HOFR Spatter & Flame Proof
EM5 Oil & Abrasion Resistant
BS 638-4 / EN 50525-2-81
Order designation
0361TQ 1 × 50 mm²
Stranding
~1568 × 0.20 mm Class 6 Cu
Mean outer Ø
13.6 mm
Weight ≈
555 kg/km
60 % duty rating
365 A
All sizes (7)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standards
BS 638-4 / H01N2
EN 50525-2-81 (CENELEC HD 22.6)
Voltage rating
100 / 100 V AC
150 V DC welding secondary
Cross-sections
16 to 185 mm²
16, 25, 35, 50, 70, 95, 120, 150, 185
Conductor class
Class 6 (0.20 mm
EN 60228 extra-fine copper
Covering compound
HOFR (EM5 CSP/PC
+85 °C continuous · +250 °C SC
Jacket colours
Orange or Black
High-vis workshop safety

Typical values for this cable type, based on BS 638-4 / EN 50525-2-81 (H01N2-D / H01N2-E) — confirmed in the datasheet and quotation for your order.

Application fit

Is 0361TQ right for your machine?

Designed for manual MMA electrode holders, MIG/MAG/TIG torches, automatic robotic welding cells, earth return clamps and low-voltage high-current battery/plating jumpers.

Self-supporting pendant & push-button drop

Suitable

Class 6 (0.20 mm wire diameter) rope-lay copper gives effortless wrist flexibility on manual electrode stingers and robotic welding.

Trailing & towing

Suitable

Cross-linked EM5 HOFR chlorosulfonated polyethylene (CSP) / polychloroprene (PCP) rubber resists hot welding slag spatter, steel plate.

Motor stator, traction & converter leads

Suitable

Frequently used for 12 V / 24 V / 48 V industrial starter motor leads, electroplating bus jumpers and telecom battery bank interconnects.

Fixed installation

With conditions

Rated 100/100 V for welding circuits; for 600 V NEC power & welding applications specify Super-Trex 600 V Welding Cable.

Use 600 V Welding Cable
Typical machinesShipyard Hull & Offshore Jacket Structural WeldingAutomotive Body-in-White Robotic Spot/MIG CellsHeavy Steel Fabrication, Bridge & Pressure-Vessel ShopsPipeline Field Welding & Mobile Generator RigsLow-Voltage High-Current Battery & Plating Jumpers

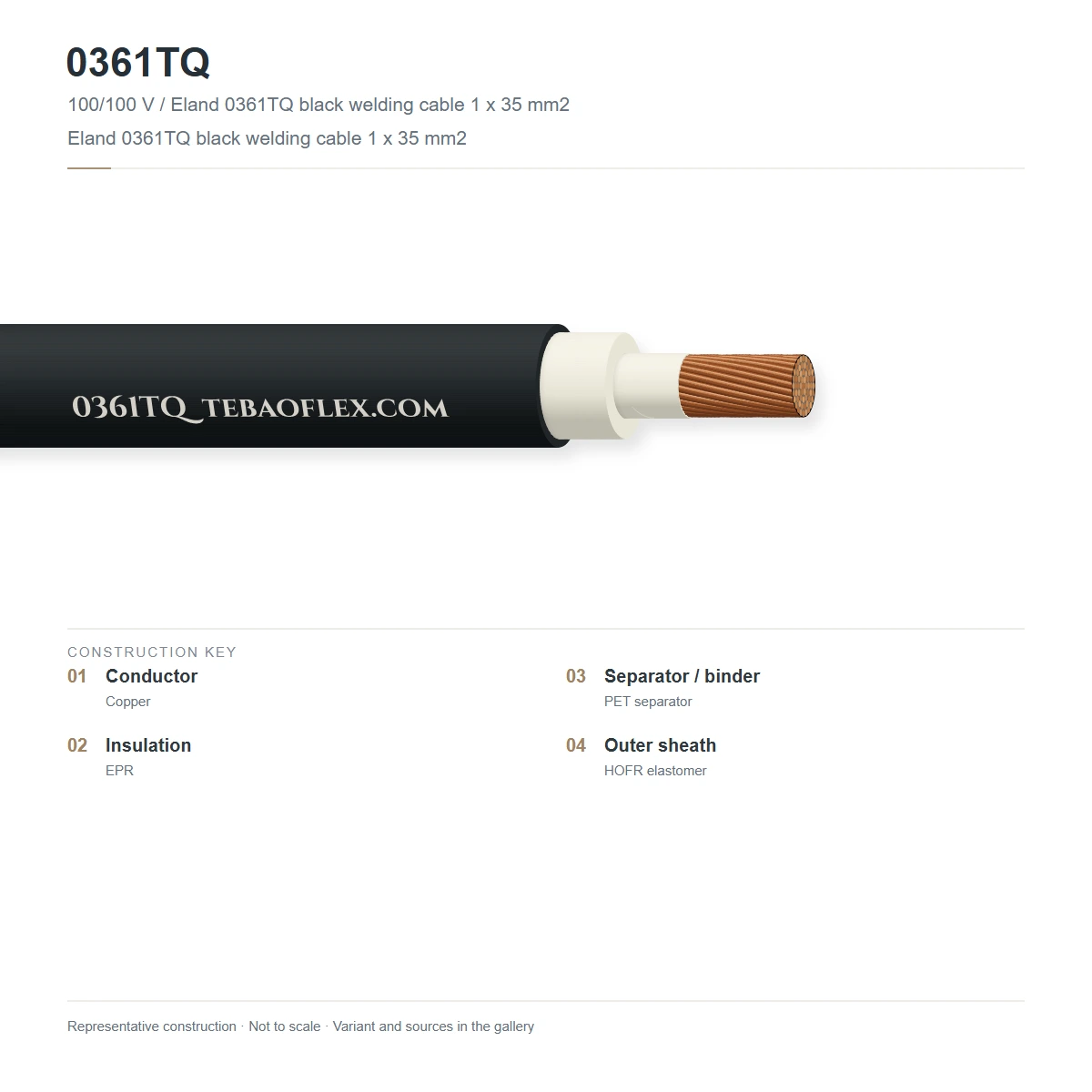

Construction

Layer by layer

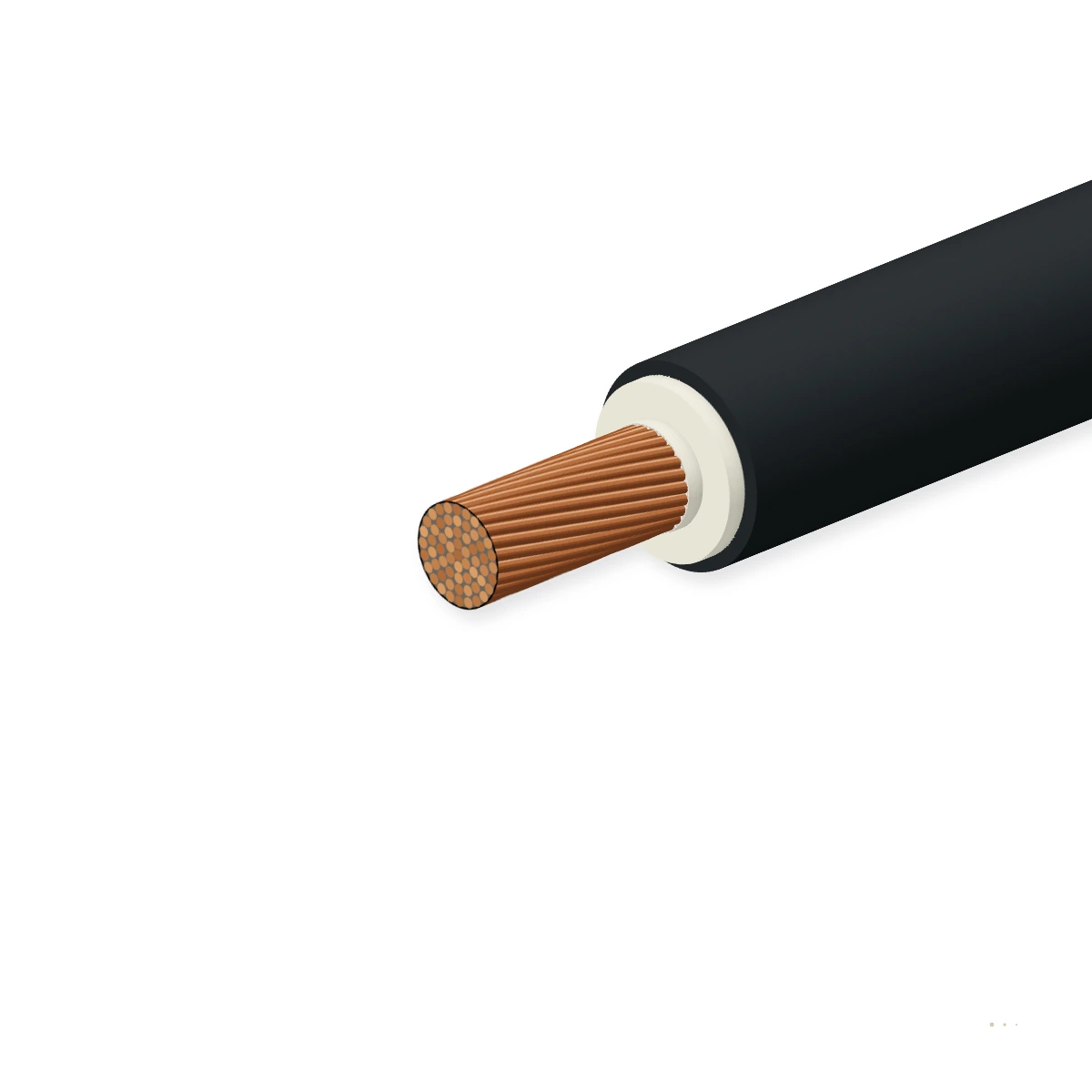

0361TQ HOFR Welding Cable showing Class 6 (max. 0.20 mm wire diameter) rope-lay bare annealed copper conductor, heat-resistant polyester (PET) separator tape, and heavy-duty Type EM5 HOFR (Heat, Oil and Flame Retardant CSP/PCP) thermoset elastomer covering.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Class 6 (0.20 mm) ultra-fine rope-lay bare copper conductorMulti-bunch rope-lay annealed high-conductivity bare copper with max. 0.20 mm individual wire diameter per EN 60228 Class 6 (H01N2-D / H01N2-E)Thousands of hair-fine strands prevent work-hardening under constant operator flexing
2Heat-resistant polyester (PET) sliding separator tapeHelically lapped non-hygroscopic polyester film over the copper ropeAllows strands to slide freely during tight bending and strips cleanly for Dinse lugs
3Type EM5 HOFR (Heat, Oil & Flame Retardant) rubber coveringHeavy-wall cross-linked Chlorosulfonated Polyethylene (CSP) / Polychloroprene (PCP) compound Type EM5 (BS EN 50363-2-2) in Orange or BlackWithstands +200 °C hot metal spatter contact, mineral oils and IEC 60332-1-2 flame

0361TQ Orange (16 to 185 mm² · H01N2-D)

High-visibility Orange HOFR elastomer welding cable for shipyard decks, construction sites and fabrication bays

0361TQ Black (16 to 185 mm² · H01N2-D / H01N2-E)

Classic Black HOFR elastomer welding & battery return cable (also available in extra-flexible 0.15 mm H01N2-E)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on BS 638-4 / EN 50525-2-81 (H01N2-D / H01N2-E). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (Uo/U)
100 / 100 V AC (up to 150 V DC open-circuit welding voltage)
Routine AC test voltage
1,000 V AC rms for 15 minutes in water bath
Max. DC resistance @ 20 °C
0.554 Ω/km (35) · 0.386 Ω/km (50) · 0.272 Ω/km (70) · 0.206 Ω/km (95)
Duty-cycle ampacity (60 %)
290 A (35) · 365 A (50) · 460 A (70) · 560 A (95) · 650 A (120)

Thermal

Max. conductor temperature
+85 °C continuous operation
Ambient temperature range
-25 °C to +85 °C (flexible handling down to -20 °C)
Short-circuit / hot spatter
+250 °C short-circuit · Passes +200 °C hot mandrel spatter test

Mechanical

Max. strand wire diameter
0.20 mm (H01N2-D Class 6) · 0.15 mm (H01N2-E extra-flex)
Covering wall thickness
2.0 mm (16–70 mm²) · 2.2 mm (95 mm²) · 2.4 mm (120 mm²) · 2.6 mm (150 mm²)
Min. bend radius
4 × OD (static) · 6 × OD (free flexing)

Resistance

Flame propagation
BS EN 60332-1-2 vertical single-cable flame test
Oil & chemical resistance
Type EM5 mineral oil immersion tested at +100 °C for 24 h
Welding particle resistance
Thermoset HOFR rubber will not melt or drip when hit by weld spatter

Reference standards

UK & European standards
BS 638-4 (CMA Code 0361TQ) · BS EN 50525-2-81 (H01N2-D)
International standard
IEC 60245-6 (245 IEC 81 / 245 IEC 82)
RoHS, REACH & CE / UKCA
2011/65/EU RoHS 2, REACH, CE & UKCA compliant

Identification

CMA code breakdown
0=100V · 3=EPR/Rubber · 6=HOFR CSP/PCP · 1=1-core · TQ=Class 6 Cu welding
Sheath colours
Orange (most popular for safety) or Black
Customs tariff (HS)
8544.4993

Sizes

7 standard 0361TQ (BS 638-4 / H01N2-D) HOFR Welding Cable sizes

Cross-section, Class 6 stranding, outer diameter, weight and BS 638-4 duty-cycle welding current ratings.

Dimensions & BS 638-4 duty-cycle current
Order designationApprox. stranding (0.20 mm)Mean Ø ≈
mm		Weight ≈
kg/km		100% Duty
A		60% Duty
A		Enquiry
0361TQ / H01N2-D Class 6 HOFR Welding Cables (16–150 mm²)
0361TQ 1 × 16 mm²~504 × 0.20 mm Class 6 Cu9.3205135175
0361TQ 1 × 25 mm²~780 × 0.20 mm Class 6 Cu10.6295180230
0361TQ 1 × 35 mm²~1099 × 0.20 mm Class 6 Cu11.8400225290
0361TQ 1 × 50 mm²~1568 × 0.20 mm Class 6 Cu13.6555285365
0361TQ 1 × 70 mm²~2205 × 0.20 mm Class 6 Cu15.6760355460
0361TQ 1 × 95 mm²~2989 × 0.20 mm Class 6 Cu17.91,015430560
0361TQ 1 × 120 mm²~3773 × 0.20 mm Class 6 Cu19.81,265500650
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • At 30 % intermittent hand-welding duty cycle, current capacity increases to 395 A (35 mm²), 500 A (50 mm²), 635 A (70 mm²) and 765 A (95 mm²).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % 1,000 V AC water-tank dielectric & Class 6 DC resistance testZero breakdown for 15 min and DC R within EN 60228 limitsEvery manufactured drum
Sample tests
BS EN 50363-2-2 EM5 oil immersion (+100 °C) & hot-set vulcanization testTensile and elongation variation within ±30 % / ±40 % after hot oilPer production batch
EN 50525-2-81 hot-particle / hot-mandrel penetration test (+200 °C)Resists hot welding slag contact without burning through to conductorType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS 638-4 (0361TQ)EN 50525-2-81 (H01N2-D)IEC 60245-6 & CE / UKCA

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 0361TQ H01N2-D BS 638-4 EN 50525-2-81 HOFR WELDING CABLE CE UKCA
Delivery form
Fumigated wooden drums or steel export reels
Standard lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (standard) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDF0361TQ HOFR Welding Cable – technical datasheet7 sizes · construction, technical data, approvalsXLSX0361TQ spec data (Excel)All 7 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between genuine 0361TQ (BS 638-4 / H01N2-D) HOFR rubber welding cable and cheap PVC 'welding' cable?
Genuine 0361TQ uses a cross-linked thermoset Type EM5 HOFR (CSP/PCP) rubber compound and Class 6 (0.20 mm) copper strands. If hot weld spatter lands on 0361TQ, the thermoset rubber chars superficially without melting. Cheap thermoplastic PVC welding cable stiffens in winter, kinks under operator wrist movement, and melts immediately when touched by hot slag or a warm workpiece.
How is welding cable current capacity rated by 'Duty Cycle' (100 %, 85 %, 60 %, 30 %)?
BS 638-4 bases welding cable ratings on a 5-minute cycle. A 60 % duty cycle (typical for semi-automatic MIG welding) means current flows for 3 minutes followed by 2 minutes of cooling off-load, allowing a 50 mm² cable to carry 365 A (versus 285 A at 100 % continuous automatic welding).
What is the difference between H01N2-D and H01N2-E?
Both are harmonized under EN 50525-2-81 with 100/100 V EM5 HOFR rubber covering. H01N2-D uses Class 6 copper with a maximum strand diameter of 0.20 mm; H01N2-E uses an even finer 0.15 mm strand diameter for ultra-flexible automated robotic welding wrists.
Can 0361TQ be used for 12 V / 24 V / 48 V battery bank and inverter cables?
Yes. Because 0361TQ is rated up to 100 V AC / 150 V DC and features oil/flame-retardant EM5 rubber plus ultra-flexible Class 6 copper, it is widely used for heavy-duty starter leads, battery interconnects and busbar flex jumpers.
