Medium-voltage rubber reeling cables (DIN VDE 0250-813)3.6/6–12/20 kVR-(N)TSCGEWOEU-FORed 5GM5 · 120 m/min

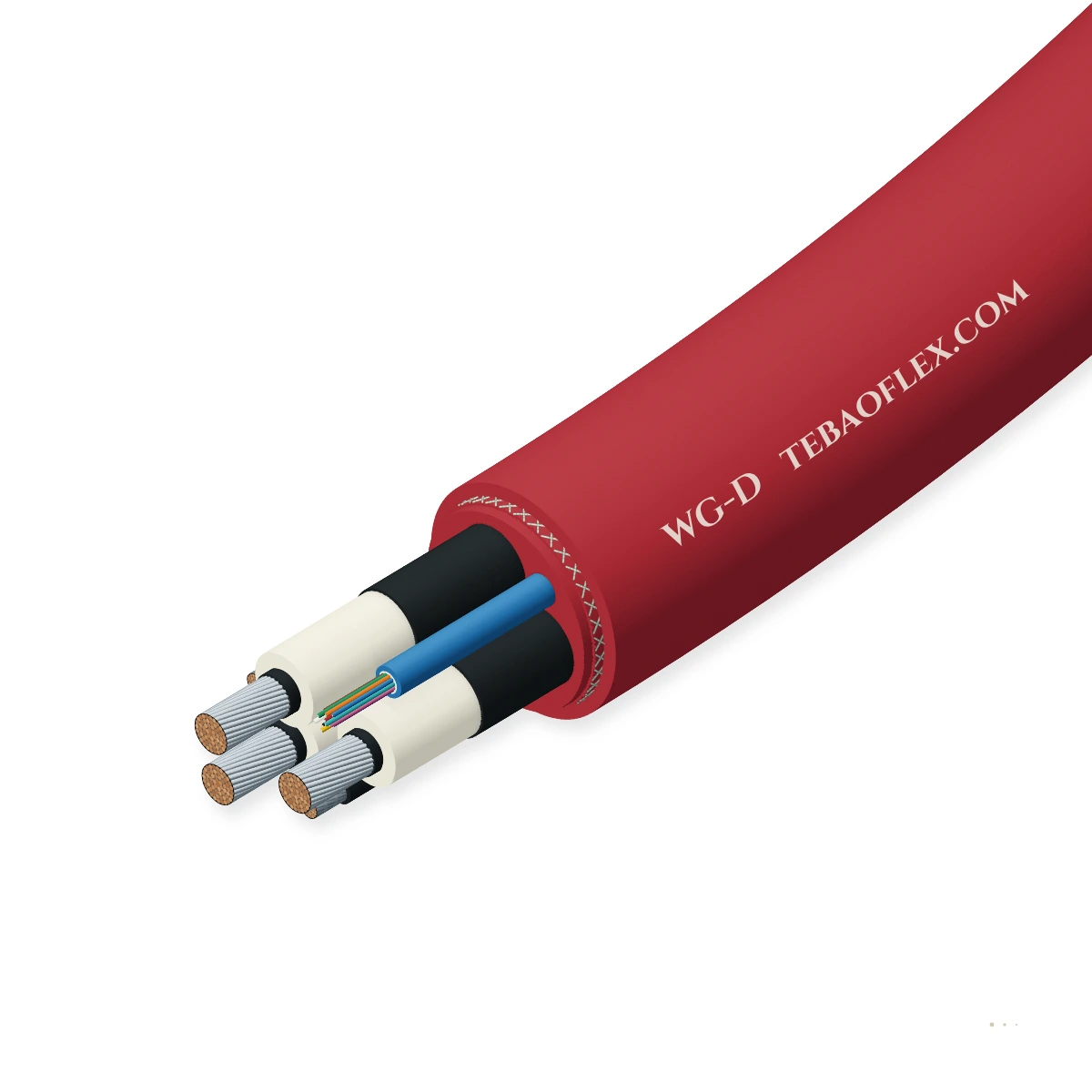

WG / WG-D MV PCP Reeling Cable R-(N)TSCGEWOEU (3.6/6–12/20 kV)Red 5GM5 PCP medium-voltage reeling cable (3.6/6–12/20 kV) with optional 12 FO

Q: When should WG / WG-D be selected instead of HVR / HVR-D or WXG / WXG-D?

WG / WG-D is engineered for horizontal motorized reels up to 120 m/min with low-to-medium dynamic loads, low reel mounting heights (< 7 m on container cranes), and at most one diversion roller assembly. Because its compact core lay and double 5GM3/5GM5 sheath minimize outer diameter and weight, it allows smaller, more economical reel drums. For 180 m/min or multi-roller paths select HVR / HVR-D; for 240 m/min extra-heavy-duty reeling select WXG / WXG-D.

Q: Why does page 1 of the legacy datasheet list +90 °C under flexing/fixed temperature while the technical table lists +80 °C?

+90 °C is the maximum permissible operating temperature at the conductor for 3GI3 HV-EPR insulation (with +250 °C short-circuit rating), whereas the permissible ambient air temperature is −35 °C to +80 °C during flexing and −50 °C to +80 °C when fixed, as confirmed in the full technical specification table.

Q: What is the true protective earth cross-section on the WG-D 8.7/15 kV 95 mm² configuration?

The WG-D 8.7/15 kV 95 mm² cable has a 50 mm² split protective earth (3 × 95 + 2 × 50/2 + 12 FO), matching the WG-D 3.6/6 kV and 6/10 kV 95 mm² cables and DIN VDE 0250-813. The legacy table print '3x95+2x35/2+12FO' is a typographical error confirmed by the row's published copper weight of 3,197 kg/km.

Q: What optical fibre types and counts are available in the WG-D hybrid series?

The WG-D standard range integrates 12 optical fibres in the third outer interstice (alongside two split earth conductors in the other two interstices), available in singlemode G9/125 µm, multimode G50/125 µm, or multimode G62.5/125 µm. Builds with 6, 18, or 24 optical fibres are also available on request.

Medium-voltage reeling cable (3.6/6 to 12/20 kV) adapted to DIN VDE 0250-813 (R-(N)TSCGEWOEU / -FO) with Class FS tinned copper cores, triple-extruded 3GI3 EPR field control, 5GM3 inner sheath, anti-torsion braid, and red 5GM5 PCP sheath up to 120 m/min.

Anti-torsion braid

EMC screen

Oil-resistant

Flame-retardant

Voltage & configuration

Order designation: WG 6/10 kV · 3 × 50 + 3 × 25/3
Outer Ø max: 48.0 mm
Weight ≈: 3,838 kg/km
Permitted pull: 3,000 N
Reel R min (10×D): 480 mm

Check against my drum All sizes (32)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 3.6/6–12/20 kV
Reeling speed: 120 m/min
Min. bend radius: 10 × D
Flexing temp.: −35…+80 °C
Tensile rating: 20 N/mm²
Configurations: 32 configs

Typical values for this cable type — confirmed in the datasheet and quotation for your order.

Application fit

Is WG / WG-D R-(N)TSCGEWOEU right for your machine?

WG and WG-D are engineered for standard-to-medium duty motorized medium-voltage cable reels (up to 120 m/min horizontal) on container cranes with low mounting heights (< 7 m), stacker/reclaimers, ship unloaders, and heavy mining equipment.

Motorised monospiral reel

Suitable

Primary duty: horizontal motorized monospiral and cylindrical MV reels up to 120 m/min with compact drum dimensions.

Cylindrical / multi-layer drum

Suitable

Cylindrical MV reeling drums with ≥ 10 × D bend radius per DIN VDE 0298-3 and DIN VDE 0298-4 layer derating.

Trailing & towing

Suitable

Heavy mining machines, stackers, and reclaimers with small-to-medium dynamic reeling loads and 20 N/mm² tensile capacity.

Festoon & line chain

With conditions

Permitted through at most 1 diversion roller assembly (≥ 20 × D S-curve spacing); for multi-pulley deflection paths select HVR / HVR-D.

HVR / HVR-D 180 m/min MV Reeling Cable

Vertical / spreader reel

With conditions

Designed for horizontal reels up to 120 m/min; for high-speed reeling up to 240 m/min select WXG / WXG-D.

WXG / WXG-D 240 m/min MV PCP Reeling Cable

Energy chain / drag chain

Not suitable

Medium-voltage anti-torsion reeling construction is not designed for tight horizontal drag chains.

Use (N)GRDGCGÖU Chain

Typical machinesContainer Cranes (< 7 m Reel Height)Stackers & ReclaimersShip Unloaders & Port Bulk HandlingHeavy Open-Pit Mining Equipment

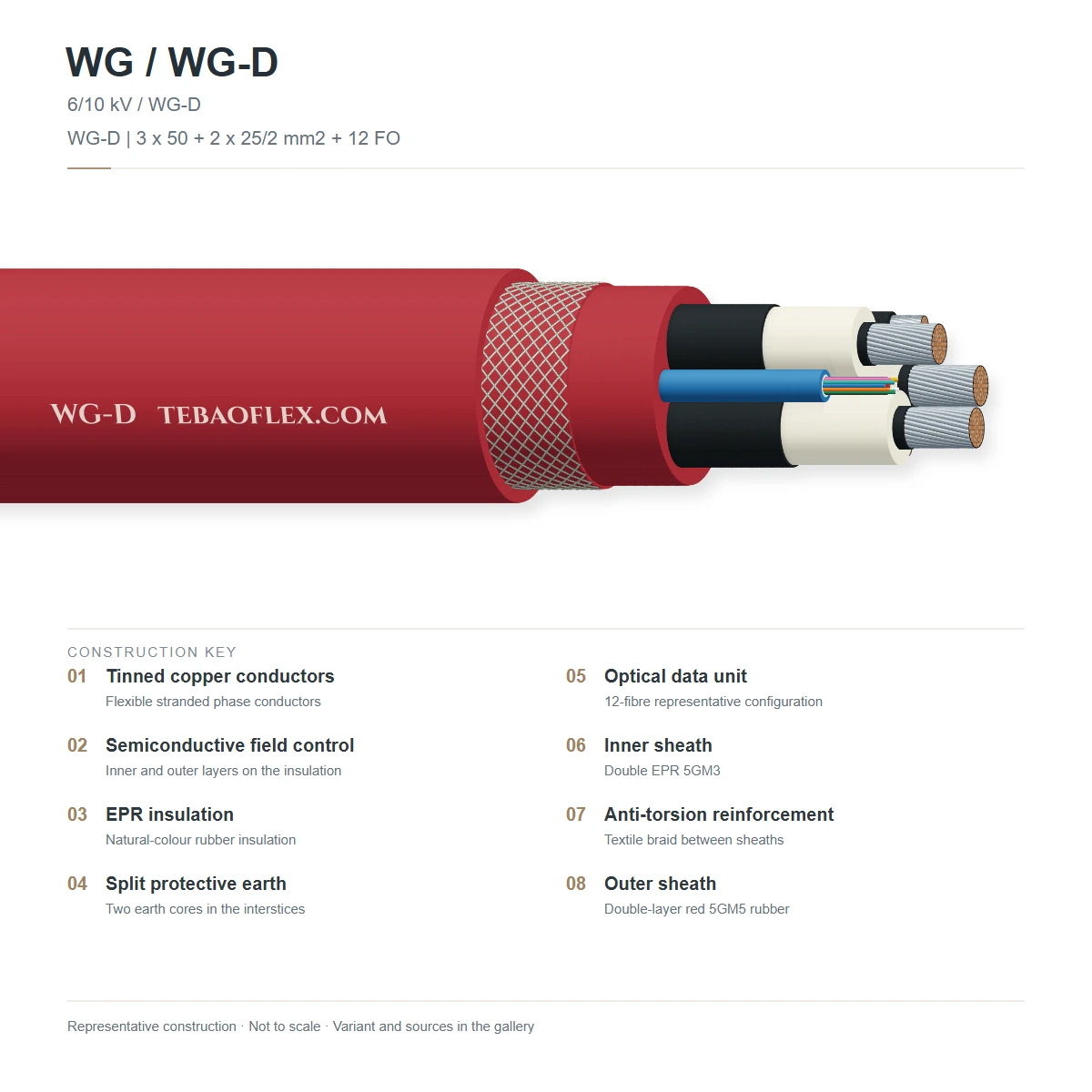

Construction

Layer by layer

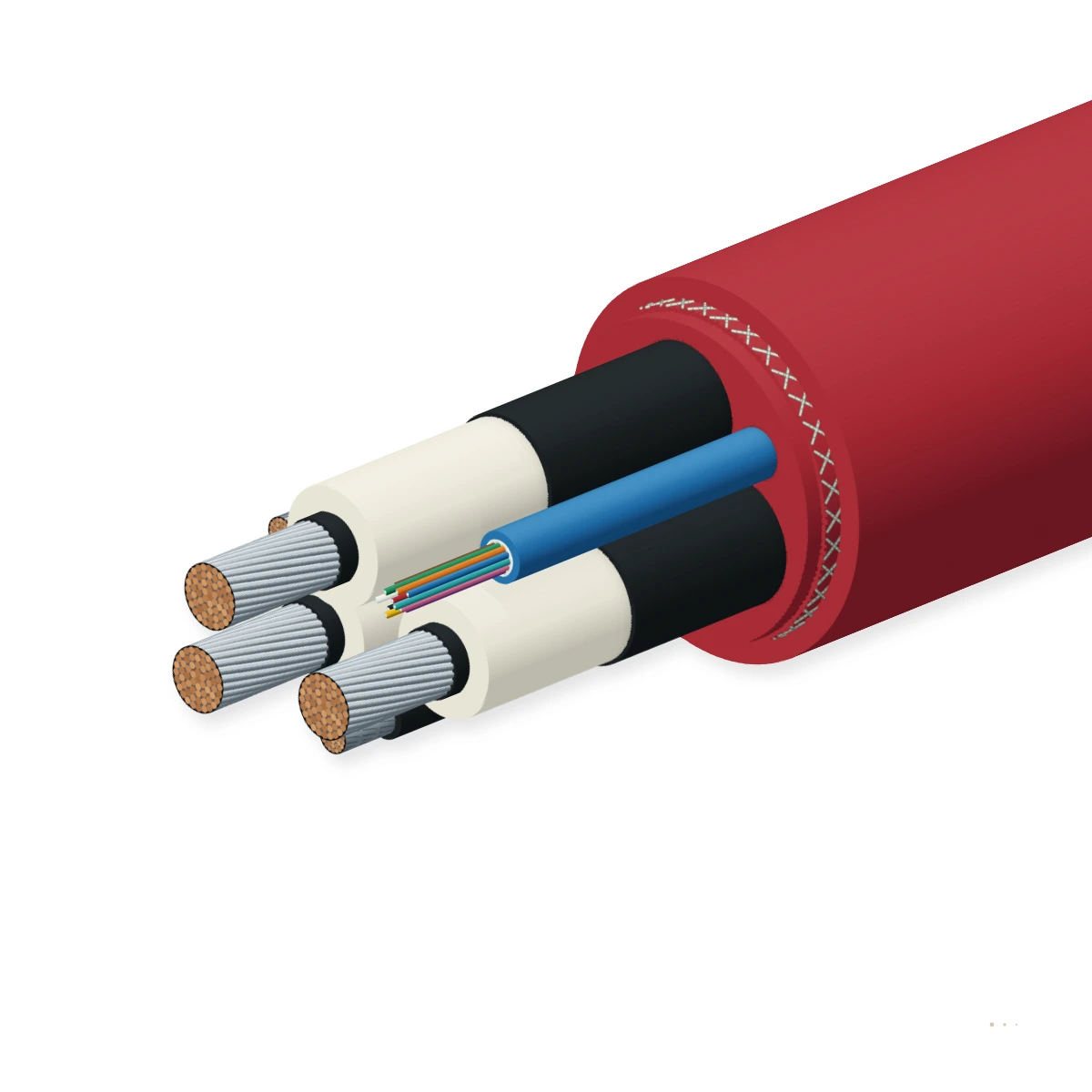

Shown: WG / WG-D R-(N)TSCGEWOEU(-FO) medium-voltage reeling cable with extra-fine Class FS tinned copper phase conductors, simultaneous 3-layer extruded semiconductive / 3GI3 HV-EPR / easy-strip semiconductive field control, split interstitial protective earths (and 12-FO loose tube in WG-D), 5GM3 EPR inner sheath, vulcanized anti-torsion supporting mesh, and red 5GM5 PCP outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Extra-flexible Class FS tinned copper conductor	Very finely stranded tin-plated electrolytic copper, Class FS (more flexible than DIN VDE 0295 / IEC 60228 Class 5)Three phase conductors (25–95 mm²) + split interstitial earth (3-part in WG; 2-part in WG-D)
2	Triple-extruded inner & outer semiconductive screens (CGE)	Simultaneously extruded inner semiconductive EPR conductor screen and easy-strip outer semiconductive EPR insulation screenProvides void-free radial electric field control and clean cold stripping at terminations
3	High-voltage 3GI3 EPR core insulation	High-voltage ozone-resistant ethylene-propylene rubber (HV-EPR, type 3GI3 per DIN VDE 0207-20)Black semiconductive outer surface with white printed phase numbers (1, 2, 3)
4	Split earth & 12-fibre optical element (WG-D)	WG: 3 split tinned copper earths in interstices; WG-D: 2 split earths + 12-FO loose-tube element (G9/125, G50/125, or G62.5/125; 6/18/24 FO on request)Symmetrical interstitial placement minimizes outer diameter and cable weight
5	Inner sheath (5GM3 EPR)	Pressure-extruded EPR rubber compound type 5GM3 filling the core intersticesStabilizes core lay geometry under compressive reel winding forces
6	Vulcanized anti-torsion supporting mesh	High-tenacity synthetic supporting mesh vulcanized between inner 5GM3 and outer 5GM5 sheathsProvides high torsional rigidity and 20 N/mm² dynamic tensile load-bearing capacity
7	Outer sheath (5GM5 Red PCP)	Wear-resistant polychloroprene (PCP) heavy-duty rubber compound type 5GM5, redOil, ozone, UV, and moisture resistant; flame-retardant per IEC 60332-1-2

WG R-(N)TSCGEWOEU · 3.6/6 to 12/20 kV (17 configs)

3 × 25 + 3 × 25/3 to 3 × 95 + 3 × 50/3 mm² across 3.6/6 kV (5), 6/10 kV (5), 8.7/15 kV (5), and 12/20 kV (2) with 3-part interstitial earth

WG-D R-(N)TSCGEWOEU-FO · 3.6/6 to 8.7/15 kV (15 configs)

3 × 25 + 2 × 25/2 + 12 FO to 3 × 95 + 2 × 50/2 + 12 FO across 3.6/6 kV (5), 6/10 kV (5), and 8.7/15 kV (5) combining MV power and 12 optical fibres

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 3.6/6.0 kV, 6.0/10.0 kV, 8.7/15.0 kV, and 12.0/20.0 kV (other voltages on request)
Max. operating voltage AC: 4.2/7.2 kV (3.6/6 kV) · 6.9/12.0 kV (6/10 kV) · 10.2/18.0 kV (8.7/15 kV) · 14.0/24.0 kV (12/20 kV)
Max. operating voltage DC: 5.4/10.8 kV (3.6/6 kV) · 9.0/18.0 kV (6/10 kV) · 13.0/26.0 kV (8.7/15 kV) · 18.0/36.0 kV (12/20 kV)
AC test voltage (DIN VDE 0250-813): 11 kV (3.6/6 kV) · 17 kV (6/10 kV) · 24 kV (8.7/15 kV) · 29 kV (12/20 kV) per DIN VDE 0250-813
Current rating (DIN VDE 0298-4): Per DIN VDE 0298-4 at 30 °C ambient (apply reel layer derating factors: 0.80 for 1 layer, 0.61 for 2 layers, 0.49 for 3 layers)

Thermal

Temperature, flexing: −35 °C to +80 °C (−25 °C to +80 °C in catalog summary; consult factory below −35 °C)
Temperature, fixed installation: −50 °C to +80 °C
Max. conductor temperature: +90 °C
Short-circuit temperature: +250 °C

Mechanical

Max. travel speed: Up to 120 m/min horizontal (maximum 1 diversion roller assembly)
Max. tensile load (dynamic): 20 N/mm² of phase conductor cross-section during dynamic reeling (1,500–5,700 N across 25–95 mm²)
Min. bending radius, moving: According to DIN VDE 0298-3 (min. 10 × D flexible reeling · min. 20 × D distance at S-track curves)

Optical

Fibre count & types (WG-D): WG-D: 12 optical fibres in standard range (6, 18 and 24 FO available on request) in G9/125 SM, G50/125 MM, or G62.5/125 MM
Optical attenuation (850 / 1300 / 1550 nm): G9/125 SM: ≤ 0.4 dB/km (1300 nm), ≤ 0.3 dB/km (1550 nm) · G50/125 MM: ≤ 2.8 dB/km (850 nm), ≤ 0.8 dB/km (1300 nm) · G62.5/125 MM: ≤ 3.3 dB/km (850 nm), ≤ 0.9 dB/km (1300 nm)

Resistance

Oil, UV, ozone & chemical resistance: Oil, ozone, UV and humidity resistant (5GM5 PCP outer sheath); not resistant to sulphur or urea; not halogen-free or LBS/silicone-free
Flame retardance: Flame-retardant per IEC 60332-1-2 / DIN EN 60332-1-2 / DIN VDE 0482-265-2-1

Reference standards

Cable standard & designation: R-(N)TSCGEWOEU / R-(N)TSCGEWOEU-FO adapted to DIN VDE 0250-813
Conductor standard: Very finely stranded tinned copper conductor, Class FS (more flexible than DIN VDE 0295 / IEC 60228 Class 5)
Core & earth identification: Black core insulation with white printed phase numbers (1, 2, 3); earth split in 3 interstices (WG) or 2 interstices + 12 FO element (WG-D)

Sizes

32 medium-voltage configurations (17 WG Power & 15 WG-D Power + 12 FO)

Complete dimensional and mechanical dataset across 3.6/6 kV, 6/10 kV, 8.7/15 kV, and 12/20 kV. Filter by voltage grade and series (WG power vs WG-D power + 12 optical fibres). Reel bend radius r_reel = 10 × D_max per DIN VDE 0298-3.

Dimensions & mechanical loads (32 configs)
Designation	Configuration	Outer Ø min	Outer Ø max	Cu number	Weight ≈	Permitted pull	Reel R min (10×D)
WG Power · 3.6/6 kV (5 sizes)
WG 3.6/6 kV · 3 × 25 + 3 × 25/3	3 × 25 + 3 × 25/3	38	41	1,008	2,585	1,500	410
WG 3.6/6 kV · 3 × 35 + 3 × 25/3	3 × 35 + 3 × 25/3	41	44	1,296	3,041	2,100	440
WG 3.6/6 kV · 3 × 50 + 3 × 25/3	3 × 50 + 3 × 25/3	44	47	1,728	3,675	3,000	470
WG 3.6/6 kV · 3 × 70 + 3 × 35/3	3 × 70 + 3 × 35/3	50	54	2,477	4,606	4,200	540
WG 3.6/6 kV · 3 × 95 + 3 × 50/3	3 × 95 + 3 × 50/3	54	58	3,197	5,678	5,700	580
WG Power · 6/10 kV (5 sizes)
WG 6/10 kV · 3 × 25 + 3 × 25/3	3 × 25 + 3 × 25/3	39	42	1,008	2,725	1,500	420
WG 6/10 kV · 3 × 35 + 3 × 25/3	3 × 35 + 3 × 25/3	42	45	1,296	3,191	2,100	450
WG 6/10 kV · 3 × 50 + 3 × 25/3	3 × 50 + 3 × 25/3	45	48	1,728	3,838	3,000	480
WG 6/10 kV · 3 × 70 + 3 × 35/3	3 × 70 + 3 × 35/3	51	55	2,477	4,870	4,200	550
WG 6/10 kV · 3 × 95 + 3 × 50/3	3 × 95 + 3 × 50/3	55	59	3,197	5,896	5,700	590
WG Power · 8.7/15 kV (5 sizes)
WG 8.7/15 kV · 3 × 25 + 3 × 25/3	3 × 25 + 3 × 25/3	42	45	1,008	3,027	1,500	450
WG 8.7/15 kV · 3 × 35 + 3 × 25/3	3 × 35 + 3 × 25/3	45	49	1,296	3,664	2,100	490
WG 8.7/15 kV · 3 × 50 + 3 × 25/3	3 × 50 + 3 × 25/3	49	53	1,728	4,356	3,000	530
WG 8.7/15 kV · 3 × 70 + 3 × 35/3	3 × 70 + 3 × 35/3	53	57	2,477	5,406	4,200	570
WG 8.7/15 kV · 3 × 95 + 3 × 50/3	3 × 95 + 3 × 50/3	58	62	3,197	6,469	5,700	620
WG Power · 12/20 kV (2 sizes)
WG 12/20 kV · 3 × 25 + 3 × 25/3	3 × 25 + 3 × 25/3	44	47	1,008	3,242	1,500	470
WG 12/20 kV · 3 × 35 + 3 × 25/3	3 × 35 + 3 × 25/3	47	50	1,296	3,777	2,100	500
WG-D Power + 12 FO · 3.6/6 kV (5 sizes)
WG-D 3.6/6 kV · 3 × 25 + 2 × 25/2 + 12 FO	3 × 25 + 2 × 25/2 + 12 FO	41	44	1,008	2,916	1,500	440
WG-D 3.6/6 kV · 3 × 35 + 2 × 25/2 + 12 FO	3 × 35 + 2 × 25/2 + 12 FO	44	47	1,296	3,301	2,100	470
WG-D 3.6/6 kV · 3 × 50 + 2 × 25/2 + 12 FO	3 × 50 + 2 × 25/2 + 12 FO	44	47	1,728	3,674	3,000	470
WG-D 3.6/6 kV · 3 × 70 + 2 × 35/2 + 12 FO	3 × 70 + 2 × 35/2 + 12 FO	50	54	2,477	4,622	4,200	540
WG-D 3.6/6 kV · 3 × 95 + 2 × 50/2 + 12 FO	3 × 95 + 2 × 50/2 + 12 FO	54	58	3,197	5,682	5,700	580
WG-D Power + 12 FO · 6/10 kV (5 sizes)
WG-D 6/10 kV · 3 × 25 + 2 × 25/2 + 12 FO	3 × 25 + 2 × 25/2 + 12 FO	41	44	1,008	2,916	1,500	440
WG-D 6/10 kV · 3 × 35 + 2 × 25/2 + 12 FO	3 × 35 + 2 × 25/2 + 12 FO	44	47	1,296	3,301	2,100	470
WG-D 6/10 kV · 3 × 50 + 2 × 25/2 + 12 FO	3 × 50 + 2 × 25/2 + 12 FO	45	48	1,728	3,836	3,000	480
WG-D 6/10 kV · 3 × 70 + 2 × 35/2 + 12 FO	3 × 70 + 2 × 35/2 + 12 FO	51	55	2,477	4,871	4,200	550
WG-D 6/10 kV · 3 × 95 + 2 × 50/2 + 12 FO	3 × 95 + 2 × 50/2 + 12 FO	55	59	3,197	5,898	5,700	590
WG-D Power + 12 FO · 8.7/15 kV (5 sizes)
WG-D 8.7/15 kV · 3 × 25 + 2 × 25/2 + 12 FO	3 × 25 + 2 × 25/2 + 12 FO	44	47	1,008	3,025	1,500	470
WG-D 8.7/15 kV · 3 × 35 + 2 × 25/2 + 12 FO	3 × 35 + 2 × 25/2 + 12 FO	47	51	1,296	3,650	2,100	510
WG-D 8.7/15 kV · 3 × 50 + 2 × 25/2 + 12 FO	3 × 50 + 2 × 25/2 + 12 FO	49	53	1,728	4,353	3,000	530
WG-D 8.7/15 kV · 3 × 70 + 2 × 35/2 + 12 FO	3 × 70 + 2 × 35/2 + 12 FO	53	57	2,477	5,407	4,200	570
WG-D 8.7/15 kV · 3 × 95 + 2 × 50/2 + 12 FO	3 × 95 + 2 × 50/2 + 12 FO	58	62	3,197	6,471	5,700	620

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Permitted dynamic tensile load equals 20 N/mm² of total phase conductor cross-section (1,500 N for 3 × 25 mm² up to 5,700 N for 3 × 95 mm²).
In WG-D 8.7/15 kV 95 mm², the legacy catalog table prints '3x95+2x35/2+12FO' in the conductor column, whereas its 3,197 kg/km copper weight and DIN VDE 0250-813 confirm a 50 mm² split earth (3 × 95 + 2 × 50/2 + 12 FO).
WG-D standard range integrates 12 optical fibres; 6, 18, and 24 FO builds in G9/125, G50/125, or G62.5/125 are available on request.

Electrical reference data
Designation	Rated U0/U	Max. DC R (20 °C)	Ref. Ampacity (30 °C)	AC Test Voltage
WG Power · 3.6/6 kV (5 sizes)
WG 3.6/6 kV · 3 × 25 + 3 × 25/3	3.6/6 kV	0.795	131	11 kV AC (DIN VDE 0250-813)
WG 3.6/6 kV · 3 × 35 + 3 × 25/3	3.6/6 kV	0.565	162	11 kV AC (DIN VDE 0250-813)
WG 3.6/6 kV · 3 × 50 + 3 × 25/3	3.6/6 kV	0.393	202	11 kV AC (DIN VDE 0250-813)
WG 3.6/6 kV · 3 × 70 + 3 × 35/3	3.6/6 kV	0.277	250	11 kV AC (DIN VDE 0250-813)
WG 3.6/6 kV · 3 × 95 + 3 × 50/3	3.6/6 kV	0.210	301	11 kV AC (DIN VDE 0250-813)
WG Power · 6/10 kV (5 sizes)
WG 6/10 kV · 3 × 25 + 3 × 25/3	6/10 kV	0.795	131	17 kV AC (DIN VDE 0250-813)
WG 6/10 kV · 3 × 35 + 3 × 25/3	6/10 kV	0.565	162	17 kV AC (DIN VDE 0250-813)
WG 6/10 kV · 3 × 50 + 3 × 25/3	6/10 kV	0.393	202	17 kV AC (DIN VDE 0250-813)
WG 6/10 kV · 3 × 70 + 3 × 35/3	6/10 kV	0.277	250	17 kV AC (DIN VDE 0250-813)
WG 6/10 kV · 3 × 95 + 3 × 50/3	6/10 kV	0.210	301	17 kV AC (DIN VDE 0250-813)
WG Power · 8.7/15 kV (5 sizes)
WG 8.7/15 kV · 3 × 25 + 3 × 25/3	8.7/15 kV	0.795	131	24 kV AC (DIN VDE 0250-813)
WG 8.7/15 kV · 3 × 35 + 3 × 25/3	8.7/15 kV	0.565	162	24 kV AC (DIN VDE 0250-813)
WG 8.7/15 kV · 3 × 50 + 3 × 25/3	8.7/15 kV	0.393	202	24 kV AC (DIN VDE 0250-813)
WG 8.7/15 kV · 3 × 70 + 3 × 35/3	8.7/15 kV	0.277	250	24 kV AC (DIN VDE 0250-813)
WG 8.7/15 kV · 3 × 95 + 3 × 50/3	8.7/15 kV	0.210	301	24 kV AC (DIN VDE 0250-813)
WG Power · 12/20 kV (2 sizes)
WG 12/20 kV · 3 × 25 + 3 × 25/3	12/20 kV	0.795	131	29 kV AC (DIN VDE 0250-813)
WG 12/20 kV · 3 × 35 + 3 × 25/3	12/20 kV	0.565	162	29 kV AC (DIN VDE 0250-813)
WG-D Power + 12 FO · 3.6/6 kV (5 sizes)
WG-D 3.6/6 kV · 3 × 25 + 2 × 25/2 + 12 FO	3.6/6 kV	0.795	131	11 kV AC (DIN VDE 0250-813)
WG-D 3.6/6 kV · 3 × 35 + 2 × 25/2 + 12 FO	3.6/6 kV	0.565	162	11 kV AC (DIN VDE 0250-813)
WG-D 3.6/6 kV · 3 × 50 + 2 × 25/2 + 12 FO	3.6/6 kV	0.393	202	11 kV AC (DIN VDE 0250-813)
WG-D 3.6/6 kV · 3 × 70 + 2 × 35/2 + 12 FO	3.6/6 kV	0.277	250	11 kV AC (DIN VDE 0250-813)
WG-D 3.6/6 kV · 3 × 95 + 2 × 50/2 + 12 FO	3.6/6 kV	0.210	301	11 kV AC (DIN VDE 0250-813)
WG-D Power + 12 FO · 6/10 kV (5 sizes)
WG-D 6/10 kV · 3 × 25 + 2 × 25/2 + 12 FO	6/10 kV	0.795	131	17 kV AC (DIN VDE 0250-813)
WG-D 6/10 kV · 3 × 35 + 2 × 25/2 + 12 FO	6/10 kV	0.565	162	17 kV AC (DIN VDE 0250-813)
WG-D 6/10 kV · 3 × 50 + 2 × 25/2 + 12 FO	6/10 kV	0.393	202	17 kV AC (DIN VDE 0250-813)
WG-D 6/10 kV · 3 × 70 + 2 × 35/2 + 12 FO	6/10 kV	0.277	250	17 kV AC (DIN VDE 0250-813)
WG-D 6/10 kV · 3 × 95 + 2 × 50/2 + 12 FO	6/10 kV	0.210	301	17 kV AC (DIN VDE 0250-813)
WG-D Power + 12 FO · 8.7/15 kV (5 sizes)
WG-D 8.7/15 kV · 3 × 25 + 2 × 25/2 + 12 FO	8.7/15 kV	0.795	131	24 kV AC (DIN VDE 0250-813)
WG-D 8.7/15 kV · 3 × 35 + 2 × 25/2 + 12 FO	8.7/15 kV	0.565	162	24 kV AC (DIN VDE 0250-813)
WG-D 8.7/15 kV · 3 × 50 + 2 × 25/2 + 12 FO	8.7/15 kV	0.393	202	24 kV AC (DIN VDE 0250-813)
WG-D 8.7/15 kV · 3 × 70 + 2 × 35/2 + 12 FO	8.7/15 kV	0.277	250	24 kV AC (DIN VDE 0250-813)
WG-D 8.7/15 kV · 3 × 95 + 2 × 50/2 + 12 FO	8.7/15 kV	0.210	301	24 kV AC (DIN VDE 0250-813)

Maximum DC conductor resistance at 20 °C per IEC 60228 Table 3 for Class 5 tinned copper conductors.
Free-air reference ampacity at 30 °C ambient per DIN VDE 0298-4; apply reel layer factors (0.80 for 1 layer, 0.61 for 2 layers, 0.49 for 3 layers).

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 700 mm is below 960 mmUse a larger drum core or a smaller cable size

90 m/min ≤ 120 m/minWithin the rated travel speed

Minimum bending radius: 480 mm
Min. drum core diameter: ≈ 960 mm
Cable weight on drum: 690.8 kg
Copper content: 311.0 kg

Indicative only: based on the datasheet outer diameter and 10 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Medium-voltage AC dielectric test	11 kV (3.6/6 kV), 17 kV (6/10 kV), 24 kV (8.7/15 kV), 29 kV (12/20 kV) per DIN VDE 0250-813	Every manufactured length
OTDR optical attenuation verification (WG-D)	G9/125: ≤ 0.4 dB/km (1300 nm) · G50/125: ≤ 2.8 dB/km (850 nm), ≤ 0.8 dB/km (1300 nm) · G62.5/125: ≤ 3.3 dB/km (850 nm), ≤ 0.9 dB/km (1300 nm)	Every WG-D 12-FO cable length
Sample tests
Vertical flame propagation	Flame-retardant and self-extinguishing per IEC 60332-1-2 / DIN VDE 0482-265-2-1	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

3.6/6–12/20 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX WG / WG-D R-(N)TSCGEWOEU [size] mm² [U0/U] kV [yyyy-ww]

Delivery form: Custom crane reel cut lengths on heavy-duty returnable or export wooden drums (red 5GM5 PCP outer sheath)
Minimum order: Minimum order quantity required per cross-section and voltage class (typically 250–500 m; consult factory)
Customs HS code: 8544.60

Technical documents

Downloads

PDFWG / WG-D MV PCP Reeling Cable R-(N)TSCGEWOEU (3.6/6–12/20 kV) – technical datasheet32 sizes · construction, technical data, approvals XLSXWG / WG-D R-(N)TSCGEWOEU spec data (Excel)All 32 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When should WG / WG-D be selected instead of HVR / HVR-D or WXG / WXG-D?

WG / WG-D is engineered for horizontal motorized reels up to 120 m/min with low-to-medium dynamic loads, low reel mounting heights (< 7 m on container cranes), and at most one diversion roller assembly. Because its compact core lay and double 5GM3/5GM5 sheath minimize outer diameter and weight, it allows smaller, more economical reel drums. For 180 m/min or multi-roller paths select HVR / HVR-D; for 240 m/min extra-heavy-duty reeling select WXG / WXG-D.

Why does page 1 of the legacy datasheet list +90 °C under flexing/fixed temperature while the technical table lists +80 °C?

+90 °C is the maximum permissible operating temperature at the conductor for 3GI3 HV-EPR insulation (with +250 °C short-circuit rating), whereas the permissible ambient air temperature is −35 °C to +80 °C during flexing and −50 °C to +80 °C when fixed, as confirmed in the full technical specification table.

What is the true protective earth cross-section on the WG-D 8.7/15 kV 95 mm² configuration?

The WG-D 8.7/15 kV 95 mm² cable has a 50 mm² split protective earth (3 × 95 + 2 × 50/2 + 12 FO), matching the WG-D 3.6/6 kV and 6/10 kV 95 mm² cables and DIN VDE 0250-813. The legacy table print '3x95+2x35/2+12FO' is a typographical error confirmed by the row's published copper weight of 3,197 kg/km.

What optical fibre types and counts are available in the WG-D hybrid series?

The WG-D standard range integrates 12 optical fibres in the third outer interstice (alongside two split earth conductors in the other two interstices), available in singlemode G9/125 µm, multimode G50/125 µm, or multimode G62.5/125 µm. Builds with 6, 18, or 24 optical fibres are also available on request.

Request a quote

Get an engineering quote for WG / WG-D R-(N)TSCGEWOEU

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

Medium-Voltage Rubber Reeling Cable WG / WG-D (N)TSCGEWOEU

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

WG / WG-D MV PCP Reeling Cable R-(N)TSCGEWOEU (3.6/6–12/20 kV)Red 5GM5 PCP medium-voltage reeling cable (3.6/6–12/20 kV) with optional 12 FO

Motorised monospiral reel

Cylindrical / multi-layer drum

Trailing & towing

Festoon & line chain

Vertical / spreader reel

Energy chain / drag chain

WG R-(N)TSCGEWOEU · 3.6/6 to 12/20 kV (17 configs)

WG-D R-(N)TSCGEWOEU-FO · 3.6/6 to 8.7/15 kV (15 configs)

Electrical

Thermal

Mechanical

Optical

Resistance

Reference standards

Check results

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

HVR / HVR-D

WXG / WXG-D

WGF / WGF-D

NTSCGEWÖU
