Medium-voltage rubber reeling cables (DIN VDE 0250-813)3.6/6–8.7/15 kV(N)TSFLCGEWOEUFlat · 120 m/min

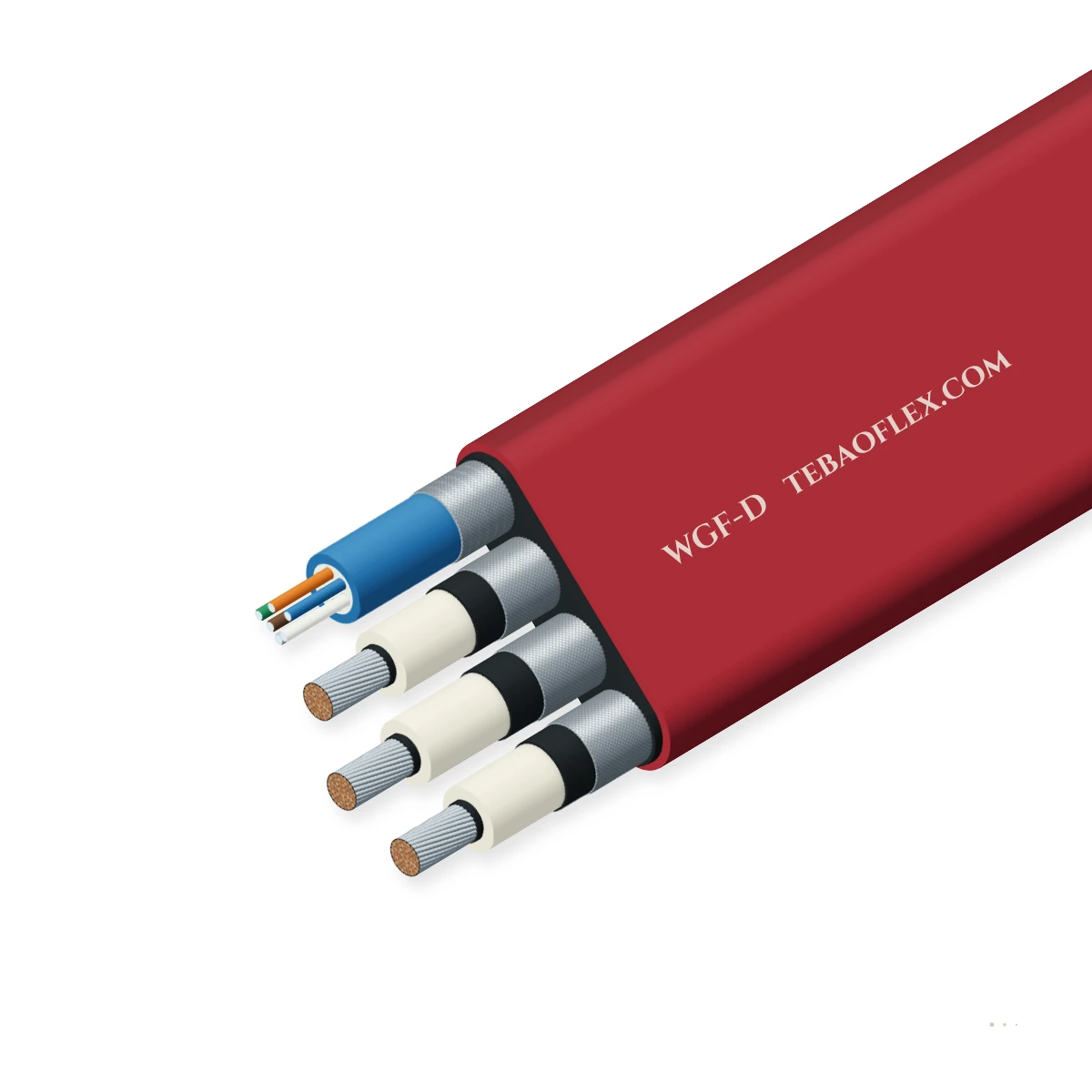

WGF / WGF-D Flat MV Reeling Cable (N)TSFLCGEWOEU (3.6/6–8.7/15 kV)Red 5GM5 flat medium-voltage reeling cable (3.6/6–8.7/15 kV) for monospiral reels

Flat medium-voltage reeling cable (3.6/6 to 8.7/15 kV) per DIN VDE 0250 ((N)TSFLCGEWOEU / -FO) with parallel Class 5 tinned copper cores, concentric split earth, optional 6-FO core, and red 5GM5 jacket for single-plane monospiral reels up to 120 m/min.

EMC screen

Oil-resistant

Flame-retardant

Voltage & flat configuration

Order designation: WGF 3.6/6 kV · 3 × 50 + 3 × 25/3E
Max Height d: 31.0 mm
Max Width B: 78.1 mm
Weight ≈: 3,980 kg/km
Permitted pull: 2,250 N

Check against my drum All sizes (21)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 3.6/6–8.7/15 kV
Reeling speed: 120 m/min
Min. bend radius: D = 1.5 × d
Flexing temp.: −35…+80 °C
Tensile rating: 15 N/mm²
Configurations: 21 configs

Typical values for this cable type — confirmed in the datasheet and quotation for your order.

Application fit

Is WGF / WGF-D (N)TSFLCGEWOEU right for your machine?

WGF and WGF-D are flat medium-voltage reeling cables engineered specifically for motorized monospiral reels with narrow installation width and continuous bending in ONE PLANE ONLY (up to 120 m/min) on stacker/reclaimers and bulk handling machinery, including aggressive urea and sulfur environments.

Motorised monospiral reel

Suitable

Primary duty: motorized monospiral reels with limited installation width and continuous flexing in ONE PLANE ONLY up to 120 m/min.

Cylindrical / multi-layer drum

Suitable

Monospiral flat-cable drums with minimum bend diameter D = 1.5 × flat cable height (d) in a single plane.

Trailing & towing

Suitable

Resistant to sulfur, urea, oil, ozone, UV, and moisture for stockyard and chemical bulk-handling machines.

Festoon & line chain

With conditions

Suitable for heavy single-plane loop festoons; never bend across the flat width or route through S-curves in two planes.

Vertical / spreader reel

Not suitable

Not suitable for multi-plane deflection or S-bend routing; for multi-plane reeling select round WG / WG-D, HVR / HVR-D, or WXG / WXG-D.

WG / WG-D Round MV PCP Reeling Cable

Typical machinesStackers & Reclaimers (Monospiral Reels)Urea & Sulfur Bulk Handling TerminalsPort & Stockyard Rail GantriesHorizontal Material-Handling Machinery

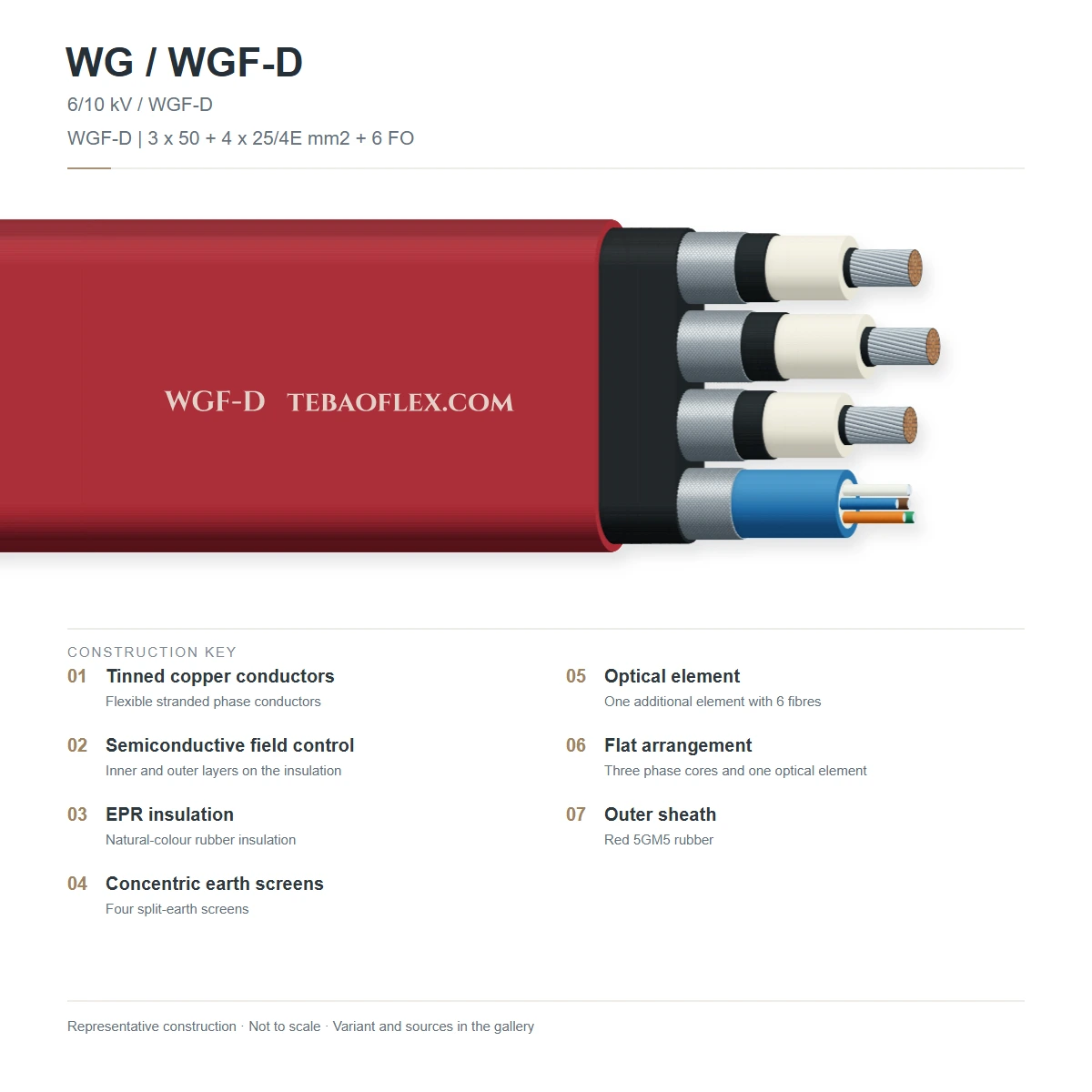

Construction

Layer by layer

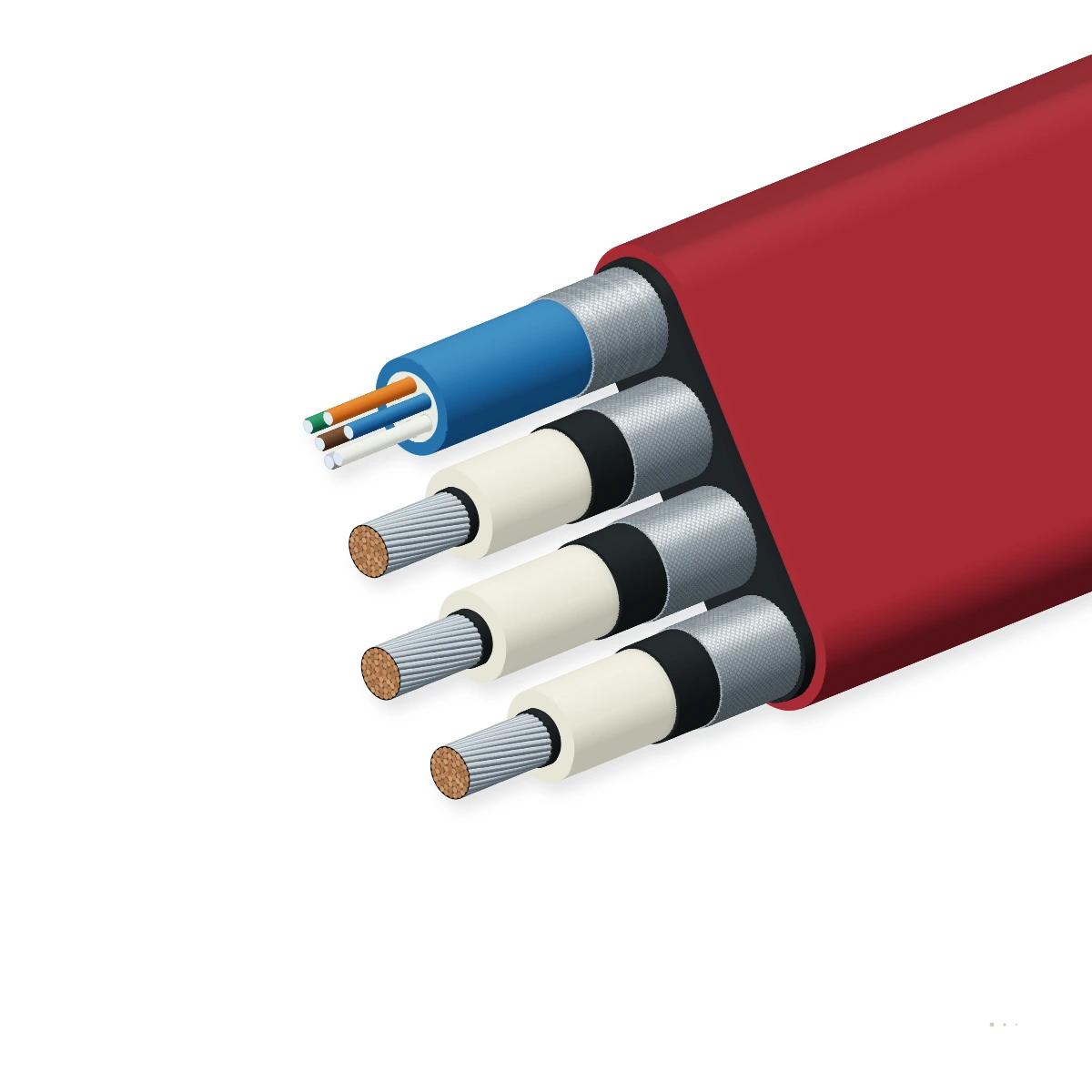

Shown: WGF / WGF-D (N)TSFLCGEWOEU flat medium-voltage reeling cable with three parallel Class 5 tinned copper phase conductors, HV-EPR insulation with inner and outer semiconductive field control (CGE), concentric split protective earth over the phase cores (3E on WGF; 4E + 1 × 6 FO optical unit on WGF-D), and a red 5GM5 elastomer outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible Class 5 tinned copper conductor	Tinned electrolytic copper, flexible Class 5 per DIN VDE 0295 / IEC 60228Three parallel phase conductors (35–120 mm² in WGF; 35–95 mm² in WGF-D)
2	Inner & outer semiconductive field control (CGE)	Inner semiconductive conductor screen and outer semiconductive insulation screen over each phase coreControls radial electric stress across 3.6/6 kV, 6/10 kV, and 8.7/15 kV flat geometry
3	Special HV-EPR core insulation	High-voltage ethylene-propylene rubber (EPR) compound according to VDERated for +90 °C continuous conductor temperature and +250 °C short-circuit temperature
4	Concentric split protective earth (3E / 4E)	Tinned copper earth conductor equally split and applied concentrically over the phase cores (3 × S/3E in WGF; 4 × S/4E in WGF-D)Provides concentric earth fault return path and mechanical flex balance across the flat profile
5	Parallel 6-fibre optical unit (WGF-D only)	1 × (6 FO) buffered optical fibre core laid in parallel within the flat profile (WGF-D series)Provides interference-free crane/reclaimer telemetry alongside medium-voltage power
6	Outer sheath (5GM5 Red)	Abrasion-resistant heavy-duty elastomer compound quality 5GM5 per DIN VDE 0207-21, redResistant to sulfur, urea, oil, ozone, UV, and moisture; low flammability per IEC 60332-1-2

WGF (N)TSFLCGEWOEU · 3.6/6 & 8.7/15 kV (10 sizes)

3 × 35 + 3 × 25/3E to 3 × 120 + 3 × 70/3E mm² flat MV power cable (25.5 × 68.2 mm to 40.3 × 104.5 mm)

WGF-D (N)TSFLCGEWOEU-FO · 3.6/6, 6/10 & 8.7/15 kV (11 sizes)

3 × 35 + 4 × 25/4E + 1 × (6 FO) to 3 × 95 + 4 × 50/4E + 1 × (6 FO) flat MV power + 6-fibre optical cable

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 3.6/6.0 kV, 6.0/10.0 kV, and 8.7/15.0 kV
Max. operating voltage AC: 4.2/7.2 kV (3.6/6 kV) · 6.9/12.0 kV (6/10 kV) · 10.2/18.0 kV (8.7/15 kV)
Max. operating voltage DC: 5.4/10.8 kV (3.6/6 kV) · 9.0/18.0 kV (6/10 kV) · 13.0/26.0 kV (8.7/15 kV)
AC test voltage (DIN VDE 0250-813): 11 kV (3.6/6 kV) · 17 kV (6/10 kV) · 24 kV (8.7/15 kV) per DIN VDE 0250-813
Current rating (DIN VDE 0298-4): According to DIN VDE 0298-4 at 30 °C ambient (apply monospiral reel layer derating factors)

Thermal

Temperature, flexing: −35 °C to +80 °C (−25 °C to +80 °C in basic table; consult factory below −35 °C)
Temperature, fixed installation: −50 °C to +80 °C
Max. conductor temperature: +90 °C
Short-circuit temperature: +250 °C

Mechanical

Max. travel speed: Up to 120 m/min horizontal (continuous bending in ONE PLANE ONLY)
Max. tensile load (dynamic): 15 N/mm² of phase conductor cross-section (1,575–5,400 N across 35–120 mm²)
Min. bending diameter, flexing: Minimum bend diameter D = 1.5 × flat cable height (d) in one plane only; no multi-plane or S-shape bending

Optical

Optical fibre unit (WGF-D): WGF-D: 1 × (6 FO) integrated optical fibre core (G9/125 SM, G50/125 MM, or G62.5/125 MM) laid parallel with the four-part earth system
Optical attenuation (850 / 1300 nm): G9/125 SM: ≤ 0.4 dB/km (1300 nm) · G50/125 MM: ≤ 2.8 dB/km (850 nm), ≤ 0.8 dB/km (1300 nm) · G62.5/125 MM: ≤ 3.3 dB/km (850 nm), ≤ 0.9 dB/km (1300 nm)

Resistance

Chemical, sulfur & urea resistance: Resistant to oil, ozone, UV, humidity, moisture, sulfur, and urea; LBS-free and silicone-free (not halogen-free)
Flame retardance: Low flammability / flame-retardant per IEC 60332-1-2

Reference standards

Cable standard & designation: (N)TSFLCGEWOEU / (N)TSFLCGEWOEU-FO according to DIN VDE 0250
Conductor standard: Flexible tinned electrolytic copper, Class 5 per DIN VDE 0295 / IEC 60228
Core & earth arrangement: Cores laid in parallel; protective earth concentrically split (3E on WGF; 4E + 1 × 6 FO additional core on WGF-D)

Sizes

21 flat medium-voltage configurations (10 WGF Power & 11 WGF-D Power + 6 FO)

Flat profile geometry d × B (height × width in mm) across 3.6/6 kV, 6/10 kV, and 8.7/15 kV. Minimum bend diameter D_min = 1.5 × d_max in ONE PLANE ONLY.

Flat geometry & mechanical loads (21 configs)
Designation	Height d × Width B	Max Height d	Max Width B	Cu number	Weight ≈	Permitted pull	Min Bend D (1.5×d)
WGF Flat Power · 3.6/6 kV (5 sizes)
WGF 3.6/6 kV · 3 × 35 + 3 × 25/3E	25.5–28.5 × 68.2–72.2	28.5	72.2	1,346	3,250	1,575	43
WGF 3.6/6 kV · 3 × 50 + 3 × 25/3E	28.0–31.0 × 74.1–78.1	31	78.1	1,838	3,980	2,250	46
WGF 3.6/6 kV · 3 × 70 + 3 × 35/3E	29.7–32.7 × 79.2–83.2	32.7	83.2	2,573	4,870	3,150	49
WGF 3.6/6 kV · 3 × 95 + 3 × 50/3E	31.7–34.7 × 84.7–89.7	34.7	89.7	3,518	5,920	4,275	52
WGF 3.6/6 kV · 3 × 120 + 3 × 70/3E	35.1–38.1 × 92.9–97.9	38.1	97.9	4,515	7,420	5,400	57
WGF Flat Power · 8.7/15 kV (5 sizes)
WGF 8.7/15 kV · 3 × 35 + 3 × 25/3E	28.7–31.7 × 76.2–80.2	31.7	80.2	1,346	3,820	1,575	48
WGF 8.7/15 kV · 3 × 50 + 3 × 25/3E	30.2–33.2 × 80.7–84.7	33.2	84.7	1,807	4,440	2,250	50
WGF 8.7/15 kV · 3 × 70 + 3 × 35/3E	33.3–36.3 × 87.5–92.5	36.3	92.5	2,573	5,610	3,150	54
WGF 8.7/15 kV · 3 × 95 + 3 × 50/3E	35.3–38.3 × 93.5–98.5	38.3	98.5	3,518	6,700	4,275	57
WGF 8.7/15 kV · 3 × 120 + 3 × 70/3E	37.3–40.3 × 99.5–104.5	40.3	104.5	4,515	8,000	5,400	60
WGF-D Flat Power + 6 FO · 3.6/6 kV (4 sizes)
WGF-D 3.6/6 kV · 3 × 35 + 4 × 25/4E + 1 × (6 FO)	24.5–27.5 × 83.5–88.5	27.5	88.5	1,346	3,700	1,575	41
WGF-D 3.6/6 kV · 3 × 50 + 4 × 25/4E + 1 × (6 FO)	27.0–30.0 × 90.9–95.9	30	95.9	1,838	4,530	2,250	45
WGF-D 3.6/6 kV · 3 × 70 + 4 × 35/4E + 1 × (6 FO)	28.7–31.7 × 97.7–102.7	31.7	102.7	2,573	5,590	3,150	48
WGF-D 3.6/6 kV · 3 × 95 + 4 × 50/4E + 1 × (6 FO)	30.6–33.6 × 105.3–110.3	33.6	110.3	3,518	6,720	4,275	50
WGF-D Flat Power + 6 FO · 6/10 kV (4 sizes)
WGF-D 6/10 kV · 3 × 35 + 4 × 25/4E + 1 × (6 FO)	25.3–28.3 × 86.7–91.7	28.3	91.7	1,346	3,870	1,575	42
WGF-D 6/10 kV · 3 × 50 + 4 × 25/4E + 1 × (6 FO)	27.8–30.8 × 94.1–99.1	30.8	99.1	1,838	4,730	2,250	46
WGF-D 6/10 kV · 3 × 70 + 4 × 35/4E + 1 × (6 FO)	29.5–32.5 × 100.9–105.9	32.5	105.9	2,573	5,800	3,150	49
WGF-D 6/10 kV · 3 × 95 + 4 × 50/4E + 1 × (6 FO)	31.4–34.4 × 108.5–113.5	34.4	113.5	3,518	6,940	4,275	52
WGF-D Flat Power + 6 FO · 8.7/15 kV (3 sizes)
WGF-D 8.7/15 kV · 3 × 35 + 4 × 25/4E + 1 × (6 FO)	28.5–31.5 × 96.6–101.9	31.5	101.9	1,346	4,610	1,575	47
WGF-D 8.7/15 kV · 3 × 50 + 4 × 25/4E + 1 × (6 FO)	30.0–33.0 × 102.9–107.9	33	107.9	1,838	5,340	2,250	50
WGF-D 8.7/15 kV · 3 × 70 + 4 × 35/4E + 1 × (6 FO)	31.7–33.7 × 109.7–114.7	33.7	114.7	2,573	6,460	3,150	51

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Geometry d × B gives flat cable height d (min–max mm) and flat cable width B (min–max mm). Continuous flexing is permitted in ONE PLANE ONLY (bending over height d).
In the legacy WGF table (page 2), cable weights were printed with truncated trailing zeros after the German thousands dot (e.g. '3.25' for 3.250 = 3,250 kg/km and '6.7' for 6.700 = 6,700 kg/km); all weights are normalized to kg/km.
On the 70 mm² WGF rows, the legacy table prints '3 x 25 / 3E' while its 2,573 kg/km copper mass (identical to WGF-D 3 × 70 + 4 × 35/4E) and DIN VDE 0250-813 correspond to a 35 mm² total earth cross-section (3 × 35/3E).

Electrical reference data
Designation	Rated U0/U	Max. DC R (20 °C)	Ref. Ampacity (30 °C)	AC Test Voltage
WGF Flat Power · 3.6/6 kV (5 sizes)
WGF 3.6/6 kV · 3 × 35 + 3 × 25/3E	3.6/6 kV	0.565	162	11 kV AC (DIN VDE 0250-813)
WGF 3.6/6 kV · 3 × 50 + 3 × 25/3E	3.6/6 kV	0.393	202	11 kV AC (DIN VDE 0250-813)
WGF 3.6/6 kV · 3 × 70 + 3 × 35/3E	3.6/6 kV	0.277	250	11 kV AC (DIN VDE 0250-813)
WGF 3.6/6 kV · 3 × 95 + 3 × 50/3E	3.6/6 kV	0.210	301	11 kV AC (DIN VDE 0250-813)
WGF 3.6/6 kV · 3 × 120 + 3 × 70/3E	3.6/6 kV	0.164	352	11 kV AC (DIN VDE 0250-813)
WGF Flat Power · 8.7/15 kV (5 sizes)
WGF 8.7/15 kV · 3 × 35 + 3 × 25/3E	8.7/15 kV	0.565	162	24 kV AC (DIN VDE 0250-813)
WGF 8.7/15 kV · 3 × 50 + 3 × 25/3E	8.7/15 kV	0.393	202	24 kV AC (DIN VDE 0250-813)
WGF 8.7/15 kV · 3 × 70 + 3 × 35/3E	8.7/15 kV	0.277	250	24 kV AC (DIN VDE 0250-813)
WGF 8.7/15 kV · 3 × 95 + 3 × 50/3E	8.7/15 kV	0.210	301	24 kV AC (DIN VDE 0250-813)
WGF 8.7/15 kV · 3 × 120 + 3 × 70/3E	8.7/15 kV	0.164	352	24 kV AC (DIN VDE 0250-813)
WGF-D Flat Power + 6 FO · 3.6/6 kV (4 sizes)
WGF-D 3.6/6 kV · 3 × 35 + 4 × 25/4E + 1 × (6 FO)	3.6/6 kV	0.565	162	11 kV AC (DIN VDE 0250-813)
WGF-D 3.6/6 kV · 3 × 50 + 4 × 25/4E + 1 × (6 FO)	3.6/6 kV	0.393	202	11 kV AC (DIN VDE 0250-813)
WGF-D 3.6/6 kV · 3 × 70 + 4 × 35/4E + 1 × (6 FO)	3.6/6 kV	0.277	250	11 kV AC (DIN VDE 0250-813)
WGF-D 3.6/6 kV · 3 × 95 + 4 × 50/4E + 1 × (6 FO)	3.6/6 kV	0.210	301	11 kV AC (DIN VDE 0250-813)
WGF-D Flat Power + 6 FO · 6/10 kV (4 sizes)
WGF-D 6/10 kV · 3 × 35 + 4 × 25/4E + 1 × (6 FO)	6/10 kV	0.565	162	17 kV AC (DIN VDE 0250-813)
WGF-D 6/10 kV · 3 × 50 + 4 × 25/4E + 1 × (6 FO)	6/10 kV	0.393	202	17 kV AC (DIN VDE 0250-813)
WGF-D 6/10 kV · 3 × 70 + 4 × 35/4E + 1 × (6 FO)	6/10 kV	0.277	250	17 kV AC (DIN VDE 0250-813)
WGF-D 6/10 kV · 3 × 95 + 4 × 50/4E + 1 × (6 FO)	6/10 kV	0.210	301	17 kV AC (DIN VDE 0250-813)
WGF-D Flat Power + 6 FO · 8.7/15 kV (3 sizes)
WGF-D 8.7/15 kV · 3 × 35 + 4 × 25/4E + 1 × (6 FO)	8.7/15 kV	0.565	162	24 kV AC (DIN VDE 0250-813)
WGF-D 8.7/15 kV · 3 × 50 + 4 × 25/4E + 1 × (6 FO)	8.7/15 kV	0.393	202	24 kV AC (DIN VDE 0250-813)
WGF-D 8.7/15 kV · 3 × 70 + 4 × 35/4E + 1 × (6 FO)	8.7/15 kV	0.277	250	24 kV AC (DIN VDE 0250-813)

Maximum DC conductor resistance at 20 °C per IEC 60228 Table 3 for Class 5 tinned copper conductors.
Free-air reference ampacity at 30 °C ambient per DIN VDE 0298-4; apply monospiral reel layer derating factors.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 600 mm ≥ 94 mmBending radius OK (1.5 × OD 31.0 mm)

90 m/min ≤ 120 m/minWithin the rated travel speed

Minimum bending radius: 47 mm
Min. drum core diameter: ≈ 94 mm
Cable weight on drum: 597.0 kg
Copper content: 275.7 kg

Indicative only: based on the datasheet outer diameter and 1.5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Medium-voltage AC dielectric test	11 kV (3.6/6 kV), 17 kV (6/10 kV), 24 kV (8.7/15 kV) per DIN VDE 0250-813	Every manufactured length
Sample tests
Vertical flame propagation	Low flammability / self-extinguishing per IEC 60332-1-2	Type qualification
Chemical resistance (Sulfur & Urea)	Resistant to sulfur, urea, mineral oils, ozone, UV, and moisture (5GM5 compound)	Compound qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

3.6/6–8.7/15 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX WGF / WGF-D (N)TSFLCGEWOEU [size] mm² [U0/U] kV

Delivery form: Custom monospiral reel lengths on heavy-duty timber drums; pre-assembled cable terminations available on request
Minimum order: 300 m to 500 m depending on cross-section and voltage class
Customs HS code: 8544.60

Technical documents

Downloads

PDFWGF / WGF-D Flat MV Reeling Cable (N)TSFLCGEWOEU (3.6/6–8.7/15 kV) – technical datasheet21 sizes · construction, technical data, approvals XLSXWGF / WGF-D (N)TSFLCGEWOEU spec data (Excel)All 21 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When should a flat WGF / WGF-D medium-voltage cable be used instead of a round (N)TSCGEWOEU cable?

WGF / WGF-D is designed for motorized monospiral reels with narrow axial space where the cable winds in a single vertical spiral layer and bends in ONE PLANE ONLY at speeds up to 120 m/min. Because flexing occurs across the thin cable height d (24.5–40.3 mm) rather than a large round diameter, the minimum bend diameter is just D = 1.5 × d. It must not be bent across its width B or routed through multi-plane S-curves.

Is WGF / WGF-D suitable for fertilizer, urea, and sulfur bulk-handling stockyards?

Yes. Unlike standard polychloroprene round reeling cables, the WGF / WGF-D 5GM5 elastomer outer sheath is specifically formulated and rated for resistance to both urea and sulfur, as well as ozone, UV, oil, and moisture, making it ideal for stacker/reclaimers in fertilizer and chemical bulk terminals.

Why does page 4 of the legacy datasheet print '600/1000 V' and '8700/1500 V' in the voltage summary?

Those numbers ('600/1000V', '8700/1500V', '1200/2000V') are a typographical corruption in the legacy catalog's page-27 summary table. As confirmed on page 1, in the dimensional tables (3.6/6 kV, 6/10 kV, and 8.7/15 kV), and by the AC test voltages (11 kV, 17 kV, and 24 kV per DIN VDE 0250-813), WGF / WGF-D is a medium-voltage cable rated at U0/U = 3.6/6 kV, 6.0/10.0 kV, and 8.7/15.0 kV.

Why do the WGF table rows print weights such as 3.25 to 8.0 while WGF-D prints 3.700 to 6.940?

In the German-formatted source table, a period was used as the thousands separator for kg/km (so 3.700 means 3,700 kg/km), and trailing zeros were accidentally dropped on the WGF page ('3.25' for 3.250 = 3,250 kg/km and '8.0' for 8.000 = 8,000 kg/km). All 21 configurations have total weights between 3,250 and 8,000 kg/km.

Request a quote

Get an engineering quote for WGF / WGF-D (N)TSFLCGEWOEU

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

WG / WGF-D Flat Medium-Voltage Reeling Cable WGF / WGF-D (N)TSFLCGEWOEU

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

WGF / WGF-D Flat MV Reeling Cable (N)TSFLCGEWOEU (3.6/6–8.7/15 kV)Red 5GM5 flat medium-voltage reeling cable (3.6/6–8.7/15 kV) for monospiral reels

Motorised monospiral reel

Cylindrical / multi-layer drum

Trailing & towing

Festoon & line chain

Vertical / spreader reel

WGF (N)TSFLCGEWOEU · 3.6/6 & 8.7/15 kV (10 sizes)

WGF-D (N)TSFLCGEWOEU-FO · 3.6/6, 6/10 & 8.7/15 kV (11 sizes)

Electrical

Thermal

Mechanical

Optical

Resistance

Reference standards

Check results

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

WG / WG-D

HVR / HVR-D

WXG / WXG-D

NTSCGEWÖU
