Screened power & VFD / motor supply cablesDIN VDE 0250-812U0/U 0.6/1 kV (640/1140 V)Symmetrical 3+3 EMC

(N)SSHCÖU 0.6/1 kV VFD Mining CableSymmetrical 3+3 EMC-screened rubber motor cable for VFD drives in mines & tunnels

Heavy-duty 0.6/1 kV (640/1,140 V) EMC-optimised rubber VFD motor cable based on DIN VDE 0250-812 with three phase cores, three symmetrical split earth conductors and a concentric tinned-copper braid screen for mining and tunnelling drives.

Low-EMC design
EMC screen
Oil-resistant
Flame-retardant
Order designation
(N)SSHCÖU · 3 × 70 + 3 × 35/3 mm²
Outer Ø max
44.2 mm
Mass ≈
3,800 kg/km
Max. tensile
3,150 N
Current (30 °C)
250 A
Check against my drumAll sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
Also permitted 640/1,140 V AC
Core arrangement
3P + 3PE + EMC
Symmetrical 3+3 + Cu braid
Size range
16–240 mm²
10 sizes · 99 to 540 A
Max. tensile load
15 N/mm²
720 to 10,800 N by size
Torsional stress
±25 °/m
Semi-flexible & trailing
Temp. (flexing)
−25 to +90 °C
−40 °C fixed (−45 °C option)

Typical values for this cable type, based on DIN VDE 0250-812 · (N)SSHCÖU — confirmed in the datasheet and quotation for your order.

Application fit

Is (N)SSHCÖU VFD right for your machine?

Symmetrical 3+3 ground + double copper-tape/braid screened VFD cable (0.6/1 kV to 1.8/3 kV) for PWM inverter-fed motors in mines, wash plants and conveyors.

VFD inverter to AC motor screened feeder

Suitable

Primary duty — low-transfer-impedance EMC screen suppresses PWM common-mode bearing currents and voltage spikes.

Motor stator, traction & converter leads

Suitable

Direct screened feeder from VFD inverter cabinet to overland conveyor, crusher, fan and slurry-pump motors.

Mine roadway & tunnel wall hangers

Suitable

Heavy elastomer jacket withstands mine roadway hangers, wash-plant trays and damp drift tunnels.

Trailing & towing

With conditions

Suitable for semi-mobile skid-mounted crusher and pump VFD feeders with controlled bending.

Motorised monospiral reel

Not suitable

Double-screened VFD feeder — for high-speed travelling crane reels use screened (N)SHTÖU-C.

Use (N)SHTÖU Reeling
Typical machinesOpencast conveyor & crusher drivesUnderground VFD pump & fan drivesTunnel boring machines (TBM)Mine hoist & winch motorsSlurry & dredging pumpsHeavy construction plant

Construction

Layer by layer

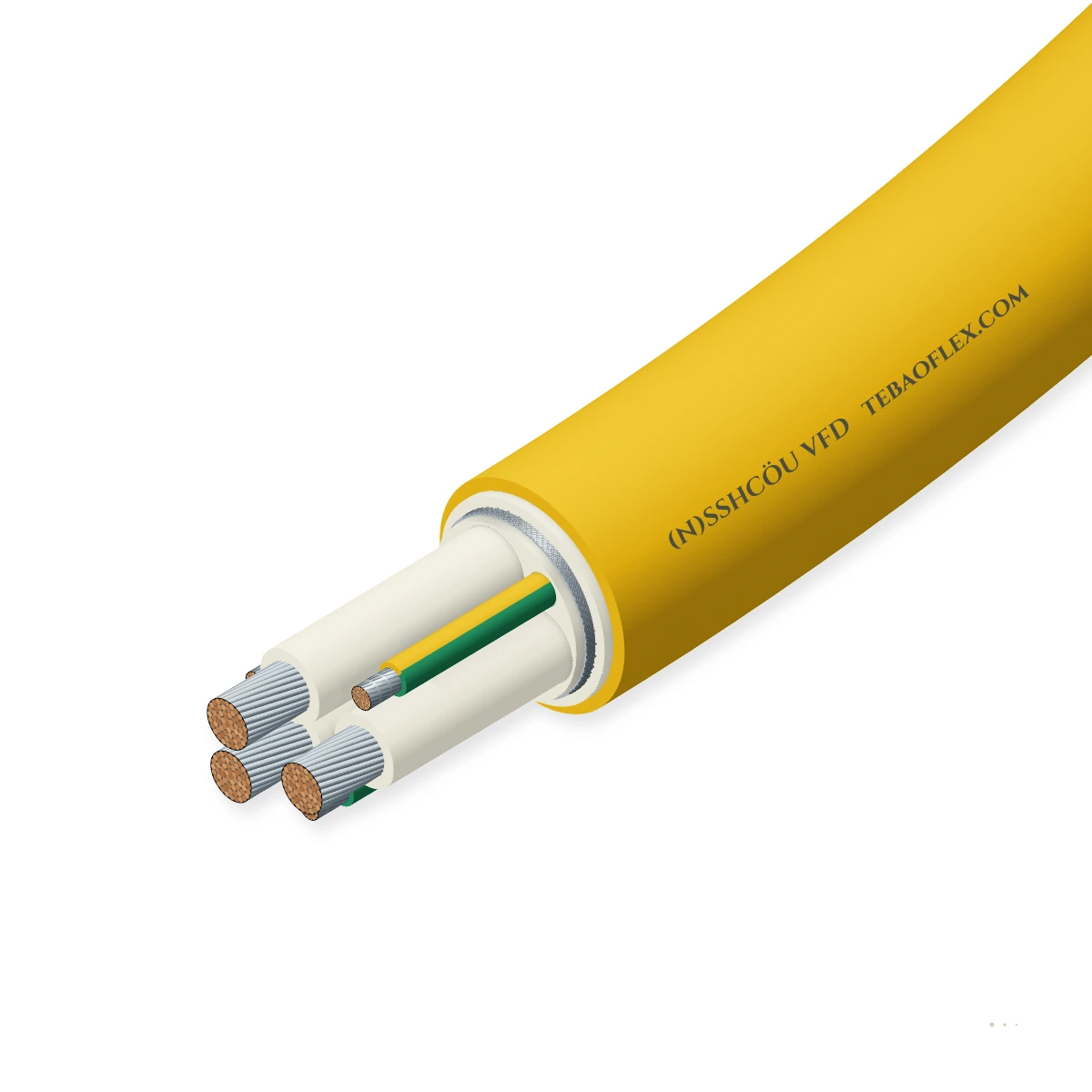

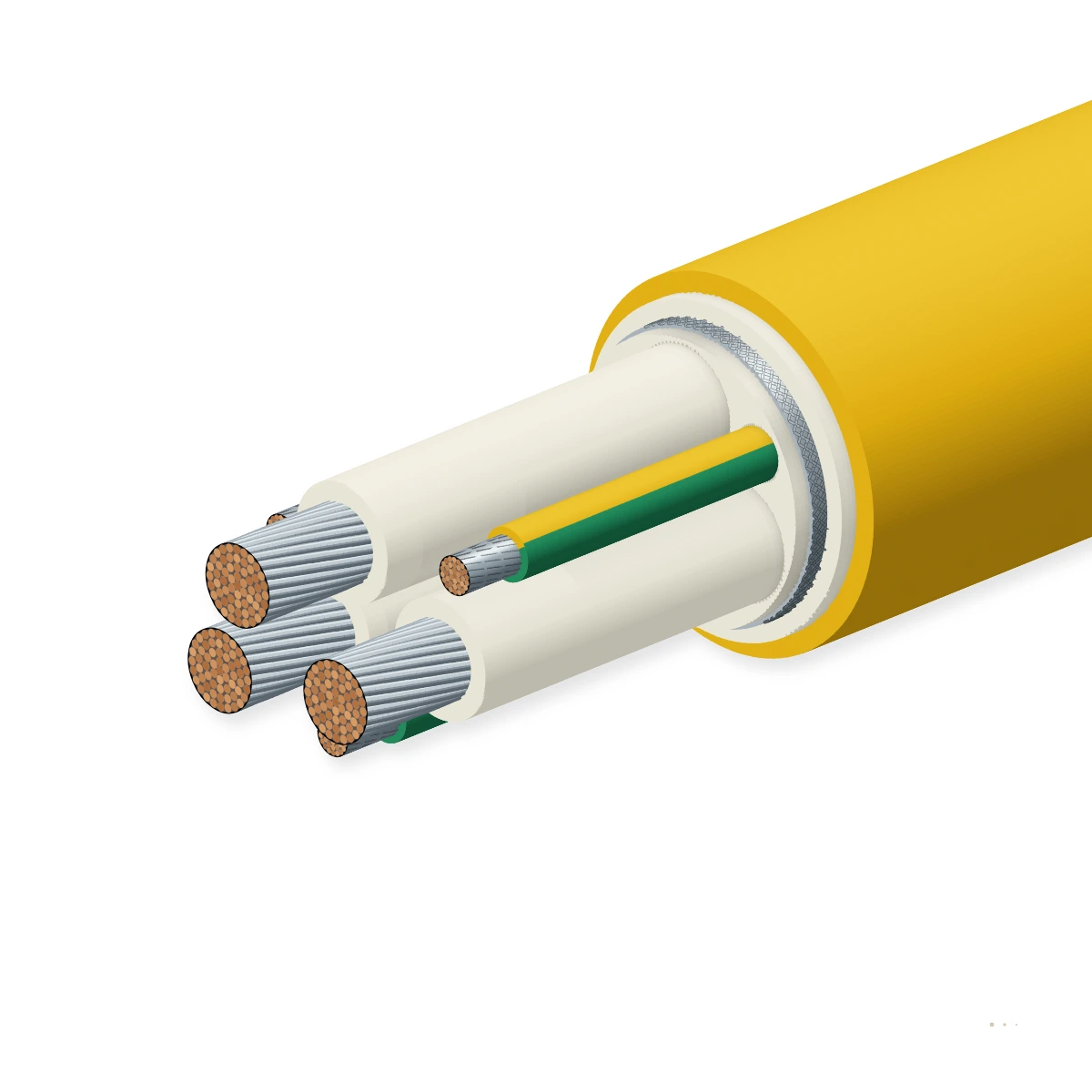

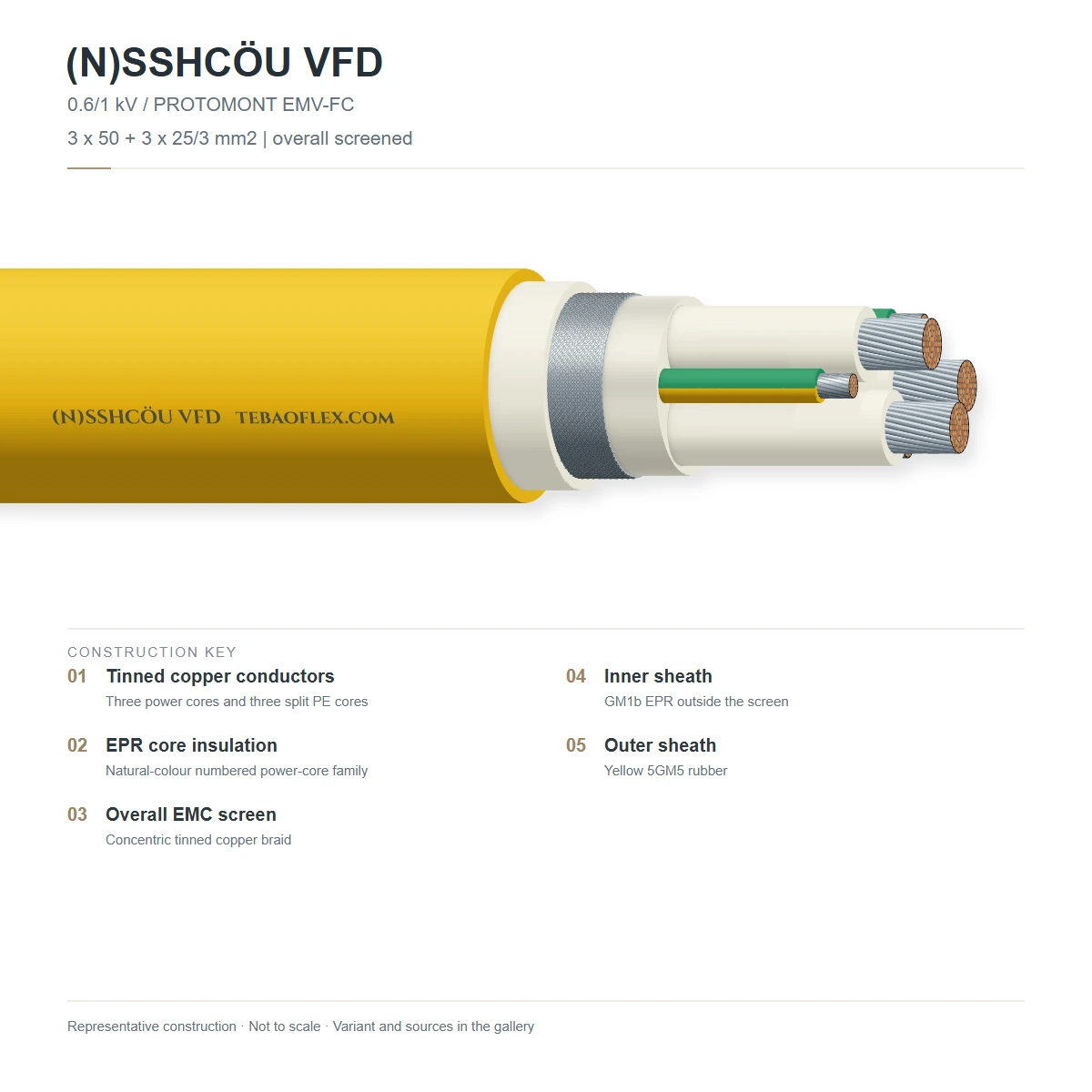

Three numbered phase cores (3GI3 EPR) and three symmetrically split protective-earth cores sit inside a vulcanised GM1b EPR inner sheath, surrounded by an EMC-optimised concentric tinned-copper wire braid and a 5GM5 elastomer outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase & PE conductorsFinely stranded tinned annealed copper, Class 5DIN EN 60228 / IEC 60228
2Core insulationOzone- and heat-resistant EPR elastomer, compound type 3GI3 (natural with black numbers)DIN VDE 0207-20
3Symmetrical PE cores (3)Three split protective-earth conductors laid symmetrically in the three outer interstices120° symmetrical return path
4Inner sheathVulcanised EPR rubber compound, type GM1b, filling core intersticesDIN VDE 0207-21
5EMC concentric screenEMC-optimised concentric braid of tinned copper wires over inner sheathLow transfer impedance
6Outer sheathHeavy-duty synthetic chloroprene elastomer (CR), compound type 5GM5, yellow (or black −45 °C)DIN VDE 0207-21

(N)SSHCÖU · Yellow 5GM5

Standard −40 °C fixed / −25 °C flexible construction with high-visibility yellow 5GM5 outer sheath for opencast, underground & tunnelling

(N)SSHCÖU (−45 °C) · Black 5GM5

Cold-climate opencast variant rated down to −45 °C with black 5GM5 chloroprene outer sheath

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-812 · (N)SSHCÖU. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV (also permitted for U0/U = 640/1,140 V systems)
Max. operating voltage
AC: 0.7/1.2 kV · DC: 0.9/1.8 kV
AC test voltage
5.0 kV, 5 min (main cores)
EMC screen & earth symmetry
Symmetrical 3 + 3 split PE in outer interstices + overall concentric tinned copper wire braid
Current rating basis
99 to 540 A (laid on surface at 30 °C ambient per DIN VDE 0298-4 Table 15)

Thermal

Ambient temperature, flexing
−25 °C to +90 °C (standard); −45 °C to +90 °C (low-temp black variant)
Ambient temperature, fixed
−40 °C to +90 °C (−45 °C on low-temp variant)
Max. conductor temperature
+90 °C continuous · +250 °C short-circuit

Mechanical

Max. tensile load
15 N/mm² of total power-conductor cross-section (720 to 10,800 N)
Torsional stress
±25 °/m
Min. bending radius
Per DIN VDE 0298-3 (5 × OD fixed; 10 × OD flexible guiding)

Resistance

Flame retardance
IEC 60332-1-2 vertical flame; MSHA flame resistance
Oil resistance
IEC 60811-404 (5GM5 polychloroprene elastomer outer sheath)
Water submersion
Submersible in water up to +40 °C to approx. 10 m depth
Weather & ozone
UV, ozone and moisture resistant for indoor, underground and opencast service

Reference standards

Construction standard
Based on DIN VDE 0250-812 · (N)SSHCÖU
Conductor standard
DIN EN 60228 / IEC 60228 Class 5 (finely stranded tinned copper)
Compounds
Insulation: 3GI3 EPR · Inner sheath: GM1b EPR · Outer sheath: 5GM5 CR (DIN VDE 0207)

Identification

Core identification
Natural-coloured EPR insulation with printed black numbers; 3 split green-yellow/bare PE cores
Outer sheath colour
Yellow (standard 5GM5) or Black (−45 °C low-temperature variant)
Designation
(N)SSHCÖU 0.6/1 kV (EMC-screened heavy rubber motor cable)

Sizes

10 symmetrical 3 + 3 sizes from 16 mm² to 240 mm² (0.6/1 kV)

Dimensions, tensile limit, R/C/L parameters, 30 °C current ratings and 1 s short-circuit ratings per DIN VDE 0250-812 / 0298-4.

Dimensions & electrical data
Designation · cores × mm²Cond. Ø max
mm		OD min
mm		OD max
mm		Mass ≈
kg/km		Max. tensile
N		DC resist. 20 °C
Ω/km		Capacitance
µF/km		Inductance
mH/km		Current (30 °C)
A		Short-circuit 1 s
kA		Enquiry
(N)SSHCÖU · 3 × 16 + 3 × 2.5 mm²5.424.427.41,1907201.2400.420.26992.29
(N)SSHCÖU · 3 × 25 + 3 × 4 mm²6.328.231.21,6801,1250.7950.420.261313.58
(N)SSHCÖU · 3 × 35 + 3 × 16/3 mm²7.530.533.52,0001,5750.5650.490.251625.01
(N)SSHCÖU · 3 × 50 + 3 × 25/3 mm²8.936.039.02,8202,2500.3930.510.252027.15
(N)SSHCÖU · 3 × 70 + 3 × 35/3 mm²10.641.244.23,8003,1500.2770.590.2425010.01
(N)SSHCÖU · 3 × 95 + 3 × 50/3 mm²12.145.748.74,7604,2750.2100.600.2430113.59
(N)SSHCÖU · 3 × 120 + 3 × 70/3 mm²14.148.752.75,8905,4000.1640.690.2335217.16
(N)SSHCÖU · 3 × 150 + 3 × 70/3 mm²16.055.759.77,2306,7500.1320.700.2340421.45
(N)SSHCÖU · 3 × 185 + 3 × 95/3 mm²17.860.464.48,6408,3250.1080.710.2346126.46
(N)SSHCÖU · 3 × 240 + 3 × 120/3 mm²20.268.272.211,10010,8000.0820.730.2354034.32
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • In '3 × 16 + 3 × 2.5' and '3 × 25 + 3 × 4', 2.5 mm² and 4 mm² denote the cross-section of each of the 3 split earth conductors; from 35 mm² upward, '3 × 16/3' denotes 3 split earth conductors with a combined cross-section of 16 mm² (5.33 mm² each).
  • Current capacity values are nominal for rubber cables laid on a surface at 30 °C ambient per DIN VDE 0298-4 Table 15.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Enter your drum core diameterMinimum for this size is about 884 mm
Minimum bending radius
442 mm
Min. drum core diameter
≈ 884 mm
Cable weight on drum
380.0 kg
Outer diameter
44.2 mm
Indicative only: based on the datasheet outer diameter and 10 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.
