Screened power & VFD / motor supply cablesICEA S-75-381 / NEMA WC 582,000 V · 3P+3G+GCBraid + Foil EMC Shield

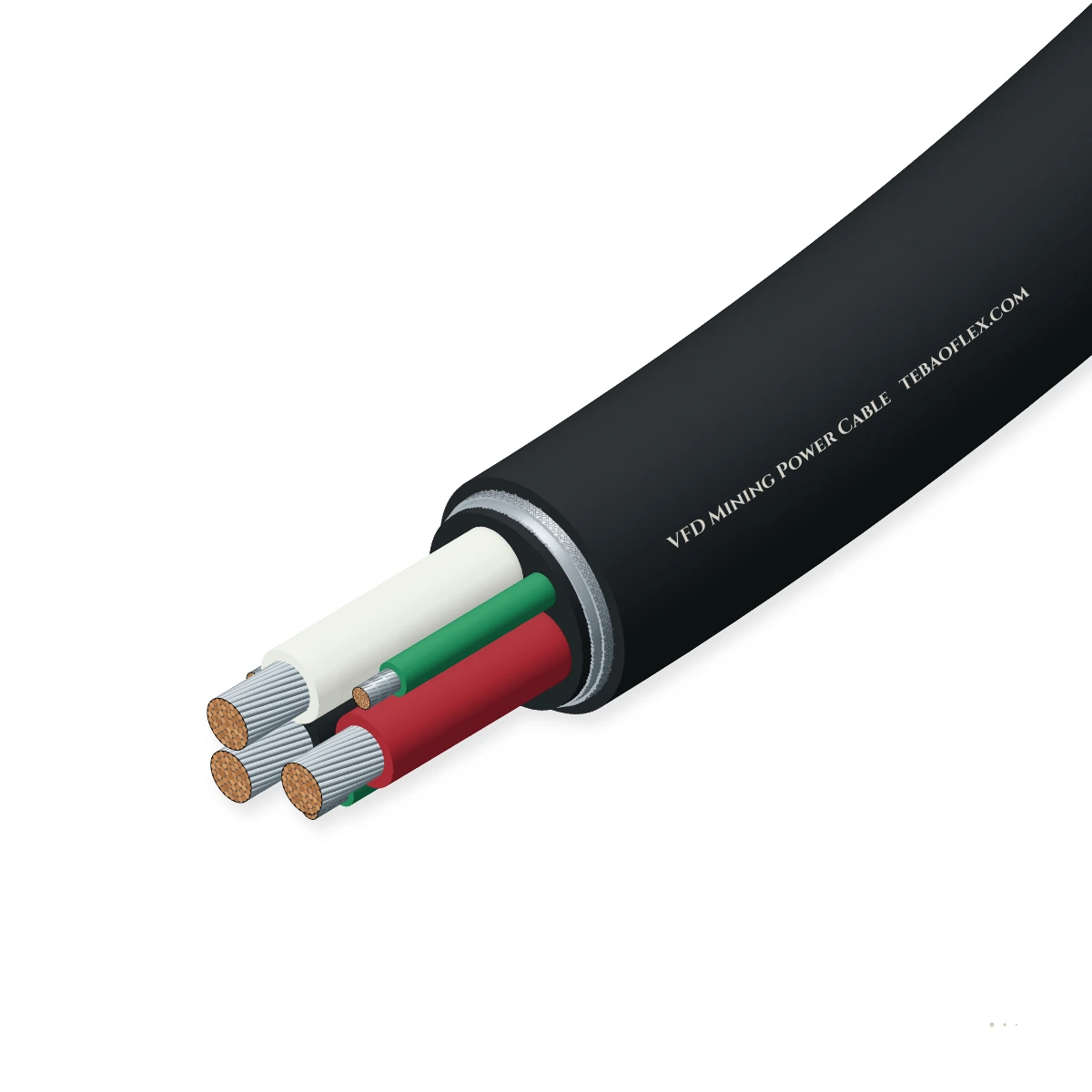

VFD Mining Power Cable (2,000 V · 3P+3G+GC)Braid- and foil-shielded 2 kV symmetrical VFD mining cable with ground-check

North American 2,000 V VFD portable mining cable to ICEA S-75-381 with three rope-lay tinned copper phases, three symmetrical green grounds, a yellow ground-check pilot and a 100 % foil + tinned copper braid shield.

Low-EMC design
EMC screen
Oil-resistant
Flame-retardant
Order designation
VFD 2 kV · 3 × 2/0 AWG
Nominal OD
48.0 mm
Nominal OD (in)
1.89 in
Mass ≈
4,613 kg/km
Ampacity (40 °C)
243 A
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
2,000 V
PWM inverter spike rated
Core arrangement
3P + 3G + 1GC
3 phase + 3 ground + 1 GC
EMC shield
Foil + Cu braid
100 % Al/Mylar + Cu braid
Size range
2 AWG–500 kcmil
9 sizes · 159 to 536 A
Max. conductor T
+90 °C
Type II EPDM/EPR · −40 °C
Min. bend radius
8 × OD
Shielded 2 kV trailing/reeling

Typical values for this cable type, based on ICEA S-75-381 / NEMA WC 58 · CSA C22.2 No. 96 — confirmed in the datasheet and quotation for your order.

Application fit

Is VFD Mining Power 2 kV right for your machine?

Heavy-duty MSHA-grade symmetrical screened 2 kV VFD mining power cable for variable-frequency drives on mine hoists, ventilation fans, pumps and conveyors.

VFD inverter to AC motor screened feeder

Suitable

Primary duty — 100 % concentric copper braid + foil shield contains high dV/dt PWM inverter harmonics.

Motor stator, traction & converter leads

Suitable

Symmetrical split ground cores balance zero-sequence impedance on large AC traction & pump motors.

Mine roadway & tunnel wall hangers

Suitable

Flame-retardant CPE/PCP outer jacket for mine roadways, preparation plants and tunnel trays.

Trailing & towing

With conditions

Relocatable skid and semi-mobile mine drive connections when minimum bend radius is maintained.

Motorised monospiral reel

Not suitable

Not intended for high-speed monospiral crane reels.

Use (N)SHTÖU Reeling
Typical machinesVFD continuous miners & shearersVFD shuttle cars & haulersMine hoist, fan & crusher drivesSlurry & dewatering VFD pumpsMobile power centres & skid drivesSurface mine conveyor drives

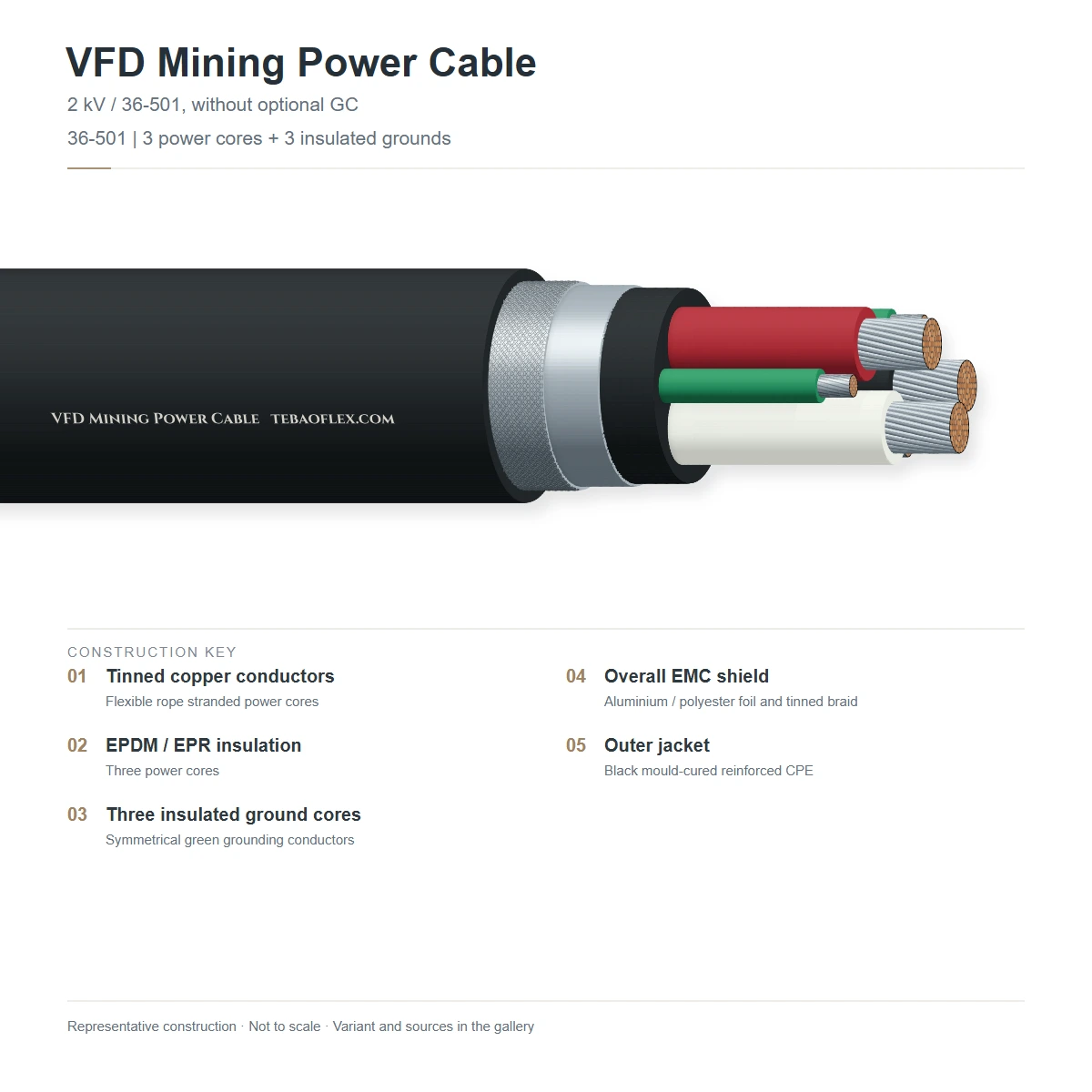

Construction

Layer by layer

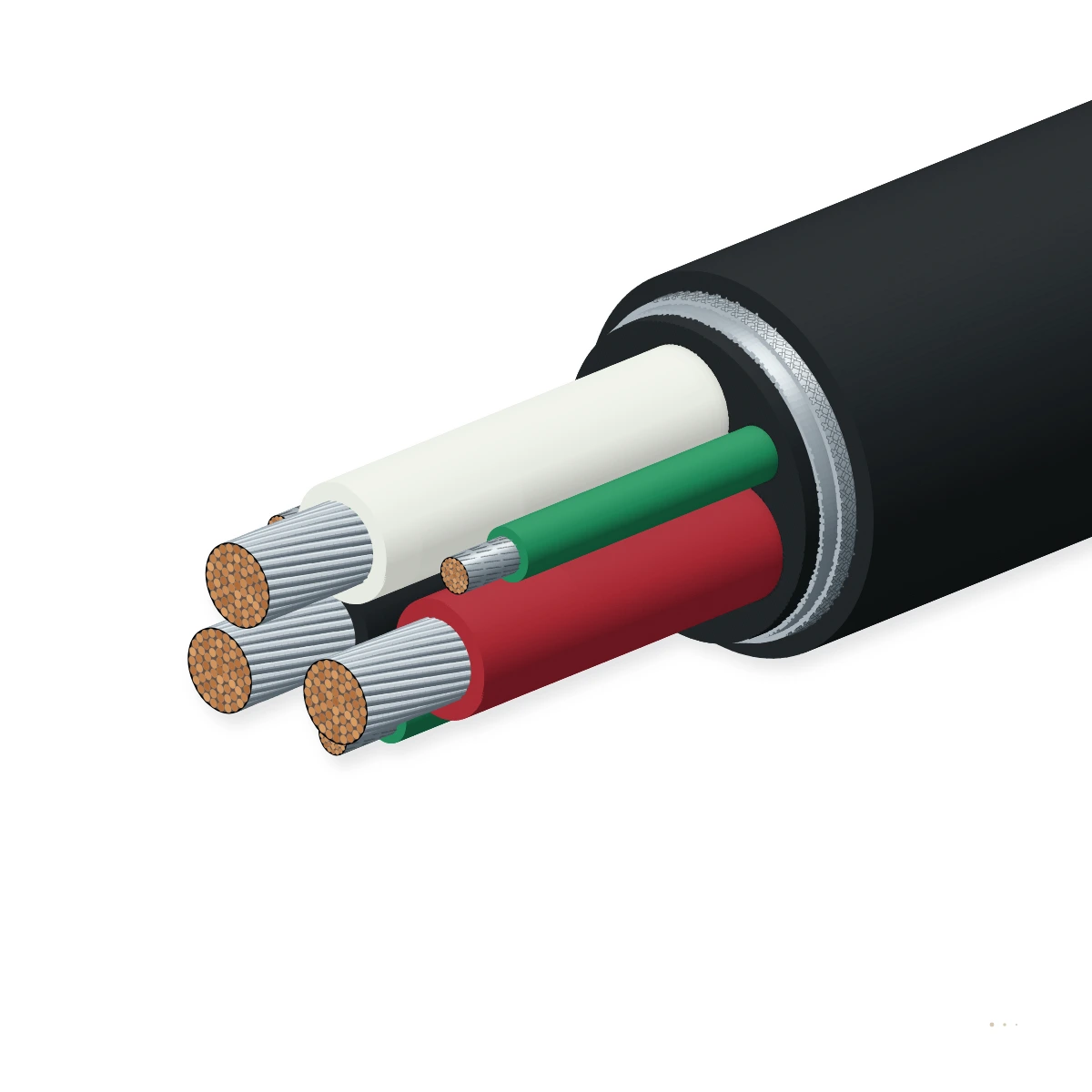

Three rope-lay tinned copper phase cores surround a central yellow ground-check pilot, with three green-insulated grounding conductors placed symmetrically in the three outer interstices, enclosed by a 100 % aluminum/polyester foil + tinned copper braid shield and a reinforced mold-cured CPE jacket.

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase conductors (3)Extra-flexible rope-lay stranded tinned copperASTM B172 & ASTM B33
2Phase insulation90 °C Type II EPDM (EPR) ozone-resistant thermoset elastomer (2,000 V wall)ICEA S-75-381
3Central ground-check pilot (1)Central flexible tinned copper ground-check conductor with yellow insulation (interstitial option ≥ 14 AWG)Pilot continuity monitoring
4Symmetrical grounds (3)Three flexible rope-lay tinned copper grounding conductors with green insulation in the three outer intersticesBalanced 120° ground return
5Foil shield (100 % coverage)Aluminum / polyester laminate tape over cabled core assembly (100 % high-frequency coverage)RFI / EMI containment
6Overall copper braid shieldOverall tinned copper wire braid shield over foil tapeLow-impedance common-mode drain
7Outer jacketReinforced mold-cured thermosetting chlorinated polyethylene (CPE) jacket, black (3.9 to 6.7 mm wall)ICEA S-75-381 / CSA C22.2 No. 96

Center Ground-Check (3P + 3G + Center GC)

Central yellow ground-check conductor surrounded by 3 phase cores and 3 interstitial green grounds for true 120° electromagnetic symmetry

Interstitial Ground-Check Option

Non-center yellow ground-check conductor (minimum 14 AWG) when specified by connector or coupler geometry

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ICEA S-75-381 / NEMA WC 58 · CSA C22.2 No. 96. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
2,000 V AC (designed for PWM inverter voltage spikes up to 2 kV class)
Ampacity range
159 to 536 A (90 °C conductor, 40 °C ambient in free air)
Reel derating factors
1 layer: × 0.85 · 2 layers: × 0.65 · 3 layers: × 0.45 · 4 layers: × 0.35
Overall EMC shield
100 % coverage aluminum/polyester foil tape + overall tinned copper wire braid (≥ 85 % braid coverage)
Symmetrical grounds & pilot
Three green-insulated tinned copper grounds (3 × 8 AWG to 3 × 1/0 AWG) + central yellow ground-check (≥ 14 AWG)

Thermal

Max. continuous conductor temp.
+90 °C (Type II EPDM / EPR)
Min. operating temperature
−40 °C
Emergency overload & short-circuit
+130 °C overload · +250 °C short-circuit

Mechanical

Min. bending radius
8 × OD (shielded 2 kV portable power cable per ICEA S-75-381)
Conductor stranding
Extra-flexible rope-lay stranded annealed tinned copper per ASTM B172 & ASTM B33
Outer jacket wall
Reinforced mold-cured thermoset CPE jacket (0.155 to 0.265 in / 3.9 to 6.7 mm nominal wall)

Resistance

Flame retardance
MSHA 30 CFR Part 7 flame resistance · CSA C22.2 No. 96 FT4
Oil, chemical & ozone
Ozone-resistant Type II EPDM insulation + oil-, acid- and abrasion-resistant mold-cured CPE jacket
Water & sunlight
90 °C wet/dry rated for surface and underground mining VFD installations

Reference standards

Construction standard
ICEA S-75-381 / NEMA WC 58 · CSA C22.2 No. 96
Conductor standard
ASTM B172 & ASTM B33 (extra-flexible tinned copper)
Manufacturing tolerance
±5 % on nominal outside diameter

Identification

Phase & ground colours
Phases: Black, White, Red · Grounds (3): Green · Ground-check (1): Yellow
Outer jacket
Black reinforced mold-cured thermoset CPE
Configuration code
3 Power + 3 Symmetrical Grounds + 1 Ground-Check · Braid + Foil Shield (2,000 V)

Sizes

9 standard sizes from 2 AWG to 500 kcmil (2,000 V · 3P + 3G + GC)

Dimensions, weights and 40 °C free-air ampacities per ICEA S-75-381 / NEMA WC 58 and TEBAOFLEX datasheet.

Sizes & dimensions · 2 kV VFD
Power cores
3 × AWG/kcmil
Grounds (3)
AWG/kcmil
Ground-check
pilot
Jacket
in
Jacket
mm
Nominal OD
in
Nominal OD
mm
Weight ≈
lb/kft
Mass ≈
kg/km
Ampacity
A (40 °C)
Enquiry
VFD 2 kV · 3 × 2 AWG3 × 81 × GC (≥14 AWG)0.1553.91.4336.31,7902,664159
VFD 2 kV · 3 × 1 AWG3 × 71 × GC (≥14 AWG)0.1704.31.6441.72,1503,200184
VFD 2 kV · 3 × 1/0 AWG3 × 61 × GC (≥14 AWG)0.1704.31.7444.22,5503,795211
VFD 2 kV · 3 × 2/0 AWG3 × 51 × GC (≥14 AWG)0.1904.81.8948.03,1004,613243
VFD 2 kV · 3 × 3/0 AWG3 × 41 × GC (≥14 AWG)0.1904.82.0151.14,0506,027279
VFD 2 kV · 3 × 4/0 AWG3 × 31 × GC (≥14 AWG)0.2205.62.1755.14,3906,533321
VFD 2 kV · 3 × 250 kcmil3 × 31 × GC (≥14 AWG)0.2205.62.4061.05,9508,855355
VFD 2 kV · 3 × 350 kcmil3 × 11 × GC (≥14 AWG)0.2356.02.6868.17,84011,667435
VFD 2 kV · 3 × 500 kcmil3 × 1/01 × GC (≥14 AWG)0.2656.73.0377.09,73014,480536
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Ampacity calculated at 90 °C conductor temperature and 40 °C ambient air; apply reel correction factors (1 layer: 0.85, 2: 0.65, 3: 0.45, 4: 0.35) when wound on drums.
  • Each cable includes 3 green-insulated grounding conductors and 1 yellow-insulated ground-check conductor under an overall foil + tinned copper braid shield.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Enter your drum core diameterMinimum for this size is about 768 mm
Minimum bending radius
384 mm
Min. drum core diameter
≈ 768 mm
Cable weight on drum
461.3 kg
Outer diameter
48.0 mm
Indicative only: based on the datasheet outer diameter and 8 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
In-line spark & high-voltage AC dielectric test100 % spark test and routine AC withstand test for 2,000 V class per ICEA S-75-381Every shipping length
Phase, ground, pilot & shield continuity / DC resistanceVerified on all 3 phase cores, 3 grounds, 1 GC pilot and overall braid+foil shieldEvery shipping length
Sample tests
Vertical flame resistance testSelf-extinguishing per MSHA 30 CFR Part 7 and CSA C22.2 No. 96 FT4Production batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

ICEA S-75-381 / NEMA WC 58CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX · VFD POWER CABLE · 2000V · 90C · 3/C [size] + 3G + GC · SHIELDED · EPDM/CPE · ICEA S-75-381
Delivery form
Export seaworthy fumigated wooden reels matched to 8 × OD minimum bend radius
Lengths
Custom cut-to-length reels per VFD motor feeder schedule
Certificate
EN 10204 3.1 factory inspection certificate per reel
Quote response
Engineering specification and quote within 2 business hours

Technical documents

Downloads

Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why use a 2,000 V VFD mining cable on a 480 V, 600 V or 995 V AC drive?
Variable-frequency IGBT inverters generate fast-rising PWM pulses that reflect at the motor terminals, producing standing-wave voltage peaks 2 to 3 times the nominal bus voltage. A 2,000 V Type II EPDM insulation wall prevents corona inception and premature dielectric breakdown that would destroy a standard 600 V cable.
Why does this cable have three grounding conductors instead of two like Type G-GC?
Standard Type G-GC places two grounds in two interstices and the ground-check pilot in the third, creating an electrically asymmetrical cross-section. This VFD cable places three equal green grounding conductors at 120° in all three outer interstices (with a central ground-check pilot) so induced high-frequency currents cancel symmetrically.
How does the combined braid + foil shield improve EMC performance?
The aluminum/polyester tape provides 100 % optical coverage against high-frequency radiated EMI (MHz range), while the heavy tinned-copper wire braid provides a low-inductance, mechanically flexible return path for lower-frequency common-mode currents (kHz range) and fault currents.
How should ampacity be adjusted when the VFD cable is operated on a reel?
When wound on a cable reel, multiply the 40 °C free-air ampacity by the reel correction factor for the number of wound layers: 0.85 for 1 layer, 0.65 for 2 layers, 0.45 for 3 layers, and 0.35 for 4 layers.
