SAE J1128 North American Automotive Primary Wires60 V DC / 25 V ACSAE J1128 Thin-Wall PVC24 to 8 AWG

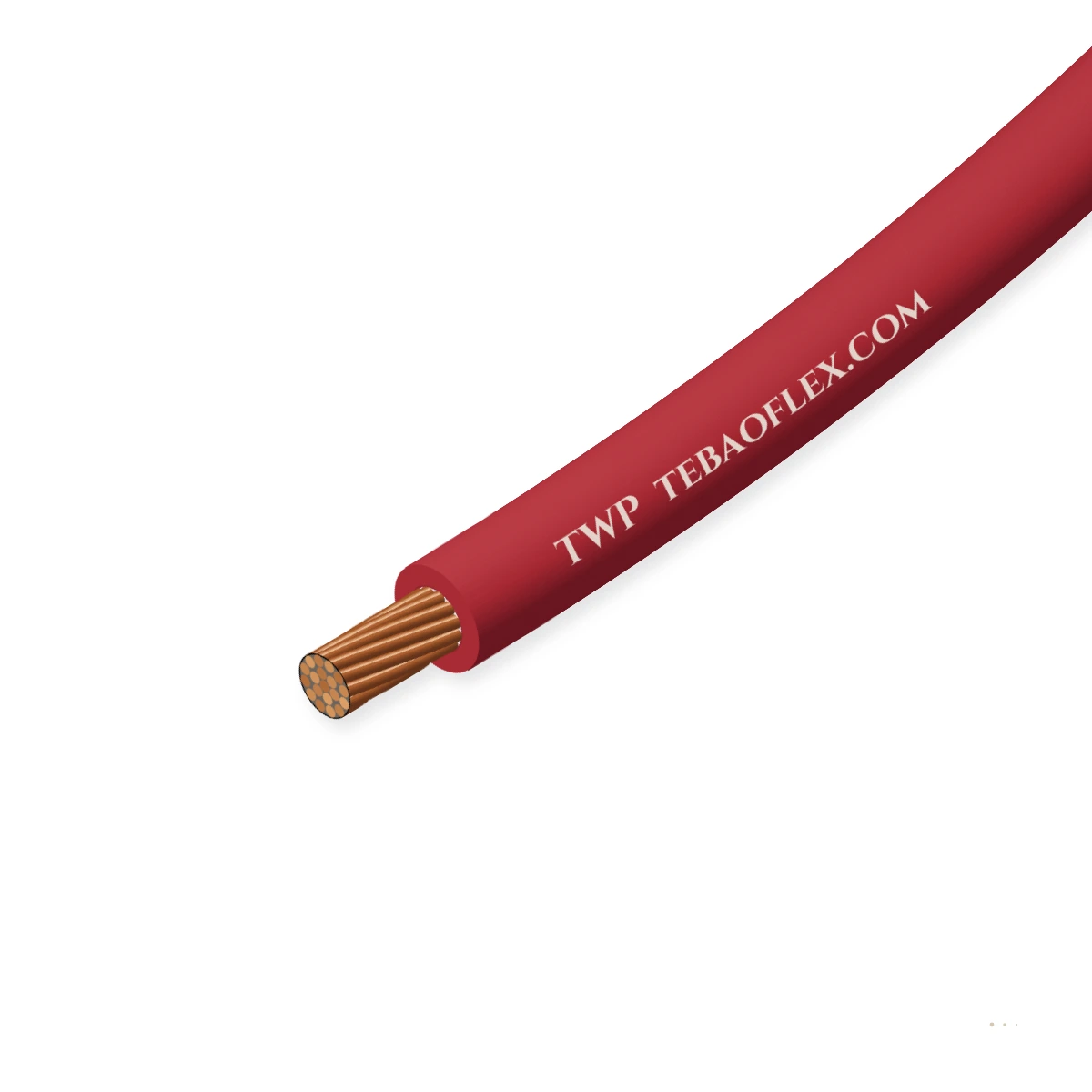

TWP Thin-Wall Automotive Wire60 V DC / 25 V AC SAE J1128 thin-wall thermoplastic PVC automotive wire (24–8 AWG)

Type TWP (Thin-Wall Thermoplastic) is a reduced-diameter 60 V DC (25 V AC) SAE J1128 primary wire featuring a 0.40 mm (0.016 in) nominal PVC wall on 24–14 AWG sizes. It cuts harness bundle volume by up to 25 % compared with regular-wall GPT while operating fro

SAE J1128 Fluid Resistant
Self-Extinguishing PVC
SAE J1128 Type TWP
Order designation
TWP 18 AWG (0.8 mm²)
Max. OD
2.20 mm
Copper mass
8.9 kg/km
Total mass ≈
12.1 kg/km
Min. bend R
8.8 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
60 V DC / 25 V A
SAE J1128 surface vehicle LV
Thermal class
-40 to +85/+105
SAE Class A (85 °C) / Class B (105 °C)
Gauge range
24 to 8 AWG
0.22 to 8.0 mm² metric equivalent
Wall profile
Thin-wall (0.40m
0.40 mm nominal wall (24–14 AWG)
Conductor
Stranded Cu
ASTM B3 concentric bare copper
Min. bend radius
4 × wire OD
Compact instrument & door looms

Typical values for this cable type, based on SAE J1128 / ISO 6722-1 Class A/B — confirmed in the datasheet and quotation for your order.

Application fit

Is TWP right for your machine?

Designed for weight- and space-constrained cabin harnesses, instrument clusters, overhead consoles, infotainment looms and body control modules in cars, trucks and buses.

Fixed installation

Suitable

High-density harness routing through door grommets, A/B pillars and behind instrument panels.

Switchgear & control cabinet wiring

Suitable

Thin 0.40 mm wall fits miniature metric/USCAR sealed and unsealed multi-pin connector cavities.

Trailing & towing

Not suitable

Single-core harness wire must be taped or loomed inside a protective harness assembly.

FLRYY multicore truck cable

Furnace, kiln & high-temp zone

Not suitable

Lead-free thermoplastic PVC is limited to +85/+105 °C; specify TXL for +125 °C engine bays.

TXL +125 °C thin-wall XLPE
Typical machinesAutomotive cockpit & dash harnessesBody & door wiring modulesCommercial truck & bus cabinsAgricultural machinery cabsMarine instrument panels

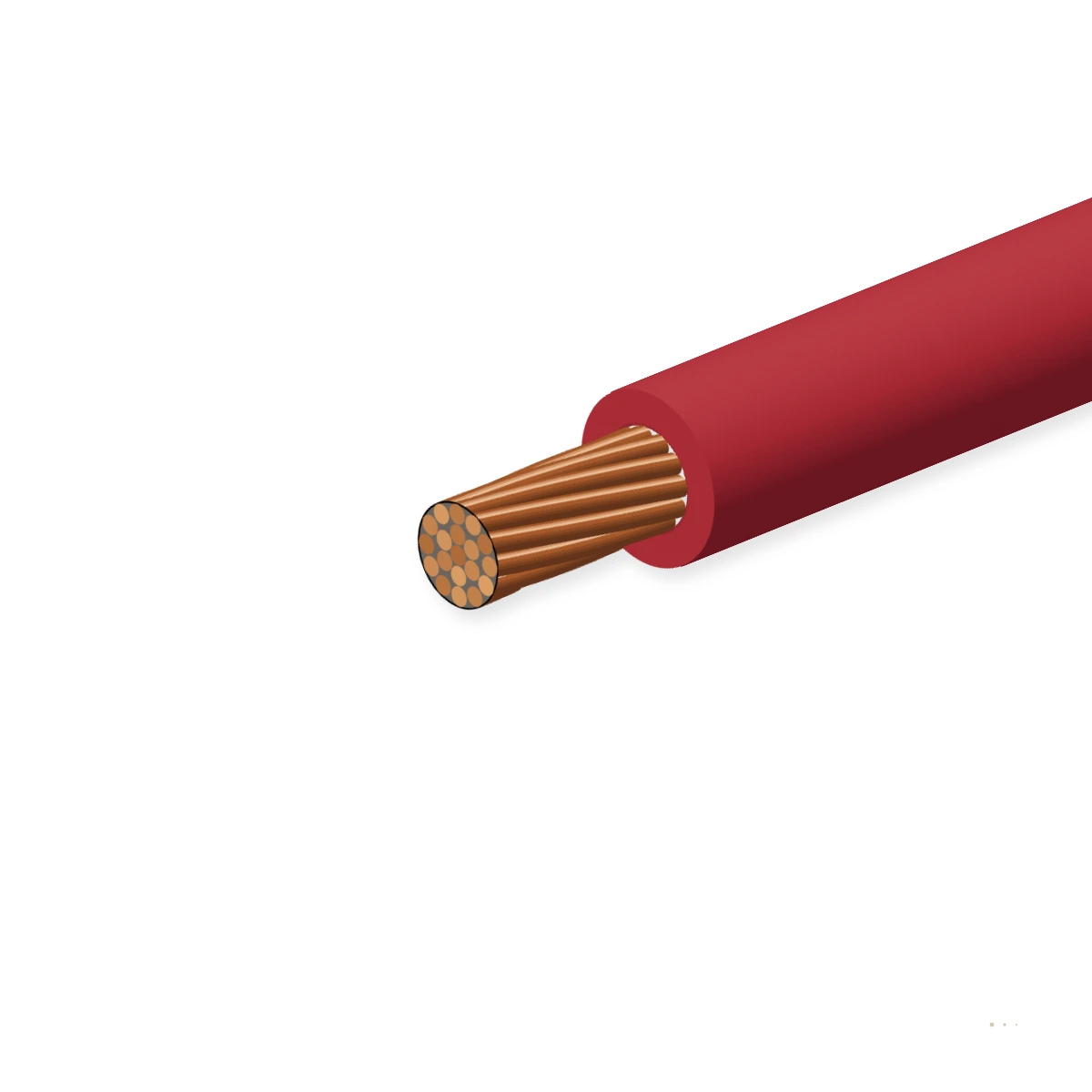

Construction

Layer by layer

ASTM B3 concentric stranded annealed bare copper conductor + thin-wall (0.40 mm on 24–14 AWG) lead-free thermoplastic PVC insulation + smooth colour/stripe outer skin.

123

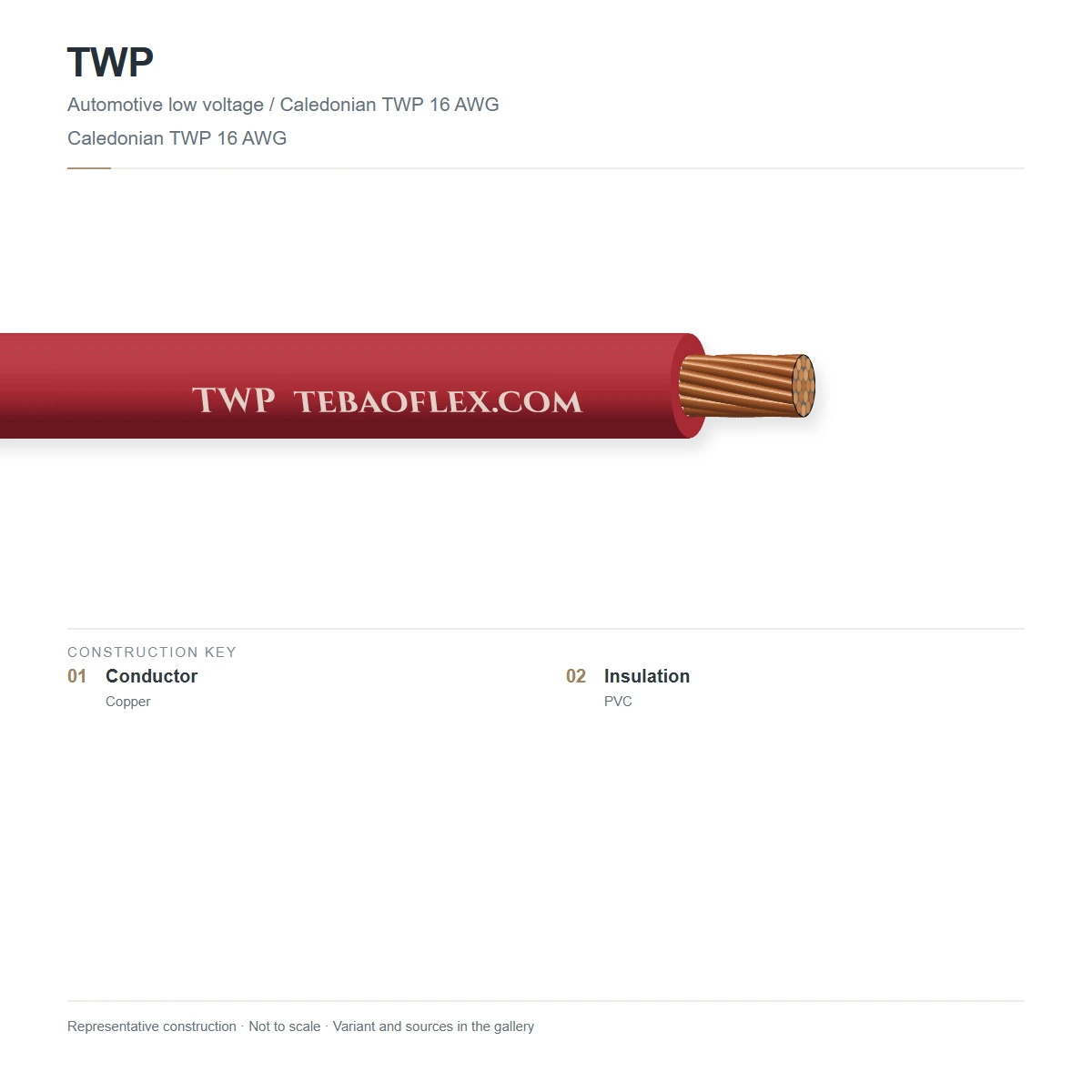

Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded bare copper conductorConcentric stranded annealed bare copper per ASTM B3 / SAE J1128 (7 or 19 strands)ASTM B3
2Thin-wall thermoplastic PVCHigh-dielectric-strength lead-free polyvinyl chloride (PVC) compound (0.40 mm nominal wall on 24–14 AWG)SAE J1128
3Smooth colour-coded surface skinIntegral low-friction extruded outer skin with optional spiral or longitudinal tracer stripeSAE J1128

SAE J1128 TWP (85 °C Class A)

Standard SAE J1128 thin-wall PVC primary wire for passenger compartment and body harnesses.

TWP-105 (105 °C Class B)

Heat-stabilised +105 °C thin-wall PVC compound matching Chrysler MS-8900 and Ford ESB-M1L120-A.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on SAE J1128 / ISO 6722-1 Class A/B. Values for your order are confirmed in the datasheet and quotation.

Electrical

Nominal voltage rating
≤60 V DC / ≤25 V AC
Wet dielectric withstand
1.0 kV AC rms for 1 minute after 4 h saltwater immersion
In-line spark test
1.5 kV to 3.0 kV AC rms

Thermal

Continuous temperature rating
-40 °C to +85 °C (Class A) / +105 °C (Class B option)
Cold bend performance
-40 °C for 4 hours around specified mandrel

Mechanical

Nom. wall thickness (24–14 AWG)
0.40 mm (0.016 in)
Nom. wall thickness (12 / 10 / 8 AWG)
0.46 mm (12 AWG) · 0.56 mm (10 AWG) · 0.71 mm (8 AWG)
Sandpaper & scrape abrasion
Meets SAE J1128 thin-wall abrasion resistance

Resistance

Flame retardancy
Self-extinguishing within 70 s per SAE J1128 45° burn test
Automotive fluid resistance
Resists motor oil, fuel, coolant, brake fluid and battery electrolyte

Reference standards

Governing standard
SAE J1128 Type TWP
OEM specifications
Chrysler MS-8900 & Ford ESB-M1L120-A

Identification

Colour coding
Solid base colour with optional tracer stripe
Packaging
High-speed payoff spools or barrel packs

Sizes

12 standard sizes (TWP)

Nominal dimensions, wall thickness, copper mass and electrical parameters for TWP per SAE J1128 / ISO 6722-1 Class A/B.

Dimensions & masses
DesignationAWG (Metric mm²)Strands / Wall mmMax. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
TWP size range
TWP 24 AWG (0.22 mm²)24 AWG (0.22 mm²)7/32 · 0.40 mm1.552.04.16.2
TWP 22 AWG (0.35 mm²)22 AWG (0.35 mm²)7/30 · 0.40 mm1.703.15.56.8
TWP 20 AWG (0.5 mm²)20 AWG (0.5 mm²)7/28 · 0.40 mm1.954.97.67.8
TWP 18 AWG (0.8 mm²)18 AWG (0.8 mm²)19/30 · 0.40 mm2.208.912.18.8
TWP 16 AWG (1.0 mm²)16 AWG (1.0 mm²)19/29 · 0.40 mm2.4011.214.89.6
TWP 14 AWG (2.0 mm²)14 AWG (2.0 mm²)19/27 · 0.40 mm2.9017.822.311.6
TWP 12 AWG (3.0 mm²)12 AWG (3.0 mm²)19/25 · 0.46 mm3.5028.234.214.0
TWP 10 AWG (5.0 mm²)10 AWG (5.0 mm²)19/23 · 0.56 mm4.3045.053.517.2
TWP 8 AWG (8.0 mm²)8 AWG (8.0 mm²)19/21 · 0.71 mm5.4571.584.521.8
TWP 18 AWG (16/30)18 AWG (16/30)16/30 · 0.40 mm2.157.610.88.6
TWP 16 AWG (26/30)16 AWG (26/30)26/30 · 0.40 mm2.4512.115.89.8
TWP 14 AWG (41/30)14 AWG (41/30)41/30 · 0.40 mm2.9519.123.811.8
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and maximum overall diameters conform to SAE J1128 / ISO 6722-1 Class A/B.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC spark test & conductor DC resistance check100 % spark-tested; DC resistance per SAE J1128100 % of spools
Sample tests
Pinch, sandpaper abrasion & -40 °C cold bendPasses SAE J1128 thin-wall mechanical & cold-bend criteriaBatch sample
3000-hour thermal ageing & fluid immersionVerified at +85/+105 °C and in automotive fluidsType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

SAE J1128 Type TWPChrysler MS-8900Ford ESB-M1L120-AISO 6722-1 Class A / BRoHS 3 Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SAE J1128 TWP 18 AWG (0.8mm2) 60VDC THIN-WALL PVC [lot/spool]
Delivery form
Non-returnable plastic spools, barrel packs or wooden drums
Standard spool lengths
500 m · 1000 m · 2000 m spools (or barrel packs)
MOQ
500 m (stock colours) · 2000 m (striped/custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFTWP Thin-Wall Automotive Wire – technical datasheet12 sizes · construction, technical data, approvalsXLSXTWP spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
