Low-voltage rubber mining & trailing cables0.69/1.15 kVDIN VDE 0250-812≥ 90% Tinned Cu Screen

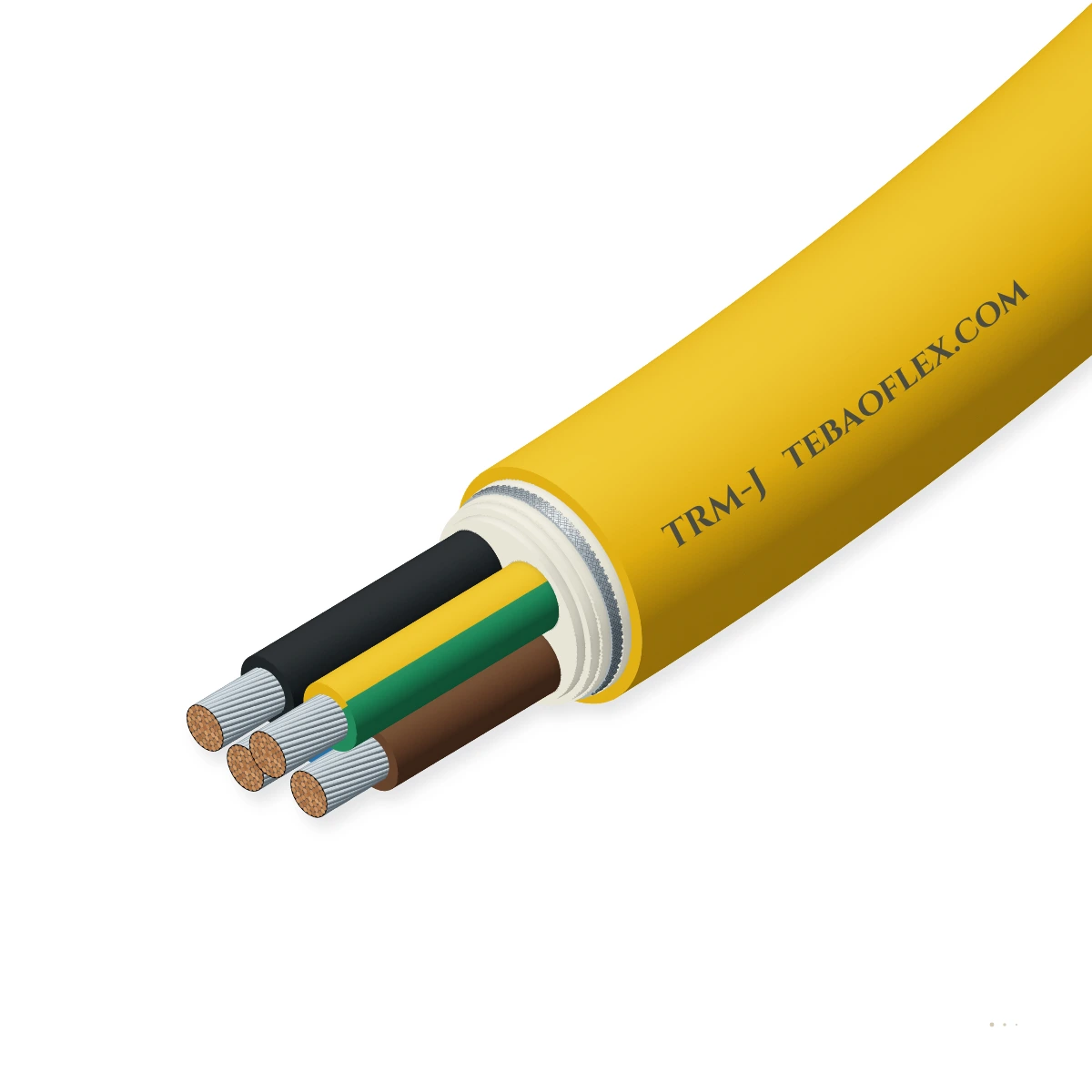

TRM-J 0.69/1.15 kV Concentric-Screened Rubber Mining Trailing CableTinned copper, 3GI3 EPR, ≥ 90 % copper braid screen & yellow 5GM3 rubber jacket

Heavy-duty 0.69/1.15 kV (640/1100 V) screened rubber mining and trailing cable (TRM-J) to DIN VDE 0250-812, featuring Class 5 tinned copper cores, 3GI3 EPR insulation, ≥ 90 % tinned copper braid screen, and yellow 5GM3 rubber outer sheath.

Low-EMC design

Flame-retardant

Oil-resistant

Outdoor & humid

Cores × mm²

Order designation: TRM-J 4 × 35
Nominal OD: 35.5 mm
Weight ≈: 2,607 kg/km
Mobile bend R: 355 mm
Max. pull: 2,100 N

Check against my drum All sizes (17)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 0.69/1.15 kV
Overall screen: ≥ 90% Cu braid
Tensile load: 15 N/mm²
Min. bend R: 10 × D mobile
Flexing temp.: -25 to +80 °C
Outer sheath: Yellow 5GM3

Typical values for this cable type, based on DIN VDE 0250-812 — confirmed in the datasheet and quotation for your order.

Application fit

Is TRM-J right for your machine?

TRM-J combines an extruded EI4 rubber inner bedding, a ≥ 90 % coverage tinned copper concentric braid screen and a heavy-duty yellow 5GM3 outer sheath, providing earth-leakage fault protection if crushed or cut in underground mines, quarries and tunnel drives.

Trailing & towing

Suitable

Primary duty: heavy-duty mobile trailing power and control feeders for underground mining drills, loaders, roadheaders and pumps.

Motorised monospiral reel

Suitable

Suitable for slow-to-medium speed horizontal cable reels on mining and quarry equipment up to 15 N/mm².

Festoon & line chain

Suitable

Can be suspended on heavy industrial and tunnel festoon hooks at ≥ 10 × D bending radius.

Vertical / spreader reel

With conditions

For high-speed container crane reels or vertical spreader baskets, select a dedicated crane reeling cable.

Use RXG / RXG-D (N)SHTOEU-J for high-speed reels

Free-hanging vertical run

Not suitable

Flexible unarmoured trailing construction — do not suspend in deep vertical mine shafts without support.

Use BS 6708 Type 20/21 Armoured

Typical machinesUnderground hard-rock & coal miningOpen-pit quarries & aggregate conveyorsTunnel boring & drill-jumbo feedersSubmersible & dewatering mine pumpsMobile crushers, screens & stackersHeavy civil engineering & shaft sinking

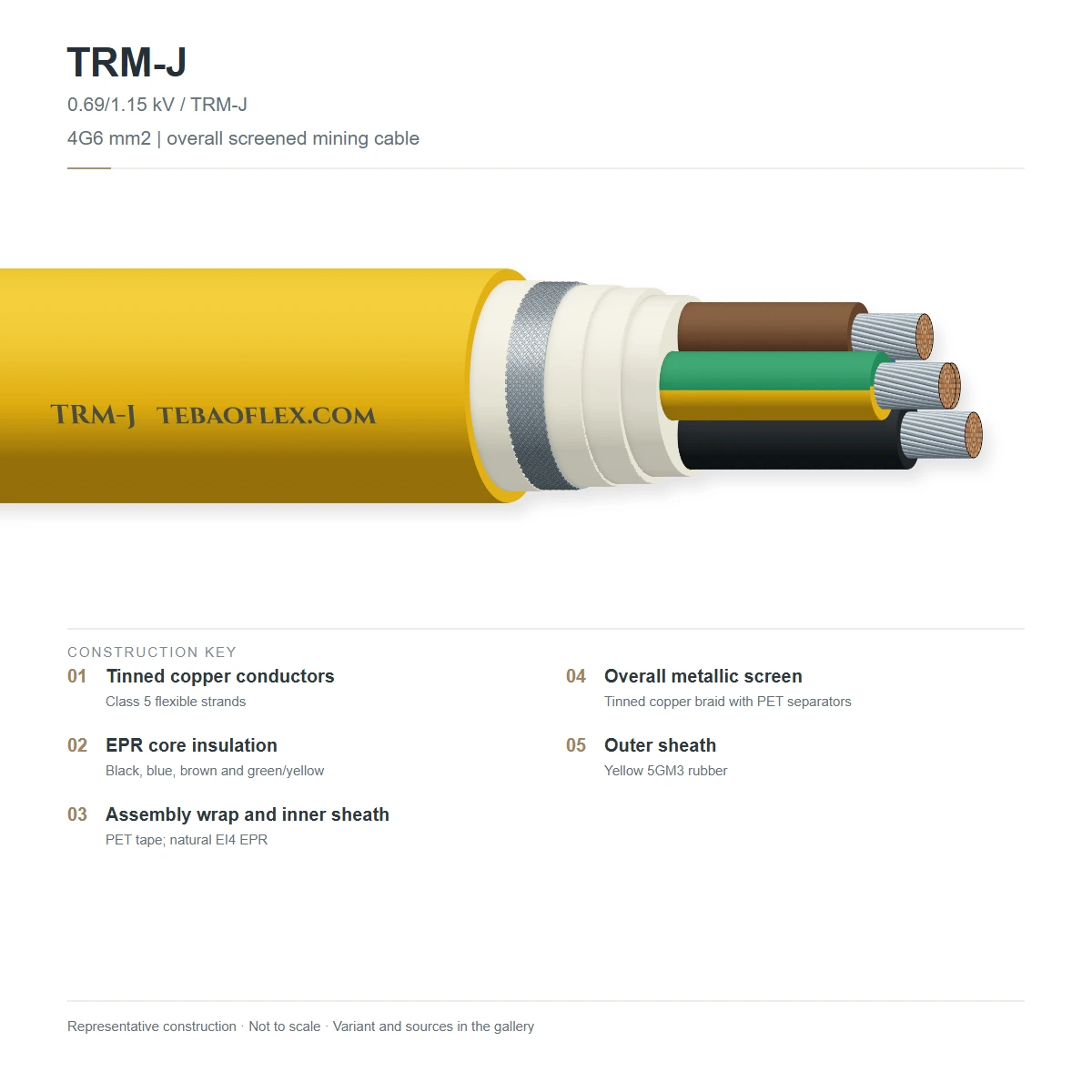

Construction

Layer by layer

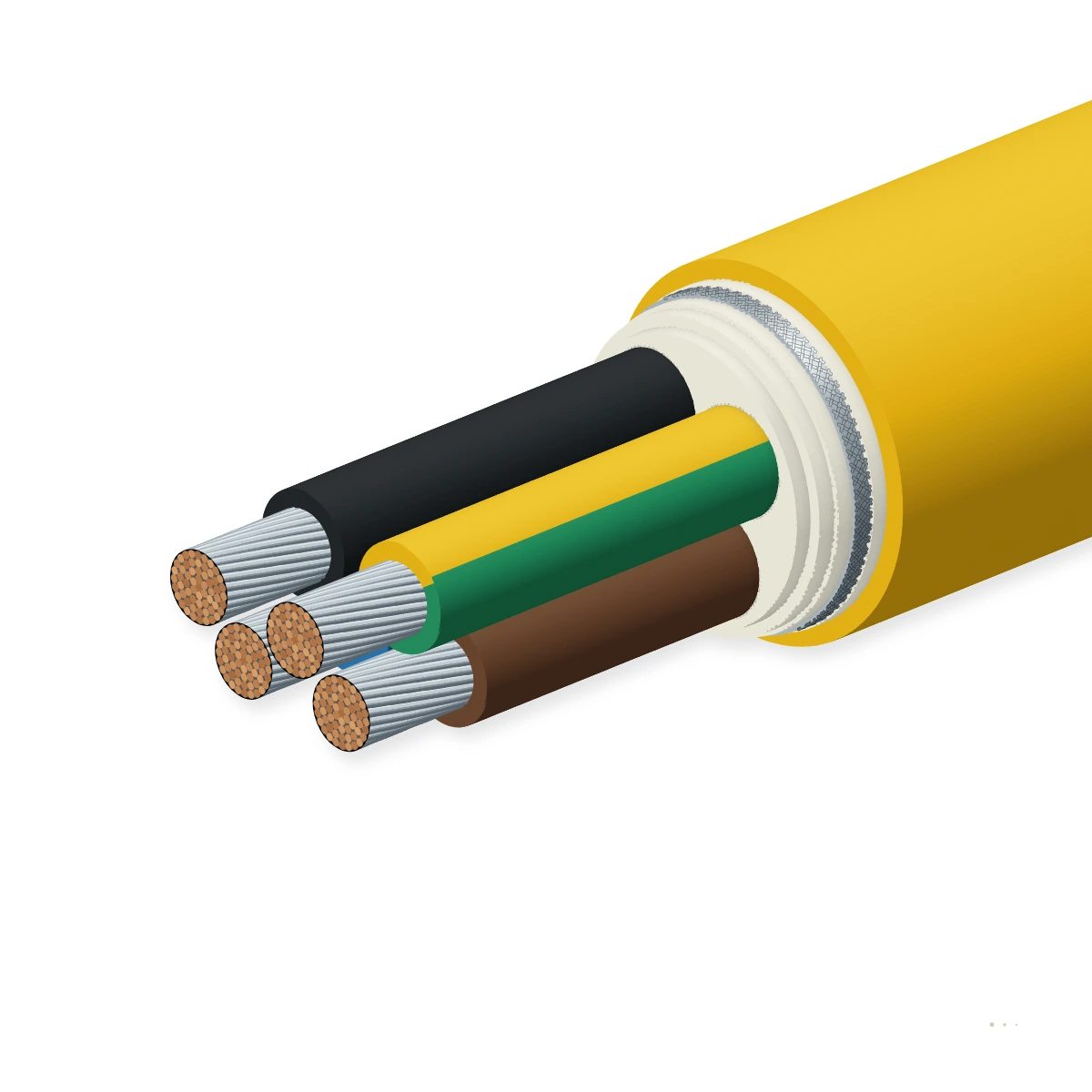

Shown: TRM-J 4 × 35 mm² — Class 5 tinned copper conductors, 3GI3 EPR core insulation (VDE 0293 with green-yellow earth), extruded EI4 elastomer inner sheath, ≥ 90 % concentric tinned copper wire braid screen and yellow 5GM3 chloroprene rubber outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductors	Fine-stranded tinned annealed copper, Class 5 per DIN VDE 0295 / IEC 60228Tinned wires resist sulphide corrosion and mine humidity
2	Core insulation	Ozone- and heat-resistant ethylene-propylene rubber compound type 3GI3 (IEP)DIN VDE 0207 Part 20 · +90 °C continuous / +250 °C short-circuit · VDE 0293 core coding with green-yellow earth (-J)
3	Inner sheath	Extruded vulcanized rubber inner bedding compound type EI4Fills core interstices and cushions the concentric copper braid
4	Concentric copper braid screen	Braided 0.30 mm tinned copper wires over the inner sheath (≥ 90 % optical coverage)Provides earth-fault trip path on mechanical impact and EMI screening
5	Outer sheath	Heavy-duty polychloroprene rubber compound type 5GM3, high-visibility yellowDIN VDE 0207 Part 21 · Oil-resistant EN 60811-404 · Flame-retardant IEC 60332-1-2

TRM-J 4-Core Power (4×2.5 – 4×240 mm²)

3 phase cores + 1 green-yellow protective earth core with overall ≥ 90 % tinned copper braid screen

TRM-J Multi-Core Control (7×2.5 – 19×4 mm²)

7, 12, 16 or 19 numbered control/auxiliary cores (including green-yellow earth) with overall tinned copper screen

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-812. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U (Um): 640/1100 V nominal · 0.69/1.15 kV max AC · Um = 1,270 V (max DC 1,000/1,800 V)
Voltage test: 3.0 kV AC for 5 minutes

Thermal

Ambient temperature — mobile / fixed: -25 to +80 °C mobile · -40 to +80 °C fixed
Max. conductor temperature: +90 °C continuous · +250 °C short-circuit

Mechanical

Permissible tensile load: 15 N/mm² of total phase conductor copper cross-section
Min. bending radius: 10 × D mobile / trailing · 6 × D fixed installation

Reference standards

Construction & compound standards: DIN VDE 0250-812 · VDE 0295 / IEC 60228 Class 5 · VDE 0207-20 (3GI3) · VDE 0207-21 (5GM3)
Flame & environmental performance: Flame-retardant IEC 60332-1-2 (VDE 0482-332-1-2) · Oil & grease resistant EN 60811-404 · UV & abrasion resistant

Sizes

Dimensions, weights, stranding & wall thicknesses

17 standard configurations across 4-core power (2.5–240 mm²) and multi-core control/auxiliary (7 to 19 cores)

Dimensions & mechanical data
Order designation	Cores × mm²	Conductor stranding n × Ø mm	Nominal OD mm	Total weight ≈ kg/km	Min. bend R (mobile) mm	Max. pull (15 N/mm²) N
All sizes
4-core power (2.5–240 mm²)
TRM-J 4 × 2.5	4 × 2.5	45 × 0.25	17.3	458	173	150
TRM-J 4 × 4	4 × 4	51 × 0.30	18.9	557	189	240
TRM-J 4 × 6	4 × 6	76 × 0.30	20.7	738	207	360
TRM-J 4 × 10	4 × 10	74 × 0.40	24.3	1,065	243	600
TRM-J 4 × 16	4 × 16	116 × 0.40	27.9	1,483	279	960
TRM-J 4 × 25	4 × 25	180 × 0.40	33.2	2,130	332	1,500
TRM-J 4 × 35	4 × 35	254 × 0.40	35.5	2,607	355	2,100
TRM-J 4 × 50	4 × 50	364 × 0.40	42.6	3,536	426	3,000
TRM-J 4 × 70	4 × 70	514 × 0.40	46.8	4,799	468	4,200
TRM-J 4 × 95	4 × 95	684 × 0.40	55.5	6,322	555	5,700
TRM-J 4 × 240	4 × 240	1752 × 0.40	77.7	13,727	777	14,400
Multi-core (7–19 cores)
TRM-J 7 × 2.5	7 × 2.5	45 × 0.25	21.1	696	211	262
TRM-J 7 × 4	7 × 4	51 × 0.30	24.6	952	246	420
TRM-J 7 × 6	7 × 6	76 × 0.30	26.1	1,438	261	630
TRM-J 12 × 4	12 × 4	51 × 0.30	27.0	1,100	270	720
TRM-J 16 × 1	16 × 1	29 × 0.20	24.0	800	240	240
TRM-J 19 × 4	19 × 4	51 × 0.30	33.2	1,776	332	1,140

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
All sizes include a green-yellow protective earth core (-J) plus an overall ≥ 90 % tinned copper braid screen.

Insulation & sheath wall thicknesses
Cores × mm²	Conductor stranding n × Ø mm	3GI3 insulation wall mm	EI4 inner sheath wall mm	5GM3 outer sheath wall mm	Nominal OD mm
4 × 2.5	45 × 0.25	0.9	1.2	2.0	17.3
4 × 4	51 × 0.30	1.0	1.2	2.0	18.9
4 × 6	76 × 0.30	1.0	1.2	2.0	20.7
4 × 10	74 × 0.40	1.2	1.4	2.2	24.3
4 × 16	116 × 0.40	1.2	1.6	2.5	27.9
4 × 25	180 × 0.40	1.4	1.8	3.0	33.2
4 × 35	254 × 0.40	1.4	1.8	3.0	35.5
4 × 50	364 × 0.40	1.6	2.0	3.5	42.6
4 × 70	514 × 0.40	1.6	2.0	3.5	46.8
4 × 95	684 × 0.40	1.8	2.4	4.0	55.5
4 × 240	1752 × 0.40	2.4	3.2	5.0	77.7
7 × 2.5	45 × 0.25	0.9	1.2	2.0	21.1
7 × 4	51 × 0.30	1.0	1.4	2.2	24.6
7 × 6	76 × 0.30	1.0	1.4	2.2	26.1
12 × 4	51 × 0.30	1.0	1.6	2.0	27.0
16 × 1	29 × 0.20	0.8	1.2	3.0	24.0
19 × 4	51 × 0.30	1.0	1.6	2.5	33.2

The 0.30 mm tinned copper wire braid is applied between the EI4 inner sheath and 5GM3 outer sheath.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Expected tensile force (N)

Cable length on drum (m)

Drum core 400 mm is below 710 mmUse a larger drum core or a smaller cable size

30 m/min ≤ 60 m/minWithin the rated travel speed

1,500 N exceeds 0 N dynamicChoose a larger cross-section or reduce tension

Minimum bending radius: 355 mm
Min. drum core diameter: ≈ 710 mm
Cable weight on drum: 260.7 kg
Outer diameter: 35.5 mm

Indicative only: based on the datasheet outer diameter and 10 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage withstand test	3.0 kV AC for 5 minutes	Every drum length
Conductor & screen DC resistance	DIN VDE 0295 / IEC 60228 Class 5	Every drum length
Sample tests
Flame retardancy	IEC 60332-1-2 (VDE 0482-332-1-2)	Per production batch
5GM3 rubber oil, tear & abrasion test	DIN VDE 0207-21 · EN 60811-404	Per compound batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

0.69/1.15 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX TRM-J [cores × mm²] 0.69/1.15 kV · DIN VDE 0250-812 · CE · [year] · [metre mark]

Standard packing: Heavy-duty wooden drums for mine & tunnel deployment
HS code: 8544.49

Technical documents

Downloads

PDFTRM-J 0.69/1.15 kV Concentric-Screened Rubber Mining Trailing Cable – technical datasheet17 sizes · construction, technical data, approvals XLSXTRM-J spec data (Excel)All 17 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.
