EN 50264 / EN 50306 Railway Rolling Stock Halogen-Free Cables0.6/1 kV & 1.8/3 kV EN 50264-2-1EN 45545-2 HL3 Fire SafetyE-Beam Cross-Linked Elastomer (EI 101–104)

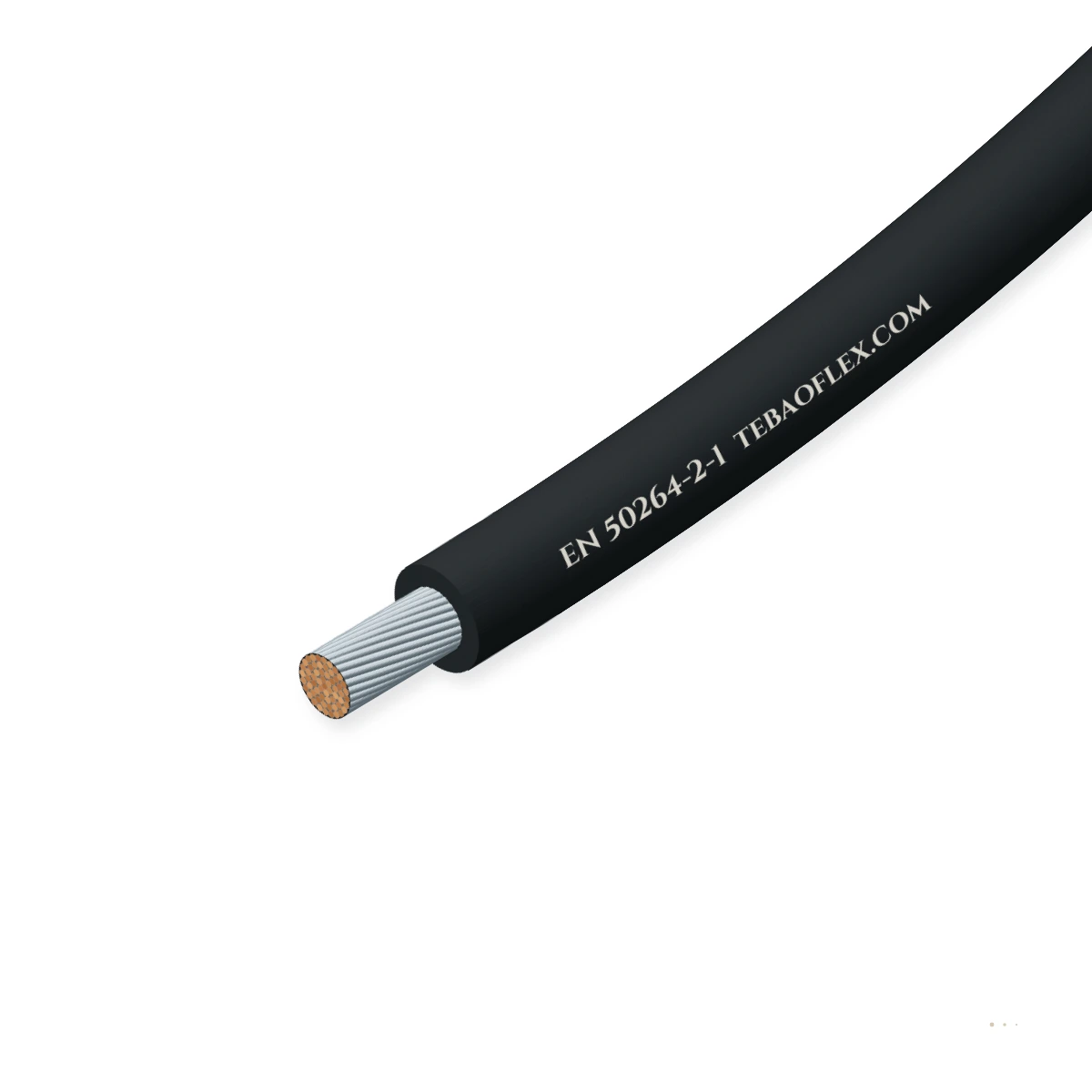

EN 50264-2-1 Standard-Wall Single-Core Rolling Stock Cable0.6/1 kV & 1.8/3 kV EN 50264-2-1 standard-wall e-beam cross-linked LSZH rolling stock cabl

EN 50264-2-1 (codes FF 1.8/3kV or F 0.6/1kV, formerly NSGAFÖU railway replacement) is a standard-wall single-core power and control cable for railway rolling stock. Built with a Class 5 tinned fine-stranded copper conductor and electron-beam cross-linked halog

EN 45545-2 HL3 (R15 / R16)
EI 103/104 Oil & Fuel Resistant
-40 °C (EI 104) Cold Bend
EN 50264-2-1 CENELEC
Order designation
0.6/1 kV 4.0 mm²
Max. OD
4.30 mm
Copper mass
38.4 kg/km
Total mass ≈
46.0 kg/km
Min. bend R
17.2 mm
All sizes (16)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage ratings
0.6/1 kV & 1.8/3
Up to 1.5 kV / 4.5 kV DC traction
Fire safety
EN 45545-2 HL3
R15 (interior) / R16 (exterior) HL1–HL3
Conductor
Class 5 tinned C
EN 60228 flexible tinned copper
Insulation
EI 101 to EI 104
E-beam cross-linked LSZH elastomer
Size range
1.0 to 300 mm²
Control cabinets to traction busbars
Operating temp
-40 to +90 / +12
20,000 h @ +90 °C (+120 °C peak)

Typical values for this cable type, based on EN 50264-2-1 / EN 45545-2 HL3 — confirmed in the datasheet and quotation for your order.

Application fit

Is EN 50264-2-1 right for your machine?

Specified for high-speed trains, underground metro cars, light-rail trams and electric/diesel locomotives inside traction converters, auxiliary inverters, switchgear cubicles, bogie junction boxes and underframe conduits.

Switchgear & control cabinet wiring

Suitable

Primary single-core hook-up and power wire for onboard traction cubicles, battery boxes and HVAC panels.

Fixed installation

Suitable

1.8/3 kV standard-wall construction provides inherent short-circuit and earth-fault protection in metal ducts.

Motor stator, traction & converter leads

Suitable

Cross-linked EI 103/104 elastomer withstands +250 °C (5 s) short-circuit faults and transformer/gear oils.

Motorised monospiral reel

Not suitable

Designed for protected fixed installation inside rolling stock; for inter-car jumpers use multistrand sheathed EN 50264-2-2.

S07HXHX flexible LSZH
Typical machinesHigh-speed & intercity passenger railUnderground metro & commuter EMUsTraction converters & auxiliary invertersLocomotive switchgear & battery cubiclesLight rail, trams & onboard HVAC

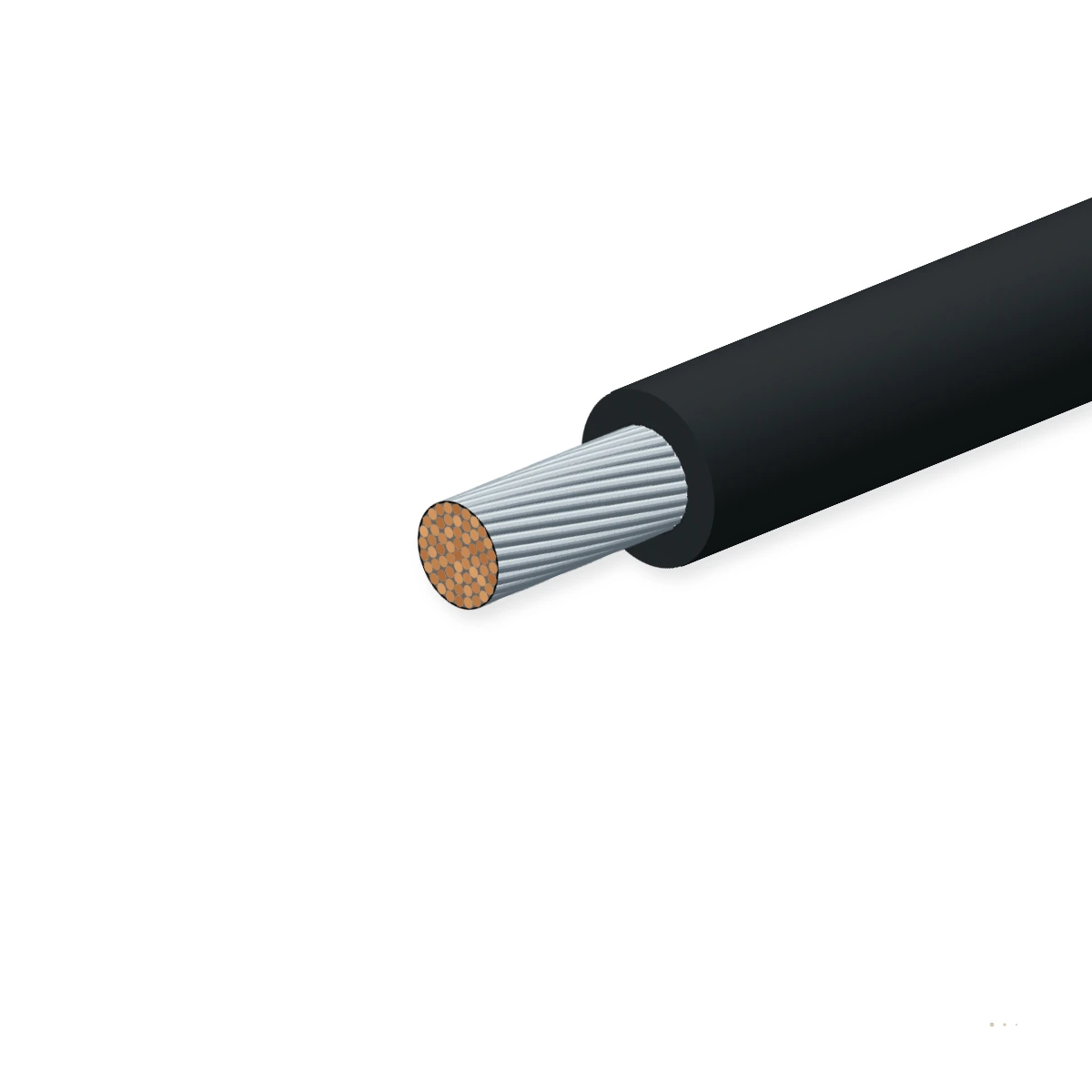

Construction

Layer by layer

Class 5 fine-stranded tinned annealed copper (EN 60228) + optional separator tape (≥25 mm²) + standard-wall extruded and electron-beam cross-linked halogen-free elastomeric insulation (EI 101–104 per EN 50264-1).

123
Schematic, not to scale — generated from the layer data

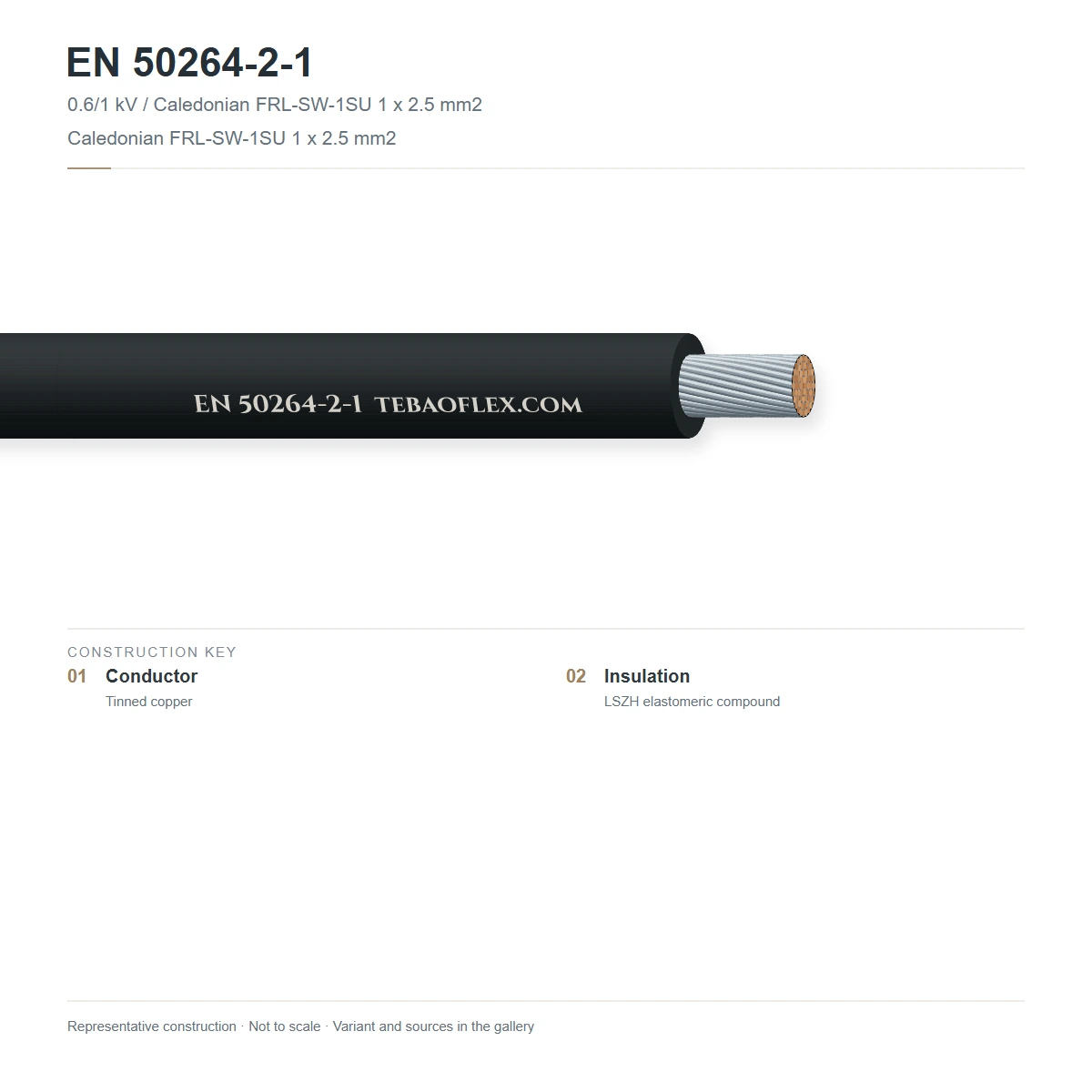

#LayerMaterial & reference
1Class 5 tinned copper (EN 60228)Flexible fine-stranded tin-coated annealed copper conductor resisting vibration fatigue and corrosionEN 60228
2Cross-linked LSZH elastomer (EI 101–104)Standard-wall halogen-free, low-smoke, flame-retardant cross-linked elastomeric compound (0.6/1 kV or 1.8/3 kV wall)EN 50264-1
3Dual-layer / outer elastomeric skinIntegral oil-, ozone-, acid- and UV-resistant cross-linked outer surface printed with EN 50264 codeEN 50264-2-1

EN 50264-2-1 0.6/1 kV (0.9/1.5 kV DC) Standard Wall

1.0 to 240 mm² single-core rolling stock wire for 24/110 V DC control, 400 V AC auxiliary and cabinet wiring.

EN 50264-2-1 1.8/3 kV (2.7/4.5 kV DC) Heavy Insulation

1.5 to 300 mm² reinforced single-core traction power cable for 750 V / 1500 V / 3000 V DC links, converters and short-circuit-proof ducts.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50264-2-1 / EN 45545-2 HL3. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U0/U)
0.6/1 kV AC (0.9/1.5 kV DC) · 1.8/3 kV AC (2.7/4.5 kV DC)
Max permissible operating voltage
0.72/1.2 kV AC (0.6/1 kV grade) · 2.2/3.6 kV AC (1.8/3 kV grade)
AC test voltage (5 min water bath)
3.5 kV rms (0.6/1 kV grade) · 6.5 kV rms (1.8/3 kV grade)

Thermal

Continuous conductor temperature
-40 °C (EI 104) / -25 °C (EI 101/103) to +90 °C (20,000 h) / +110–120 °C
Overload & short-circuit temperature
+140 °C overload · +250 °C short-circuit (5 s)

Mechanical

Minimum bending radius (fixed)
3 × D (D ≤ 12 mm) · 4 × D (D > 12 mm)
Conductor stranding
EN 60228 Class 5 flexible tinned copper

Resistance

Fire performance (EN 45545-2)
Hazard Level HL1, HL2 & HL3 for R15 (interior) and R16 (exterior)
Flame, smoke & halogen emission
IEC 60332-1-2, EN 60332-3-24/25, IEC 61034-2 (≥70 % transmittance), EN 60754-1/2 (HCl <0.5 %)
Oil, fuel & ozone resistance
Mineral oil IRM 902 (+100 °C, 72 h), diesel IRM 903 & ozone EN 50305

Reference standards

Product & material standards
BS EN 50264-2-1 & BS EN 50264-1 (EI 101 / EI 102 / EI 103 / EI 104)
Railway fire standards
EN 45545-2 HL3, EN 50305, DIN 5510-2, NF F 16-101

Identification

CENELEC designation example
EN 50264-2-1 600V 1.5 MM2 F or EN 50264-2-1 1800V 50 MM2 FF
Standard colour
Black (RAL 9005); other colours or green/yellow on 0.6/1 kV control sizes

Sizes

16 standard sizes (EN 50264-2-1)

Nominal dimensions, wall thickness, copper mass and electrical parameters for EN 50264-2-1 per EN 50264-2-1 / EN 45545-2 HL3.

Dimensions & masses
DesignationVoltage & Size mm²Cond. Ø / Wall mmMax. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
EN 50264-2-1 size range
0.6/1 kV 1.0 mm²0.6/1 kV · 1.0 mm²1.25 Ø · 0.8 mm2.859.615.011.4
0.6/1 kV 1.5 mm²0.6/1 kV · 1.5 mm²1.50 Ø · 0.8 mm3.1014.420.012.4
0.6/1 kV 2.5 mm²0.6/1 kV · 2.5 mm²1.95 Ø · 0.8 mm3.5524.030.014.2
0.6/1 kV 4.0 mm²0.6/1 kV · 4.0 mm²2.50 Ø · 0.9 mm4.3038.446.017.2
0.6/1 kV 6.0 mm²0.6/1 kV · 6.0 mm²3.00 Ø · 0.9 mm4.8057.666.019.2
0.6/1 kV 10 mm²0.6/1 kV · 10 mm²3.90 Ø · 1.0 mm5.9096.0108.023.6
1.8/3 kV 1.5 mm²1.8/3 kV · 1.5 mm²1.50 Ø · 2.2 mm6.0014.448.024.0
1.8/3 kV 2.5 mm²1.8/3 kV · 2.5 mm²1.95 Ø · 2.2 mm6.4024.059.025.6
1.8/3 kV 6.0 mm²1.8/3 kV · 6.0 mm²3.00 Ø · 2.2 mm7.5057.698.030.0
1.8/3 kV 16 mm²1.8/3 kV · 16 mm²5.00 Ø · 2.2 mm9.50153.6205.038.0
1.8/3 kV 35 mm²1.8/3 kV · 35 mm²7.70 Ø · 2.2 mm12.20336.0395.048.8
1.8/3 kV 50 mm²1.8/3 kV · 50 mm²9.20 Ø · 2.4 mm14.10480.0550.056.4
1.8/3 kV 70 mm²1.8/3 kV · 70 mm²11.00 Ø · 2.4 mm16.00672.0755.064.0
1.8/3 kV 95 mm²1.8/3 kV · 95 mm²12.50 Ø · 2.6 mm17.80912.01,010.071.2
1.8/3 kV 120 mm²1.8/3 kV · 120 mm²14.20 Ø · 2.6 mm19.601,152.01,265.078.4
1.8/3 kV 150 mm²1.8/3 kV · 150 mm²15.80 Ø · 2.8 mm21.601,440.01,575.086.4
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and maximum overall diameters conform to EN 50264-2-1 / EN 45545-2 HL3.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV / 6.5 kV AC water-bath voltage & spark testZero breakdown; conductor DC resistance per EN 60228 Class 5100 % of drums
Sample tests
Hot-set cross-linking test, wall thickness & cold bendHot-set elongation ≤175 %; cold bend at -40 °C without cracksEvery batch
EN 45545-2 HL3 fire/smoke/toxicity & EN 50305 oil/ozone testsFull compliance with BS EN 50264-2-1 & EN 45545-2 HL3Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS EN 50264-2-1 & EN 50264-1EN 45545-2 Hazard Level HL1 / HL2 / HL3 (R15 & R16)IEC 60332-1-2 & EN 60332-3-24/25IEC 61034-2 & EN 60754-1/2RoHS 3 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX EN 50264-2-1 [600V/1800V] [size] MM2 [F/FF] EI104 EN 45545-2 HL3 [lot/m]
Delivery form
Non-returnable plastic spools, barrel packs or wooden drums
Standard spool lengths
500 m · 1000 m · 2000 m spools (or barrel packs)
MOQ
500 m (stock colours) · 2000 m (striped/custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFEN 50264-2-1 Standard-Wall Single-Core Rolling Stock Cable – technical datasheet16 sizes · construction, technical data, approvalsXLSXEN 50264-2-1 spec data (Excel)All 16 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between EN 50264-2-1 ('standard wall') and EN 50264-3-1 ('reduced wall')?
EN 50264-2-1 is the standard-wall elastomeric insulation series (0.8 to 3.2 mm wall depending on voltage and cross-section), providing heavy mechanical protection and both 0.6/1 kV and 1.8/3 kV ratings. EN 50264-3-1 is a reduced-wall series engineered to save space and weight in dense 0.6/1 kV control cubicles.
What do the insulation compound codes EI 101, EI 102, EI 103 and EI 104 mean in EN 50264-1?
Defined in EN 50264-1, 'EI' stands for Elastomeric Insulation: EI 101 is general-purpose (-25 °C), EI 102 is extra-low-temperature (-40 °C), EI 103 is oil- and fuel-resistant (-25 °C), and EI 104 combines both oil/fuel resistance and -40 °C low-temperature flexibility.
Why are 1.8/3 kV EN 50264-2-1 cables frequently used even in 400 V AC or 750 V DC railway circuits?
Similarly to industrial NSGAFÖU 1.8/3 kV cables, the thick 2.2–2.8 mm cross-linked elastomeric wall on 1.8/3 kV EN 50264-2-1 is considered inherently short-circuit and earth-fault-proof inside metallic traction cubicles and battery compartments.
Does EN 50264-2-1 satisfy EN 45545-2 Hazard Level 3 (HL3) for underground metro trains?
Yes. The electron-beam cross-linked halogen-free elastomeric compound achieves Hazard Level HL3 (the most stringent category, covering sleeping cars and underground metro/tunnel operation) under both R15 (interior) and R16 (exterior) requirement sets of EN 45545-2.
