SAE J1127 Automotive & Heavy-Duty Starter / Ground Battery CablesSAE J112760 V DC (25 V AC)-40 to +125 °C

STX Thin-Wall Battery CableSAE J1127 Type STX 60 V DC starter thin-wall cross-linked polyethylene (XLPE) +125 °C batt

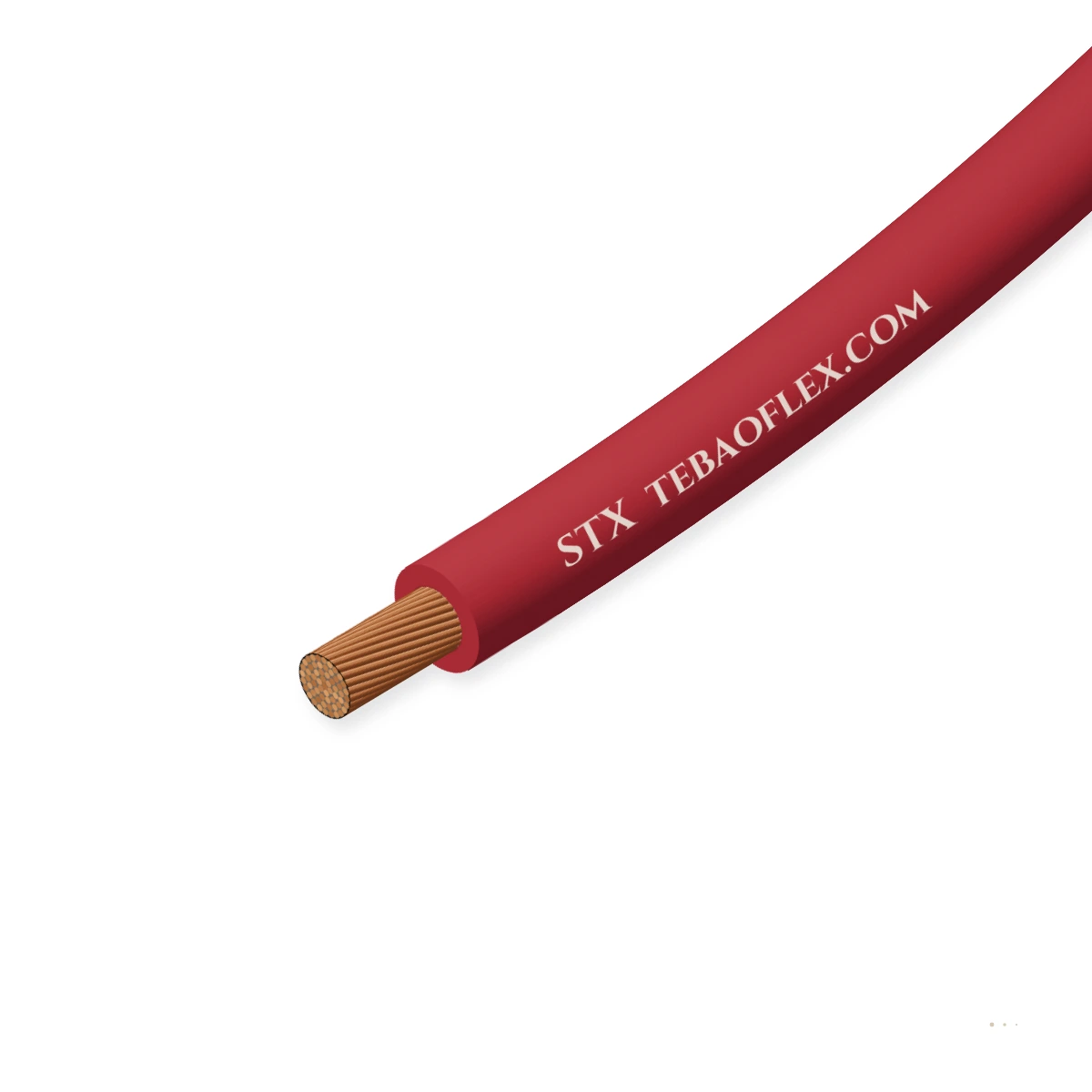

STX is an SAE J1127 Type STX thin-wall cross-linked battery cable engineered for 60 V DC automotive and commercial vehicle starting and power distribution systems where routing space and harness weight are constrained. Combining rope-lay annealed bare copper c

Oil & Acid Res.
SAE J1127 Flame
-40 to +125 °C
SAE J1127 STX
Order designation
STX 1 AWG (42.4 mm²)
Nom. OD
11.90 mm
Copper mass
226.2 kg/km
Total mass ≈
390.0 kg/km
Min. bend R
71.4 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
60 V DC (25 V AC
Max 60 V DC
Test voltage
1000 V AC (spark
Dielectric withstand
Operating temp
-40 to +125 °C
Short-circuit +250 °C
Min. bend radius
4 × D
Flexing 6 × D
Primary standard
SAE J1127
SAE J1127 Type STX; ISO 6722-1 Class C
Flame rating
SAE J1127 45° fl
Fire & safety compliance

Typical values for this cable type, based on SAE J1127 — confirmed in the datasheet and quotation for your order.

Application fit

Is STX right for your machine?

Used in modern passenger cars, light- and heavy-duty trucks, and 48 V mild-hybrid vehicles where reduced outer diameter and +125 °C thermal capability are required in tight engine compartments.

Motor stator, traction & converter leads

Suitable

Designed for compact 12 V / 24 V / 48 V starter motor, integrated starter-generator, and alternator leads

Switchgear & control cabinet wiring

Suitable

Smaller OD fits densely packed automotive wiring troughs, fuse boxes, and bulkhead grommets

Fixed installation

Suitable

Suitable for clipped under-hood and chassis harness routing

Trailing & towing

With conditions

Suitable for vehicle battery harnesses; for extra-flexible rubber leads choose SGR

Typical machinesTight Engine-Bay Starter & Alternator HarnessesAutomated OEM Battery Harness Assembly48 V Mild-Hybrid & Auxiliary Power Distribution

Construction

Layer by layer

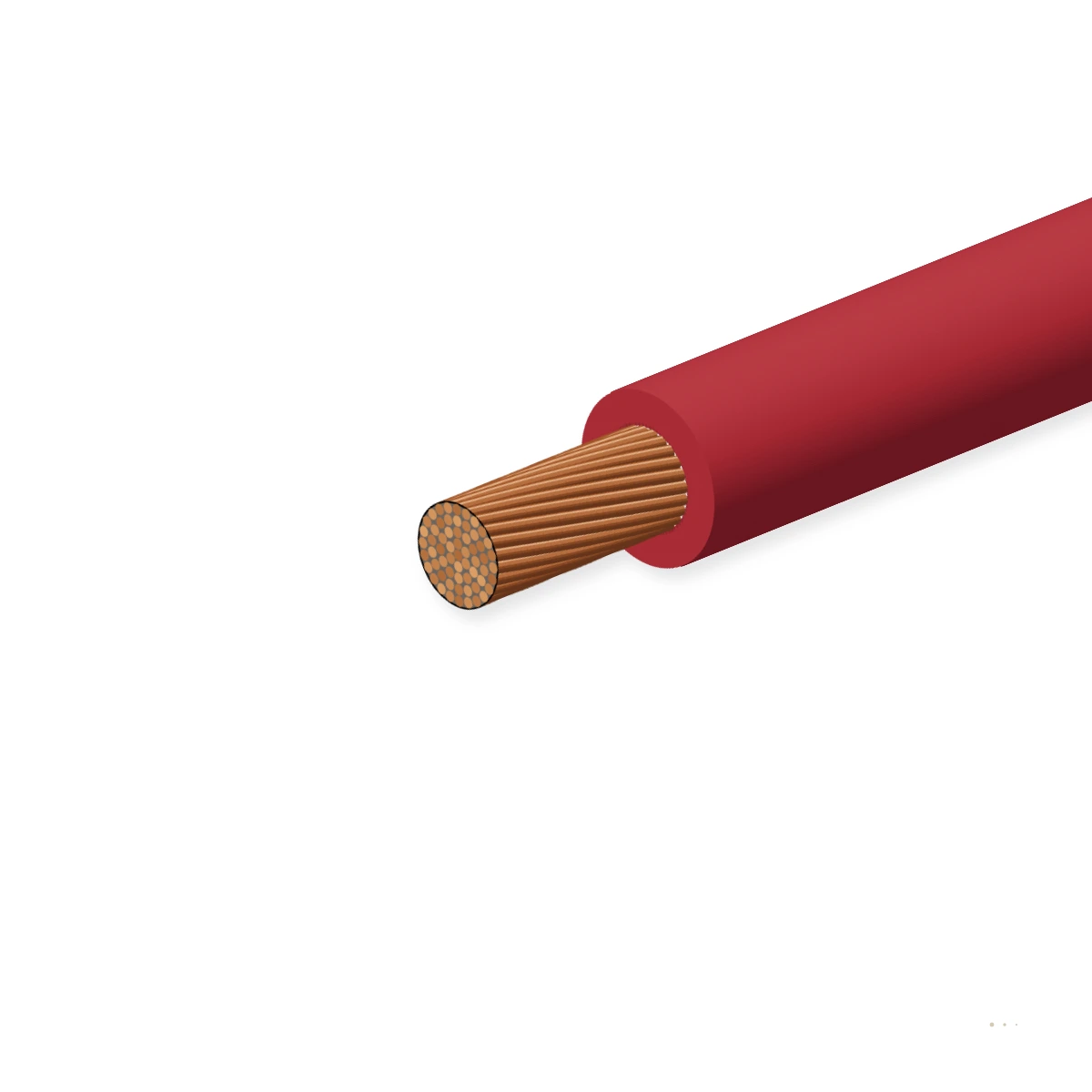

Rope-lay bunch-stranded annealed bare copper (SAE J1127); Thin-wall cross-linked polyethylene (XLPE) thermoset insulation (SAE J1127 Type STX, +125 °C); Separator tape over rope-lay copper conductor strands where required for clean stripping; Integral single-layer thin-wall cross-linked XLPE battery insulation and jacket (Black or Red).

123

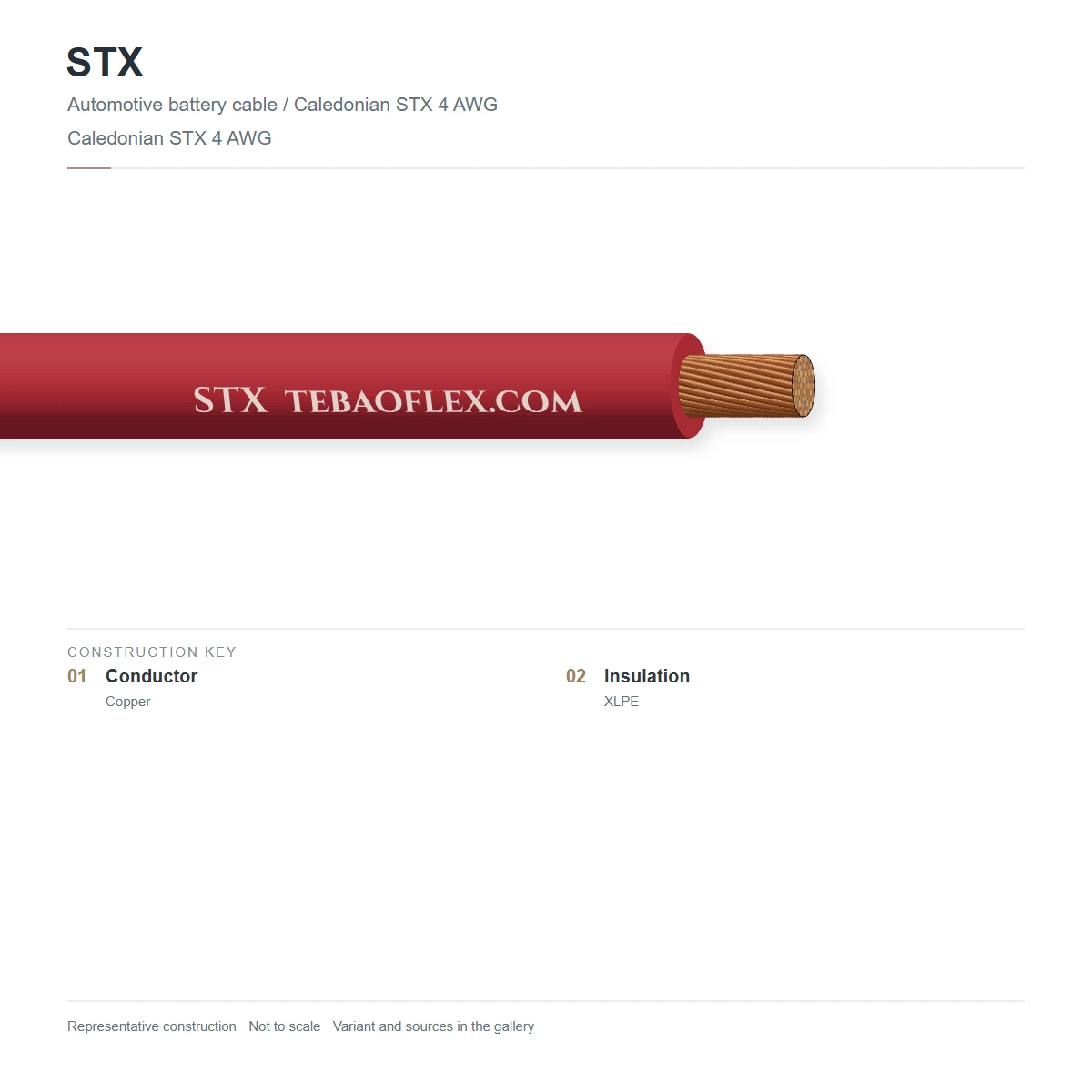

Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1ConductorRope-lay bunch-stranded annealed bare copper conductor (SAE J1127)SAE J1127
2TapeThin separator wrap for clean automated lug strippingSAE J1127
3SheathThin-wall thermoset cross-linked polyethylene (XLPE) +125 °C insulation (Black / Red)SAE J1127

Tight Engine-Bay Starter & Alternator Harnesses

Reduced wall thickness lowers overall cable diameter by up to 1.5 mm compared with SGX, easing routing through congested engine bays.

Automated OEM Battery Harness Assembly

Consistent thin-wall XLPE profile supports high-speed automated cutting, stripping, and ultrasonic or hexagonal lug crimping.

48 V Mild-Hybrid & Auxiliary Power Distribution

Links 12 V / 48 V DC/DC converters, electric turbochargers, and high-power electric power steering racks.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on SAE J1127. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U0/U)
60 V DC (25 V AC)
Max. operating voltage
60 V DC
Dielectric test voltage
1000 V AC (spark/dielectric test per SAE J1127)
Insulation resistance
SAE J1127 thin-wall pinch, abrasion & dielectric compliance

Thermal

Operating temperature range
-40 °C to +125 °C
Dynamic / flexing temperature
-40 °C to +125 °C
Max. short-circuit temperature
+250 °C

Mechanical

Min. bend radius (fixed)
4 × D
Min. bend radius (flexing)
6 × D
Max. tensile pulling load
15 N/mm²
Vibration & mechanical duty
Engine vibration & compact harness routing

Resistance

Flame retardancy
SAE J1127 45° flame test (self-extinguishing)
Oil & fluid resistance
SAE J1127 hot oil, diesel fuel, power steering fluid & battery acid resistant
UV, weather & ozone
UV, weather, ozone & +125 °C under-hood thermal aging resistant
Chemical & environmental
Resistant to sulfuric battery acid, engine oil, gasoline, diesel, glycol coolant and brake fluid

Reference standards

Governing standard
SAE J1127 (2020) — Surface Vehicle Standard — Low Voltage Battery Cable (Type STX Thin-Wall)
Applicable clauses
SAE J1127 Type STX; ISO 6722-1 Class C
Secondary reference
ISO 6722-1 — Road vehicles — 60 V and 600 V single-core cables — Reduced-wall Class C

Identification

Core identification
Single-core battery conductor (Red for positive +, Black for negative/ground -)
Outer sheath colour
Black or Red
Surface print legend
TEBAOFLEX — STX — SAE J1127 — <AWG> — 60V DC — -40°C TO +125°C — THIN-WALL XLPE

Sizes

8 standard configurations (STX)

Nominal dimensions, copper weight, total mass and electrical parameters for STX per SAE J1127.

Dimensions & masses
DesignationSize / ConfigurationStranding · WallNom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
STX size schedule
STX 6 AWG (13.3 mm²)6 AWG (13.3 mm²)133/27 · 1.4 mm7.3084.1145.043.8
STX 4 AWG (21.2 mm²)4 AWG (21.2 mm²)133/25 · 1.65 mm9.10123.0212.054.6
STX 2 AWG (33.6 mm²)2 AWG (33.6 mm²)259/26 · 1.65 mm10.80182.7315.064.8
STX 1 AWG (42.4 mm²)1 AWG (42.4 mm²)259/25 · 1.65 mm11.90226.2390.071.4
STX 1/0 AWG (53.5 mm²)1/0 AWG (53.5 mm²)259/24 · 1.65 mm13.20279.6482.079.2
STX 2/0 AWG (67.4 mm²)2/0 AWG (67.4 mm²)259/23 · 1.65 mm14.60345.1595.087.6
STX 3/0 AWG (85.0 mm²)3/0 AWG (85.0 mm²)259/22 · 1.9 mm16.80435.0750.0100.8
STX 4/0 AWG (107.2 mm²)4/0 AWG (107.2 mm²)413/23 · 1.9 mm18.60544.0938.0111.6
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to SAE J1127.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric voltage withstand & conductor DC resistance1000 V AC (spark/dielectric test per SAE J1127)100 % of production lengths
Sample tests
Insulation wall thickness, hot-set / pinch & cold bendConforms to SAE J1127 sample scheduleEvery production batch
Fluid immersion, flame propagation & thermal agingSAE J1127 45° flame test (self-extinguishing)Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

SAE J1127 Type STX; ISO 6722-1 Class CISO 6722-1 (2011)RoHS 3 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX — STX — SAE J1127 — <AWG> — 60V DC — -40°C TO +125°C — THIN-WALL XLPE
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSTX Thin-Wall Battery Cable – technical datasheet8 sizes · construction, technical data, approvalsXLSXSTX spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
