Product

UL 62 / CSA C22.2 No. 49 North American Thermoplastic & TPE Portable Cords600 V UL 62 Extra-Hard Usage ('S')Double Oil-Resistant PVC (OO)-40 to +105 °C Outdoor (W) Rated

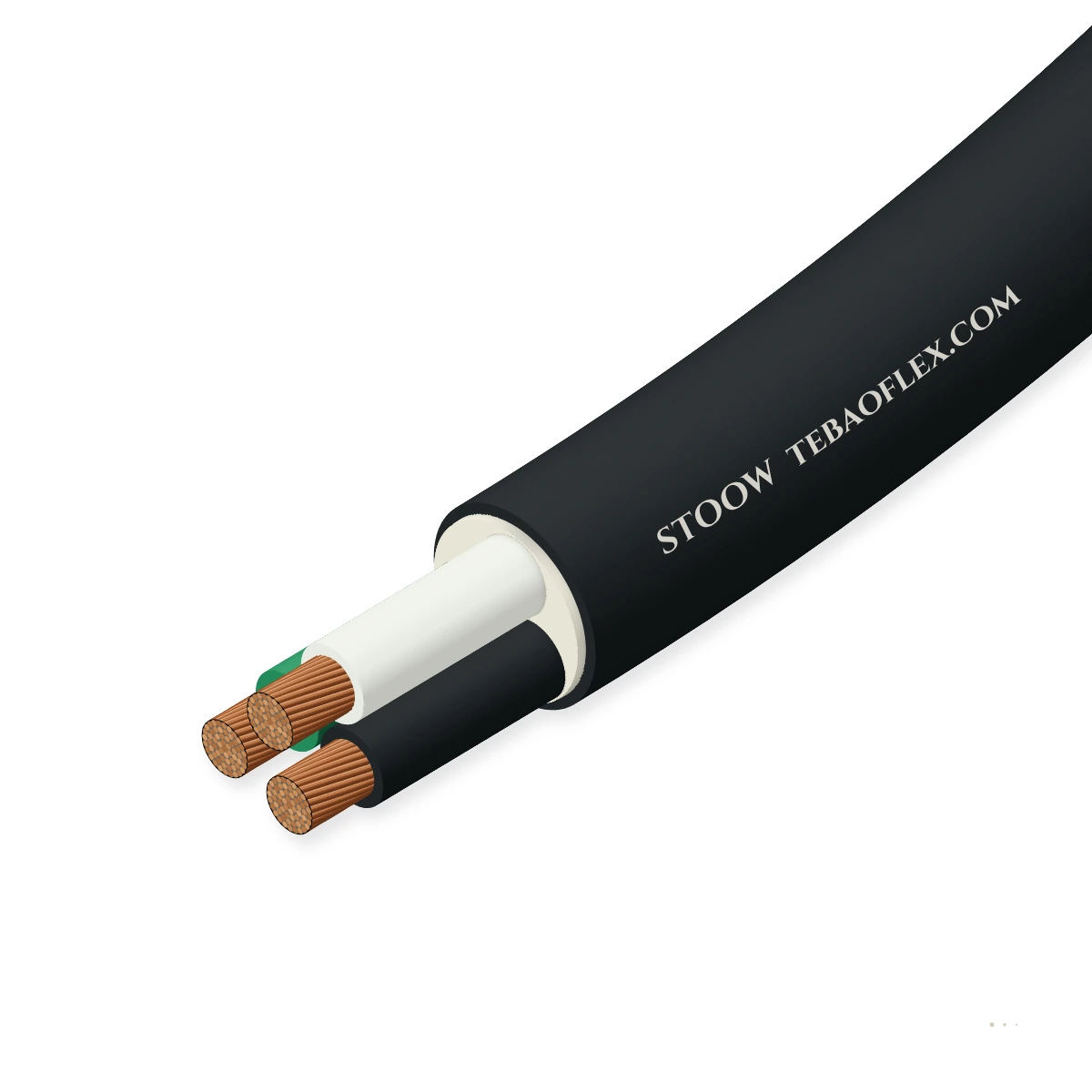

STOOW Thermoplastic Portable Cord600 V UL 62 / CSA extra-hard-usage thermoplastic PVC double oil- & weather-resistant cord

Type STOOW is a 600 V Extra-Hard-Usage flexible portable cord manufactured to UL 62 and CSA C22.2 No. 49. Combining rope-bunch stranded ASTM B174 bare copper conductors (18 to 2 AWG, 2 to 5 cores) with heavy-wall 600 V oil-resistant thermoplastic PVC insulatio

600 V Double Oil PVC (OO)
UL 'W' Outdoor Sunlight & Wet
UL VW-1 / CSA FT1 / FT2
UL Listed / CSA Certified
Order designation
STOOW 16/4
Nom. OD
10.80 mm
Copper mass
55.6 kg/km
Total mass ≈
165.0 kg/km
Min. bend R
64.8 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
600 V AC
UL 62 Extra-Hard Usage ('S')
Polymer type
Thermoplastic PV
105 °C oil- & heat-stabilised
Oil & weather
OO + W rated
Core + jacket oil & outdoor wet
Gauge range
18 AWG to 2 AWG
2, 3, 4 & 5 conductors
Operating temp
-40 to +105 °C
Indoor plant & outdoor jobsites
Min. bend radius
6 × cord OD
Machine drops & pendant controls

Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / NEC Art. 400 — confirmed in the datasheet and quotation for your order.

Application fit

Is STOOW right for your machine?

Specified for 480 V / 600 V 3-phase CNC machining centres, stamping presses, overhead pendant push-button stations, industrial conveyors, portable welders and wet factory washdown areas.

Trailing & towing

Suitable

Heavy 600 V 'S' thermoplastic PVC jacket resists metal chips, cutting oils, coolants and synthetic lubricants.

Free-hanging vertical run

Suitable

Used for overhead busway/junction-box pendant drops and crane push-button control cords.

Switchgear & control cabinet wiring

Suitable

Double-oil ('OO') PVC cores resist oil mist inside machine-tool terminal housings.

Motorised monospiral reel

With conditions

Suitable for indoor shop reels; for -50 °C arctic flexing or spring reels specify TPE-based SEOOW.

SEOOW -50 °C TPE cord
Typical machinesCNC machining & metalworking480V / 600V factory power dropsAutomotive stamping & assemblyFood & dairy washdown linesPortable pumps, fans & welders

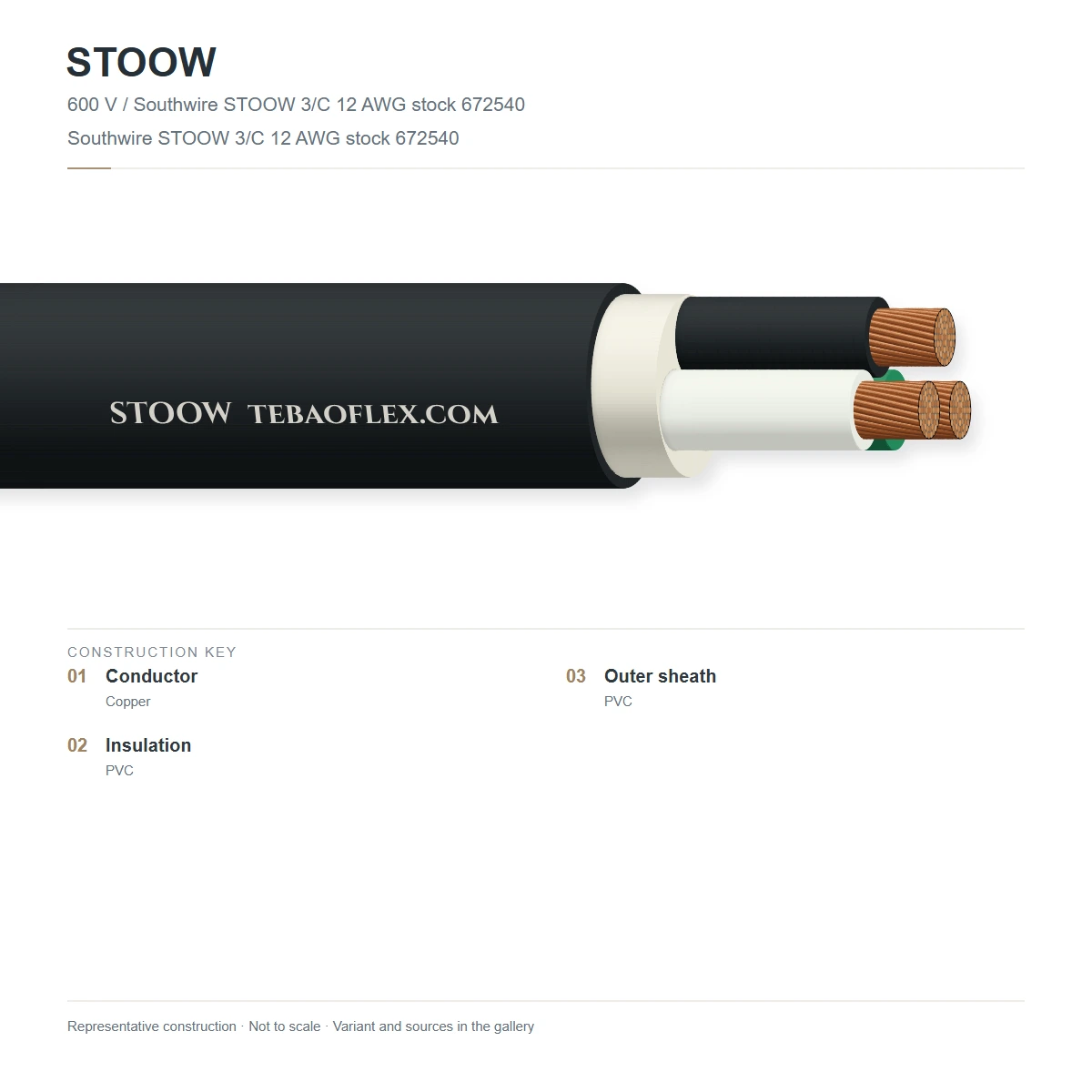

Construction

Layer by layer

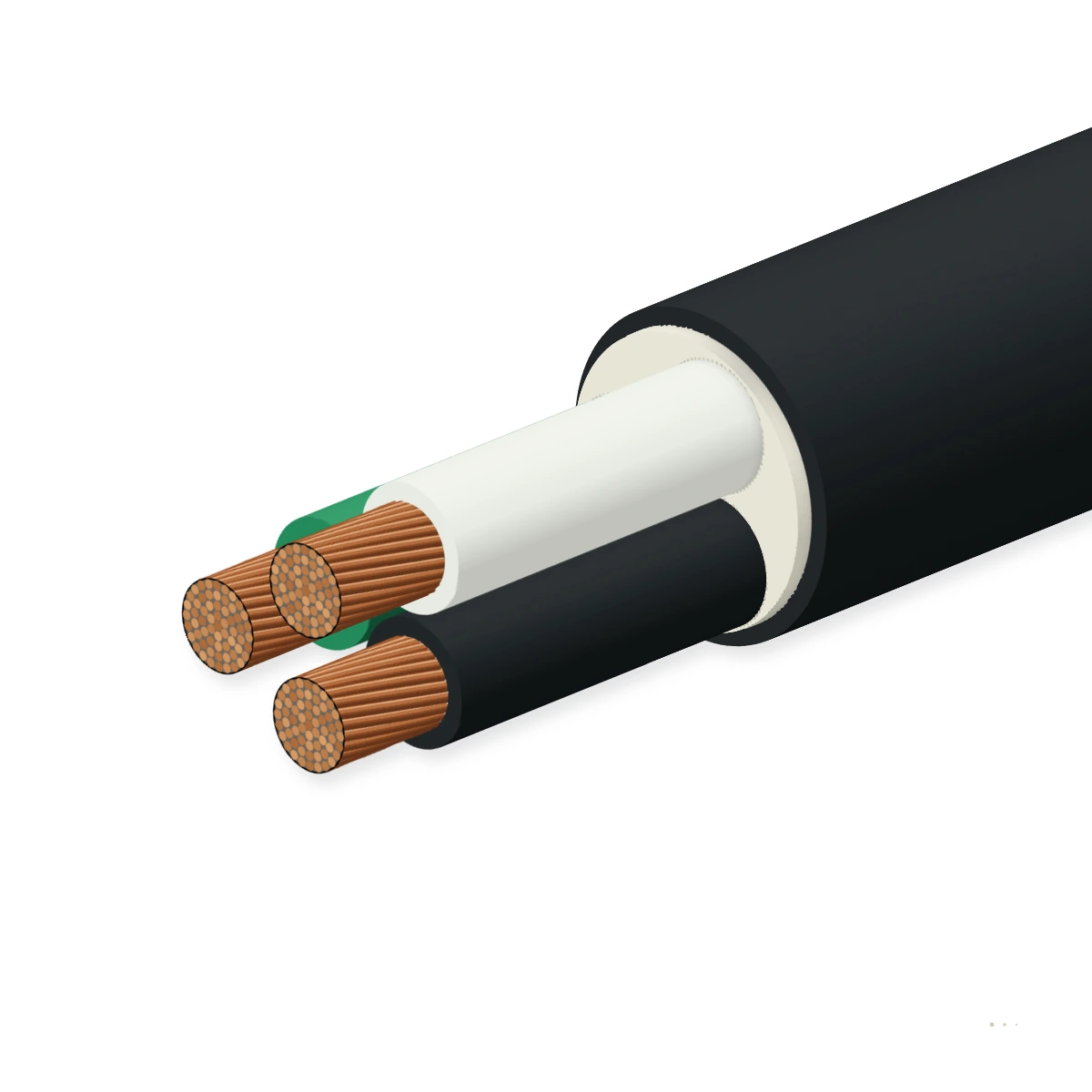

ASTM B174 flexible bunch/rope-stranded bare copper (18 to 2 AWG) + heavy-wall 600 V oil-resistant 105 °C PVC core insulation + non-wicking fillers + heavy-duty oil-, sunlight- and water-resistant PVC outer jacket.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible bunch / rope-stranded copperAnnealed bare copper (30 AWG wires in 18–10 AWG; rope-stranded in 8–2 AWG) per UL 62ASTM B174
2600 V oil-resistant PVC insulation (T + O)Heavy-wall (0.76 to 1.52 mm) 105 °C oil- and moisture-resistant PVC core insulationUL 62
3Polypropylene fillers & separator wrapMaintains circular cross-section for liquid-tight cord gripsUL 62
4Extra-hard-usage PVC jacket (O + W)Heavy-wall (1.52 to 3.05 mm) oil-, UV-, acid/alkali- and water-resistant PVC outer sheathUL 62

STOOW Yellow Safety Jacket (18 AWG to 2 AWG)

High-visibility safety yellow 600 V double oil-resistant PVC portable cord.

STOOW Black / Grey Industrial Jacket

Black or machine-tool grey 600 V double oil-resistant PVC cord for factory equipment drops.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / NEC Art. 400. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 V AC rms
Dielectric withstand test
2.0 kV AC rms for 1 minute
NEC ampacity (3 current-carrying cores)
10–30 A (18–10 AWG) · 40 A (8 AWG) · 55 A (6 AWG) · 70 A (4 AWG) · 95 A (2 AWG)

Thermal

Continuous operating temperature
-40 °C to +105 °C (UL 62 / CSA C22.2 No. 49)
Cold bend test
-40 °C for 4 hours without cracking

Mechanical

Insulation / jacket wall (16–10 AWG)
0.76–1.14 mm (30–45 mil) insulation · 1.52–2.41 mm (60–95 mil) jacket
Insulation / jacket wall (8–2 AWG)
1.14–1.52 mm (45–60 mil) insulation · 2.41–3.05 mm (95–120 mil) jacket

Resistance

Double oil resistance ('OO')
Both PVC core insulation and PVC outer jacket pass UL 62 oil immersion
Weather & flame rating ('W')
UL 62 outdoor sunlight & wet location rated · UL VW-1 / CSA FT1 / FT2 flame

Reference standards

Reference standards
UL 62, CSA C22.2 No. 49 & NEC Article 400
Approvals
UL Listed Type STOOW, CSA Certified, OSHA Acceptable, RoHS 3

Identification

Code breakdown
S = Extra-Hard Service (600 V) · T = Thermoplastic PVC · OO = Double Oil · W = Weather/Outdoor
Core colour code
Black, White, Green, Red (+ Orange/Blue)

Sizes

12 standard configurations (STOOW)

Nominal dimensions, copper weight, total mass and electrical parameters for STOOW per UL 62 / CSA C22.2 No. 49 / NEC Art. 400.

Dimensions & masses
DesignationAWG × ConductorsStranding / NEC AmpsNom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
STOOW size schedule
STOOW 18/318 AWG × 3C16/30 · 10 A9.4026.2112.056.4
STOOW 18/418 AWG × 4C16/30 · 7 A10.1635.0135.061.0
STOOW 16/316 AWG × 3C26/30 · 13 A10.0341.7134.060.2
STOOW 16/416 AWG × 4C26/30 · 10 A10.8055.6165.064.8
STOOW 14/314 AWG × 3C41/30 · 18 A13.4666.3232.080.8
STOOW 14/414 AWG × 4C41/30 · 15 A14.6188.4282.087.7
STOOW 12/312 AWG × 3C65/30 · 25 A15.24105.0310.091.4
STOOW 12/412 AWG × 4C65/30 · 20 A16.64140.0388.099.8
STOOW 10/310 AWG × 3C104/30 · 30 A16.89168.0425.0101.3
STOOW 10/410 AWG × 4C104/30 · 25 A18.29224.0530.0109.7
STOOW 8/48 AWG × 4C133/29 · 35 A23.37356.0855.0140.2
STOOW 6/46 AWG × 4C133/27 · 45 A26.42566.01,210.0158.5
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to UL 62 / CSA C22.2 No. 49 / NEC Art. 400.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
2.0 kV AC dielectric test, spark test & DC resistanceZero breakdown; resistance per UL 62100 % of reels
Sample tests
Double oil immersion ('OO') & -40 °C cold bendCore & jacket pass UL 62 oil and low-temp windEvery batch
720-hour UV weathering, wet dielectric & VW-1/FT1 flameUL Listed & CSA Certified to UL 62 / C22.2 No. 49Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL Listed Type STOOW (600 V)CSA Certified C22.2 No. 49 (FT1 / FT2)NEC Article 400 Extra-Hard UsageOSHA AcceptableRoHS 3 Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (UL) STOOW [N/AWG] 600V 105C -40C WATER RESISTANT CSA FT1 FT2 [lot/ft]
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSTOOW Thermoplastic Portable Cord – technical datasheet12 sizes · construction, technical data, approvalsXLSXSTOOW spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does STOOW differ from SJTOOW?
SJTOOW is a 300 V Junior Hard Service ('J') cord limited to 18–10 AWG. STOOW is a 600 V Extra-Hard-Usage ('S') cord with significantly thicker insulation and jacket walls (for example, 14/3 STOOW is 13.46 mm OD vs 9.65 mm OD for 14/3 SJTOOW) and sizes up to 2 AWG for 480 V and 600 V industrial circuits.
When is STOOW preferred over rubber SOOW in metalworking plants?
Synthetic ester cutting fluids, chlorinated paraffins and certain synthetic hydraulic oils used in CNC machining centres can swell EPDM/SBR rubber cores in SOOW. Specially compounded 105 °C oil-resistant PVC in STOOW offers superior resistance to synthetic machine-tool coolants and acids/alkalis.
What is the difference between STOOW and Bus Drop Cable for overhead machine drops?
Both are 600 V oil-resistant PVC cables used to feed factory machines from overhead distribution. STOOW is a general-purpose UL 62 flexible cord with an insulated green ground conductor; Bus Drop Cable is built specifically to UL 44 / UL 62 / NEC Article 368 with three THHN/PVC-Nylon phase cores and three bare split ground wires tucked into the outer interstices for Kellems mesh bus-drop grips.
Is STOOW rated for outdoor wet locations?
Yes. The 'W' suffix certifies full UL 62 sunlight UV and wet-location compliance from -40 °C to +105 °C.
