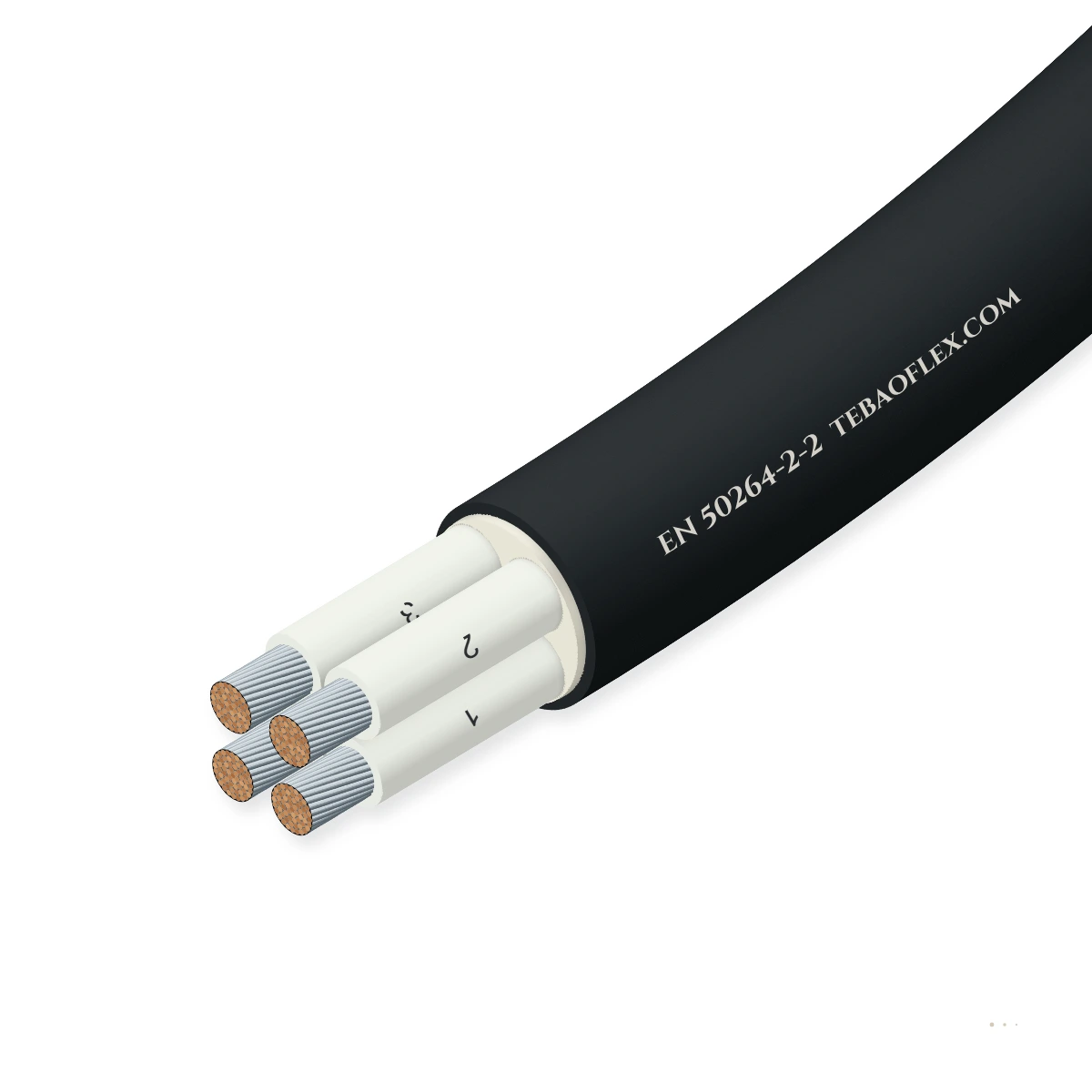

EN 50264-2-2 Standard-Wall Multicore Rolling Stock CableEN 50264-2-2 300/500 V & 0.6/1 kV standard-wall multicore rolling stock cable

Standard-wall halogen-free railway rolling-stock multicore (`MM`) and tinned-Cu braid screened (`MMS`) cable certified to EN 50264-2-2 and EN 45545-2 HL1–HL3 with Class 5 tinned copper conductors, e-beam cross-linked EI 101–104 cores and EM 101–104 sheath.

Flame-retardant
Oil-resistant
EMC screen
Approved
Order designation
EN 50264-2-2 600V 4G2.5 MM
Outer Ø min
11.2 mm
Outer Ø max
12.2 mm
Weight ≈
235 kg/km
Min. bend R
61 mm
Check against my drumAll sizes (20)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
300 V & 0.6/1 kV
300/500 V & 600/1000 V AC
Fire hazard
HL1 / HL2 / HL3
EN 45545-2 R15 (interior) & R16 (ext.)
Conductor temp.
−40…+90 °C
+90 °C continuous · +120 °C (20,000 h)
Wall / compounds
EI 101–104 / EM
Standard wall e-beam cross-linked LSZH
Bending radius
4–10 × OD
4 × OD fixed (D≤12 mm) · 8–10 × OD flex
Size range
1.0–50 mm²
2 to 40 cores · MM & screened MMS

Typical values for this cable type, based on EN 50264-2-2 / EN 45545-2 HL1–HL3 — confirmed in the datasheet and quotation for your order.

Application fit

Is EN 50264-2-2 right for your machine?

EN 50264-2-2 is the heavy-duty standard-wall multicore power and control cable for under-frame bogie wiring, roof-mounted HVAC feeds, auxiliary converters and exposed coach runs where thicker mechanical wall protection is required.

Fixed installation

Suitable

Under-frame conduit/tray runs, traction converter auxiliaries, brake control and car-body power distribution.

VFD inverter to AC motor screened feeder

Suitable

Available in MMS tinned-copper braid screened execution for EMC-protected rolling-stock auxiliary feeds.

Trailing & towing

With conditions

Tolerates coach vibration and bogie-to-underframe static flexing; not for ground-drag trailing.

Use EN 50264-3-2

Energy chain / drag chain

Not suitable

For high-density cabinet and desk wiring in 300 V signal circuits, select thin-wall EN 50306-4.

Use EN 50306-4
Typical machinesHigh-speed & intercity passenger trainsMetro, underground & light-rail vehiclesElectric & diesel-electric locomotivesUnder-frame bogie, brake & HVAC auxiliariesRolling-stock overhaul & EN 45545-2 retrofits

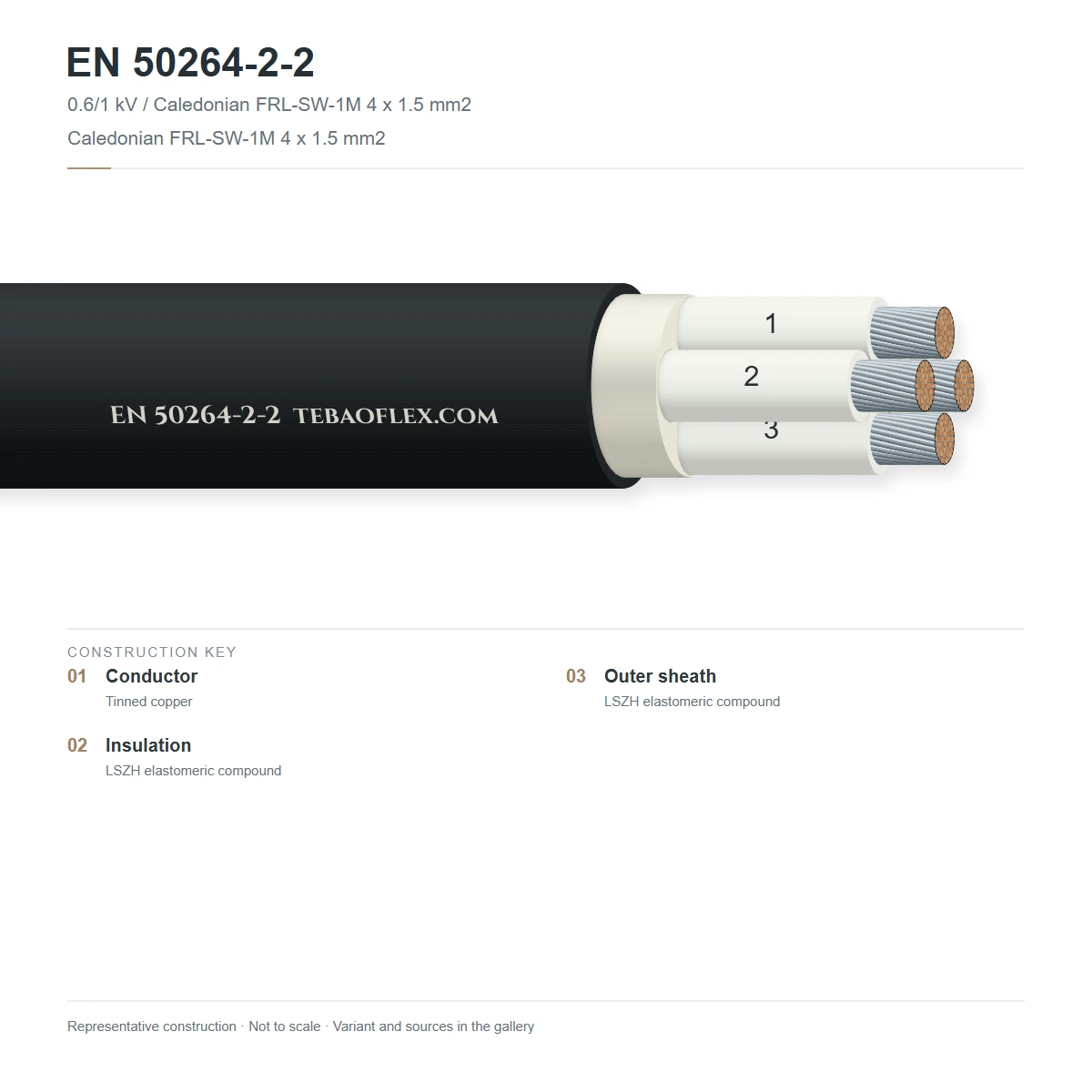

Construction

Layer by layer

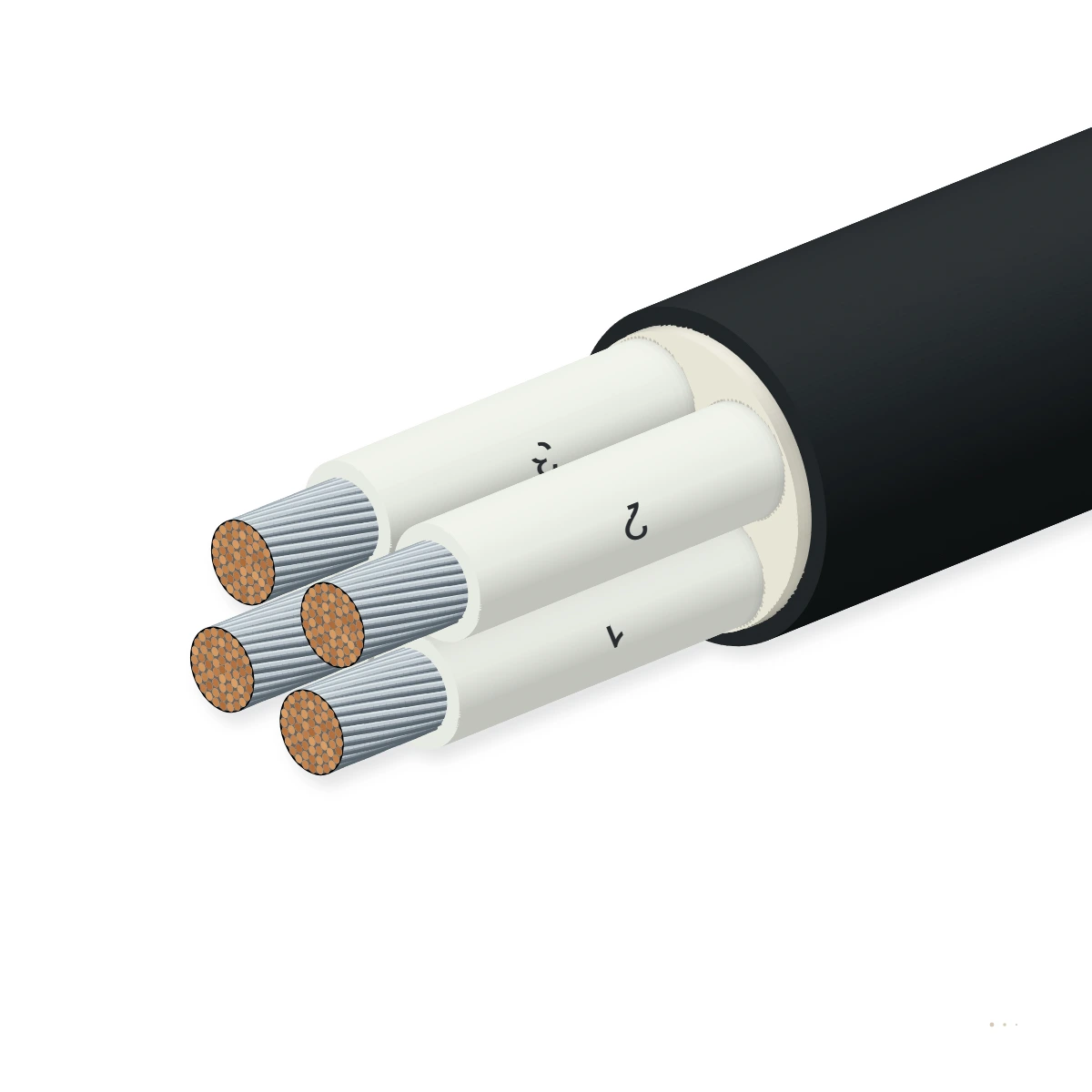

Shown: EN 50264-2-2 600 V 4×2.5 MMS — Class 5 tinned annealed copper conductors, standard-wall e-beam cross-linked halogen-free elastomer insulation (EI 101–104, numbered), tinned-copper braid screen ('S') and oil/fuel-resistant EM 104 outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Class 5 tinned copper conductorFine-stranded tinned annealed copper to EN 60228 Class 5EN 60228 Class 5 · EN 50264-2-2
2Standard-wall EI 101–104 insulationElectron-beam cross-linked halogen-free elastomer (EN 50264-1 EI 101 to EI 104), black with white numbersEN 50264-1 / EN 50264-2-2
3Halogen-free filler & wrapping tapeNon-hygroscopic LSZH fillers and polyester/mica separator tape over the cabled core assemblyEN 50264-2-2
4Optional tinned-copper braid (MMS)Unscreened ('MM') or ≥ 80 % tinned-copper wire braid screen ('MMS') for railway EMCEN 50264-2-2 · EN 50121-3-2
5Cross-linked EM 101–104 outer sheathHalogen-free, low-smoke, oil- and fuel-resistant cross-linked elastomer compound (EM 101–EM 104), blackEN 50264-1 · EN 45545-2 HL3

EN 50264-2-2 300 V (300/500 V) MM & MMS

Standard-wall multicore (2–40 cores, 1.0–2.5 mm²) control cables with or without tinned-Cu screen

EN 50264-2-2 600 V (0.6/1 kV) MM & MMS

Standard-wall multicore (2–7 cores, 1.5–50 mm²) auxiliary power and control feeders

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50264-2-2 / EN 45545-2 HL1–HL3. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V ('300 V' class) & 0.6/1 kV ('600 V' class) AC
Max. operating voltage
360/600 V AC (450/900 V DC) for 300 V class · 0.72/1.2 kV AC (0.9/1.8 kV DC) for 600 V class
AC test voltage (50 Hz)
2.0 kV AC (300/500 V class) · 3.5 kV AC (0.6/1 kV class) for 5 min

Thermal

Operating temperature range
−40 °C (EI 104 / EM 104) or −25 °C (EI 103 / EM 103) to +90 °C
Overload temperature
+120 °C (20,000 hours cumulative thermal life)
Short-circuit temperature
+200 °C max. (5 s)

Mechanical

Min. bending radius, fixed
4 × OD (D ≤ 12 mm) · 5 × OD (D > 12 mm) unscreened · 6 × OD screened MMS
Min. bending radius, flexing
8 × OD unscreened MM · 10 × OD screened MMS
Wall thickness
Standard wall (0.8–1.4 mm core insulation + 1.0–2.4 mm outer sheath)

Resistance

Railway fire safety
EN 45545-2 Hazard Level HL1, HL2 & HL3 (Requirement Sets R15 indoor & R16 outdoor)
Flame propagation
EN 60332-1-2, EN 60332-3-24 / EN 50305 §9.1.1 (D < 12 mm)
Smoke & toxicity
EN 61034-2 low smoke · EN 60754-1/2 zero halogen · EN 50305 ITC ≤ 3
Oil, fuel & ozone
IRM 902 mineral oil, IRM 903 diesel fuel, acid/alkali and ozone resistant (EM 104)

Reference standards

Primary standard
EN 50264-2-2 (part of the EN 50264 series for rolling stock)
Material specification
EN 50264-1 (EI 101–104 insulation & EM 101–104 sheath compounds)
Fire & EMC standards
EN 45545-2 HL1–HL3 & EN 50121-3-2 railway EMC (for MMS)
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Black
Core identification
Black cores printed with white numbers (1, 2, 3…) + optional green-yellow core ('G')
Sheath marking
TEBAOFLEX EN 50264-2-2 [300V/600V] [Size] MM/MMS EN 45545-2 HL3
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

20 standard EN 50264-2-2 configurations

Typical EN 50264-2-2 / EN 45545-2 HL1–HL3 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm² / AWGAWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
300/500 V Unscreened Multicore (EN 50264-2-2 MM)
EN 50264-2-2 300V 2×1.0 MM2×1.0187.48.0198540
EN 50264-2-2 300V 4×1.0 MM4×1.0188.59.23812546
EN 50264-2-2 300V 7×1.0 MM7×1.01810.311.26719556
EN 50264-2-2 300V 12×1.0 MM12×1.01813.614.811533574
EN 50264-2-2 300V 2×1.5 MM2×1.5167.98.62810243
EN 50264-2-2 300V 4×1.5 MM4×1.5169.210.05715250
EN 50264-2-2 300V 7×1.5 MM7×1.51611.212.210024061
EN 50264-2-2 300V 12×1.5 MM12×1.51614.916.217241581
300/500 V Tinned-Cu Braid Screened (EN 50264-2-2 MMS)
EN 50264-2-2 300V 4×1.5 MMS4×1.51610.311.28820556
EN 50264-2-2 300V 7×1.5 MMS7×1.51612.313.414230567
EN 50264-2-2 300V 12×1.5 MMS12×1.51616.217.623250588
0.6/1 kV Auxiliary Power & Screened (EN 50264-2-2 MM / MMS)
EN 50264-2-2 600V 2×2.5 MM2×2.5149.610.44815552
EN 50264-2-2 600V 3G2.5 MM3×2.51410.111.07218555
EN 50264-2-2 600V 4G2.5 MM4×2.51411.212.29623561
EN 50264-2-2 600V 4G2.5 MMS4×2.51412.313.413830267
EN 50264-2-2 600V 4G4 MM4×41212.914.015333570
EN 50264-2-2 600V 4G6 MM4×61014.515.823044579
EN 50264-2-2 600V 4G10 MM4×10818.019.638471098
EN 50264-2-2 600V 4G16 MM4×16621.323.26141,045116
EN 50264-2-2 600V 4G25 MM4×25426.128.49601,580142
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per EN 50264-2-2 / EN 45545-2 HL1–HL3. Minimum fixed bending radius shown is 5 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 122 mmBending radius OK (5 × OD 12.2 mm)
Minimum bending radius
61 mm
Min. drum core diameter
≈ 122 mm
Cable weight on drum
11.8 kg
Copper content
4.8 kg
Indicative only: based on the datasheet outer diameter and 5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.
