Hook-up & equipment wiresEN 50264-3-2Reduced-Wall EI 109 + EM 104EN 45545-2 HL1–HL3

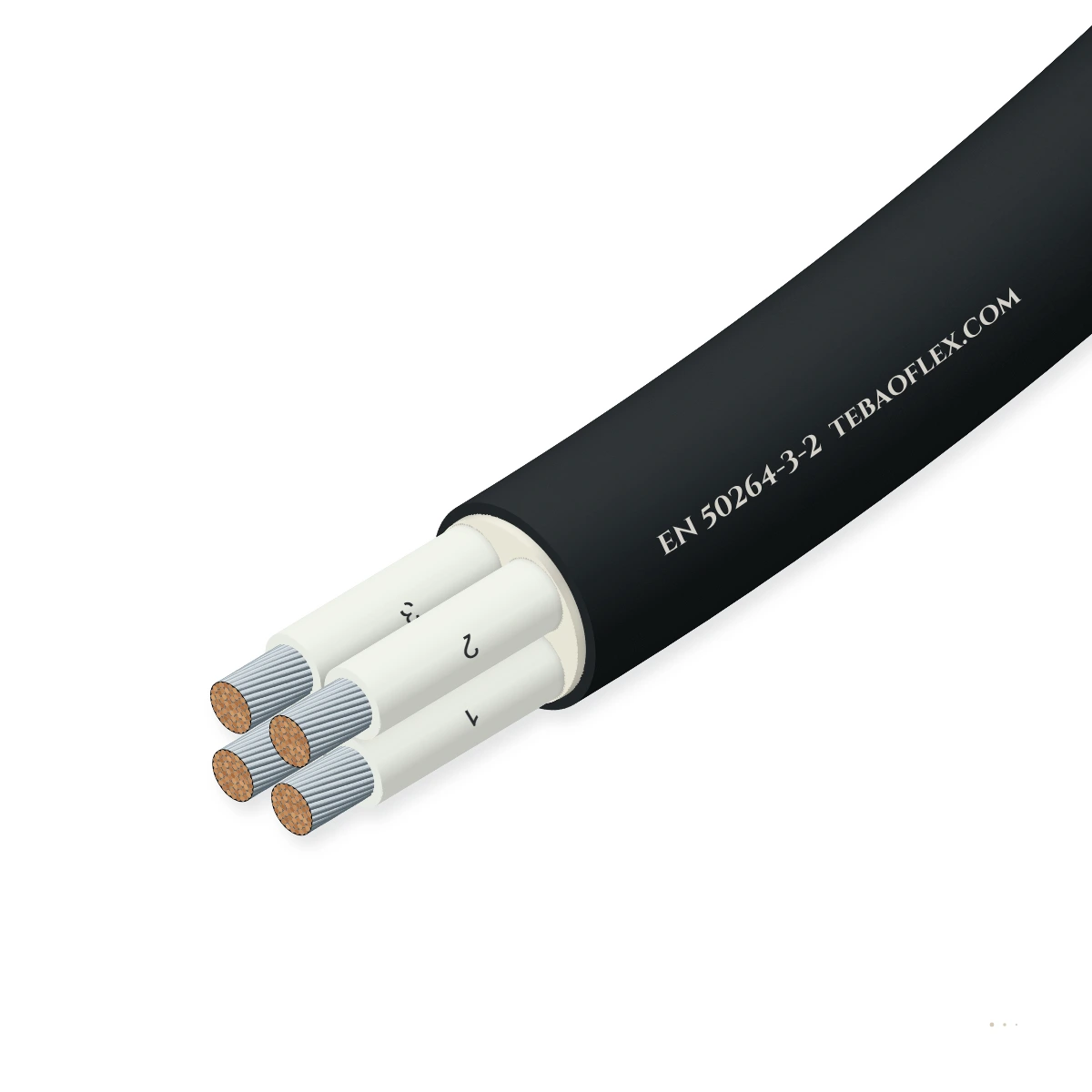

EN 50264-3-2 Reduced-Wall Multicore Rolling Stock CableEN 50264-3-2 300/500 V & 0.6/1 kV reduced-wall multicore rolling stock cable

Compact reduced-wall railway rolling-stock multicore (`MM`) and tinned-Cu braid screened (`MMS`) cable to EN 50264-3-2 and EN 45545-2 HL3 with Class 5 tinned copper conductors, e-beam cross-linked EI 109 core insulation and oil/fuel-resistant EM 104 sheath.

Flame-retardant

Oil-resistant

EMC screen

Approved

Cores × cross-section

Order designation: EN 50264-3-2 300V 7×1.5 MMS
Outer Ø min: 9.4 mm
Outer Ø max: 10.2 mm
Weight ≈: 215 kg/km
Min. bend R: 41 mm

Check against my drum All sizes (24)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Voltage rating: 300 V & 0.6/1 kV
Fire hazard: HL1 / HL2 / HL3
Conductor temp.: −40…+90 °C
Wall / compounds: EI 109 + EM 104
Bending radius: 4–10 × OD
Size range: 0.5–50 mm²

Typical values for this cable type, based on EN 50264-3-2 / EN 45545-2 HL1–HL3 — confirmed in the datasheet and quotation for your order.

Application fit

Is EN 50264-3-2 right for your machine?

EN 50264-3-2 cabled with reduced-wall `EN 50264-3-1` (`EI 109`) cores inside an `EM 104` cross-linked outer sheath cuts multicore bundle diameter and mass by ~20–25 % compared with standard-wall `EN 50264-2-2`, easing routing through tight coach ducts and Harting/circular connectors.

Fixed installation

Suitable

Inter-car jumpers, door controls, HVAC, lighting, brake sensors and auxiliary power in passenger rail.

VFD inverter to AC motor screened feeder

Suitable

MMS screened version with ≥ 80 % tinned-copper braid provides EN 50121-3-2 EMC immunity.

Trailing & towing

With conditions

Designed for rolling-stock vibration and inter-cubicle routing; not for ground-drag trailing.

Use EN 50264-2-2

Energy chain / drag chain

Not suitable

For 300 V ultra-thin-wall signal and twisted-pair harnesses, select EN 50306-4.

Use EN 50306-4

Typical machinesHigh-speed EMUs & passenger coachesMetro, tramway & light-rail car bodiesDoor, HVAC, PIS & lighting subsystemsInter-vehicle Harting connector harnessesLocomotive control & auxiliary power

Construction

Layer by layer

Shown: EN 50264-3-2 300 V 7×1.5 MMS — Class 5 tinned copper conductors, reduced-wall e-beam cross-linked EI 109 core insulation (black with white numbers), separator tape, tinned-copper wire braid screen ('S') and black EM 104 cross-linked LSZH outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Class 5 tinned copper conductor	Fine-stranded tinned annealed copper to EN 60228 Class 5EN 60228 Class 5 · EN 50264-3-2
2	Reduced-wall EI 109 core insulation	Electron-beam cross-linked halogen-free polymer (EN 50264-1 EI 109 / EN 50264-3-1 cores), numberedEN 50264-1 EI 109 · EN 50264-3-2
3	Halogen-free wrapping tape	Overlapped polyester separator tape over the cabled core bundleEN 50264-3-2
4	Optional tinned-copper braid (MMS)	Unscreened ('MM') or ≥ 80 % optical coverage tinned-copper wire braid screen ('MMS')EN 50264-3-2 · EN 50121-3-2
5	Cross-linked EM 104 outer sheath	Halogen-free, low-smoke, oil-, fuel- and −40 °C cold-resistant cross-linked elastomer (EM 104), blackEN 50264-1 EM 104 · EN 45545-2 HL3

EN 50264-3-2 300 V (300/500 V) MM & MMS

Reduced-wall multicore control cables (0.5–2.5 mm², 2 to 40 cores), unscreened or tinned-Cu screened

EN 50264-3-2 600 V (0.6/1 kV) MM & MMS

Reduced-wall multicore auxiliary power and control cables (1.5–50 mm², 2 to 7 cores)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50264-3-2 / EN 45545-2 HL1–HL3. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 300/500 V ('300 V' class) & 0.6/1 kV ('600 V' class) AC
AC test voltage (50 Hz): 2.0 kV AC (300/500 V class) · 3.5 kV AC (0.6/1 kV class) for 5 min
Surface transfer impedance: ≤ 200 mΩ/m at 30 MHz (MMS screened versions)

Thermal

Operating temperature range: −40 °C to +90 °C (fixed) · −25 °C to +90 °C (flexing)
Thermal overload rating: +120 °C (20,000 h cumulative life)
Short-circuit temperature: +200 °C max. (5 s)

Mechanical

Min. bending radius, fixed: 4 × OD (D ≤ 12 mm) · 5 × OD (D > 12 mm) for MM · 6 × OD for MMS
Min. bending radius, flexing: 8 × OD (MM) · 10 × OD (MMS)
Weight & space reduction: Up to 25 % smaller diameter and lower cable weight vs EN 50264-2-2

Resistance

Railway fire safety: EN 45545-2 Hazard Level HL1, HL2 & HL3 (Requirement Sets R15 & R16)
Smoke & halogen-free: EN 61034-2 low smoke · EN 60754-1/2 zero halogen · EN 50305 low toxicity
Oil, fuel & UV: Resistant to mineral oil (IRM 902), diesel fuel (IRM 903), ozone and UV weathering (EM 104)

Reference standards

Primary standard: EN 50264-3-2 (Reduced wall multicore rolling stock cables)
Core & sheath standards: EN 50264-3-1 (EI 109 cores) & EN 50264-1 (EM 104 sheath)
Fire & EMC compliance: EN 45545-2 HL1–HL3 & EN 50121-3-2
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Black
Core identification: Black cores with sequential white numbers (1, 2, 3…) + optional GN/YE core ('G')
Sheath marking: TEBAOFLEX EN 50264-3-2 [300V/600V] [Size] MM/MMS EN 45545-2 HL3
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

24 standard EN 50264-3-2 configurations

Typical EN 50264-3-2 / EN 45545-2 HL1–HL3 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm² / AWG	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
300/500 V Reduced-Wall Unscreened (EN 50264-3-2 MM)
EN 50264-3-2 300V 2×0.5 MM	2×0.5	20	5.0	5.4	9	38	22
EN 50264-3-2 300V 4×0.5 MM	4×0.5	20	5.6	6.1	19	54	24
EN 50264-3-2 300V 7×0.5 MM	7×0.5	20	6.6	7.2	33	82	29
EN 50264-3-2 300V 12×0.5 MM	12×0.5	20	8.6	9.4	57	138	38
EN 50264-3-2 300V 2×1.0 MM	2×1.0	18	5.7	6.2	19	55	25
EN 50264-3-2 300V 4×1.0 MM	4×1.0	18	6.5	7.1	38	82	28
EN 50264-3-2 300V 7×1.0 MM	7×1.0	18	7.7	8.4	67	128	34
EN 50264-3-2 300V 12×1.0 MM	12×1.0	18	10.2	11.1	115	218	44
EN 50264-3-2 300V 2×1.5 MM	2×1.5	16	6.3	6.8	28	69	27
EN 50264-3-2 300V 4×1.5 MM	4×1.5	16	7.2	7.8	57	106	31
EN 50264-3-2 300V 7×1.5 MM	7×1.5	16	8.6	9.3	100	168	37
EN 50264-3-2 300V 12×1.5 MM	12×1.5	16	11.3	12.3	172	285	49
300/500 V Reduced-Wall Screened (EN 50264-3-2 MMS)
EN 50264-3-2 300V 4×1.0 MMS	4×1.0	18	7.3	7.9	58	112	32
EN 50264-3-2 300V 7×1.0 MMS	7×1.0	18	8.6	9.3	95	168	37
EN 50264-3-2 300V 4×1.5 MMS	4×1.5	16	7.9	8.6	82	142	34
EN 50264-3-2 300V 7×1.5 MMS	7×1.5	16	9.4	10.2	134	215	41
EN 50264-3-2 300V 12×1.5 MMS	12×1.5	16	12.3	13.4	224	355	54
0.6/1 kV Reduced-Wall Power & Screened (EN 50264-3-2 MM / MMS)
EN 50264-3-2 600V 3G2.5 MM	3×2.5	14	8.5	9.2	72	138	37
EN 50264-3-2 600V 4G2.5 MM	4×2.5	14	9.3	10.1	96	175	40
EN 50264-3-2 600V 4G2.5 MMS	4×2.5	14	10.2	11.1	132	228	44
EN 50264-3-2 600V 4G4 MM	4×4	12	10.9	11.8	153	258	47
EN 50264-3-2 600V 4G6 MM	4×6	10	12.3	13.4	230	355	54
EN 50264-3-2 600V 4G10 MM	4×10	8	15.5	16.8	384	575	67
EN 50264-3-2 600V 4G16 MM	4×16	6	18.2	19.8	614	860	79

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per EN 50264-3-2 / EN 45545-2 HL1–HL3. Minimum fixed bending radius shown is 4 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	Single wire in air 30 °C, A	Multi-core bundle 30 °C, A
0.5	20	40.1	10	7
1	18	20	16	12
1.5	16	13.7	21	16
2.5	14	8.21	30	22
4	12	5.09	41	30
6	10	3.39	53	38
10	8	1.95	75	53
16	6	1.24	100	71

Current ratings at 30 °C ambient in free air. Apply temperature and bundle grouping factors per applicable equipment standard.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 82 mmBending radius OK (4 × OD 10.2 mm)

Minimum bending radius: 41 mm
Min. drum core diameter: ≈ 82 mm
Cable weight on drum: 10.8 kg
Copper content: 6.7 kg

Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC dielectric voltage test	2.0 kV AC (50/60 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 / ASTM (tinned copper)	Every manufactured length
Sample tests
Flame propagation test	IEC 60332-1-2 / UL VW-1 / ISO 6722-1	Per production batch
Insulation & sheath material physical properties	EN 50264-3-2 / EN 45545-2 HL1–HL3	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50264-3-2 / EN 45545-2 HL1–HL3CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX EN 50264-3-2 300V/600V [Size] MM/MMS EN 45545-2 HL3

Delivery form: Export wooden drums, reels or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums or spools with sealed ends
Conductor / colour options: Custom core counts, stripe combinations or cut harnesses on request

Technical documents

Downloads

PDFEN 50264-3-2 Reduced-Wall Multicore Rolling Stock Cable – technical datasheet24 sizes · construction, technical data, approvals XLSXEN 50264-3-2 spec data (Excel)All 24 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why do modern rolling-stock platforms prefer EN 50264-3-2 over EN 50264-2-2?

By assembling EN 50264-3-1 reduced-wall e-beam cross-linked cores (Type EI 109) inside an EM 104 outer sheath, EN 50264-3-2 reduces cable outer diameter by ~20 % and mass by up to 25 % while maintaining the exact same 300/500 V and 0.6/1 kV voltage ratings and EN 45545-2 HL3 fire performance.

How does EN 50264-3-2 compare with EN 50306-4?

EN 50264-3-2 covers 300/500 V and 0.6/1 kV control and auxiliary power cables from 0.5 mm² up to 50 mm². EN 50306-4 uses even thinner walls (0.25–0.30 mm) rated strictly at 300 V to ground for high-density 0.5–2.5 mm² signal and twisted-pair harnesses.

What is the difference between MM and MMS in EN 50264-3-2?

'MM' is the unscreened multicore cable; 'MMS' adds an overall tinned-copper wire braid screen (surface transfer impedance ZT ≤ 200 mΩ/m at 30 MHz) between the cabled cores and the EM 104 outer sheath.

Are EN 50264-3-2 cables resistant to diesel fuel and hydraulic oil?

Yes. The outer sheath compound Type EM 104 is cross-linked and tested for resistance to mineral oil (IRM 902), fuel oil (IRM 903), acid/alkali solutions and −40 °C cold impact.
