UL 62 / CSA C22.2 No. 49 North American Thermoplastic & TPE Portable Cords300 V UL 62 / CSA C22.2 No. 49Double Oil-Resistant PVC (OO)-40 to +105 °C Outdoor (W) Rated

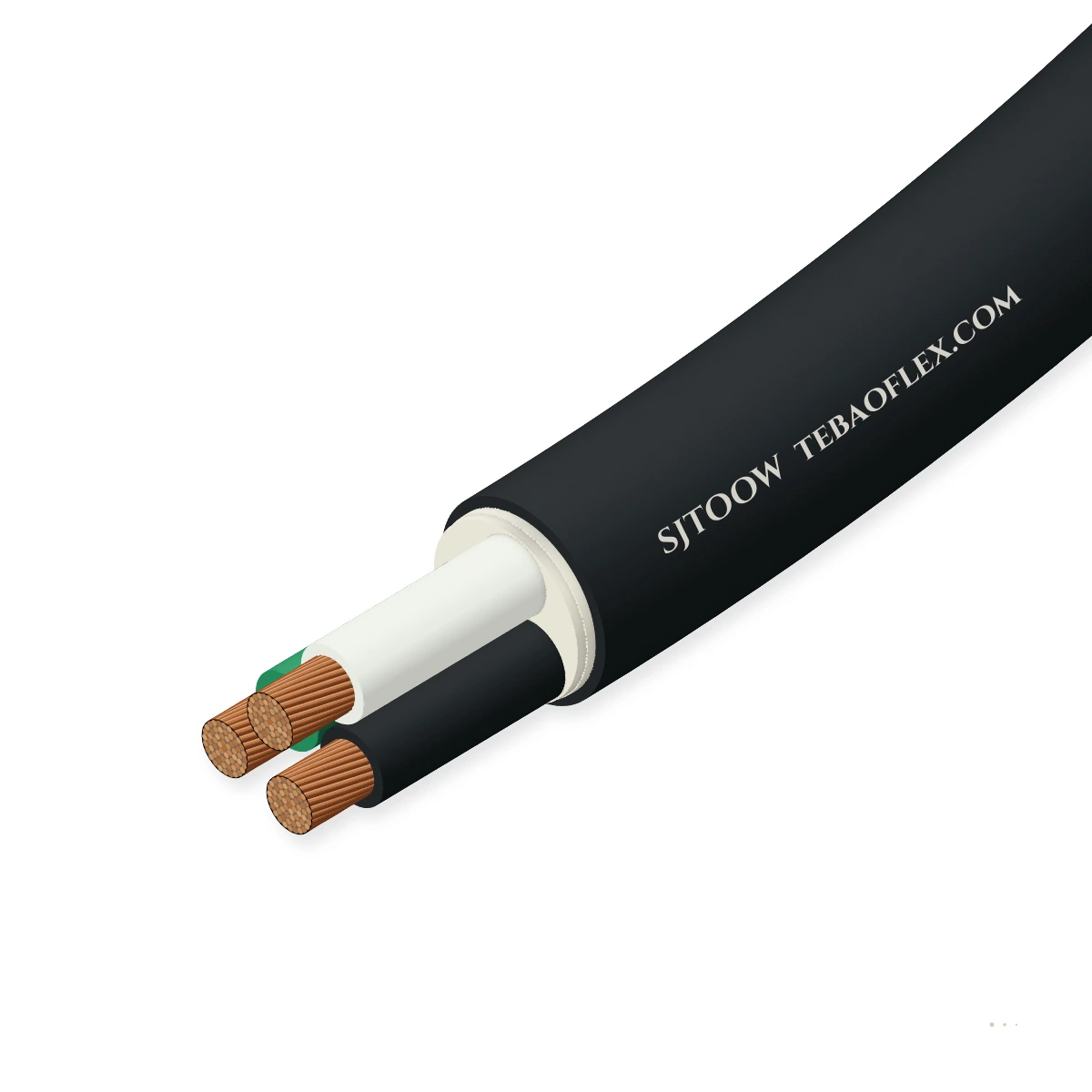

SJTOOW Portable Cord300 V UL 62 / CSA junior service thermoplastic PVC double oil- & weather-resistant cord (1

Type SJTOOW is a 300 V North American Junior Hard Service flexible portable cord per UL 62 and CSA C22.2 No. 49. Combining rope-bunch stranded ASTM B174 bare copper conductors (18 to 10 AWG, 2 to 5 cores) with oil-resistant thermoplastic PVC insulation ('O'),

Double Oil Resistant (OO — Core + Jacket)
UL 'W' Sunlight & Wet Rated
UL VW-1 / CSA FT2 Flame
UL Listed / CSA Certified
Order designation
SJTOOW 16/2
Nom. OD
8.00 mm
Copper mass
27.8 kg/km
Total mass ≈
82.0 kg/km
Min. bend R
48.0 mm
All sizes (13)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300 V AC
UL 62 Junior Hard Service (SJ)
Polymer type
Thermoplastic PV
105 °C heat- & oil-stabilised
Oil rating
OO (Double oil)
Both core insulation & jacket
Gauge range
18 to 10 AWG
2, 3, 4 & 5 conductors
Operating temp
-40 to +105 °C
Indoor & outdoor ('W') service
Min. bend radius
6 × cord OD
Portable tools & pendant drops

Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / NEC Art. 400 — confirmed in the datasheet and quotation for your order.

Application fit

Is SJTOOW right for your machine?

Specified for portable industrial power tools, CNC coolant pumps, commercial garage drop lights, food-processing washdown equipment and outdoor construction appliances where both the outer jacket and exposed inner conductors contact cutting oils or grease.

Trailing & towing

Suitable

Junior Hard Service (SJ) PVC jacket resists shop-floor abrasion, cutting fluids and grease.

Free-hanging vertical run

Suitable

Supple Class K / ASTM B174 bunch-stranded copper hangs straight on overhead tool balancers and cord reels.

Switchgear & control cabinet wiring

Suitable

Oil-resistant ('OO') inner conductor insulation prevents swelling inside oil-misted junction boxes.

Motorised monospiral reel

With conditions

Suitable for spring-return shop cord reels; for 600 V heavy industrial reels specify STOOW or SEOOW.

STOOW 600 V hard-service cord
Typical machinesMachine tools & CNC coolant pumpsAutomotive service bays & liftsPortable industrial power toolsCommercial kitchen & washdown appliancesSpring-retractable shop cord reels

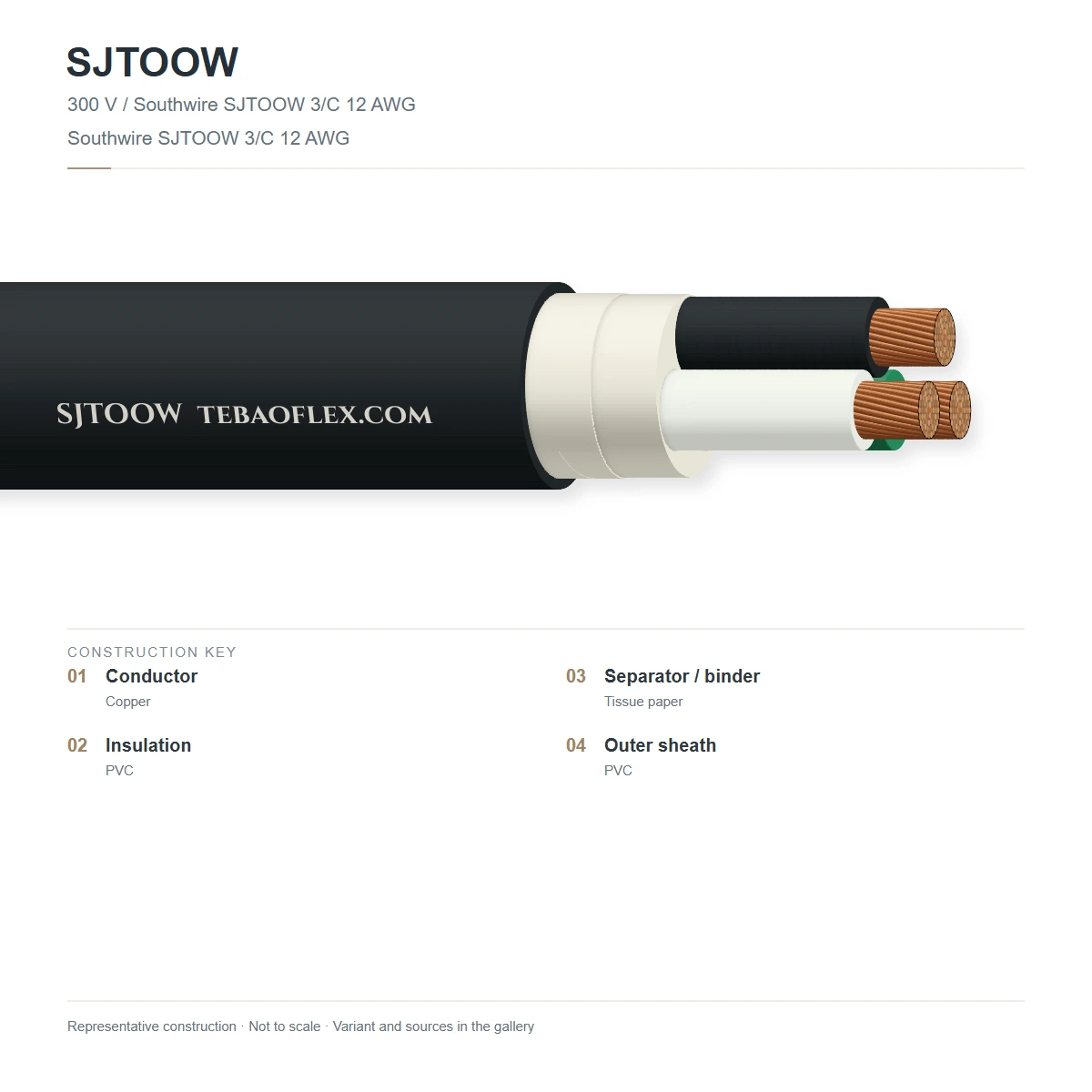

Construction

Layer by layer

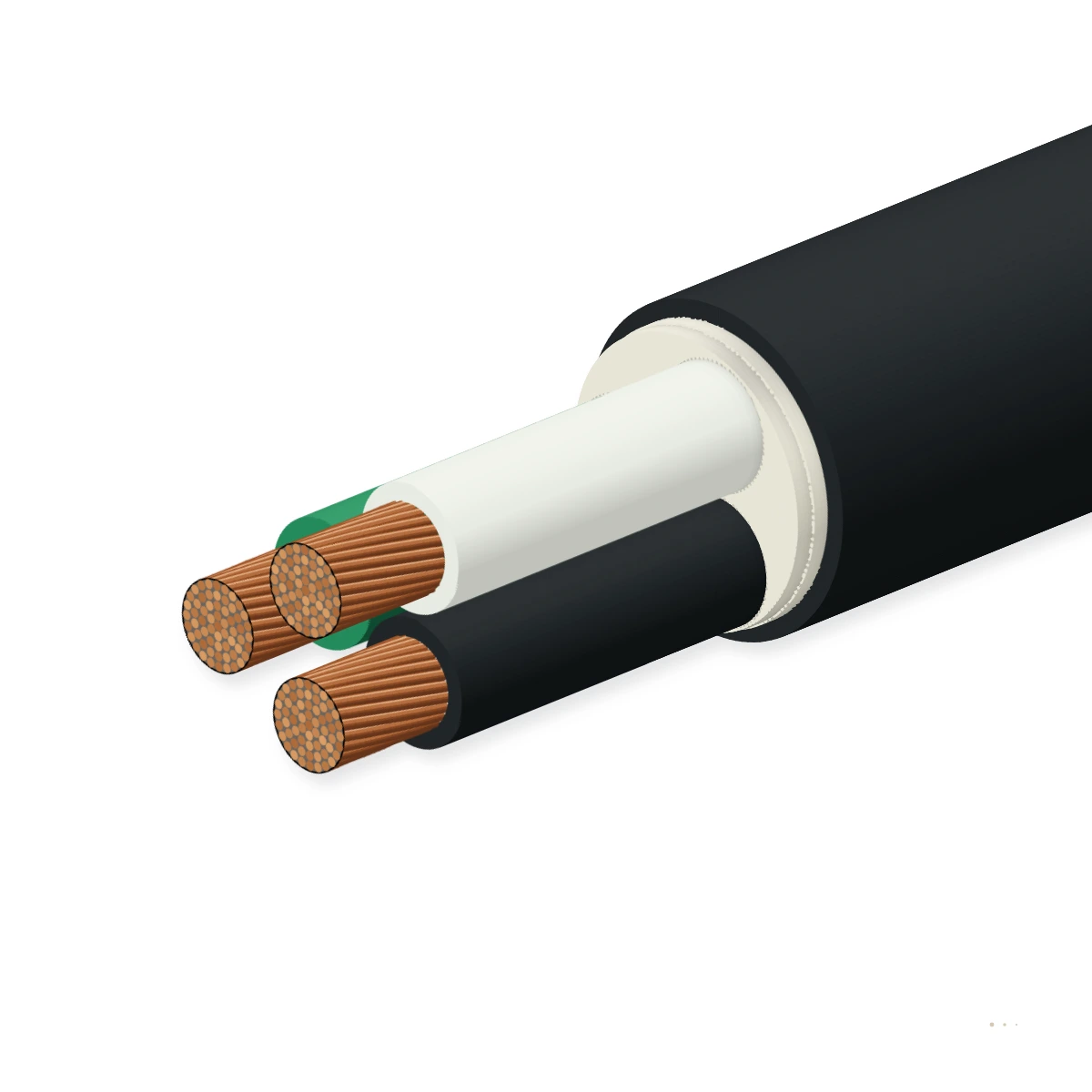

ASTM B174 flexible bunch-stranded bare copper (18–10 AWG) + oil-resistant 105 °C thermoplastic PVC core insulation (Black, White, Green, Red) + non-wicking fillers + oil-, sunlight- and water-resistant PVC outer jacket.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible bunch-stranded copper (ASTM B174)Fine-stranded annealed bare copper (e.g. 16/30 AWG on 18 AWG, 65/30 on 12 AWG) per UL 62ASTM B174
2Oil-resistant thermoplastic PVC (First 'O')105 °C oil- and moisture-resistant color-coded PVC core insulation (0.76–1.14 mm wall)UL 62
3Non-hygroscopic fibrillated fillers & wrapMaintains round cross-section and allows easy outer jacket strippingUL 62
4Oil & weather-resistant PVC jacket (Second 'O' + 'W')Sunlight-, water- and oil-resistant thermoplastic PVC outer jacket (1.52–2.03 mm wall)UL 62

SJTOOW Yellow High-Visibility Safety Jacket

Safety yellow 300 V double oil-resistant portable cord for OSHA jobsite and garage visibility.

SJTOOW Black / Grey Industrial Jacket

Black or grey 300 V double oil-resistant cord for OEM machine tools, pumps and portable equipment.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / NEC Art. 400. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
300 V AC rms
Dielectric withstand test
1.5 kV AC rms for 1 minute
Ampacity (NEC Table 400.5(A)(1))
10 A (18 AWG) · 13 A (16 AWG) · 18 A (14 AWG) · 25 A (12 AWG) · 30 A (10 AWG)

Thermal

Continuous temperature rating
-40 °C to +105 °C (UL / CSA)
Cold bend test
-40 °C for 4 hours without cracking

Mechanical

Nom. insulation / jacket wall (16–12 AWG)
0.76 mm (30 mil) insulation · 1.52 mm (60 mil) jacket
Minimum bending radius
6 × overall cord diameter

Resistance

Double oil resistance ('OO')
Both core insulation and outer jacket pass UL 62 oil immersion (+60/+100 °C)
Weather & flame rating ('W')
UL 62 sunlight & wet location rated · UL VW-1 / CSA FT2 flame

Reference standards

Governing standards
UL 62, CSA C22.2 No. 49 & NEC Article 400
Workplace safety compliance
OSHA Acceptable, MSHA option, RoHS 3 compliant

Identification

Nomenclature breakdown
S = Service · J = Junior (300 V) · T = Thermoplastic PVC · OO = Oil-resistant insul & jacket · W = Weather/Outdoor
Core colour code
2C: Black, White · 3C: Black, White, Green · 4C: + Red

Sizes

13 standard configurations (SJTOOW)

Nominal dimensions, copper weight, total mass and electrical parameters for SJTOOW per UL 62 / CSA C22.2 No. 49 / NEC Art. 400.

Dimensions & masses
DesignationAWG × ConductorsStranding / NEC AmpsNom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
SJTOOW size schedule
SJTOOW 18/218 AWG × 2C16/30 · 10 A7.3717.567.044.2
SJTOOW 18/318 AWG × 3C16/30 · 10 A7.8726.282.047.2
SJTOOW 18/418 AWG × 4C16/30 · 7 A8.6435.0101.051.8
SJTOOW 16/216 AWG × 2C26/30 · 13 A8.0027.882.048.0
SJTOOW 16/316 AWG × 3C26/30 · 13 A8.5141.7104.051.1
SJTOOW 16/416 AWG × 4C26/30 · 10 A9.4055.6131.056.4
SJTOOW 14/214 AWG × 2C41/30 · 18 A9.1444.2115.054.8
SJTOOW 14/314 AWG × 3C41/30 · 18 A9.6566.3146.057.9
SJTOOW 14/414 AWG × 4C41/30 · 15 A10.6788.4185.064.0
SJTOOW 12/312 AWG × 3C65/30 · 25 A11.18105.0208.067.1
SJTOOW 12/412 AWG × 4C65/30 · 20 A12.19140.0265.073.1
SJTOOW 10/310 AWG × 3C104/30 · 30 A14.48168.0345.086.9
SJTOOW 10/410 AWG × 4C104/30 · 25 A15.88224.0440.095.3
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to UL 62 / CSA C22.2 No. 49 / NEC Art. 400.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
1.5 kV AC dielectric test, spark test & DC resistanceZero breakdown; resistance per UL 62 Table 11100 % of reels
Sample tests
UL 62 oil immersion on both insulation & jacket + -40 °C bendRetains ≥75 % tensile/elongation after oil immersionEvery lot
720-hour Xenon-arc sunlight ('W'), VW-1/FT2 flame & water absorptionUL Listed & CSA Certified to UL 62 / C22.2 No. 49Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL Listed Type SJTOOW (File E-Series)CSA Certified C22.2 No. 49 (FT2)NEC Article 400 CompliantOSHA AcceptableRoHS 3 Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (UL) SJTOOW [N/AWG] 300V 105C -40C WATER RESISTANT CSA FT2 [lot/ft]
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSJTOOW Portable Cord – technical datasheet13 sizes · construction, technical data, approvalsXLSXSJTOOW spec data (Excel)All 13 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between SJTOOW and SJTOW?
Both are 300 V Junior Service thermoplastic PVC outdoor ('W') cords. In SJTOW (single 'O'), only the outer jacket is oil-resistant. In SJTOOW (double 'OO'), both the outer jacket AND the individual conductor insulations are oil-resistant, preventing insulation degradation when oil wicks into terminal boxes or plugs.
How does 300 V SJTOOW differ from 600 V STOOW?
The letter 'J' stands for Junior Service (300 V rating, thinner 30-mil insulation and 60–80 mil jacket wall, restricted to 18–10 AWG). Removing the 'J' gives STOOW (600 V Hard Usage service, thicker 30–60 mil insulation and 60–110 mil jacket, extending up to 2 AWG).
When should SJEOOW (TPE) be selected instead of SJTOOW (PVC)?
SJTOOW uses thermoplastic PVC rated down to -40 °C. If the cord is used in arctic sub-zero environments down to -50 °C or requires superior rubber-like limpness and flex memory, choose TPE-based SJEOOW.
Is SJTOOW approved for outdoor wet locations?
Yes. The 'W' suffix certifies that SJTOOW has passed UL 62 sunlight UV weathering and wet-location immersion dielectric tests.
