UL 62 / CSA C22.2 No. 49 North American Thermoplastic & TPE Portable Cords300 V UL 62 / CSA C22.2 No. 49Oil-Resistant Jacket (O) + Outdoor (W)18 to 10 AWG (-40 to +105 °C)

SJTOW Outdoor Portable Cord300 V UL 62 / CSA junior service thermoplastic PVC oil-jacketed ('O') outdoor ('W') portab

Type SJTOW is a 300 V North American Junior Hard Service portable cord manufactured to UL 62 and CSA C22.2 No. 49. Built with flexible bunch-stranded ASTM B174 bare copper conductors (18 to 10 AWG, 2 to 4 cores), standard thermoplastic PVC core insulation and

UL 'W' Outdoor Sunlight & Wet
Oil-Resistant PVC Outer Jacket (O)
UL VW-1 / CSA FT2 Flame
UL Listed / CSA Certified
Order designation
SJTOW 16/2
Nom. OD
8.00 mm
Copper mass
27.8 kg/km
Total mass ≈
81.0 kg/km
Min. bend R
48.0 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300 V AC
UL 62 Junior Hard Service (SJ)
Polymer type
Thermoplastic PV
-40 °C to +105 °C (or +60/+90 °C)
Oil rating
Single 'O' (Jack
Oil-resistant outer PVC sheath
Weather rating
'W' Outdoor / We
UV sunlight & water resistant
Gauge range
18 to 10 AWG
2, 3 & 4 conductors
Min. bend radius
6 × cord OD
Extension cords & power tools

Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / NEC Art. 400 — confirmed in the datasheet and quotation for your order.

Application fit

Is SJTOW right for your machine?

Specified for heavy-duty outdoor extension cords, portable construction lighting, pressure washers, landscaping machinery, commercial floor-care equipment and workshop power tools with sealed cord grips.

Trailing & towing

Suitable

Oil- and weather-resistant PVC outer jacket shrugs off wet grass, mud, concrete and garage oil spills.

Free-hanging vertical run

Suitable

Used for temporary jobsite string lighting, retractable garage cord reels and pendant drops.

Switchgear & control cabinet wiring

With conditions

Inner core insulation is standard PVC; if oil enters the terminal box, specify double-oil SJTOOW.

SJTOOW double-oil cord

Motorised monospiral reel

Not suitable

For 600 V heavy industrial reeling or high-current distribution, select STOOW or SEOOW.

STOOW 600 V portable cord
Typical machinesOutdoor contractor extension cordsPortable jobsite & task lightingPressure washers & lawn equipmentCommercial floor buffers & vacuumsLight industrial power tools

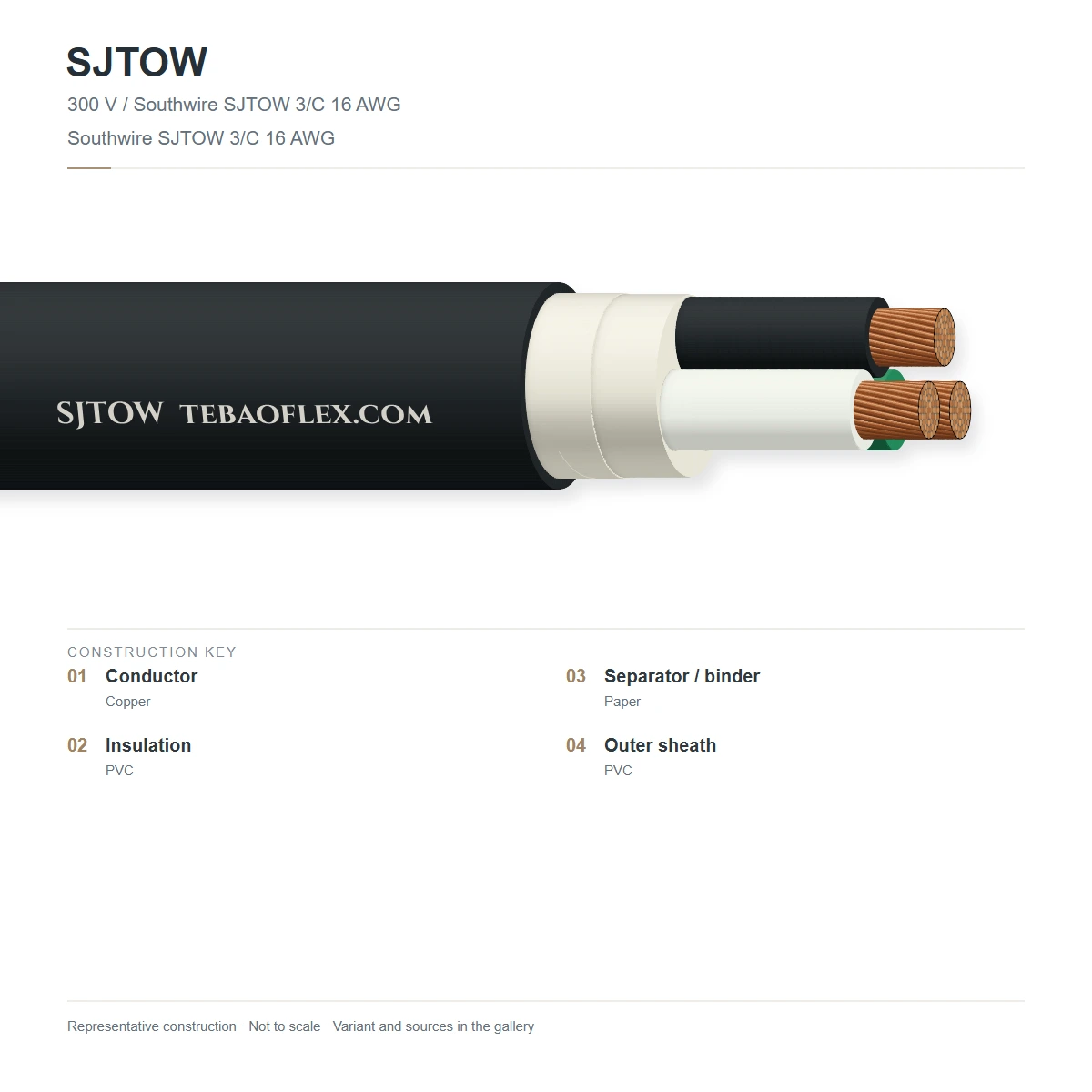

Construction

Layer by layer

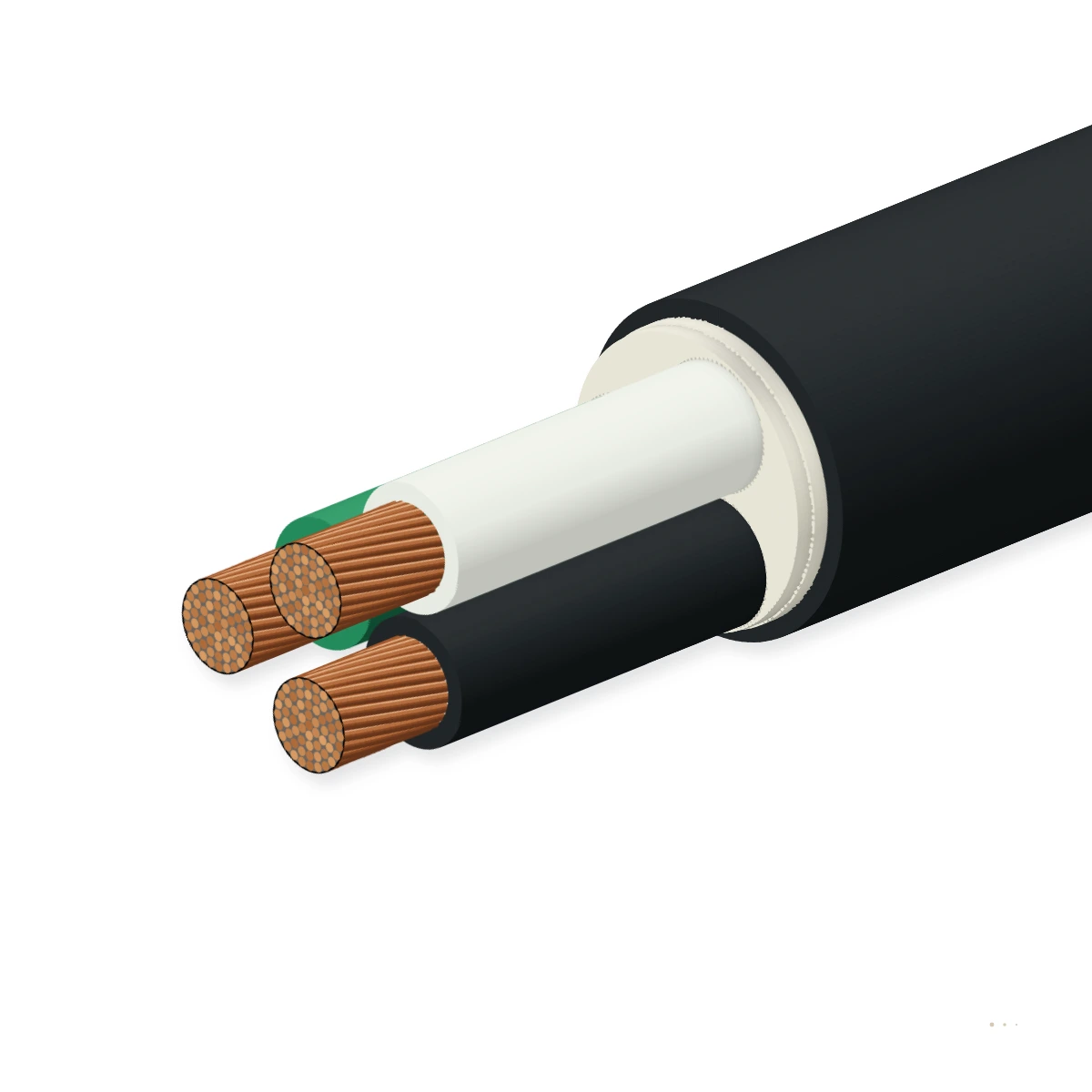

ASTM B174 flexible bunch-stranded bare copper (18–10 AWG) + colour-coded thermoplastic PVC core insulation + non-wicking fillers + oil- ('O') and weather/sunlight-resistant ('W') thermoplastic PVC outer jacket.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible bunch-stranded copper (ASTM B174)Fine-stranded annealed bare copper (30 AWG individual strands) per UL 62ASTM B174
2Thermoplastic PVC core insulation (T)Moisture- and heat-resistant colour-coded PVC dielectric (0.76–1.14 mm wall)UL 62
3Polypropylene fillers & separator wrapProvides a smooth round profile for watertight cord gripsUL 62
4Oil & outdoor PVC outer jacket (O + W)Oil-resistant, UV-stabilised and water-resistant PVC outer sheathUL 62

SJTOW Outdoor Contractor Grade (Yellow / Orange / Blue)

High-visibility 300 V outdoor extension and power tool cord in 16/3, 14/3, 12/3 and 10/3 AWG.

SJTOW OEM Appliance Grade (Black / Grey)

Black or grey 300 V cord for pressure washers, compressors, fans and commercial appliances.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / NEC Art. 400. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
300 V AC rms
Dielectric withstand test
1.5 kV AC rms for 1 minute
NEC ampacity (3 current-carrying cores)
10 A (18 AWG) · 13 A (16 AWG) · 18 A (14 AWG) · 25 A (12 AWG) · 30 A (10 AWG)

Thermal

Continuous temperature range
-40 °C to +105 °C (UL / CSA)
Cold bend test
-40 °C without jacket cracking

Mechanical

Insulation / jacket wall (18–12 AWG)
0.76 mm (30 mil) insulation · 1.52 mm (60 mil) jacket
Minimum bending radius
6 × overall cord diameter

Resistance

Outer jacket oil resistance ('O')
Outer PVC sheath passes UL 62 oil immersion without swelling or cracking
Outdoor & flame rating ('W')
720 h Xenon-arc UV & wet location rated · UL VW-1 / CSA FT2 flame

Reference standards

Reference standards
UL 62, CSA C22.2 No. 49 & NEC Article 400
Safety compliance
UL Listed, CSA Certified, OSHA Acceptable, RoHS 3

Identification

Code breakdown
S = Service · J = Junior (300 V) · T = Thermoplastic PVC · O = Oil-resistant jacket · W = Weather/Outdoor
Core colour code
Black, White, Green (+ Red on 4C)

Sizes

12 standard configurations (SJTOW)

Nominal dimensions, copper weight, total mass and electrical parameters for SJTOW per UL 62 / CSA C22.2 No. 49 / NEC Art. 400.

Dimensions & masses
DesignationAWG × ConductorsStranding / NEC AmpsNom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
SJTOW size schedule
SJTOW 18/218 AWG × 2C16/30 · 10 A7.3717.566.044.2
SJTOW 18/318 AWG × 3C16/30 · 10 A7.8726.281.047.2
SJTOW 18/418 AWG × 4C16/30 · 7 A8.6435.0100.051.8
SJTOW 16/216 AWG × 2C26/30 · 13 A8.0027.881.048.0
SJTOW 16/316 AWG × 3C26/30 · 13 A8.5141.7103.051.1
SJTOW 16/416 AWG × 4C26/30 · 10 A9.4055.6130.056.4
SJTOW 14/214 AWG × 2C41/30 · 18 A9.1444.2114.054.8
SJTOW 14/314 AWG × 3C41/30 · 18 A9.6566.3145.057.9
SJTOW 14/414 AWG × 4C41/30 · 15 A10.6788.4184.064.0
SJTOW 12/312 AWG × 3C65/30 · 25 A11.18105.0206.067.1
SJTOW 12/412 AWG × 4C65/30 · 20 A12.19140.0262.073.1
SJTOW 10/310 AWG × 3C104/30 · 30 A14.48168.0342.086.9
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to UL 62 / CSA C22.2 No. 49 / NEC Art. 400.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
1.5 kV AC dielectric test, spark test & DC resistanceZero breakdown; resistance per UL 62100 % of reels
Sample tests
Outer jacket oil immersion & -40 °C cold bend testJacket passes UL 62 oil & low-temperature bendEvery batch
720-hour UV weathering, wet dielectric & VW-1/FT2 flameUL Listed & CSA Certified to UL 62 / C22.2 No. 49Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL Listed Type SJTOWCSA Certified C22.2 No. 49 (FT2)NEC Article 400 CompliantOSHA AcceptableRoHS 3 Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (UL) SJTOW [N/AWG] 300V 105C -40C OUTDOOR WATER RESISTANT CSA FT2 [lot/ft]
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSJTOW Outdoor Portable Cord – technical datasheet12 sizes · construction, technical data, approvalsXLSXSJTOW spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When is SJTOW sufficient and when must I upgrade to SJTOOW?
When a portable cord is terminated with moulded NEMA plugs/connectors or sealed liquid-tight strain-relief glands so that oils only contact the outside of the cord, SJTOW (oil-resistant outer jacket) is completely sufficient and more economical. If the stripped inner cores are exposed to cutting oil mist inside a wet junction box, specify SJTOOW.
How does SJTOW compare with SVT?
SVT is a light-duty 300 V indoor vacuum/appliance cord (18–16 AWG only, thinner 15-mil insulation and 30-mil non-oil/non-outdoor jacket). SJTOW is a Junior Hard Service cord (18–10 AWG, 30-mil insulation and 60–80 mil oil- and weather-resistant jacket) built for outdoor jobsite and workshop abuse.
Can SJTOW be used outdoors year-round?
Yes. The 'W' rating under UL 62 and CSA C22.2 No. 49 qualifies SJTOW for both direct sunlight UV exposure and wet outdoor locations down to -40 °C.
Does a 3-conductor SJTOW cord (e.g. 12/3) carry 3 phase conductors or 2 power + 1 ground?
In North American UL 62 portable cord notation, the green equipment grounding conductor is counted in the total conductor number: '12/3 SJTOW' contains 1 Black (hot), 1 White (neutral) and 1 Green (ground) conductor.
