EN 50525 & HD 361 Industrial Rubber CablesHD 361 / EN 50525300/500 V–0.6/1 kVCu-Braid Screened 'C4'

S05BC4B-F / S07BC4B-F / S1BC4B-F Screened EPR Flexible IndustrialEN 50525-2-21 / HD 361 · 300/500 V to 0.6/1 kV · +90 °C EPR ('B') · Cu braid ('C4') ·

S05BC4B-F (300/500 V), S07BC4B-F (450/750 V), and S1BC4B-F (0.6/1 kV) are EMC-screened flexible industrial rubber cables coded to CENELEC HD 361 and based on EN 50525-2-21. Built with +90 °C EPR core insulation ('B'), a tinned copper wire braid screen

EMC screen

Low-EMC design

Ozone, UV & moisture

Anti-torsion braid

Type, Voltage & Configuration

Order designation: S05BC4B-F 18G1.5 (300/500 V)
Outer Ø ≈: 20.8 mm
Copper weight: 340 kg/km
Total weight ≈: 640 kg/km
Min. bend R (fixed): 104 mm

All sizes (12)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Voltage classes: 05 / 07 / 1 kV
EMC screening: Tinned Cu 'C4'
Conductor max.: +90 °C ('B')
Cold flexibility: -40 °C mobile
Min. bend R: 5 × D / 8 × D
Halogen status: Halogen-free B/B

Typical values for this cable type, based on EN 50525-2-21 / HD 361 / VDE 0285 — confirmed in the datasheet and quotation for your order.

Application fit

Is S05BC4B-F / S07BC4B-F / S1BC4B-F right for your machine?

Engineered for EMC-sensitive industrial drives, frequency-converter motor leads, outdoor cranes, wind turbines, and cold-climate machinery requiring a screened +90 °C rubber cable.

VFD inverter to AC motor screened feeder

Suitable

Low-capacitance EPR dielectric and ≥ 85 % 'C4' tinned copper braid suppress VFD common-mode EMI.

Trailing & towing

Suitable

Remains supple down to -40 °C for mobile outdoor machinery, cranes, and cold-store equipment.

Festoon & line chain

Suitable

Suitable for crane festoon systems requiring screened control and motor power leads.

Fixed installation

Suitable

Halogen-free EPR/EPR ('B/B') construction suits public infrastructure, tunnels, and wind towers.

Immersion & wet locations

With conditions

Weather and splash proof; select AD8-rated S07RC4N8-F or S1BC4N8-F for permanent water submersion.

S1BC4N8-F 0.6/1 kV

Typical machinesIndustrial VFD & Servo DrivesWind Turbine & Renewable EnergyCold-Storage & Arctic LogisticsCrane Festoon & Hoist ControlPublic Infrastructure & Tunnelling

Construction

Layer by layer

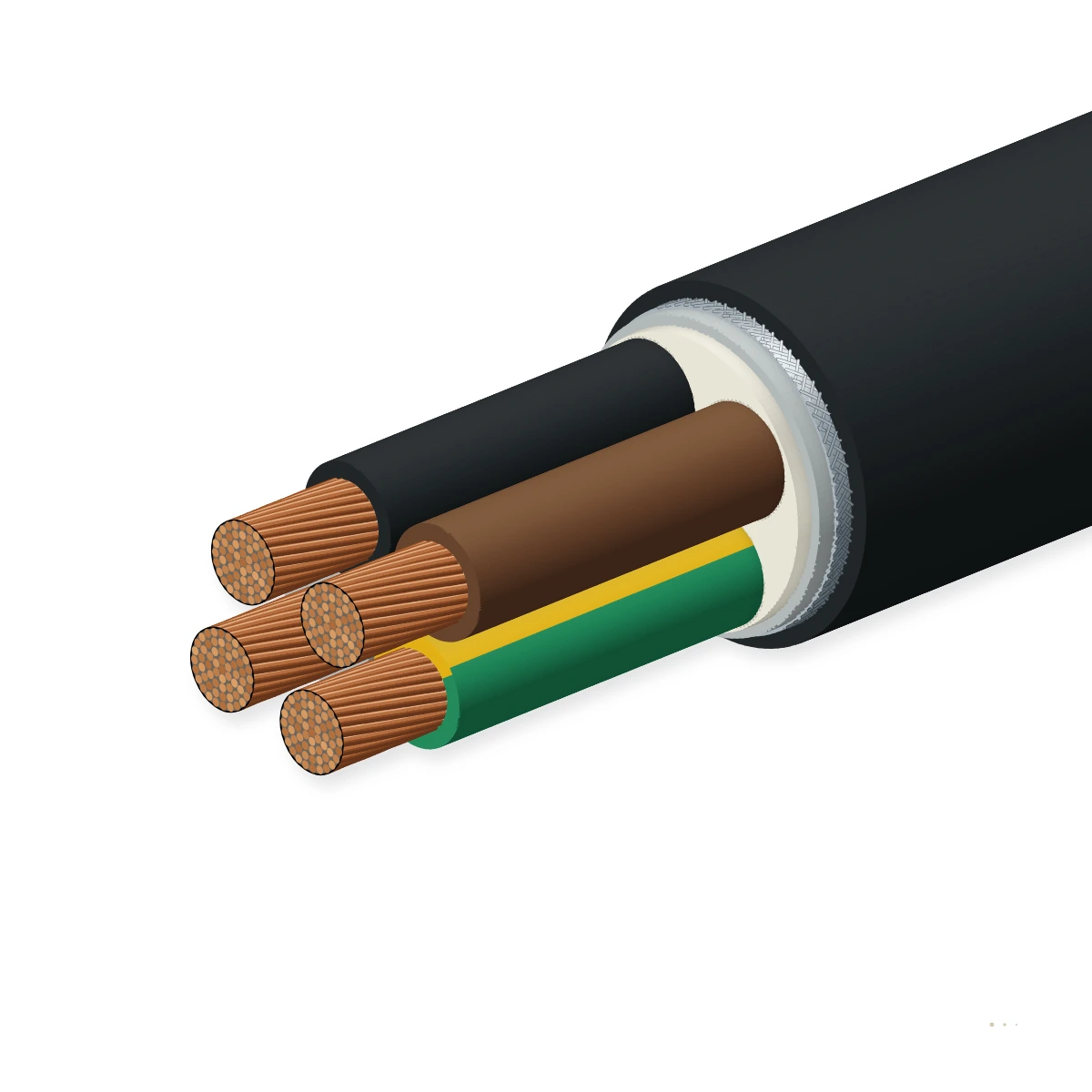

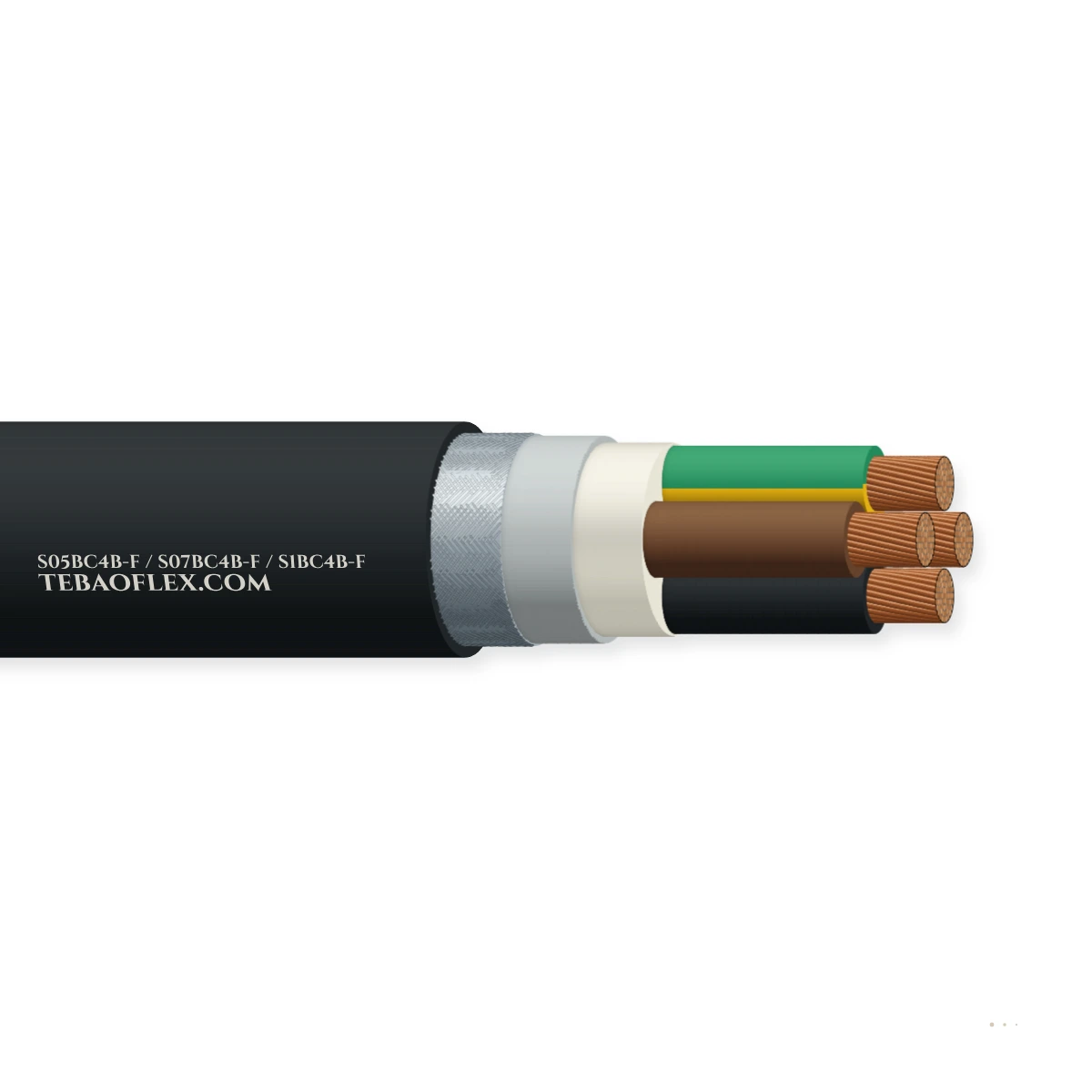

Class 5 copper conductors, +90 °C EPR insulation ('B'), elastomeric inner bedding, tinned copper wire braid screen ('C4'), and +90 °C EPR

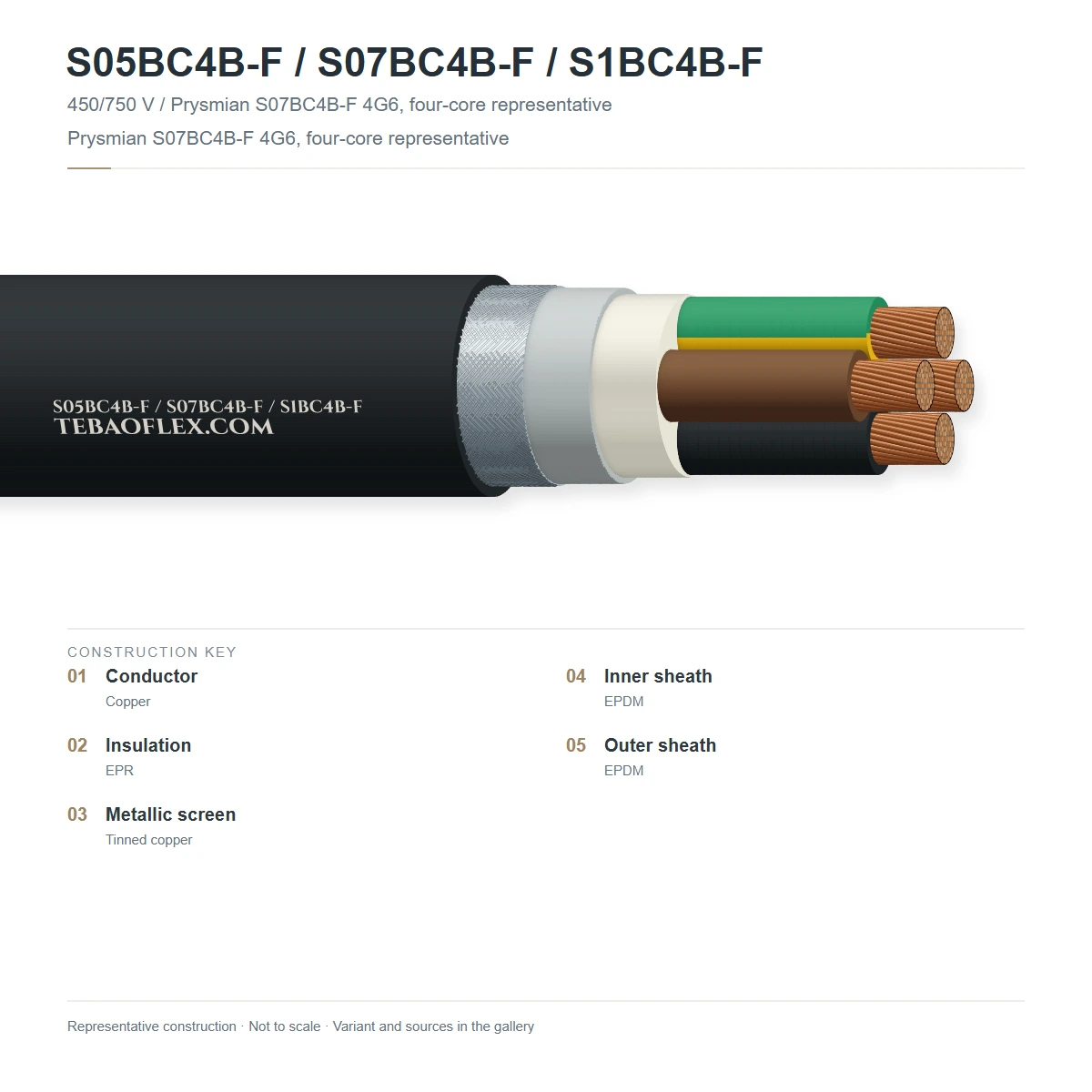

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible copper conductor ('-F')	Class 5 fine-stranded plain or tinned annealed copper wireEN 60228 Class 5
2	+90 °C EPR core insulation ('B')	Cross-linked ethylene-propylene elastomer Type EI7 / 3GI3 rated for +90 °C continuousEN 50363-1
3	Inner elastomeric bedding	Extruded rubber inner sheath or non-hygroscopic tape wrap over laid-up coresEN 50525-2-21
4	Tinned copper braid screen ('C4')	Braided tin-coated copper wires with ≥ 85 % optical coverage for low transfer impedanceHD 361 S3
5	Cross-linked EPR outer sheath ('B')	Halogen-free, ozone-, UV-, and cold-resistant (-40 °C) ethylene-propylene elastomerEN 50363-2-1

S05BC4B-F (300/500 V)

Screened multi-core EPR control, sensor, and instrumentation cable (0.75–2.5 mm², 2 to 24 cores).

S07BC4B-F (450/750 V) & S1BC4B-F (0.6/1 kV)

Screened heavy-duty EPR power and VFD motor supply cable (1.5–95 mm²).

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-21 / HD 361 / VDE 0285. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (S05 / S07 / S1): 300/500 V · 450/750 V · 0.6/1 kV
Routine AC test voltage: 2.0 kV (S05) / 2.5 kV (S07) / 3.5 kV (S1)
Screen optical coverage ('C4'): ≥ 85 % tinned copper wire braid
Transfer impedance at 30 MHz: ≤ 250 mΩ/m
Conductor stranding class: EN 60228 Class 5
Operating frequency: 50 / 60 Hz & VFD PWM

Thermal

Max. conductor operating temp.: +90 °C continuous ('B' EPR)
Max. short-circuit temperature: +250 °C (max. 5 s)
Mobile flexing ambient range: -40 °C to +60 °C
Fixed installation ambient: -50 °C to +80 °C
Current rating advantage: +15 % higher ampacity vs +60 °C H07RN-F
Min. installation temperature: -40 °C

Mechanical

Min. bend radius (fixed): 5 × overall diameter (D)
Min. bend radius (flexing): 8 × overall diameter (D)
Max. tensile pull on copper: 15 N/mm²
Impact & abrasion resistance: Heavy-duty industrial Type EM7 EPR
Sub-zero cold impact: No cracking down to -40 °C
Braid fatigue durability: Fine-wire high-angle tinned Cu braid

Resistance

Halogen-free composition: EN 60754-1/2 halogen-free EPR/EPR
Ozone & UV weather resistance: EN 60811-403 ozone-proof EPR sheath
Cold-climate flexibility: Remains flexible down to -40 °C
Water & humidity resistance: Suitable for damp & outdoor locations
EMC electromagnetic shielding: EN 55011 / EN 61800-3 VFD compliant
RoHS / REACH status: CE & RoHS 3 compliant

Reference standards

Designation code system: CENELEC HD 361 S3 ('S..BC4B-F')
Construction reference standard: EN 50525-2-21 / DIN VDE 0285
Insulation & sheath standard: EN 50363-1 (EI7) & EN 50363-2-1 (EM7)
Conductor standard: EN 60228 Class 5
Halogen test standard: EN 60754-1 / IEC 60754-2
Quality certification: EN 10204 3.1 mill certificate

Identification

Core identification (≤ 5 cores): HD 308 S2 colours (with G/Y)
Core identification (≥ 6 cores): White numbers on black cores + G/Y
Outer sheath colour: Black
Surface marking: TEBAOFLEX S07BC4B-F / S1BC4B-F [n×mm²] CE
Length marking: Sequential metre marking
Batch traceability: Lot number & year code

Sizes

12 standard configurations (S05BC4B-F / S07BC4B-F / S1BC4B-F)

Nominal dimensions, copper weights and electrical parameters for S05BC4B-F / S07BC4B-F / S1BC4B-F per EN 50525-2-21 / HD 361 / VDE 0285.

Dimensions & weights
Order designation	Type, Voltage & Configuration	Phase size mm²	Outer Ø ≈ mm	Copper kg/km	Weight ≈ kg/km	Min. bend R fixed mm
S05BC4B-F (300/500 V) — Screened EPR control & instrumentation
S05BC4B-F 4G1.0 (300/500 V)	300/500 V 4G1.0	1.0	10.2	64	152	51
S05BC4B-F 7G1.5 (300/500 V)	300/500 V 7G1.5	1.5	14.2	145	295	71
S05BC4B-F 12G1.5 (300/500 V)	300/500 V 12G1.5	1.5	18.0	235	465	90
S05BC4B-F 18G1.5 (300/500 V)	300/500 V 18G1.5	1.5	20.8	340	640	104
S07BC4B-F (450/750 V) & S1BC4B-F (0.6/1 kV) — Screened EPR power & VFD
S07BC4B-F 4G1.5 (450/750 V)	450/750 V 4G1.5	1.5	11.8	92	205	59
S07BC4B-F 4G2.5 (450/750 V)	450/750 V 4G2.5	2.5	13.8	142	285	69
S07BC4B-F 4G4.0 (450/750 V)	450/750 V 4G4.0	4.0	16.0	212	395	80
S07BC4B-F 4G6.0 (450/750 V)	450/750 V 4G6.0	6.0	18.0	302	525	90
S1BC4B-F 4G10 (0.6/1 kV)	0.6/1 kV 4G10	10	22.8	485	845	114
S1BC4B-F 4G16 (0.6/1 kV)	0.6/1 kV 4G16	16	26.2	735	1,185	131
S1BC4B-F 4G25 (0.6/1 kV)	0.6/1 kV 4G25	25	31.0	1,110	1,720	155
S1BC4B-F 4G35 (0.6/1 kV)	0.6/1 kV 4G35	35	34.6	1,520	2,240	173

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per EN 50525-2-21 / HD 361 / VDE 0285.

Electrical & ampacity data
Configuration	Max. DC R @ 20 °C Ω/km	Current rating in air (A)	Current rating installed (A)	Mutual C pF/m ≈	AC test V rms
300/500 V 4G1.0	19.500	17	14	79	2,500
300/500 V 7G1.5	13.300	22	19	80	2,500
300/500 V 12G1.5	13.300	22	19	80	2,500
300/500 V 18G1.5	13.300	22	19	80	2,500
450/750 V 4G1.5	13.300	22	19	80	2,500
450/750 V 4G2.5	7.980	30	26	82	2,500
450/750 V 4G4.0	4.950	40	34	84	2,500
450/750 V 4G6.0	3.300	51	43	87	2,500
0.6/1 kV 4G10	1.910	70	60	92	2,500
0.6/1 kV 4G16	1.210	93	79	101	2,500
0.6/1 kV 4G25	0.780	123	105	114	2,500
0.6/1 kV 4G35	0.554	152	129	129	2,500

Current ratings apply at +25/+30 °C ambient in free air; apply standard derating factors for elevated ambient or drum coiling.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC dielectric voltage test	2.0 kV (S05), 2.5 kV (S07), or 3.5 kV (S1) rms for 5 minutes	Every drum
Conductor & C4 braid DC resistance	EN 60228 Class 5 conductor & ≥ 85 % braid coverage verified	Every drum
Sample tests
-40 °C cold-bend & +90 °C thermal ageing	Passes EN 50363 EI7/EM7 thermal stability and sub-zero bend test	Per batch
Halogen-free & ozone resistance test	Passes EN 60754-1/2 halogen-free test and EN 60811-403 ozone test	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

HD 361 / EN 50525-2-21EN 60754-1/2CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX S07BC4B-F / S1BC4B-F [n×mm²] +90C

Delivery form: Fumigated export wooden drums or coils
Standard drum lengths: 500 m · 1000 m (or custom cut lengths)
MOQ: 100 m (stock sizes) · 300–500 m (production)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFS05BC4B-F / S07BC4B-F / S1BC4B-F Screened EPR Flexible Industrial – technical datasheet12 sizes · construction, technical data, approvals XLSXS05BC4B-F / S07BC4B-F / S1BC4B-F spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How is the CENELEC designation S05BC4B-F / S07BC4B-F / S1BC4B-F decoded?

Under CENELEC HD 361, 'S' denotes a national-type cable following harmonised construction rules, '05'/'07'/'1' specifies the voltage class (300/500 V, 450/750 V, or 0.6/1 kV), the first 'B' means +90 °C EPR core insulation, 'C4' designates a copper wire braid screen over the assembled cores, the second 'B' means an EPR outer sheath, and '-F' indicates Class 5 flexible copper conductors.

What are the advantages of 'B..B' (EPR/EPR) over 'R..N' (EPR/PCP) rubber cables?

Unlike polychloroprene ('N') which contains chlorine and stiffens below -25 °C, the dual EPR ('B..B') system is completely halogen-free, supports a continuous +90 °C conductor temperature, and remains flexible down to -40 °C in mobile outdoor service. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.

When should S07RC4N8-F or S1BC4N8-F be used instead of S07BC4B-F / S1BC4B-F?

When the screened cable is exposed to heavy mineral oil immersion, flame-retardant mining duty, or AD8 permanent water submersion, select polychloroprene-sheathed S07RC4N8-F (450/750 V) or S1BC4N8-F (0.6/1 kV). Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.

Can S07BC4B-F and S1BC4B-F be used as VFD motor supply cables?

Yes, the low-permittivity EPR core insulation combined with the ≥ 85 % optical coverage tinned copper braid ('C4') provides effective electromagnetic shielding for variable-frequency motor drives. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
