Low-voltage rubber reeling cables (DIN VDE 0250-814)0.6/1 kV(N)SHTOEU-JReeling 120 m/min

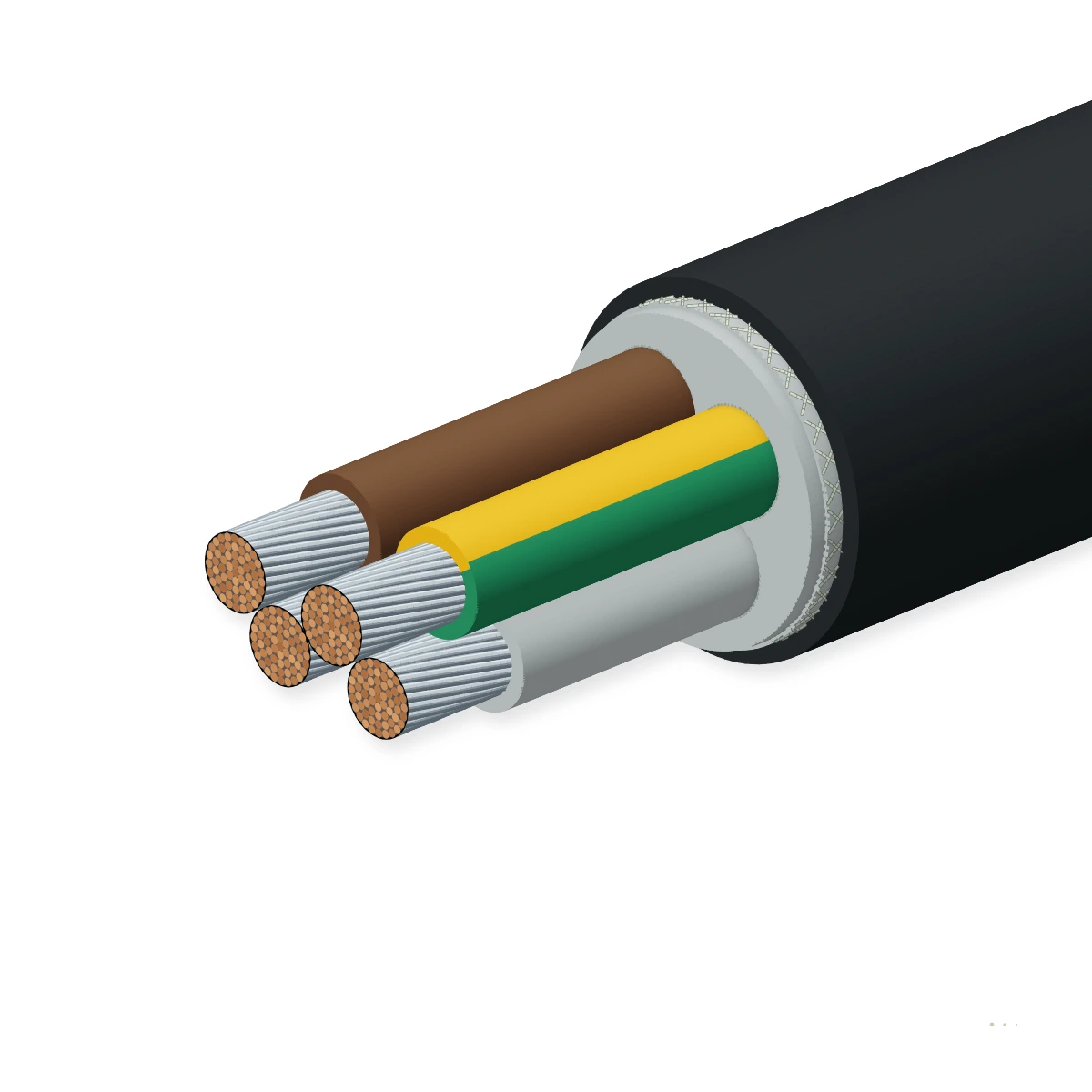

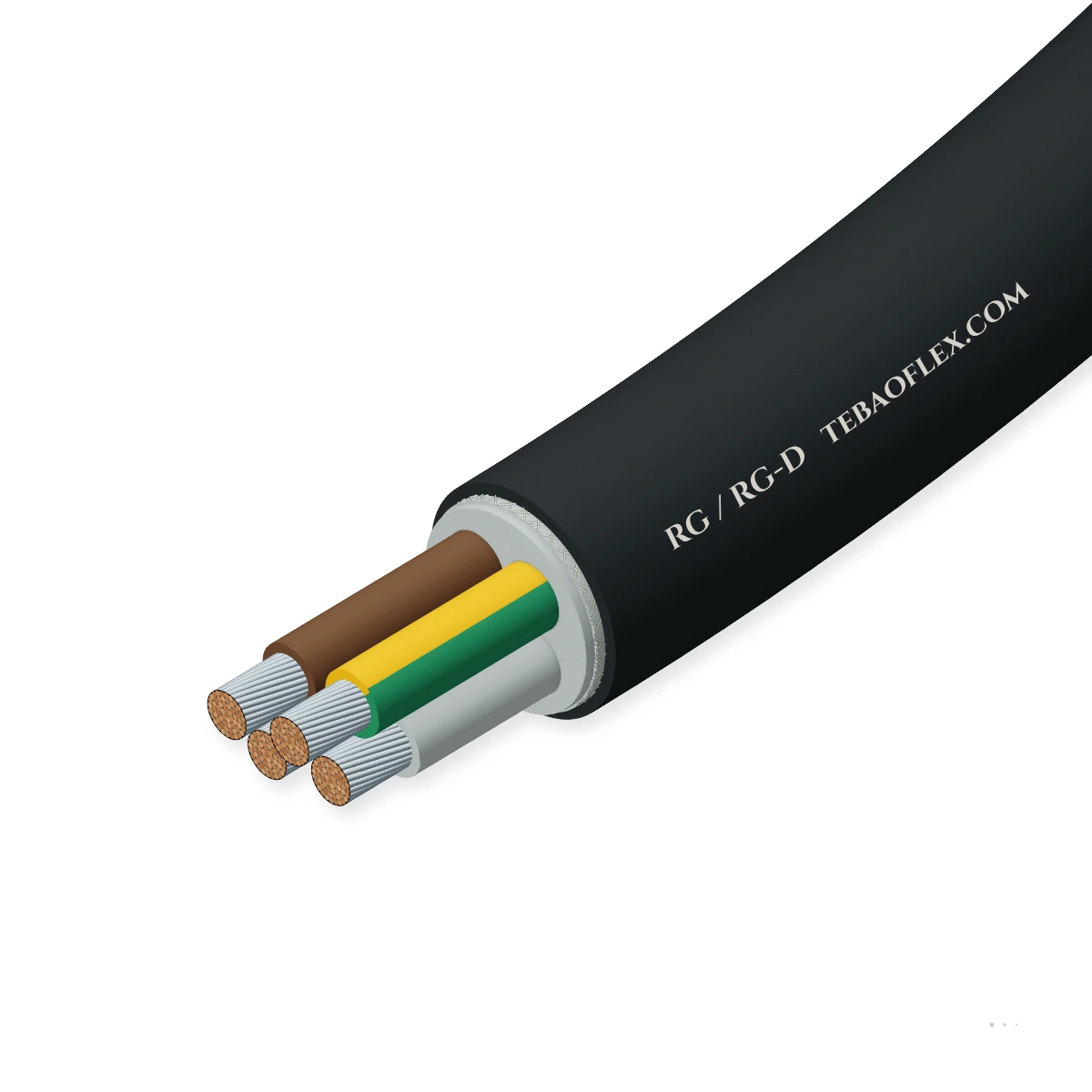

RG / RG-D Rubber Reeling Cable (N)SHTOEU-J (0.6/1 kV)Black PCP sandwich-sheathed 0.6/1 kV reeling cable with anti-torsion braid up to 120 m/min

0.6/1 kV rubber reeling cable adapted to DIN VDE 0250-814 ((N)SHTOEU-J) with Class 5 tinned copper cores, EPR insulation, and black PCP sandwich double sheath with anti-torsion braid. 21 RG control/power sizes and 4 RG-D screened-data sizes.

Anti-torsion braid
Oil-resistant
Flame-retardant
Ozone, UV & moisture
Order designation
RG 4 G 16
Outer Ø max
27.6 mm
Weight ≈
1,310 kg/km
Permitted pull
960 N
Reel R min (6×D)
166 mm
Check against my drumAll sizes (25)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
U0/U (Um 0.7/1.2 kV AC)
Reeling speed
120 m/min
max. horizontal monospiral/level-wind
Min. bend radius
6 × D
6 × D reeling · 7.5 × D rollers
Flexing temp.
−25…+80 °C
fixed −40…+80 °C · cond. +90 °C
Tensile rating
15 N/mm²
150–2,100 N across 25 sizes
Configurations
25 configs
21 RG power/ctrl + 4 RG-D data

Typical values for this cable type — confirmed in the datasheet and quotation for your order.

Application fit

Is RG / RG-D (N)SHTOEU-J right for your machine?

RG and RG-D are built for standard-duty motorized and spring-driven monospiral and level-wind cable reels up to 120 m/min on bulk material handling equipment, including stacker/reclaimers, shiploaders, bucket-wheel excavators, and sulfur/urea chemical plants.

Motorised monospiral reel

Suitable

Primary duty up to 120 m/min on stacker/reclaimers, shiploaders, bucket-wheel excavators, and bulk handling plant.

Cylindrical / multi-layer drum

Suitable

Suitable for motor-driven and spring-driven cylindrical multi-layer reels with 0.80–0.38 layer derating per DIN VDE 0298-4.

Vertical / spreader reel

With conditions

Standard 15 N/mm² horizontal reeling design; for severe vertical spreader reeling up to 240 m/min use RXG / RXG-D or RXX.

RXG / RXG-D Heavy-Duty PCP Reeling Cable

Festoon & line chain

Suitable

Minimum roller bending radius 7.5 × D and minimum distance ≥ 20 × D between two changes of bending direction.

Typical machinesBulk Material HandlingPorts & ShiploadersSurface Mining & QuarryingFertilizer & Sulfur Plants

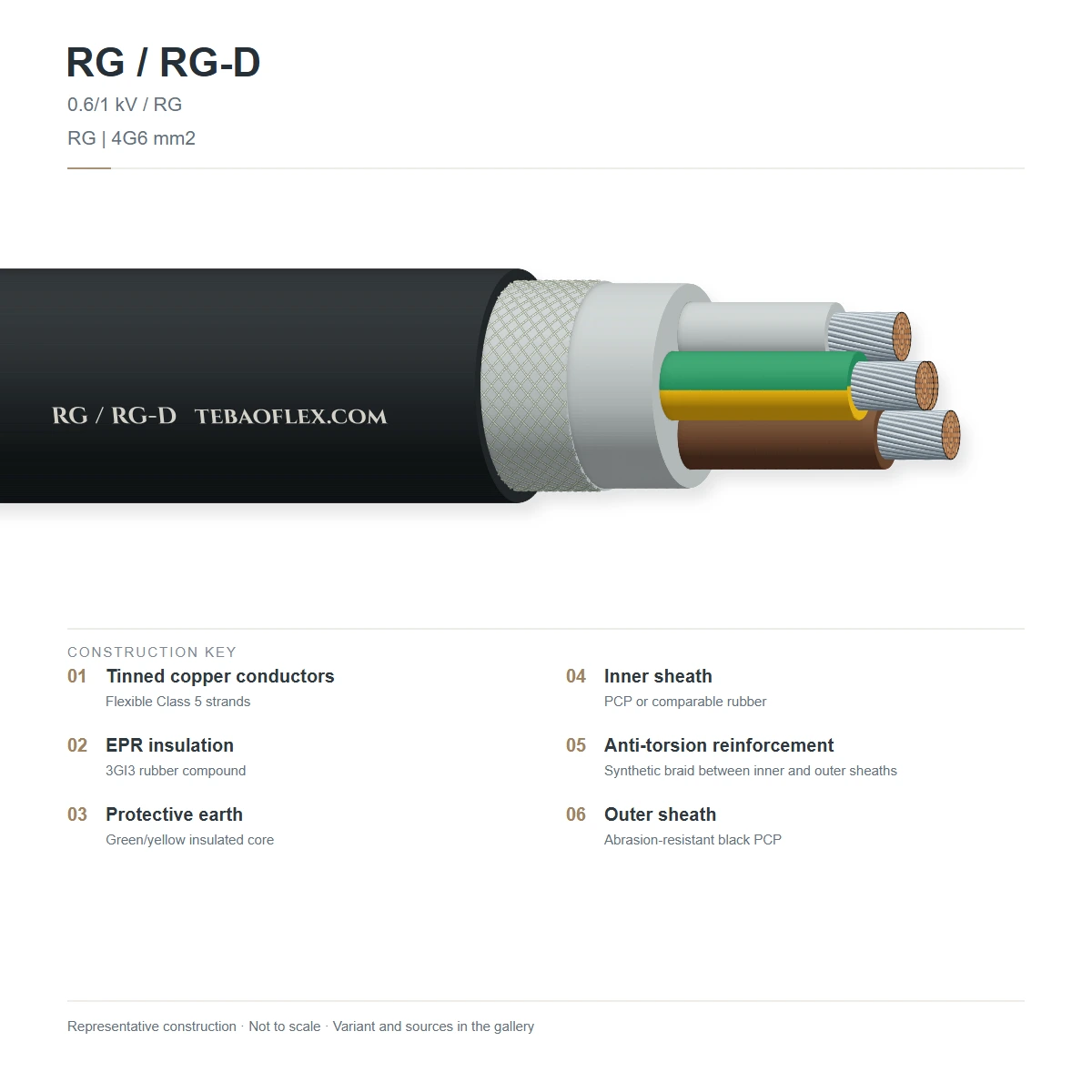

Construction

Layer by layer

Shown: RG / RG-D (N)SHTOEU-J reeling construction with Class 5 tinned copper conductors, EPR core insulation, optional individually copper-screened RG-D data cores, PCP inner sheath, embedded anti-torsion textile braid, and black abrasion-resistant PCP outer sheath.

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible tinned copper conductorElectrolytic tinned copper, finely stranded Class 5 per DIN VDE 0295 / IEC 60228Corrosion-resistant tinned strands for long flex life on monospiral and level-wind drums
2Core insulation & codingEthylene-propylene rubber (EPR, 3GI3) compound per DIN VDE 0207Up to 5 cores colour-coded per DIN VDE 0293-308 + GNYE; > 5 cores black with white numbers + GNYE
3Individual data core screen (RG-D only)Braided copper screen ('C') over individual 1.0 mm² or 1.5 mm² signal/data coresShields sensitive control and feedback signals from power switching transients
4Multi-layer core strandingCores laid up in concentric layers (maximum 3 layers) with short lay lengthBalances axial tensile load across active conductors during reeling
5Inner sheathPolychloroprene (PCP, 5GM3) rubber compound per DIN VDE 0250Forms a round, pressure-stabilized core bed beneath the anti-torsion braid
6Embedded anti-torsion braidHigh-strength synthetic textile braid vulcanized between inner and outer PCP sheathsSandwich double-sheath design suppresses twist over guide sheaves and S-curves
7Outer sheathAbrasion- and oil-resistant polychloroprene (PCP, 5GM3) rubber compound, blackResistant to oil, UV, ozone, humidity, sulfur, and urea · low flammability per IEC 60332-1

RG Control & Power Cable · 0.6/1 kV (21 sizes)

Unscreened 1.5 mm² and 2.5 mm² control cables (4 to 36 cores) and 4–35 mm² power cables (4 G and 5 G) in black sandwich PCP sheath

RG-D Composite Control & Screened Data · 0.6/1 kV (4 sizes)

12 to 26 × 2.5 mm² unscreened cores combined with 5, 10, or 12 individually copper-screened ('C') 1.0 mm² or 1.5 mm² data cores

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV
Max. operating voltage AC
0.7/1.2 kV
Max. operating voltage DC
0.9/1.8 kV
AC test voltage
2.5 kV AC (power cores) / 2.0 kV AC (control cores)
Current rating (DIN VDE 0298-4)
Per DIN VDE 0298-4 (30 °C ambient; reel layer factors 0.80 for 1 layer / spiral, 0.61 for 2 layers, 0.49 for 3 layers)

Thermal

Temperature, flexing
−25 °C to +80 °C
Temperature, fixed installation
−40 °C to +80 °C
Max. conductor temperature
+90 °C
Short-circuit temperature
+200 °C

Mechanical

Max. travel speed
Up to 120 m/min (horizontal reeling)
Max. tensile load (dynamic)
15 N/mm² (150–2,100 N per size table; catalog text notes 20 N/mm²)
Min. bending radius, moving
6 × D (reeling) / 7.5 × D (diversion rollers)
S-bend distance
≥ 20 × D between two changes of bending direction

Resistance

Oil resistance
Oil-resistant outer sheath per DIN VDE 0472-803 / EN 60811-404
Flame retardance
Flame-retardant per IEC 60332-1-2 / DIN VDE 0482-265-2-1
UV, ozone & chemical resistance
Resistant to ozone, UV, humidity, moisture, sulfur and urea; LBS-free / silicone-free; contains halogens (PCP)

Reference standards

Cable standard & designation
(N)SHTOEU-J adapted to DIN VDE 0250-814; cores per DIN VDE 0293-308
Conductor standard
DIN VDE 0295 / IEC 60228 Class 5 (tinned copper)
Core coding & fire test
DIN VDE 0293-308 (black with white numbers + GNYE) · IEC 60332-1-2

Sizes

25 configurations (RG Control, RG Power & RG-D Screened Data)

Filter by RG 1.5–2.5 mm² control cables (12 sizes), RG 4–35 mm² power cables (9 sizes), or RG-D composite power + individually copper-screened data cables (4 sizes). Reeling bend radius r_reel = 6 × D_max.

Dimensions & mechanical loads
DesignationCores × mm²Outer Ø minOuter Ø maxCu numberWeight ≈Permitted pullReel R min (6×D)Enquiry
RG Control Cable (1.5 – 2.5 mm²)
RG 7 × 1.57 × 1.516.518.593415158111
RG 12 × 1.512 × 1.519.521.9158585270131
RG 18 × 1.518 × 1.52224.9240801405149
RG 24 × 1.524 × 1.525.628.53221,040540171
RG 36 × 1.536 × 1.528.631.84831,370810191
RG 4 G 2.54 G 2.514.517.896360150107
RG 5 G 2.55 G 2.51517.5120425188105
RG 7 × 2.57 × 2.518.121.1157575263127
RG 12 × 2.512 × 2.521.524.9269800450149
RG 18 × 2.518 × 2.525.528.54061,095675171
RG 24 × 2.524 × 2.529335451,490900198
RG 30 × 2.530 × 2.53134.56821,7001,125207
RG Power Cable (4 – 35 mm²)
RG 4 G 44 G 416.519143460240114
RG 4 G 64 G 618.420.5211615360123
RG 4 G 104 G 102225.5367920600153
RG 4 G 164 G 162527.65881,310960166
RG 4 G 254 G 2529.6348861,8901,500204
RG 4 G 354 G 3533.536.41,3232,4902,100218
RG 5 G 65 G 620.423264725450138
RG 5 G 105 G 1024.526.74601,140750160
RG 5 G 165 G 1627.629.77361,4801,200178
RG-D Control & Screened Data Cable
RG-D 12 × 2.5 + 12 × 1.5 C12 × 2.5 + 12 × 1.5 C31355861,420450210
RG-D 19 × 2.5 + 5 × 1.5 C19 × 2.5 + 5 × 1.5 C30345901,700713204
RG-D 25 × 2.5 + 5 × 1.5 C25 × 2.5 + 5 × 1.5 C31358231,680938210
RG-D 26 × 2.5 + 10 × 1 C26 × 2.5 + 10 × 1 C36.239.47202,150975236
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • All 25 configurations verified against the specialist reeling cable catalog.
  • In RG-D configurations, the 'C' suffix denotes individually copper-screened 1.0 mm² or 1.5 mm² signal/data conductors.
  • Permitted dynamic tensile loads [N] in the table correspond to 15 N/mm² of active copper cross-section (DIN VDE 0250-814).

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 400 mm ≥ 332 mmBending radius OK (6 × OD 27.6 mm)
80 m/min ≤ 120 m/minWithin the rated travel speed
Minimum bending radius
166 mm
Min. drum core diameter
≈ 332 mm
Cable weight on drum
131.0 kg
Copper content
58.8 kg
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test2.5 kV AC (power cores) / 2.0 kV AC (control cores)Every manufactured length
Sample tests
Vertical flame propagationSelf-extinguishing per IEC 60332-1-2 / DIN VDE 0482-265-2-1Type qualification
Oil immersion resistanceDIN VDE 0472-803 / EN 60811-404 on polychloroprene outer sheathType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

0.6/1 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX RG / RG-D (N)SHTOEU-J [cores × section] 0.6/1 kV · [year] · [metre mark]
Delivery form
Custom reel cut lengths or bulk factory drums
Minimum order
300–500 m on non-stock items; standard cross-sections from stock
Customs HS code
8544.49

Technical documents

Downloads

PDFRG / RG-D Rubber Reeling Cable (N)SHTOEU-J (0.6/1 kV) – technical datasheet25 sizes · construction, technical data, approvalsXLSXRG / RG-D (N)SHTOEU-J spec data (Excel)All 25 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between RG and RG-D reeling cables?
Standard RG cables contain unscreened Class 5 tinned copper control or power cores (from 7 × 1.5 mm² and 4 G 2.5 mm² up to 4 G 35 mm²). RG-D composite cables combine unscreened 2.5 mm² power/control cores with 5 to 12 individually copper-braid-screened ('C') 1.0 mm² or 1.5 mm² signal cores inside the same polychloroprene sandwich sheath for EMI-sensitive encoder or bus feedback.
Why does page 1 of the PDF mention +90 °C ambient while the technical table states +80 °C?
Under DIN VDE 0250-814 and the reference reeling catalog, +90 °C is the maximum permissible operating temperature at the conductor for EPR (3GI3) insulation (with +200 °C short-circuit rating), whereas the permissible ambient air temperature is −25 °C to +80 °C in flexing service and −40 °C to +80 °C in fixed installation. Above +30 °C ambient, apply DIN VDE 0298-4 derating factors.
How is the maximum dynamic tensile load calculated for RG and RG-D cables?
The permitted pulling force in the dimensional table is calculated at 15 N/mm² of active copper cross-section in accordance with DIN VDE 0250-814 (ranging from 150 N on 4 G 2.5 up to 2,100 N on 4 G 35). For RG-D composite cables, only the unscreened 2.5 mm² cores carry the mechanical tensile rating so the individually screened signal cores remain strain-free.
When should I upgrade from RG / RG-D to RXG / RXG-D or RP / RP-D?
Choose RG / RG-D for horizontal monospiral and level-wind reels up to 120 m/min in rugged outdoor or chemical environments (including sulfur and urea). If your crane reel operates at up to 240 m/min, involves vertical spreader reeling, or requires 30 N/mm² tensile capacity and −35 °C cold flexibility, select RXG / RXG-D; if a halogen-free polyurethane jacket is preferred up to 80 m/min, select RP / RP-D.
