JIS rubber cabtyre cablesJIS C 3327600 V AC2PNCT & 3PNCT

PNCT / 2PNCT / 3PNCT 600 V Rubber Cabtyre CableJIS C 3327 tinned copper EP rubber / chloroprene cabtyre cables for cranes and reels

JIS C 3327 600 V flexible cabtyre cables with tinned annealed copper conductors, +80 °C EP rubber insulation and heavy-duty chloroprene (CR) outer sheaths — available in Class 2 (2PNCT) and cord-reinforced Class 3 (3PNCT).

Outdoor & humid

Oil-resistant

Flame-retardant

Ozone, UV & moisture

Type & size

Order designation: 2PNCT 4×5.5
Conductor Ø: 3.1 mm
Outer Ø ≈: 17.0 mm
Weight ≈: 495 kg/km
Max. pull: 436 N

Check against my drum All sizes (120)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 600 V
Conductor temp.: +80 °C max.
Bending radius: 4–10 × OD
Tensile load: 19.8 N/mm²
Test voltage: 3.0 kV · 1 min
Sizes: 120

Typical values for this cable type, based on JIS C 3327 — confirmed in the datasheet and quotation for your order.

Application fit

Is PNCT / 2PNCT / 3PNCT right for your machine?

Select the JIS C 3327 series to match the mechanical severity of your installation: 2PNCT for general mobile feeds and crane festoons, or 3PNCT with a reinforcing cord layer between inner and outer chloroprene sheaths for carrier drums, horizontal reels and rough ground trailing.

Festoon & line chain

Suitable

Overhead crane curtain festoons, carrier drums and hoist loops using 2PNCT or 3PNCT at ≥ 6–10 × OD bending radius.

Trailing & towing

Suitable

Heavy civil engineering machines, tunnelling jumbos, port hoppers, welders and temporary site power.

Motorised monospiral reel

With conditions

Use 3PNCT (with reinforced sheath layer) or F-type travelling cabtyre at ≥ 10 × OD on horizontal reels and carrier drums.

Energy chain / drag chain

With conditions

Carrier-type 2PNCT / 3PNCT with solid rubber filler is used in heavy steel drag chains at ≥ 6–10 × OD.

Vertical / spreader reel

Not suitable

Vertical spreader reels or tensile loads above 19.8 N/mm² require a special steel-wire-reinforced travelling design.

Use RXX / RXX-D vertical reeling cable

Typical machinesPort & harbour gantry cranesSteelworks, hoists & lifting magnetsCivil engineering & tunnelling plantShipyards & marine deck equipmentHeavy industrial machineryDewatering pumps & drainage plant

Construction

Layer by layer

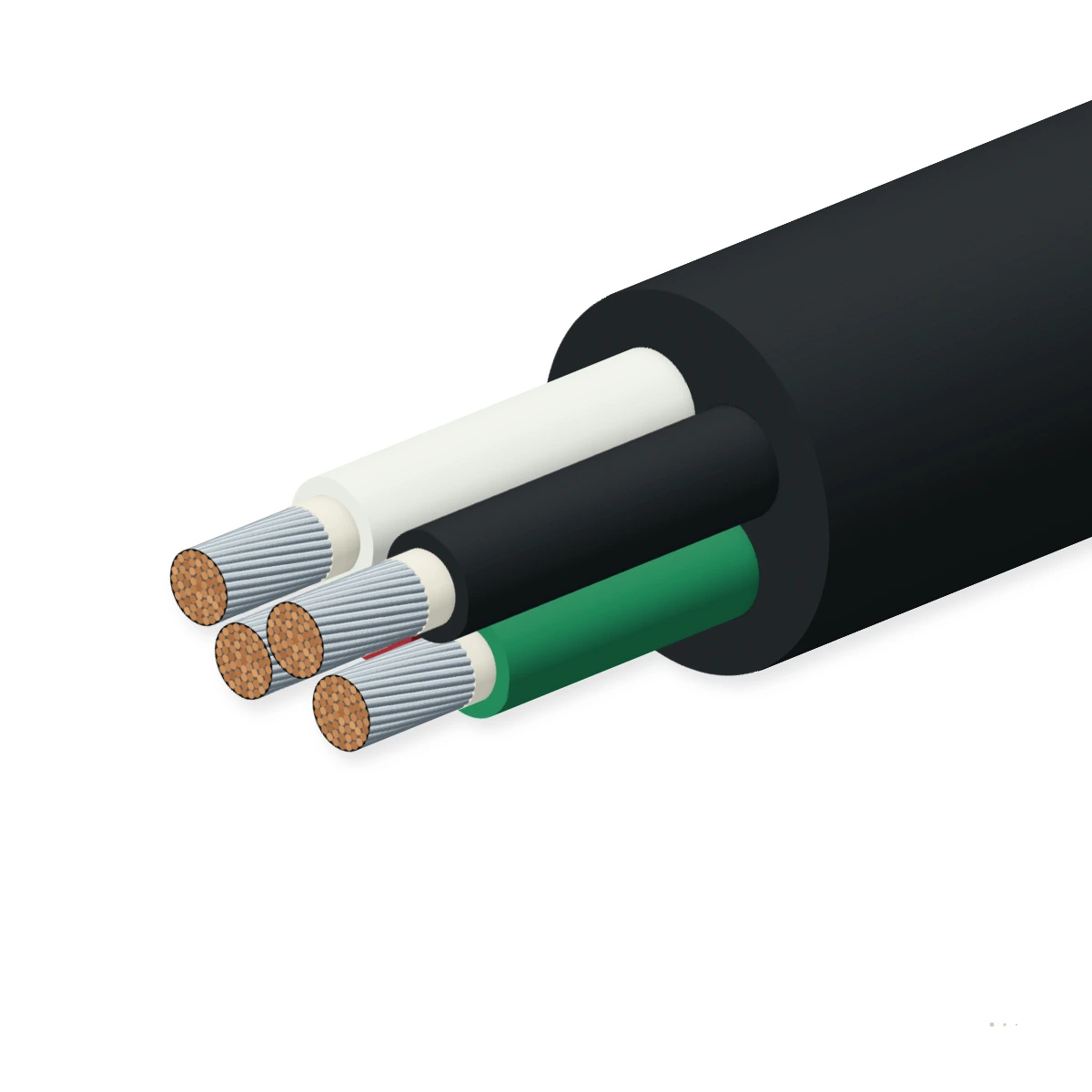

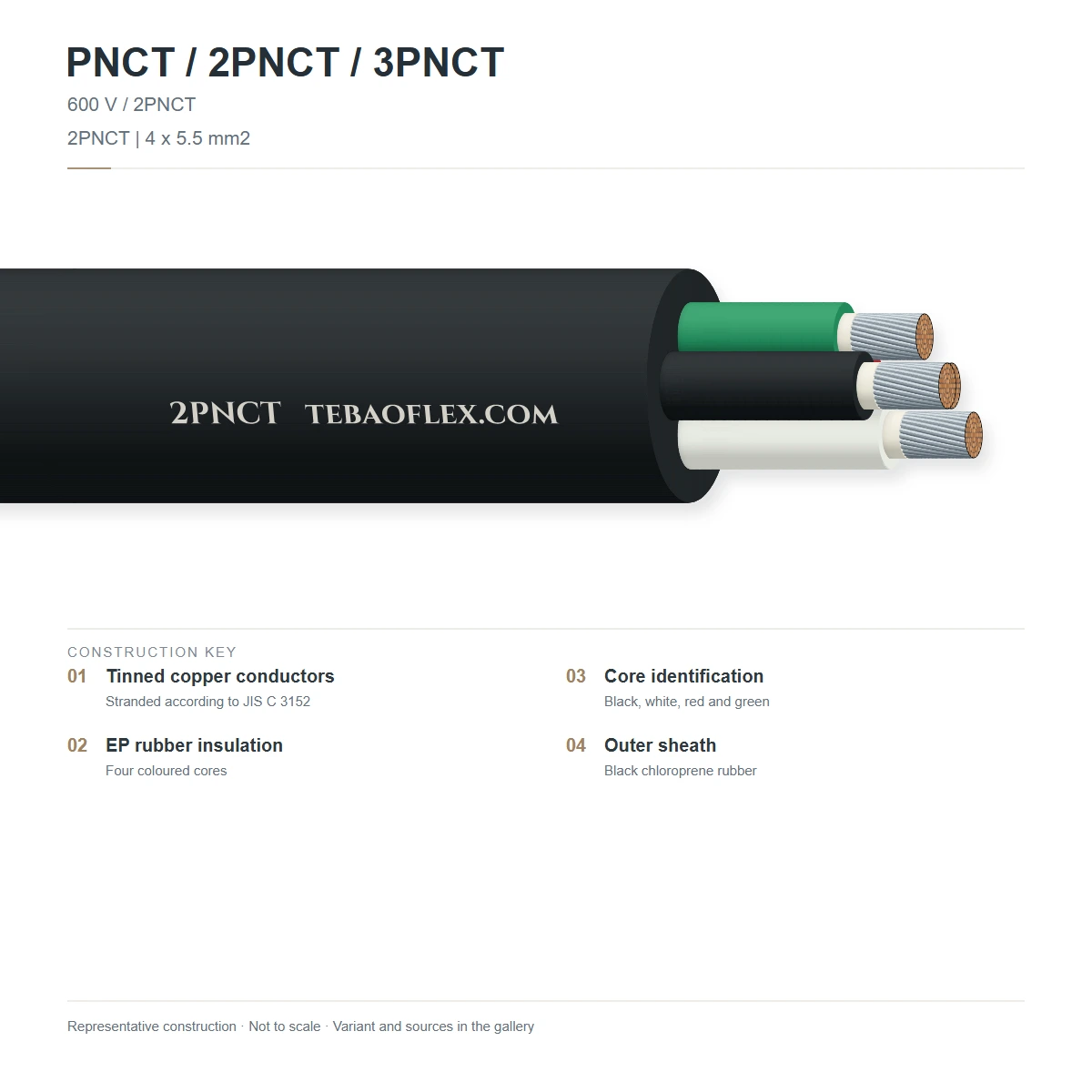

Shown: 600 V 2PNCT 4 × 5.5 mm² — four JIS colour-coded tinned copper cores (black, white, red, green) with EP rubber insulation and a polychloroprene cabtyre sheath. 3PNCT adds an inner sheath and synthetic reinforcing cord braid beneath the outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductor	Annealed tinned copper stranded wireJIS C 3152 · 30/0.18 mm (0.75 mm²) up to 37/55/0.45 mm (325 mm²)
2	Conductor separator	Separator tape over conductor (where required by size)Enhances stripability and flexing life
3	Core insulation	Ethylene-propylene (EP / EPDM) rubber (+80 °C rated)JIS C 3327 · Coloured core identification or tape
4	Core lay-up & filler	Cabled cores with jute/rubber fillers and binding tapeCircular cabtyre core assembly
5	Reinforcing layer (3PNCT)	Synthetic fibre cord reinforcing layer embedded between inner and outer sheathsIncluded on Class 3 (3PNCT) for superior tear, crush and reeling resistance
6	Outer sheath	Polychloroprene (chloroprene / CR) rubber, blackJIS C 3327 · Oil, weather and abrasion resistant · JIS C 3005 flame-retardant

2PNCT (2–4c)

2c black/white · 3c black/white/red · 4c black/white/red/green

2PNCT (5–30c)

5c +yellow · 6c +blue · ≥ 7c colour/tracer or numbered identification

3PNCT (1–4c)

Thicker EP insulation + cord-reinforced double chloroprene sheath

Types in this range

JIS C 3327 Class 2 · 600 V ACClass 2 EP/chloroprene cabtyre · 1 to 4 cores

Standard-wall +80 °C EP rubber insulation and chloroprene outer sheath. Lighter and smaller OD than 3PNCT for crane curtain festoons, hoists and general mobile machinery.

Festoon systems, hoists, portable welders & general industrial feeds

Datasheet

JIS C 3327 Class 2 · 600 V ACClass 2 multi-core control cabtyre · 5 to 30 cores

Multi-core 1.25, 2 and 3.5 mm² control and Pendant/festoon signalling cables with EP rubber insulation and chloroprene sheath (available with tinned copper braid screen as 2PNCT-SB).

Crane festoon control loops, carrier chains & machine signalling

Datasheet

JIS C 3327 Class 3 · 600 V ACClass 3 reinforced heavy-duty cabtyre · 1 to 4 cores

Reinforced heavy-duty construction with thicker EP rubber insulation (1.2–3.3 mm) and a synthetic reinforcing cord layer vulcanised between the inner and outer chloroprene sheaths.

Horizontal cable reels, carrier drums, tunnelling & heavy trailing duty

Datasheet

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on JIS C 3327. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage: 600 V AC
AC test voltage: 3000 V AC for 1 min
Min. insulation resistance: 200–500 MΩ·km at 20 °C (size dependent)
Current rating: JCS 0168 (one cable in free air at 30 °C)

Thermal

Max. conductor temperature: +80 °C (2PNCT / 3PNCT EP rubber) · +60 °C (1PNCT natural rubber)
Short-circuit temperature: +230 °C
Operating ambient range: −25 to +60 °C flexing · −35 to +60 °C fixed (derate above 30 °C)

Mechanical

Min. bending radius, moving: 10 × OD (moving) · 15 × OD (frequent festoon/reeling)
Min. bending radius, fixed: 4 × OD (multicore fixed) · 6 × OD (single-core fixed & carrier drum)
Allowed conductor tensile stress: 19.8 N/mm² (up to 29.4 N/mm² with steel support element)
Sheath reinforcement (3PNCT): Synthetic cord reinforcing layer between inner and outer chloroprene sheaths

Resistance

Flame retardance: JIS C 3005 horizontal flame test · IEC 60332-1-2
Oil & chemical resistance: Chloroprene rubber outer sheath resistant to heavy oil, silicone oil, alcohols and weak acids
Abrasion & crush resistance: Class 2 heavy-duty (2PNCT) · Class 3 extra-heavy reinforced (3PNCT)

Reference standards

Cable standard: JIS C 3327
Conductor: JIS C 3152 annealed tinned copper stranded wire
Compounds: EPDM / EP rubber insulation · polychloroprene (CR) cabtyre sheath

Identification

Sheath colour: Black
Core identification (2–6 cores): 2c black/white · 3c black/white/red · 4c +green · 5c +yellow · 6c +blue
Core identification (≥ 7 cores): 6-colour tracer combination or numbered tape identification
Customs tariff (HS): 8544.49

Sizes

120 standard JIS C 3327 sizes

Typical JIS C 3327 dimensions and weights across 600 V 2PNCT power (1–4c), 2PNCT control (5–30c) and 3PNCT reinforced heavy-duty (1–4c).

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Conductor Ø mm	Insulation mm	Sheath mm	Outer Ø ≈ mm	Weight ≈ kg/km	Min. bend R mm	Max. pull N
2PNCT Power (1–4c)
2PNCT 1×0.75	1 × 0.75	18	1.1	0.8	1.5	5.8	45	35	15
2PNCT 1×1.25	1 × 1.25	16	1.5	0.8	1.5	6.2	55	37	25
2PNCT 1×2	1 × 2	14	1.8	0.8	1.5	6.5	65	39	40
2PNCT 1×3.5	1 × 3.5	12	2.5	0.8	1.6	7.4	90	44	69
2PNCT 1×5.5	1 × 5.5	10	3.1	1.0	1.6	8.4	125	50	109
2PNCT 1×8	1 × 8	8	3.7	1.0	1.7	9.2	160	55	158
2PNCT 1×14	1 × 14	6	4.9	1.0	1.8	11.0	235	66	277
2PNCT 1×22	1 × 22	4	6.7	1.2	1.9	13.0	360	78	436
2PNCT 1×38	1 × 38	1	8.7	1.2	2.0	15.5	545	93	752
2PNCT 1×60	1 × 60	2/0	11.2	1.5	2.3	19.0	845	114	1,188
2PNCT 1×100	1 × 100	4/0	14.6	2.0	2.6	24.0	1,390	144	1,980
2PNCT 1×150	1 × 150	300 kcmil	17.4	2.0	2.7	27.0	1,870	162	2,970
2PNCT 1×200	1 × 200	400 kcmil	20.4	2.5	3.0	32.0	2,560	192	3,960
2PNCT 1×250	1 × 250	500 kcmil	22.1	2.5	3.1	34.0	3,050	204	4,950
2PNCT 1×325	1 × 325	650 kcmil	26.0	2.5	3.4	38.0	3,930	228	6,435
2PNCT 2×0.75	2 × 0.75	18	1.1	0.8	1.7	9.0	110	54	30
2PNCT 2×1.25	2 × 1.25	16	1.5	0.8	1.7	9.8	135	59	50
2PNCT 2×2	2 × 2	14	1.8	0.8	1.8	10.5	160	63	79
2PNCT 2×3.5	2 × 3.5	12	2.5	0.8	1.9	12.5	230	75	139
2PNCT 2×5.5	2 × 5.5	10	3.1	1.0	2.0	14.5	330	87	218
2PNCT 2×8	2 × 8	8	3.7	1.0	2.1	16.0	415	96	317
2PNCT 2×14	2 × 14	6	4.9	1.0	2.2	18.5	605	111	554
2PNCT 2×22	2 × 22	4	6.7	1.2	2.5	24.0	975	144	871
2PNCT 2×38	2 × 38	1	8.7	1.2	2.8	28.0	1,490	168	1,505
2PNCT 2×60	2 × 60	2/0	11.2	1.5	3.2	35.0	2,320	210	2,376
2PNCT 2×100	2 × 100	4/0	14.6	2.0	3.8	45.0	3,870	270	3,960
2PNCT 2×150	2 × 150	300 kcmil	17.4	2.0	4.2	52.0	5,210	312	5,940
2PNCT 3×0.75	3 × 0.75	18	1.1	0.8	1.7	9.4	125	56	45
2PNCT 3×1.25	3 × 1.25	16	1.5	0.8	1.8	10.5	160	63	74
2PNCT 3×2	3 × 2	14	1.8	0.8	1.8	11.5	190	69	119
2PNCT 3×3.5	3 × 3.5	12	2.5	0.8	1.9	13.0	275	78	208
2PNCT 3×5.5	3 × 5.5	10	3.1	1.0	2.0	15.5	395	93	327
2PNCT 3×8	3 × 8	8	3.7	1.0	2.1	17.0	500	102	475
2PNCT 3×14	3 × 14	6	4.9	1.0	2.3	20.0	760	120	832
2PNCT 3×22	3 × 22	4	6.7	1.2	2.6	25.0	1,230	150	1,307
2PNCT 3×38	3 × 38	1	8.7	1.2	2.9	30.0	1,890	180	2,257
2PNCT 3×60	3 × 60	2/0	11.2	1.5	3.4	38.0	2,960	228	3,564
2PNCT 3×100	3 × 100	4/0	14.6	2.0	4.0	49.0	4,940	294	5,940
2PNCT 3×150	3 × 150	300 kcmil	17.4	2.0	4.4	56.0	6,670	336	8,910
2PNCT 4×0.75	4 × 0.75	18	1.1	0.8	1.7	10.5	145	63	59
2PNCT 4×1.25	4 × 1.25	16	1.5	0.8	1.8	11.5	190	69	99
2PNCT 4×2	4 × 2	14	1.8	0.8	1.9	12.5	235	75	158
2PNCT 4×3.5	4 × 3.5	12	2.5	0.8	2.0	14.5	340	87	277
2PNCT 4×5.5	4 × 5.5	10	3.1	1.0	2.1	17.0	495	102	436
2PNCT 4×8	4 × 8	8	3.7	1.0	2.2	18.5	625	111	634
2PNCT 4×14	4 × 14	6	4.9	1.0	2.4	22.0	950	132	1,109
2PNCT 4×22	4 × 22	4	6.7	1.2	2.8	28.0	1,550	168	1,742
2PNCT 4×38	4 × 38	1	8.7	1.2	3.1	34.0	2,380	204	3,010
2PNCT 4×60	4 × 60	2/0	11.2	1.5	3.6	42.0	3,740	252	4,752
2PNCT 4×100	4 × 100	4/0	14.6	2.0	4.3	54.0	6,260	324	7,920
2PNCT 4×150	4 × 150	300 kcmil	17.4	2.0	4.8	62.0	8,530	372	11,880

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Minimum bending radius is 4 × OD for fixed multicore, 6 × OD for single-core and carrier drums (shown in table), and 10 × OD for general moving/reeling duty.

Electrical & JCS 0168 ampacity
Cross-section mm²	Stranding No./mm	Conductor Ø mm	Max. R (1-core) 20 °C, Ω/km	Max. R (multicore) 20 °C, Ω/km	Min. IR 20 °C, MΩ·km	1-core 30 °C, A	2-core 30 °C, A	3-core 30 °C, A	4-core 30 °C, A
0.75	30/0.18	1.1	25.8	26.6	500	18	15	13	12
1.25	50/0.18	1.5	15.5	16	500	25	21	18	16
2	37/0.26	1.8	9.91	10.2	500	32	27	23	21
3.5	45/0.32	2.5	5.38	5.54	400	47	39	33	30
5.5	70/0.32	3.1	3.46	3.56	400	62	51	44	40
8	50/0.45	3.7	2.45	2.52	400	77	63	54	49
14	88/0.45	4.9	1.39	1.43	300	105	89	76	69
22	7/20/0.45	6.7	0.892	0.919	300	145	120	100	93
38	7/34/0.45	8.7	0.525	0.541	200	205	165	140	125
60	19/20/0.45	11.2	0.329	0.339	200	280	220	185	170
100	19/34/0.45	14.6	0.193	0.199	200	390	310	265	240
150	27/34/0.45	17.4	0.136	0.14	200	528	408	348	305
200	37/34/0.45	20.4	0.099	0.102	200	619	470	400	—
250	37/42/0.45	22.1	0.08	0.083	200	695	—	—	—
325	37/55/0.45	26.0	0.061	0.063	200	820	—	—	—

Current ratings per JCS 0168 for one cable in free air at 30 °C ambient (80 °C conductor temperature). Ambient temperature rating factors: 0.95 at 35 °C, 0.89 at 40 °C, 0.84 at 45 °C, 0.77 at 50 °C, 0.71 at 55 °C, 0.65 at 60 °C.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 400 mm ≥ 204 mmBending radius OK (6 × OD 17.0 mm)

60 m/min ≤ 100 m/minWithin the rated travel speed

Minimum bending radius: 102 mm
Min. drum core diameter: ≈ 204 mm
Cable weight on drum: 39.6 kg
Copper content: 16.9 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	3000 V AC for 1 min	Every length
Conductor resistance	JIS C 3327 / JIS C 3005 at 20 °C	Every length
Insulation resistance	≥ 200 to 500 MΩ·km at 20 °C	Every length
Sample tests
Flame retardance	JIS C 3005 horizontal flame test	Per batch
Oil & tensile properties of chloroprene sheath	JIS C 3327 / JIS C 3005	Per compound batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

JIS C 3327 · PSE (Electrical Appliance and Material Safety Act)

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 600V 2PNCT 4×5.5 mm² JIS C 3327 · [year] · [metre mark]

Delivery form: Export wooden drums or cut lengths; braided screen (2PNCT-SB) on request
Packaging: Fumigated export timber drums with sealed cable ends

Technical documents

Downloads

PDFPNCT / 2PNCT / 3PNCT 600 V Rubber Cabtyre Cable – technical datasheet120 sizes · construction, technical data, approvals XLSXPNCT / 2PNCT / 3PNCT spec data (Excel)All 120 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between 1PNCT (PNCT), 2PNCT and 3PNCT under JIS C 3327?

All three are 600 V chloroprene-sheathed cabtyre cables to JIS C 3327. Classic 1PNCT uses natural/SBR rubber insulation (+60 °C), whereas 2PNCT and 3PNCT upgrade the core insulation to ethylene-propylene (EP) rubber rated at +80 °C (230 °C short-circuit). 2PNCT is the Class 2 single-sheath heavy-duty construction, while 3PNCT is the Class 3 extra-heavy construction with thicker insulation and a synthetic reinforcing cord layer between inner and outer chloroprene sheaths.

Why do JIS C 3327 cabtyre cables use nominal cross-sections like 1.25, 2, 3.5, 5.5, 8, 14, 22 and 38 mm²?

Japanese Industrial Standards (JIS C 3152 and JIS C 3327) define conductor sizes using Japanese circular-mil-derived metric steps (0.75, 1.25, 2, 3.5, 5.5, 8, 14, 22, 38, 60, 100, 150, 200, 250 and 325 mm²) rather than the IEC 60228 series (1.5, 2.5, 4, 6, 10, 16, 25, 35 mm²). Check the electrical table for exact stranding (No./mm) and JCS 0168 current ratings.

When should I specify 3PNCT instead of 2PNCT?

Specify 2PNCT for crane curtain festoons, indoor/outdoor mobile machinery, welders and multi-core control loops (5 to 30 cores). Specify 3PNCT when the cable runs on horizontal cable reels, carrier drums, tunnelling jumbos or rough quarry ground where high radial crush, tear and squeezing forces act on the sheath.

How are cores identified in JIS C 3327 2PNCT and 3PNCT cables?

Unlike European HD 308 cables, JIS C 3327 uses black and white for 2-core cables; black, white and red for 3-core cables; black, white, red and green for 4-core cables; plus yellow (5-core) and blue (6-core). Cables with 7 or more control cores use a 6-colour tracer system or numbered identification tapes.

Is a screened version of 2PNCT available for VFD or noisy signal environments?

Yes. Both 2PNCT and 3PNCT can be manufactured with an overall tinned annealed copper wire braid screen over the laid-up cores (designated 2PNCT-SB) to shield control and instrumentation circuits against electromagnetic interference.

Request a quote

Get an engineering quote for PNCT / 2PNCT / 3PNCT

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

PNCT / 2PNCT / 3PNCT 2PNCT / 3PNCT 600 V Rubber Cabtyre Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

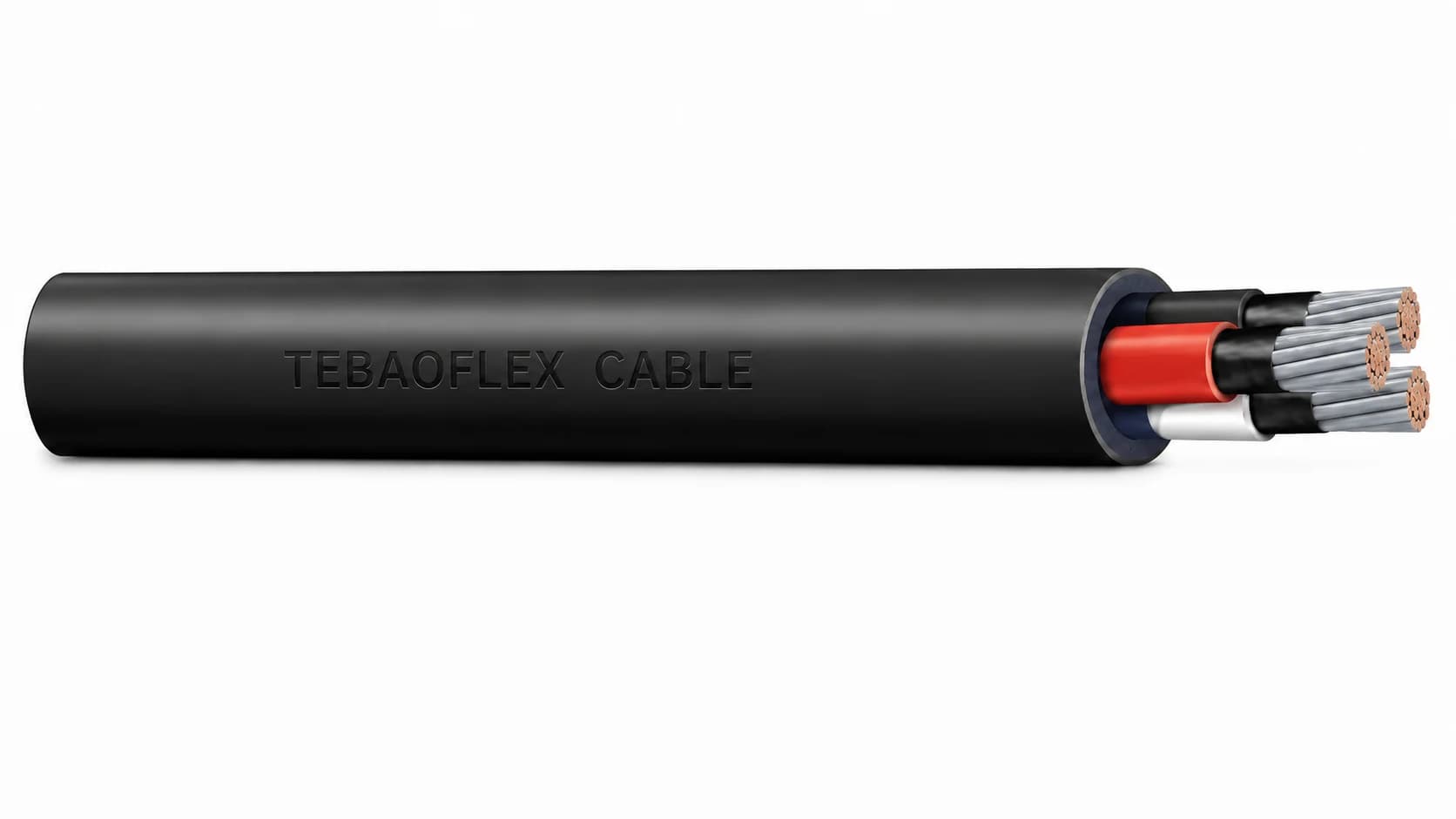

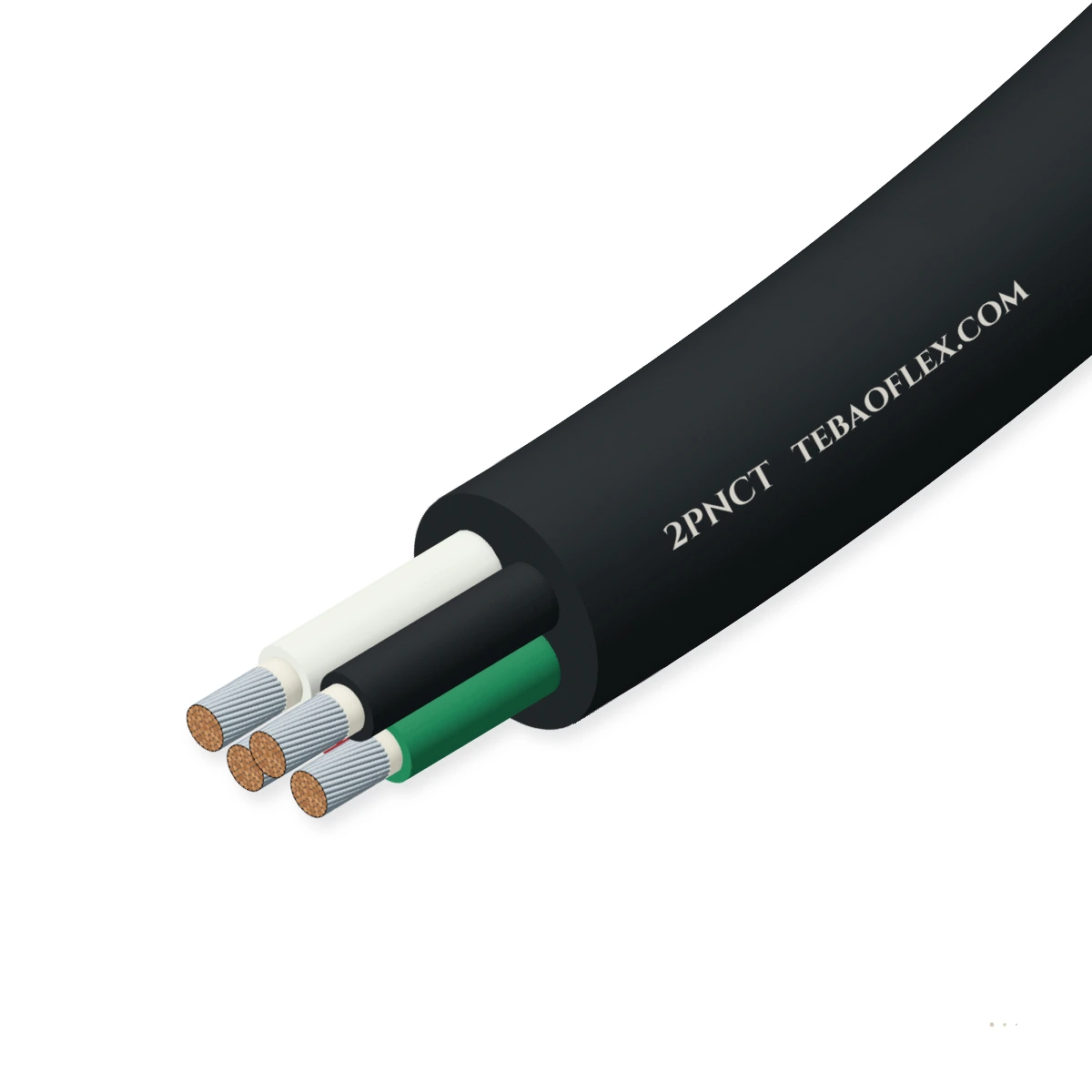

PNCT / 2PNCT / 3PNCT 600 V Rubber Cabtyre CableJIS C 3327 tinned copper EP rubber / chloroprene cabtyre cables for cranes and reels

Festoon & line chain

Trailing & towing

Motorised monospiral reel

Energy chain / drag chain

Vertical / spreader reel

2PNCT (2–4c)

2PNCT (5–30c)

3PNCT (1–4c)

Types in this range

Electrical

Thermal

Mechanical

Resistance

Reference standards

Identification

Check results

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

H07RN-F

NSHTÖU

NSSHÖU

NGFLGÖU
