PROFIBUS DP / PA & Process Fieldbus cablesIEC 61158-2 / EN 50170150 Ω ± 15 Ω · < 30 pF/m12 Mbps · 8.0 mm FastConnect

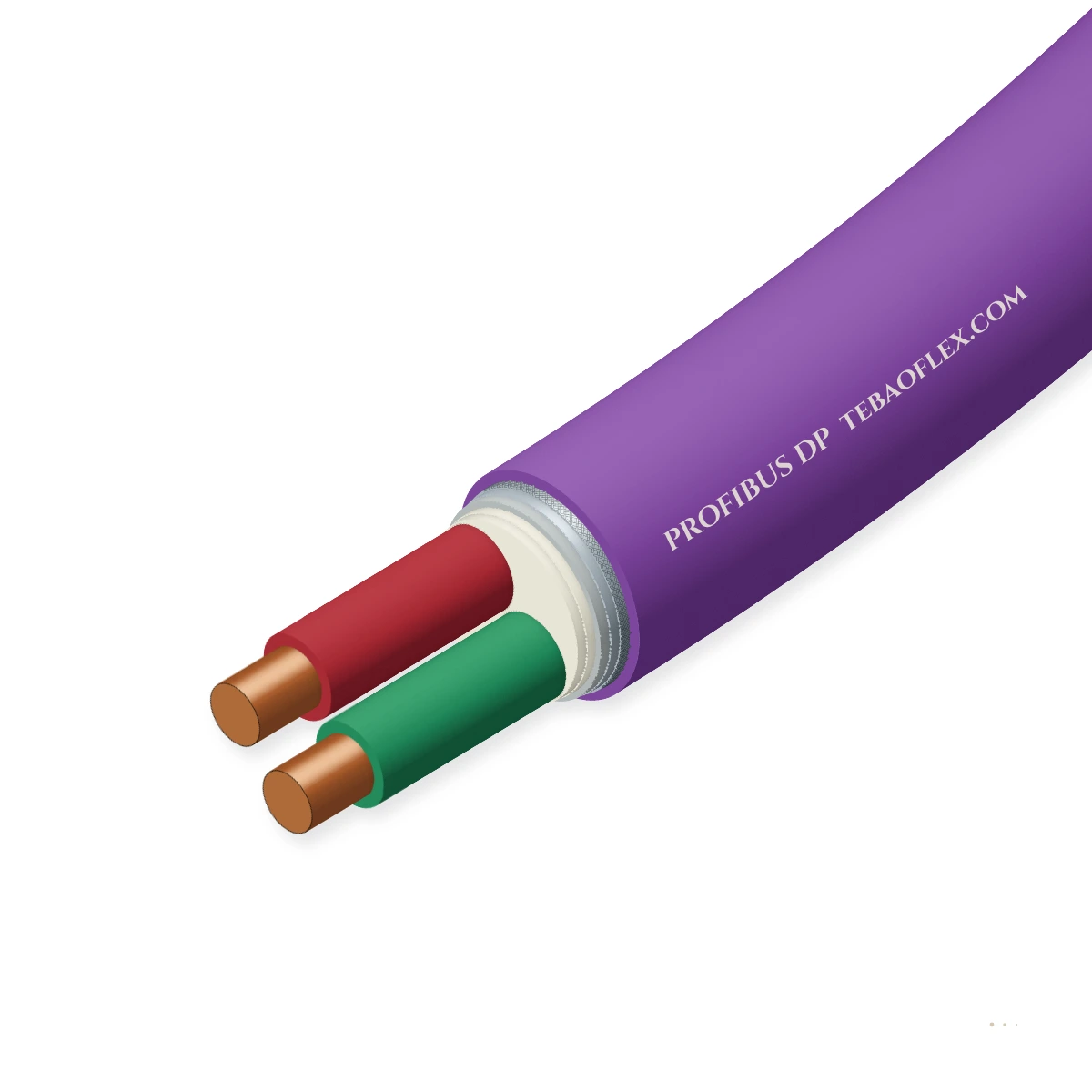

PROFIBUS DP CableIEC 61158-2 / EN 50170 150 Ω < 30 pF/m 1×2×0.64 mm FastConnect PROFIBUS DP fieldbus cable

PROFIBUS DP Cable is the IEC 61158-2 and EN 50170 Type A 150 Ω ± 15 Ω RS-485 fieldbus cable (9.6 kbps to 12 Mbps), engineered with nitrogen-foamed O2YS polyethylene insulation (< 30 pF/m mutual capacitance), Red (Line B) and Green (Line A) cores

Low-EMC design
EMC screen
Oil-resistant
Flame-retardant
Order designation
PROFIBUS DP FC FRNC/LSZH 1×2×0.64
Outer Ø ≈
8.0 mm
Copper weight
26 kg/km
Total weight ≈
68 kg/km
Min. bend R (fixed)
64 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance Z0
150 Ω ± 15 Ω
Measured at 3 to 20 MHz
Capacitance
< 30 pF / m
≈ 28.5 pF/m foamed PE O2YS
Data rate
Up to 12 Mbps
100 m @ 12 Mbps · 1200 m @ 93.75 kbps
Loop resistance
≤ 110 Ω / km
Line A (Green) + Line B (Red)
FastConnect OD
8.0 mm ± 0.4
Fits 9-pin D-Sub & M12 B-coded FC
Sheath options
PVC / PUR / PE
RAL 4001 Violet · Black PE · Blue Ex-i

Typical values for this cable type, based on IEC 61158-2 / EN 50170 (PROFIBUS DP Type A) — confirmed in the datasheet and quotation for your order.

Application fit

Is PROFIBUS DP right for your machine?

Used across factory and process automation for deterministic RS-485 PROFIBUS DP and FMS communication linking PLCs, distributed ET200/remote I/O islands, drives, and encoders.

Fixed installation

Suitable

Solid 1×2×0.64 mm FastConnect PVC, FRNC, and PE underground variants support full 12 Mbps segment lengths.

Energy chain / drag chain

Suitable

1×2×0.78 mm (19-wire extra-fine stranded) PUR Trailing variant delivers ≥ 5 million drag-chain cycles.

Switchgear & control cabinet wiring

Suitable

8.0 mm FastConnect radial geometry strips cleanly for IDC 9-pin Sub-D and M12 B-coded plugs.

Immersion & wet locations

Suitable

Black PE (2Y2Y) direct-burial and rodent-protected armoured versions available for outdoor ducts.

Typical machinesPLC & remote I/O factory backbonesVariable-frequency drive (VFD) networksWater, wastewater & power plantsMachine tools & drag-chain gantries

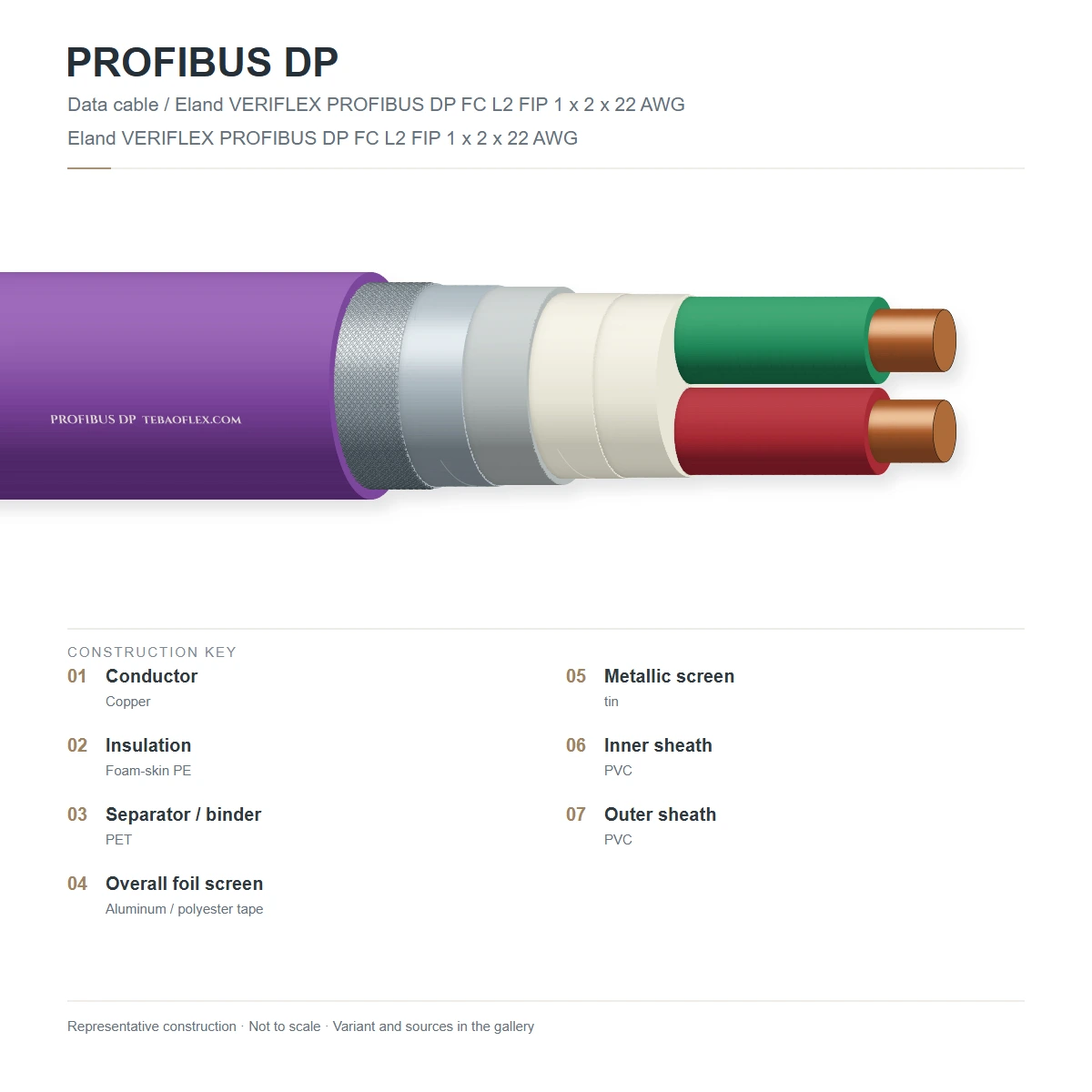

Construction

Layer by layer

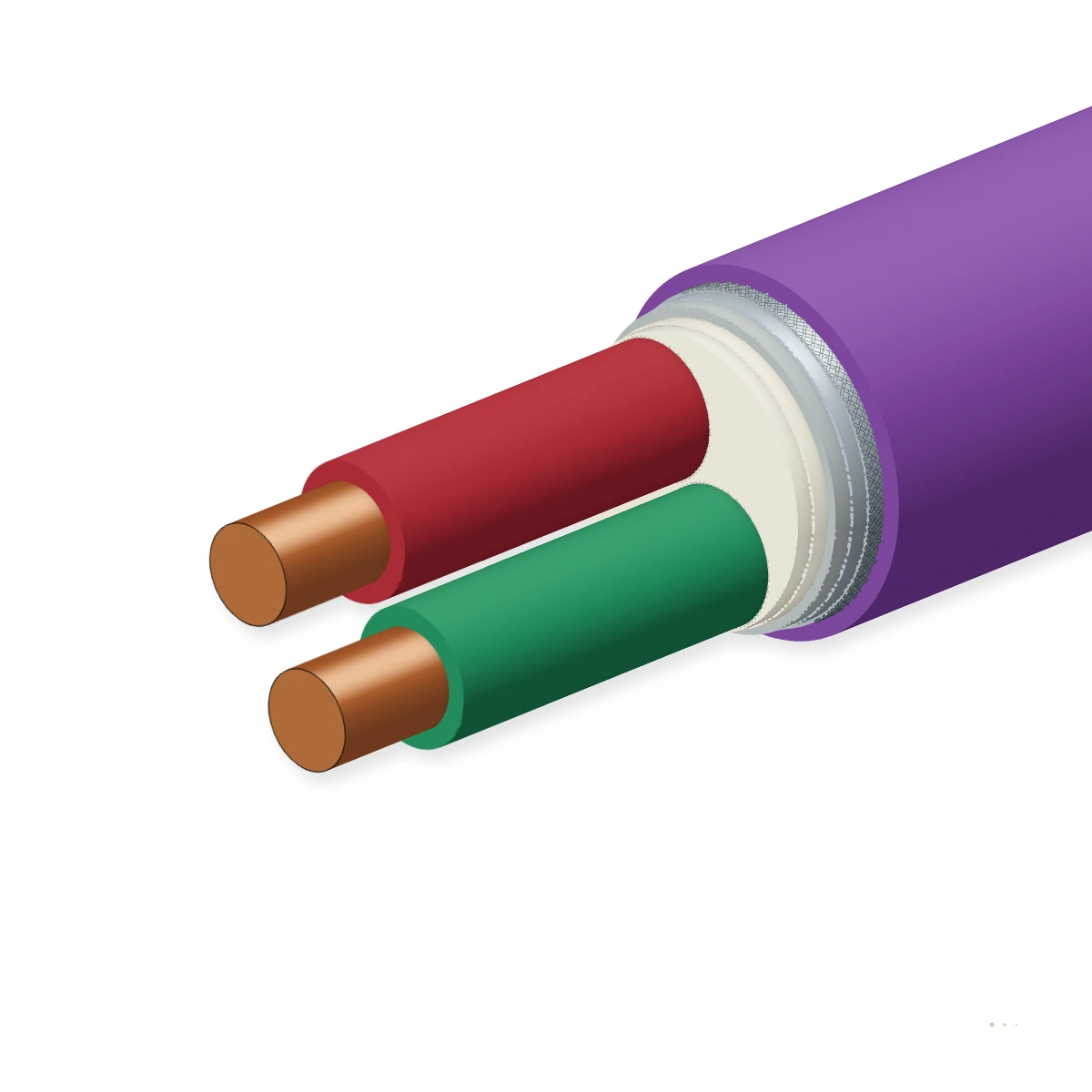

One twisted pair of Red (Data B) and Green (Data A) bare or tinned copper conductors (Ø 0.64 mm solid or Ø 0.78 mm 7/19-wire stranded)

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Copper conductor pairØ 0.64 mm solid bare Cu (fixed) or Ø 0.78 mm 7-wire / 19-wire stranded Cu (flex IEC 61158-2 / EN 50170
2Foamed-skin PE (O2YS) dielectricCellular polyethylene insulation (Ø 2.55 mm) yielding < 30 pF/m and Z0 = 150 ΩEN 50170 Type A
3FastConnect inner beddingExtruded thermoplastic filler jacket holding Green/Red cores at exact IDC pitchPNO FastConnect
4Static screen (Al/PET)Aluminium-laminated polyester tape (100 % coverage, metal side outward)IEC 61158-2
5EMC tinned copper braidTinned copper wire braid over Al/PET foilIEC 61158-2
6Outer sheath (8.0 mm OD)RAL 4001 Violet PVC, PUR, or LSZH; RAL 9005 Black PE (burial); RAL 5015 Blue (Ex-i)PNO Guideline

PROFIBUS DP FC Standard (PVC / PUR / FRNC)

1×2×0.64 mm solid FastConnect cable in RAL 4001 violet (or Blue Ex-i / Black PE underground).

PROFIBUS DP Flex & Drag-Chain (7-wire / 19-wire PUR)

1×2×0.78 mm stranded FastConnect cable for vibrating machinery and ≥ 5M-cycle drag chains.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 61158-2 / EN 50170 (PROFIBUS DP Type A). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance Z0
150 Ω ± 15 Ω (3 to 20 MHz)
Low-frequency impedance (31.25–39
185 Ω ± 18.5 Ω
Max. DC loop resistance @ 20 °C
≤ 110 Ω/km (solid 0.64 mm) · ≤ 133 Ω/km
Mutual capacitance @ 1 kHz
≈ 28.5 pF/m (standard limit < 30 pF/m)
Velocity of propagation (VoP)
78–80 % (0.78–0.80 c)
Attenuation (0.2 / 4 / 16 MHz)
0.25 / 2.2 / 4.2 dB/100m (solid Type A)

Thermal

Operating temp. (fixed / flex)
-40 °C to +80 °C fixed · -30 °C to +70 °C
Operating / test voltage
250 V (300 V UL CMG) · 1.5 kV AC / 3.6 kV

Mechanical

Outer diameter (FastConnect)
8.0 mm ± 0.4 mm
Min. bending radius (fixed / chain)
7.5 × D (60 mm) fixed · 10 × D (80 mm)

Resistance

Oil & chemical resistance
EN 60811-404 · UL Oil Res I/II (PUR &
Flame & halogen-free
IEC 60332-1-2 · UL CMG/PLTC · FRNC IEC 60754

Reference standards

Primary specification
IEC 61158-2 / EN 50170-2-2 PROFIBUS Type A
Hazardous area option
EN 60079-14 Intrinsic Safety Ex-i (RAL 5015

Identification

Core colours
Green (Data Line A) · Red (Data Line B)
Outer sheath colour
RAL 4001 Red-Lilac (Violet) · Black (PE) ·

Sizes

6 standard configurations (PROFIBUS DP)

Nominal dimensions, copper weights, impedance and transmission parameters for PROFIBUS DP per IEC 61158-2 / EN 50170 (PROFIBUS DP Type A).

Dimensions & weights
Order designationConfigurationConductor sizeOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard PROFIBUS DP configurations
PROFIBUS DP FC Standard PVC 1×2×0.641×2×0.64 mm (Fixed PVC Violet)0.64 mm (AWG 22/1)8.0266664
PROFIBUS DP FC FRNC/LSZH 1×2×0.641×2×0.64 mm (Fixed LSZH Violet)0.64 mm (AWG 22/1)8.0266864
PROFIBUS DP FC Ex-i Blue 1×2×0.641×2×0.64 mm (Ex-i Blue PVC)0.64 mm (AWG 22/1)8.0266664
PROFIBUS DP Underground PE 2Y2Y 1×2×0.641×2×0.64 mm (Burial Black PE)0.64 mm (AWG 22/1)8.0265864
PROFIBUS DP FC Flex 1×2×0.78 (7-wire)1×2×0.78 mm (7-wire Flex PUR)0.34 mm² (AWG 22/7)8.0286464
PROFIBUS DP Drag-Chain Trailing PUR 1×2×0.78 (19-wire)1×2×0.78 mm (19-wire Chain PUR)0.36 mm² (AWG 22/19)8.0286364
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per IEC 61158-2 / EN 50170 (PROFIBUS DP Type A).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3–20 MHz characteristic impedance & attenuation sweepZ0 = 150 ± 15 Ω; ≤ 4.2 dB/100m at 16 MHz100 % of reels
Mutual capacitance & DC loop resistance< 30 pF/m at 1 kHz; ≤ 110 Ω/km (solid)100 % of reels
Sample tests
FastConnect stripping & Sub-D IDC contact testZero shield strand bridging & stable IDC contactPer production batch
Drag-chain endurance (Trailing PUR variant)≥ 5,000,000 bending cycles at 10 × DType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 61158-2 / EN 50170PNO FastConnect SpecUL CMG / PLTC / AWM

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX PROFIBUS DP FASTCONNECT
Delivery form
Non-returnable plywood reels or export drums
Standard reel lengths
100 m · 305 m · 500 m · 1000 m
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFPROFIBUS DP Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSXPROFIBUS DP spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does PROFIBUS DP require a 150 Ω cable with < 30 pF/m mutual capacitance?
PROFIBUS DP runs RS-485 up to 12 Mbps (a 16 MHz fundamental spectrum). Achieving 150 Ω ± 15 Ω and < 30 pF/m requires thick Ø 2.55 mm nitrogen-foamed polyethylene (O2YS) insulation around the 0.64 mm conductors; substituting a standard 120 Ω PVC twisted pair causes severe signal reflection and bus faults above 500 kbps.
What is the difference between the Green and Red cores in PROFIBUS DP?
Per EN 50170 and PNO conventions, the Green conductor is Data Line A (RxD/TxD-N, negative) and the Red conductor is Data Line B (RxD/TxD-P, positive). All FastConnect 9-pin D-Sub and M12 B-coded plugs are color-marked green and red to prevent polarity reversal. Each production reel undergoes 100 % characteristic impedance verification, mutual capacitance and DC loop resistance testing, and dielectric spark/withstand inspection before dispatch with an EN 10204 3.1 certificate.
Why do both solid and drag-chain PROFIBUS DP cables share an 8.0 mm outer diameter?
To fit standard 9-pin D-Sub insulation-displacement (IDC) FastConnect connectors, both the 8.0 mm outer sheath and the 2.55 mm core insulation diameters are standardized. Even the 7-wire flexible and 19-wire drag-chain versions preserve this exact geometry. Each production reel undergoes 100 % characteristic impedance verification, mutual capacitance and DC loop resistance testing, and dielectric spark/withstand inspection before dispatch with an EN 10204 3.1 certificate.
How does baud rate affect maximum PROFIBUS DP segment length?
With solid 1×2×0.64 mm Type A cable, a single repeaterless segment supports 100 m at 3 / 6 / 12 Mbps, 200 m at 1.5 Mbps, 400 m at 500 kbps, 1,000 m at 187.5 kbps, and up to 1,200 m at 9.6 to 93.75 kbps.
