Product

Heavy-duty rubber cableDIN VDE 0250-812U0/U 0.6/1 kVO/J · 3E · 3E+ST

NSSHÖU 0.6/1 kV Heavy-Duty Rubber CableHeavy-duty 3GI3 / 5GM5 mining & industrial rubber cable — O/J, 3E & 3E+ST

Mechanically robust 0.6/1 kV flexible rubber power and control cable to DIN VDE 0250-812 with Class 5 tinned copper conductors, 3GI3 EPR core insulation, GM1b elastomeric inner sheath and yellow 5GM5 abrasion-, tear- and oil-resistant outer sheath.

Oil-resistant

Flame-retardant

Outdoor & humid

Water-resistant

Construction & cross-section

Order designation: NSSHÖU-J/-O 4 × 25 mm²
Outer Ø max: 31.8 mm
Weight ≈: 1,810 kg/km
Min. bend R: 128 mm
Current 30 °C: 138 A

All sizes (92)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 0.6/1 kV
Configurations: O/J · 3E · 3E+ST
Bending radius: 4–5 × OD
Temperature: −25…+80 °C
Conductor max.: +90 °C / 250 °C
Sizes: 92

Typical values for this cable type, based on DIN VDE 0250-812 — confirmed in the datasheet and quotation for your order.

Application fit

Is NSSHÖU right for your machine?

NSSHÖU is engineered for very high mechanical stress under DIN VDE 0298-3 in mines, tunnels, quarries and heavy industrial plants — select O/J for general power/control, 3E for individually earth-screened phases, or 3E+ST where pilot monitoring cores are required.

Fixed installation

Suitable

Fixed and semi-fixed mining, quarry and industrial power in dry, damp, wet and outdoor zones (4 × OD bend; 50 N/mm² pull).

Trailing & towing

Suitable

Mobile equipment leads and trailing connections for drilling rigs, TBMs and quarry crushers (5 × OD flex; 15 N/mm² tension).

Immersion & wet locations

Suitable

Suitable for permanent submersion in fresh water, salt water, storm water, oily water and sewage-contaminated water down to 100 m depth.

Motorised monospiral reel

Not suitable

Continuous motorized drum reeling with reverse bending and torsion requires a purpose-built anti-torsion reeling cable.

Use NSHTÖU 0.6/1 kV Reeling Cable

Typical machinesUnderground & open-cast mining power and controlTunnel boring machines (TBM), jumbo drills & shotcrete plantQuarries, aggregate crushers & screening plantHeavy construction sites & submersible dewatering pumps (to 100 m)Steelworks, heavy industrial machinery & Protection Class II equipment

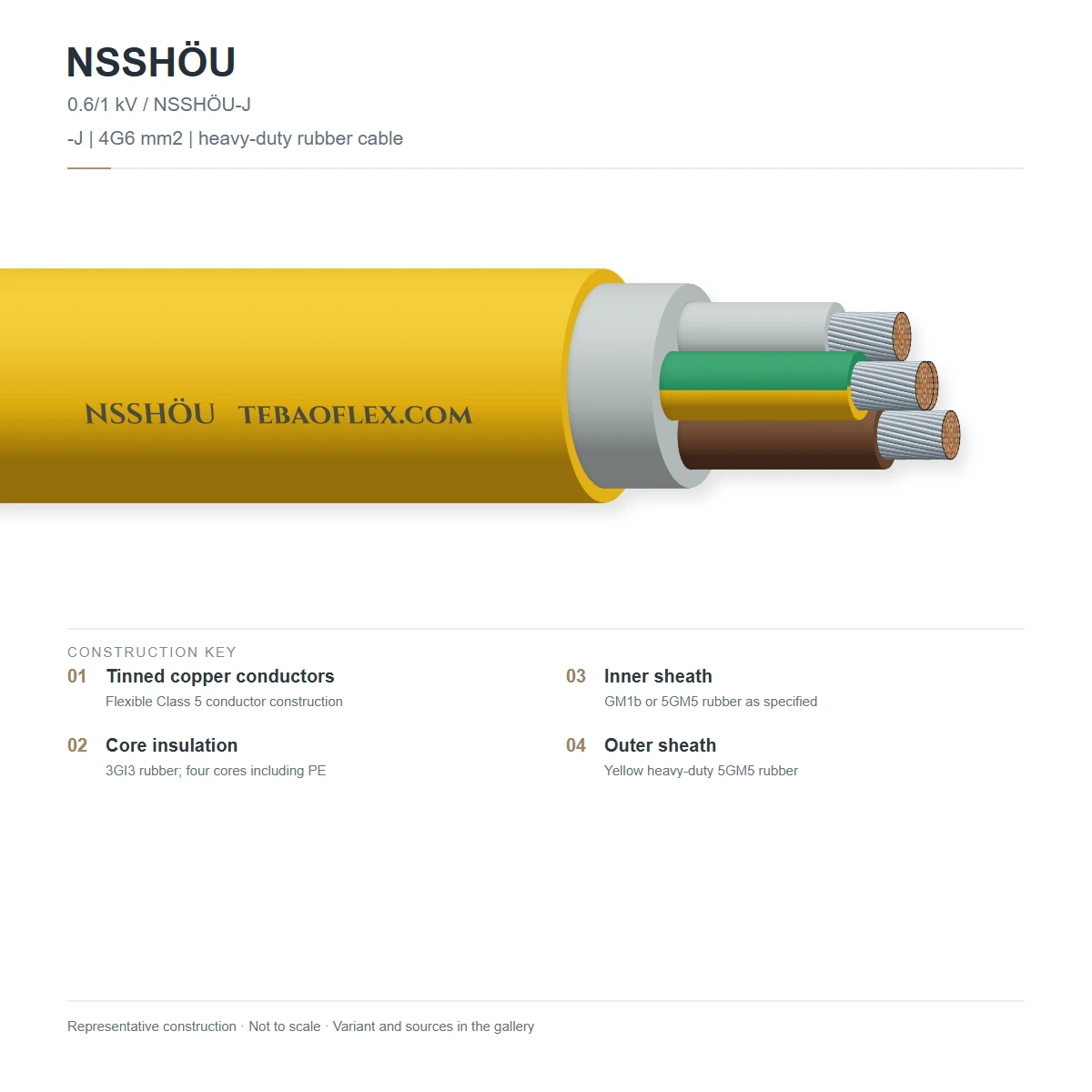

Construction

Layer by layer

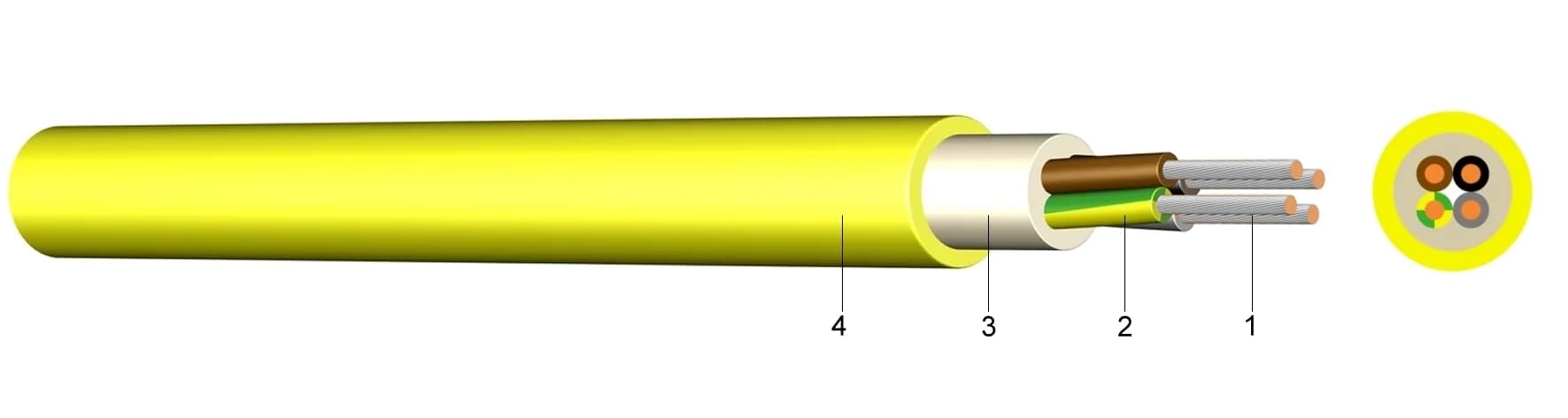

Shown: NSSHÖU 4-core heavy-duty construction with Class 5 tinned copper conductors, 3GI3 cross-linked EPR insulation (colour-coded per HD 308), extruded GM1b elastomeric inner sheath and yellow 5GM5 outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible conductor	Electrolytic annealed fine-stranded tinned copper, Class 5IEC 60228 Class 5 / EN 60228 / DIN VDE 0295
2	Separator tape	Polyester separating tape between conductor and EPR insulation where requiredFacilitates clean stripping and core flexibility
3	Core insulation	Extruded cross-linked ethylene-propylene elastomer (EPR) compound type 3GI3DIN VDE 0207-20 · wall thickness per DIN VDE 0250-812 Table 1 (rated +90 °C / 250 °C short-circuit)
4	Individual core screen (3E & 3E+ST only)	Tinned copper braid (≤ 10 mm²) or helical tinned copper wire screen (≥ 16 mm²) over each phase coreSplit earth / metallic phase screen on NSSHÖU 3E and 3E+ST (unscreened on standard O/J)
5	Inner sheath	Extruded thermosetting elastomer compound type GM1b or 5GM5 filling intersticesDIN VDE 0207-21 · wall thickness per DIN VDE 0250-812 Tables 1–2
6	Outer sheath	Heavy-duty cross-linked polychloroprene / synthetic elastomer compound type 5GM5, yellowDIN VDE 0207-21 · abrasion (≤ 300 mm³), tear (≥ 30 N/mm), oil (EN 60811-404) & flame (IEC 60332-1-2) resistant

NSSHÖU-O / -J (Unscreened)

Single-core (1 × 1.5–300 mm²) and multicore (3C–24C, plus 3+3E split earth) without (-O) or with (-J) green/yellow PE core

NSSHÖU 3E (Individually Screened)

3 phase cores (2.5–185 mm²) each with concentric copper braid/wire screen (3E) for radial earth-fault protection

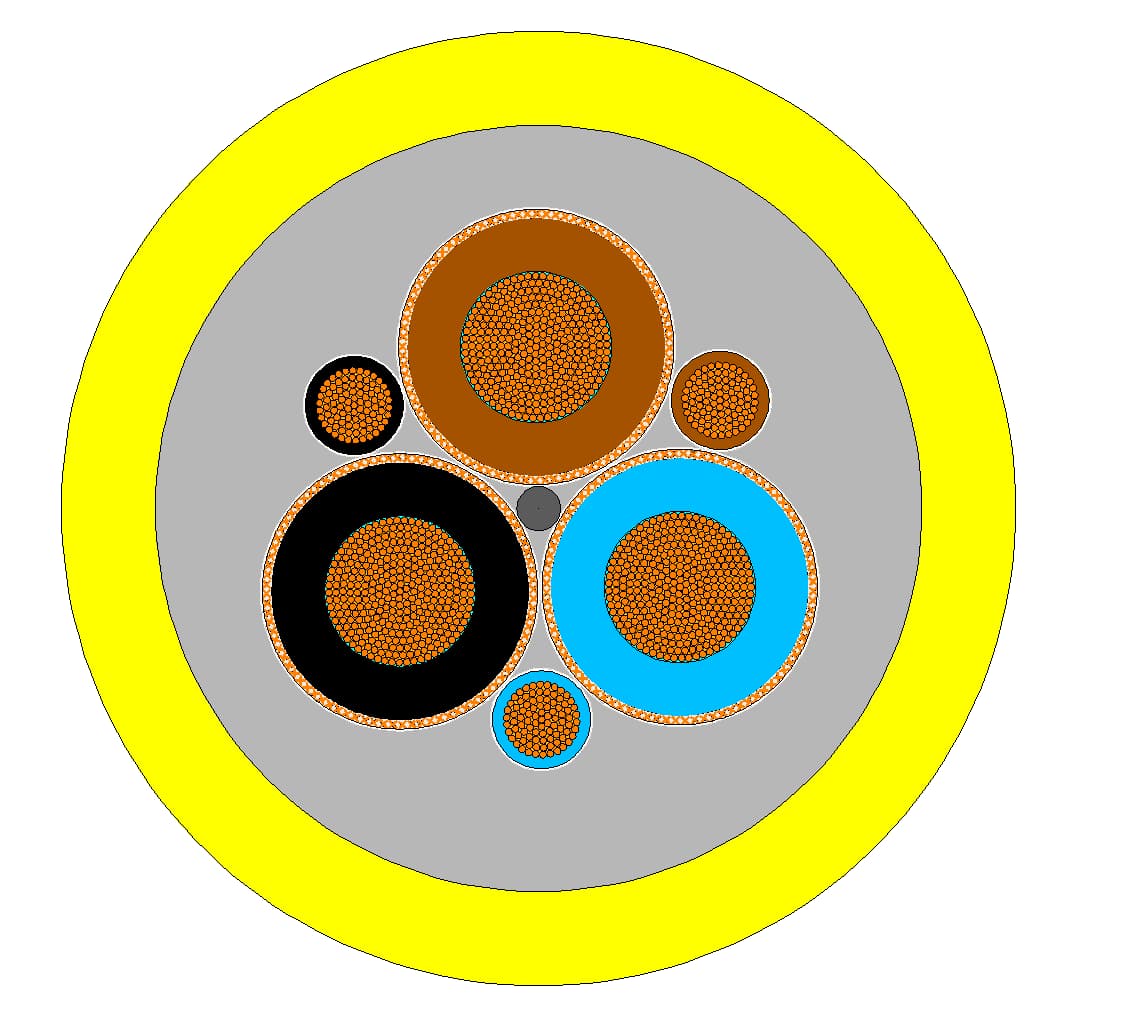

NSSHÖU 3E+ST (Screened + Pilot Cores)

3 individually screened phase cores (2.5–185 mm²) + 3 × 1.5 or 3 × 2.5 mm² insulated control/pilot cores (ST) in outer interstices

Types in this range

Unscreened · 1C · 0.6/1 kVNSSHÖU-O Single-Core

Single Class 5 tinned copper conductor (1.5 to 300 mm²) with 3GI3 EPR insulation and 5GM5 yellow rubber sheath

High-current single-phase/three-phase feeders, switchgear jumpers and heavy-duty equipment leads

Datasheet

Unscreened · 3C–24C & 3+3E · 0.6/1 kVNSSHÖU-J / -O Multicore

3 to 24 cores (1.5–185 mm²) plus 3-phase + 3 split-earth cores (50–240 mm²), GM1b inner and 5GM5 outer sheath

Mining, tunnelling, quarry and construction-site power and control connections under high mechanical stress

Datasheet

Cu screen per phase · 3+3E · 0.6/1 kVNSSHÖU 3E Screened

3 phase cores (2.5–185 mm²) each surrounded by a tinned copper braid (≤10 mm²) or wire screen (≥16 mm²)

Underground and surface mining power feeds requiring individual phase earth-fault screening

Datasheet

Cu screen + 3 pilot cores · 0.6/1 kVNSSHÖU 3E+ST Screened + Pilot

3 individually screened phase cores (2.5–185 mm²) + 3 × 1.5 or 3 × 2.5 mm² interstitial pilot/control cores (ST)

Mobile mining cutters, loaders and tunnelling rigs requiring earth-screened phases plus pilot interlock circuits

Datasheet

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-812. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 0.6/1 kV AC (0.9/1.5 kV DC)
Max. operating voltage: 0.7/1.2 kV AC · 0.9/1.8 kV DC (DIN VDE 0298-3)
AC test voltage: 3.0 kV AC (50 Hz)
Current rating: 25 to 638 A in free air at 30 °C (DIN VDE 0298-4)
Individual phase screen (3E / 3E+ST): Tinned Cu braid (≤ 10 mm²) · helical Cu wire screen (≥ 16 mm²)

Thermal

Ambient temperature, flexing: −25 to +80 °C
Ambient temperature, fixed: −40 to +80 °C
Max. conductor temperature: +90 °C continuous · +250 °C short-circuit

Mechanical

Min. bending radius, fixed: 4 × OD (6 × OD conservative site rule)
Min. bending radius, flexing: 5 × OD free movement (10 × OD guided / reeling)
Max. tensile load: 15 N/mm² mobile operation · 50 N/mm² stationary laying (VDE 0298-3)
Abrasion & tear resistance: Abrasion ≤ 300 mm³ (VDE 0472-605 A) · Tear ≥ 30 N/mm (VDE 0472-613)

Resistance

Oil, chemical & water: Oil resistant (VDE 0472-803 A / EN 60811-404) · Submersible to 100 m
Flame retardance: IEC 60332-1-2 / EN 60332-1-2 (DIN VDE 0472-804 Test B)

Reference standards

Cable type: DIN VDE 0250-812 · DIN VDE 0250-1 · DIN VDE 0298-3 / -4
Conductor: IEC 60228 Class 5 / EN 60228 / DIN VDE 0295
Compounds: 3GI3 EPR (VDE 0207-20) · GM1b/5GM5 inner & 5GM5 outer (VDE 0207-21)

Identification

Core identification: ≤ 5 cores colour-coded (HD 308 / VDE 0293-308); ≥ 6 cores black with white numbers
Sheath colour: Yellow (black on request)
Customs tariff (HS): 8544.49

Sizes

92 sizes across 4 NSSHÖU construction families

Filter by construction group (O/J Single-Core, O/J Multicore, 3E Screened, or 3E+ST Screened + Pilot) or switch to the Ampacity, Voltage Drop & Derating view.

Sizes & dimensions
Variant & size	Configuration mm²	Cond. Ø mm	Outer Ø min mm	Outer Ø max mm	Weight ≈ kg/km	Min. bend R mm (4×D)	Max. tensile N (15 N/mm²)	Current air A (30 °C)
O/J Multicore · 3C–24C & 3+3E
NSSHÖU-J/-O 3 × 1.5 mm²	3 × 1.5	1.5	11.7	12.3	190	50	68	25
NSSHÖU-J/-O 3 × 2.5 mm²	3 × 2.5	1.9	13.1	13.7	255	55	113	32
NSSHÖU-J/-O 3 × 4 mm²	3 × 4	2.4	15.6	16.2	375	65	180	43
NSSHÖU-J/-O 3 × 6 mm²	3 × 6	2.9	16.8	17.4	465	70	270	56
NSSHÖU-J/-O 3 × 10 mm²	3 × 10	3.8	20.2	21.3	710	86	450	78
NSSHÖU-J/-O 3 × 16 mm²	3 × 16	4.8	22.3	23.4	930	94	720	104
NSSHÖU-J/-O 3 × 25 mm²	3 × 25	6.1	26.9	28.0	1,390	112	1,125	138
NSSHÖU-J/-O 3 × 35 mm²	3 × 35	7.2	30.2	31.4	1,880	126	1,575	170
NSSHÖU-J/-O 3 × 50 mm²	3 × 50	8.9	35.8	37.0	2,500	148	2,250	212
NSSHÖU-J/-O 3 × 70 mm²	3 × 70	10.6	39.3	40.5	3,460	162	3,150	263
NSSHÖU-J/-O 3 × 95 mm²	3 × 95	12.5	45.7	47.4	4,570	190	4,275	316
NSSHÖU-J/-O 3 × 120 mm²	3 × 120	14.2	48.2	49.9	5,220	200	5,400	370
NSSHÖU-J/-O 3 × 150 mm²	3 × 150	15.9	52.6	54.4	6,460	218	6,750	424
NSSHÖU-J/-O 3 × 185 mm²	3 × 185	17.7	58.7	61.0	7,980	244	8,325	484
NSSHÖU-J/-O 4 × 1.5 mm²	4 × 1.5	1.5	12.5	13.1	225	53	90	25
NSSHÖU-J/-O 4 × 2.5 mm²	4 × 2.5	1.9	15.3	15.9	350	64	150	32
NSSHÖU-J/-O 4 × 4 mm²	4 × 4	2.4	16.7	17.3	440	70	240	43
NSSHÖU-J/-O 4 × 6 mm²	4 × 6	2.9	18.1	18.7	550	75	360	56
NSSHÖU-J/-O 4 × 10 mm²	4 × 10	3.8	21.9	23.0	860	92	600	78
NSSHÖU-J/-O 4 × 16 mm²	4 × 16	4.8	25.2	26.3	1,210	106	960	104
NSSHÖU-J/-O 4 × 25 mm²	4 × 25	6.1	30.6	31.8	1,810	128	1,500	138
NSSHÖU-J/-O 4 × 35 mm²	4 × 35	7.2	32.8	34.0	2,330	136	2,100	170
NSSHÖU-J/-O 4 × 50 mm²	4 × 50	8.9	39.0	40.2	3,300	161	3,000	212
NSSHÖU-J/-O 4 × 70 mm²	4 × 70	10.6	42.8	44.5	4,300	178	4,200	263
NSSHÖU-J/-O 4 × 95 mm²	4 × 95	12.5	49.9	51.7	5,680	207	5,700	316
NSSHÖU-J/-O 4 × 120 mm²	4 × 120	14.2	55.6	57.4	6,820	230	7,200	370
NSSHÖU-J/-O 4 × 150 mm²	4 × 150	15.9	60.6	62.9	8,270	252	9,000	424
NSSHÖU-J/-O 4 × 185 mm²	4 × 185	17.7	67.4	69.7	10,350	279	11,100	484
NSSHÖU-J/-O 5 × 1.5 mm²	5 × 1.5	1.5	13.4	14.0	270	56	113	25
NSSHÖU-J/-O 5 × 2.5 mm²	5 × 2.5	1.9	16.4	17.0	410	68	188	32
NSSHÖU-J/-O 5 × 4 mm²	5 × 4	2.4	18.0	18.6	525	75	300	43
NSSHÖU-J/-O 5 × 6 mm²	5 × 6	2.9	20.3	21.4	715	86	450	56
NSSHÖU-J/-O 5 × 10 mm²	5 × 10	3.8	23.7	24.8	1,040	100	750	78
NSSHÖU-J/-O 5 × 16 mm²	5 × 16	4.8	27.3	28.4	1,470	114	1,200	104
NSSHÖU-J/-O 5 × 25 mm²	5 × 25	6.1	33.2	34.4	2,220	138	1,875	138
NSSHÖU-J/-O 7 × 1.5 mm²	7 × 1.5	1.5	16.9	17.5	400	70	158	16
NSSHÖU-J/-O 7 × 2.5 mm²	7 × 2.5	1.9	19.2	19.8	560	80	263	21
NSSHÖU-J/-O 12 × 1.5 mm²	12 × 1.5	1.5	19.6	20.2	540	81	270	12
NSSHÖU-J/-O 12 × 2.5 mm²	12 × 2.5	1.9	22.3	23.4	790	94	450	16
NSSHÖU-J/-O 18 × 1.5 mm²	18 × 1.5	1.5	22.2	23.3	750	94	405	11
NSSHÖU-J/-O 18 × 2.5 mm²	18 × 2.5	1.9	26.5	27.6	1,110	111	675	14
NSSHÖU-J/-O 24 × 1.5 mm²	24 × 1.5	1.5	23.7	25.1	900	101	540	10
NSSHÖU-J/-O 24 × 2.5 mm²	24 × 2.5	1.9	28.4	29.6	1,350	119	900	13
NSSHÖU-J/-O 3 × 50 + 3 × 25/3E mm²	3 × 50 + 3 × 25/3E	8.9	36.3	37.5	2,790	150	2,250	212
NSSHÖU-J/-O 3 × 70 + 3 × 35/3E mm²	3 × 70 + 3 × 35/3E	10.6	39.7	41.4	3,660	166	3,150	263
NSSHÖU-J/-O 3 × 95 + 3 × 50/3E mm²	3 × 95 + 3 × 50/3E	12.5	46.3	48.0	4,800	192	4,275	316
NSSHÖU-J/-O 3 × 120 + 3 × 70/3E mm²	3 × 120 + 3 × 70/3E	14.2	48.5	50.3	5,990	202	5,400	370
NSSHÖU-J/-O 3 × 150 + 3 × 70/3E mm²	3 × 150 + 3 × 70/3E	15.9	54.3	56.1	7,030	225	6,750	424
NSSHÖU-J/-O 3 × 185 + 3 × 95/3E mm²	3 × 185 + 3 × 95/3E	17.7	61.7	64.0	9,030	256	8,325	484
NSSHÖU-J/-O 3 × 240 + 3 × 120/3E mm²	3 × 240 + 3 × 120/3E	20.1	66.5	68.8	11,280	276	10,800	554

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Minimum fixed bending radius rmin is calculated at 4 × OD max (for flexing allow 5 × OD max; for guided deflection allow 10 × OD max per DIN VDE 0298-3).
Maximum dynamic tensile load tmax is 15 N/mm² of total phase-conductor cross-section (for 3+3E and 3E+ST types, calculated on the 3 phase conductors only). Current in free air at 30 °C includes multicore loading conversion factors for 7–24 core control sizes.

Ampacity, voltage drop & derating
Conductor mm²	Max. DC R 20 °C Ω/km (tinned)	On floor A (30 °C)	Free air A (30 °C)	Reeled 1L A	Reeled 2L A	Reeled 3L A	Voltage drop V/A·km (PF 0.8)	Voltage drop V/A·km (PF 1.0)
1.5 mm²	13.700	24	25	19	15	12	23.56	29.32
2.5 mm²	8.210	30	32	24	18	15	14.17	17.59
4 mm²	5.090	41	43	33	25	20	8.82	10.92
6 mm²	3.390	53	56	42	32	26	5.90	7.27
10 mm²	1.950	74	78	59	45	36	3.44	4.20
16 mm²	1.240	99	104	79	60	49	2.21	2.66
25 mm²	0.795	131	138	105	80	64	1.45	1.71
35 mm²	0.565	162	170	130	99	79	1.06	1.23
50 mm²	0.393	202	212	162	123	99	0.77	0.87
70 mm²	0.277	250	263	200	153	123	0.56	0.61
95 mm²	0.210	301	316	241	184	147	0.45	0.47
120 mm²	0.164	352	370	282	215	172	0.36	0.36
150 mm²	0.132	404	424	323	246	198	0.31	0.29
185 mm²	0.108	461	484	369	281	226	0.27	0.24
240 mm²	0.082	528	554	422	322	259	0.22	0.18
300 mm²	0.065	608	638	486	371	298	—	—

Ambient temperature derating factors (base 30 °C = 1.00, max conductor 90 °C): 10 °C: 1.15 · 15 °C: 1.12 · 20 °C: 1.08 · 25 °C: 1.04 · 30 °C: 1.00 · 35 °C: 0.96 · 40 °C: 0.91 · 45 °C: 0.87 · 50 °C: 0.82 · 55 °C: 0.76 · 60 °C: 0.71 · 65 °C: 0.65 · 70 °C: 0.58 · 75 °C: 0.50 · 80 °C: 0.41.
Multicore loading derating factors (DIN VDE 0298-4): 5 loaded cores: 0.75 · 7 cores: 0.65 · 10 cores: 0.55 · 14 cores: 0.50 · 19 cores: 0.45 · 24 cores: 0.40.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC high-voltage dielectric test on completed cable	3.0 kV AC (50 Hz, 5 min)	Every manufactured length (DIN VDE 0250-812)
Conductor DC resistance & spark test	IEC 60228 Class 5 tinned copper limits	Every manufactured length
Sample tests
5GM5 outer sheath abrasion & tear propagation resistance	Abrasion ≤ 300 mm³ (VDE 0472-605 A) · Tear ≥ 30 N/mm (VDE 0472-613)	Per compound batch (DIN VDE 0207-21)
Oil immersion & vertical flame propagation	EN 60811-404 (VDE 0472-803 A) & IEC/EN 60332-1-2 (VDE 0472-804 B)	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-812CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NSSHÖU-J [or -O / 3E / 3E+ST] [size] 0.6/1 kV DIN VDE 0250-812 · [year] · [metre mark]

Delivery form: 1000 m standard wooden drums or custom cut lengths
Packaging: Heat-treated seaworthy timber drums with waterproof end caps

Technical documents

Downloads

PDFNSSHÖU 0.6/1 kV Heavy-Duty Rubber Cable – technical datasheet92 sizes · construction, technical data, approvals XLSXNSSHÖU spec data (Excel)All 92 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between NSSHÖU-J, NSSHÖU-O, NSSHÖU 3E and NSSHÖU 3E+ST?

Under DIN VDE 0250-812, NSSHÖU-J and NSSHÖU-O are unscreened power and control cables: -J includes a green/yellow protective-earth (PE) core, while -O omits the green/yellow core (including single-core and 3+3E split-earth cables). NSSHÖU 3E adds an individual concentric tinned-copper screen (braid up to 10 mm², helical wires from 16 mm²) over each of the three phase cores so that the split earth encloses each phase radially. NSSHÖU 3E+ST further adds three insulated Class 5 tinned-copper pilot/control cores (3 × 1.5ST or 3 × 2.5ST) in the outer core interstices for earth-continuity and interlock monitoring.

Can NSSHÖU be used on motorized cable reels or energy chains?

Standard NSSHÖU is designed for fixed installation (4 × OD minimum bend radius, up to 50 N/mm² pulling load during laying) and heavy-duty mobile/trailing connection (5 × OD free flexing, up to 15 N/mm² tensile load per DIN VDE 0298-3). It does not contain an anti-torsion braid between the inner and outer sheaths. For continuous motorized drum reeling or high-cycle crane/spreader travel where torsion and reverse bending occur, specify NSHTÖU 0.6/1 kV reeling cable instead.

Why does the NSSHÖU datasheet show two different 3 × 50 + 3 × 25/3E rows?

In the specification table, sizes 3 × 50 + 3 × 25/3E through 3 × 240 + 3 × 120/3E appear first under the unscreened multicore group (where three reduced-section earth cores are laid in the interstices between the three unscreened phase cores, e.g. OD 36.3–37.5 mm for 3 × 50 + 3 × 25/3E) and again under the individually screened NSSHÖU 3E group (where the 25 mm² earth is divided into three concentric copper wire screens wrapped around each 50 mm² phase core, OD 39.8–41.5 mm). Specify '3E unscreened' or '3E individually screened' when ordering.

Is NSSHÖU suitable for wet underground workings and submersible pump feeds?

Yes. The combination of cross-linked 3GI3 EPR insulation, extruded GM1b inner sheath and heavy-duty 5GM5 polychloroprene/elastomer outer sheath is certified for dry, damp, wet and outdoor service, resists mineral oils and greases (EN 60811-404 / DIN VDE 0472-803 Test A), and is rated for permanent submersion in fresh, salt, storm, oily and sewage-contaminated water to a depth of 100 m.

Request a quote

Get an engineering quote for NSSHÖU

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

NSSHÖU 0.6/1 kV Heavy-Duty Rubber Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

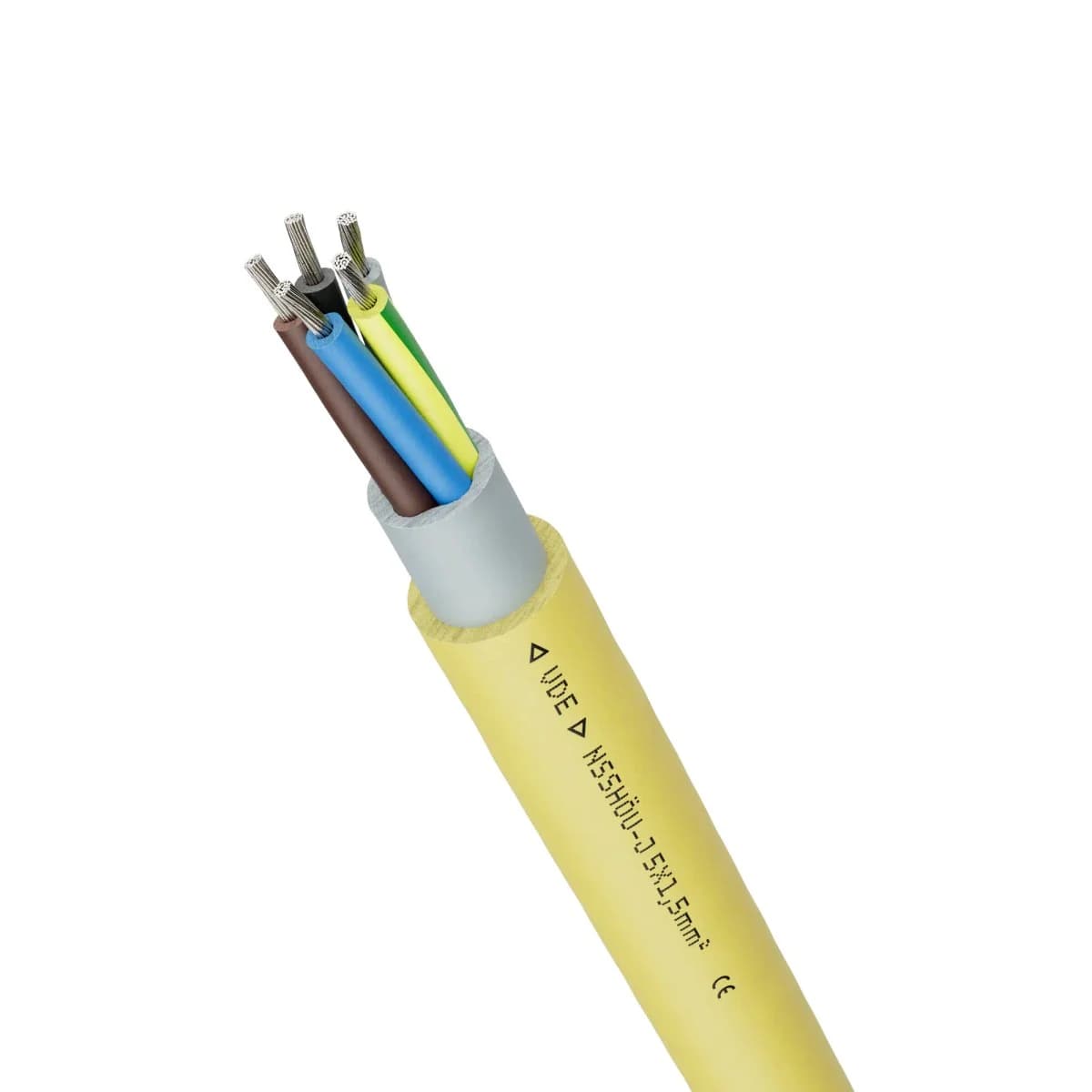

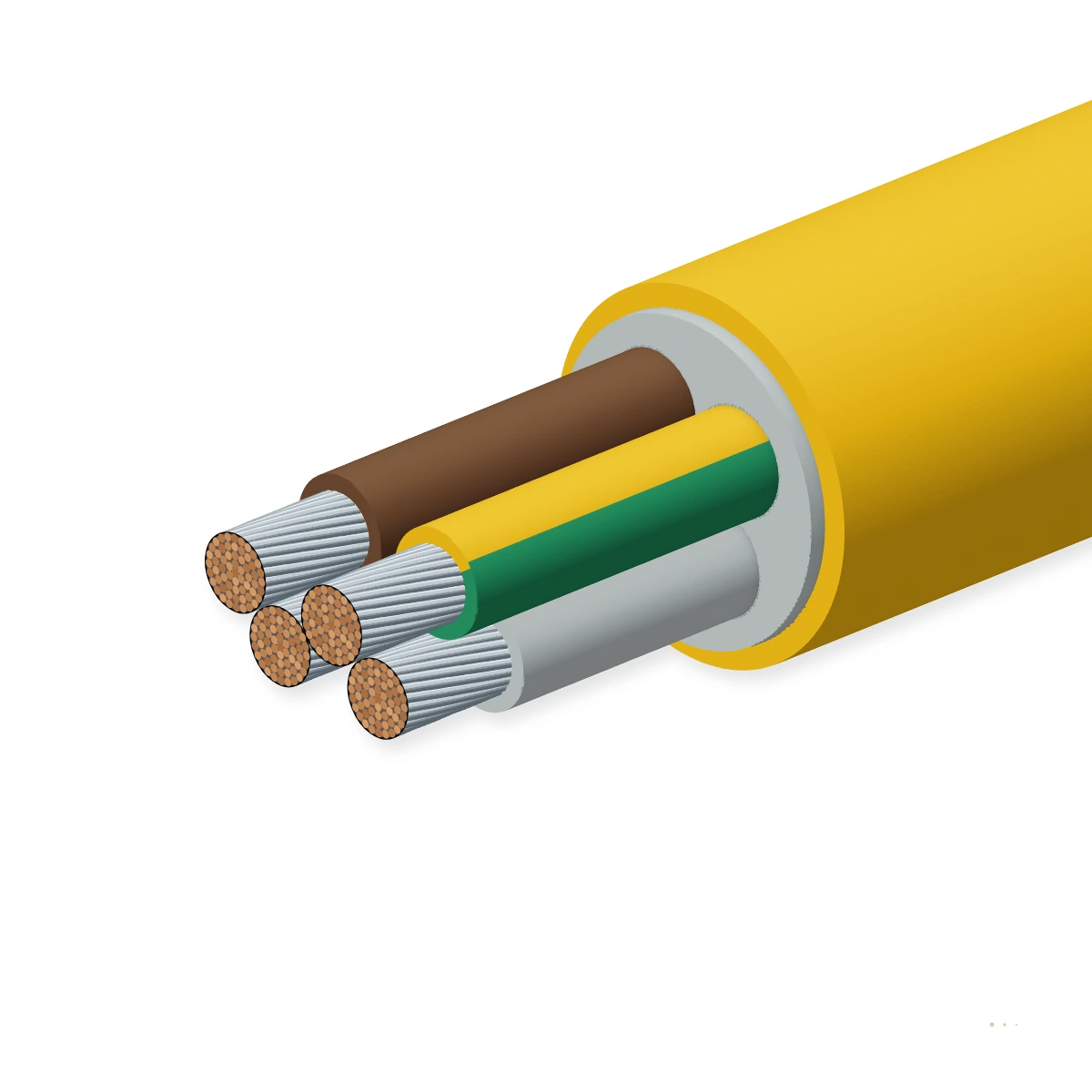

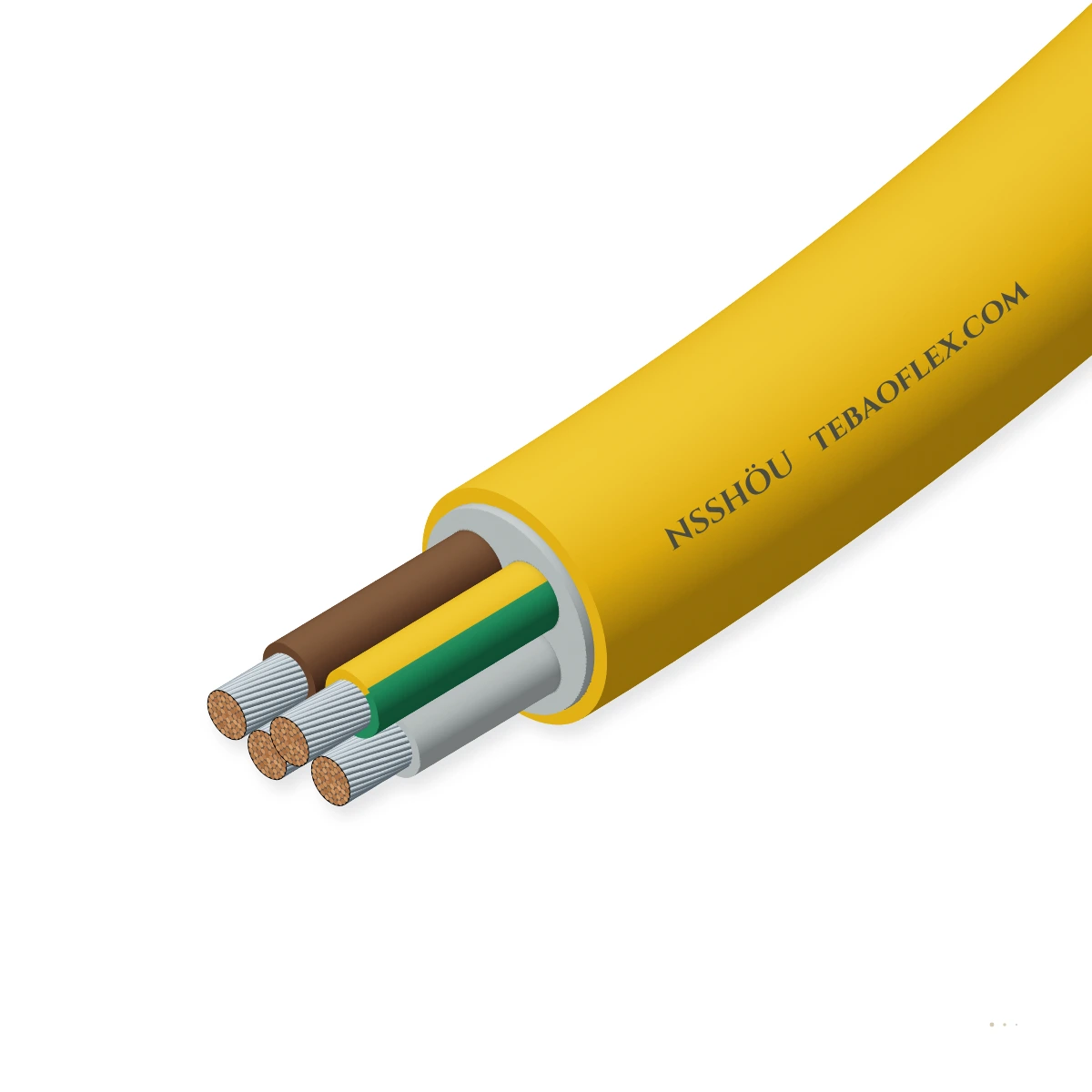

NSSHÖU 0.6/1 kV Heavy-Duty Rubber CableHeavy-duty 3GI3 / 5GM5 mining & industrial rubber cable — O/J, 3E & 3E+ST

Fixed installation

Trailing & towing

Immersion & wet locations

Motorised monospiral reel

NSSHÖU-O / -J (Unscreened)

NSSHÖU 3E (Individually Screened)

NSSHÖU 3E+ST (Screened + Pilot Cores)

Types in this range

Electrical

Thermal

Mechanical

Resistance

Reference standards

Identification

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

NSHTÖU

NTSCGEWÖU

(N)TSCGECEWÖU

NTMCGCWÖU
