Heavy-duty rubber cable (DIN VDE 0250-812)DIN VDE 0250-812U0/U 0.6/1 kV-O · -J · 3E · KON

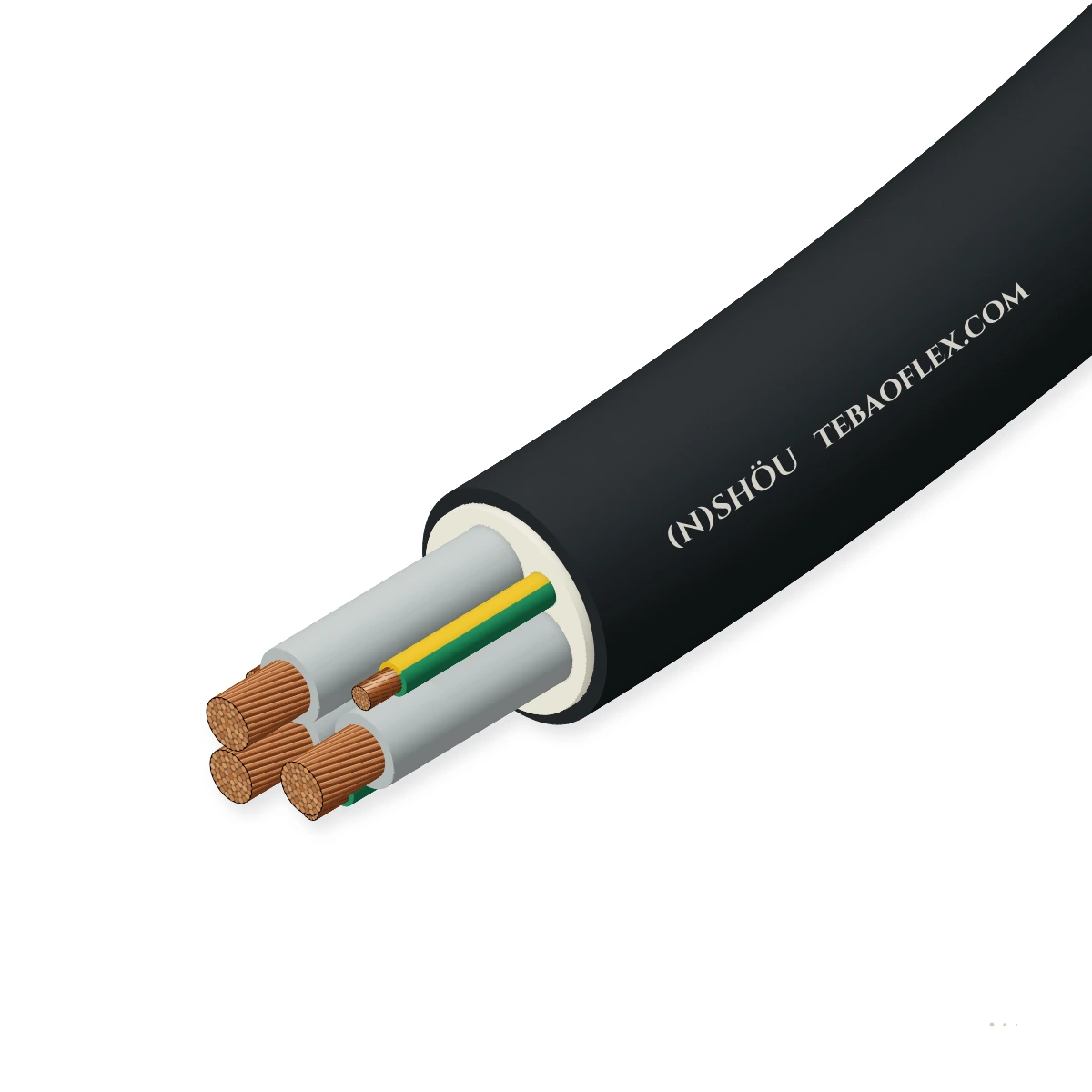

(N)SHÖU 0.6/1 kV Flexible Mining & Industrial Rubber CableFlexible 3GI3 / 5GM5 mining rubber cable — -O, -J, 3E & ...KON

Flexible 0.6/1 kV rubber power and control cable based on DIN VDE 0250-812 with Class 5 copper conductors, 3GI3 EPR insulation, elastomeric inner sheath, optional KON copper screen, and yellow or black 5GM5 outer sheath.

Oil-resistant
Flame-retardant
Water-resistant
Outdoor & humid
Order designation
(N)SHÖU-J 3 × 50 + 3 × 25/3E
Outer Ø max
33.5 mm
Weight ≈
2,481 kg/km
Min. bend R
168 mm
Current 30 °C
202 A
All sizes (80)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
U0/U 0.6/1 kV · max 0.7/1.2 kV AC
Configurations
-O/-J · 3E · KON
1C–37C, 3+3E split PE & KON screen
Min. bend radius
4–5 × OD
4 × D fixed · 5 × D free flexing
Ambient temp.
−25…+80 °C
−40…+80 °C fixed (90 °C cond.)
Tensile rating
15 N/mm²
45 to 13,500 N (up to 60 m/min)
Range
80 configs
1 × 16 to 3 × 300+3 × 150/3E mm²

Typical values for this cable type, based on DIN VDE 0250-812 — confirmed in the datasheet and quotation for your order.

Application fit

Is (N)SHÖU right for your machine?

(N)SHÖU (based on DIN VDE 0250-812, MT and M+ series) provides a lighter, more compact inner and outer sheath profile than NSSHÖU for mining conveyor belt lines, shiftable machinery, submersible dewatering pumps (down to 500 m), and drill/LHD reeling.

Fixed installation

Suitable

Semi-fixed and shiftable power feeders alongside conveyor belts, tunnels, and explosion-hazard zones (4 × D min. bend).

Trailing & towing

Suitable

Mobile equipment leads, upper/lower car loops, and suspension fittings up to 15 N/mm² conductor tensile stress (5 × D min. bend).

Immersion & wet locations

Suitable

Water-resistant 3GI3 / 5GM5 elastomer construction approved for submersible pumps down to 500 m depth in water up to +40 °C (EN 50525-2-21).

Vertical / spreader reel

Not suitable

Not engineered for high-speed vertical spreader reeling under dynamic dynamic hoist load.

Use RXX Spreader Reel
Typical machinesOpen-Cast & Underground Mining Conveyor LinesTunneling Sites, Jumbo Drills & LHD LoadersSubmersible Dewatering Pumps (to 500 m Depth)Quarries, Bulk Material Handling & Explosion-Hazard Plants

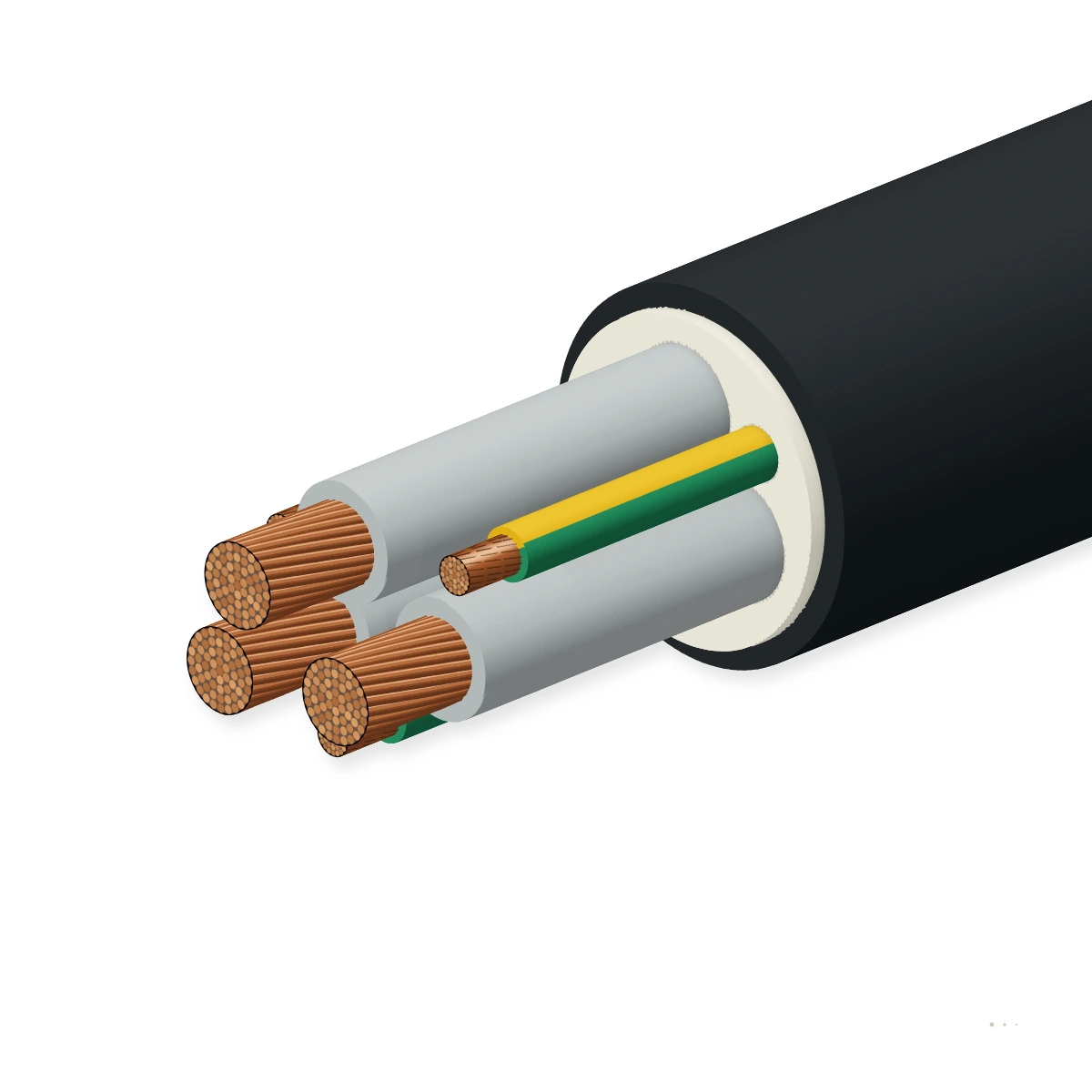

Construction

Layer by layer

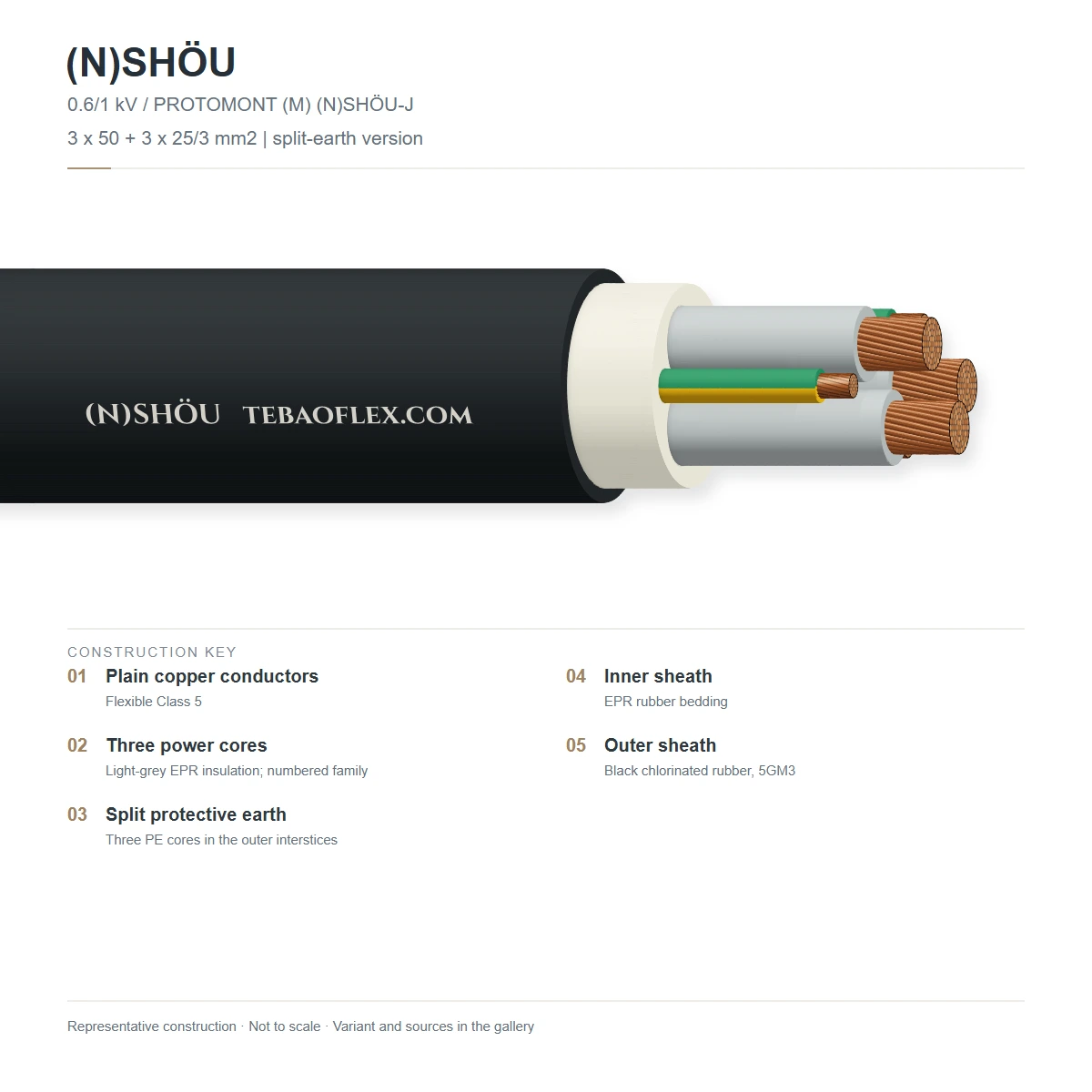

Shown: (N)SHÖU-J 3+3E split-earth power construction with Class 5 flexible copper conductors, 3GI3 cross-linked EPR core insulation, three split protective-earth conductors in the outer interstices (from 50 mm²), extruded EPR inner sheath, optional concentric copper wire spinning (...KON control types), and yellow or black 5GM5 chlorinated rubber outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible Class 5 copper conductorFinely stranded annealed plain or tinned electrolytic copper, Class 5 per DIN VDE 0295 / IEC 60228Main power cores (1.5–300 mm²) plus green/yellow core (-J) or 3-part interstitial split earth (from 50 mm²)
2Core insulation (3GI3 EPR)Cross-linked ethylene-propylene elastomer (EPR) compound type 3GI3DIN VDE 0207-20 · wall thickness 0.6–2.4 mm per DIN VDE 0250-812 · colour-coded or light grey with black numbers
3Inner sheath (EPR elastomer)Extruded cross-linked EPR / elastomeric compound filling core intersticesStabilizes core lay geometry and provides moisture barrier (wall thickness 0.8–2.0 mm)
4Concentric copper screen (...KON control types only)Closed helical spinning of copper wires over the laid-up core assembly on (N)SHÖU-J ...KON control cablesProvides overall earth/monitoring screen on 3×0.75/0.75KON to 19×1.5/4KON and 12×2.5/2.5KON control cables
5Outer sheath (5GM5 CM/CR rubber)Heavy-duty cross-linked chlorinated rubber (CM / PCP) compound type 5GM5, yellow or blackDIN VDE 0207-21 · abrasion, tear, oil (IEC 60811-404), weather & flame (IEC 60332-1-2) resistant

(N)SHÖU-O / -J Power & Multicore (1C–5C)

Single-core (16–300 mm²), 2-core (1.5–4 mm²), 3-core (1.5–185 mm²), 4-core (1.5–185 mm²) & 5-core (1.5–35 mm²) power cables

(N)SHÖU-J 3+3E Split-Earth (MT / M+ Series)

3 phase cores (50–300 mm²) + 3 symmetrical interstitial earth cores (25/3E–150/3E) for drills, LHDs & shiftable mining feeders

(N)SHÖU-J Control & ...KON Screened Control (7C–37C)

Unscreened (7×1.5 to 37×2.5 mm²) and concentrically copper-screened (...KON, 7×1.5/4KON to 12×2.5/2.5KON) mining control cables

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-812. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
U0/U = 0.6/1 kV (600/1000 V AC)
Max. operating voltage
0.7/1.2 kV AC · 0.9/1.8 kV DC (DIN VDE 0298-3)
AC test voltage
3.0–3.5 kV AC (5 min) on main cores · 2.0 kV AC on control cores
Current rating (30 °C)
23 to 620 A laid on floor · 25 to 638 A in free air at 30 °C (DIN VDE 0298-4 Table 15)
Screening options
Unscreened (-O / -J / 3E split earth) or closed concentric copper wire spinning over core assembly (...KON control types)

Thermal

Ambient temperature, flexing
−25 °C to +80 °C (continuous full-flexing operation −25 °C to +60 °C per DIN VDE 0298-3)
Ambient temperature, fixed
−40 °C to +80 °C
Max. conductor & short-circuit temp.
+90 °C continuous · +250 °C short-circuit (5 s)
Submersible water rating
Up to +40 °C water temperature · up to 500 m submersion depth (EN 50525-2-21)

Mechanical

Max. permissible tensile load
15 N/mm² of total phase conductor cross-section (45 N on 2×1.5 mm² up to 13,500 N on 3×300 mm²)
Minimum bending radius
4 × D fixed installation · 5 × D free flexing (DIN VDE 0298-3 Table 3)
Max. reeling / drum-car speed
Up to 60 m/min on drum cars, drills & LHD reels
Permissible torsional stress
±100 °/m (MT trailing/conveyor) · ±25 °/m (M+ LHD reel)

Resistance

Oil, ozone & weather resistance
Oil-resistant per IEC 60811-404 / DIN VDE 0473-811-2-1; ozone, UV, moisture & weather resistant for unrestricted indoor/outdoor use
Flame retardance
Flame-retardant per IEC 60332-1-2 / EN 60332-1-2 / DIN VDE 0482-332-1-2

Reference standards

Design & application standards
DIN VDE 0250-812 & DIN VDE 0250-1 (selection & installation per DIN VDE 0298-3 & 0298-4)
Conductor standard
IEC 60228 / EN 60228 / DIN VDE 0295 Class 5 finely stranded plain or tinned electrolytic copper
Certifications & compliance
VDE certificate with factory surveillance · Low Voltage Directive 2014/35/EU · RoHS & REACH compliant

Sizes

80 configurations across 1C–5C power, 3+3E split-earth & ...KON control

Complete dimensional, mechanical, and electrical dataset across DIN VDE 0250-812 (N)SHÖU-O, (N)SHÖU-J, 3+3E split-earth, and ...KON screened control cables. Flexing bend radius r_flex = 5 × OD_max per DIN VDE 0298-3.

Dimensions & mechanical loads (80 configs)
DesignationCoresCross-sectionCond. ØOuter Ø minOuter Ø maxWeight ≈Max. pullMin. bend R (5×D)Current 30 °CEnquiry
3+3 Split-Earth (N)SHÖU-J (8)
(N)SHÖU-J 3 × 50 + 3 × 25/3E350 + 3×25/3E929.433.52,4812,250168202
(N)SHÖU-J 3 × 70 + 3 × 35/3E370 + 3×35/3E10.635.138.13,3193,150190250
(N)SHÖU-J 3 × 95 + 3 × 50/3E395 + 3×50/3E12.840.743.74,3244,275218301
(N)SHÖU-J 3 × 120 + 3 × 70/3E3120 + 3×70/3E14.444.547.55,4765,400238352
(N)SHÖU-J 3 × 150 + 3 × 70/3E3150 + 3×70/3E16.549.555.66,9506,750278404
(N)SHÖU-J 3 × 185 + 3 × 95/3E3185 + 3×95/3E17.954.558.58,2988,325292461
(N)SHÖU-J 3 × 240 + 3 × 120/3E3240 + 3×120/3E20.660.966.210,70010,800331540
(N)SHÖU-J 3 × 300 + 3 × 150/3E3300 + 3×150/3E23.470.374.313,30013,500372620
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Permissible continuous tensile load is 15 N/mm² of active phase conductor cross-section per DIN VDE 0298-3.
  • In 3+3 split-earth constructions (50 to 300 mm²), the protective earth conductor is divided into three symmetrical interstitial conductors (e.g. 3 × 50 + 3 × 25/3E) to reduce overall diameter and improve bending symmetry on drill and LHD reels.
  • Current ratings shown are for cables laid on the floor at 30 °C ambient (DIN VDE 0298-4 Table 15); for 7–37 core control cables, DIN VDE 0298-4 multicore grouping factors (0.65 down to 0.35) are applied.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC high-voltage dielectric test3.0–3.5 kV AC (50 Hz, 5 min) on main cores · 2.0 kV AC on control coresEvery manufactured length (DIN VDE 0250-812 / DIN VDE 0472-508)
Conductor DC resistance & construction checkClass 5 copper resistance per DIN VDE 0295 / IEC 60228 (DIN VDE 0472-501)Every manufactured length
Sample tests
Oil immersion & vertical flame propagationOil resistance per IEC 60811-404 (VDE 0472-803) & flame retardance per IEC 60332-1-2 (VDE 0472-804)Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-812CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (N)SHÖU-J [or -O / ...KON] [size] 0.6/1 kV DIN VDE 0250-812 · [year] · [metre mark]
Delivery form
Standard 500 m / 1000 m export wooden drums or custom cut lengths (yellow or black 5GM5 outer sheath)
Submersible pump option
Approved for submersible pump supply down to 500 m depth at water temperatures up to +40 °C (EN 50525-2-21)
Customs HS code
8544.49

Technical documents

Downloads

PDF(N)SHÖU 0.6/1 kV Flexible Mining & Industrial Rubber Cable – technical datasheet80 sizes · construction, technical data, approvalsXLSX(N)SHÖU spec data (Excel)All 80 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
