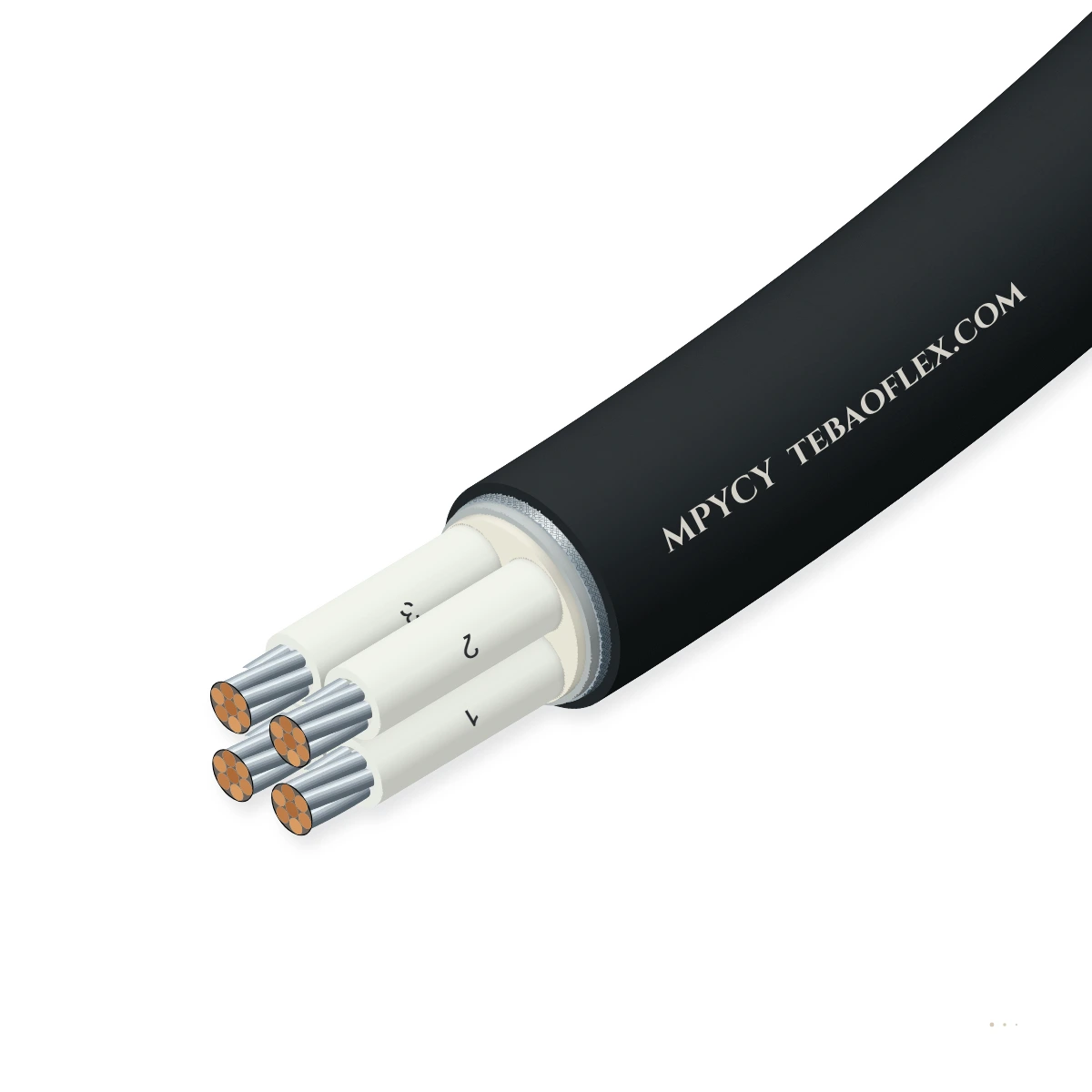

MPYCY Oversheathed Shipboard Control CableJIS C 3410 250 V wire-braid armoured & PVC-oversheathed marine control cable

Full-protection 250 V marine shipboard control cable to JIS C 3410 (`MPYCY`) with 7-wire stranded copper conductors (0.75–2.5 mm²), +90 °C EP-rubber cores, PVC inner bedding, steel or copper wire braid armour and flame-retardant PVC oversheath.

Flame-retardant
Oil-resistant
Water-resistant
Ozone, UV & moisture
Order designation
MPYCY 7×1.5
Outer Ø min
14.4 mm
Outer Ø max
15.7 mm
Weight ≈
396 kg/km
Min. bend R
94 mm
Check against my drumAll sizes (22)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
250 V
150/250 V AC · JIS C 3410 control
Armour + sheath
Braid + PVC
Steel/Cu wire braid + vinyl oversheath
Conductor temp.
+90 °C max.
+90 °C continuous · +250 °C short-circ.
Flame test
IEC 60332-3-22
Category A bunched vertical flame test
Bending radius
6 × OD
6 × overall diameter fixed installation
Size range
0.75–2.5 mm²
2 to 37 cores · 7-wire stranded Cu

Typical values for this cable type, based on JIS C 3410 / IEC 60092-376 — confirmed in the datasheet and quotation for your order.

Application fit

Is MPYCY right for your machine?

MPYCY is the workhorse JIS C 3410 shipboard control cable for engine rooms, pump rooms, bilges and weather-exposed decks where the wire braid armour must be sealed against seawater, fuel oil and humidity by an extruded outer vinyl oversheath.

Fixed installation

Suitable

Engine rooms, boiler rooms, cargo pump rooms, weather decks and watertight bulkhead glands on vessels.

VFD inverter to AC motor screened feeder

With conditions

Wire braid provides mechanical and earth screening; for dedicated EMI instrumentation, select overall-screened MPYCYS.

Use MPYS / MPYCYS

Trailing & towing

Not suitable

Fixed shipboard installation cable; not designed for dynamic trailing duty.

Use SY Control

Energy chain / drag chain

Not suitable

Not intended for drag chains; for multi-pair analog signals with zero crosstalk, select MPYCY-S.

Use MPYCY-S Pair
Typical machinesShip engine rooms, bilges & pump roomsDeck machinery, davits & hatch-cover controlsLNG carriers, tankers & container vesselsOffshore jack-up rigs & FPSO topsidesMarine classification retrofits (NK, ABS, DNV, LR, CCS)

Construction

Layer by layer

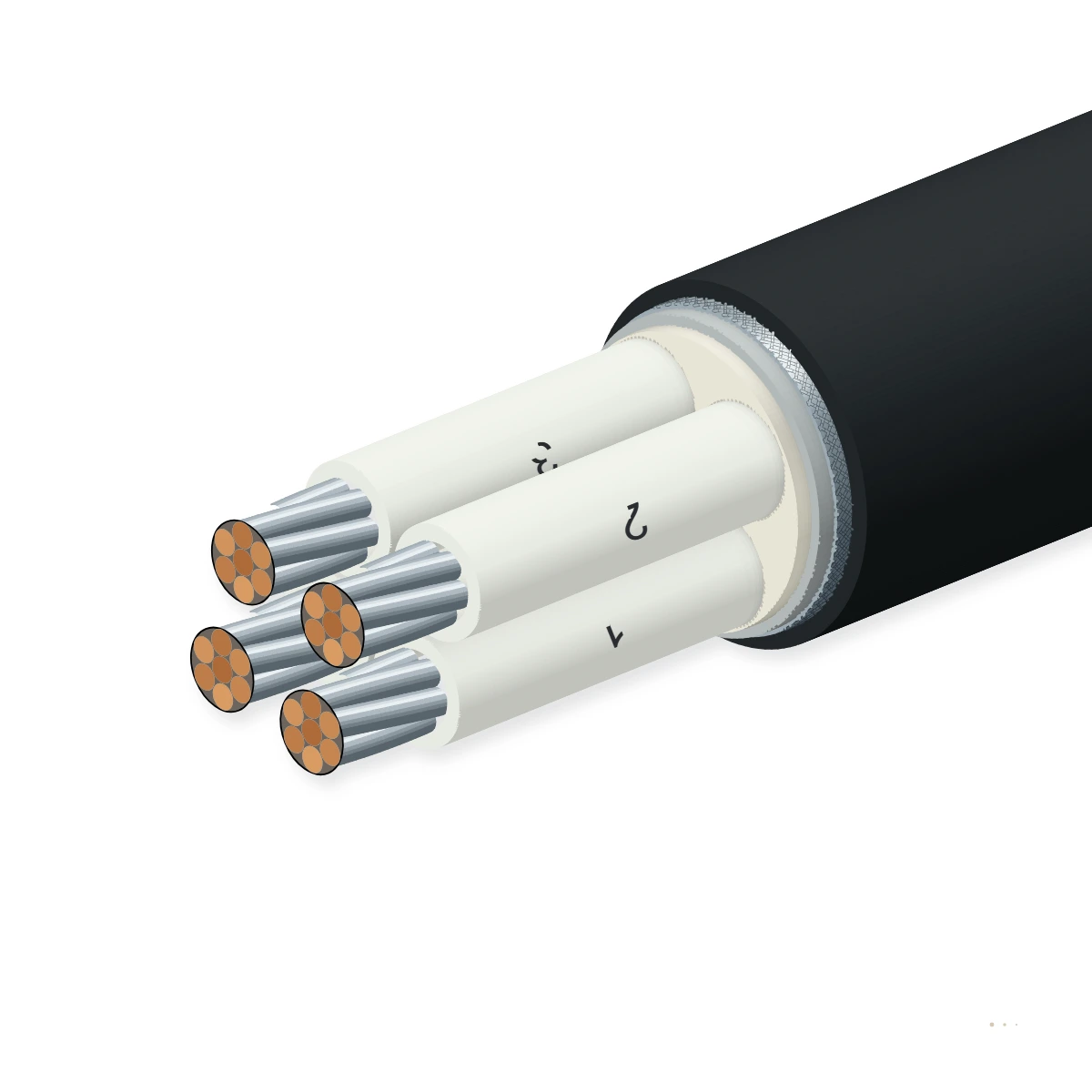

Shown: MPYCY 7×1.5 mm² — 7-wire stranded annealed copper conductors, +90 °C EP-rubber core insulation ('P', numbered), extruded PVC inner sheath ('Y'), galvanised steel or tinned-copper wire braid armour ('C') and black flame/oil-resistant PVC outer oversheath ('Y').

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded annealed copper conductor7-wire circular stranded annealed copper to JIS C 3102 / IEC 60228 Class 2JIS C 3410 / IEC 60228 Cl. 2
2EP-rubber core insulation (P)+90 °C cross-linked ethylene-propylene rubber (EPR) with sequential number printingJIS C 3410 · IEC 60092-360 EPR
3Vinyl inner sheath (Y)Extruded polyvinyl chloride inner bedding forming a circular base under the wire braidJIS C 3410
4Galvanised steel / copper wire braid (C)Close-woven galvanised steel wire braid (or tinned-copper wire braid) for crush, rodent and vibration resistanceJIS C 3410
5Flame-retardant vinyl oversheath (Y)Extruded oil-, salt-mist- and flame-retardant PVC outer oversheath meeting IEC 60332-3-22 Category AJIS C 3410 · IEC 60332-3-22 Cat. A

MPYCY (Galvanised Steel Wire Braid + PVC Oversheath)

Standard 250 V armoured and oversheathed shipboard control cable for engine rooms and decks

MPYCY-Cu (Tinned Copper Wire Braid + PVC Oversheath)

Non-magnetic copper-braided and oversheathed version for bridge compass zones and high-EMC decks

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on JIS C 3410 / IEC 60092-376. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
250 V (150/250 V AC)
AC test voltage (50/60 Hz)
1500 V AC for 5 minutes
Max. DC conductor resistance (20 °C)
1.25 mm²: ≤ 15.0 Ω/km · 1.5 mm²: ≤ 12.1 Ω/km · 2.5 mm²: ≤ 7.41 Ω/km
Insulation resistance (20 °C)
≥ 1000 MΩ·km (EP rubber)

Thermal

Max. conductor temperature
+90 °C continuous operation
Short-circuit temperature
+250 °C max. (5 s)
Fixed ambient range
−25 °C to +80 °C

Mechanical

Min. bending radius, fixed
6 × overall diameter
Double-sheathed armour
Inner PVC bedding + steel/Cu wire braid + outer PVC oversheath seals out bilge water and oil
Watertight gland fit
Smooth outer PVC oversheath seals cleanly in marine compression stuffing glands

Resistance

Bunched flame test
IEC 60332-3-22 Category A & IEC 60332-1-2 vertical flame retardant
Oil, bilge & salt mist
Outer vinyl oversheath protects wire braid against diesel oil, hydraulic fluid and salt spray

Reference standards

Primary standard
JIS C 3410
IEC alignment
IEC 60092-350, IEC 60092-360 & IEC 60092-376
Marine society scope
Designed to NK, ABS, DNV, LR, BV and CCS classification rules
RoHS & SOLAS
RoHS 2 & SOLAS asbestos-free compliant

Identification

Sheath colour
Black (or grey on request)
Core identification
White/natural EP rubber cores with sequential black numbers (1, 2, 3…)
Sheath marking
TEBAOFLEX JIS C 3410 MPYCY 250V [Size] IEC 60332-3-22 CAT.A
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

22 standard MPYCY configurations

Typical JIS C 3410 / IEC 60092-376 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
0.75 mm² JIS C 3410 MPYCY Armoured & Oversheathed (250 V)
MPYCY 2×0.752×0.751810.311.21417867
MPYCY 4×0.754×0.751811.412.42822474
MPYCY 7×0.757×0.751812.914.05029484
MPYCY 12×0.7512×0.751815.817.286438103
MPYCY 19×0.7519×0.751818.019.6136598118
1.25 mm² JIS C 3410 MPYCY Armoured & Oversheathed (250 V)
MPYCY 2×1.252×1.251611.012.02420872
MPYCY 4×1.254×1.251612.313.44827280
MPYCY 7×1.257×1.251614.015.28436591
MPYCY 12×1.2512×1.251617.418.9144556113
MPYCY 19×1.2519×1.251620.121.8228775131
MPYCY 27×1.2527×1.251623.425.43241,035152
1.50 mm² JIS C 3410 MPYCY Armoured & Oversheathed (250 V)
MPYCY 2×1.52×1.51611.312.32822074
MPYCY 4×1.54×1.51612.713.85729083
MPYCY 7×1.57×1.51614.415.710039694
MPYCY 12×1.512×1.51618.019.6172608118
MPYCY 19×1.519×1.51620.822.6273850136
MPYCY 27×1.527×1.51624.226.33881,140158
MPYCY 37×1.537×1.51626.929.25321,465175
2.50 mm² JIS C 3410 MPYCY Armoured & Oversheathed (250 V)
MPYCY 2×2.52×2.51412.213.34826680
MPYCY 4×2.54×2.51413.815.09636290
MPYCY 7×2.57×2.51416.017.4168514104
MPYCY 12×2.512×2.51420.121.8288798131
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per JIS C 3410 / IEC 60092-376. Minimum fixed bending radius shown is 6 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 188 mmBending radius OK (6 × OD 15.7 mm)
Minimum bending radius
94 mm
Min. drum core diameter
≈ 188 mm
Cable weight on drum
19.8 kg
Copper content
5.0 kg
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test1.5 kV AC (50 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / JIS C 3410 / IEC 60092-376 (bare copper)Every manufactured length
Sample tests
Vertical flame propagationIEC 60332-1-2 / EN 60332-1-2Per production batch
Insulation & sheath material physical propertiesJIS C 3410 / IEC 60092-376Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

JIS C 3410 / IEC 60092-376CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX JIS C 3410 MPYCY 250V [Size] IEC 60332-3-22 CAT.A
Delivery form
Export wooden drums or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options
Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFMPYCY Oversheathed Shipboard Control Cable – technical datasheet22 sizes · construction, technical data, approvalsXLSXMPYCY spec data (Excel)All 22 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
