Control & signal cablesJIS C 3410 MarineOverall Electrostatic Screen (S)MPYS / MPYCS / MPYCYS

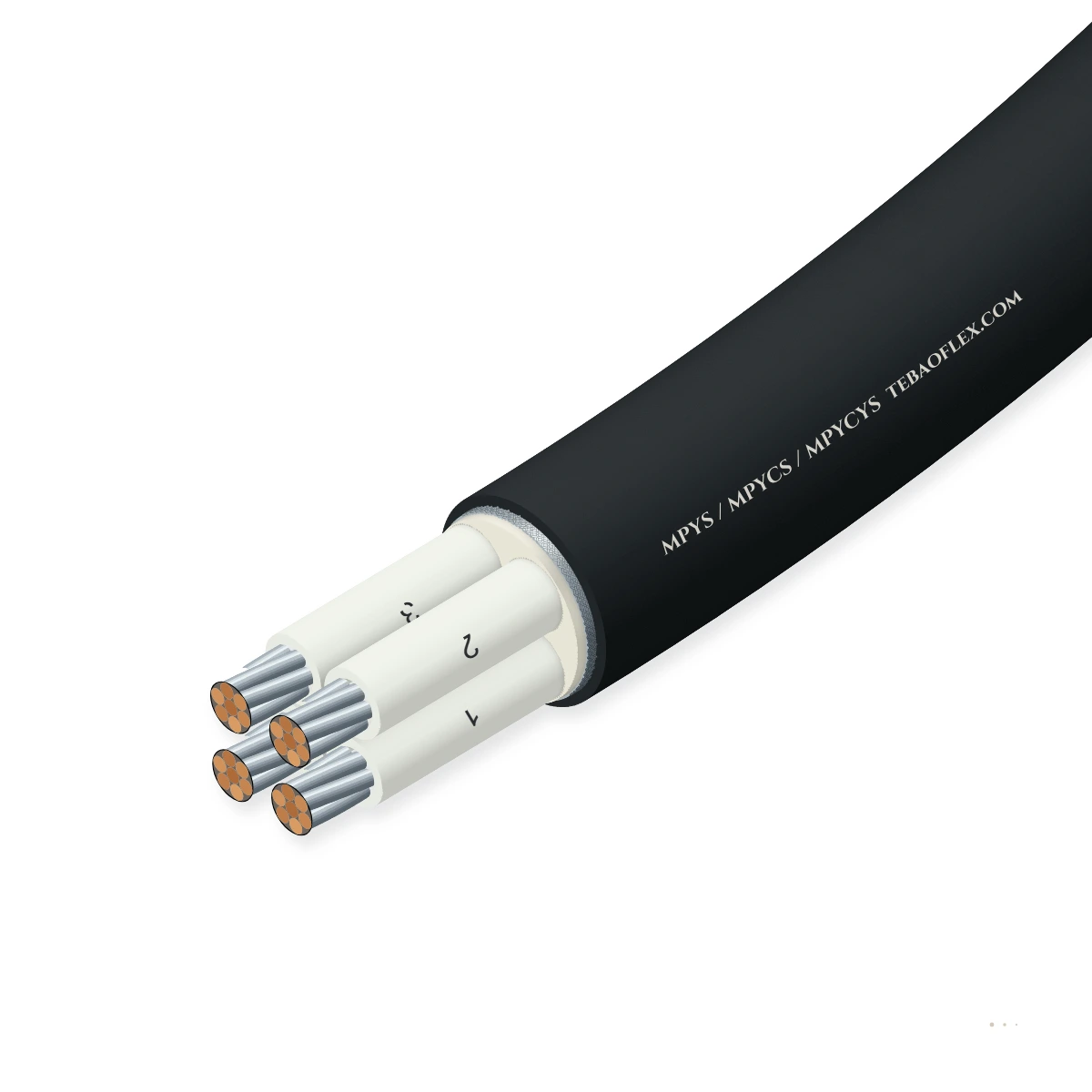

MPYS / MPYCS / MPYCYS JIS Overall-Screened Shipboard ControlJIS C 3410 250 V overall-screened EP-rubber marine control & instrumentation cable

Collective-screened 250 V marine shipboard control and instrumentation cable family to JIS C 3410 (`MPYS`, `MPYCS`, `MPYCYS`) combining +90 °C EP-rubber cores and an overall electrostatic screen (`S`) with unarmoured, braided or oversheathed protection.

Flame-retardant
Oil-resistant
Water-resistant
Approved
Order designation
MPYCYS 7×1.5
Outer Ø min
14.8 mm
Outer Ø max
16.1 mm
Weight ≈
418 kg/km
Min. bend R
97 mm
Check against my drumAll sizes (20)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
250 V
150/250 V AC · JIS C 3410 screened
Overall screen
Collective 'S'
Copper tape/braid or Al-PET + drain wire
Conductor temp.
+90 °C max.
+90 °C continuous · EP rubber cores
Flame test
IEC 60332-3-22
Category A bunched vertical flame test
Bending radius
6 × OD
6 × overall diameter fixed installation
Size range
0.75–2.5 mm²
2 to 30 cores · 3 armour variants

Typical values for this cable type, based on JIS C 3410 / IEC 60092-376 — confirmed in the datasheet and quotation for your order.

Application fit

Is MPYS / MPYCS / MPYCYS right for your machine?

The JIS C 3410 `MPYS / MPYCS / MPYCYS` series adds a dedicated overall electrostatic screen (`S`) over the cabled +90 °C EP-rubber cores to shield shipboard governor controls, bridge telemetry, tachometer signals and PLC inputs from propulsion drive and radar interference.

Fixed installation

Suitable

Shipboard automation, engine governor telemetry, bridge alarm panels and tank-level instrumentation.

VFD inverter to AC motor screened feeder

Suitable

Dedicated overall electrostatic screen ('S') isolates control signals from marine propulsion VFD harmonics.

Trailing & towing

Not suitable

Fixed shipboard installation cable; not designed for dynamic trailing duty.

Use CY Screened

Energy chain / drag chain

Not suitable

For multi-pair analog/thermocouple channels needing inter-pair crosstalk isolation, select MPY-S/MPYCY-S.

Use MPYCY-S Pair
Typical machinesMarine engine governor & propulsion controlBridge radar, gyro & navigation interfacesShipboard PLC, alarm & monitoring systemsCargo tank level & pressure instrumentationOffshore vessel automation retrofits

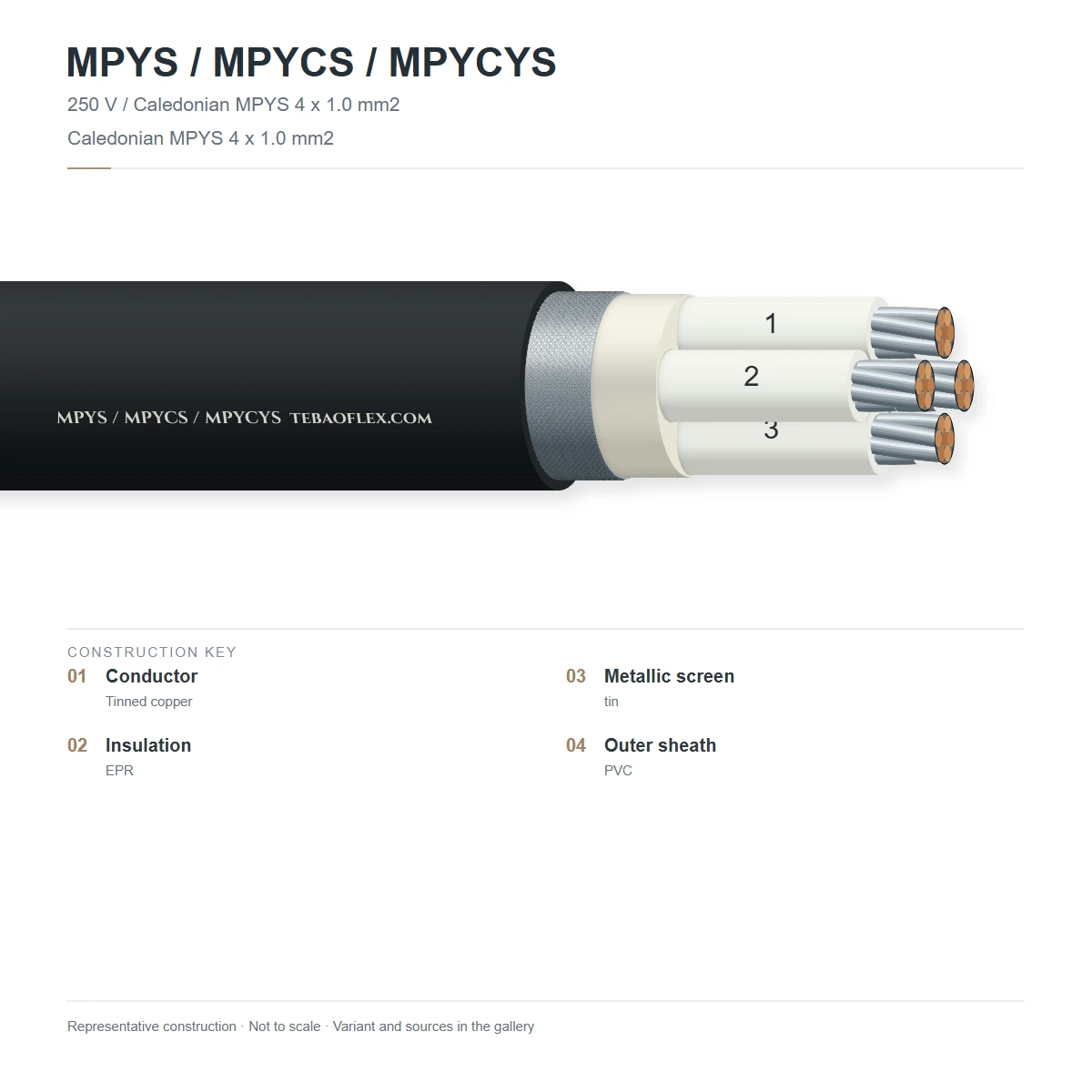

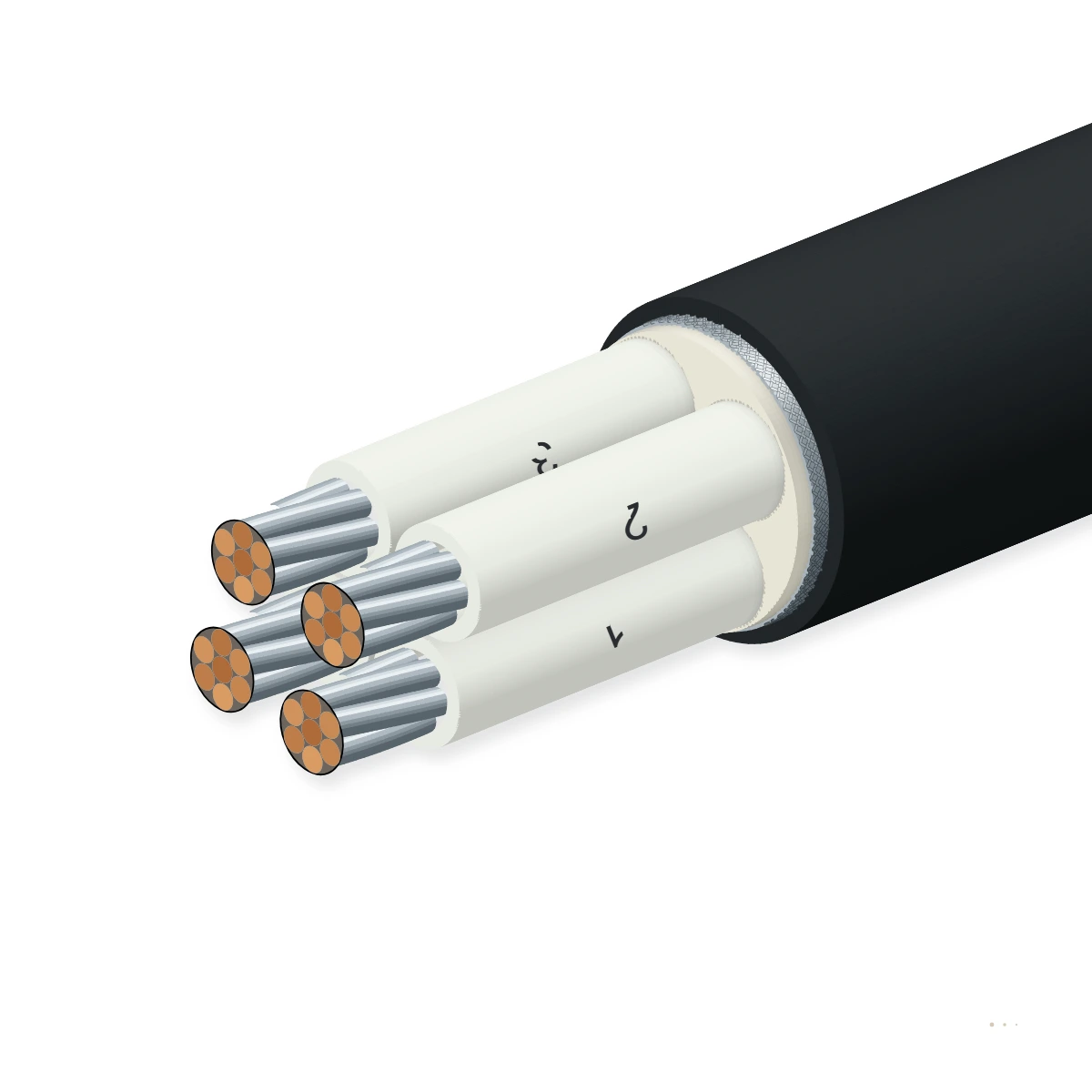

Construction

Layer by layer

Shown: MPYCYS 7×1.5 mm² — 7-wire stranded copper conductors, +90 °C EP-rubber cores ('P'), overall copper/Al-Mylar electrostatic screen with drain wire ('S'), PVC inner sheath ('Y'), wire-braid armour ('C') and black flame-retardant PVC outer oversheath ('Y').

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded annealed copper conductor7-wire circular stranded annealed copper to JIS C 3102 / IEC 60228 Class 2JIS C 3410 / IEC 60228 Cl. 2
2EP-rubber core insulation (P)+90 °C cross-linked ethylene-propylene rubber (EPR) with sequential number printingJIS C 3410 · IEC 60092-360 EPR
3Overall electrostatic screen (S)Collective copper tape/braid or aluminium-polyester tape with tinned-copper drain wire over the core bundleJIS C 3410
4Vinyl sheath (Y)Flame-retardant PVC outer sheath (on MPYS) or inner bedding sheath (on MPYCS / MPYCYS)JIS C 3410
5Optional wire braid + oversheath (C / CY)Unarmoured (MPYS), galvanised steel/Cu wire braid (MPYCS), or wire braid + PVC outer oversheath (MPYCYS)JIS C 3410 · IEC 60332-3-22 Cat. A

MPYS (Overall Screen + PVC Sheath, Unarmoured)

For dry wheelhouse, bridge console and ECR instrumentation racks requiring collective EMI shielding

MPYCS (Overall Screen + PVC Sheath + Wire Braid Armour)

Adds exposed galvanised steel or copper wire braid armour over the collectively screened cable

MPYCYS (Overall Screen + Inner PVC + Braid Armour + PVC Oversheath)

Full engine-room and deck specification with collective screen, wire braid armour and sealed PVC oversheath

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on JIS C 3410 / IEC 60092-376. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
250 V (150/250 V AC)
AC test voltage (50/60 Hz)
1500 V AC for 5 minutes (core/core & core/screen)
Max. DC conductor resistance (20 °C)
0.75 mm²: ≤ 25.3 Ω/km · 1.25 mm²: ≤ 15.0 Ω/km · 1.5 mm²: ≤ 12.1 Ω/km
Insulation resistance (20 °C)
≥ 1000 MΩ·km (EP rubber)

Thermal

Max. conductor temperature
+90 °C continuous operation
Short-circuit temperature
+250 °C max. (5 s)
Fixed ambient range
−25 °C to +80 °C

Mechanical

Min. bending radius, fixed
6 × overall diameter
Screen vs armour separation
In MPYCS/MPYCYS, the collective electrostatic screen ('S') is isolated from the outer wire braid ('C') by the PVC inner sheath

Resistance

Bunched flame test
IEC 60332-3-22 Category A & IEC 60332-1-2 vertical flame retardant
EMC & marine protection
Clean single-point instrument screen earthing without hull-current ground loops

Reference standards

Primary standard
JIS C 3410
IEC alignment
IEC 60092-350, IEC 60092-360 & IEC 60092-376
Marine society scope
Designed to NK, ABS, DNV, LR, BV and CCS classification rules
RoHS & SOLAS
RoHS 2 & SOLAS asbestos-free compliant

Identification

Sheath colour
Black or grey marine PVC
Core identification
White/natural EP rubber cores with sequential black numbers (1, 2, 3…)
Sheath marking
TEBAOFLEX JIS C 3410 MPYCYS 250V [Size] OVERALL SCREENED CAT.A
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

20 standard MPYS / MPYCS / MPYCYS configurations

Typical JIS C 3410 / IEC 60092-376 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
0.75 mm² Overall-Screened Marine Control (MPYS / MPYCS / MPYCYS)
MPYCYS 2×0.752×0.751810.711.62219270
MPYCYS 4×0.754×0.751811.812.83824077
MPYCYS 7×0.757×0.751813.214.46231286
MPYCYS 12×0.7512×0.751816.217.6102462106
MPYCYS 19×0.7519×0.751818.520.1156628121
1.25 mm² Overall-Screened Marine Control (MPYS / MPYCS / MPYCYS)
MPYCYS 2×1.252×1.251611.412.43222274
MPYCYS 4×1.254×1.251612.713.85828883
MPYCYS 7×1.257×1.251614.415.69838694
MPYCYS 12×1.2512×1.251617.819.4162584116
MPYCYS 19×1.2519×1.251620.522.3250810134
1.50 mm² Overall-Screened Marine Control (MPYS / MPYCS / MPYCYS)
MPYCYS 2×1.52×1.51611.712.73723576
MPYCYS 4×1.54×1.51613.114.26830885
MPYCYS 7×1.57×1.51614.816.111541897
MPYCYS 12×1.512×1.51618.520.1192638121
MPYCYS 19×1.519×1.51621.323.1298888139
MPYCYS 27×1.527×1.51624.726.84181,185161
2.50 mm² Overall-Screened Marine Control (MPYS / MPYCS / MPYCYS)
MPYCYS 2×2.52×2.51412.613.75828282
MPYCYS 4×2.54×2.51414.215.410838292
MPYCYS 7×2.57×2.51416.417.8184538107
MPYCYS 12×2.512×2.51420.522.3310832134
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per JIS C 3410 / IEC 60092-376. Minimum fixed bending radius shown is 6 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 194 mmBending radius OK (6 × OD 16.1 mm)
Minimum bending radius
97 mm
Min. drum core diameter
≈ 194 mm
Cable weight on drum
20.9 kg
Copper content
5.8 kg
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test1.5 kV AC (50 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / JIS C 3410 / IEC 60092-376 (bare copper)Every manufactured length
Sample tests
Vertical flame propagationIEC 60332-1-2 / EN 60332-1-2Per production batch
Insulation & sheath material physical propertiesJIS C 3410 / IEC 60092-376Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

JIS C 3410 / IEC 60092-376CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX JIS C 3410 MPYCYS 250V [Size] IEC 60332-3-22 CAT.A
Delivery form
Export wooden drums or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options
Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFMPYS / MPYCS / MPYCYS JIS Overall-Screened Shipboard Control – technical datasheet20 sizes · construction, technical data, approvalsXLSXMPYS / MPYCS / MPYCYS spec data (Excel)All 20 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
