Copper-clad steel / tinned copper conductors and central 3.0 kN polyaramid member survive rough field dragging.
Product

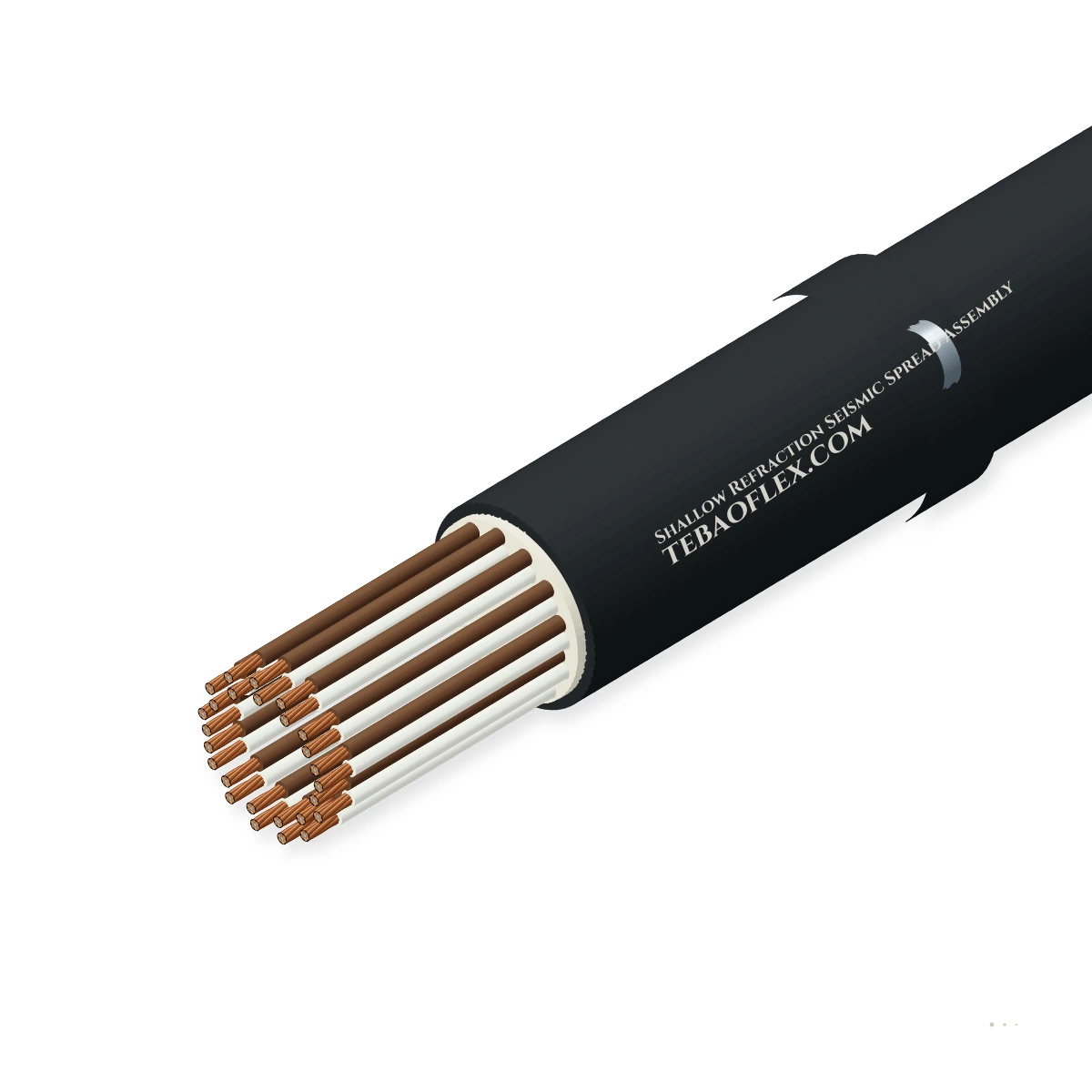

Multi-channel shallow seismic refraction and MASW geophone spread cable with 12, 24 or 48 twisted pairs, moulded Mueller, KCK split-spring or waterproof Kooter takeouts at 1–10 m pitch, and NK-27 / 61-pin bayonet plugs.
Typical values for this cable type, based on ASTM D5777 / MIL-DTL-26482 / MIL-DTL-55116 — confirmed in the datasheet and quotation for your order.
Application fit
Engineered for 12-, 24- and 48-channel shallow refraction, reflection and MASW engineering seismographs.
Copper-clad steel / tinned copper conductors and central 3.0 kN polyaramid member survive rough field dragging.
Polyurethane-moulded waterproof takeouts (IP67/IP68 with Kooter / Wokcki connectors) operate in wet ditches and marshland.
Arctic-grade −40 °C to +80 °C cold-flexible polyether PUR jacket prevents kinking and memory coils on portable reels.
Geophysical field seismic spread cable is designed for land surveys, not factory machine drag chains.
Use M12 Sensor CordsetConstruction

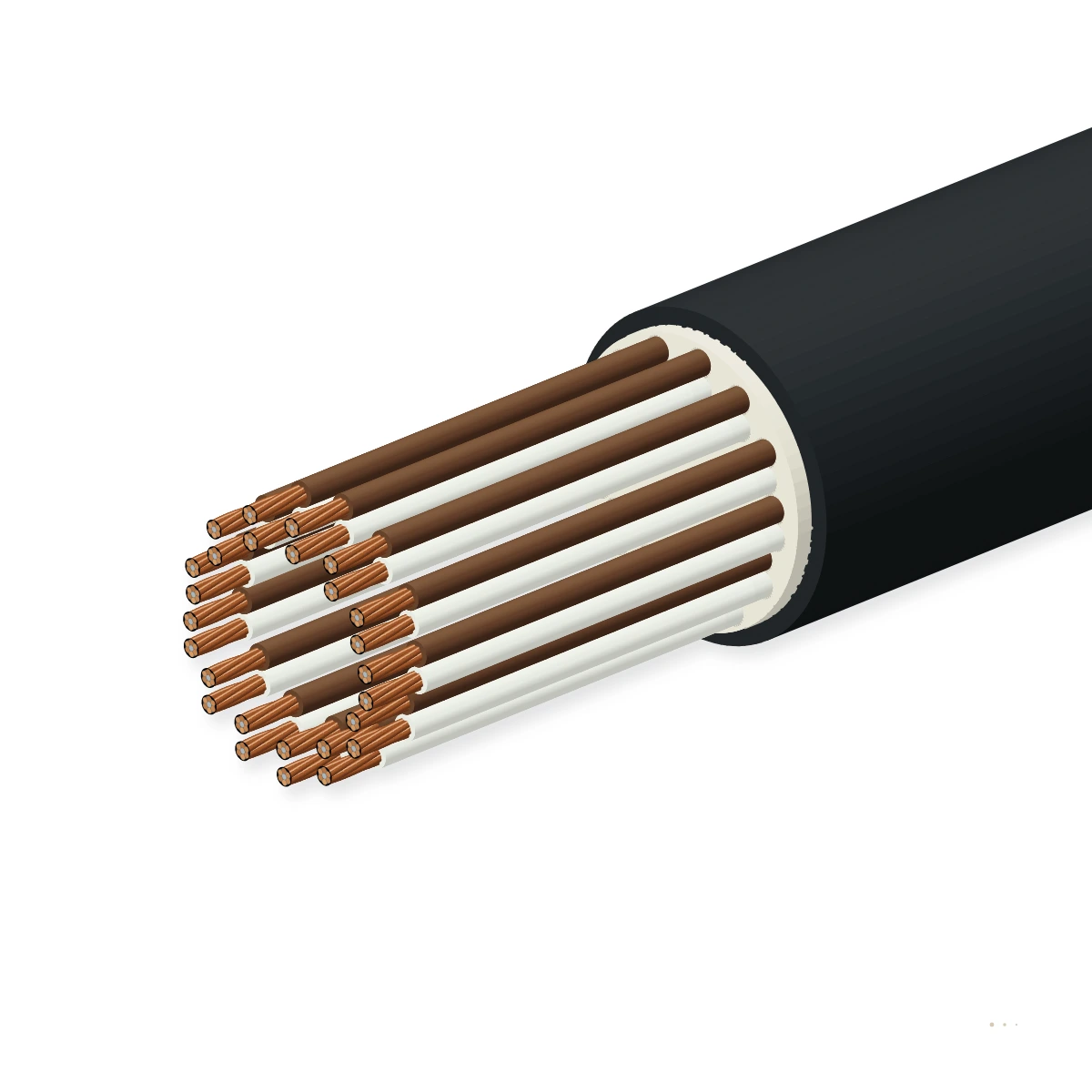

Representative 24-channel seismic spread cable: 24 × twisted pairs (24 AWG tinned copper + copper-clad steel hybrid strands, PP insulated) + central polyaramid strength member + overall foil/tape wrap + arctic PUR jacket + moulded takeouts.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Hybrid tinned-copper / copper-clad-steel (CCS) conductors | 12, 24 or 48 twisted pairs of 0.22–0.32 mm² (24–22 AWG) hybrid stranding (e.g. 12×tinned copper + 7×high-tensile copper-clad steel strands)Combines low DC loop resistance (≤ 72 Ω/km) with high flex fatigue and tensile resilience |
| 2 | Low-capacitance PP / PE pair insulation | Thin-wall polypropylene (PP) or HDPE insulation with staggered pair twist pitchesAchieves ≥ 80 dB channel-to-channel crosstalk isolation across the 4 Hz to 500 Hz seismic passband |
| 3 | Central polyaramid strength member | Continuous 2.0 kN to 3.5 kN high-modulus polyaramid core anchored to both end connector backshellsAbsorbs field pulling tension during line deployment and recovery |
| 4 | Optional electrostatic Al/PET shield | Overall aluminised polyester tape with tinned copper drain wire (optional on high-EMI urban MASW spreads)Rejects 50/60 Hz overhead powerline hum during urban geotechnical surveys |
| 5 | Arctic-flexible polyether PUR outer sheath | Extruded matte yellow, orange or blue polyether polyurethane (PUR) jacket with hot-melt moulded takeout bootsRemains limp and tangle-free at −40 °C while resisting sharp gravel and brush |
24 twisted pairs with moulded dual Mueller clips or KCK (2-pin split-spring) female takeouts and 61-pin Bendix / NK-27 connectors
24 or 48 twisted pairs with IP68 waterproof Kooter / Wokcki polarized geophone takeouts for wet-terrain refraction & reflection
Technical data
Sizes
Compatible with 61-pin MIL-DTL-26482 bayonet, 27-pin NK-27-21C, and 32-pin engineering seismograph interfaces.
| Order designation | Channels & Takeout Type | Pitch m | Total Len m | End Connectors | Cable OD mm | Total Wt kg | Break Load kN | Enquiry |
|---|---|---|---|---|---|---|---|---|
| 12 & 24-Channel Geophone Spread Cables (NK-27-21C & 61-Pin Bayonet Standard) | ||||||||
| SRS-12C-3M-KCK-NK27 | 12-Ch KCK Split-Spring | 3 m | 45 | 2 × NK-27-21C | 7.6 | 4.2 | 2.0 | |
| SRS-12C-5M-KCK-NK27 | 12-Ch KCK Split-Spring | 5 m | 70 | 2 × NK-27-21C | 7.6 | 6.1 | 2.0 | |
| SRS-24C-2M-KCK-61P | 24-Ch KCK Split-Spring | 2 m | 56 | 61-Pin Bayonet Female | 9.4 | 6.8 | 2.5 | |
| SRS-24C-3M-KCK-61P | 24-Ch KCK Split-Spring | 3 m | 80 | 61-Pin Bayonet Female | 9.4 | 9.2 | 2.5 | |
| SRS-24C-5M-KCK-61P | 24-Ch KCK Split-Spring | 5 m | 130 | 61-Pin Bayonet Female | 9.6 | 14.5 | 2.5 | |
| SRS-24C-5M-MUELLER-61P | 24-Ch Dual Mueller Clips | 5 m | 130 | 61-Pin Bayonet Female | 9.6 | 15.1 | 2.5 | |
| SRS-24C-10M-KCK-61P | 24-Ch KCK Split-Spring | 10 m | 250 | 61-Pin Bayonet Female | 9.8 | 26.8 | 3.0 | |
| Waterproof Kooter & 48-Channel Roll-Along Seismic Spread Cables | ||||||||
| SRS-24C-2M-KOOTER-61P | 24-Ch Waterproof Kooter | 2 m | 56 | 2 × 61-Pin (M/F Roll) | 9.6 | 7.4 | 2.5 | |
| SRS-24C-5M-KOOTER-61P | 24-Ch Waterproof Kooter | 5 m | 130 | 2 × 61-Pin (M/F Roll) | 9.8 | 15.6 | 3.0 | |
| SRS-24C-10M-KOOTER-61P | 24-Ch Waterproof Kooter | 10 m | 250 | 2 × 61-Pin (M/F Roll) | 10.0 | 28.4 | 3.0 | |
| SRS-48C-2M-KOOTER-2X61P | 48-Ch Waterproof Kooter | 2 m | 106 | 61-Pin Roll-Along | 12.2 | 18.9 | 3.5 | |
| SRS-48C-5M-KOOTER-2X61P | 48-Ch Waterproof Kooter | 5 m | 255 | 61-Pin Roll-Along | 12.5 | 42.5 | 3.5 | |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| 100 % channel polarity, continuity & crosstalk test | Verify pin-to-takeout polarity (+ / −), loop resistance ≤ 140 Ω/km and ≥ 80 dB crosstalk isolation | Every spread cable |
| 500 V DC water-bath leakage resistance test | Verify ≥ 5,000 MΩ·km core-to-core and core-to-shield/water insulation resistance | Every spread cable |
| Sample tests | ||
| Cold-flex & polyaramid anchor pull test | 2.0 kN axial load test and −40 °C mandrel wind test | Production lot |
