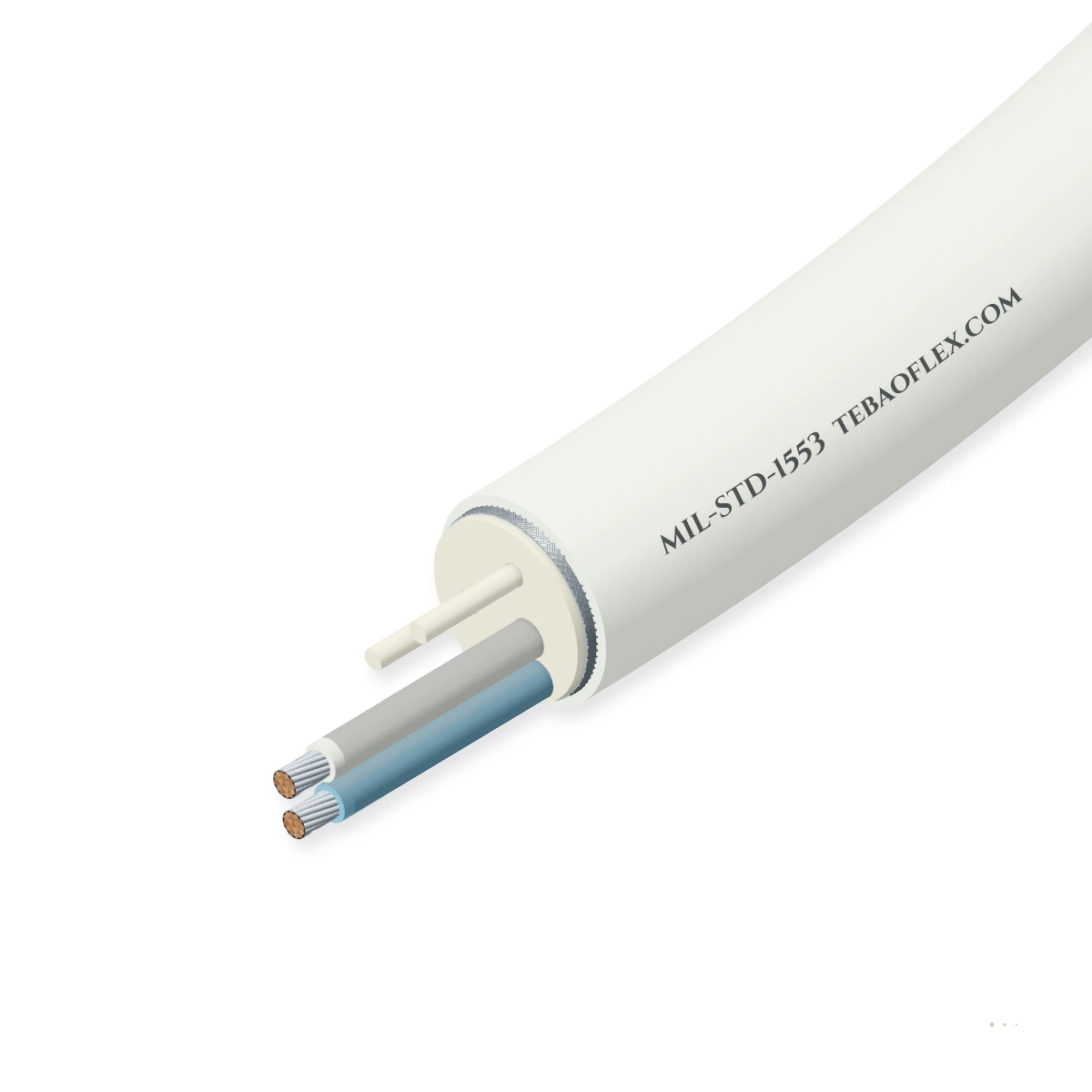

78 Ω aerospace twinaxial command and telemetry data bus cable per MIL-STD-1553B and MIL-DTL-17/176 (M17/176-00002) with 1×2×24 AWG (19×36) silver-plated copper-alloy cores, blue/white PFA insulation, SPC braid, and +200 °C PFA jacket.
Typical values for this cable type, based on MIL-STD-1553B / SAE AS15531 / MIL-DTL-17/176 (78 Ω Avionics Twinax Bus) — confirmed in the datasheet and quotation for your order.
Application fit
Specify MIL-STD-1553B (M17/176-00002) for military aircraft mission computers, flight control buses, stores management (MIL-STD-1760), naval combat buses, and launch-vehicle telemetry.
Sub-miniature Ø 3.28 mm OD and 19-strand Cu-alloy cores route easily into TRB plugs and D38999 size 8 twinax contacts.
PFA or cross-linked ETFE fluoropolymer jacket withstands -55 °C to +200 °C, Skydrol, Jet-A1 fuel, and FAR 25.869 flammability.
Tight ≤ 25.4 mm twist lay, ≤ 2 % unbalance, and ≥ 90 % SPC braid reject 400 Hz aircraft power and HIRF radar fields.
Designed for airframe, missile, and spacecraft wire harnesses rather than industrial reeling drums.
Use DH+ 9463F Industrial BusConstruction

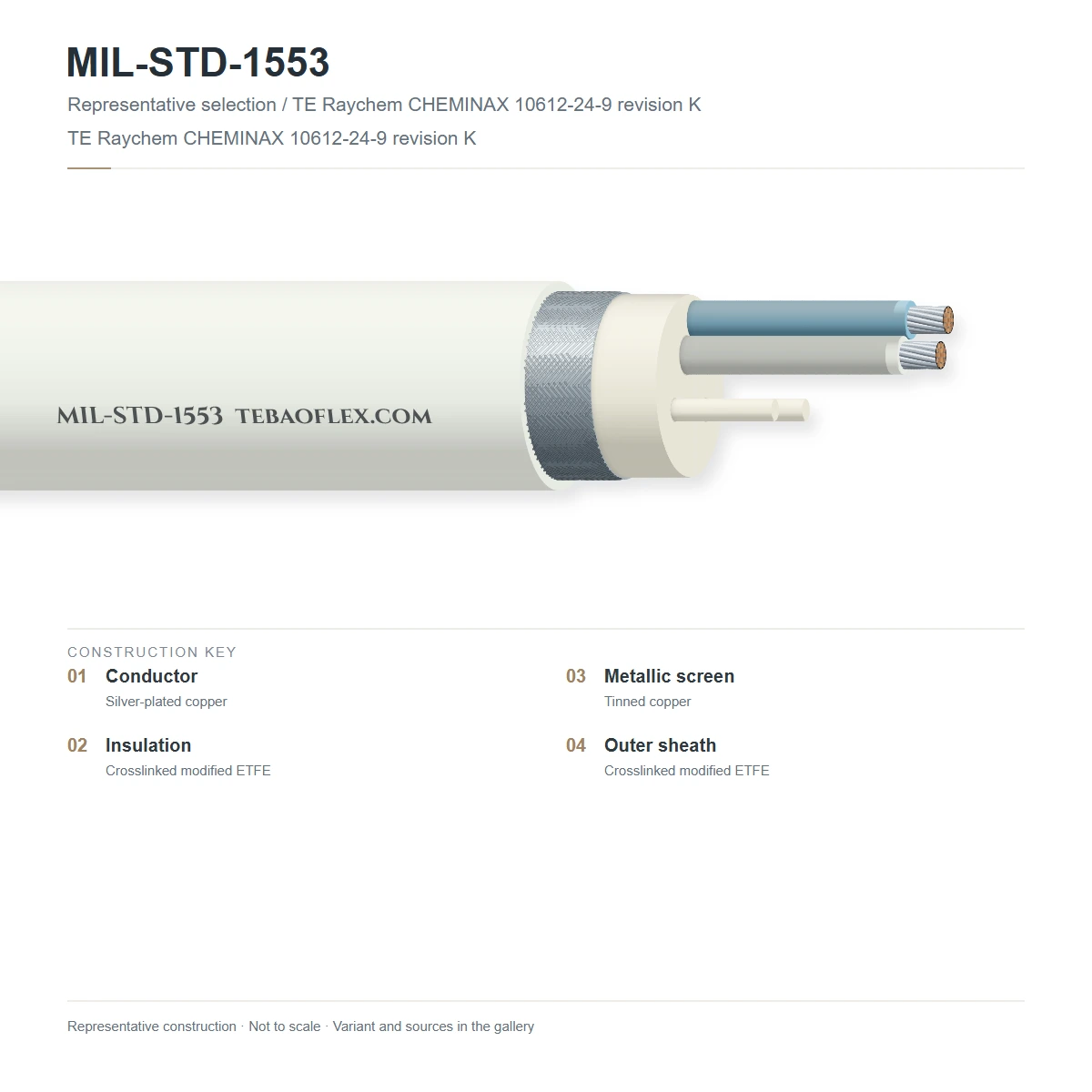

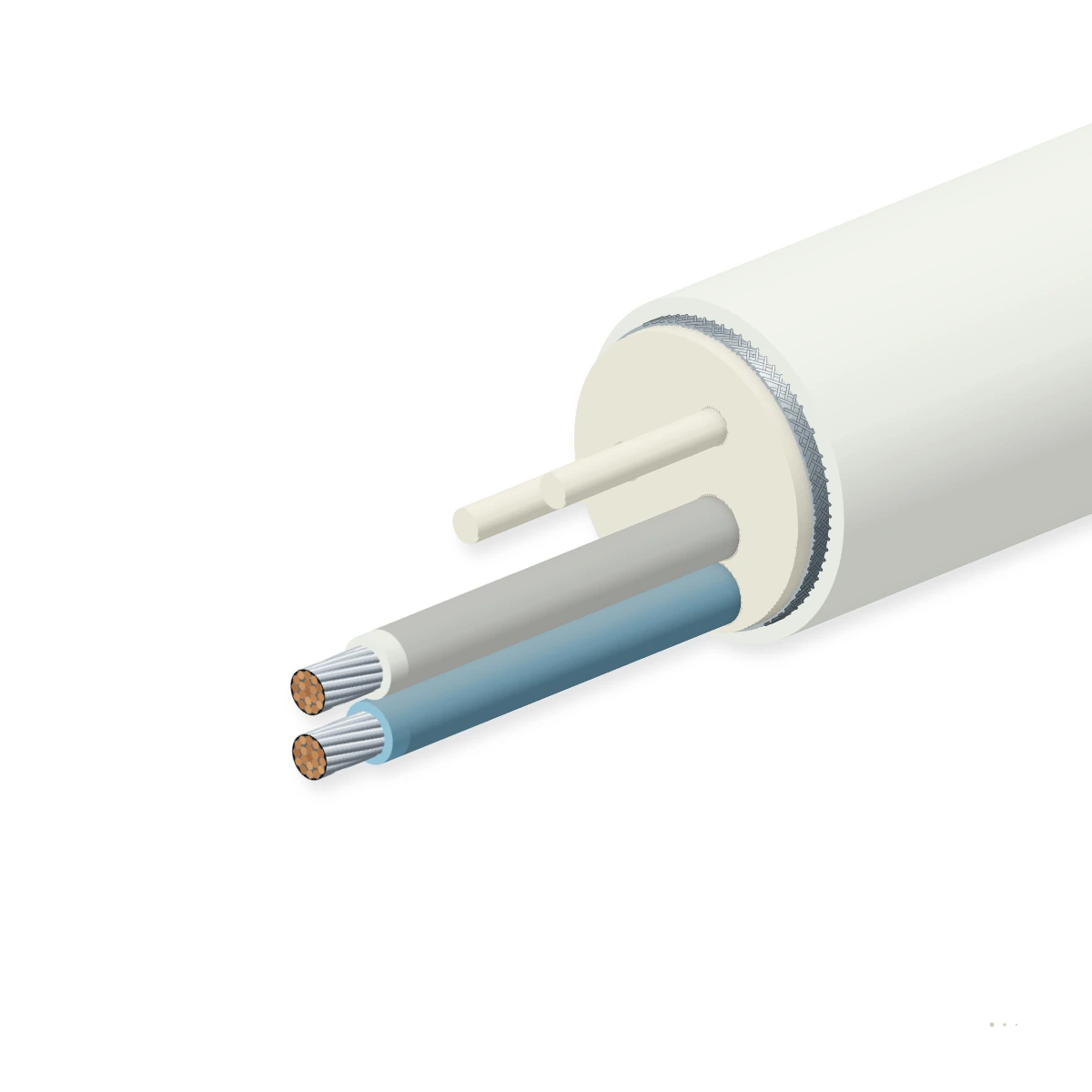

M17/176-00002 twinax build: 2 × 24 AWG (19×36 AWG) silver-plated copper-alloy conductors, blue & white PFA insulation, fluoropolymer binder, ≥ 90 % SPC braid, and blue PFA jacket.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Silver-plated high-strength copper-alloy pair | 2 × 24 AWG (19×36 AWG, Ø 0.61 mm) silver-coated high-strength copper alloy per ASTM B624 (or 22/20 AWG low-loss)High tensile break strength and vibration fatigue resistance in airframe harnesses |
| 2 | PFA or microporous ePTFE core insulation | Extruded perfluoroalkoxy (PFA, M17/176-00002) or expanded PTFE (1 × blue, 1 × white, Ø 1.14 mm)Holds 78 Ω ± 5 Ω at 1 MHz and ≤ 98.4 pF/m mutual capacitance across -55 to +200 °C |
| 3 | Fluoropolymer core binder tape | Concentric PTFE/PFA binder wrap over the twisted blue/white pair (≥ 39.4 twists/m)Preserves pair symmetry and ≤ 2 % core-to-shield capacitance balance |
| 4 | Silver-plated copper wire braid shield | ASTM B298 38 AWG silver-plated copper braid (≥ 90 % optical coverage; double-braid on HIRF types)Low surface transfer impedance and 360° TRB/D38999 crimp termination |
| 5 | PFA, ETFE or LSZH outer jacket | Blue PFA jacket (Ø 3.28 mm on M17/176-00002), white laser-markable ETFE (EN 3375), or shipboard LSZHPasses FAR 25.869 vertical burn and aircraft fluid immersion tests |
Qualified MIL-DTL-17/176 78 Ω twinax rated -55 °C to +200 °C with blue PFA jacket
Expanded-PTFE low-loss (≤ 2.8 dB/100m @ 1 MHz) and double-screened HIRF airframe variants
Technical data
Sizes
Engineering dimensions, impedance, propagation velocity, and electrical ratings for MIL-STD-1553 per MIL-STD-1553B / SAE AS15531 / MIL-DTL-17/176 (78 Ω Avionics Twinax Bus).
| Order designation | Impedance / size | Conductor & dielectric | Wall ≈ mm | Outer Ø ≈ mm | Metal kg/km | Weight ≈ kg/km | Min. bend R fixed mm | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Standard MIL-STD-1553 configurations | ||||||||
| M17/176-00002 Standard | 78 Ω · 2×24 AWG PFA | 19×36 SPC Alloy + PFA | 0.38 | 3.28 | 14.5 | 26.8 | 17 | |
| EN 3375-003 24 AWG ETFE | 78 Ω · 2×24 AWG ETFE | 19×36 SPC Alloy + ETFE | 0.35 | 3.15 | 14.5 | 24.0 | 16 | |
| 1553B-DS24 Double Shield | 78 Ω · 2×24 AWG 2×Braid | 19×36 SPC + Foil/2×Braid | 0.42 | 3.85 | 23.0 | 36.5 | 20 | |
| 1553B-LL22 Low-Loss | 78 Ω · 2×22 AWG ePTFE | 19×34 SPC + ePTFE + ETFE | 0.40 | 3.95 | 21.0 | 34.0 | 20 | |
| 1553B-LL20 Long-Trunk | 78 Ω · 2×20 AWG ePTFE | 19×32 SPC + ePTFE + ETFE | 0.45 | 4.75 | 31.0 | 48.0 | 24 | |
| 1553B-26 Sub-Miniature | 78 Ω · 2×26 AWG ePTFE | 19×38 SPC Alloy + ETFE | 0.30 | 2.65 | 9.8 | 17.5 | 14 | |
| 1553B-LSZH Shipboard | 78 Ω · 2×22 AWG LSZH | 19×34 Sn-Cu + PE + LSZH | 0.75 | 5.60 | 26.0 | 52.0 | 28 | |
| 1553B-SPACE Low-Outgas | 78 Ω · 2×24 AWG Polyimide | 19×36 SPC + ePTFE/PI Tape | 0.32 | 3.10 | 14.5 | 23.0 | 16 | |
| Configuration | Max. DC R @ 20 °C Ω/km | Char. Z0 Ω | Velocity VoP / L (% or nH/m) | Dielectric test V AC rms |
|---|---|---|---|---|
| M17/176-00002 Standard (78 Ω · 2×24 AWG PFA) | 93.50 | 78.0 | 69.0 | 1,500 |
| EN 3375-003 24 AWG ETFE (78 Ω · 2×24 AWG ETFE) | 93.50 | 78.0 | 74.0 | 1,500 |
| 1553B-DS24 Double Shield (78 Ω · 2×24 AWG 2×Braid) | 93.50 | 78.0 | 74.0 | 1,500 |
| 1553B-LL22 Low-Loss (78 Ω · 2×22 AWG ePTFE) | 53.10 | 78.0 | 78.0 | 1,500 |
| 1553B-LL20 Long-Trunk (78 Ω · 2×20 AWG ePTFE) | 33.50 | 78.0 | 78.0 | 1,500 |
| 1553B-26 Sub-Miniature (78 Ω · 2×26 AWG ePTFE) | 150.00 | 78.0 | 75.0 | 1,200 |
| 1553B-LSZH Shipboard (78 Ω · 2×22 AWG LSZH) | 54.00 | 78.0 | 66.0 | 1,500 |
| 1553B-SPACE Low-Outgas (78 Ω · 2×24 AWG Polyimide) | 93.50 | 78.0 | 78.0 | 1,500 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| Characteristic impedance, return loss (VSWR) & TDR sweep | 100 % frequency-domain return loss and TDR impedance verification per MIL-STD-1553B / SAE AS15531 / MIL-DTL-17/176 (78 Ω Avionics Twinax Bus) | Every manufactured length |
| Dielectric spark & high-voltage withstand test | 100 % in-line spark and AC/DC dielectric withstand per MIL-STD-1553B / SAE AS15531 / MIL-DTL-17/176 (78 Ω Avionics Twinax Bus) | Every spool or drum length |
| Sample tests | ||
| Insertion loss (attenuation), velocity & capacitance check | Attenuation (dB/100m), VoP (%), and capacitance within MIL-STD-1553B / SAE AS15531 / MIL-DTL-17/176 (78 Ω Avionics Twinax Bus) limits | Per production batch |
| Screening attenuation, transfer impedance & environmental qualification | Qualified to MIL-STD-1553B / SAE AS15531 / MIL-DTL-17/176 (78 Ω Avionics Twinax Bus) EMC shielding, thermal, and flame/fluid criteria | Type qualification |
