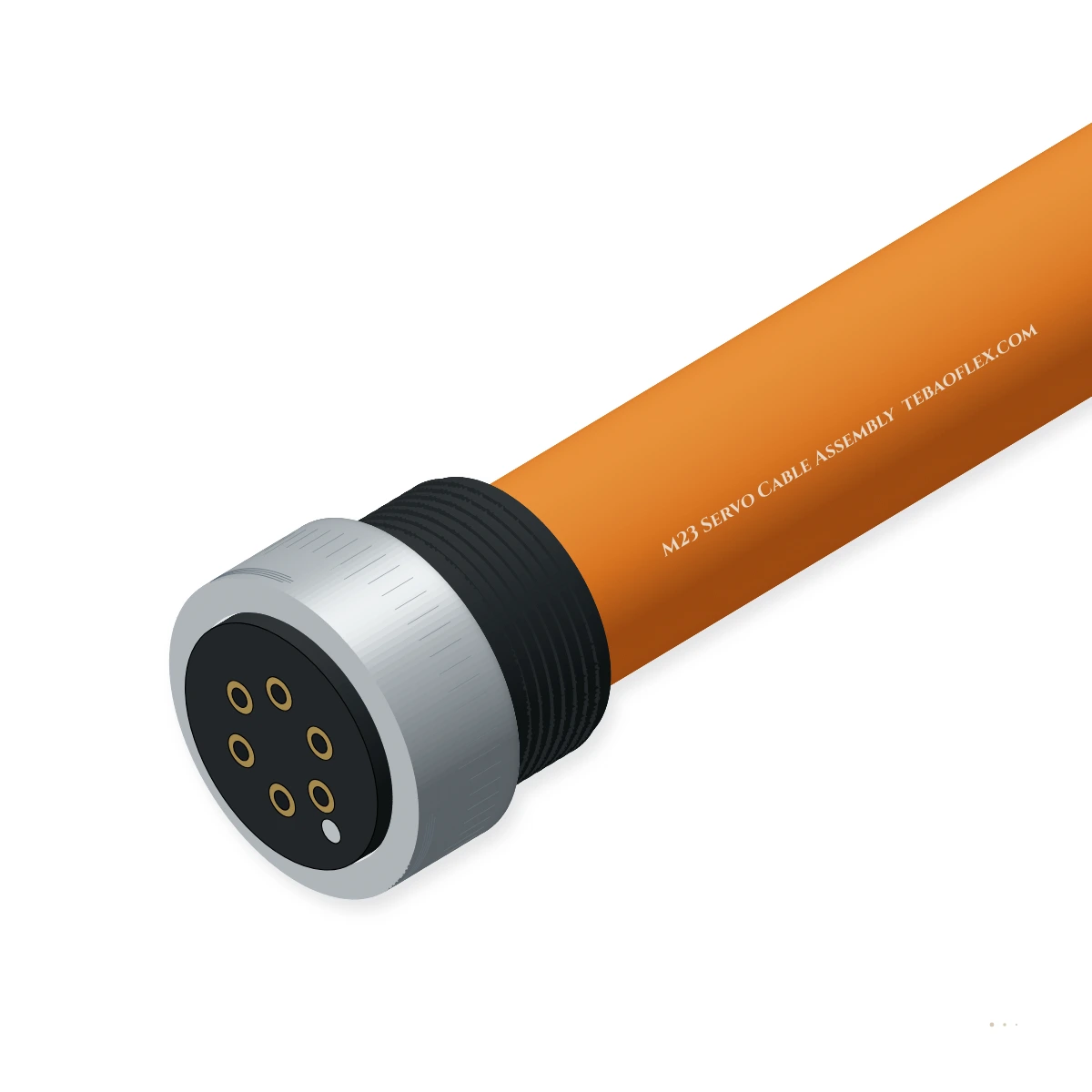

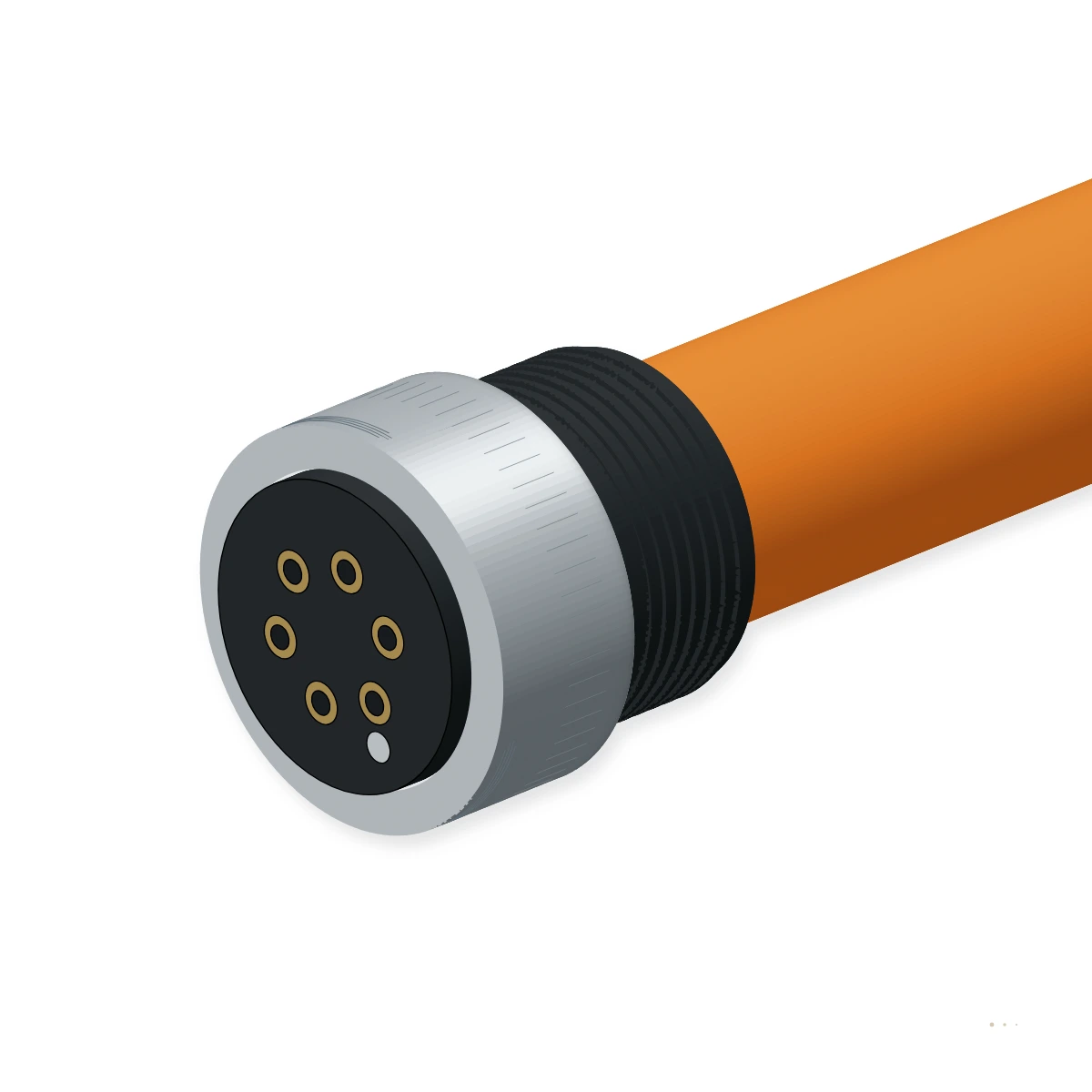

M23 servo power & feedback cable assemblyM23 Speedtec / Screw1000 V UL / CSADESINA Orange / Green

M23 Servo Cable AssemblyDESINA 1000 V M23 servo motor power + brake (4+3+PE) & 12/17-pin encoder assembly

Low-capacitance M23 servo power + brake (6/8-pin, 1.5–16 mm²) and encoder feedback (12/17-pin, EnDat / Hiperface / DRIVE-CLiQ) drag-chain assembly compatible with standard 6FX5002/6FX8002, IKG/IKR and multi-axis servo drives.

Water-resistant
EMC screen
Low-EMC design
Oil-resistant
Order designation
M23-PWR-4G2.5-BR-10M
Assembly length
10.0 m
Cable OD
13.0 mm
Copper weight
156 kg/km
Drag-chain R
98 mm
All sizes (15)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Connector
M23 Screw/Quick
6/8-Pin Power · 12/17-Pin Feedback
Rated voltage
1000 V Power
600/1000 V UL/CSA · 300 V control
Current rating
18 A to 75 A
1.5 mm² to 16 mm² phase cross-section
Drag chain
≥ 5–10M Cycles
7.5 × OD flex · up to 5 m/s & 50 m/s²
EMC shield
Dual Screened
Screened brake pair + ≥85 % Cu braid
DESINA code
Orange / Green
RAL 2003 Power · RAL 6018 Encoder

Typical values for this cable type, based on IEC 61076-2-106 / EN 61984 / UL 758 (1000 V) — confirmed in the datasheet and quotation for your order.

Application fit

Is M23 Servo Cable Assembly right for your machine?

Engineered for high-acceleration CNC machine tools, gantries, and multi-axis servo axes requiring low-capacitance VFD cables and 360° EMC shielding.

Energy chain / drag chain

Suitable

Polypropylene low-capacitance cores and DESINA PUR-HF sheath are qualified for 5–10 million high-acceleration C-track cycles.

VFD inverter to AC motor screened feeder

Suitable

Individual copper braid on holding-brake/KTY pairs plus 360° M23 crown-spring shield termination suppress PWM inverter dV/dt noise.

Fixed installation

Suitable

UL/CSA 1000 V AWM (Style 21223) and IP67 mated M23 housing allow direct routing from cabinet to machine bed.

Motorised monospiral reel

Not suitable

Pre-terminated M23 servo assembly is built for machine drag chains, not heavy portal crane reels.

Use NSHTÖU Reeling Cable
Typical machinesCNC Machining CentresMulti-Axis Gantry & Packaging6FX8002 / 6FX5002 Servo Drive SystemsMulti-Axis Industrial Servo AxesAutomated Battery & Solar Lines

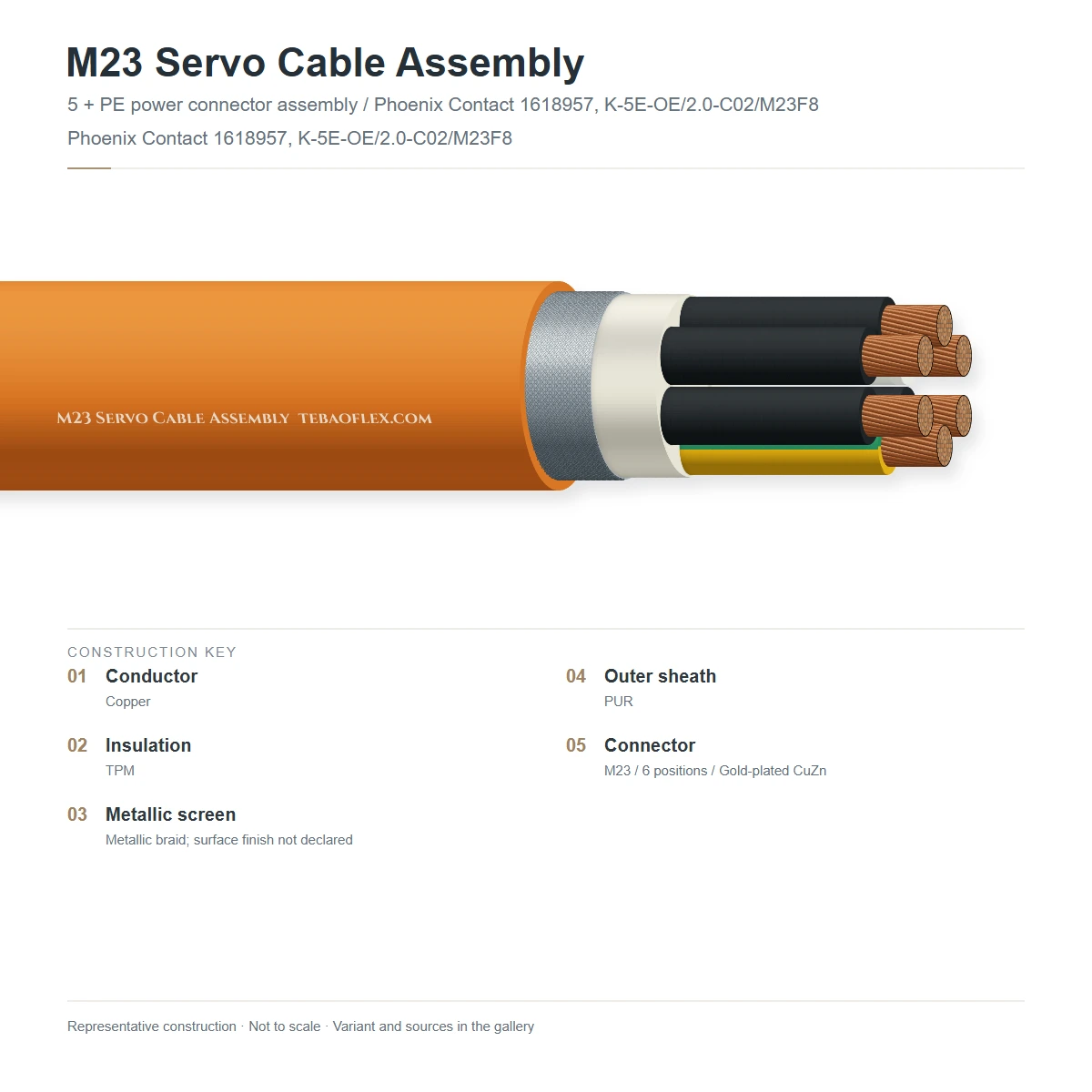

Construction

Layer by layer

Representative M23 Servo Power + Brake build: 4G4.0 mm² (U, V, W, PE) + (2×1.5 mm²)C screened brake pair + overall tinned Cu braid + RAL 2003 Orange PUR jacket + M23 6/8-pin plug.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Extra-fine Class 6 servo conductorsBare copper per IEC 60228 Class 6: 4G1.5 to 4G16 mm² power cores + 1 or 2 × (2×1.0/1.5 mm²) brake/thermal pairs (or twisted pairs on 12/17-pin feedback)Supports up to 50 m/s² drag-chain acceleration without strand fatigue
2Low-capacitance PP dielectricPolypropylene (PP / TPE-E) core insulation with low permittivity (εr ≈ 2.2)Cuts capacitive leakage spikes on long PWM servo inverter runs
3Individual brake screen + overall braidTinned copper braid (≥ 85 % coverage) over brake/temperature pairs + overall tinned copper braid (≥ 85 % coverage)Prevents 400–800 V DC-link PWM switching transients from coupling into brake or encoder lines
4DESINA Orange / Green PUR-HF jacketHalogen-free, flame-retardant polyether polyurethane outer sheath (RAL 2003 Orange for power; RAL 6018 Green for encoder)Resistant to synthetic ester cutting fluids, mineral oils and abrasion (UL 21223)
5M23 brass shell with 360° EMC crownNickel-plated brass M23 circular housing (M23×1 screw or Speedtec 1/4-turn quick-lock) with 360° iris/crown shield springProvides low-impedance 360° housing-to-braid bond and IP67 environmental seal
6Overmoulded TPU / metal gland strain reliefStraight or rotatable 90° angled M23 backshell with progressive bend relief; inverter end pre-stripped with shield saddle & ferrulesDrop-in replacement for OEM servo harnesses

M23-PWR (6-Pin / 8-Pin Power + Brake, RAL 2003)

4G1.5 to 4G16 mm² + (2×1.5)C (6FX8002-5 / IKG pinout compatible) with M23 female motor plug to inverter ferrules

M23-ENC (12-Pin / 17-Pin Feedback, RAL 6018)

Resolver, Sin/Cos, EnDat 2.2 & Hiperface feedback assemblies with M23 12/17-pin plug to Sub-D15/25 or M12

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 61076-2-106 / EN 61984 / UL 758 (1000 V). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (Power / Control)
600/1000 V AC (power) · 300/500 V (brake/signal)
Rated current (M23 power contacts)
28 A (2 mm pins, 1.5–4 mm²) · 70 A (3.6 mm pins, 6–16 mm²)
Core-to-core capacitance
≤ 75 pF/m (low-capacitance PP power cores)
AC test voltage
4.0 kV AC (power cores) · 2.0 kV AC (control pairs)
Insulation resistance
≥ 500 MΩ·km at 20 °C

Thermal

Operating temperature (fixed)
−50 °C to +80 °C
Drag-chain flexing temperature
−30 °C to +80 °C (UL/CSA 80 °C)
Max. conductor temperature
+90 °C

Mechanical

Drag-chain endurance
≥ 5,000,000 to 10,000,000 bending cycles
Min. bend radius (drag chain)
7.5 × OD (≤ 16 mm OD) · 10 × OD (> 16 mm OD)
Max. speed & acceleration
300 m/min (5 m/s) · up to 50 m/s²
Coupling mechanism
M23×1 thread & Speedtec quick-lock compatible

Resistance

Ingress protection
IP67 / IP68 (mated M23 connector)
Cutting oil & coolant
EN 60811-404 / UL Oil Res I & II
Halogen-free & flame
IEC 60754-1/2 & IEC 60332-1-2 / UL FT1

Reference standards

Connector safety standard
IEC 61076-2-106 / EN 61984 / VDE 0627
North American approval
cURus UL 758 AWM Style 21223 (1000 V, 80 °C)
Machine tool standard
ISO / DESINA colour coding (Orange / Green)

Identification

Outer jacket colour
RAL 2003 Pastel Orange (Power) · RAL 6018 Green (Feedback)
Core identification
U/V/W/PE + BR+/BR- printed per EN 50288 / DESINA standard
Customs tariff (HS)
8544.42

Sizes

15 standard M23 servo motor power+brake & encoder feedback assemblies

Pin-for-pin compatible with 6FX8002 / 6FX5002, IKG/IKR, and standard 6/8/12/17-pin M23 servo motor interfaces.

Cross-sections, lengths & dimensions
Order designationCable ConstructionM23 Pinout & LengthsLength
m		Cable OD
mm		Copper
kg/km		Cable Wt
kg/km		Flex R
mm		Enquiry
M23 Servo Power + Holding Brake Assemblies (DESINA Orange RAL 2003, 1000 V)
M23-PWR-4G1.5-BR-5M4G1.5 + (2×1.5)CM23 6-Pin (4+2) → Inverter Ferrules (5 m)5.011.611221587
M23-PWR-4G1.5-BR-10M4G1.5 + (2×1.5)CM23 6-Pin (4+2) → Inverter Ferrules (10 m)10.011.611221587
M23-PWR-4G1.5-2P-15M4G1.5 + 2×(2×0.75)CM23 8-Pin (4+4) → Inverter Ferrules (15 m)15.012.212623892
M23-PWR-4G2.5-BR-5M4G2.5 + (2×1.5)CM23 6-Pin (4+2) → Inverter Ferrules (5 m)5.013.015628598
M23-PWR-4G2.5-BR-10M4G2.5 + (2×1.5)CM23 6-Pin (4+2) → Inverter Ferrules (10 m)10.013.015628598
M23-PWR-4G2.5-BR-20M4G2.5 + (2×1.5)CM23 6-Pin (4+2) → Inverter Ferrules (20 m)20.013.015628598
M23-PWR-4G4.0-BR-10M4G4.0 + (2×1.5)CM23 6-Pin (4+2) → Inverter Ferrules (10 m)10.014.6228375110
M23-PWR-4G6.0-BR-10M4G6.0 + (2×1.5)CM23 Size 1.5 (70A) → Inverter Ferrules (10 m)10.016.8318495126
M23-PWR-4G10-BR-15M4G10 + (2×1.5)CM23 Size 1.5 (70A) → Inverter Ferrules (15 m)15.020.4495720153
M23-PWR-4G16-BR-15M4G16 + (2×1.5)CM23 Size 1.5 (70A) → Inverter Ferrules (15 m)15.024.27401,030182
M23 12-Pin & 17-Pin Resolver / EnDat / Hiperface Feedback Assemblies (DESINA Green RAL 6018)
M23-ENC-12P-RES-5M3×(2×0.14)D + 4×0.14 + 2×0.5M23 12-Pin Resolver ↔ Sub-D15 (5 m)5.07.8488859
M23-ENC-12P-RES-10M3×(2×0.14)D + 4×0.14 + 2×0.5M23 12-Pin Resolver ↔ Sub-D15 (10 m)10.07.8488859
M23-ENC-17P-ENDAT-5M4×(2×0.14) + 4×0.5M23 17-Pin EnDat/SinCos ↔ Sub-D15 (5 m)5.08.55610464
M23-ENC-17P-ENDAT-10M4×(2×0.14) + 4×0.5M23 17-Pin EnDat/SinCos ↔ Sub-D15 (10 m)10.08.55610464
M23-ENC-17P-ENDAT-20M4×(2×0.14) + 4×0.5M23 17-Pin EnDat/SinCos ↔ Sub-D15 (20 m)20.08.55610464
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Extension cables (M23 Female Motor Plug to M23 Male Coupler Plug) and rotatable 90° elbow connectors available across all cross-sections.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % automated pinout, phase sequence & insulation resistance checkVerify U/V/W/PE phase mapping, brake polarity & ≥ 500 MΩ·km IREvery single servo assembly
4.0 kV AC power Hi-Pot & 2.0 kV AC control pair Hi-Pot test5 min dielectric withstand without breakdown100 % of manufactured assemblies
Sample tests
5–10 million cycle high-acceleration drag-chain test7.5 × OD radius at 5 m/s and 50 m/s² accelerationPer servo cable batch
360° EMC transfer impedance & crown-spring contact test≤ 25 mΩ/m at 30 MHz & IP67 thermal shock cyclingType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 61076-2-106 / EN 61984 M23 CompliantcURus UL 758 AWM Style 21223 (1000 V, 80 °C) & DESINA

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SERVO FD M23 CP PUR-HF cURus AWM 21223 80C 1000V DESINA
Packaging
Coiled and individually bagged with OEM cross-reference & test report
Standard lengths
3 m · 5 m · 7 m · 10 m · 12 m · 15 m · 20 m · 25 m · 30 m
OEM compatibility
standard 6FX5002 / 6FX8002, IKG/IKR & 6/8/12/17-pin OEM servo pinouts
Lead time
1–3 weeks ex-works

Technical documents

Downloads

PDFM23 Servo Cable Assembly – technical datasheet15 sizes · construction, technical data, approvalsXLSXM23 Servo Cable Assembly spec data (Excel)All 15 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why must servo motor power cables use low-capacitance polypropylene (PP) core insulation instead of PVC?
Modern IGBT servo drives switch the 600 V DC link at 4–16 kHz with steep dV/dt voltage edges. High-capacitance PVC insulation draws large capacitive charging current spikes on every PWM edge, tripping the drive over-current protection and overheating motor bearings. Low-capacitance PP insulation keeps core-to-core capacitance below 75 pF/m.
How are the holding-brake and motor-temperature (KTY/PTC) wires protected inside the M23 power cable?
Inside the DESINA orange servo cable, the holding-brake pair (2×1.5 mm²) and optional temperature sensor pair (2×0.75 mm²) are wrapped in their own individual tinned-copper braided screen before being laid up with the U, V, W, and PE power cores under the overall 85 % copper braid.
Are TEBAOFLEX M23 connectors compatible with both standard M23×1 screw threads and Speedtec 1/4-turn quick-lock receptacles?
Yes. We supply M23 plug shells with combination thread/Speedtec locking nuts that mate with both standard M23×1 threaded motor receptacles and 1/4-turn quick-lock receptacles without adapters.
How is the cabinet inverter end of the M23 servo power assembly prepared?
The inverter end is precision-stripped to OEM dimensions, with the overall copper braid folded back under a tinned copper EMC shield-clamp sleeve, the internal brake screen drained cleanly, and Ultrasonic/hex-crimped ring terminals or insulated ferrules fitted to U, V, W, PE, and BR+/BR-.
