UIC 541-5 9-pole ep-brake & NBÜ rail jumperUIC 541-5 (9-Pole)EN 45545-2 HL3ep-Brake + NBÜ + TB 0

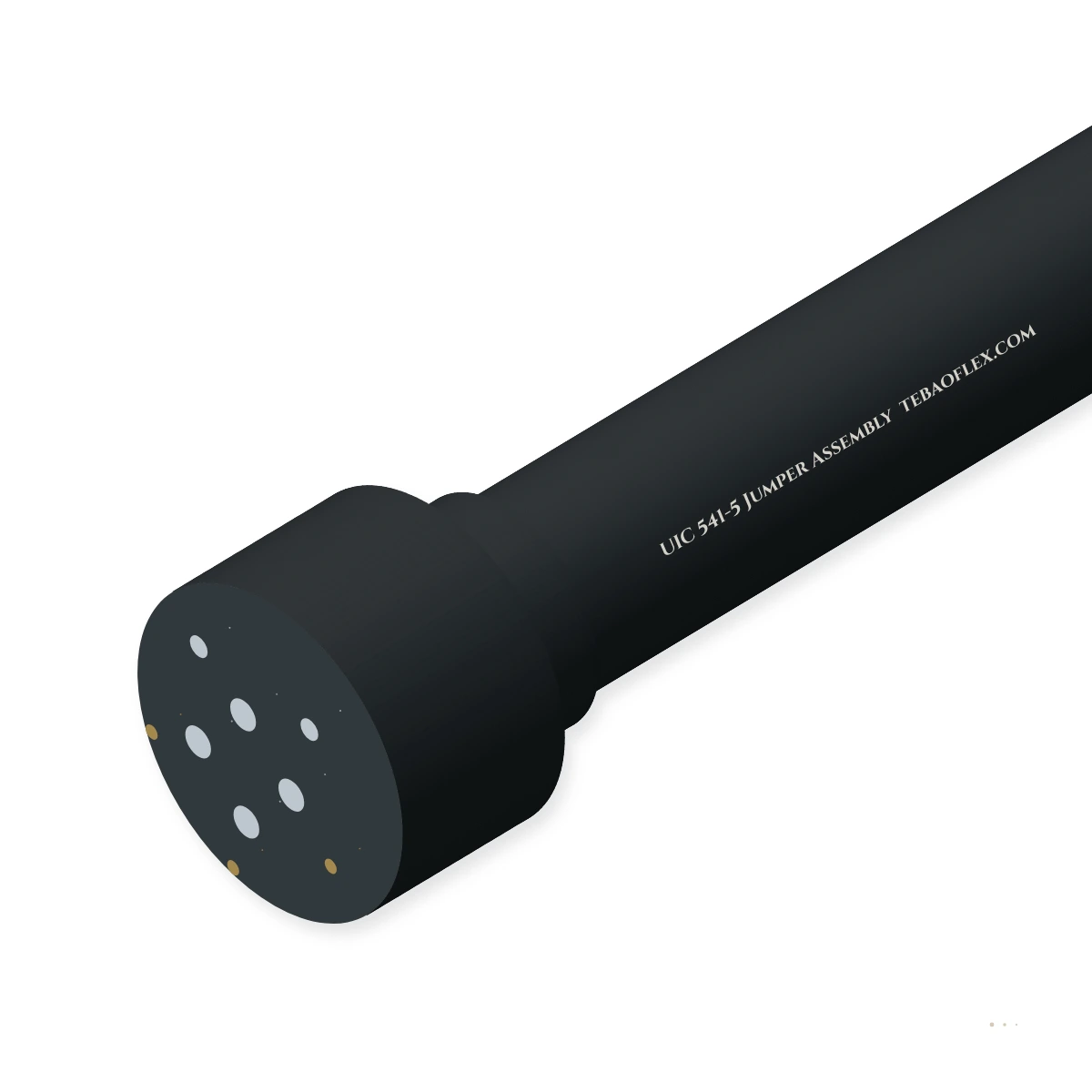

UIC 541-5 Jumper Assembly9-pole UIC 541-5 electropneumatic brake (ep), NBÜ & TB 0 door-control inter-coach jumper

Inter-vehicle 9-pole railway jumper assembly built to UIC 541-5, EN 50264 and EN 45545-2 HL3 for electropneumatic brake actuation (ep-brake), passenger alarm override (NBÜ) and door control (TB 0) between coaches.

Flame-retardant
Anti-torsion braid
Ozone, UV & moisture
Approved
Order designation
UIC541-5-PP-9P-1500
Assembly length
1,500 mm
Cable OD
17.5 mm
Assembly weight
2.68 kg
Fire hazard class
HL3 (R15/R16)
All sizes (12)
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
UIC 541-5
9-pole ep-Brake, NBÜ & TB 0 door control
Core layout
5×2.5 + 2×2×1.5
5 control cores + 2 screened pairs
Contact rating
110 V / 25 A
Pins 1–5 (2.5 mm²) · Pins 6–9 (1.5 mm²)
Fire safety
EN 45545-2 HL3
R15/R16 LSZH cross-linked EM 104
Shock / Vib
IEC 61373 Cat 2
Bogie/car-body inter-coach flexing
Sealing
IP66 / IP67
Latching hinged cap & trumpet gland

Typical values for this cable type, based on UIC 541-5 / EN 50264-3-1 / EN 45545-2 HL3 / IEC 61373 — confirmed in the datasheet and quotation for your order.

Application fit

Is UIC 541-5 Jumper Assembly right for your machine?

Engineered for continuous inter-coach hanging loop flexing, aerodynamic ballast stone impact, and −40 °C ice buildup on main-line passenger coaches.

Free-hanging vertical run

Suitable

Bell-mouth bend-relief boots and Class 5/6 tinned copper conductors withstand millions of inter-coach pitch, yaw and roll cycles.

TBM gantry & advancing tunnel reel

Suitable

Electron-beam cross-linked LSZH elastomer (EN 50264 EM 104) meets EN 45545-2 Hazard Level HL3 (R15/R16).

Fixed installation

Suitable

Resistant to ozone, UV, diesel fuel, brake dust, de-icing salts and −40 °C sub-zero temperatures.

Energy chain / drag chain

Not suitable

Inter-coach hanging jumper is designed for railway vehicle couplers, not machine-tool drag chains.

Use M23 Servo Assembly
Typical machinesMain-Line InterCity Passenger CoachesLocomotive Push-Pull & Multiple-Unit SetsInternational Cross-Border Night TrainsRolling Stock Overhaul & ModernizationUIC ep-Brake & NBÜ Safety Retrofits

Construction

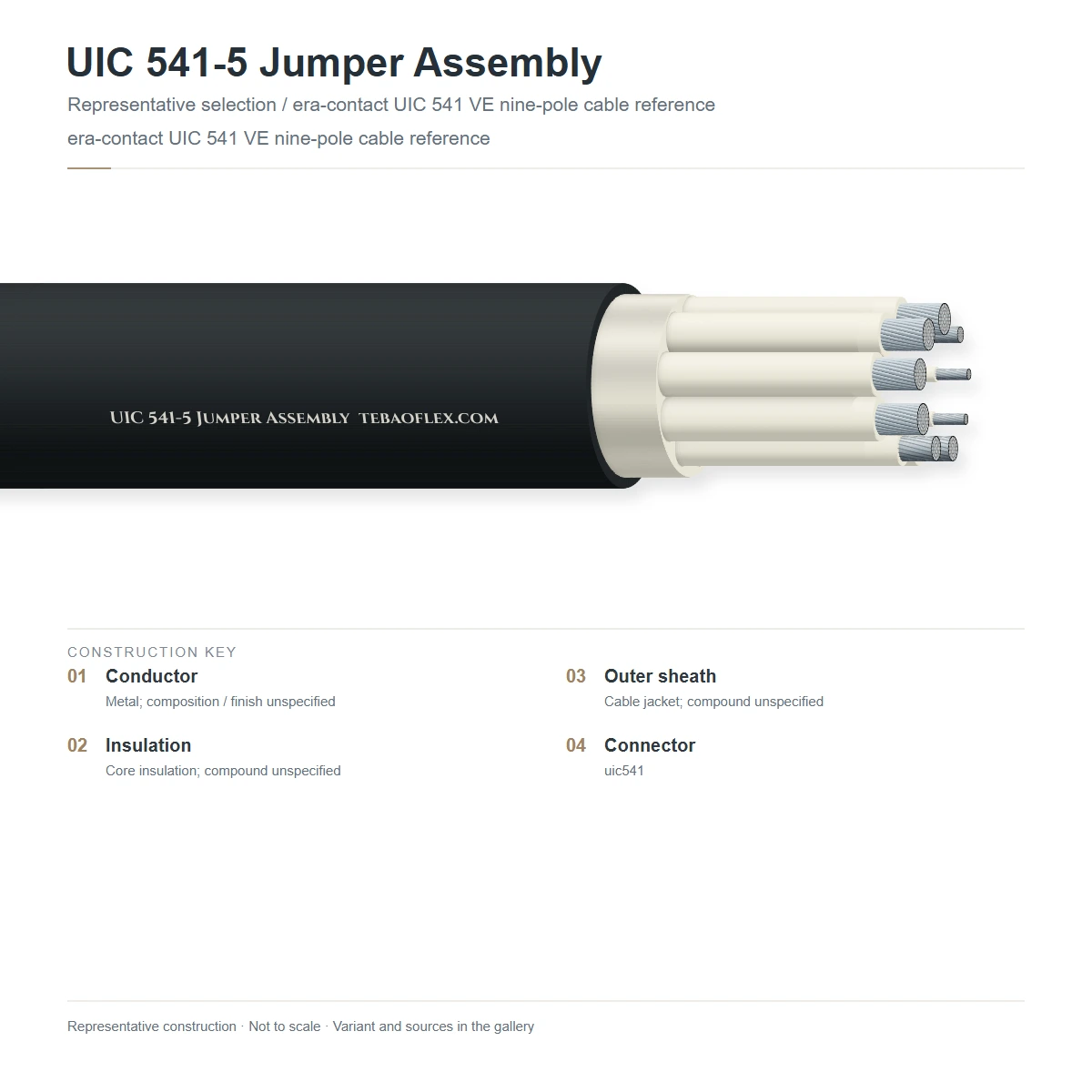

Layer by layer

Standard UIC 541-5 9-core cable construction: 5 × 2.5 mm² (ep-brake apply, release, holding, return & door control) + 2 × (2 × 1.5 mm²) individually screened twisted pairs (NBÜ emergency brake override & intercom/monitoring) + overall tinned copper screen + EN 50264 EM 104 LSZH outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Fine-stranded tinned copper conductors5 × 2.5 mm² + 4 × 1.5 mm² (arranged as 2 × 2 × 1.5 mm² pairs) tinned copper to EN 60228 Class 5 / Class 6Carries 24–110 V DC ep-brake solenoid currents and low-loss NBÜ pilot signals along 400 m train consists
2Cross-linked halogen-free EI 109 insulationElectron-beam cross-linked polyolefin elastomer (EN 50264-1 EI 109) with permanent core numberingMaintains dielectric integrity from −40 °C to +90 °C導体 temperature
3Individual pair & overall tinned copper braidTinned copper braided screens (≥ 85 % optical coverage) over each 2 × 1.5 mm² pair and over the complete 9-core bundlePrevents 15 kV / 16.7 Hz and 25 kV / 50 Hz catenary traction return currents from inducing false brake or door signals
4Halogen-free separating & torsion-slip tapeNon-hygroscopic fleece wrap under the outer sheathAllows internal cores to slide freely during 3-axis inter-coach curve articulation
5Heavy-duty cross-linked LSZH elastomer (EM 104)Thick-wall black electron-beam cross-linked LSZH elastomer outer sheath to EN 50264-1 EM 104 / EN 45545-2 HL3Resists flying ballast stones, oxalic acid car-wash chemicals, mineral oil and tunnel fire smoke toxicity

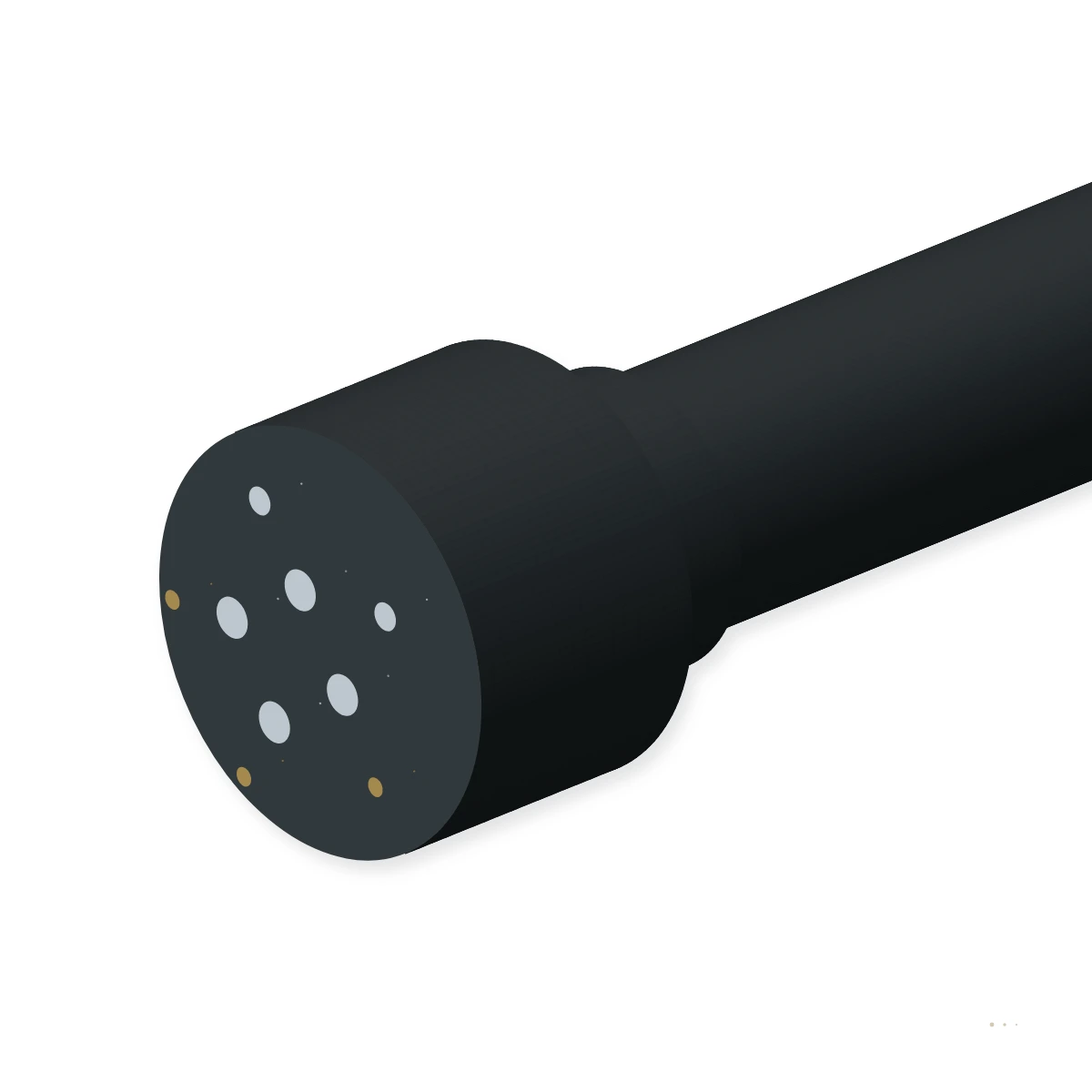

UIC541-5-PP (Plug-to-Plug Removable Jumper)

Double-ended 9-pole UIC 541-5 male plug to 9-pole male plug jumper for twin-receptacle coach headstocks

UIC541-5-PJ (Fixed Junction-Box Pigtail Jumper)

Single 9-pole UIC 541-5 plug on one end and M32/M40 EMC cable gland + crimped ring terminals on the coach junction-box end

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UIC 541-5 / EN 50264-3-1 / EN 45545-2 HL3 / IEC 61373. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated operating voltage
110 V DC / 250 V AC (cable 0.6/1 kV to EN 50264)
Contact current (Pins 1–5)
25 A max (2.5 mm² ep-brake & door control)
Contact current (Pins 6–9)
16 A max (1.5 mm² screened NBÜ / pilot pairs)
Contact resistance
≤ 1.5 mΩ (silver-plated machined brass contacts)
AC dielectric test
2.0 kV AC rms for 1 min (connector) · 3.5 kV AC (cable)

Thermal

Ambient operating range
−40 °C to +85 °C
Max. conductor temperature
+90 °C continuous · +200 °C short-circuit

Mechanical

Core configuration
5 × 2.5 mm² + 2 × (2 × 1.5 mm²C) C (OD ≈ 17.5 mm)
Vibration & shock
IEC 61373 Category 2 (bogie / headstock mounted)
Mating cycles
≥ 1,500 coupling cycles
Breakaway safety
Controlled pull-out disconnection under unscheduled uncoupling
Min. bend radius
6 × OD dynamic inter-coach loop

Resistance

Fire & smoke safety
EN 45545-2 HL1 / HL2 / HL3 (R15 indoor / R16 outdoor)
Halogen & smoke density
EN 60754-1/2 zero halogen · EN 61034-2 ≥ 70 % transmittance
Ingress protection
IP66 / IP67 mated or parked in dummy receptacle
Fluid resistance
EN 50264 mineral oil, diesel, acid & alkaline car-wash

Reference standards

UIC interoperability
UIC Leaflet 541-5 (9-pole ep-brake & door control)
Railway cable standard
EN 50264-3-1 / EN 50264-1 (EI 109 / EM 104)
Shock & vibration
EN 61373 / IEC 61373

Identification

Outer sheath colour
Black with white UIC 541-5 & EN 45545-2 HL3 legend
Pin polarization
UIC 541-5 non-interchangeable mechanical keyway
Customs tariff (HS)
8544.42 / 8607.99

Sizes

12 standard UIC 541-5 9-pole railway inter-coach jumper assemblies

Plug-to-plug (PP) and plug-to-junction-box (PJ) assemblies in standard coach headstock loop lengths.

Assembly style, length, pinout & weight
Order designationTermination ConfigurationCable Core BuildLength
mm
Cable OD
mm
Assy Wt
kg
Fire Class
EN 45545-2
Enquiry
Plug-to-Plug (PP) Double-Ended UIC 541-5 Jumper Assemblies
UIC541-5-PP-9P-12009P Plug ↔ 9P Plug (Metal Housing)5×2.5 + 2×(2×1.5C)C1,20017.52.45HL3 (R15/R16)
UIC541-5-PP-9P-14009P Plug ↔ 9P Plug (Metal Housing)5×2.5 + 2×(2×1.5C)C1,40017.52.60HL3 (R15/R16)
UIC541-5-PP-9P-15009P Plug ↔ 9P Plug (Metal Housing)5×2.5 + 2×(2×1.5C)C1,50017.52.68HL3 (R15/R16)
UIC541-5-PP-9P-16509P Plug ↔ 9P Plug (Metal Housing)5×2.5 + 2×(2×1.5C)C1,65017.52.80HL3 (R15/R16)
UIC541-5-PP-9P-18009P Plug ↔ 9P Plug (Metal Housing)5×2.5 + 2×(2×1.5C)C1,80017.52.92HL3 (R15/R16)
UIC541-5-PP-9P-20009P Plug ↔ 9P Plug (Metal Housing)5×2.5 + 2×(2×1.5C)C2,00017.53.08HL3 (R15/R16)
Plug-to-Junction-Box (PJ) Fixed Pigtail & Receptacle Kits
UIC541-5-PJ-9P-13509P Plug → M32 EMC Gland + Lugs5×2.5 + 2×(2×1.5C)C1,35017.52.10HL3 (R15/R16)
UIC541-5-PJ-9P-15009P Plug → M32 EMC Gland + Lugs5×2.5 + 2×(2×1.5C)C1,50017.52.22HL3 (R15/R16)
UIC541-5-PJ-9P-17009P Plug → M32 EMC Gland + Lugs5×2.5 + 2×(2×1.5C)C1,70017.52.38HL3 (R15/R16)
UIC541-5-PJ-9P-20009P Plug → M32 EMC Gland + Lugs5×2.5 + 2×(2×1.5C)C2,00017.52.62HL3 (R15/R16)
UIC541-5-PJ-9P-25009P Plug → M32 EMC Gland + Lugs5×2.5 + 2×(2×1.5C)C2,50017.53.02HL3 (R15/R16)
UIC541-5-REC-1500-KIT9P Coach Receptacle + 1.5 m Tail5×2.5 + 2×(2×1.5C)C1,50017.52.85HL3 (R15/R16)
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • UIC 541-5 standard pin functional allocation: Pin 1 = Apply ep-brake (+), Pin 2 = Release ep-brake (+), Pin 3 = Holding check, Pin 4 = Common return (−), Pin 5 = Door control (TB 0), Pins 6–9 = Screened pairs for NBÜ emergency brake override.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % 2.0 kV AC hipot, insulation resistance & pin-to-pin continuity testVerify UIC 541-5 wiring diagram, pair shield isolation and ≤ 1.5 mΩ contact resistanceEvery jumper assembly
Sample tests
Pull-out retention & trumpet bend-relief flex testVerify controlled breakaway force and 100,000-cycle inter-coach oscillation testQualification lot
EN 45545-2 HL3 fire, smoke density & toxicity verificationEN 60332-1-2, EN 60332-3-24, EN 61034-2 & EN 60754-2Cable type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UIC Leaflet 541-5 9-Pole Interoperability CompliantEN 45545-2 HL3 & EN 50264-3-1 Rolling Stock Certified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX UIC 541-5 EP-BRAKE JUMPER EN 50264 EM104 EN 45545-2 HL3
Packaging
Individually boxed with serialized routine test protocol & EN 45545-2 DoC
Accessories
Matching coach-end UIC 541-5 flanged sockets & parking dummy receptacles
Custom options
Stainless-steel anti-ballast protection hose or custom gland threads
Lead time
3–5 weeks ex-works

Technical documents

Downloads

Revision
2026-10-20
Updated
2026-10-20
