JIS C 3410 0.6/1 kV Marine Shipboard Power CablesJIS C 34100.6/1 kV-25 to +90 °C

DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY JIS Oversheathed ArmouredJIS C 3410 0.6/1 kV wire-braid armoured and PVC oversheathed ('CY') heavy-duty marine ship

DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY is a heavy-duty armoured and oversheathed marine shipboard power cable series built to JIS C 3410 for 0.6/1 kV AC vessels, offshore rigs, and exposed marine decks. Combining +90 °C EP-rubber insulated cores ('P'), an inner

IEC 60332-3-22 Cat A
Armoured + Sheathed
Weather Deck & Bilge
JIS C 3410
Order designation
DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY TPYCY-14 (3×14 mm²)
Nom. OD
21.20 mm
Copper mass
519.1 kg/km
Total mass ≈
895.0 kg/km
Min. bend R
127.2 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
Max 1.2 kV
Test voltage
3500 V AC / 5 mi
Dielectric withstand
Operating temp
-25 to +90 °C
Short-circuit +250 °C
Min. bend radius
6 × D
Flexing 10 × D
Primary standard
JIS C 3410
JIS C 3410 (0.6/1 kV DPYCY, TPYCY, FPYCY
Flame rating
IEC 60332-1-2 &
Fire & safety compliance

Typical values for this cable type, based on JIS C 3410 — confirmed in the datasheet and quotation for your order.

Application fit

Is DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY right for your machine?

Used across commercial vessels, LNG/oil tankers, container ships, and offshore workboats for 0.6/1 kV power circuits routed through wet bilges, open weather decks, and corrosive engine rooms.

Fixed installation

Suitable

Engineered for exposed weather decks, wet bilges, cargo manifolds, and damp engine-room spaces on ships

Motor stator, traction & converter leads

Suitable

Ideal for deck winches, windlasses, cargo pumps, and seawater cooling pumps requiring armoured environmental sealing

Switchgear & control cabinet wiring

Suitable

Outer PVC oversheath seals IP68 marine cable glands against water ingress while the inner braid grounds to the gland cone

Typical machinesOpen Weather Deck & Mooring Winch FeedersWet Bilge, Ballast & Cargo Pump RoomsShipboard Heavy Auxiliary & Thruster Power

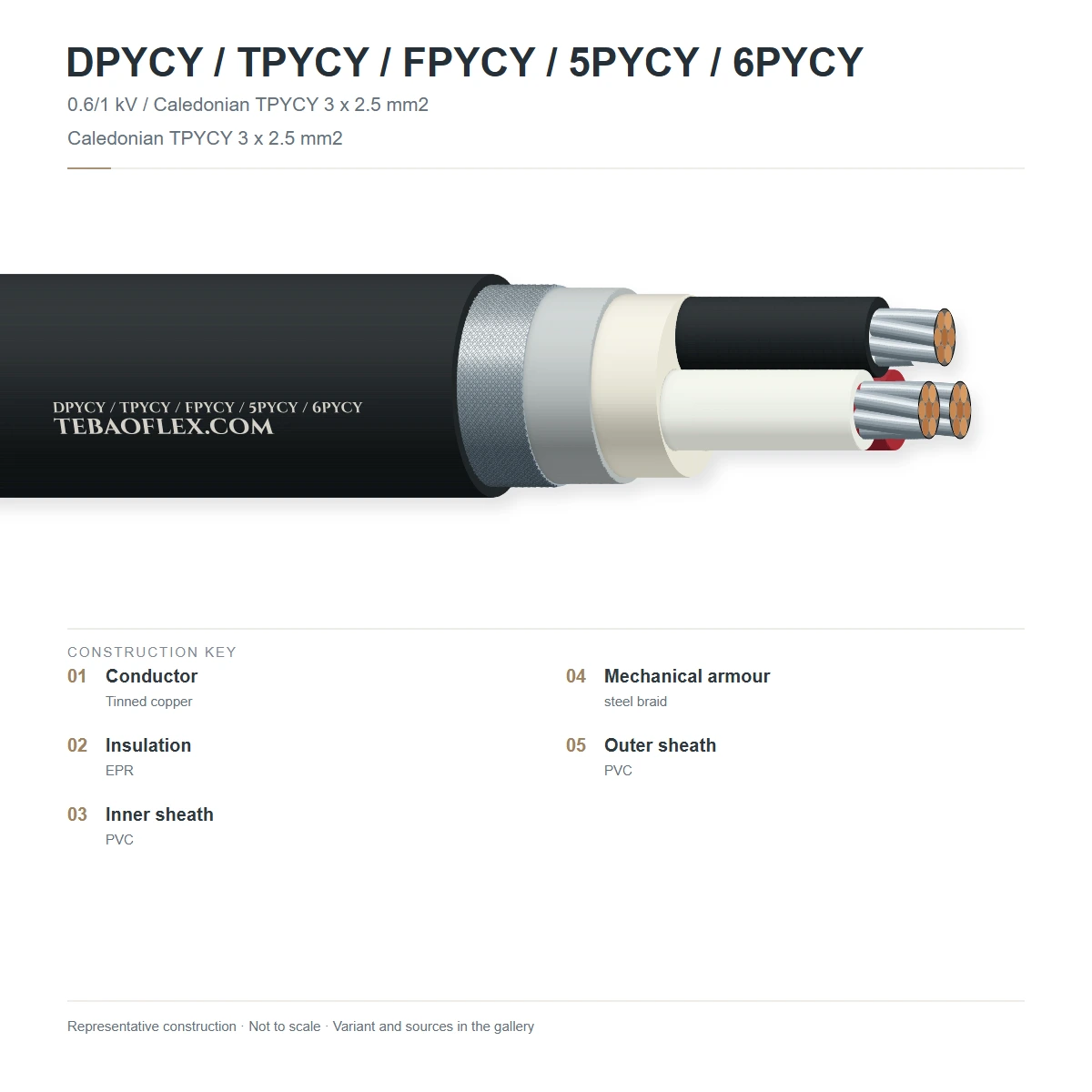

Construction

Layer by layer

Circular stranded annealed copper (JIS C 3410 / IEC 60228 Class 2); Ethylene Propylene Rubber (EPR / EP-rubber, +90 °C, JIS C 3410 Symbol 'P'); Flame-retardant marine Polyvinyl Chloride (PVC) inner bedding sheath (Symbol 'Y'); Anti-corrosive, oil- and seawater-resistant flame-retardant PVC outer oversheath (Symbol 'Y', Black).

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1ConductorCircular stranded annealed copper conductor (JIS C 3410 Class 2)JIS C 3410
2InsulationEthylene Propylene Rubber (EPR, Symbol P, +90 °C) core insulationJIS C 3410
3SheathFlame-retardant marine PVC inner bedding sheath (Symbol Y)JIS C 3410
4ArmourGalvanized steel (or tinned copper) wire braid armour (Symbol C)JIS C 3410
5SheathSeawater- and oil-resistant flame-retardant PVC outer oversheath (Symbol Y, Black)JIS C 3410

Open Weather Deck & Mooring Winch Feeders

The outer PVC oversheath ('Y') protects the galvanized steel wire braid ('C') from direct seawater spray, salt encrustation, and UV exposure.

Wet Bilge, Ballast & Cargo Pump Rooms

Dual PVC sheaths sandwiching the wire-braid armour allow watertight IP68 gland sealing at watertight bulkheads and deck penetrations.

Shipboard Heavy Auxiliary & Thruster Power

TPYCY and FPYCY cables deliver mechanically armoured, EMC-screened three-phase power to bow thrusters, cranes, and hydraulic power packs.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on JIS C 3410. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U0/U)
0.6/1 kV
Max. operating voltage
1.2 kV
Dielectric test voltage
3500 V AC / 5 min (JIS C 3410)
Insulation resistance
≥ 300 MΩ·km at +20 °C

Thermal

Operating temperature range
-25 °C to +90 °C
Dynamic / flexing temperature
-15 °C to +90 °C
Max. short-circuit temperature
+250 °C

Mechanical

Min. bend radius (fixed)
6 × D
Min. bend radius (flexing)
10 × D
Max. tensile pulling load
50 N/mm²
Vibration & mechanical duty
Fixed weather-deck, bilge & engine-room routing

Resistance

Flame retardancy
IEC 60332-1-2 & IEC 60332-3-22 Category A bunched flame retardant
Oil & fluid resistance
Marine fuel oil, hydraulic fluid, bilge oil & chemical splash resistant
UV, weather & ozone
UV, seawater spray, salt-fog & exposed weather-deck resistant
Chemical & environmental
Impervious outer PVC oversheath prevents salt-water corrosion of the underlying wire-braid armour

Reference standards

Governing standard
JIS C 3410 (2018) — Cables and flexible cords for electrical equipment of ships (Armoured and oversheathed Type -PYCY)
Applicable clauses
JIS C 3410 (0.6/1 kV DPYCY, TPYCY, FPYCY, 5PYCY, 6PYCY); IEC 60092-353
Secondary reference
IEC 60092-353 — Electrical installations in ships — Power cables for rated voltages 1 kV and 3 kV

Identification

Core identification
JIS C 3410 color / number coded cores (2C: Black/White; 3C: Black/White/Red; 4C: Black/White/Red/Green; 5C/6C: numbered)
Outer sheath colour
Black
Surface print legend
TEBAOFLEX — JIS C 3410 — 0.6/1 kV — <DPYCY/TPYCY/FPYCY/5PYCY/6PYCY>-<size> — IEC 60332-3-22

Sizes

8 standard configurations (DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY)

Nominal dimensions, copper weight, total mass and electrical parameters for DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY per JIS C 3410.

Dimensions & masses
DesignationSize / ConfigurationStranding · WallNom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY size schedule
DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY DPYCY-2.5 (2×2.5 mm²)DPYCY-2.5 (2×2.5 mm²)7/0.67 · 1.0 mm14.50188.5325.087.0
DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY TPYCY-2.5 (3×2.5 mm²)TPYCY-2.5 (3×2.5 mm²)7/0.67 · 1.0 mm15.10211.7365.090.6
DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY TPYCY-6 (3×6 mm²)TPYCY-6 (3×6 mm²)7/1.04 · 1.0 mm17.50310.3535.0105.0
DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY TPYCY-14 (3×14 mm²)TPYCY-14 (3×14 mm²)7/1.60 · 1.0 mm21.20519.1895.0127.2
DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY TPYCY-38 (3×38 mm²)TPYCY-38 (3×38 mm²)19/1.60 · 1.2 mm29.001,131.01,950.0174.0
DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY FPYCY-14 (4×14 mm²)FPYCY-14 (4×14 mm²)7/1.60 · 1.0 mm23.20640.91,105.0139.2
DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY 5PYCY-2.5 (5×2.5 mm²)5PYCY-2.5 (5×2.5 mm²)7/0.67 · 1.0 mm17.40284.2490.0104.4
DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY 6PYCY-2.5 (6×2.5 mm²)6PYCY-2.5 (6×2.5 mm²)7/0.67 · 1.0 mm18.80327.7565.0112.8
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to JIS C 3410.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric voltage withstand & conductor DC resistance3500 V AC / 5 min (JIS C 3410)100 % of production lengths
Sample tests
Insulation wall thickness, hot-set / pinch & cold bendConforms to JIS C 3410 sample scheduleEvery production batch
Fluid immersion, flame propagation & thermal agingIEC 60332-1-2 & IEC 60332-3-22 Category A bunched flame retardantType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

JIS C 3410 (0.6/1 kV DPYCY, TPYCY, FPYCY, 5PYCY, 6PYCY); IEC 60092-353IEC 60092-353 (2016)RoHS 3 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX — JIS C 3410 — 0.6/1 kV — <DPYCY/TPYCY/FPYCY/5PYCY/6PYCY>-<size> — IEC 60332-3-22
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFDPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY JIS Oversheathed Armoured – technical datasheet8 sizes · construction, technical data, approvalsXLSXDPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does DPYCY / TPYCY / FPYCY differ from DPYC / TPYC / FPYC?
While -PYC cables leave the painted wire-braid armour ('C') as the outermost layer, -PYCY cables extrude an additional protective PVC outer sheath ('Y') over the wire braid. This outer jacket prevents salt-water corrosion of the armour and enables watertight IP68 outer-sheath gland sealing.
What do all the letters in TPYCY mean?
'T' = Triple (3 cores); 'P' = Ethylene Propylene Rubber (+90 °C) core insulation; first 'Y' = PVC inner bedding sheath; 'C' = galvanized steel (or copper) wire-braid armour; second 'Y' = PVC anti-corrosion outer oversheath.
Are 5-core (5PYCY) and 6-core (6PYCY) versions part of the same JIS C 3410 family?
Yes. 2-core (DPYCY), 3-core (TPYCY), 4-core (FPYCY), 5-core (5PYCY), and 6-core (6PYCY) share identical 0.6/1 kV voltage ratings, +90 °C EPR insulation, wire-braid armour, and PVC oversheath under JIS C 3410.
What voltage and temperature ratings apply to DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY under JIS C 3410?
DPYCY / TPYCY / FPYCY / 5PYCY / 6PYCY is rated for 0.6/1 kV (maximum operating voltage 1.2 kV, dielectric test voltage 3500 V AC / 5 min (JIS C 3410)) and continuous operation from -25 °C to +90 °C (short-circuit up to +250 °C) per JIS C 3410.
