UL 62 / CSA C22.2 No. 49 North American Thermoplastic & TPE Portable Cords600 V UL 62 Extra-Hard Usage ('S')TPE -50 to +105 °C (18 to 2 AWG)Double Oil (OO) & Outdoor (W)

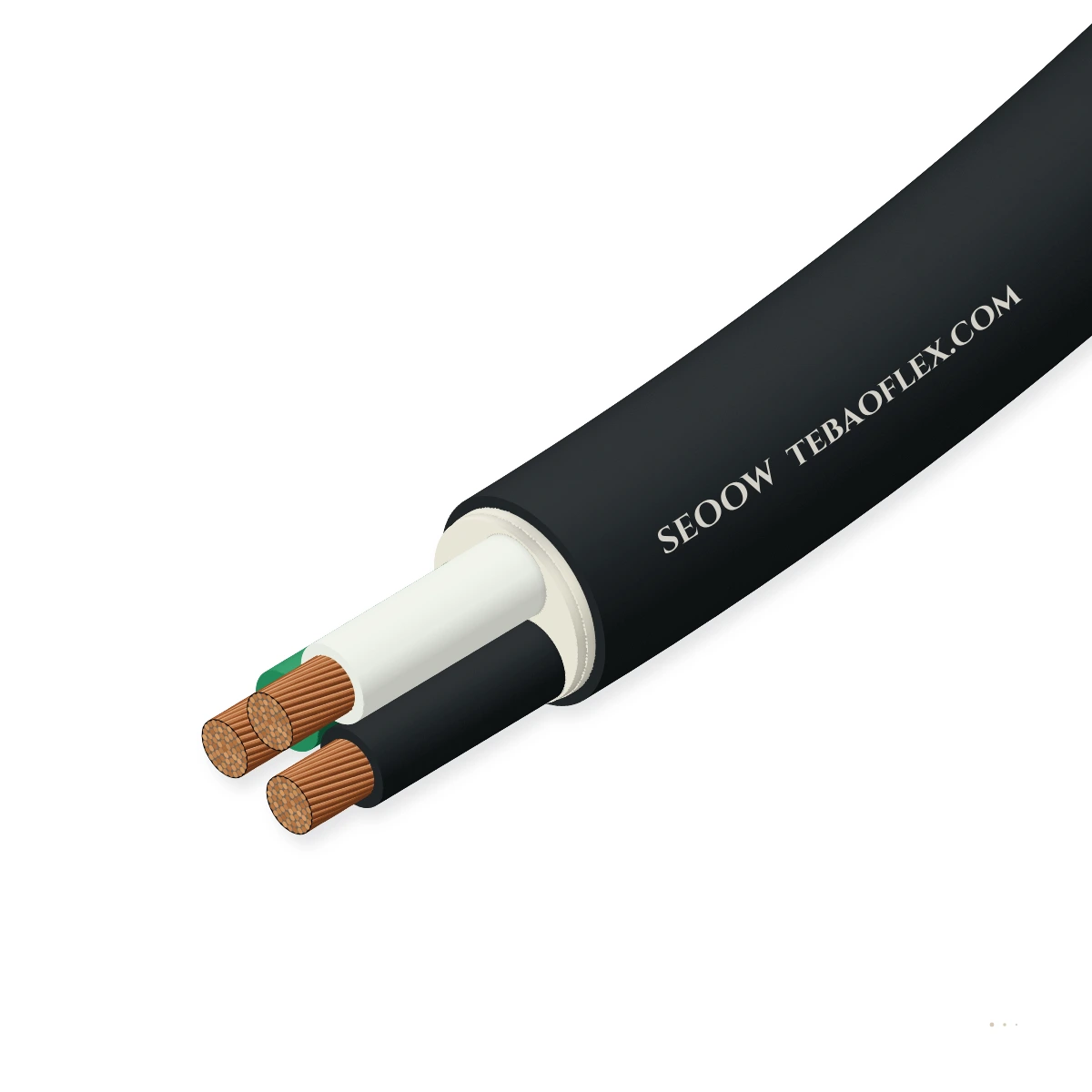

SEOOW TPE Portable Cord600 V UL 62 / CSA extra-hard-usage TPE (-50 to +105 °C) double oil- & weather-resistant co

Type SEOOW is a 600 V Extra-Hard-Usage flexible portable power cable manufactured to UL 62 and CSA C22.2 No. 49. Built with rope-bunch stranded ASTM B174 bare copper conductors (18 AWG up to heavy 2 AWG, 2 to 5 cores), oil-resistant Thermoplastic Elastomer ('E

600 V Arctic -50 °C to +105 °C
Double Oil Resistant TPE (OO)
Extra-Hard-Usage ('S') Heavy Wall
UL Listed / CSA / MSHA
Order designation
SEOOW 16/4
Nom. OD
10.67 mm
Copper mass
55.6 kg/km
Total mass ≈
145.0 kg/km
Min. bend R
64.0 mm
All sizes (16)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
600 V AC
UL 62 Extra-Hard Usage ('S')
Elastomer ('E')
Heavy-wall TPE
Thermoplastic Elastomer core & sheath
Temp window
-50 to +105 °C
Arctic sub-zero to +105 °C heat
Oil & weather
OO + W rated
Double oil, UV & wet location
Gauge range
18 AWG to 2 AWG
10 A to 95 A portable feeders
Min. bend radius
6 × cord OD
Industrial reels, cranes & drops

Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / NEC Art. 400 — confirmed in the datasheet and quotation for your order.

Application fit

Is SEOOW right for your machine?

Specified for 480 V / 600 V 3-phase industrial machinery drops, portable power distribution spider boxes, dockside shore power, crane festoons, motorized cable reels and arctic oilfield/mining equipment.

Trailing & towing

Suitable

Heavy 600 V 'S' wall (60 to 120 mil TPE jacket) withstands heavy industrial floor dragging and vehicle crush.

Motorised monospiral reel

Suitable

Low-weight TPE construction and -50 °C flexibility excel on spring and motorized industrial power reels.

Festoon & line chain

Suitable

Widely used on C-track and I-beam crane festoon systems requiring 600 V oil- and weatherproof cords.

Motor stator, traction & converter leads

Suitable

Feeds 480 V and 600 V portable pumps, compressors, welders and temporary generator distribution panels.

Typical machines480V / 600V industrial machineryPortable generator & spider-box feedersCrane festoons & industrial cord reelsArctic oilfield, mining & constructionMarina dockside & stage power

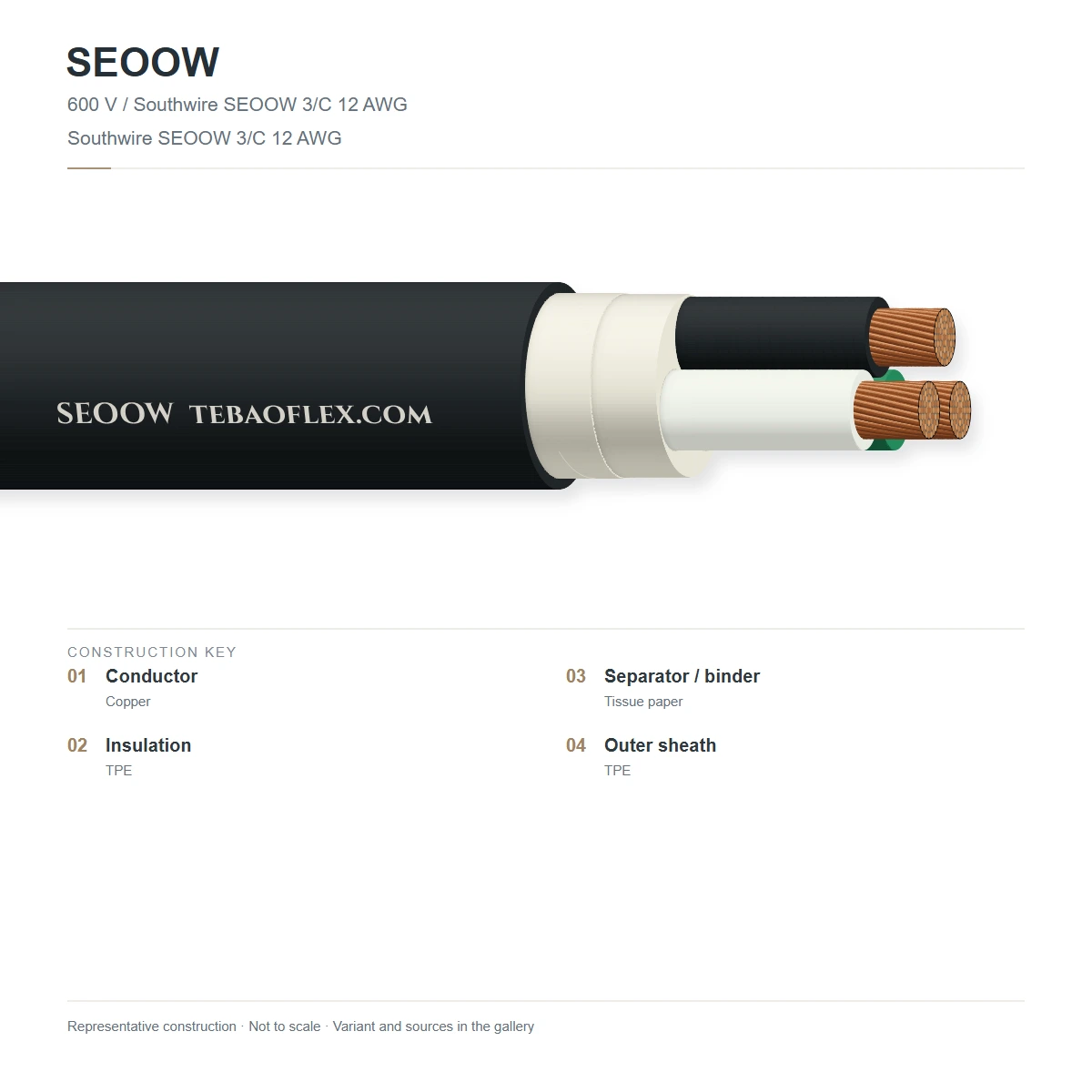

Construction

Layer by layer

ASTM B174 / B3 flexible bunch- or rope-stranded bare copper (18 to 2 AWG) + heavy-wall 600 V oil-resistant TPE core insulation + non-wicking fillers + heavy-duty oil-, sunlight- and water-resistant TPE outer jacket (-50 to +105 °C).

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible bunch / rope-stranded copperAnnealed bare copper (30 AWG wires in 18–10 AWG; rope-lay in 8–2 AWG) per UL 62ASTM B174
2600 V oil-resistant TPE insulation (E + O)Heavy-wall (0.76 to 1.52 mm) 105 °C / -50 °C thermoplastic elastomer core insulationUL 62
3Non-wicking fibrillated fillers & binderAbsorbs tensile and torsional stresses while maintaining roundness for cord gripsUL 62
4Extra-hard-usage TPE jacket (O + W)Heavy-wall (1.52 to 3.05 mm) oil-, UV-, chemical- and abrasion-resistant TPE outer sheathUL 62

SEOOW Control & Branch Power (18 AWG to 10 AWG — 2C to 5C)

600 V Extra-Hard-Usage TPE cord for 480/600 V machine drops, pendants, festoons and cord reels.

SEOOW Heavy Feeder (8 AWG, 6 AWG, 4 AWG & 2 AWG — 3C to 5C)

High-ampacity (40 A to 95 A) 600 V portable feeder cable for generator spider boxes, welders and mobile substations.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 62 / CSA C22.2 No. 49 / NEC Art. 400. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 V AC rms
Dielectric withstand test
2.0 kV AC rms for 1 minute
NEC ampacity (3 current-carrying cores)
10–30 A (18–10 AWG) · 40 A (8 AWG) · 55 A (6 AWG) · 70 A (4 AWG) · 95 A (2 AWG)

Thermal

Continuous operating temperature
-50 °C to +105 °C (UL 62 / CSA C22.2 No. 49)
Arctic cold bend test
-50 °C for 4 hours without cracking

Mechanical

Insulation / jacket wall (16–10 AWG)
0.76–1.14 mm (30–45 mil) insulation · 1.52–2.41 mm (60–95 mil) jacket
Insulation / jacket wall (8–2 AWG)
1.14–1.52 mm (45–60 mil) insulation · 2.41–3.05 mm (95–120 mil) jacket

Resistance

Double oil & chemical resistance ('OO')
Both TPE core insulation and TPE jacket pass UL 62 oil immersion (+60/+100 °C)
Weather, water & flame ('W')
UL 62 outdoor sunlight & wet location rated · UL VW-1 / CSA FT1/FT2 / MSHA flame

Reference standards

Reference standards
UL 62, CSA C22.2 No. 49 & NEC Article 400
Approvals
UL Listed Type SEOOW, CSA Certified, MSHA Approved, OSHA Acceptable

Identification

Code breakdown
S = Extra-Hard Service (600 V) · E = TPE Elastomer · OO = Double Oil · W = Weather/Outdoor
Core colour code
Black, White, Green, Red (+ Orange/Blue on 5C)

Sizes

16 standard configurations (SEOOW)

Nominal dimensions, copper weight, total mass and electrical parameters for SEOOW per UL 62 / CSA C22.2 No. 49 / NEC Art. 400.

Dimensions & masses
DesignationAWG × ConductorsStranding / NEC AmpsNom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
SEOOW size schedule
SEOOW 18/318 AWG × 3C16/30 · 10 A9.2726.298.055.6
SEOOW 18/418 AWG × 4C16/30 · 7 A10.0335.0118.060.2
SEOOW 16/316 AWG × 3C26/30 · 13 A9.9141.7118.059.5
SEOOW 16/416 AWG × 4C26/30 · 10 A10.6755.6145.064.0
SEOOW 14/314 AWG × 3C41/30 · 18 A13.3466.3205.080.0
SEOOW 14/414 AWG × 4C41/30 · 15 A14.4888.4250.086.9
SEOOW 12/312 AWG × 3C65/30 · 25 A15.11105.0275.090.7
SEOOW 12/412 AWG × 4C65/30 · 20 A16.51140.0345.099.1
SEOOW 10/310 AWG × 3C104/30 · 30 A16.76168.0380.0100.6
SEOOW 10/410 AWG × 4C104/30 · 25 A18.16224.0475.0109.0
SEOOW 8/38 AWG × 3C133/29 · 40 A21.08267.0610.0126.5
SEOOW 8/48 AWG × 4C133/29 · 35 A23.11356.0765.0138.7
SEOOW 6/36 AWG × 3C133/27 · 55 A23.88425.0860.0143.3
SEOOW 6/46 AWG × 4C133/27 · 45 A26.16566.01,090.0157.0
SEOOW 4/44 AWG × 4C133/25 · 60 A30.23900.01,620.0181.4
SEOOW 2/42 AWG × 4C133/23 · 80 A34.801,430.02,380.0208.8
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to UL 62 / CSA C22.2 No. 49 / NEC Art. 400.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
2.0 kV AC dielectric test, spark test & DC resistanceZero breakdown; resistance per UL 62100 % of reels
Sample tests
-50 °C cold bend & double oil immersion ('OO')No cracking at -50 °C; core & jacket pass oil immersionEvery lot
720-hour UV weathering, wet dielectric & VW-1/FT1/MSHA flameUL Listed & CSA Certified to UL 62 / C22.2 No. 49Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL Listed Type SEOOW (600 V)CSA Certified C22.2 No. 49 (FT1 / FT2)MSHA Flame ApprovedNEC Article 400 Extra-Hard UsageRoHS 3 Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (UL) SEOOW [N/AWG] 600V 105C -50C TPE WATER RESISTANT CSA FT1 FT2 P-MSHA [lot/ft]
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSEOOW TPE Portable Cord – technical datasheet16 sizes · construction, technical data, approvalsXLSXSEOOW spec data (Excel)All 16 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between 600 V SEOOW and 300 V SJEOOW?
SEOOW omits the 'J' (Junior Service), upgrading the voltage rating from 300 V to 600 V AC, increasing both the TPE insulation wall (to 45–60 mil on ≥14 AWG) and TPE outer jacket wall (to 80–120 mil), and extending the conductor size range up to 2 AWG (95 A) for Extra-Hard-Usage industrial service.
How does SEOOW (TPE) compare with SOOW (thermoset rubber) and STOOW (PVC)?
All three are 600 V Extra-Hard-Usage double-oil outdoor cords. SOOW uses thermoset EPDM/neoprene rubber (-40 to +90 °C); STOOW uses thermoplastic PVC (-40 to +105 °C); SEOOW uses Thermoplastic Elastomer (TPE), delivering the widest temperature range (-50 to +105 °C) and lightest weight.
Why does 14/3 SEOOW have a noticeably larger outer diameter (13.34 mm) than 14/3 SJEOOW (9.53 mm)?
At 14 AWG, UL 62 steps up the 600 V 'S' cord insulation wall from 30 mil (0.76 mm) to 45 mil (1.14 mm) and the outer jacket wall from 60 mil (1.52 mm) to 80 mil (2.03 mm) to provide 600 V crush and cut-through protection.
Can 6/4 and 2/4 SEOOW be used for temporary jobsite power spider boxes?
Yes. 6/4 (45–55 A) and 2/4 (80–95 A) SEOOW are industry-standard portable feeder cords for 50 A California-style twist-lock spider boxes and temporary generator distribution panels.
