Product

JIS C 3410 0.6/1 kV Marine Shipboard Power CablesJIS C 34100.6/1 kV-25 to +90 °C

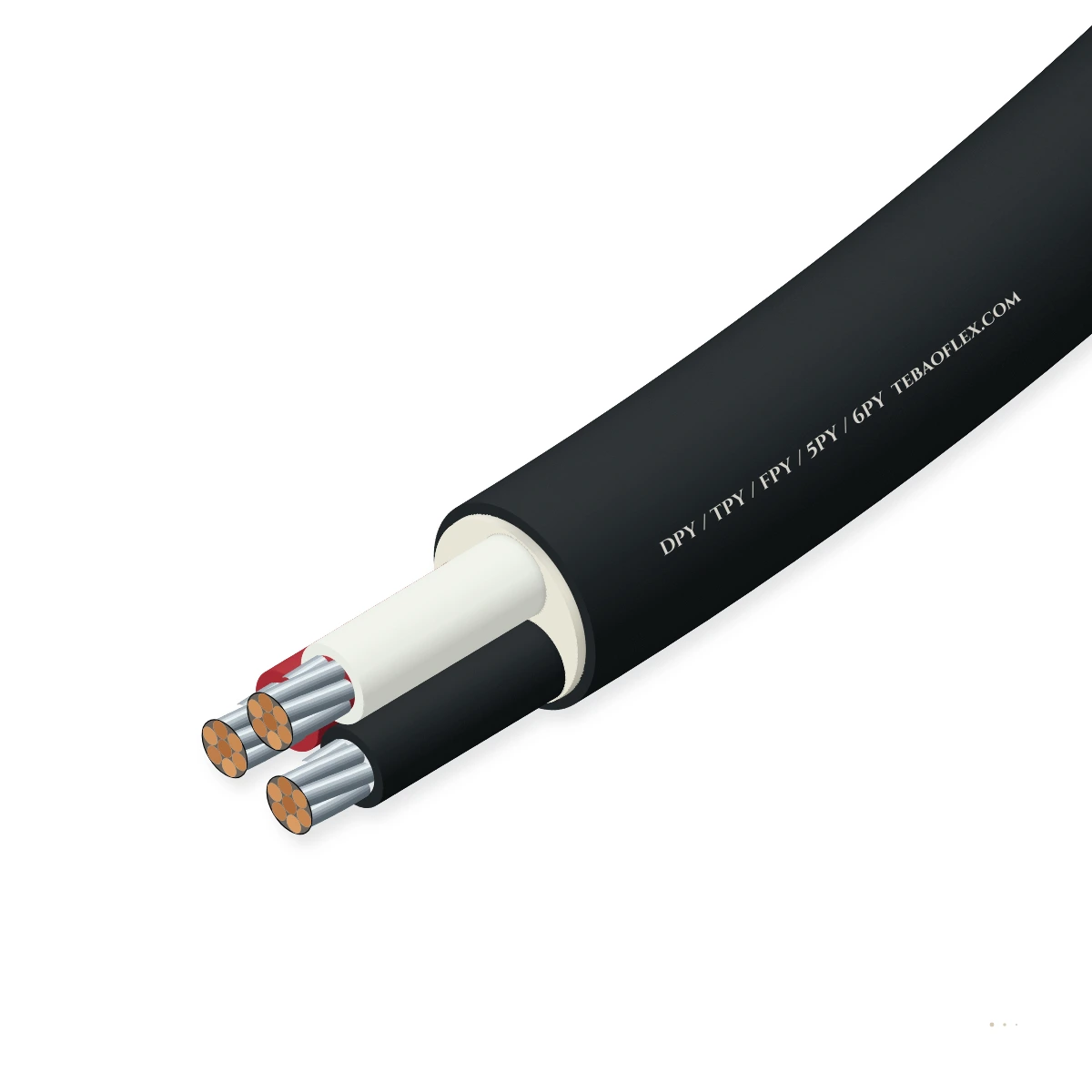

DPY / TPY / FPY / 5PY / 6PY JIS Unarmoured Shipboard Power CableJIS C 3410 0.6/1 kV unarmoured EP-rubber insulated, PVC-sheathed 2- to 6-core marine shipb

DPY / TPY / FPY / 5PY / 6PY is a series of unarmoured marine shipboard power and lighting cables manufactured in accordance with JIS C 3410 for 0.6/1 kV AC marine vessels, offshore platforms, and shipyard electrical installations. Constructed with stranded ann

IEC 60332-3-22 Cat A
Marine Oil Res.
Marine Humidity
JIS C 3410
Order designation
DPY / TPY / FPY / 5PY / 6PY TPY-14 (3×14 mm²)
Nom. OD
16.80 mm
Copper mass
319.0 kg/km
Total mass ≈
550.0 kg/km
Min. bend R
100.8 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
Max 1.2 kV
Test voltage
3500 V AC / 5 mi
Dielectric withstand
Operating temp
-25 to +90 °C
Short-circuit +250 °C
Min. bend radius
4 × D (D ≤ 25 mm
Flexing 8 × D
Primary standard
JIS C 3410
JIS C 3410 (0.6/1 kV DPY, TPY, FPY, 5PY,
Flame rating
IEC 60332-1-2 &
Fire & safety compliance

Typical values for this cable type, based on JIS C 3410 — confirmed in the datasheet and quotation for your order.

Application fit

Is DPY / TPY / FPY / 5PY / 6PY right for your machine?

Used for fixed 0.6/1 kV power, lighting, and auxiliary distribution circuits in accommodation quarters, bridge decks, and protected interior spaces of commercial vessels built to JIS C 3410.

Fixed installation

Suitable

Engineered for fixed installation on enclosed shipboard cable ladders, accommodation decks, and control rooms

Switchgear & control cabinet wiring

Suitable

Unarmoured profile allows smaller bend radius and easy gland entry into marine switchboards and distribution panels

Motor stator, traction & converter leads

With conditions

Suitable for fixed shipboard auxiliary feeders; where mechanical armour or EMC screening is required use TPYC or TPYCY

Trailing & towing

Not suitable

Class 2 stranded fixed shipboard cable; not for portable trailing service

SEOOW 600 V portable cord
Typical machinesShipboard Accommodation & Lighting FeedersMarine Switchboard & Control Room InterconnectsMulti-Core Auxiliary & Pump Control Power (FPY / 5PY / 6PY)

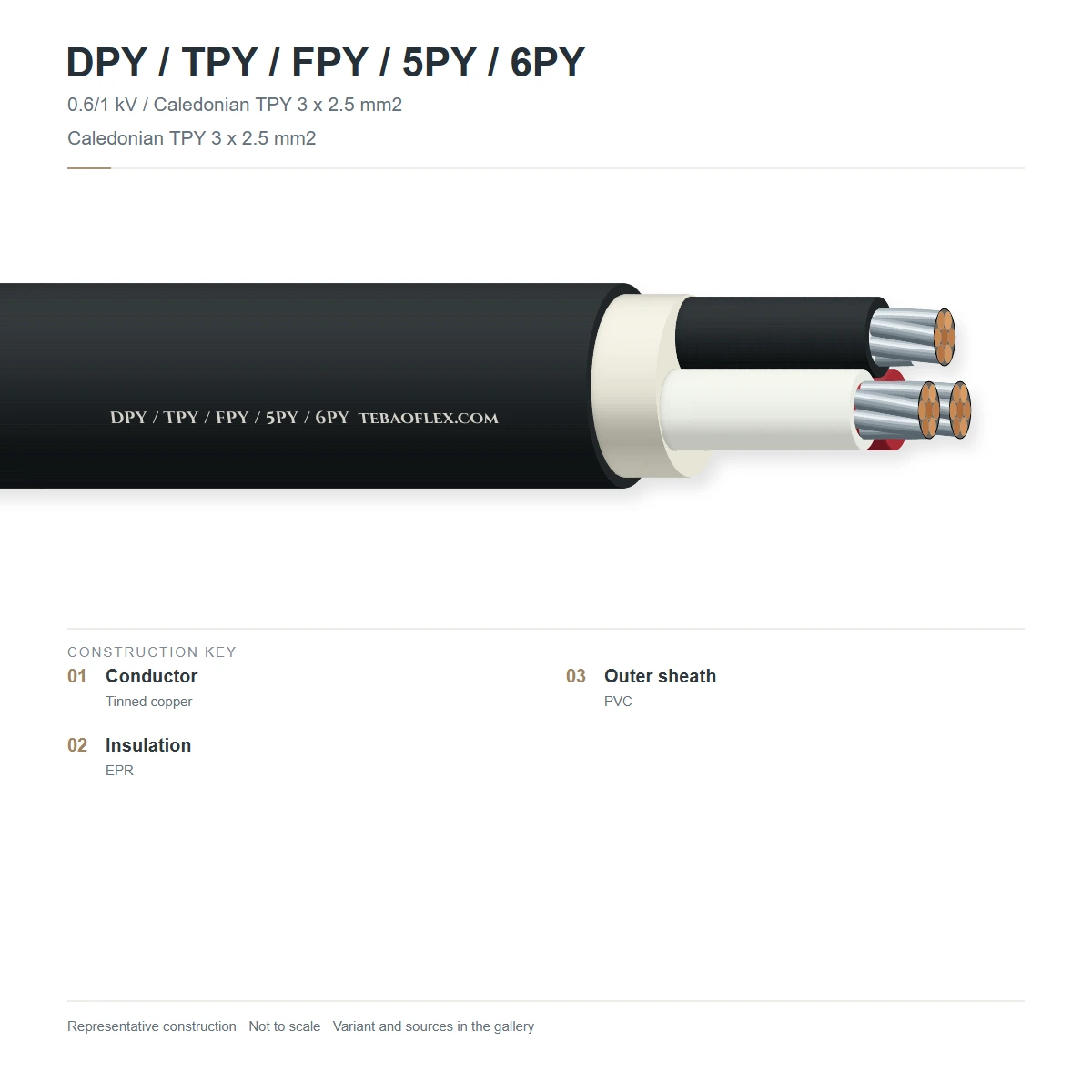

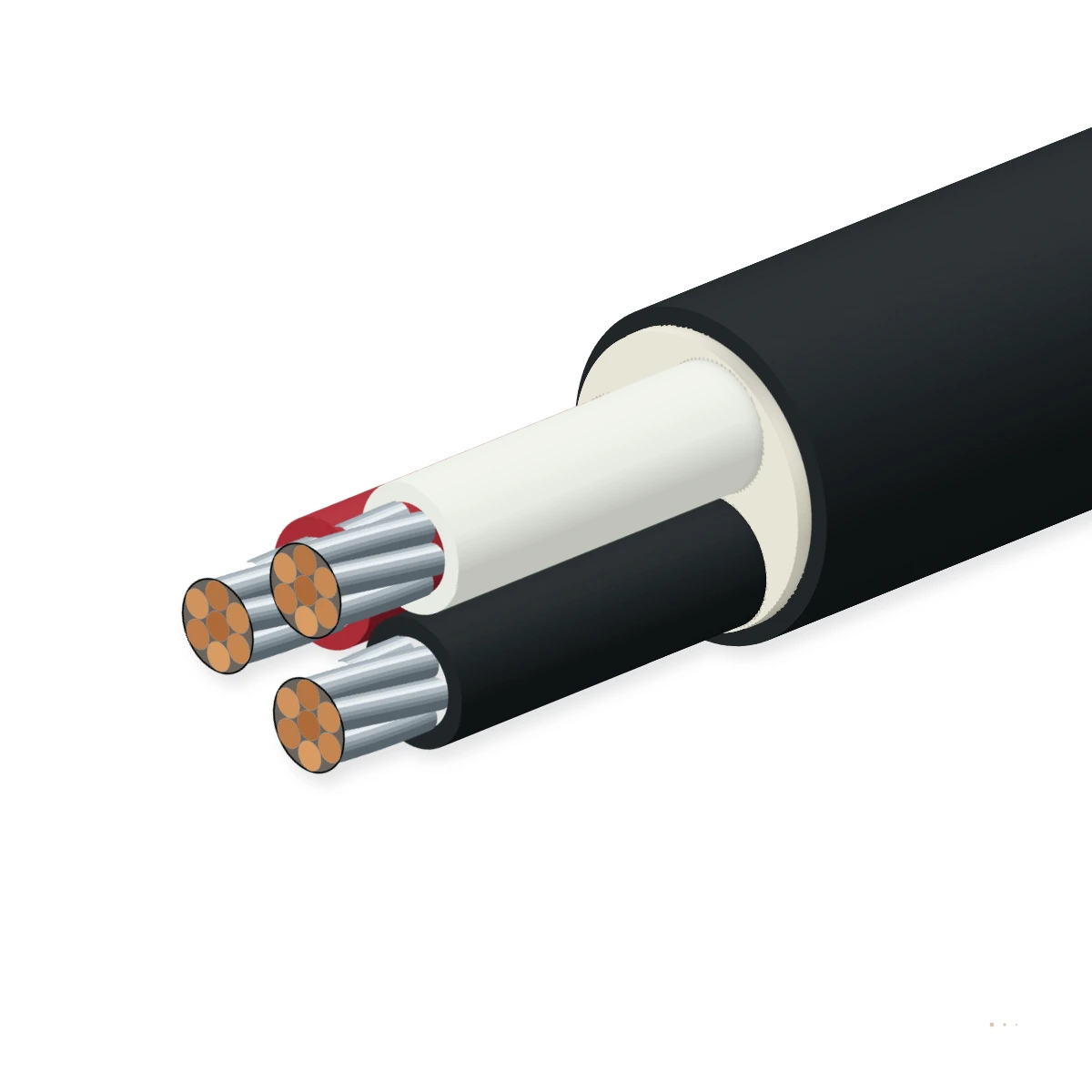

Construction

Layer by layer

Circular stranded annealed plain or tinned copper (JIS C 3410 / IEC 60228 Class 2); Ethylene Propylene Rubber (EPR / EP-rubber, +90 °C, JIS C 3410 Symbol 'P'); Non-hygroscopic polypropylene yarn fillers and binder tape over laid-up cores; Flame-retardant, oil-resistant marine Polyvinyl Chloride (PVC, JIS C 3410 Symbol 'Y', Black).

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1ConductorCircular stranded annealed copper conductor (JIS C 3410 Class 2)JIS C 3410
2InsulationEthylene Propylene Rubber (EPR, Symbol P, +90 °C) core insulationJIS C 3410
3TapeNon-hygroscopic marine filler and binder tapeJIS C 3410
4SheathFlame-retardant marine PVC outer sheath (Symbol Y, Black)JIS C 3410

Shipboard Accommodation & Lighting Feeders

DPY (2-core) and TPY (3-core) cables distribute 0.6/1 kV power across interior decks, galley panels, and bridge consoles.

Marine Switchboard & Control Room Interconnects

Unarmoured construction simplifies multi-cable routing and stuffing-tube termination inside protected electrical rooms.

Multi-Core Auxiliary & Pump Control Power (FPY / 5PY / 6PY)

4-, 5-, and 6-core variants consolidate three-phase power plus neutral and control/earth conductors in a single shipboard run.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on JIS C 3410. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U0/U)
0.6/1 kV
Max. operating voltage
1.2 kV
Dielectric test voltage
3500 V AC / 5 min (JIS C 3410)
Insulation resistance
≥ 300 MΩ·km at +20 °C

Thermal

Operating temperature range
-25 °C to +90 °C
Dynamic / flexing temperature
-15 °C to +90 °C
Max. short-circuit temperature
+250 °C

Mechanical

Min. bend radius (fixed)
4 × D (D ≤ 25 mm) / 6 × D (D > 25 mm)
Min. bend radius (flexing)
8 × D
Max. tensile pulling load
50 N/mm²
Vibration & mechanical duty
Fixed shipboard cable tray & bulkhead routing

Resistance

Flame retardancy
IEC 60332-1-2 & IEC 60332-3-22 Category A bunched flame retardant
Oil & fluid resistance
Marine fuel oil, lubricating oil & bilge moisture resistant
UV, weather & ozone
Salt-mist, marine humidity & weather resistant
Chemical & environmental
Resistant to marine saline atmosphere, condensation and engine-room oil mist

Reference standards

Governing standard
JIS C 3410 (2018) — Cables and flexible cords for electrical equipment of ships
Applicable clauses
JIS C 3410 (0.6/1 kV DPY, TPY, FPY, 5PY, 6PY); IEC 60092-350 / IEC 60092-353
Secondary reference
IEC 60092-353 — Electrical installations in ships — Power cables for rated voltages 1 kV and 3 kV

Identification

Core identification
JIS C 3410 color or number identification (2C: Black/White; 3C: Black/White/Red; 4C: Black/White/Red/Green; 5C/6C: numbered)
Outer sheath colour
Black
Surface print legend
TEBAOFLEX — JIS C 3410 — 0.6/1 kV — <DPY/TPY/FPY/5PY/6PY>-<size> — IEC 60332-3-22

Sizes

8 standard configurations (DPY / TPY / FPY / 5PY / 6PY)

Nominal dimensions, copper weight, total mass and electrical parameters for DPY / TPY / FPY / 5PY / 6PY per JIS C 3410.

Dimensions & masses
DesignationSize / ConfigurationStranding · WallNom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
DPY / TPY / FPY / 5PY / 6PY size schedule
DPY / TPY / FPY / 5PY / 6PY DPY-2.5 (2×2.5 mm²)DPY-2.5 (2×2.5 mm²)7/0.67 · 1.0 mm10.5084.1145.063.0
DPY / TPY / FPY / 5PY / 6PY TPY-2.5 (3×2.5 mm²)TPY-2.5 (3×2.5 mm²)7/0.67 · 1.0 mm11.10101.5175.066.6
DPY / TPY / FPY / 5PY / 6PY TPY-6 (3×6 mm²)TPY-6 (3×6 mm²)7/1.04 · 1.0 mm13.30168.2290.079.8
DPY / TPY / FPY / 5PY / 6PY TPY-14 (3×14 mm²)TPY-14 (3×14 mm²)7/1.60 · 1.0 mm16.80319.0550.0100.8
DPY / TPY / FPY / 5PY / 6PY TPY-38 (3×38 mm²)TPY-38 (3×38 mm²)19/1.60 · 1.2 mm23.60759.81,310.0141.6
DPY / TPY / FPY / 5PY / 6PY FPY-6 (4×6 mm²)FPY-6 (4×6 mm²)7/1.04 · 1.0 mm14.50211.7365.087.0
DPY / TPY / FPY / 5PY / 6PY 5PY-2.5 (5×2.5 mm²)5PY-2.5 (5×2.5 mm²)7/0.67 · 1.0 mm13.20147.9255.079.2
DPY / TPY / FPY / 5PY / 6PY 6PY-2.5 (6×2.5 mm²)6PY-2.5 (6×2.5 mm²)7/0.67 · 1.0 mm14.40174.0300.086.4
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to JIS C 3410.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric voltage withstand & conductor DC resistance3500 V AC / 5 min (JIS C 3410)100 % of production lengths
Sample tests
Insulation wall thickness, hot-set / pinch & cold bendConforms to JIS C 3410 sample scheduleEvery production batch
Fluid immersion, flame propagation & thermal agingIEC 60332-1-2 & IEC 60332-3-22 Category A bunched flame retardantType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

JIS C 3410 (0.6/1 kV DPY, TPY, FPY, 5PY, 6PY); IEC 60092-350 / IEC 60092-353IEC 60092-353 (2016)RoHS 3 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX — JIS C 3410 — 0.6/1 kV — <DPY/TPY/FPY/5PY/6PY>-<size> — IEC 60332-3-22
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFDPY / TPY / FPY / 5PY / 6PY JIS Unarmoured Shipboard Power Cable – technical datasheet8 sizes · construction, technical data, approvalsXLSXDPY / TPY / FPY / 5PY / 6PY spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How do JIS C 3410 cable letter prefixes (D, T, F, 5, 6) work?
In JIS C 3410 nomenclature, the prefix indicates the number of cores: 'D' = Double (2 cores), 'T' = Triple (3 cores), 'F' = Four (4 cores), '5' = 5 cores, and '6' = 6 cores. 'P' stands for EP-rubber insulation (+90 °C), and 'Y' stands for a vinyl (PVC) sheath.
When is unarmoured DPY/TPY/FPY chosen instead of armoured DPYC/TPYC/FPYC?
Unarmoured DPY/TPY/FPY is used in protected interior spaces, accommodation areas, and enclosed trunks where mechanical wire-braid protection ('C') is not mandated by classification societies (NK, ABS, DNV, Lloyd's).
Why are JIS shipboard conductor sizes like 14 mm² and 38 mm² different from IEC sizes?
JIS C 3410 retains traditional Japanese nominal conductor cross-sections (such as 1.5, 2.5, 3.5, 5.5, 8, 14, 22, 30, 38, 50, 60, 80, 100 mm²) alongside modern IEC-harmonized sizes.
What voltage and temperature ratings apply to DPY / TPY / FPY / 5PY / 6PY under JIS C 3410?
DPY / TPY / FPY / 5PY / 6PY is rated for 0.6/1 kV (maximum operating voltage 1.2 kV, dielectric test voltage 3500 V AC / 5 min (JIS C 3410)) and continuous operation from -25 °C to +90 °C (short-circuit up to +250 °C) per JIS C 3410.
