Control & signal cablesDIN VDE 0815LSZH Halogen-Free (IEC 60754)Al/PET Static Screen (St)

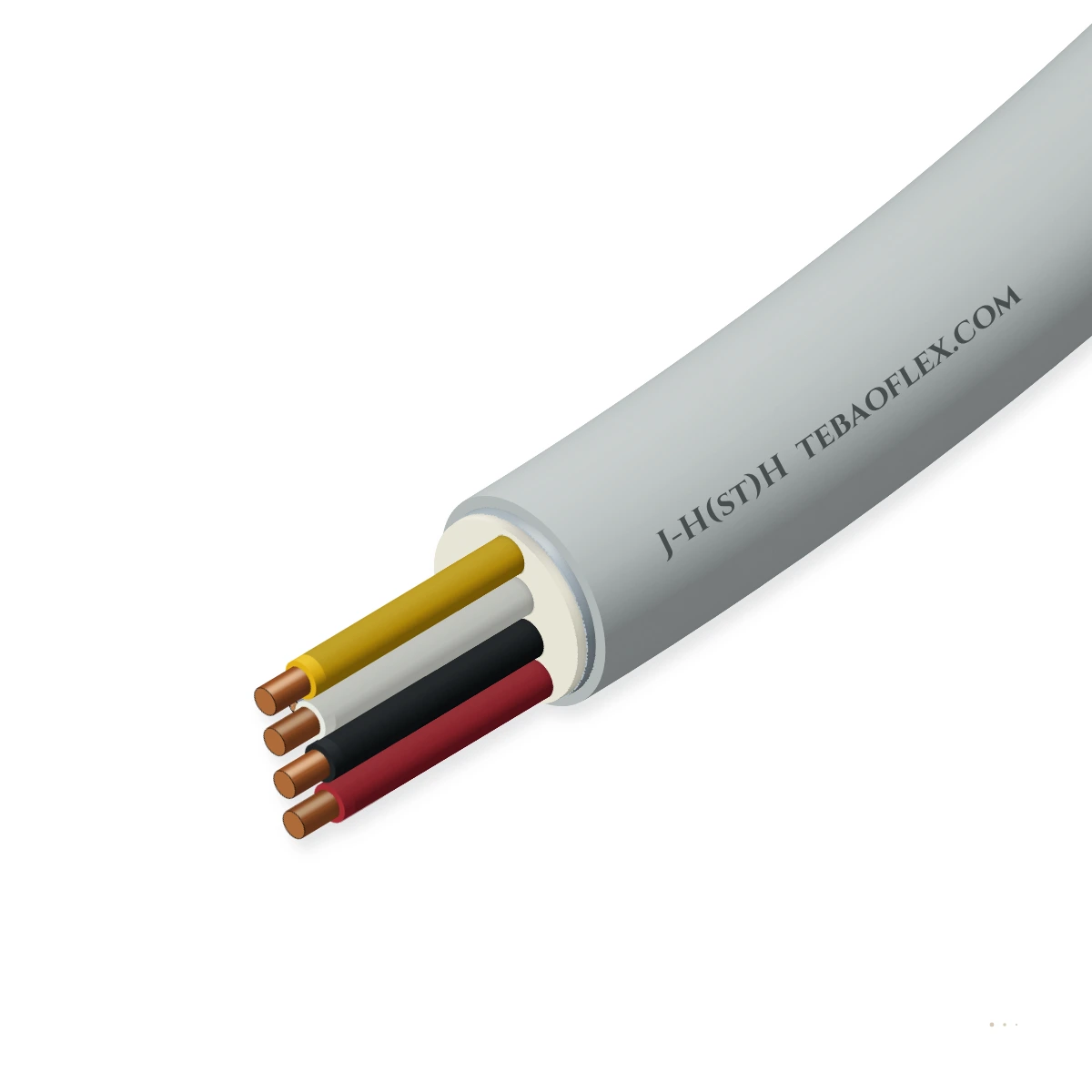

J-H(st)H Halogen-Free Installation CableDIN VDE 0815 static-foil screened halogen-free (LSZH) solid-pair installation cable

Low-smoke zero-halogen (`LSZH`) building installation, fire-alarm (`BMK`) and BMS cable to DIN VDE 0815 (`J-H(St)H...Bd`) with solid 0.6/0.8 mm copper conductors, halogen-free polyolefin cores (`H`), Al/PET static screen (`(St)`) and HM2 LSZH sheath (`H`).

Flame-retardant
Approved
Low-EMC design
Order designation
J-H(St)H 2×2×0.8 Bd
Outer Ø min
5.7 mm
Outer Ø max
6.2 mm
Weight ≈
56 kg/km
Min. bend R
50 mm
Check against my drumAll sizes (15)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Peak voltage
300 V
Peak operating voltage (not for power)
Halogen-free
IEC 60754-1/2
Zero halogen · pH ≥ 4.3 · ≤ 10 µS/mm
Smoke density
IEC 61034-2
≥ 60 % light transmittance in fire
Conductors
Ø 0.6 / 0.8 mm
Solid Cu (≈0.28/0.50 mm²) in pairs
Static screen
Al/PET (St)
Plastic-laminated Al foil + drain wire
Pair range
1×2 to 40×2
Unit bundles (Bd) · Grey or Red sheath

Typical values for this cable type, based on DIN VDE 0815 (J-H(St)H...Bd) · LSZH — confirmed in the datasheet and quotation for your order.

Application fit

Is J-H(st)H right for your machine?

J-H(st)H (`J-H(St)H...Bd`) is the halogen-free safety upgrade to J-Y(st)Y for airports, hospitals, hotels, schools, underground rail stations and high-occupancy commercial buildings where PVC smoke and acid gas are prohibited.

Fixed installation

Suitable

Public building BMS, fire detection & alarm loops (Red BMK), LSA patch panels and HVAC risers.

VFD inverter to AC motor screened feeder

With conditions

Static Al/PET foil screen rejects electrostatic noise; for flexible multi-core braided EMC, select LiHCH.

Use LiHCH Braided

Trailing & towing

Not suitable

Solid Class 1 copper conductors (0.6 / 0.8 mm); strictly for fixed installation.

Use LiHCH Flexible

Energy chain / drag chain

Not suitable

Not intended for flexing or drag chains.

Use LiHH Flexible
Typical machinesHospitals, airports, hotels & shopping centresFire alarm & voice evacuation systems (Red BMK)Building management systems (BMS) & KNX busesUnderground metro stations & road tunnelsData centres & government infrastructure

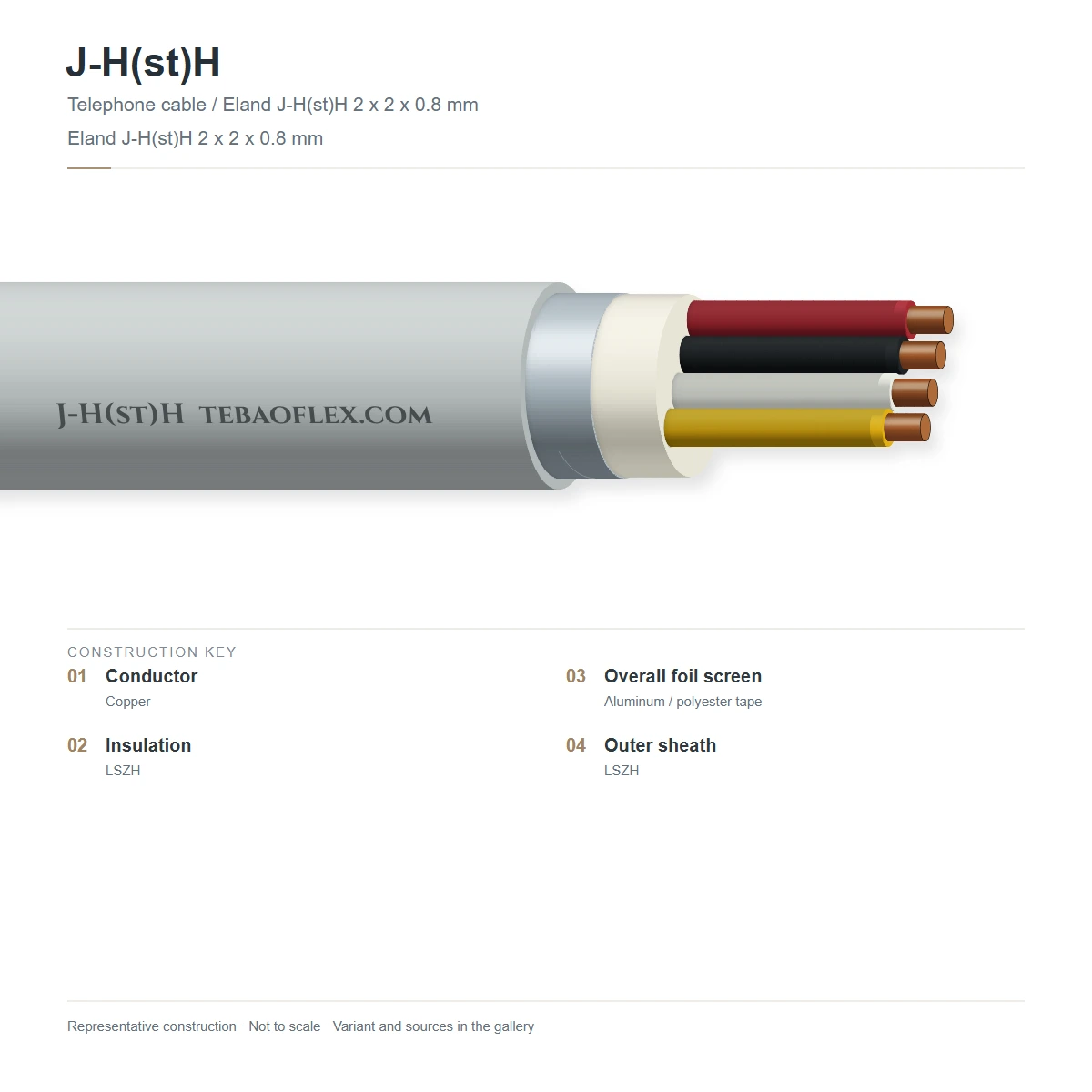

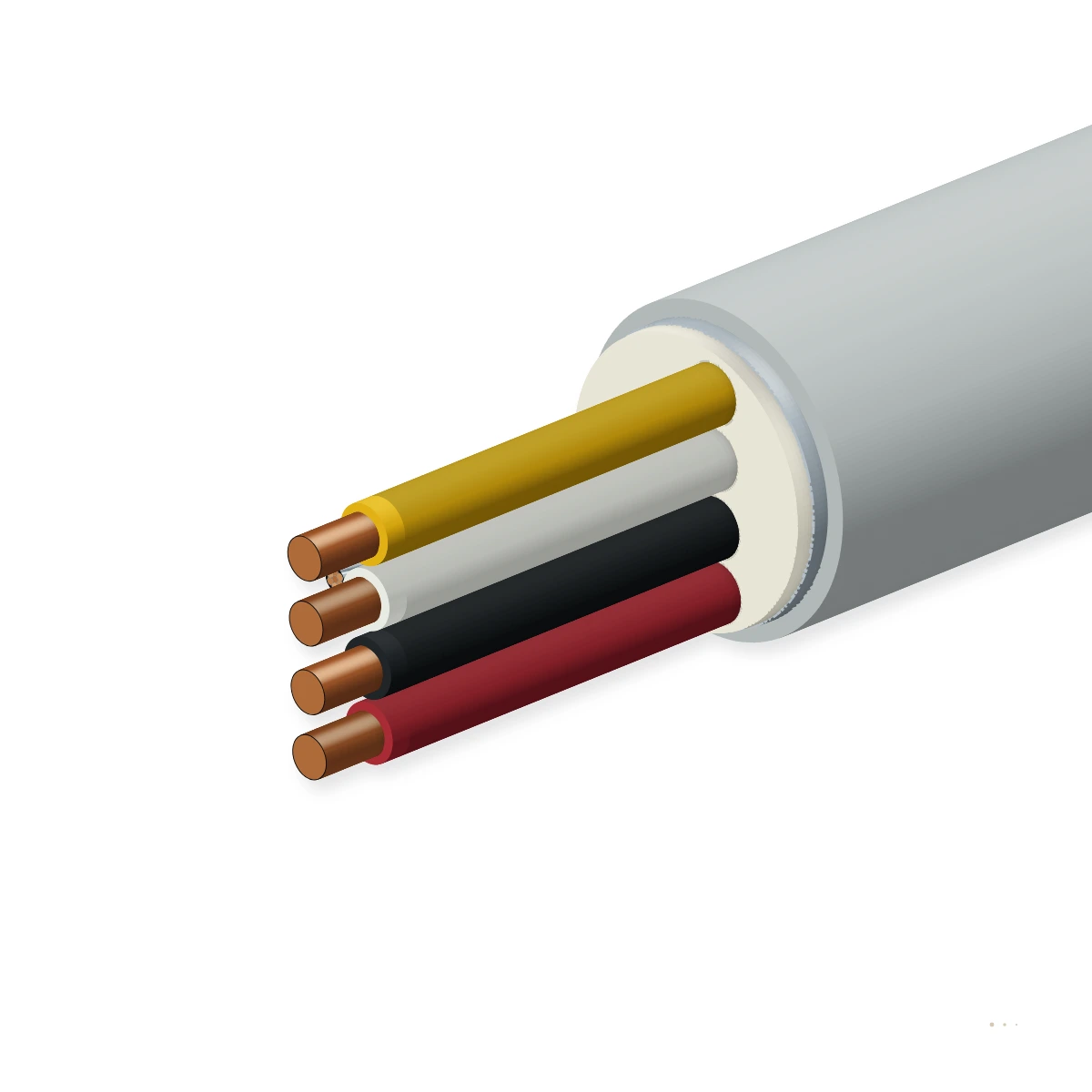

Construction

Layer by layer

Shown: J-H(St)H 4×2×0.8 Bd — solid 0.8 mm bare copper conductors, halogen-free polyolefin core insulation ('H') twisted in pairs/bundles ('Bd'), halogen-free tape, Al/PET static foil screen ('(St)') with solid tinned drain wire and pebble-grey RAL 7032 HM2 LSZH outer sheath ('H').

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Solid bare copper conductorSolid circular annealed copper wire Ø 0.6 mm (≈ 0.28 mm²) or Ø 0.8 mm (≈ 0.50 mm²) for LSA/IDC terminationDIN VDE 0815 / IEC 60228 Cl. 1
2Halogen-free LSZH core insulation (H)Cross-linked or thermoplastic halogen-free polyolefin compound Type HI1 / HI2 (DIN VDE 0207-24)DIN VDE 0815 · HI2
3Halogen-free wrapping tapeOverlapped halogen-free plastic tape over the paired unit bundles ('Bd')DIN VDE 0815
4Static Al/PET foil screen (St)Plastic-laminated aluminium foil tape with a longitudinal solid tinned-copper drain wireDIN VDE 0815
5Halogen-free LSZH outer sheath (H)Flame-retardant low-smoke zero-halogen compound Type HM2, pebble-grey RAL 7032 (or red RAL 3000 for fire alarm)DIN VDE 0207-24 HM2 · IEC 60332-3-24

J-H(St)H...Bd Ø 0.6 mm Grey RAL 7032

Halogen-free telecommunications, intercom and LSA punch-down installation cable from 1×2×0.6 to 40×2×0.6

J-H(St)H...Bd Ø 0.8 mm Grey RAL 7032

Halogen-free BMS, HVAC actuator and sensor bus cable from 1×2×0.8 to 20×2×0.8 (loop ≤ 73.2 Ω/km)

J-H(St)H...Bd Ø 0.8 mm Red RAL 3000 (Brandmeldekabel)

Halogen-free red fire-alarm loop cable ('Brandmeldekabel') for public buildings

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0815 (J-H(St)H...Bd) · LSZH. Values for your order are confirmed in the datasheet and quotation.

Electrical

Peak operating voltage
300 V (not permitted for heavy current power installation)
AC test voltage (50 Hz)
800 V AC (core/core & core/screen)
Max. loop resistance (20 °C)
Ø 0.6 mm: ≤ 130 Ω/km · Ø 0.8 mm: ≤ 73.2 Ω/km
Mutual capacitance (800 Hz)
≤ 120 nF/km
Capacitive coupling (k₁)
≤ 300 pF / 100 m at 800 Hz
Insulation resistance
≥ 100 MΩ·km at +20 °C

Thermal

Temperature, during installation
−5 °C to +50 °C
Temperature, fixed operation
−30 °C to +70 °C

Mechanical

Min. bending radius, fixed
7.5 × overall diameter (single bend during installation: 2.5 × OD)
Stranding method (Bd)
2 cores twisted into a pair (2×2 as star-quad); 4 pairs stranded into unit bundles ('Bündelverseilung')
Conductor type
Solid annealed copper wire (Ø 0.6 mm or Ø 0.8 mm) for IDC / LSA-Plus blocks

Resistance

Halogen-free & non-corrosive
IEC 60754-1 / EN 60754-1 & IEC 60754-2 (pH ≥ 4.3, conductivity ≤ 10 µS/mm)
Low smoke emission
IEC 61034-2 / EN 61034-2 (≥ 60 % light transmittance)
Flame retardance
IEC 60332-1-2 & IEC 60332-3-24 Cat. C bunched vertical flame test

Reference standards

Primary standard
DIN VDE 0815 (J-H(St)H...Bd)
Fire safety standards
IEC 60754-1/2, IEC 61034-2, IEC 60332-1-2 / 60332-3-24
PVC counterpart
See J-Y(St)Y...Lg for standard PVC indoor installations
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Pebble-grey (RAL 7032) or flame-red (RAL 3000 for Brandmeldekabel)
Pair identification
DIN VDE 0815 pair & ring colour sequence (Pair 1 red/black, Pair 2 white/yellow…)
Sheath marking
TEBAOFLEX J-H(St)H [n×2×0.6/0.8] Bd HALOGEN-FREE DIN VDE 0815 CE
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

15 standard J-H(st)H configurations

Typical DIN VDE 0815 (J-H(St)H...Bd) · LSZH outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
n × 2 × 0.6 mm (Ø Solid Cu, Loop ≤ 130 Ω/km) LSZH DIN VDE 0815
J-H(St)H 1×2×0.6 Bd1×2×0.623 (0.6 mm)4.34.762838
J-H(St)H 2×2×0.6 Bd2×2×0.623 (0.6 mm)5.05.4123843
J-H(St)H 4×2×0.6 Bd4×2×0.623 (0.6 mm)6.26.7236254
J-H(St)H 6×2×0.6 Bd6×2×0.623 (0.6 mm)6.97.5348160
J-H(St)H 10×2×0.6 Bd10×2×0.623 (0.6 mm)8.49.15612273
J-H(St)H 20×2×0.6 Bd20×2×0.623 (0.6 mm)10.911.811222094
J-H(St)H 30×2×0.6 Bd30×2×0.623 (0.6 mm)13.014.1168315113
J-H(St)H 40×2×0.6 Bd40×2×0.623 (0.6 mm)14.716.0223410128
n × 2 × 0.8 mm (Ø Solid Cu, Loop ≤ 73.2 Ω/km) LSZH DIN VDE 0815
J-H(St)H 1×2×0.8 Bd1×2×0.8205.15.5113944
J-H(St)H 2×2×0.8 Bd2×2×0.8205.76.2215650
J-H(St)H 4×2×0.8 Bd4×2×0.8207.88.5419868
J-H(St)H 6×2×0.8 Bd6×2×0.8209.09.86113678
J-H(St)H 10×2×0.8 Bd10×2×0.82011.112.110121097
J-H(St)H 12×2×0.8 Bd12×2×0.82012.013.0121246104
J-H(St)H 20×2×0.8 Bd20×2×0.82014.916.2201395130
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per DIN VDE 0815 (J-H(St)H...Bd) · LSZH. Minimum fixed bending radius shown is 8 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 100 mmBending radius OK (8 × OD 6.2 mm)
Minimum bending radius
50 mm
Min. drum core diameter
≈ 100 mm
Cable weight on drum
2.8 kg
Copper content
1.1 kg
Indicative only: based on the datasheet outer diameter and 8 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test0.8 kV AC (50 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / DIN VDE 0815 (J-H(St)H...Bd) · LSZH (bare copper)Every manufactured length
Sample tests
Vertical flame propagationIEC 60332-1-2 / EN 60332-1-2Per production batch
Insulation & sheath material physical propertiesDIN VDE 0815 (J-H(St)H...Bd) · LSZHType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0815 (J-H(St)H...Bd) · LSZHCE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX J-H(St)H [n×2×0.6/0.8] Bd HALOGEN-FREE DIN VDE 0815 CE
Delivery form
Export wooden drums or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options
Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFJ-H(st)H Halogen-Free Installation Cable – technical datasheet15 sizes · construction, technical data, approvalsXLSXJ-H(st)H spec data (Excel)All 15 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Decode the German designation J-H(St)H...Bd.
'J' = Installation cable; first 'H' = Halogen-free polyolefin core insulation; '(St)' = Static screen of plastic-laminated aluminium foil + solid tinned drain wire; second 'H' = Halogen-free low-smoke outer sheath; 'Bd' = 'Bündelverseilung' (pairs stranded into 4-pair unit bundles).
How does J-H(st)H differ from J-Y(st)Y?
J-H(st)H replaces both the PVC core insulation and PVC outer sheath of J-Y(st)Y with low-smoke zero-halogen (LSZH) compounds certified to IEC 60754-1/2 (zero halogen acid gas), IEC 61034-2 (low smoke density) and IEC 60332-3-24 Cat. C bunched flame retardance, while preserving identical 0.6 mm and 0.8 mm solid copper conductors.
What does 'Bd' (Bündelverseilung) mean vs 'Lg' (Lagenverseilung)?
In 'Bd' unit-bundle stranding, every 4 pairs are cabled into a numbered sub-bundle (with acoloured binder thread) and the sub-bundles are then cabled together. Within each 4-pair bundle, Pair 1 is red/blue, Pair 2 white/yellow, Pair 3 white/green, and Pair 4 white/brown, making multi-pair identification on site fast and error-free.
When should I choose LiHCH instead of J-H(st)H?
J-H(st)H has solid Class 1 copper conductors for fixed building installation and LSA punch-down blocks. If the cable connects to movable instruments, control doors or D-Sub/M12 plugs requiring Class 5 fine-stranded conductors and a copper braid screen, choose LiHCH.
