Product

Control & signal cablesDIN VDE 0812LSZH + Tinned-Cu Screen ≥ 80 %IEC 60754 & IEC 61034

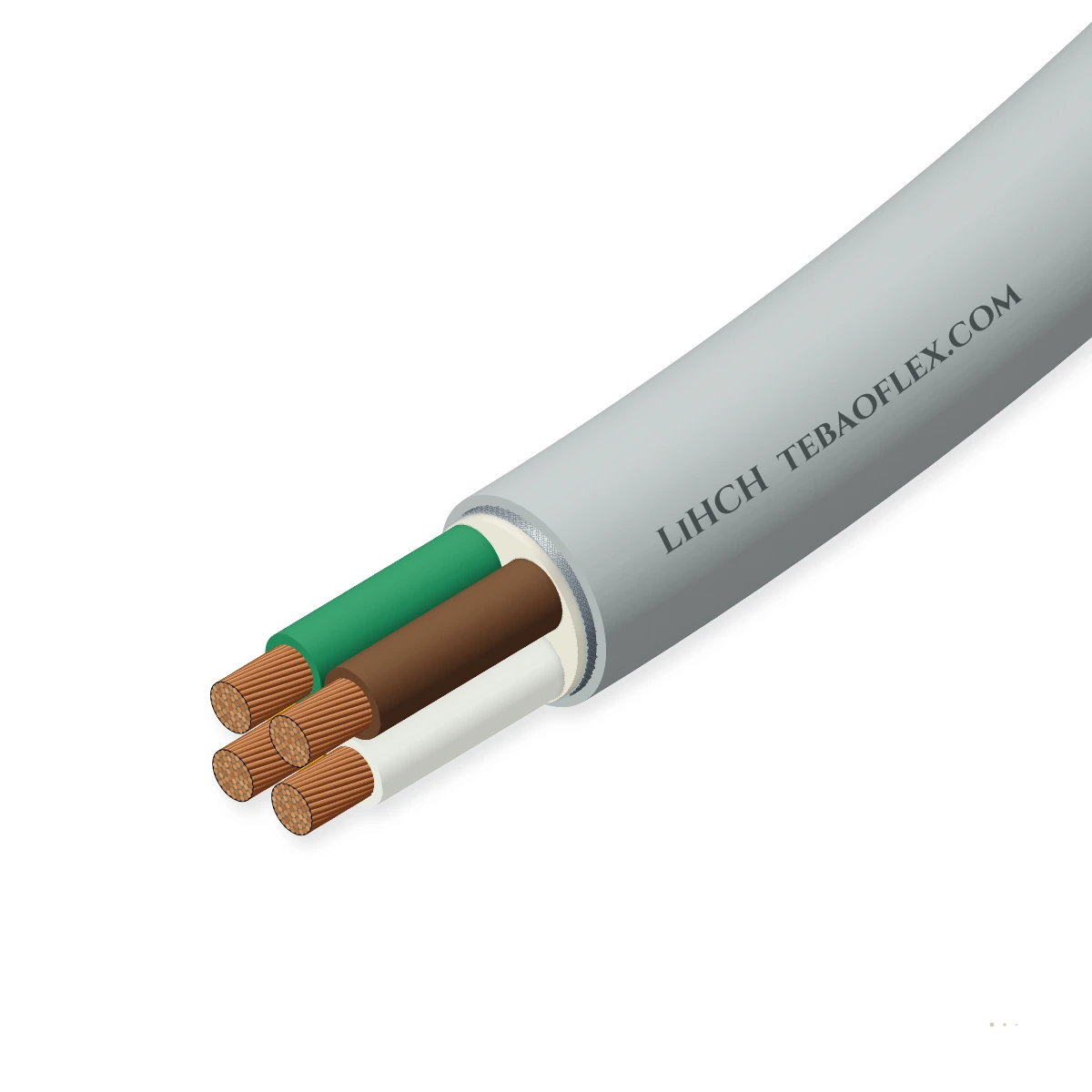

LiHCH Screened LSZH Signal CableDIN VDE 0812 tinned-copper braid screened halogen-free (LSZH) signal cable

EMC-screened low-smoke zero-halogen (`LSZH`) electronic signal cable to DIN VDE 0812 (`LiHCH`) with fine-stranded bare copper conductors (0.14–1.5 mm²), DIN 47100 halogen-free cores (`H`), ≥80 % tinned-copper braid screen (`C`) and grey HM2 LSZH sheath (`H`).

Flame-retardant
Approved
Low-EMC design
Order designation
LiHCH 7×0.25
Outer Ø min
5.3 mm
Outer Ø max
5.8 mm
Weight ≈
59 kg/km
Min. bend R
35 mm
Check against my drumAll sizes (22)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Peak voltage
350 / 500 V
0.14 mm²: 350 V · ≥0.25 mm²: 500 V
EMC screen
≥ 80 % CuSn
Tinned-copper wire braid screen
Halogen-free
IEC 60754-1/2
Zero halogen · pH ≥ 4.3 · ≤ 10 µS/mm
Smoke density
IEC 61034-2
≥ 60 % light transmittance in fire
Bending radius
6–15 × OD
6 × OD fixed · 15 × OD flexing
Size range
0.14–1.5 mm²
2 to 36 cores · DIN 47100 colours

Typical values for this cable type, based on DIN VDE 0812 / DIN 47100 · LSZH EMC — confirmed in the datasheet and quotation for your order.

Application fit

Is LiHCH right for your machine?

LiHCH combines the ≥80 % tinned-copper EMC braid shield of LiYCY with the IEC 60754 / IEC 61034 low-smoke zero-halogen (`LSZH`) polymer system of LiHH for interference-free analog and digital signals in public infrastructure, tunnels, hospitals and cleanrooms.

Fixed installation

Suitable

EMC-shielded BMS, HVAC, cleanroom, hospital, airport and railway station instrumentation.

VFD inverter to AC motor screened feeder

Suitable

≥ 80 % tinned-copper braid screen shields low-level analog and digital signals near inverter drives.

Trailing & towing

With conditions

Suitable for occasional free-hanging movement without tensile load.

Use JZ-602-C-PUR

Energy chain / drag chain

Not suitable

Not intended for continuous drag chains; for fixed solid-pair building bus, see J-H(st)H.

Use J-H(st)H Solid
Typical machinesAirports, rail terminals & road tunnelsHospitals, laboratories & semiconductor fabsData centre environmental & power monitoringPublic building BMS & smoke-extraction controlsMarine accommodation & cruise ship electronics

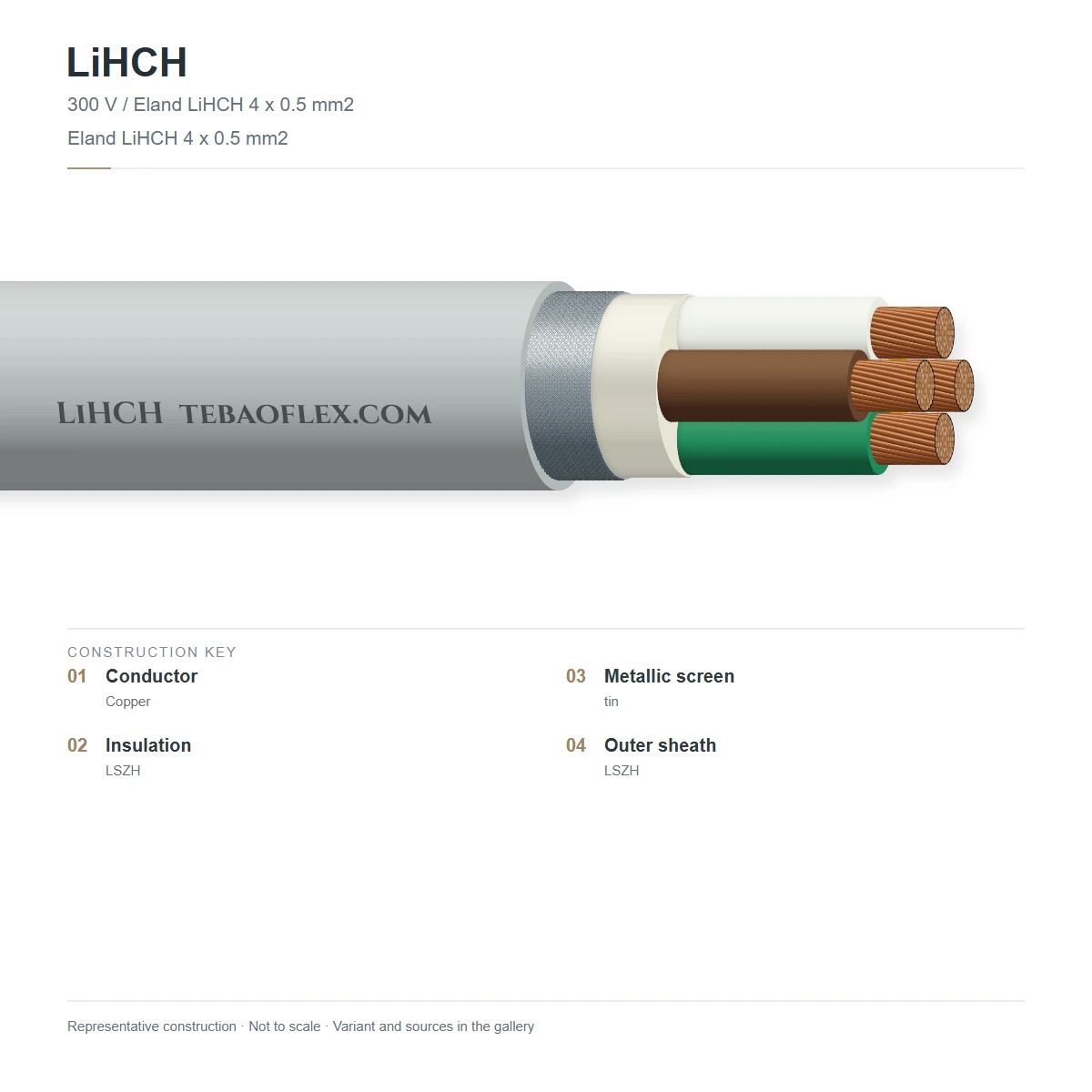

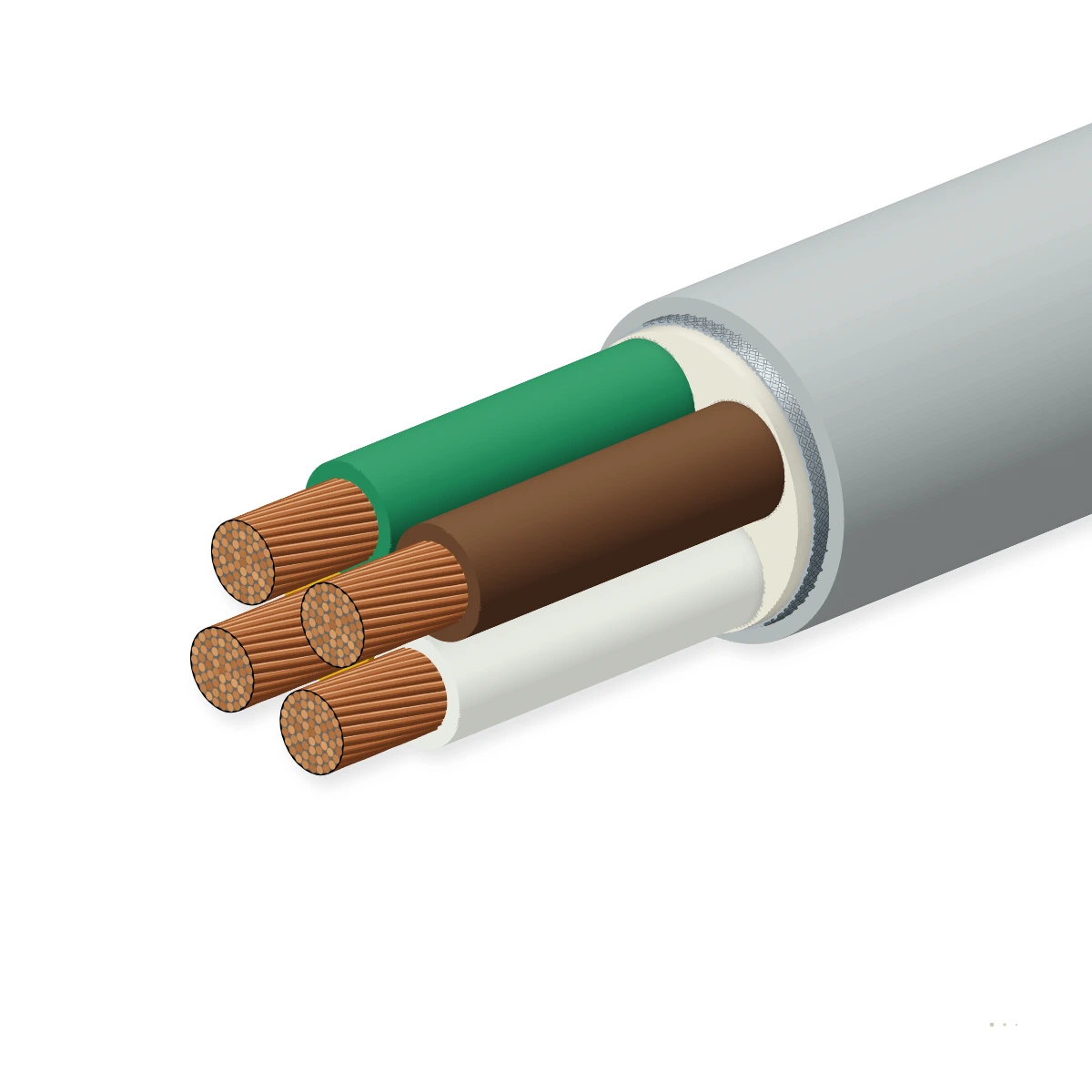

Construction

Layer by layer

Shown: LiHCH 7×0.25 — fine-stranded bare copper conductors, halogen-free polyolefin core insulation ('H', DIN 47100 colours), halogen-free separator tape, ≥80 % tinned-copper wire braid screen ('C') and pebble-grey RAL 7032 HM2 LSZH outer sheath ('H').

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Fine-stranded copper conductorAnnealed bare copper strands to DIN VDE 0812 / IEC 60228 Class 5DIN VDE 0812 / IEC 60228
2Halogen-free LSZH core insulation (H)Thermoplastic polyolefin compound Type HI2 / TI6 (DIN VDE 0207-24) colour-coded to DIN 47100DIN VDE 0207-24 · DIN 47100
3Halogen-free wrapping tapeOverlapped halogen-free polyester tape over the stranded core bundleDIN VDE 0812
4Tinned-copper braid screen (C)Close-woven tinned annealed copper wire braid with ≥ 80 % optical coverage for low transfer impedanceDIN VDE 0812 · EN 55011 EMC
5Halogen-free LSZH outer sheath (H)Flame-retardant low-smoke zero-halogen compound Type HM2, pebble-grey RAL 7032DIN VDE 0207-24 HM2 · IEC 60754 / 61034

LiHCH 0.14–0.34 mm² (2 to 36 cores)

Compact EMC-screened halogen-free sensor, encoder and instrumentation cables

LiHCH 0.5–1.5 mm² (2 to 25 cores)

Screened LSZH analog 4–20 mA, damper actuator and PLC I/O cables

LiHCH (TP) Twisted Pair Option

Available in twisted-pair construction (`n × 2 × mm²`) for low-crosstalk differential LSZH signals

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0812 / DIN 47100 · LSZH EMC. Values for your order are confirmed in the datasheet and quotation.

Electrical

Peak operating voltage
350 V (0.14 mm²) · 500 V (≥ 0.25 mm²)
AC test voltage (50 Hz)
1200 V (0.14 mm²) · 1500 V (≥ 0.25 mm²) core/core & core/screen
Mutual capacitance (800 Hz)
Approx. 115 nF/km (core/core) · approx. 155 nF/km (core/screen)
Transfer impedance (30 MHz)
≤ 250 mΩ/m via ≥ 80 % tinned-copper braid
Insulation resistance
≥ 200 MΩ·km at +20 °C

Thermal

Temperature, flexing
−5 °C to +70 °C
Temperature, fixed
−30 °C to +80 °C
Max. conductor temperature
+70 °C in motion · +80 °C fixed
Short-circuit temperature
+150 °C max.

Mechanical

Min. bending radius, fixed
6 × overall diameter
Min. bending radius, flexing
15 × overall diameter
Screen coverage
≥ 80 % optical coverage tinned-copper wire braid

Resistance

Halogen-free & non-corrosive
IEC 60754-1 / EN 60754-1 & IEC 60754-2 (pH ≥ 4.3, conductivity ≤ 10 µS/mm)
Low smoke emission
IEC 61034-2 / EN 61034-2 (≥ 60 % light transmittance)
Flame retardance
IEC 60332-1-2 & IEC 60332-3-24 Cat. C bunched vertical flame test

Reference standards

Construction basis
DIN VDE 0812 & DIN VDE 0207-24 (HI2/HM2)
Core colour code
DIN 47100 (without green-yellow earth core)
Fire safety standards
IEC 60754-1/2, IEC 61034-2, IEC 60332-1-2 / 60332-3-24
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Pebble-grey (RAL 7032)
Core identification
DIN 47100 colour & bi-colour ring code
Sheath marking
TEBAOFLEX LiHCH [Size] HALOGEN-FREE EMC SCREENED DIN VDE 0812 CE
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

22 standard LiHCH configurations

Typical DIN VDE 0812 / DIN 47100 · LSZH EMC outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
0.14 mm² Screened LSZH Signal Configurations (350 V peak)
LiHCH 2×0.142×0.14263.74.0122224
LiHCH 4×0.144×0.14264.04.4163126
LiHCH 8×0.148×0.14265.25.7265134
LiHCH 12×0.1412×0.14265.96.4346938
0.25 mm² Screened LSZH Signal Configurations (500 V peak)
LiHCH 2×0.252×0.25244.24.6163028
LiHCH 4×0.254×0.25244.75.1224131
LiHCH 7×0.257×0.25245.35.8325935
LiHCH 12×0.2512×0.25246.77.3519644
LiHCH 25×0.2525×0.25249.510.39818462
0.34 mm² Screened LSZH Signal Configurations (500 V peak)
LiHCH 2×0.342×0.34224.65.0193630
LiHCH 4×0.344×0.34225.25.6284934
LiHCH 8×0.348×0.34226.57.1478643
LiHCH 12×0.3412×0.34227.58.16612049
0.50 mm² Screened LSZH Signal Configurations (500 V peak)
LiHCH 2×0.52×0.5205.05.4244232
LiHCH 4×0.54×0.5205.66.1366137
LiHCH 7×0.57×0.5206.77.3569544
LiHCH 12×0.512×0.5208.69.48915856
0.75–1.5 mm² Screened LSZH Signal & Control Configurations
LiHCH 2×0.752×0.75185.45.9305235
LiHCH 4×0.754×0.75186.26.7477940
LiHCH 7×0.757×0.75187.58.17712649
LiHCH 4×1.04×1.0176.67.2599643
LiHCH 4×1.54×1.5167.58.18212949
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per DIN VDE 0812 / DIN 47100 · LSZH EMC. Minimum fixed bending radius shown is 6 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 70 mmBending radius OK (6 × OD 5.8 mm)
Minimum bending radius
35 mm
Min. drum core diameter
≈ 70 mm
Cable weight on drum
3.0 kg
Copper content
1.6 kg
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test1.5 kV AC (50 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 / DIN VDE 0812 / DIN 47100 · LSZH EMC (bare copper)Every manufactured length
Sample tests
Vertical flame propagationIEC 60332-1-2 / EN 60332-1-2Per production batch
Insulation & sheath material physical propertiesDIN VDE 0812 / DIN 47100 · LSZH EMCType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0812 / DIN 47100 · LSZH EMCCE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX LiHCH [Size] HALOGEN-FREE EMC SCREENED DIN VDE 0812 CE
Delivery form
Export wooden drums or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options
Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFLiHCH Screened LSZH Signal Cable – technical datasheet22 sizes · construction, technical data, approvalsXLSXLiHCH spec data (Excel)All 22 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Decode the German designation LiHCH.
'Li' = fine-stranded flexible copper conductor ('Litze'); first 'H' = halogen-free polyolefin core insulation; 'C' = overall tinned-copper wire braid screen (≥ 80 % optical coverage); second 'H' = halogen-free low-smoke outer sheath.
How does LiHCH compare with LiYCY and J-H(st)H?
LiHCH is the halogen-free (LSZH) equivalent of LiYCY: both use fine-stranded Class 5 flexible conductors, DIN 47100 core colours and a tinned-copper braid screen. By contrast, J-H(st)H is a fixed building installation cable to DIN VDE 0815 with solid 0.6/0.8 mm copper conductors and a static aluminium foil screen ('(St)').
What fire tests does LiHCH pass?
LiHCH passes IEC 60754-1/2 (zero halogen, non-corrosive combustion gases with pH ≥ 4.3 and conductivity ≤ 10 µS/mm), IEC 61034-2 (≥ 60 % light transmittance low smoke density), IEC 60332-1-2 single-cable flame test and IEC 60332-3-24 Cat. C bunched flame propagation.
Can LiHCH be ordered in twisted-pair construction?
Yes. LiHCH (TP) twists the DIN 47100 halogen-free cores into balanced pairs beneath the overall tinned-copper braid screen for differential RS-422/RS-485 and encoder channels in LSZH buildings.
