Control & signal cablesDIN VDE 0815 Industrial7-Wire 0.5 mm² Pairs (Bd)Grey or Sky-Blue Ex-i

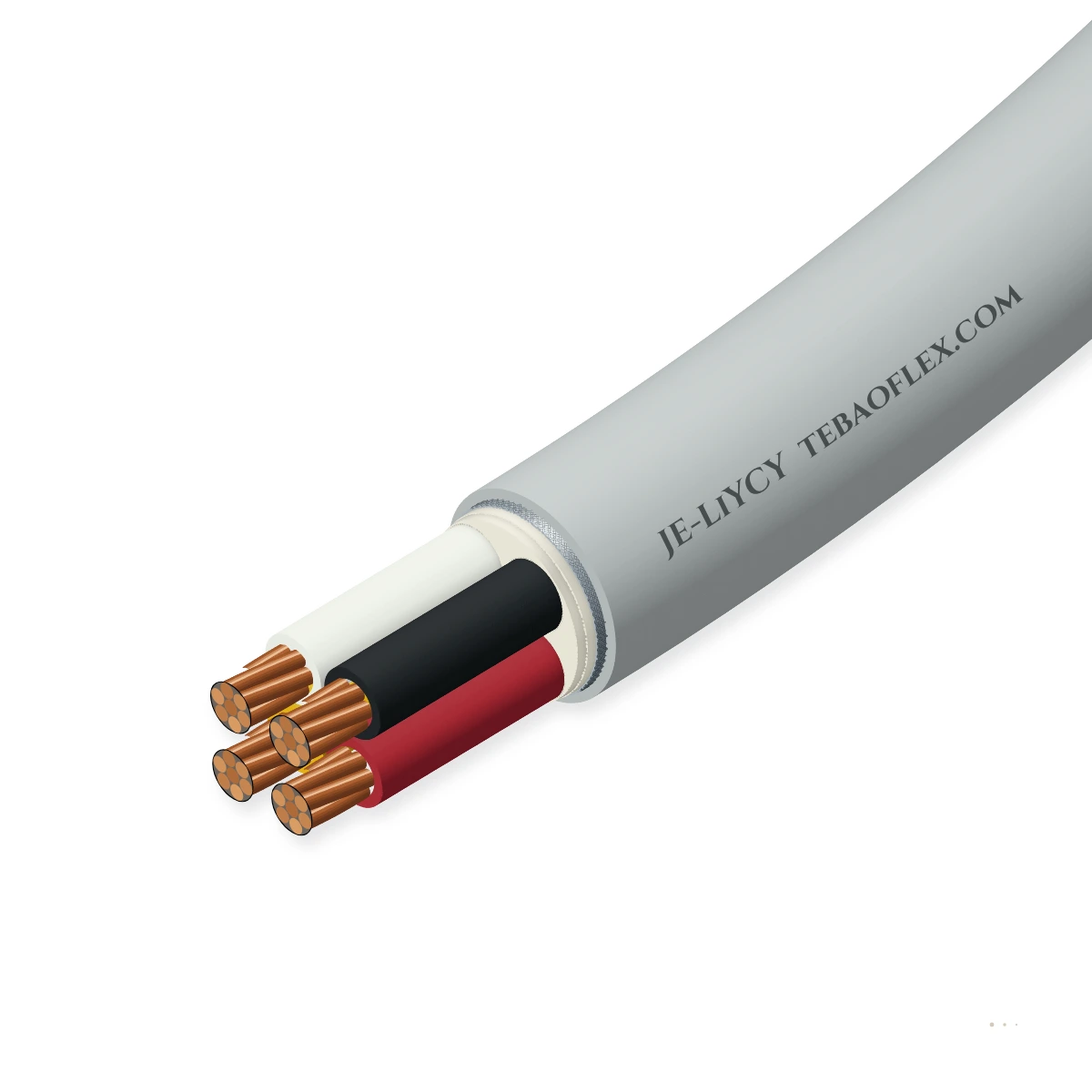

JE-LiYCY Screened Industrial Electronic CableDIN VDE 0815 0.5 mm² paired-bundle copper-braid screened industrial electronic cable

Industrial process-plant electronic cable to DIN VDE 0815 (`JE-LiYCY...Bd`) featuring 7-wire stranded 0.5 mm² (`7×0.30 mm`) copper pairs in 4-pair unit bundles (`Bd`), ≥80 % tinned-copper wire braid screen (`C`) and grey or Ex-i sky-blue PVC sheath.

Flame-retardant

Oil-resistant

Approved

Cores × cross-section

Order designation: JE-LiYCY 4×2×0.5 Bd
Outer Ø min: 7.8 mm
Outer Ø max: 8.5 mm
Weight ≈: 102 kg/km
Min. bend R: 51 mm

Check against my drum All sizes (8)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Peak voltage: 225 V
Test voltage: 500 / 2000 V
Conductor: 0.5 mm² (7×0.3)
Stranding: 4-pair bundles
EMC screen: ≥ 80 % CuSn
Pair range: 2×2 to 32×2

Typical values for this cable type, based on DIN VDE 0815 (JE-LiYCY...Bd) — confirmed in the datasheet and quotation for your order.

Application fit

Is JE-LiYCY right for your machine?

JE-LiYCY (`JE-LiYCY...Bd`) bridges the gap between solid-wire building cables (`J-Y(st)Y`) and fine-wire machine cables (`LiYCY (TP)`): its 7-wire `0.5 mm²` conductors clamp reliably in marshalling cabinet screw/spring terminals, while 4-pair unit bundles (`Bd`) and a `2.0 kV`-tested tinned-copper braid suit DCS/PLC process plants.

Fixed installation

Suitable

DCS/PLC marshalling cabinets, process plant field junction boxes, 4–20 mA / HART loops and Ex-i barriers.

VFD inverter to AC motor screened feeder

Suitable

High-coverage tinned-copper braid screen ('C', tested at 2000 V core/screen) suppresses heavy industrial switching noise.

Trailing & towing

With conditions

7-wire stranded conductors tolerate cabinet door flexing and vibration, but are not for mobile trailing.

Use LiYCY (TP)

Energy chain / drag chain

Not suitable

Not intended for dynamic drag chains.

Use JZ-602-C-PUR

Typical machinesChemical, petrochemical & refinery DCS marshallingPower stations & waste-to-energy control roomsIntrinsically safe (Ex-i, RAL 5015 blue) field loopsWater & wastewater treatment instrumentationFood, beverage & pharmaceutical process plants

Construction

Layer by layer

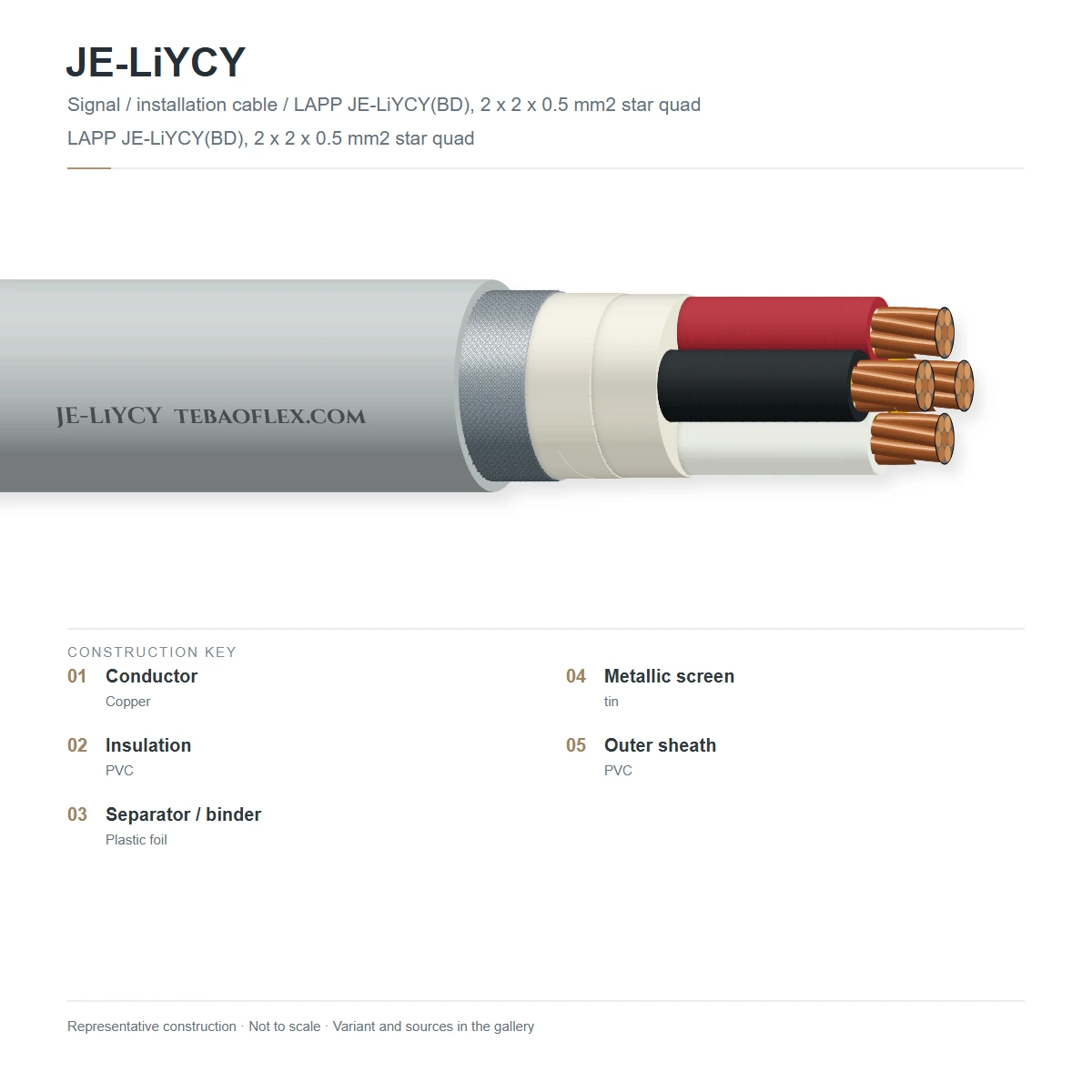

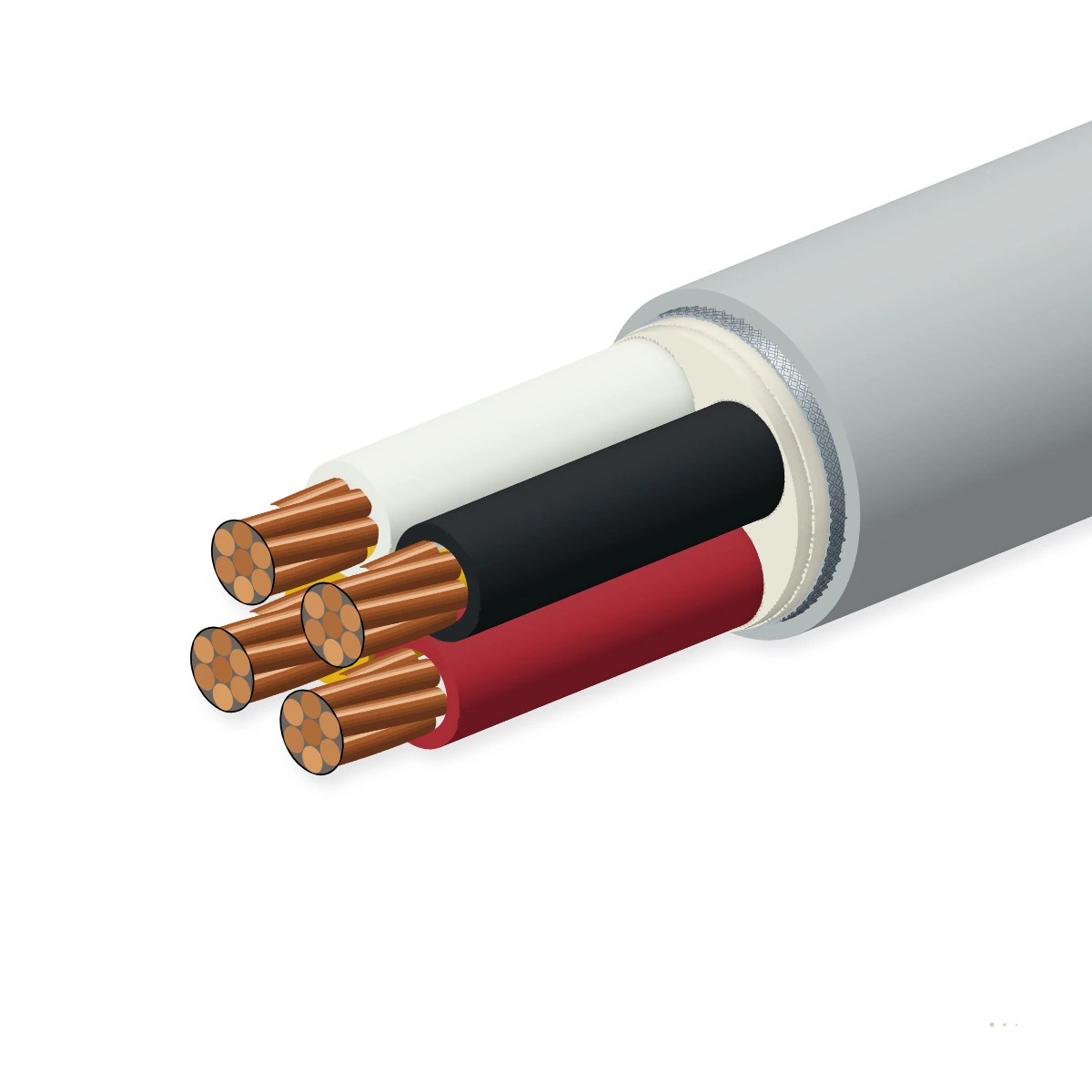

Shown: JE-LiYCY 4×2×0.5 Bd — 7-wire stranded bare copper conductors (0.5 mm² = 7×0.30 mm), YI2 PVC core insulation twisted into 4 pairs in a unit bundle ('Bd'), PET separator tape, ≥80 % tinned-copper wire braid screen ('C') and pebble-grey RAL 7032 (or RAL 5015 Ex-i blue) PVC outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	7-wire stranded copper conductor	Annealed bare copper 0.5 mm² (7 × 0.30 mm, Class 2) combining vibration resistance with firm terminal clampingDIN VDE 0815
2	PVC core insulation (Y)	Semi-rigid PVC compound Type YI2 (DIN VDE 0207-4) with DIN VDE 0815 pair & bundle ring markingsDIN VDE 0815 · YI2
3	Paired 4-pair unit bundles (Bd)	2 cores twisted into a pair; 4 pairs stranded into a numbered unit bundle ('Bündelverseilung')DIN VDE 0815
4	PET tape + tinned-copper braid (C)	Overlapped polyester tape plus ≥ 80 % optical coverage tinned-copper wire braid tested at 2000 V AC core/screenDIN VDE 0815 · EN 60079-14
5	PVC outer sheath (Y)	Flame-retardant polyvinyl chloride compound Type YM1, pebble-grey RAL 7032 or sky-blue RAL 5015 (Ex-i)DIN VDE 0207-5 YM1 · IEC 60332-1-2

JE-LiYCY...Bd Grey RAL 7032 (2×2×0.5 to 32×2×0.5)

Standard industrial process control and DCS/PLC marshalling cable with 4-pair unit bundles

JE-LiYCY...Bd EB Sky-Blue RAL 5015 (Ex-i Intrinsically Safe)

Sky-blue outer sheath ('Eigensicher') meeting EN 60079-14 inductance/capacitance ratio limits for Zone 1/2 Ex-i loops

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0815 (JE-LiYCY...Bd). Values for your order are confirmed in the datasheet and quotation.

Electrical

Peak operating voltage: 225 V (not permitted for heavy current power installation)
AC test voltage (50 Hz): 500 V AC (core/core) · 2000 V AC (core/screen)
Max. loop resistance (20 °C): ≤ 78.4 Ω/km (single conductor ≤ 39.2 Ω/km)
Mutual capacitance (800 Hz): ≤ 100 nF/km (core/core) — up to 4 pairs may exceed by 20 %
Inductance & L/R ratio: Approx. 0.65 mH/km (suited for EN 60079-14 Ex-i circuits)
Insulation resistance: ≥ 100 MΩ·km at +20 °C

Thermal

Temperature, flexing / installation: −5 °C to +50 °C
Temperature, fixed operation: −30 °C to +70 °C

Mechanical

Min. bending radius, fixed: 6 × overall diameter
Min. bending radius, flexing: 15 × overall diameter
Conductor stranding: 7 × 0.30 mm (0.5 mm²) stranded bare copper ('Li')
Unit bundle stranding (Bd): 4 twisted pairs per bundle (2×2×0.5 stranded as star-quad)

Resistance

Flame retardance: IEC 60332-1-2 / EN 60332-1-2 self-extinguishing · CPR Eca
EMC & Ex-i safety: 2000 V core-to-screen dielectric strength + ≥ 80 % tinned-Cu braid screen

Reference standards

Primary standard: DIN VDE 0815 (JE-LiYCY...Bd)
Pair colour code within bundle: Pair 1: blue/red · Pair 2: grey/yellow · Pair 3: green/brown · Pair 4: white/black (with bundle ring code)
Ex-i installation: EN 60079-14 / VDE 0165-1 (RAL 5015 blue sheath version)
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Pebble-grey (RAL 7032) or sky-blue (RAL 5015 for Ex-i 'EB')
Bundle & pair identification: DIN VDE 0815 4-pair bundle colour code + ring group marks
Sheath marking: TEBAOFLEX JE-LiYCY [n×2×0.5] Bd DIN VDE 0815 CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

8 standard JE-LiYCY configurations

Typical DIN VDE 0815 (JE-LiYCY...Bd) outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
n × 2 × 0.5 mm² (7×0.30 mm) Paired Unit-Bundle Configurations (DIN VDE 0815)
JE-LiYCY 2×2×0.5 Bd	2×2×0.5	20	5.7	6.2	35	58	37
JE-LiYCY 4×2×0.5 Bd	4×2×0.5	20	7.8	8.5	62	102	51
JE-LiYCY 8×2×0.5 Bd	8×2×0.5	20	10.9	11.8	116	192	71
JE-LiYCY 12×2×0.5 Bd	12×2×0.5	20	12.5	13.6	168	272	82
JE-LiYCY 16×2×0.5 Bd	16×2×0.5	20	13.9	15.1	218	348	91
JE-LiYCY 20×2×0.5 Bd	20×2×0.5	20	15.5	16.9	268	428	101
JE-LiYCY 24×2×0.5 Bd	24×2×0.5	20	17.1	18.6	320	508	112
JE-LiYCY 32×2×0.5 Bd	32×2×0.5	20	19.1	20.8	422	668	125

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per DIN VDE 0815 (JE-LiYCY...Bd). Minimum fixed bending radius shown is 6 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	Single pair/core 30 °C, A	Multi-core bundle 30 °C, A
0.5	20	39	9.0	6.0

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / DIN VDE 0891-1. Apply grouping derating factors for multi-core control and signal bundles.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 102 mmBending radius OK (6 × OD 8.5 mm)

Minimum bending radius: 51 mm
Min. drum core diameter: ≈ 102 mm
Cable weight on drum: 5.1 kg
Copper content: 3.1 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.0 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 / DIN VDE 0815 (JE-LiYCY...Bd) (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath material physical properties	DIN VDE 0815 (JE-LiYCY...Bd)	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0815 (JE-LiYCY...Bd)CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX JE-LiYCY [n×2×0.5] Bd DIN VDE 0815 CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pair counts or sheath colours on request

Technical documents

Downloads

PDFJE-LiYCY Screened Industrial Electronic Cable – technical datasheet8 sizes · construction, technical data, approvals XLSXJE-LiYCY spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
