Standard primary wire for textile-taped cabin harnesses, floor looms and body distribution.
Product

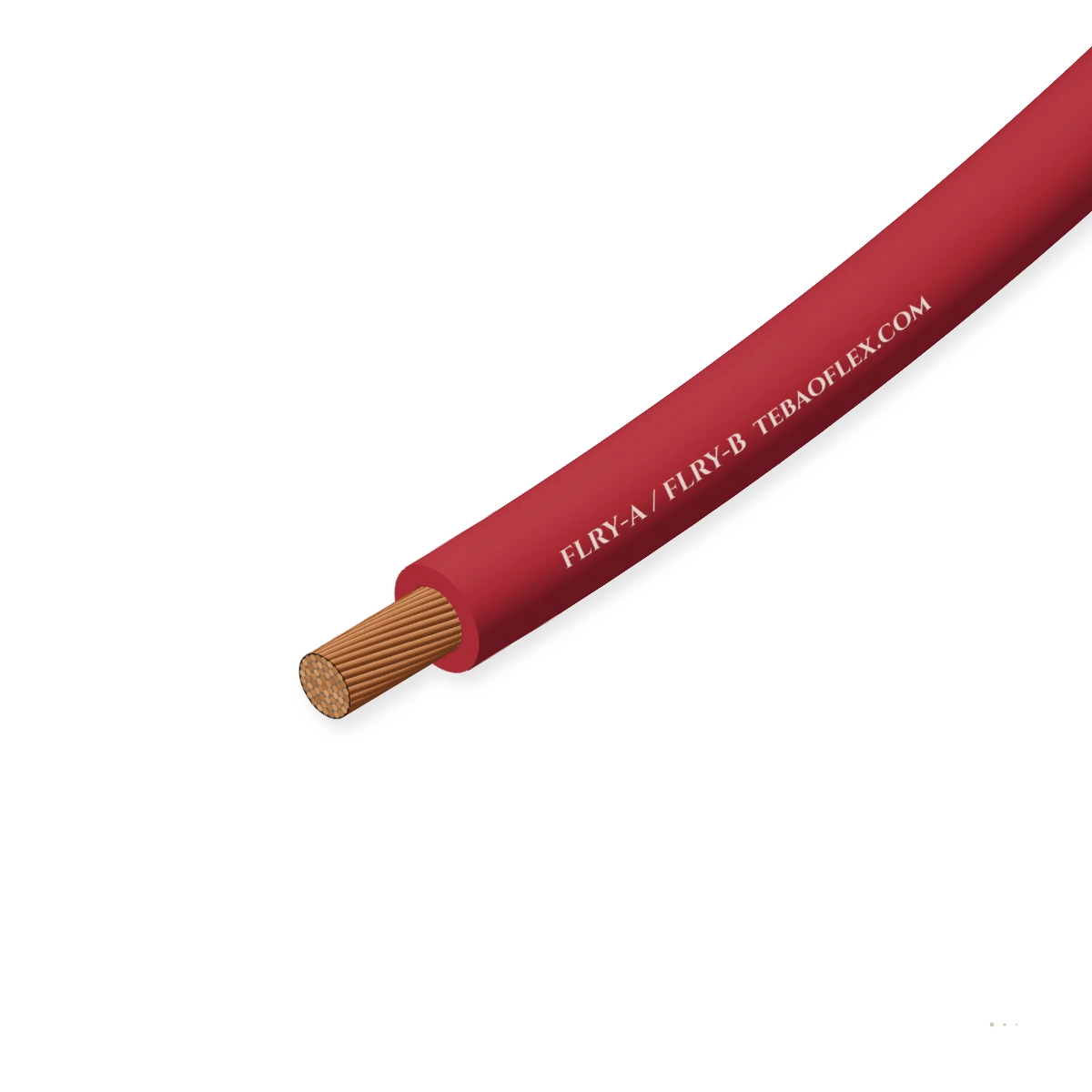

FLRY-A and FLRY-B are the foundational European automotive low-voltage harness wires per DIN 72551-6, ISO 6722-1 Class B and VDA LV 112. Rated for 60 V DC and -40 °C to +105 °C continuous operation with lead-free reduced-wall plasticized PVC insulation ('FLR'
Typical values for this cable type, based on ISO 6722-1 Class B / DIN 72551-6 / LV 112 — confirmed in the datasheet and quotation for your order.
Application fit
Used across European passenger cars, commercial trucks, buses and agricultural equipment (VW, Audi, BMW, Mercedes-Benz, MAN, Volvo) for body, cockpit, door, lighting and chassis wiring harnesses.
Standard primary wire for textile-taped cabin harnesses, floor looms and body distribution.
FLRY-A concentric conductor guarantees circularity for MQS, MCP and Kostal single-wire seals.
FLRY-B bunched conductor offers enhanced flexibility for larger cross-sections (1.5–25 mm²).
Class B PVC is rated to +105 °C; for +125 °C engine bays specify FLRYW or FLR2X.
FLRYW +125 °C Class C wireConstruction

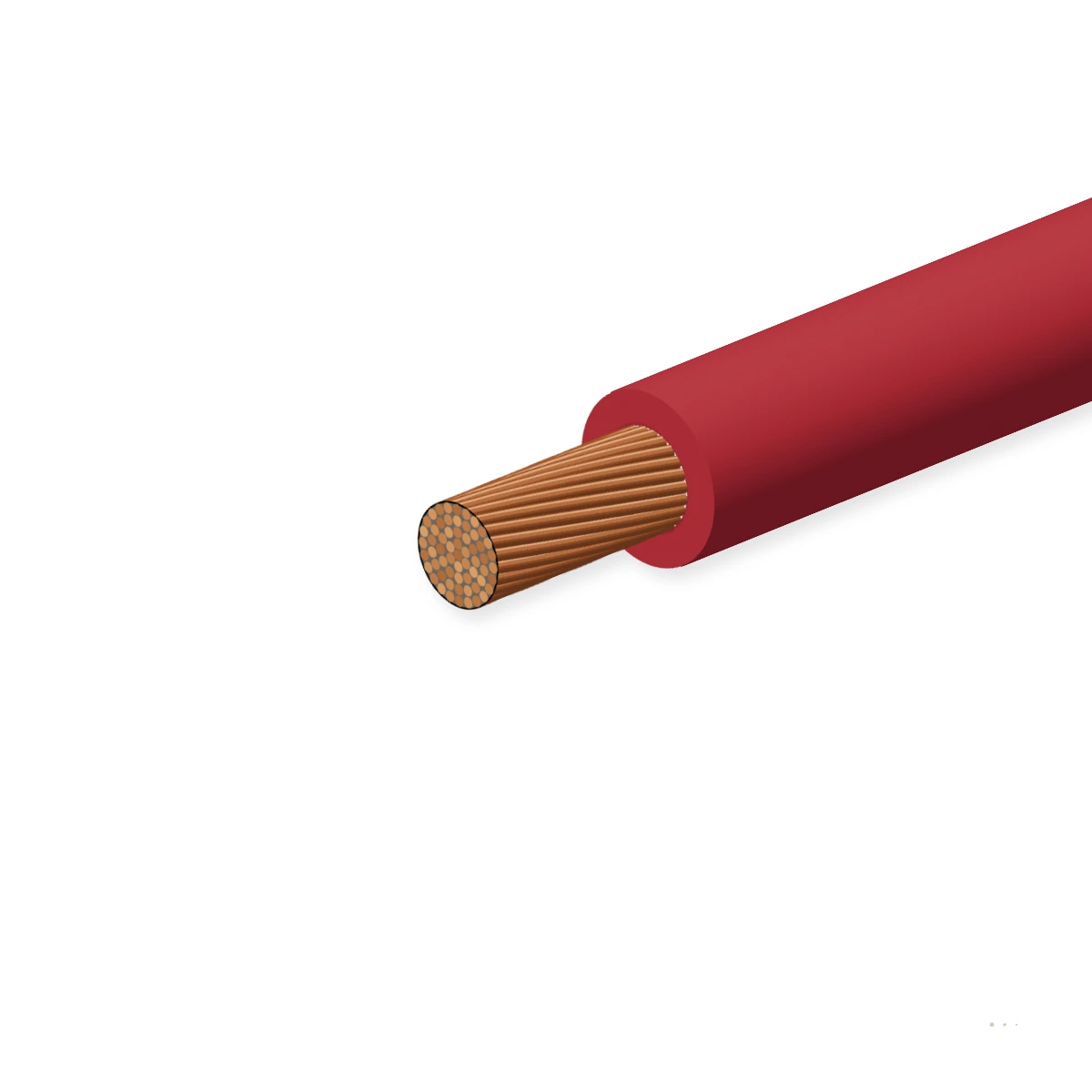

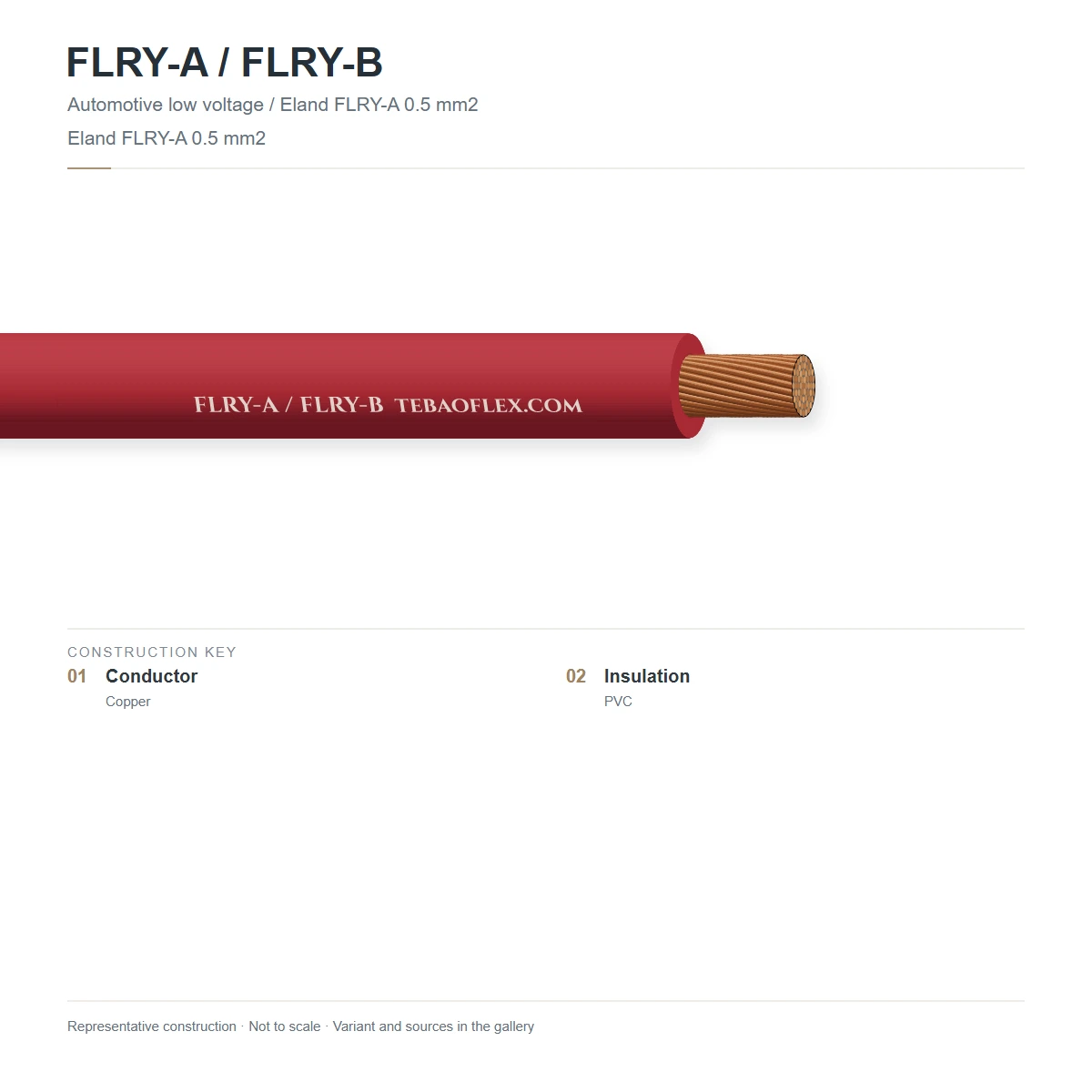

Soft annealed bare copper (Cu-ETP1 per EN 13602) in Type A symmetrical concentric (7/19 wires) or Type B asymmetrical bunched stranding + reduced-wall lead-free Class B (+105 °C) PVC insulation.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Cu-ETP1 bare copper (Type A or B) | Soft annealed electrolytic copper (EN 13602): Type A symmetrical concentric (7 or 19 strands) or Type B asymmetrical bunched strandsISO 6722-1 |
| 2 | Reduced-wall Class B PVC (Y) | Lead-free heat-stabilised plasticized PVC compound (-40 °C to +105 °C) with FLR reduced wall thickness (0.20–0.80 mm)ISO 6722-1 |
| 3 | Smooth colour/stripe outer surface | Precision-extruded low-friction surface with base colour and extruded longitudinal or spiral tracer stripesDIN 72551-6 |
7-wire (0.22–0.5 mm²) or 19-wire (0.75–2.5 mm²) concentric conductor with smallest OD and tightest roundness for automated stripping and single-wire silicone seals.
Flexible bunched copper strands (0.35 to 25 mm²) for tight bending radii and larger power cross-sections.
Technical data
Sizes
Nominal dimensions, wall thickness, copper mass and electrical parameters for FLRY-A / FLRY-B per ISO 6722-1 Class B / DIN 72551-6 / LV 112.
| Designation | Type & Size mm² | Strands × Ø / Max OD | Max. OD mm | Copper kg/km | Total mass ≈ kg/km | Min. bend R mm | Enquiry |
|---|---|---|---|---|---|---|---|
| FLRY-A / FLRY-B size range | |||||||
| FLRY-A 0.22 mm² | 0.22 mm² Type A | 7×0.21 · Wall 0.20 | 1.20 | 2.1 | 3.3 | 4.8 | |
| FLRY-A 0.35 mm² | 0.35 mm² Type A | 7×0.26 · Wall 0.20 | 1.30 | 3.3 | 4.5 | 5.2 | |
| FLRY-B 0.35 mm² | 0.35 mm² Type B | 12×0.21 · Wall 0.20 | 1.40 | 3.3 | 4.7 | 5.6 | |
| FLRY-A 0.50 mm² | 0.50 mm² Type A | 19×0.19 · Wall 0.22 | 1.60 | 4.8 | 6.6 | 6.4 | |
| FLRY-B 0.50 mm² | 0.50 mm² Type B | 16×0.21 · Wall 0.22 | 1.60 | 4.8 | 6.6 | 6.4 | |
| FLRY-A 0.75 mm² | 0.75 mm² Type A | 19×0.23 · Wall 0.24 | 1.90 | 7.2 | 9.5 | 7.6 | |
| FLRY-B 0.75 mm² | 0.75 mm² Type B | 24×0.21 · Wall 0.24 | 1.90 | 7.2 | 9.5 | 7.6 | |
| FLRY-A 1.00 mm² | 1.00 mm² Type A | 19×0.26 · Wall 0.24 | 2.10 | 9.6 | 12.2 | 8.4 | |
| FLRY-B 1.00 mm² | 1.00 mm² Type B | 32×0.21 · Wall 0.24 | 2.10 | 9.6 | 12.2 | 8.4 | |
| FLRY-A 1.50 mm² | 1.50 mm² Type A | 19×0.32 · Wall 0.24 | 2.40 | 14.4 | 17.5 | 9.6 | |
| FLRY-B 1.50 mm² | 1.50 mm² Type B | 30×0.26 · Wall 0.24 | 2.40 | 14.4 | 17.5 | 9.6 | |
| FLRY-B 2.50 mm² | 2.50 mm² Type B | 50×0.26 · Wall 0.28 | 3.00 | 24.0 | 28.5 | 12.0 | |
| FLRY-B 4.00 mm² | 4.00 mm² Type B | 56×0.31 · Wall 0.32 | 3.70 | 38.4 | 44.5 | 14.8 | |
| FLRY-B 6.00 mm² | 6.00 mm² Type B | 84×0.31 · Wall 0.32 | 4.30 | 57.6 | 65.0 | 17.2 | |
| FLRY-B 10.0 mm² | 10.0 mm² Type B | 80×0.41 · Wall 0.48 | 6.00 | 96.0 | 109.0 | 24.0 | |
| FLRY-B 16.0 mm² | 16.0 mm² Type B | 126×0.41 · Wall 0.52 | 7.20 | 153.6 | 172.0 | 28.8 | |
| Type & Size mm² | Max. DC R @ 20 °C mΩ/m | Single wire in air A | In harness bundle A |
|---|---|---|---|
| 0.22 mm² Type A | 84.80 | 6 | 5 |
| 0.35 mm² Type A | 54.40 | 9 | 7 |
| 0.35 mm² Type B | 54.40 | 9 | 7 |
| 0.50 mm² Type A | 37.10 | 12 | 9 |
| 0.50 mm² Type B | 37.10 | 12 | 9 |
| 0.75 mm² Type A | 24.70 | 16 | 12 |
| 0.75 mm² Type B | 24.70 | 16 | 12 |
| 1.00 mm² Type A | 18.50 | 20 | 16 |
| 1.00 mm² Type B | 18.50 | 20 | 16 |
| 1.50 mm² Type A | 12.70 | 25 | 20 |
| 1.50 mm² Type B | 12.70 | 25 | 20 |
| 2.50 mm² Type B | 7.60 | 34 | 27 |
| 4.00 mm² Type B | 4.71 | 45 | 35 |
| 6.00 mm² Type B | 3.14 | 58 | 45 |
| 10.0 mm² Type B | 1.82 | 80 | 62 |
| 16.0 mm² Type B | 1.16 | 108 | 84 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| 3.0–5.0 kV AC spark test & DC conductor resistance | Zero insulation faults; DC resistance per ISO 6722-1 Table 2 | 100 % of spools |
| Sample tests | ||
| ISO 6722-1 needle/sandpaper abrasion & -40 °C cold wind | Meets LV 112 reduced-wall abrasion and cold-bend criteria | Every batch |
| 3000-hour +105 °C thermal ageing & 3.0 kV wet dielectric | Certified to ISO 6722-1 Class B / DIN 72551-6 | Type qualification |
