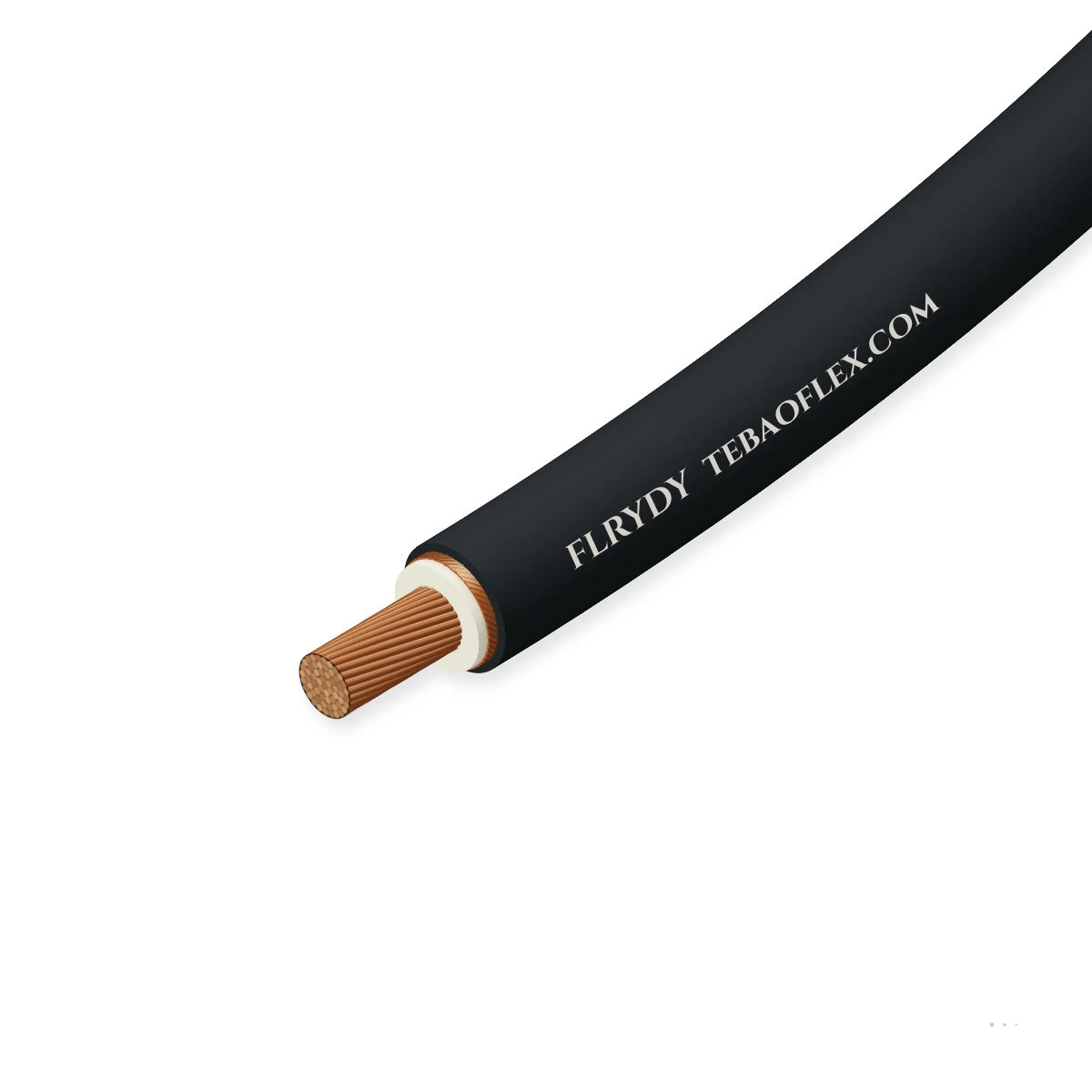

FLRYDY is a shielded low-voltage automotive sensor, actuator and communication cable per ISO 6722-1 and DIN 72551. Built from colour-coded FLRY reduced-wall PVC cores (1 to 8 cores, 0.22–1.5 mm²), an overall helically lapped or braided tinned/bare copper shiel
Typical values for this cable type, based on ISO 6722-1 / DIN 72551 / LV 112 — confirmed in the datasheet and quotation for your order.
Application fit
Specified for knock sensors, crankshaft/camshaft Hall & inductive pickups, oxygen/NOx sensors, infotainment audio inputs, shielded CAN/LIN segments and HV-adjacent low-voltage harnesses susceptible to inverter switching noise.
Routes inside vehicle harnesses or along chassis brackets with high immunity to PWM and ignition noise.
Compact FLRY cores and spiral/braided copper shield terminate cleanly into shielded automotive connectors.
Outer PVC jacket protects the copper EMC shield from moisture, oil mist and road salt.
Standard FLRYDY is rated to +105 °C; for +125 °C/+150 °C engine-block knock sensors specify FLR2XDY or FEP/ETFE cores.
FLR7Y +150 °C ETFE wireConstruction

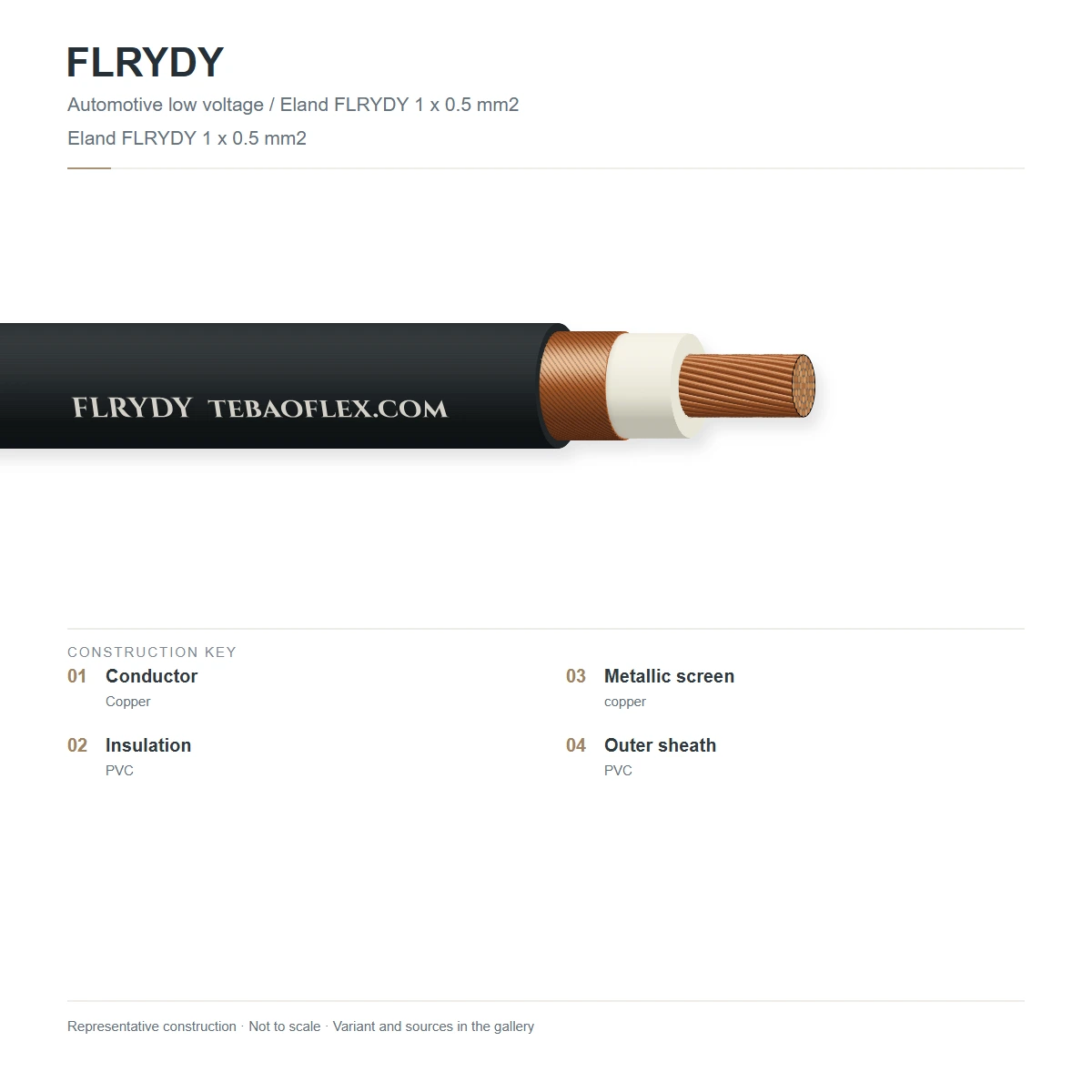

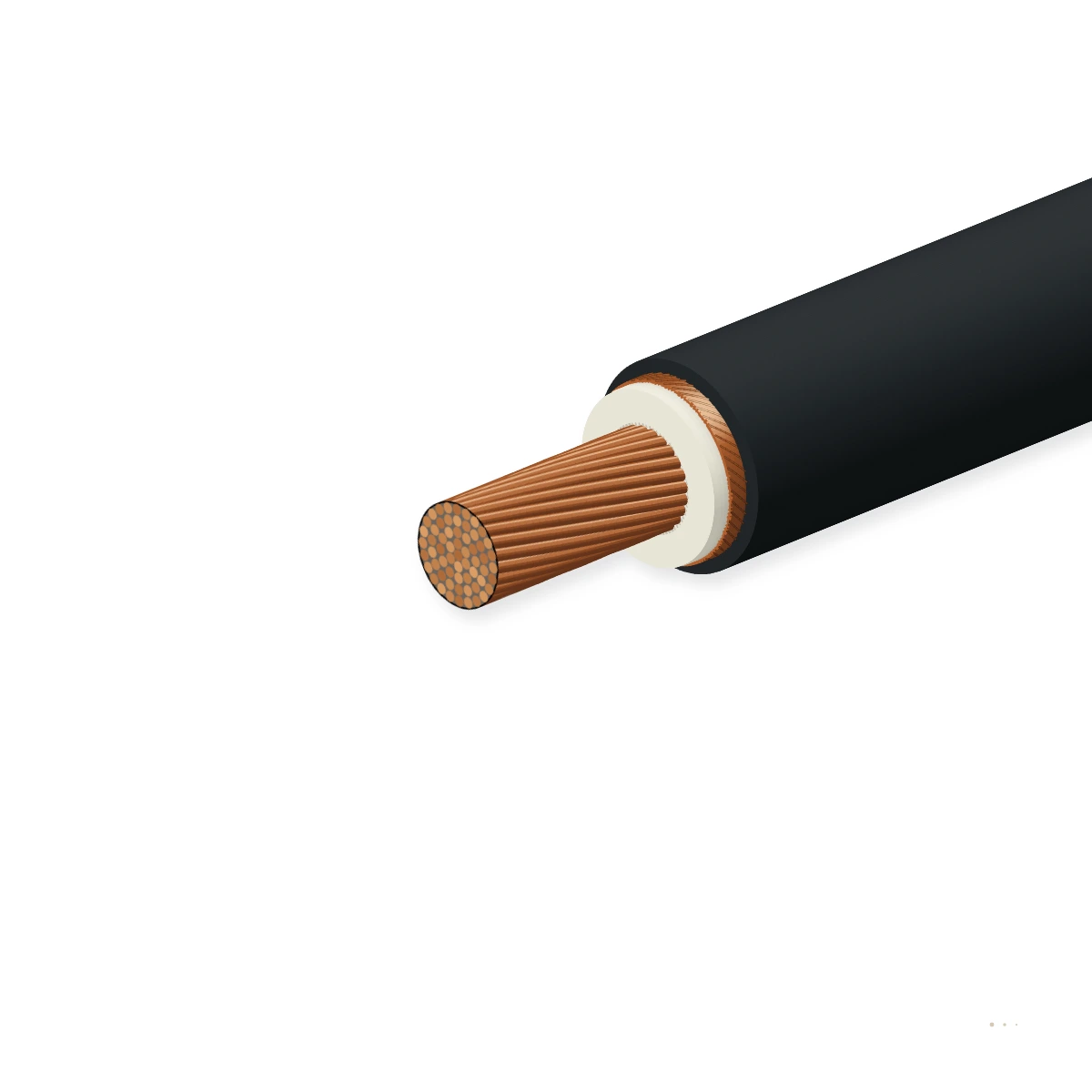

Fine-stranded bare copper (FLRY) + reduced-wall Class B PVC core insulation + twisted core lay + PET separator tape (optional) + bare or tinned copper spiral/braid shield (D, ≥85 %) + PVC outer sheath (Y).
| # | Layer | Material & reference |
|---|---|---|
| 1 | Fine-stranded copper (FLRY) | Soft annealed bare copper strands per ISO 6722-1 Type A or Type BISO 6722-1 |
| 2 | FLRY reduced-wall PVC core insulation | Colour-coded Class B (-40 °C to +105 °C) lead-free PVC insulation, twisted in pairs/triadsISO 6722-1 |
| 3 | Copper spiral or braid screen (D) | Helically served (spiral) or braided bare/tinned annealed copper wires (0.10–0.15 mm) with ≥85 % optical coverageDIN 72551 |
| 4 | Automotive PVC outer sheath (Y) | Oil-, fuel- and abrasion-resistant Class B PVC outer jacketISO 6722-1 |
Helically wrapped copper wire screen (≥85–90 % coverage) offering smaller OD, superior flexibility and rapid pig-tail termination for sensor leads.
Cross-braided tinned copper shield for wide-band RF screening and mechanical robustness in commercial vehicle harnesses.
Technical data
Sizes
Nominal dimensions, wall thickness, copper mass and electrical parameters for FLRYDY per ISO 6722-1 / DIN 72551 / LV 112.
| Designation | Cores × Size mm² | Screen Ø / Core OD | Max. OD mm | Copper kg/km | Total mass ≈ kg/km | Min. bend R mm | Enquiry |
|---|---|---|---|---|---|---|---|
| FLRYDY size range | |||||||
| FLRYDY 1×0.35 | 1 × 0.35 mm² Coax | 0.10 Cu · 1.30 mm | 2.60 | 7.8 | 13.5 | 15.6 | |
| FLRYDY 1×0.50 | 1 × 0.50 mm² Coax | 0.10 Cu · 1.60 mm | 2.90 | 10.2 | 17.0 | 17.4 | |
| FLRYDY 2×0.22 | 2 × 0.22 mm² Pair | 0.10 Cu · 1.20 mm | 3.60 | 10.5 | 20.0 | 21.6 | |
| FLRYDY 2×0.35 | 2 × 0.35 mm² Pair | 0.10 Cu · 1.30 mm | 3.90 | 13.8 | 25.0 | 23.4 | |
| FLRYDY 2×0.50 | 2 × 0.50 mm² Pair | 0.12 Cu · 1.60 mm | 4.50 | 18.2 | 33.0 | 27.0 | |
| FLRYDY 2×0.75 | 2 × 0.75 mm² Pair | 0.12 Cu · 1.90 mm | 5.20 | 24.5 | 43.0 | 31.2 | |
| FLRYDY 2×1.00 | 2 × 1.00 mm² Pair | 0.12 Cu · 2.10 mm | 5.70 | 30.5 | 52.0 | 34.2 | |
| FLRYDY 3×0.35 | 3 × 0.35 mm² | 0.10 Cu · 1.30 mm | 4.20 | 17.8 | 30.0 | 25.2 | |
| FLRYDY 3×0.50 | 3 × 0.50 mm² | 0.12 Cu · 1.60 mm | 4.80 | 23.8 | 40.0 | 28.8 | |
| FLRYDY 3×0.75 | 3 × 0.75 mm² | 0.12 Cu · 1.90 mm | 5.50 | 32.5 | 53.0 | 33.0 | |
| FLRYDY 4×0.35 | 4 × 0.35 mm² | 0.10 Cu · 1.30 mm | 4.60 | 22.0 | 37.0 | 27.6 | |
| FLRYDY 4×0.50 | 4 × 0.50 mm² | 0.12 Cu · 1.60 mm | 5.30 | 29.5 | 49.0 | 31.8 | |
| FLRYDY 4×0.75 | 4 × 0.75 mm² | 0.12 Cu · 1.90 mm | 6.10 | 40.8 | 65.0 | 36.6 | |
| Cores × Size mm² | Max. DC R @ 20 °C mΩ/m | Single wire in air A | In harness bundle A |
|---|---|---|---|
| 1 × 0.35 mm² Coax | 54.40 | 8 | 6 |
| 1 × 0.50 mm² Coax | 37.10 | 11 | 9 |
| 2 × 0.22 mm² Pair | 84.80 | 5 | 4 |
| 2 × 0.35 mm² Pair | 54.40 | 8 | 6 |
| 2 × 0.50 mm² Pair | 37.10 | 10 | 8 |
| 2 × 0.75 mm² Pair | 24.70 | 14 | 11 |
| 2 × 1.00 mm² Pair | 18.50 | 17 | 13 |
| 3 × 0.35 mm² | 54.40 | 7 | 5 |
| 3 × 0.50 mm² | 37.10 | 9 | 7 |
| 3 × 0.75 mm² | 24.70 | 13 | 10 |
| 4 × 0.35 mm² | 54.40 | 7 | 5 |
| 4 × 0.50 mm² | 37.10 | 9 | 7 |
| 4 × 0.75 mm² | 24.70 | 12 | 9 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| 1.5 kV AC core-to-core & core-to-shield dielectric test | Zero breakdown; continuity and DC resistance verified | 100 % of drums |
| Sample tests | ||
| Optical screen coverage & -40 °C cold winding check | Shield coverage ≥85 %; zero jacket cracking at -40 °C | Every batch |
| Surface transfer impedance, oil immersion & 45° flame test | Complies with ISO 6722-1 Class B & DIN 72551 | Type qualification |
