Fixed installation
Withstands +150 °C continuous engine-block heat with superior scrape and pinch resistance.
Product

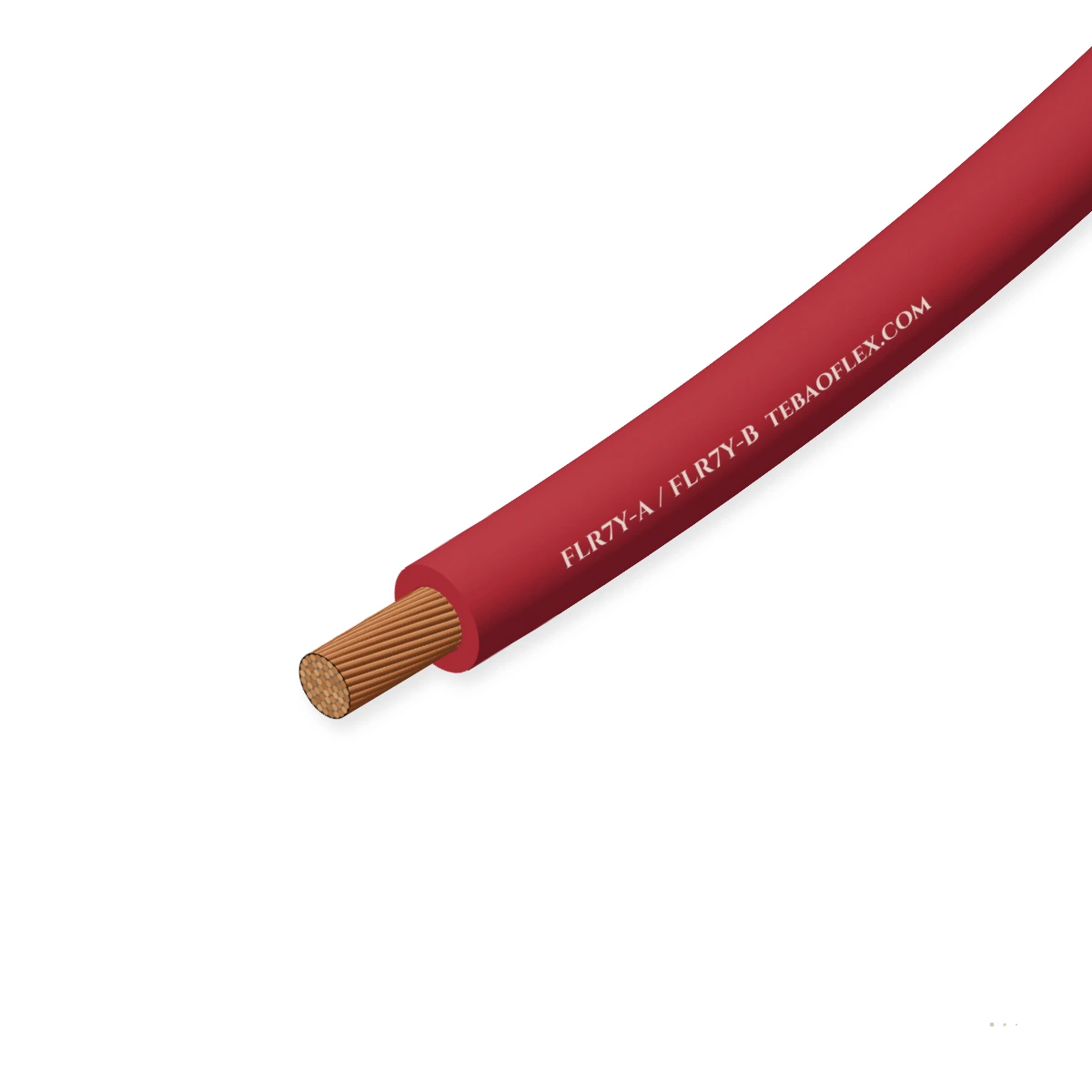

FLR7Y-A and FLR7Y-B are ISO 6722-1 Class D (-65 °C to +150 °C) reduced-wall automotive wires insulated with ethylene tetrafluoroethylene ('7Y' = ETFE). Combining fluoropolymer chemical inertness and +150 °C thermal endurance with exceptional mechanical stiffne
Typical values for this cable type, based on ISO 6722-1 Class D / DIN 72551 / LV 112 — confirmed in the datasheet and quotation for your order.
Application fit
Specified for hot V-engine valleys, cylinder-head injector/ignition harnesses, wheel-speed and brake-wear sensor cores, turbocharger perimeters and fuel-pump modules where +125 °C XLPE is exceeded and PTFE/FEP is too soft.
Withstands +150 °C continuous engine-block heat with superior scrape and pinch resistance.
Reduced-wall FLR profile fits standard sealed powertrain connectors and micro-terminals.
Ideal for +150 °C electric-axle motor sensor leads, oil-cooled inverters and actuator coils.
Rated to +150 °C (3000 h) and +175 °C (240 h); above +150 °C continuous select FLR6Y or FLR5Y.

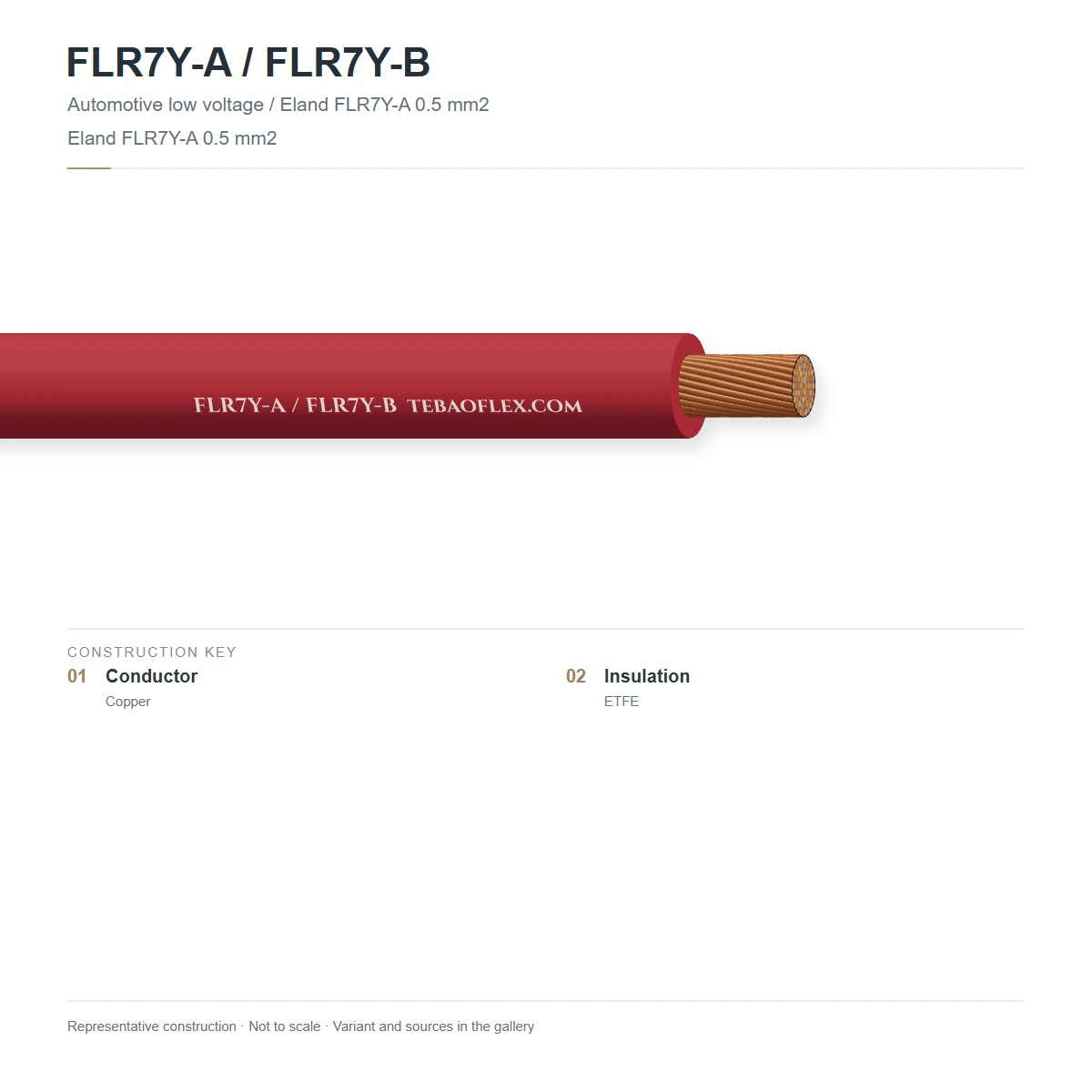

FLR6Y +180/+200 °C FEP wireConstruction

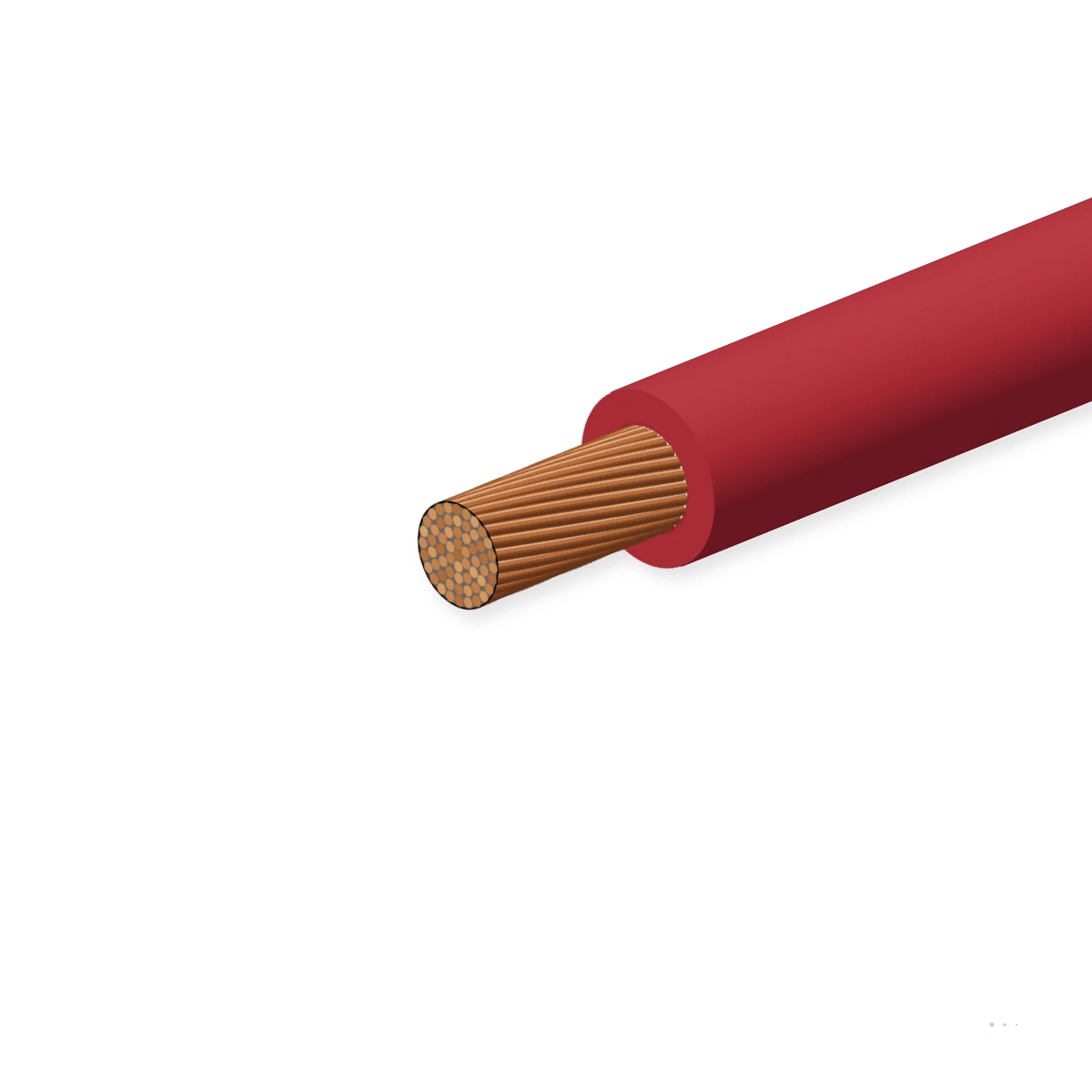

Bare or tinned soft annealed copper (Type A concentric or Type B bunched) + reduced-wall melt-extruded ETFE (ethylene tetrafluoroethylene, 7Y, -65 to +150 °C) insulation.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Bare or tinned copper (Type A or B) | Soft annealed bare Cu-ETP1 or tinned copper (Cu/Sn) in concentric (Type A) or bunched (Type B) strandingISO 6722-1 |
| 2 | Ethylene tetrafluoroethylene (7Y / ETFE) | Tough melt-extruded alternating copolymer of ethylene and tetrafluoroethylene rated -65 °C to +150 °C (Class D)DIN 72551 |
| 3 | Abrasion-resistant ETFE outer surface | Hard, cut-through-resistant fluoropolymer outer surface with colour and tracer stripe identificationISO 6722-1 |
7- or 19-strand concentric conductor (0.22–2.5 mm²) with ETFE reduced wall for sealed powertrain connectors.
Flexible bunched conductor (0.35–10 mm²) with ETFE reduced wall for dynamic wheel-arch and engine harnesses.
Technical data
Sizes
Nominal dimensions, wall thickness, copper mass and electrical parameters for FLR7Y-A / FLR7Y-B per ISO 6722-1 Class D / DIN 72551 / LV 112.
| Designation | Type & Size mm² | Strands × Ø / Wall mm | Max. OD mm | Copper kg/km | Total mass ≈ kg/km | Min. bend R mm | Enquiry |
|---|---|---|---|---|---|---|---|
| FLR7Y-A / FLR7Y-B size range | |||||||
| FLR7Y-A 0.22 mm² | 0.22 mm² Type A | 7×0.21 · 0.20 mm | 1.15 | 2.1 | 3.4 | 4.6 | |
| FLR7Y-A 0.35 mm² | 0.35 mm² Type A | 7×0.26 · 0.20 mm | 1.30 | 3.3 | 4.9 | 5.2 | |
| FLR7Y-B 0.35 mm² | 0.35 mm² Type B | 12×0.21 · 0.20 mm | 1.35 | 3.3 | 5.0 | 5.4 | |
| FLR7Y-A 0.50 mm² | 0.50 mm² Type A | 19×0.19 · 0.22 mm | 1.55 | 4.8 | 7.1 | 6.2 | |
| FLR7Y-B 0.50 mm² | 0.50 mm² Type B | 16×0.21 · 0.22 mm | 1.60 | 4.8 | 7.2 | 6.4 | |
| FLR7Y-A 0.75 mm² | 0.75 mm² Type A | 19×0.23 · 0.24 mm | 1.85 | 7.2 | 10.3 | 7.4 | |
| FLR7Y-B 0.75 mm² | 0.75 mm² Type B | 24×0.21 · 0.24 mm | 1.90 | 7.2 | 10.4 | 7.6 | |
| FLR7Y-A 1.00 mm² | 1.00 mm² Type A | 19×0.26 · 0.24 mm | 2.05 | 9.6 | 13.4 | 8.2 | |
| FLR7Y-A 1.50 mm² | 1.50 mm² Type A | 19×0.32 · 0.24 mm | 2.35 | 14.4 | 19.2 | 9.4 | |
| FLR7Y-A 2.50 mm² | 2.50 mm² Type A | 19×0.41 · 0.28 mm | 2.95 | 24.0 | 31.5 | 11.8 | |
| FLR7Y-B 4.00 mm² | 4.00 mm² Type B | 56×0.31 · 0.32 mm | 3.65 | 38.4 | 49.0 | 14.6 | |
| FLR7Y-B 6.00 mm² | 6.00 mm² Type B | 84×0.31 · 0.32 mm | 4.30 | 57.6 | 71.5 | 17.2 | |
| Type & Size mm² | Max. DC R @ 20 °C mΩ/m | Single wire in air A | In harness bundle A |
|---|---|---|---|
| 0.22 mm² Type A | 84.80 | 8 | 6 |
| 0.35 mm² Type A | 54.40 | 11 | 9 |
| 0.35 mm² Type B | 54.40 | 11 | 9 |
| 0.50 mm² Type A | 37.10 | 15 | 12 |
| 0.50 mm² Type B | 37.10 | 15 | 12 |
| 0.75 mm² Type A | 24.70 | 20 | 16 |
| 0.75 mm² Type B | 24.70 | 20 | 16 |
| 1.00 mm² Type A | 18.50 | 25 | 20 |
| 1.50 mm² Type A | 12.70 | 32 | 25 |
| 2.50 mm² Type A | 7.60 | 44 | 34 |
| 4.00 mm² Type B | 4.71 | 58 | 45 |
| 6.00 mm² Type B | 3.14 | 74 | 58 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| 3.0–5.0 kV AC spark test & DC conductor resistance | Zero breakdown; resistance per ISO 6722-1 | 100 % of spools |
| Sample tests | ||
| Needle scrape abrasion & -65 °C cold mandrel winding | Exceeds ISO 6722-1 Class D abrasion & sub-zero bend | Every batch |
| 3000-hour +150 °C thermal endurance & fuel/ATF immersion | Certified to ISO 6722-1 Class D / LV 112 | Type qualification |
Marking & supply
Sheath marking
