ISO 6722 High-Temperature & Specialty Polymer Automotive Wires (4Y / 5Y / 6Y / 7Y / 9Y)60 V DC ISO 6722-1 Class CPolypropylene 9Y (PP) Halogen-FreeUltra-Low Density & High Scrape

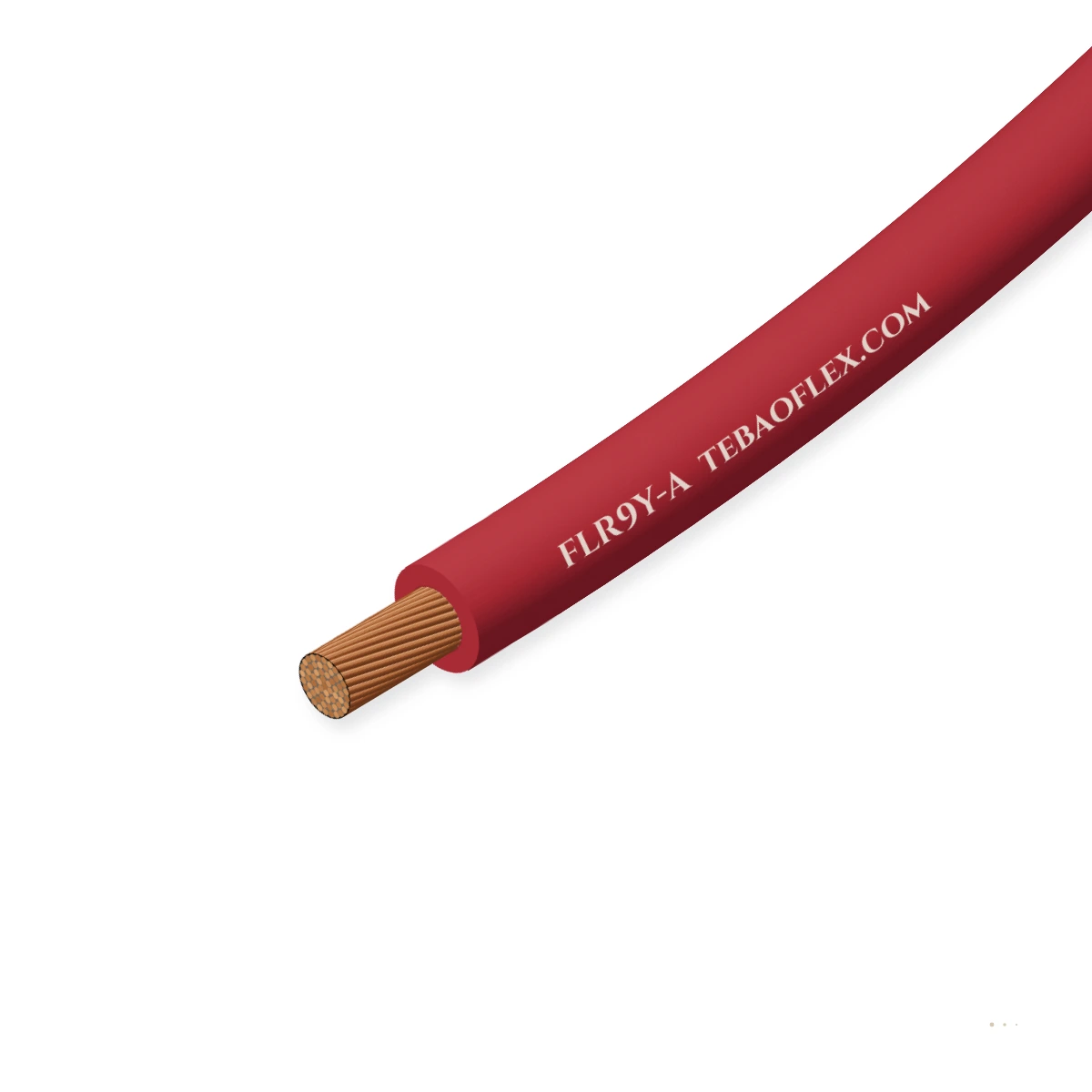

FLR9Y-A FLR9Y Automotive Wire60 V DC ISO 6722-1 Class C (-40 to +125 °C) polypropylene (9Y / PP) ultra-lightweight halo

FLR9Y-A is an ISO 6722-1 Class C (-40 °C to +125 °C) halogen-free reduced-wall automotive primary wire insulated with impact-modified polypropylene copolymer ('9Y' = PP). Boasting the lowest insulation density of any automotive polymer (≈0.91–0.98 g/cm³ vs 1.3

Class C +125 °C Halogen-Free PP (9Y)
High Needle-Scrape Resistance
ISO 6722-1 / LV 112
Order designation
FLR9Y-A 0.50 mm²
Max. OD
1.55 mm
Copper mass
4.8 kg/km
Total mass ≈
5.9 kg/km
Min. bend R
6.2 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
60 V DC / 25 V A
ISO 6722-1 vehicle primary
Thermal class
Class C (+125 °C
-40 °C to +125 °C (3000 h)
Insulation
Polypropylene 9Y
Halogen-free thermoplastic polyolefin
Polymer density
≈0.95 g/cm³
~30 % lighter wall than PVC
Size range
0.13 to 2.50 mm²
Type A concentric (and extra-thin)
Min. bend radius
4 × wire OD
Lightweight cockpit & door looms

Typical values for this cable type, based on ISO 6722-1 Class C / DIN 72551 / LV 112 — confirmed in the datasheet and quotation for your order.

Application fit

Is FLR9Y-A right for your machine?

Specified for weight-critical EV and passenger-car cockpit harnesses, roof and door modules, high-density ECU signal looms and halogen-free cabin wiring requiring Class C (+125 °C) rating without cross-linking.

Fixed installation

Suitable

Reduces insulation mass by ~25–30 % vs PVC while meeting Class C (+125 °C) and high scrape standards.

Switchgear & control cabinet wiring

Suitable

Hard, low-friction PP wall inserts cleanly through micro-connector mat seals without buckling.

Free-hanging vertical run

With conditions

PP has higher flexural modulus than PVC; for cold flexing door boots prefer FLRYK or FLR2X-B.

FLRYK cold-flex wire

Motor stator, traction & converter leads

Not suitable

Thermoplastic PP softens above +160 °C; for high short-circuit overload use thermoset FLR2X.

FLR2X thermoset XLPE
Typical machinesEV lightweight cabin harnessesCockpit & instrument-panel loomsHigh-density ECU signal trunksRoof, console & body electronicsHalogen-free bus & rail interiors

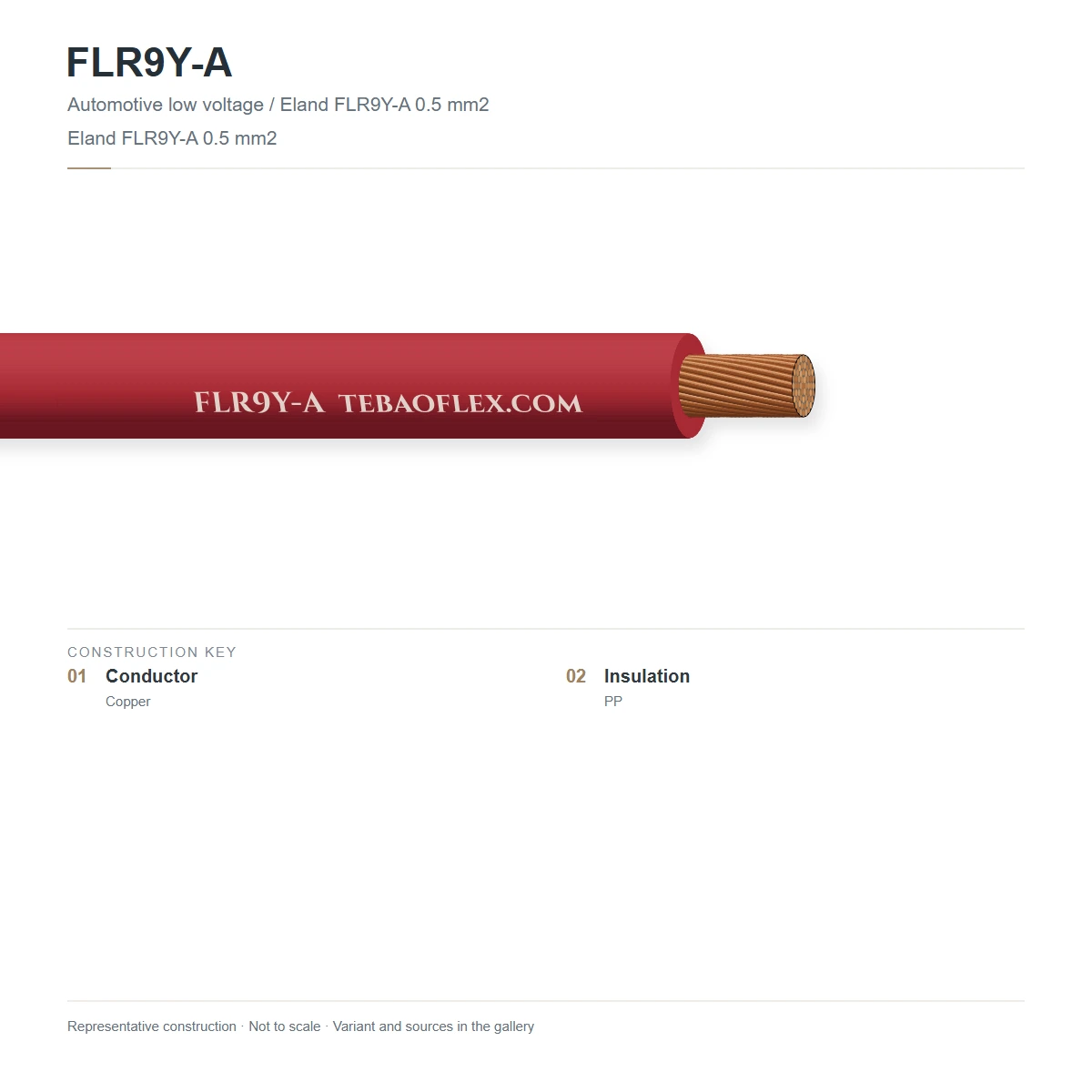

Construction

Layer by layer

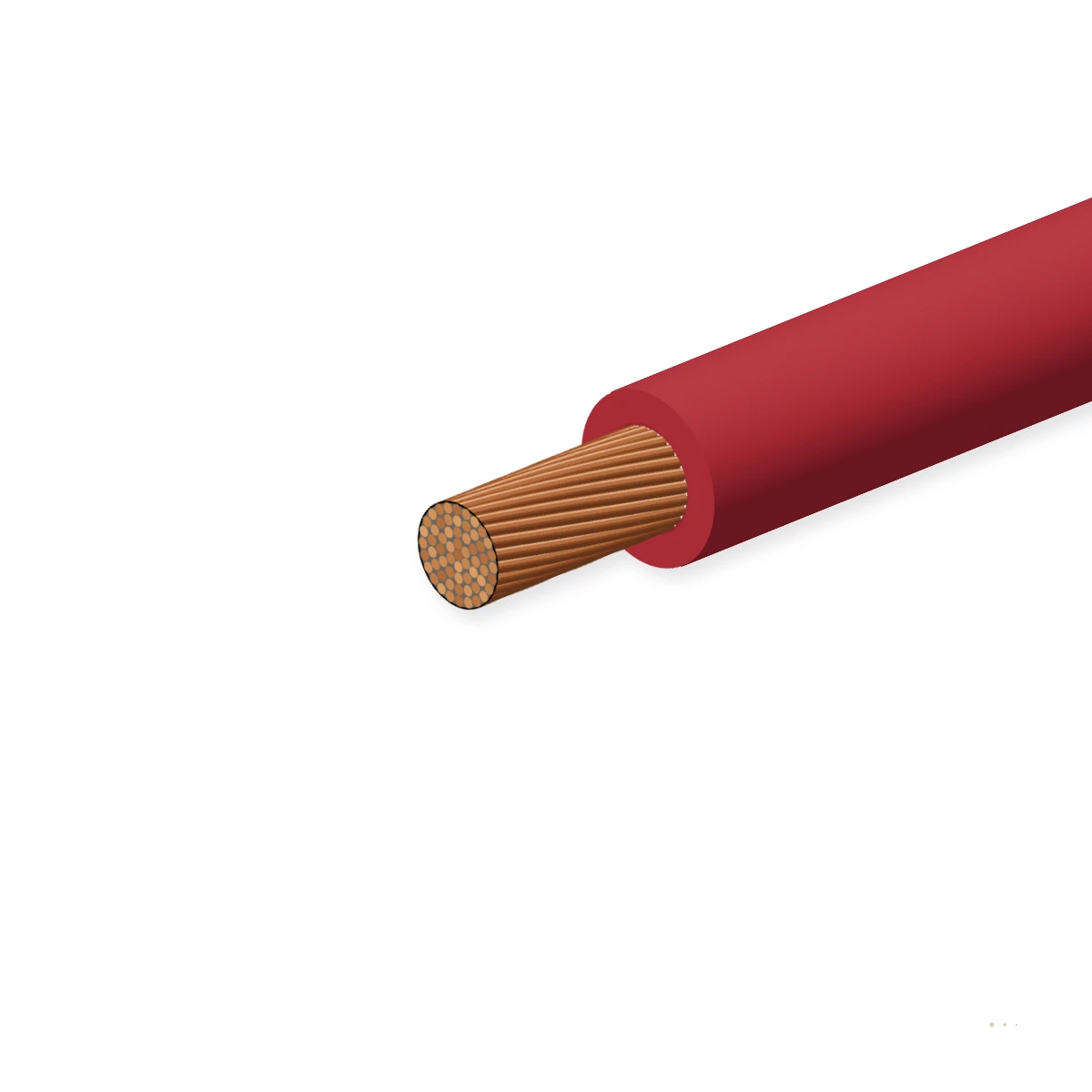

Symmetrical concentric bare copper (Cu-ETP1, Type A) + reduced-wall flame-retardant impact-modified polypropylene copolymer (9Y / PP, -40 to +125 °C, halogen-free).

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Cu-ETP1 concentric copper (Type A)7- or 19-strand symmetrical concentric soft annealed copper per ISO 6722-1ISO 6722-1
2Polypropylene copolymer (9Y / PP)Halogen-free flame-retardant elastified polypropylene compound (-40 °C to +125 °C, low density <1.0 g/cm³)DIN 72551
3Hard low-friction PP outer surfaceScrape-resistant unplasticized polyolefin surface with base colour and tracer stripesISO 6722-1

FLR9Y-A Reduced Wall (0.22–2.50 mm²)

Concentric copper conductor with standard FLR polypropylene wall (0.20–0.28 mm) for Class C halogen-free harnesses.

FLR9Yd-A Extra-Thin Wall (0.13–0.50 mm²)

Concentric or CuSn alloy conductor with 0.16 mm min. extra-thin polypropylene wall for micro-connectors.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ISO 6722-1 Class C / DIN 72551 / LV 112. Values for your order are confirmed in the datasheet and quotation.

Electrical

Nominal voltage
60 V DC / 25 V AC
Wet dielectric test
3.0 kV AC rms for 5 min (≥0.5 mm²) · 1.0 kV (<0.5 mm²)
In-line spark test
5.0 kV AC rms (≥0.5 mm²)

Thermal

Thermal class
ISO 6722-1 Class C: -40 °C to +125 °C (3000 h)
Short-term heat & melt point
240 h at +150 °C · PP crystalline melting point ≈ +160–165 °C
Cold winding test
-40 °C for 4 hours without cracking

Mechanical

Min. wall thickness
0.20 mm (0.22–0.5 mm²) · 0.24 mm (0.75–1.5 mm²) · 0.28 mm (2.5 mm²)
Needle scrape abrasion
High Shore hardness exceeds PVC FLRY scrape cycles by 2–4×

Resistance

Halogen & plasticiser content
100 % halogen-free and plasticiser-free (zero windshield fogging)
Chemical resistance
Resists battery acid, coolant, brake fluid, washer fluid & alkalis

Reference standards

Reference standards
ISO 6722-1 Class C, DIN 72551 & VDA LV 112
Environmental compliance
Halogen-free, recyclable thermoplastic, RoHS 3 & ELV compliant

Identification

Code breakdown
FL = automotive · R = reduced wall · 9Y = polypropylene (PP) · -A = concentric
Colour code
DIN 72551 base colours + tracer stripes

Sizes

8 standard sizes (FLR9Y-A)

Nominal dimensions, wall thickness, copper mass and electrical parameters for FLR9Y-A per ISO 6722-1 Class C / DIN 72551 / LV 112.

Dimensions & masses
DesignationType & Size mm²Strands × Ø / Wall mmMax. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
FLR9Y-A size range
FLR9Y-A 0.13 mm²0.13 mm² Type A7×0.16 · 0.20 mm0.951.21.83.8
FLR9Y-A 0.22 mm²0.22 mm² Type A7×0.21 · 0.20 mm1.152.12.84.6
FLR9Y-A 0.35 mm²0.35 mm² Type A7×0.26 · 0.20 mm1.303.34.15.2
FLR9Y-A 0.50 mm²0.50 mm² Type A19×0.19 · 0.22 mm1.554.85.96.2
FLR9Y-A 0.75 mm²0.75 mm² Type A19×0.23 · 0.24 mm1.857.28.67.4
FLR9Y-A 1.00 mm²1.00 mm² Type A19×0.26 · 0.24 mm2.059.611.28.2
FLR9Y-A 1.50 mm²1.50 mm² Type A19×0.32 · 0.24 mm2.3514.416.39.4
FLR9Y-A 2.50 mm²2.50 mm² Type A19×0.41 · 0.28 mm2.9524.026.811.8
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and maximum overall diameters conform to ISO 6722-1 Class C / DIN 72551 / LV 112.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.0–5.0 kV AC spark test & DC conductor resistanceZero breakdown; resistance per ISO 6722-1100 % of spools
Sample tests
Needle scrape abrasion & -40 °C cold mandrel windingExceeds Class C scrape requirements; zero cold cracksEvery lot
3000-hour +125 °C thermal ageing & zero-fogging checkCertified to ISO 6722-1 Class C & LV 112Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

ISO 6722-1 Class C (+125 °C)DIN 72551 (9Y Polypropylene)VDA LV 112 Halogen-FreeRoHS 3 & ELV Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX FLR9Y-A [size]mm2 PP HALOGEN-FREE 125C ISO 6722-1 [lot/spool]
Delivery form
Non-returnable plastic spools, barrel packs or wooden drums
Standard spool lengths
500 m · 1000 m · 2000 m spools (or barrel packs)
MOQ
500 m (stock colours) · 2000 m (striped/custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFFLR9Y-A FLR9Y Automotive Wire – technical datasheet8 sizes · construction, technical data, approvalsXLSXFLR9Y-A spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does '9Y' stand for in DIN 72551 and VDA LV 112?
'9Y' is the DIN VDE 0207 / DIN 72551 material code for polypropylene (PP) thermoplastic insulation.
What are the main advantages of FLR9Y-A over PVC FLRY and cross-linked FLR2X?
Compared with PVC (FLRY/FLRYW), FLR9Y-A is 100 % halogen-free, contains zero volatile plasticisers (eliminating cockpit windshield fogging), has 25–30 % lower insulation density and offers much higher needle-scrape resistance. Compared with FLR2X (XLPE), FLR9Y-A requires no electron-beam or silane cross-linking step and is a fully recyclable thermoplastic.
Why is FLR9Y-A favoured for ultra-thin 0.13–0.35 mm² micro-connector wires?
Polypropylene has high column stiffness and a hard, slick surface that allows fine 0.13–0.35 mm² wires to be pushed through tight silicone mat seals without kinking, while resisting terminal-lance cut-through.
Where should FLR2X still be chosen over FLR9Y-A?
In high-current engine-bay power circuits where a short-circuit fault could briefly heat the conductor above +165 °C (the crystalline melting point of polypropylene), thermoset cross-linked FLR2X prevents insulation melt-through.
